Acura TLX 2017 Navigation Manual

270
uuAcuraLink ®u Operator Assistance
AcuraLink® Messages
Operator Assistance
Connect to the AcuraLink ® operator when trying to find a destination or for
roadside assistance.
1.Press the LINK button.
u Connection to the operator
begins.
2. Talk to the operator.
u To disconnect, rotate to
select Hang Up , select End
Call on the On Demand Multi-
Use Display
TM, or press the
(Hang-up/back) button
on the steering wheel.
1 Operator Assistance
Remain attentive to road conditions and driving
during operator assistance.
LINK Button
16 ACURA TLX NAVI-31TZ38100.book 270 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

271
uuAcuraLink ®u AcuraLink ® Message
Continued
AcuraLink® Messages
AcuraLink® Message
AcuraLink ® sends you messages on
vehicle features, sa fety and emissions
recall campaigns, maintenance
reminders, and diagnostic
information.
When you receive a new message, an
icon appears on the upper right
corner of the navigation screen.
There are six message categories.
• Feature Guide : Messages about your vehicle and its features are sent daily for
the first 90 days.
• Quick Tips : Supplements your Owner’s Manual with updated vehicle
information.
• Diagnostic Info: Appears when a warning indi cator or message comes on.
Rotate to select Check Later or Check Now.
u Selecting Check Now lets you know if yo u should see a dealer immediately or
later in accordance with the warning severity level.
• Scheduled Dealer Appointment : An appointment made through the Acura
server or Acura Owners website can be rescheduled or canceled from this option.
2Dealer Appointments (U.S. only) P. 274
•Maintenance Minder : Lets you know which maintenance item is due along
with a reminder message.
1 AcuraLink ® Message
Messages may not appear immediately after your
vehicle purchase. It can ta ke several days for your
dealer to register your vehicle’s ID.
If an icon includes an excl amation point, it indicates
that Acura gives high priority to this message
compared to the one without.
•: An unread message with high priority
•: An unread message
Message Icon
■ Message Category1
Message Category
The types of messages you receive can be modified.
Ask a dealer or visit owners.acura.com (U.S.) or
www.acura.ca/owners/acuralink (Canada).
You can call your dealer, find the nearest dealer, or
schedule appointments from the message options in
Maintenance Minder, Re calls/Campaigns, and
Diagnostic Info. 2 Message Options P. 273
16 ACURA TLX NAVI-31TZ38100.book 271 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

uuAcuraLink ®u AcuraLink ® Message
272
AcuraLink® Messages
•Recalls/Campaigns : Reminds you of a recall or important safety information.
You should also be notified by mail.
1.Press the INFO button, rotate
to select AcuraLink/Messages ,
then press .
u If your display has changed
from Info menu to Current
Drive, press the MENU button.
u Select AcuraLink messages .
2. Rotate to select a category,
then press .
u If there are unread messages in
a category, a message icon
appears next to that category.
3. Rotate to select a message
you want to read, then press .
■Reading a Message1
Reading a Message
If there is no message listed on the menu,
AcuraLink/Messages is grayed out and cannot be
selected.
The message icon disappears once you read the
message.
However, the exclamation mark that indicates that
the message has a high priority remains.
•: A read message with high priority.
16 ACURA TLX NAVI-31TZ38100.book 272 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

Continued273
uuAcuraLink ®u AcuraLink ® Message
AcuraLink® Messages

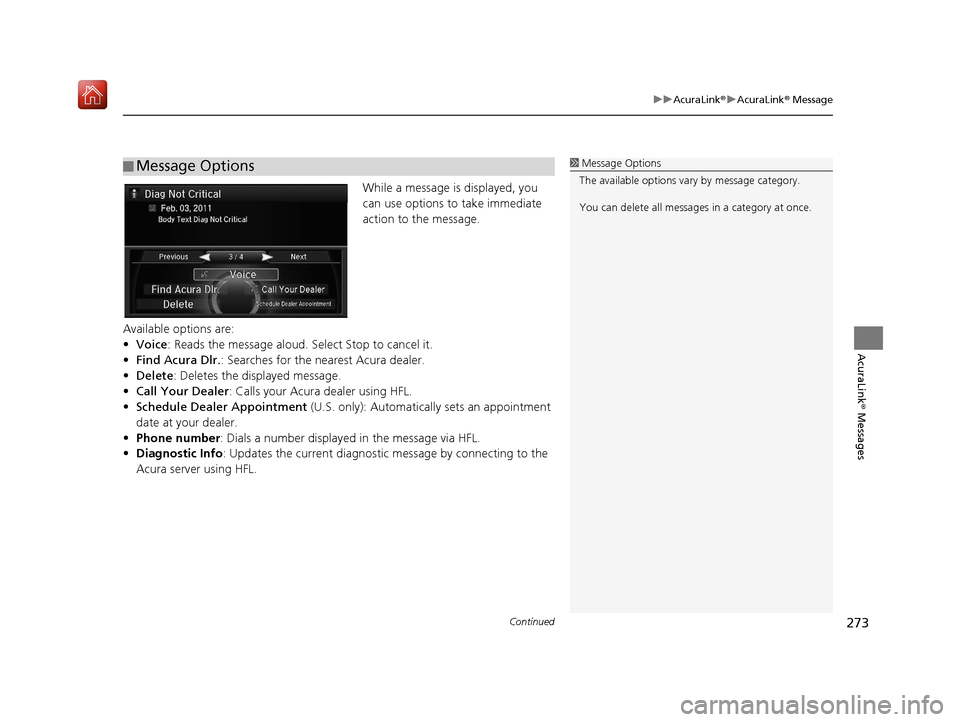

While a message is displayed, you
can use options to take immediate
action to the message.
Available options are:
• Voice : Reads the message aloud. Select Stop to cancel it.
• Find Acura Dlr. : Searches for the nearest Acura dealer.
• Delete: Deletes the displayed message.
• Call Your Dealer: Calls your Acura dealer using HFL.
• Schedule Dealer Appointment (U.S. only): Automatically sets an appointment
date at your dealer.
• Phone number : Dials a number displaye d in the message via HFL.
• Diagnostic Info: Updates the current diagnostic message by connecting to the
Acura server using HFL.
■Message Options1
Message Options
The available options vary by message category.
You can delete all message s in a category at once.
16 ACURA TLX NAVI-31TZ38100.book 273 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

uuAcuraLink ®u AcuraLink ® Message
274
AcuraLink® Messages
You can confirm the scheduled appointment date when you receive a
Maintenance Minder or Recalls/Campaigns message, or reschedule any existing
appointments.
1.Select a Maintenance Minder ,
Recalls/Campaigns , or
Scheduled Dealer Appointment
message.
2. Rotate to select Scheduled
Dealer Appointment or
Reschedule Appointment
(depending on the screen). Press .
u A suggested time and date are
displayed.
3. Rotate to select Confirm
Appointment . Press to accept
the time and date.
4. Press to select OK.
■Dealer Appointments (U.S. only)1
Dealer Appointments (U.S. only)
To set up an automated de aler appointment when a
regular maintenance is due , visit the Acura Owners
website at owners.acura.com (U.S.) or
www.acura.ca/owners/acuralink (Canada) and set
the required option. A remi nder message will be sent
as the date for the dealer appointment approaches. A
reminder message will also be sent if you schedule an
appointment online using the Schedule Service
Appointment function.
If you are not satisfied with the proposed
appointment date and time, ca ll your dealer directly.
To cancel the scheduled appointment, select Cancel
Appointment when a message is displayed.
16 ACURA TLX NAVI-31TZ38100.book 274 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

275
uuAcuraLink ®u AcuraLink ® Subscription Status
AcuraLink® Messages
AcuraLink® Subscription Status
H SETTINGS button uInfo Settings uAcuraLink Subscription Status
Confirm your AcuraLink ®
subscription status.
Signal strength
Item Information
You can check the signal strength.
Current Contract The AcuraLink ® subscription number and subscription level is
displayed.
ServiceYou can confirm the type of service.
Subscription You can confirm the expiration date.
StatusThe following message can be displayed:●Check Antenna: There is a problem with the AcuraLink ®
antenna. Contact a dealer.
●No data: The signal is received, but the system cannot receive
traffic data.
●OK: The system is receiving the signal or traffic data.
16 ACURA TLX NAVI-31TZ38100.book 275 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

276
16 ACURA TLX NAVI-31TZ38100.book 276 ページ ２０１５年７月２９日　水曜日　午後４時１１分

277
Other Features
This section describes the useful functions incorporated into the navigation system.
Trip Computer....................................... 278
Calendar ................................................ 279
Information Functions .......................... 280
System Device Information ................... 280
Map Data Update ................................ 280
Info Screen Preference ......................... 281
16 ACURA TLX NAVI-31TZ38100.book 277 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

278
Other Features
Trip Computer
HINFO button uTrip Computer
View the distance traveled and average fuel consumption. Move or to select the trip
information.
The following items are available:
• Current Drive : Displays the current trip information.
• History of Trip A : Displays information for th ree previous histories. The
information is stored every time you reset Trip A.
• Delete History : Deletes the trip information. Move on the Trip A screen to
select Delete History , then press . You will receiv e a confirmation message on
the screen. Rotate to select Yes, then press .1Trip Computer
Displays the following trip information:
•Instant Fuel : The current estimated instant fuel
economy.
•Average Fuel: The average fuel economy since
the last key cycle.
•1st, 2nd, 3rd Prev. : The previous average fuel
consumption.
•RANGE : The estimated distan ce you can travel on
the fuel remaining in the tank.
These values are estimates only.
16 ACURA TLX NAVI-31TZ38100.book 278 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

279
Other Features

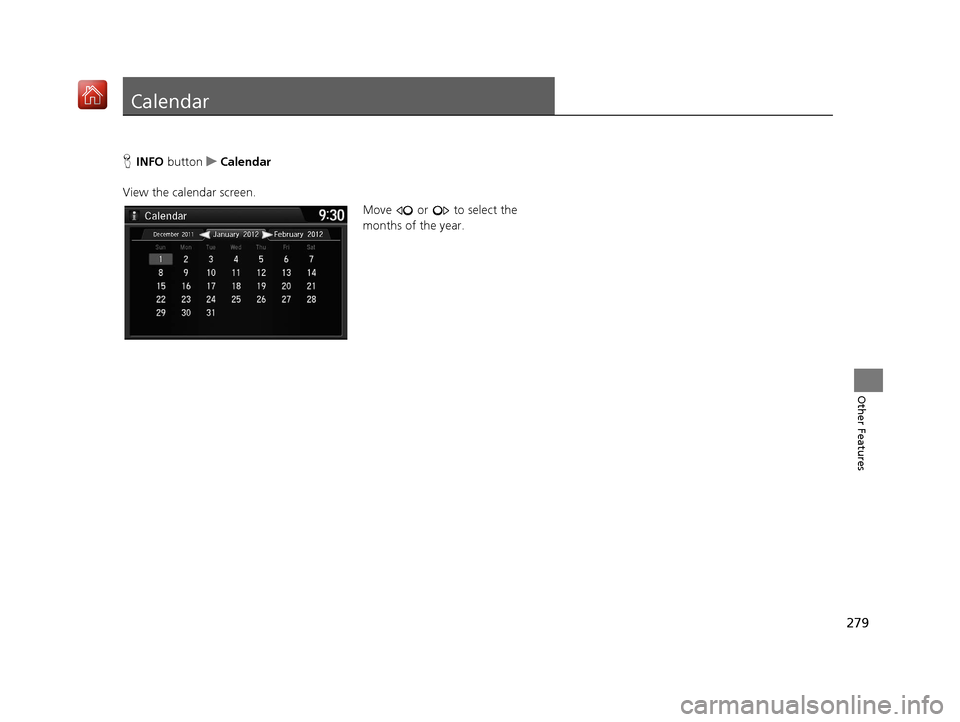

Calendar
HINFO button uCalendar
View the calendar screen. Move or to select the
months of the year.
