413
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too hot.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
* Not available on all models
17 ACURA TLX-31TZ36200.book 413 ページ ２０１６年６月１０日　金曜日　午後６時３９分

414
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a cu rved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicl e and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands or raised or they
are running.
• When several pedestrians are walking ahead in a group.
• When the lead vehicle suddenly slows down.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
17 ACURA TLX-31TZ36200.book 414 ページ ２０１６年６月１０日　金曜日　午後６時３９分

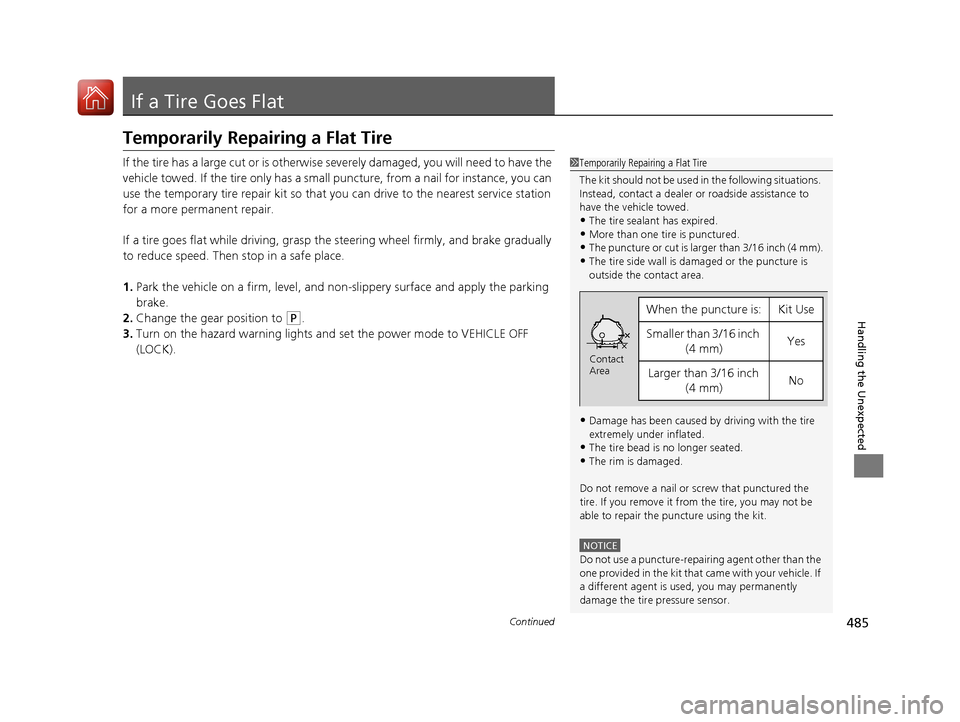

485Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
17 ACURA TLX-31TZ36200.book 485 ページ ２０１６年６月１０日　金曜日　午後６時３９分

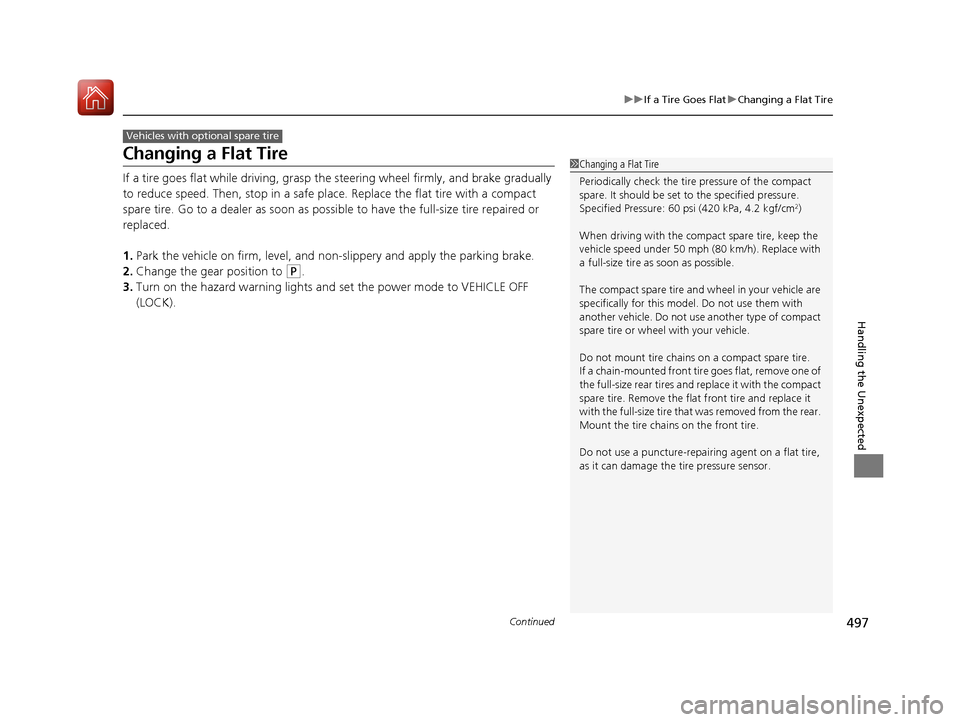

497
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and no n-slippery and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with optional spare tire
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
17 ACURA TLX-31TZ36200.book 497 ページ ２０１６年６月１０日　金曜日　午後６時３９分

Index
542
Index
Index
A
AAC.................................................... 232, 242
ABS (Anti-lock Brake System) ................... 406
Accessories and Modifications ................. 481
Accessory Power Sockets .......................... 192
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 89, 353
Additives
Coolant ................................................... 449
Engine Oil ................................................ 443
Washer .................................................... 452
Additives, Engine Oil ................................ 443
Adjusting Armrest ................................................... 185
Front Seats .............................................. 179
Head Restraints........................................ 181
Mirrors .................................................... 177
Steering Wheel ........................................ 176
Temperature ............................................ 123
Agile Handling Assist ................................ 392
Aha
TM Menu .............................................. 241
AhaTM Radio .............................................. 252
Air Conditioning System (Climate Control System) .................................................... 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter ............................... 475
Sensors .................................................... 206
Synchronized Mode ................................. 202
Using Automatic Climate Control ............ 198 Air Pressure
....................................... 463, 531
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care............................................... 53
Driver’s Knee Airbag.................................. 46
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 51, 80
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 39
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio ............................................ 225
Anti-lock Brake System (ABS) .................. 406
Indicator.................................................... 79
Armrest ..................................................... 185
Audio Remote Controls ........................... 211
Audio System ............................................ 208
Adjusting the Sound................................ 223
Auxiliary Input Jack.................................. 209
Error Messages ........................................ 248
General Information ................................ 253
Internet Radio ......................................... 239
iPhone............................................. 239, 256
iPod ........................................................ 235
MP3/WMA/AAC .............................. 232, 242
Reactivating ............................................ 210
Recommended CDs ................................. 254
Recommended Devices............................ 256
Remote Controls ..................................... 211
Security Code .......................................... 210 Shortcuts ................................................ 214
Theft Protection ...................................... 210
USB Flash Drives...................................... 256
USB Port ................................................. 209
Audio/Information Screen ....................... 219
Authorized Manuals ................................ 539
Auto Door Locking/Unlocking ................ 151
Customize ...................................... 132, 268
Auto Idle Stop .......................................... 342
OFF Button ............................................. 342
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 404
Indicator ........................................... 72, 404
Automatic Brake Hold System Indicator ........................................... 72, 404
Automatic Lighting .................................. 166
Automatic Transmission .......................... 330
Creeping................................................. 330
Kickdown ............................................... 330
Operating the Shift Button ................ 18, 332
Shifting ................................................... 331
Auxiliary Input Jack ................................. 209
Average Fuel Economy ............................ 123
Average Speed ......................................... 124
B
Battery
Charging (Battery)........................... 471, 472
17 ACURA TLX-31TZ36200.book 542 ページ ２０１６年６月１０日　金曜日　午後６時３９分

543
Index
Charging System Indicator ................ 74, 514
Jump Starting ......................................... 507
Maintenance (Checking the Battery) ....... 471
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 191
Blind Spot Information (BSI) System ....... 393
Bluetooth ® Audio ..................................... 245
Bluetooth ® HandsFreeLink ®.................... 278
Booster Seats (For Children) ...................... 65
Brake System ............................................ 400
Anti-lock Brake System (ABS) .................. 406
Automatic Brake Hold ............................. 404
Brake Assist System................................. 407
Fluid ....................................................... 452
Foot Brake .............................................. 403
Parking Brake.......................................... 400
Brake System (Amber)
Indicator ................................................... 73
Brake System (Red)
Indicator ........................................... 70, 515
Brightness Control (Instrument Panel) ... 172
BSI (Blind Spot Information) System ....... 393
Bulb Replacement .................................... 453
Back-Up Lights ........................................ 458
Brake/Taillights........................................ 457
Brake/Taillights and Rear Side Marker
Lights .................................................... 457
Fog Lights ............................................... 453
Front Side Marker/Parking Lights ............. 453
Front Turn Signal Lights .......................... 454
Headlights .............................................. 453 High-Mount Brake Light .......................... 459
Puddle Lights ........................................... 459
Rear License Plate Lights .......................... 459
Rear Turn Signal Lights ............................ 456
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 453
Bulb Specifications ................................... 530
C
Car Wash Mode........................................ 334
Carbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 317, 319
CD Player ................................................... 232
Center Pocket ........................................... 190
Certification Label .................................... 532
Changing Bulbs ......................................... 453
Charging System Indicator ................. 74, 514
Child Safety ................................................. 54
Childproof Door Locks ............................. 150
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 150 Cleaning the Exterior
............................... 478
Cleaning the Interior ................................ 476
Client Service Information ....................... 540
Climate Control System ............................ 198
Changing the Mode ................................ 201
Defrosting the Windshield and Windows ............................................... 205
Dust and Pollen Filter............................... 475
Sensors ................................................... 206
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 198
Clock .......................................................... 138
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 408
Coat Hooks ............................................... 193
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 408
Compact Spare Tire (Optional) ........ 497, 531
Compass .................................................... 312
Console Compartment ............................. 189
Controls ..................................................... 137
Coolant (Engine) ...................................... 449
Adding to the Radiator ............................ 450
Adding to the Reserve Tank..................... 449
Overheating ............................................ 512
Creeping (Automatic Transmission) ........ 330
Creeping (Dual Clutch Transmission) ...... 330
Cross Traffic Monitor ............................... 423
Cruise Control ........................................... 348
Indicator.................................................... 84
Cup Holders .............................................. 191
17 ACURA TLX-31TZ36200.book 543 ページ ２０１６年６月１０日　金曜日　午後６時３９分

545
Index
Brake ...................................................... 452
Dual Clutch Transmission ........................ 451
Engine Coolant ....................................... 449
Windshield Washer ................................. 452
Fog Lights ................................................. 168
Foot Brake ................................................ 403
Forward Collision Warning (FCW) with Pedestrian Detection ............................. 367
Front Airbags (SRS) .................................... 42
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 179
Adjusting ................................................ 179
Front Sensor Camera ............................... 351
Fuel ..................................................... 21, 427
Economy................................................. 430
Gauge .................................................... 117
Instant Fuel Economy .............................. 124
Low Fuel Indicator..................................... 79
Range ..................................................... 124
Recommendation............................ 427, 530
Refueling ................................................ 427
Fuel Economy ........................................... 430
Fuel Fill Door ...................................... 21, 428
Fuses ......................................................... 520
Inspecting and Changing ........................ 524
Locations ........................ 520, 521, 522, 523
G
Gasoline (Fuel)
Economy................................................. 430 Gauge ..................................................... 117
Information ............................................. 427
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 79
Refueling ................................................. 427
Gauges ...................................................... 117
Gear Position Indicator ...................... 75, 332
Gear Shift Lever Positions
Dual Clutch Transmission ......................... 338
Gear Shift Positions Automatic Transmission ........................... 331
Glass (care) ........................................ 477, 479
Glove Box .................................................. 188
H
Handling the Unexpected ........................ 483
HandsFreeLink ® (HFL) ............................... 278
Auto Answer ........................................... 293
Automatic Import of Cellular Phonebook
and Call History ..................................... 295
Automatic Transferring ............................ 293
Displaying Messages ................................ 308
HFL Buttons ............................................. 278
HFL Menus .............................................. 280
HFL Status Display ................................... 279
Limitations for Manua l Operation ............ 279
Making a Call .......................................... 299
Options During a Call .............................. 305
Phone Setup ............................................ 285
Receiving a Call ....................................... 304 Receiving a Text/E-mail Message.............. 306
Ring Tone................................................ 294
Selecting a Mail Account ......................... 307
Speed Dial ............................................... 296
To Create a Security PIN .......................... 292
To Set Up a Text/E-mail Message
Option................................................... 290
Use Contact Photo .................................. 294
Hazard Warning Button .............................. 4
Head Restraints ........................................ 181
Headlight Washers ................................... 171
Headlights ................................................. 165
Aiming .................................................... 453
Automatic Operation............................... 166
Dimming ......................................... 165, 168
Operating................................................ 165
Heated Steering Wheel ............................ 195
Heaters (Seat) ................................... 196, 197
HFL (HandsFreeLink ®)............................... 278
High Beam Indicator .................................. 83
Hill Start Assist System ............................. 328
HomeLink ® Universal Transceiver ............ 275
I
Identification Numbers ............................ 532
Vehicle Identification Number (VIN), Engine
Number and Transmission Number ........ 532
Illumination Control ................................. 172
Immobilizer System .................................. 155
Indicator.................................................... 83
17 ACURA TLX-31TZ36200.book 545 ページ ２０１６年６月１０日　金曜日　午後６時３９分

548
Index
Parking Brake............................................ 400
Parking Sensor System .............................. 419
Passenger Airbag Off Indicator ................. 52
Passing Indicators ..................................... 165
Power Windows ........................................ 158
Precautions While Driving ........................ 329
Rain ......................................................... 329
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 485
R
Radiator..................................................... 450
Radio (AM/FM) .......................................... 225
Radio (SiriusXM ®)...................................... 229
Radio Data System (RDS) .......................... 227
Range ........................................................ 124
RDS (Radio Data System) .......................... 227
Readiness Codes (Emissions Testing) ....... 535
Rear Defogger/Heated Door Mirror Button ...................................................... 173
Rear Seats .................................................. 184
Seat Heaters ............................................ 197
Rearview Mirror ........................................ 177
Refueling ................................................... 427
Fuel Gauge .............................................. 117
Gasoline .......................................... 427, 530
Low Fuel Indicator ..................................... 79
Regulations ............................... 398, 465, 533
Remote Engine Start with Vehicle
Feedback ................................................. 325 Remote Transmitter
................................. 145
Maintenance (Replacing) ......................... 473
Replacement Battery ............................................ 473, 474
Bulbs ....................................................... 453
Fuses ............................... 520, 521, 522, 523
Tires ........................................................ 468
Wiper Blade Rubber ................................ 460
Reporting Safety Defects ......................... 534
Resetting a Trip Meter ............................. 123
Reverse Tilt Door Mirror .......................... 178
Right Selector Wheel ............... 119, 120, 126
Road Departure Mitigation (RDM) ......... 377
On and Off.............................................. 379
S
Safe Driving ................................................ 27
Safety Labels ............................................... 67
Safety Message ............................................. 1
Seat Belts .................................................... 32
Adjusting the Shoulder Anchor.................. 36
Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
e-pretensioners ......................................... 34
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Pregnant Women ...................................... 37
Reminder ............................................ 33, 78
Warning Indicator ............................... 33, 78 Seat Heaters
..................................... 196, 197
Seats .......................................................... 179
Adjusting ................................................ 179
Driver’s Seat Lumbar Support .................. 179
Front Seats.............................................. 179
Rear Seats ............................................... 184
Seat Heaters ................................... 196, 197
Seat Ventilation ...................................... 196
Security System ........................................ 155
Immobilizer System Indicator..................... 83
Security System Alarm Indicator ................ 84
Select Button ............................................ 331
Operation ............................................... 332
Select Lever ........................................ 20, 338
Operation ......................................... 20, 339
Releasing ................................................ 511
Won’t Move ........................................... 511
Selecting a Child Seat ................................ 58
Sequential Mode ...................................... 336
Sequential Mode Operation ................... 337
Sequential Shift Mode ............................. 340
Sequential Shift Mode Operation ........... 341
Setting the Clock ...................................... 138
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 395
SH-AWD ® Torque Distribution
Monitor ................................................... 125
Shift Button ........................................ 18, 331
Shift Lever .......................................... 20, 338
Shift Lever Position Indicator .................. 339
Shifting (Transmission) ........ 18, 20, 331, 338
17 ACURA TLX-31TZ36200.book 548 ページ ２０１６年６月１０日　金曜日　午後６時３９分

549
Index
Shoulder Anchor........................................ 36
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ....................................... 229
Snow Tires ................................................ 470
Spare Tire (Optional) ....................... 497, 531
Spark Plugs ............................................... 530
Specifications ........................................... 530
Specified Fuel ................................... 427, 530
SPORT (Sport mode) Indicator .................. 88
Sport Mode .............................................. 346
Sport+ Mode ............................................ 346
SRS Airbags (Airbags) ................................ 42
Starting Assist Brake Function ................ 345
Starting the Engine .................................. 322
Does Not Start ........................................ 504
Engine Switch Buzzer .............................. 163
Jump Starting ......................................... 507
Remote Engine Start ............................... 325
Steering Wheel ........................................ 176
Adjusting ................................................ 176
Stopping ................................................... 417
Summer Tires ............................................ 470
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 395
Indicator ................................................... 91
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering
Wheel) ............................................ 4, 5, 161
System Message Indicator ......................... 82
T
Temperature Gauge................................. 117
Temperature Sensor ................................. 206
Temporary Tire Repair Kit ........................ 486
Text Message .................................... 306, 308
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 396, 518
Tire Pressure Monitoring System
(TPMS) ..................................................... 396
Indicator ............................................ 82, 518
Tire Fill Assist ................................... 396, 518
Tires ........................................................... 462
Air Pressure ..................................... 463, 531
Chains ..................................................... 470
Checking and Maintaining ....................... 462
Flat Tire (Puncture) ................................... 485
Inspection ................................................ 462
Labeling .................................................. 463
Puncture (Flat Tire) ........................... 485, 497
Regulations ............................................. 465
Rotation .................................................. 469
Spare (Optional) .............................. 497, 531
Summer .................................................. 470
Temporary Tire Repair Kit ........................ 486
Wear Indicators ....................................... 467
Winter ..................................................... 470
Tools .......................................................... 484
Towing a Trailer ....................................... 321
Towing Your Vehicle ................................ 321
Emergency .............................................. 525 TPMS (Tire Pressure Monitoring
System) .................................................... 396
Transmission ......................... 18, 20, 331, 338
Automatic ................................. 18, 330, 331
Dual Clutch ............................... 20, 330, 338
Fluid ........................................................ 451
Gear Position Indicator ...................... 75, 332
Number................................................... 532
Sequential Mode ..................................... 336
Sequential Shift Mode ............................. 340
Shift Lever Position Indicator.................... 339
TRIP Button ....................................... 121, 122
Trip Meter ................................................. 123
Troubleshooting ....................................... 483
Blown Fuse...................... 520, 521, 522, 523
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 525
Engine Won’t Start .................................. 504
Flat Tire/Puncture .................................... 485
Noise When Braking .................................. 26
Overheating ............................................ 512
Premium Gasoline ........................... 427, 530
Puncture/Flat Tire ............................ 485, 497
Rear Door Won’t Open...................... 24, 150
Select Lever Won’t Move ......................... 511
Warning Indicators .................................... 70
17 ACURA TLX-31TZ36200.book 549 ページ ２０１６年６月１０日　金曜日　午後６時３９分
