Auto idle engine Acura TLX 2019 Owner's Manual

9
Quick Reference Guide
Auto Idle Stop Function*
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P382)
At Automatic transmissionEngine status
Deceleration
Stop
Start-up
Stop the vehicle and depress the brake pedal.On
Keep the brake pedal
depressed.With the automatic brake hold system activated,
you can release the brake pedal when the
indicator comes on.
U.S.Canada
Off
Release the brake pedal. With the automatic brake hold system activated,
depress the accelerator pedal.Restarting
* Not available on all models
19 ACURA TLX-31TZ36400.book 9 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)*
●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop* P. 382—
Auto Idle Stop
System Indicator
(Amber)
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
——
●Comes on when Auto Idle Stop
System has been turned off by Auto
Idle Stop OFF Button.
2Auto Idle Stop System ON/OFF P. 383
●Blinks if there is a problem with the
Auto Idle Stop System.●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
19 ACURA TLX-31TZ36400.book 89 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 538
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appears sequentially.●Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 538
●Appears when the power mode is in ACCESSORY or
ON.2Starting the Engine P. 362
●Appears when the engine does not restart automatically
due to the following reason:
• The hood is open.
• There is a problem in the sy stem that disables Auto
Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 362●Close the hood.
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
Models with Auto Idle StopModels with Auto Idle Stop
Canadian models
19 ACURA TLX-31TZ36400.book 95 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

107
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you turn the Auto Idle Stop system on.
2 Auto Idle Stop* P. 382
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
2 Auto Idle Stop* P. 382
●Appears when Auto Idle Stop does not activate for
some reason.
●Appears when the engine restarts automatically.●Appears when the battery temperature is around 14°F
(−10°C) or lower.
●Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.
●Appears when Auto Idle Stop does not activate because
the engine coolant temperature is too low or high.
●Appears when Auto Idle Stop does not activate because
the battery charge level is low.
Models with Auto Idle Stop
* Not available on all models
19 ACURA TLX-31TZ36400.book 107 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.●Depress the brake pedal firmly.
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
●Appears when the system is under the following
conditions while Auto Idle Stop activates:
- The battery charge level is low.
- The battery temperature is around 14°F (−10°C) or
lower.
- The climate control system is in use, and the difference
between the set temperatur e and actual interior
temperature becomes significant.
- The humidity in the interior is high.
●The engine restarts automatically in a few seconds.
2 Starting the Engine P. 362
19 ACURA TLX-31TZ36400.book 108 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you attempt to put the transmission into
another gear position wi th the transmission in
(P and
the engine OFF.
●To select another gear position while in (P, the engine
must be ON.
●Appears when you try to chan ge the gear position after
the position has automatically been changed to
(P with
the driver’s door open and the driver’s seat belt
unfastened.
●Press the (P button If you leave the vehicle.
●Appears if you press the ENGINE START/STOP button
to turn the engine off wi thout the transmission in
(P.●Put the transmission into (P. The power mode changes
to VEHICLE OFF.
●Press the ENGINE START/STOP button twice after
putting the transmission into
(P.
●Appears when the engine stops without the
transmission in
(P, and does not restart automatically.●Appears if you open the hood while Auto Idle Stop
activates.
●If you want to set the power mode to ON, put the
transmission into
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 362
Models with electronic gear selector
U.S. models
Canadian models
Models with Auto Idle StopModels with Auto Idle Stop
19 ACURA TLX-31TZ36400.book 109 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

121
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Roll the right selector wheel to select Vehicle Settings and push the right selector wheel.
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Light Flash
Driver Assist System Setup
Meter Setup
Driving Position Setup
Keyless Access Setup
“Trip B” Reset Timing
Turn by Turn Display*
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Push
Push
Push
Lane Keeping Assist Suspend Beep
Blind Spot Info*
Remote Start System On/Off*
Seat Position Movement At Entry/Exit
Roll
Keyless Access Beep
Push
Roll
Push
Push
Roll
Roll
Roll
Roll
Roll
Roll
ACC Display Speed Unit
Road Departure Mitigation Setting
Walk Away Auto Lock
Auto Engine Idle Stop Guidance Screens*Reverse Alert Tone*
Roll
* Not available on all models
19 ACURA TLX-31TZ36400.book 121 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

124
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup Language Selection
Changes the displayed language. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~
±0°F
*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A. When Refueled
/IGN Off/
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, av
erage speed B, and elapsed
time B. When Refueled
/IGN Off/
Manually Reset*1
Reverse Alert Tone*Causes the beeper to sound once when the change the
gear position to
(R. On*1/
Off
Auto Engine Idle Stop
Guidance Screens
*Selects whether the Auto Idle Stop guidance screens
comes on. On
/Off*1
Turn by Turn Display*Selects whether the turn-b y-turn display comes on
during the route guidance. On*1/
Off
* Not available on all models
19 ACURA TLX-31TZ36400.book 124 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

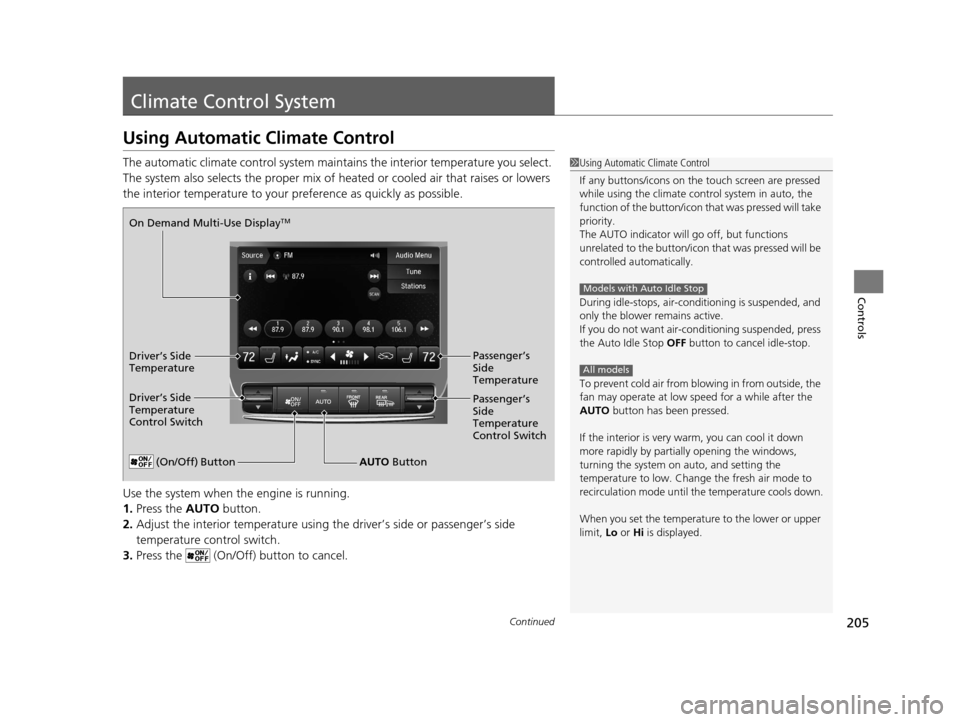

205Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control switch.
3. Press the (On/Off) button to cancel.1Using Automatic Climate Control
If any buttons/icons on the touch screen are pressed
while using the climate control system in auto, the
function of the button/icon th at was pressed will take
priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon that was pressed will be
controlled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains active.
If you do not want air-cond itioning suspended, press
the Auto Idle Stop OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may operate at low speed for a while after the
AUTO button has been pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Models with Auto Idle Stop
All models
(On/Off) ButtonAUTO Button
On Demand Multi-Use Display
TM
Driver’s Side
Temperature
Control Switch
Passenger’s
Side
Temperature
Control Switch Passenger’s
Side
Temperature
Driver’s Side
Temperature
19 ACURA TLX-31TZ36400.book 205 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

Continued207
uuClimate Control System uUsing Automatic Climate Control
Controls
1. Select the driver’s or passenger’s side
temperature control icon.
2. Change the temperature setting from the
following:
Temperature bar : Select a point where your
desired temperature setting is.
Farther to the left is for a lower, and to the
right for a higher setting.
(+/(-: To raise or lower the temperature
setting one degree at a time.
While you select and hold
(+/(-, the
temperature decreases or increases.
Max Cool : To rapidly cool down the interior.
u The AUTO indicator goes off. The setting
returns to the previously selected value
when you select it again.
Max Heat: To rapidly warm up the interior. u The AUTO indicator goes off. The setting
returns to the previously selected value
when you select it again.
■Changing the Interior Temperature Setting1Using Automatic Climate Control
If you select the Max Cool or Max Heat during Auto
Idle Stop, the engine restarts automatically.
Models with Auto Idle StopThe side you selected.
Temperature Bar
19 ACURA TLX-31TZ36400.book 207 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
