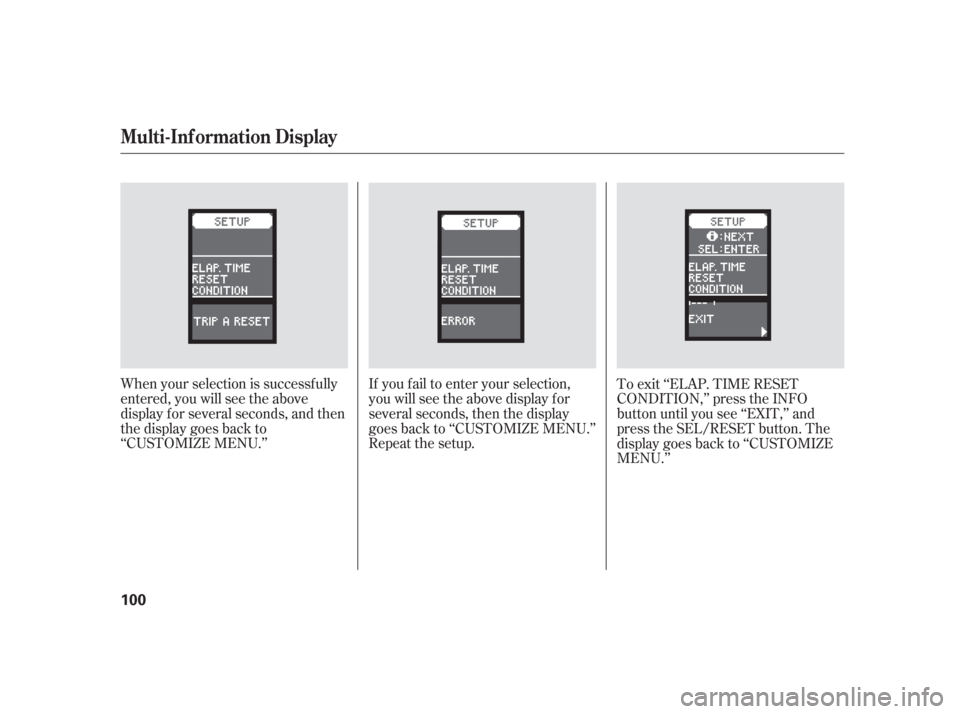

When your selection is successf ully
entered, you will see the above
display f or several seconds, and then
the display goes back to
‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, then the display
goes back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘ELAP. TIME RESET
CONDITION,’’ press the INFO
button until you see ‘‘EXIT,’’ and
press the SEL/RESET button. The
display goes back to ‘‘CUSTOMIZE
MENU.’’
Multi-Inf ormation Display
100
——yy
(y
y

While the multi-information display
shows ‘‘METER SETUP,’’ press the
SEL/RESET button on the steering
wheel. Press the INFO button until
you see ‘‘PRIMARY DISP
SELECTION’’ as shown above.
When you turn the ignition switch to
the ON (II) position, the primary
display of the trip computer always
shows ‘‘INST. MPG’’ (U.S. models)
or ‘‘INST. L/100 km’’ (Canadian
models) in def ault setting. You can
customize this setting to your liking
in f ollowing procedure.
Press the SEL/RESET button. The
display changes as shown above.
The lower segment changes f rom
‘‘INST. FUEL,’’ to ‘‘AVG. FUEL,’’ to
‘‘RANGE,’’ to ‘‘ELAPSED TIME,’’
then to ‘‘AVG. SPEED’’ each time
you press the INFO button. Enter
your selection by pressing the SEL/
RESET button.
CONT INUED
Primary Disp Select ion
Multi-Inf ormation Display
Inst rument s and Cont rols
101
——yy
(y
y

When your selection is successf ully
entered, you will see the above
display f or several seconds, and then
the display goes back to
‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, then the display
goes back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘PRIMARY DISP
SELECTION,’’ press the INFO
button until you see ‘‘EXIT,’’ and
press the SEL/RESET button. The
display goes back to ‘‘CUSTOMIZE
MENU.’’
Multi-Inf ormation Display
102
——y
y
(y
y

While the multi-information display
shows ‘‘POSITION SETUP,’’ press
the SEL/RESET button on the
steering wheel. The display changes
to ‘‘MEMORY POSITION LINK’’ as
shown above.Press the SEL/RESET button. The
display changes as shown above.
Select ‘‘ON’’ or ‘‘OFF ’’ by pressing
the INFO button, and enter your
selection by pressing the SEL/
RESET button.
If ‘‘MEMORY POSITION LINK’’ is
‘‘ON,’’ the driver’s seat moves to the
positionstoredinthememorywhen
you open the driver’s door, using the
remote transmitter.
Refer to page for setting the seat
position memory. Also ref er to page
forremotetransmitteruse. 142
131
CONT INUED
Position Setup
Multi-Inf ormation Display
Memory Posit ion L ink
Inst rument s and Cont rols
103
—
—y
y
(y
y

If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
When your selection is entered, you
will see the above display for several
seconds, then the display goes back
to ‘‘CUSTOMIZE MENU.’’
To exit ‘‘MEMORY POSITION
LINK,’’ press the INFO button until
you see ‘‘EXIT,’’ then press the SEL/
RESET button. The display goes
back to ‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
104
——yy
(y
y

There are two custom settings in the
Lighting Setup:Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘15 sec,’’ to ‘‘30 sec,’’
andthento‘‘60sec.’’Tomakeyour
selection, press the SEL/RESET
button.
INTERIOR LIGHT
DIMMING TIME
HEADLIGHT AUTO OFF TIMER
While the ‘‘LIGHTING SETUP’’ is
displayed, press the SEL/RESET
button on the steering wheel. Each
time you press the INFO button, the
display changes between
‘‘INTERIOR LIGHT DIMMING
TIME’’ and ‘‘HEADLIGHT AUTO
OFF TIMER.’’ To make your
selection, press the SEL/RESET
button. The interior lights f ade out when you
close all doors. You can change the
time that the interior lights fade out.
While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. The display changes
to ‘‘INTERIOR LIGHT DIMMING
TIME’’ as shown above.
CONT INUED
Lighting SetupInt erior L ight Dimming T ime
Multi-Inf ormation Display
Inst rument s and Cont rols
105
——yy
(y
y

If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
To exit ‘‘INTERIOR LIGHT
DIMMING TIME,’’ press the INFO
button until you see ‘‘EXIT,’’ then
press the SEL/RESET button. The
display goes back to ‘‘CUSTOMIZE
MENU.’’
Multi-Inf ormation Display
106
——yy
(y
y

While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. Then press the
INFO button to display
‘‘HEADLIGHT AUTO OFF TIMER’’
as shown above.Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘0 sec,’’ to ‘‘15 sec,’’ to
‘‘30 sec,’’ and then to ‘‘60 sec.’’Press the INFO button repeatedly
until the desired time appears, then
press the SEL/RESET button to
enter your selection.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
CONT INUED
Headlight A uto Of f T imer
Multi-Inf ormation Display
Inst rument s and Cont rols
107
——yy
(y

y

The headlights, parking lights,
taillights, and license plate lights
turn of f af ter the selected time when
you remove the key f rom the ignition
switch and close the driver’s door.If you f ail to enter your selection,
you will see the above display f or
several seconds, then the display
goes back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘HEADLIGHT AUTO OFF
TIMER,’’ press the INFO button
until you see ‘‘EXIT,’’ then press the
SEL/RESET button. The display
goes back to ‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
108
——yy
(y


y

There are three custom settings in
the Door · Window Setup:DOOR LOCK MODE
KEYLESS LOCK
ACKNOWLEDGEMENT
SECURITY RELOCK TIMER
While the multi-information display
shows ‘‘DOOR · WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Each time you press
the INFO button, the display
changesasshowninthenext
column.
To customize a setting, press the
INFO button repeatedly until you see
the setting you want to customize,
and press the SEL/RESET button.
Then f ollow the procedures
described on the f ollowing pages.
CONT INUED
Door · Window Setup
Multi-Inf ormation Display
Inst rument s and Cont rols
109
: Press the INFO Button.
——y
y
(y

y
