Acura TSX 2006 Owner's Manual

While the multi-information display
is showing ‘‘DOOR · WINDOW
SETUP,’’ press the SEL/RESET
buttononthesteeringwheel.The
display changes to ‘‘DOOR LOCK
MODE’’ as shown above.Press the SEL/RESET button. The
display changes as shown above.
In def ault setting, if you push the
UNLOCK button once on the remote
transmitter or turn the key clockwise
in the driver’s door lock, only the
driver’s door unlocks.
You can select whether only the
driver’s door unlocks or all the doors
unlock in ‘‘DOOR LOCK MODE.’’
Select ‘‘DRIVER DOOR’’ or ‘‘ALL
DOORS’’ by pressing the INFO
button, and enter your selection by
pressing the SEL/RESET button.
Multi-Inf ormation Display
Door L ock Mode
110
——y

y
(y

y

When your selection is successf ully
entered, you will see the above
display f or several seconds, and then
the display goes back to
‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, then the display
goes back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘DOOR LOCK MODE,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button. The display goes back to
‘‘CUSTOMIZE MENU.’’
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
111
——y

y
(y

y

While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘KEYLESS LOCK
ACKNOWLEDGMENT’’ as shown
above.Press SEL/RESET button, then
press the INFO button.
Each time you press the INFO
button, the display changes to ‘‘ON,’’
to ‘‘OFF,’’ then to ‘‘EXIT.’’
Select ‘‘ON’’ or ‘‘OFF’’ by pressing
the INFO button, and enter your
selection by pressing the SEL/
RESET button.
When you push the LOCK button on
the remote transmitter, the doors
and the trunk are set, and some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds, and
the security system has set and a
horn sounds (see page ). You
can customize the exterior lights not
to f lash and the beeper not to sound.
203
K eyless L ock A cknowledgment
Multi-Inf ormation Display
112
——y
y
(y

y

When your selection is entered, you
will see the above display for several
seconds, and then the display
changes to ‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘KEYLESS LOCK
ACKNOWLEDGMENT,’’ press the
INFO button until you see ‘‘EXIT,’’
then press the SEL/RESET button.
The display goes back to
‘‘CUSTOMIZE MENU.’’
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
113
——y

y
(y

y

While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘SECURITY RELOCK TIMER’’ as
shown above.Press the SEL/RESET button, then
press the INFO button.
Each time you press the INFO
button, the time changes f rom ‘‘30
sec,’’ to ‘‘60 sec,’’ and then to ‘‘90 sec.’’
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock and
the security system sets.
You can change this relock time
f rom 30 seconds to 60 or 90 seconds.
Securit y Relock T imer
Multi-Inf ormation Display
114
——y
y
(y

y

Select the desired relock time by
pressing the INFO button, and enter
your selection by pressing the SEL/
RESET button.If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’ To exit ‘‘SECURITY RELOCK
TIMER,’’ press the INFO button
until you see ‘‘EXIT,’’ then press the
SEL/RESET button. The display
goes back to ‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
Inst rument s and Cont rols
115
——y
y
(y

y

With ‘‘WIPER SETUP’’ shown in the
multi-inf ormation display, press the
SEL/RESET button on the steering
wheel. The display changes to
‘‘FRONT WIPER ACTION’’ as
shown above.
Press the SEL/RESET button, then
press the INFO button.Each time you press the INFO
button, the display changes f rom
‘‘WITH VEH SPD,’’ to
‘‘INTERMITTENT,’’ and then to
‘‘EXIT.’’
Press the INFO button to select
‘‘WITH VEH SPD’’ or
‘‘INTERMITTENT,’’ and enter your
selection by pressing the SEL/
RESET button.
When ‘‘WIPER SETUP’’ is shown in
the multi-information display, the
action of the windshield wipers can
be changed. To do this, ref er to the
f ollowing procedure. Wiper Setup
Front Wiper A ct ion
Multi-Inf ormation Display
116
——y
y
(y

y

If you set the f ront wiper action to
‘‘WITH VEH SPD,’’ the f ront wipers
run intermittently and the wiper
interval is varied automatically
according to the vehicle’s speed
when the wiper switch is in the
‘‘INT’’position. If you set it to
‘‘INTERMITTENT,’’ the wipers run
at regular intervals.
When your selection is entered, you
will see the above display for severalseconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
To exit ‘‘FRONT WIPER ACTION,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button. The display goes back to
‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
Inst rument s and Cont rols
117
——y
y
(y
y

ÎÎ
Î
Î
Only on vehicles equipped with navigation system. Ref er to the navigation system manual. To use the horn, press the pad around the ‘‘Acura’’ logo.
1:
2:
Controls Near the Steering Wheel
118
REMOTE AUDIO
CONTROL BUTTONS
REAR WINDOW
DEFOGGER BUTTON
CRUISE CONTROL
BUTTONS
HEADLIGHTS/FOG LIGHTS/
TURN SIGNALS
WINDSHIELD WIPERS/
WASHERS
HAZARD WARNING
BUTTON
MULTI-INFORMATION
BUTTONS
STEERING WHEEL
ADJUSTMENT LEVER
MOONROOF
SWITCH
SEAT HEATER SWITCHES
(P.200)
(P.150)
(P.124)(P.70,72) (P.204)
(P.123) (P.123)(P.119)
(P.137)
HANDSFREE LINK BUTTONS/
VOICE CONTROL BUTTONS HORN
(P.120- 121) INSTRUMENT PANEL BRIGHTNESS
CONTROL
(P.122)
(P.212)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
(P.256)
Vehicle without navigation system is shown.
TM 2 1
——yy
(y

y

µ
µ
µ µ
µ µ
µ
µ µ

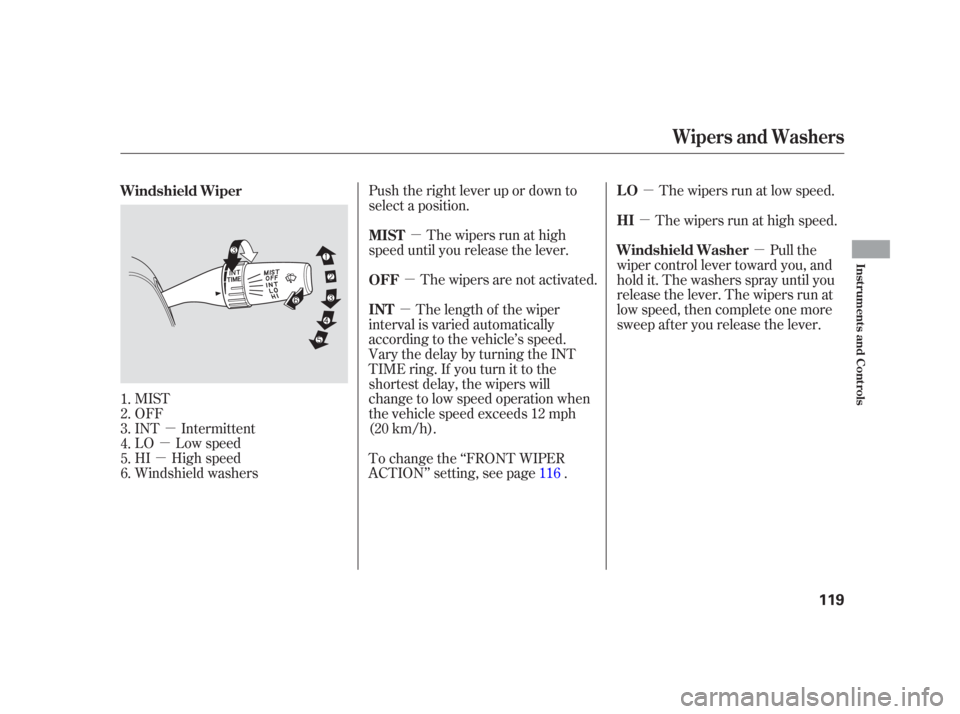

MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation when
the vehicle speed exceeds 12 mph
(20 km/h). Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
To change the ‘‘FRONT WIPER
ACTION’’ setting, see page .
1.
2.
3.
4.
5.
6.
116
Windshield Wiper
MIST
OFFLO
HI
INT Windshield Washer
Wipers and Washers
Inst rument s and Cont rols
119
——y
y
(y
y
