Acura TSX 2014 Owner's Manual

uu Adjusting the Seats u Adjusting the Seat Positions
120
A passenger sitting in the center back seating
position should adjust th e height of their head
restraint to an appropriate position before the
vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the
release button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release butto n. Pull up on the restraint to make sure it is locked
in position.
■Changing the Rear Center Seat Head Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3 WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
14 ACURA TSX 4D-31TL16500.book 120 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

121
uu Adjusting the Seats u Adjusting the Seat Positions
Continued

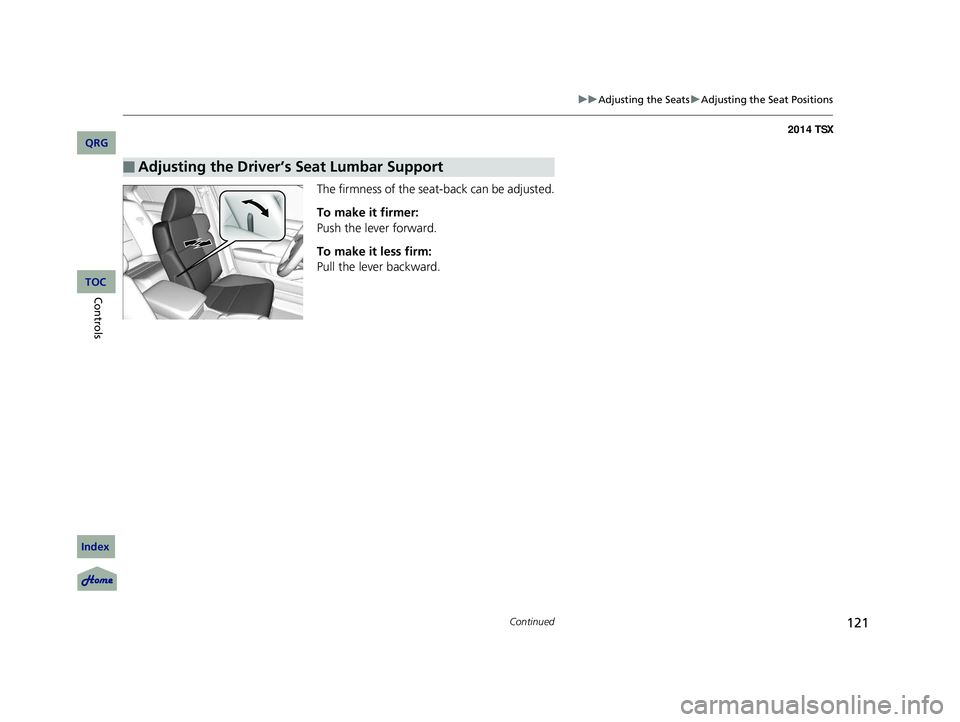

The firmness of the sea t-back can be adjusted.
To make it firmer:
Push the lever forward.
To make it less firm:
Pull the lever backward.
■Adjusting the Driver’s Seat Lumbar Support
14 ACURA TSX 4D-31TL16500.book 121 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

uu Adjusting the Seats u Adjusting the Seat Positions
122
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine
is off.
Sitting improperly can increase the chance of injury during a crash. For example,
if an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1 Maintain a Proper Sitting Position
3 WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
14 ACURA TSX 4D-31TL16500.book 122 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

123
uu Adjusting the Seats u Adjusting the Seat Positions
The driver’s and front passenger’s seats have active head restraints. In a rear impact,
an occupant properly secured by a seat belt will be pushed against the seat-back and
the head restraint will move forward. This reduces the distance between the
restraint and the occupant’s head, which helps reduce the likelihood of whiplash
and injuries to the neck and upper spine.
■Active Head Restraints1 Active Head Restraints
In order for the active head restraints to operate
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any object be tween an occupant and
the seat-back.
•Install each restraint in its proper location.
After a collision, th e activated restraint should return
to its normal position. If the restraint does not return
to its normal position, or in the event of a severe
collision, have the vehicl e inspected by a dealer.
14 ACURA TSX 4D-31TL16500.book 123 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

124
uu Adjusting the Seats u Rear Seats
Rear Seats
1. Remove the center shoulder belt from
the guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold
the seat-back down.
If the rear head restraints get caught on the
front seat-backs, remove the head restraints.
2 Removing and Reinstalling the Head
Restraints P. 120
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with a seat-back folded down and the
trunk lid open. 2 Carbon Monoxide Gas P. 60
To lock a seat-back upright, push it backwards until it
locks.
When returning a seat-back to it’s original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Airbag Off Indicator P. 45
Also make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
Guide
Center
Shoulder
Belt
Release
Lever
14 ACURA TSX 4D-31TL16500.book 124 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

125
uu Adjusting the Seats u Armrest
Armrest
The console lid can be used as an armrest.
To adjust:
Push the release lever and slide the armrest to
a desired position. Release the lever to lock
the position.
Pull down the armrest in the center seat-back.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
14 ACURA TSX 4D-31TL16500.book 125 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

126
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the
following situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• Y ou rem ove the key from the
ignition switch.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
The map lights can be turned on and off by
pressing the lenses.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you remove the key from the ignition switch
but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 80
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door with the key in
the ignition switch.
•When you turn the ignition switch to ON (
w
.
If you leave any of the doors open without the key in
the ignition switch, the interior lights go off after
about 15 minutes.
Door Activated Position
OffFront
Door Activated Position
On
Off
Rear
On
■Map Lights
1
Map Lights
When the ceiling light switch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.
14 ACURA TSX 4D-31TL16500.book 126 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

127
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
■Detachable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
■Glove Box1 Glove Box
The glove box light comes on when the parking lights
are on.
3 WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
14 ACURA TSX 4D-31TL16500.book 127 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
128
Pull the handle to open the
console compartment.
To use the console lid as an armrest, slide it to
the desired position while pulling up the
release lever.
You can keep beverage bottles and cans cool
with the air condi tioning system.
1. Turn the dial counterc lockwise to open the
air vent in the console compartment.
2. Turn on the climate control system and
adjust the temperature to cool.
3. Set the mode control or .
u The cool air is dive rted through the air
vent.
■Console Compartment1 Console Compartment
Use only resealable cont ainers or keep unopened
cans in the console compartment.
Spilled liquids can dama ge the upholstery and
electrical components in the console compartment.
When the heater begins to divert warm air, the
airflow into the console compartment is shut off.
Close
Open
14 ACURA TSX 4D-31TL16500.book 128 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
ControlsTOC

Continued129
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
■Front seat beverage holders
Press the raised detent to open the lid. To
close the lid, push it down until it latches.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Push
