uu Maintenance Under the Hood u Refilling Window Washer Fluid


Refilling Window Washer Fluid
Check the amount of window washer fluid using the washer fluid level gauge on
the cap.
If the level is low, fill the washer reservoir.
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Models with level gauge
Level Gauge
Models without level gauge
Canadian models
14 ACURA TSX 4D-31TL16500.book 248 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

268
uu Checking and Maintaining Tires u Tire Rotation


Tire Rotation
Rotating tires according to the mainte nance messages on the multi-information
display helps to distribute wear mo re evenly and increase tire life.

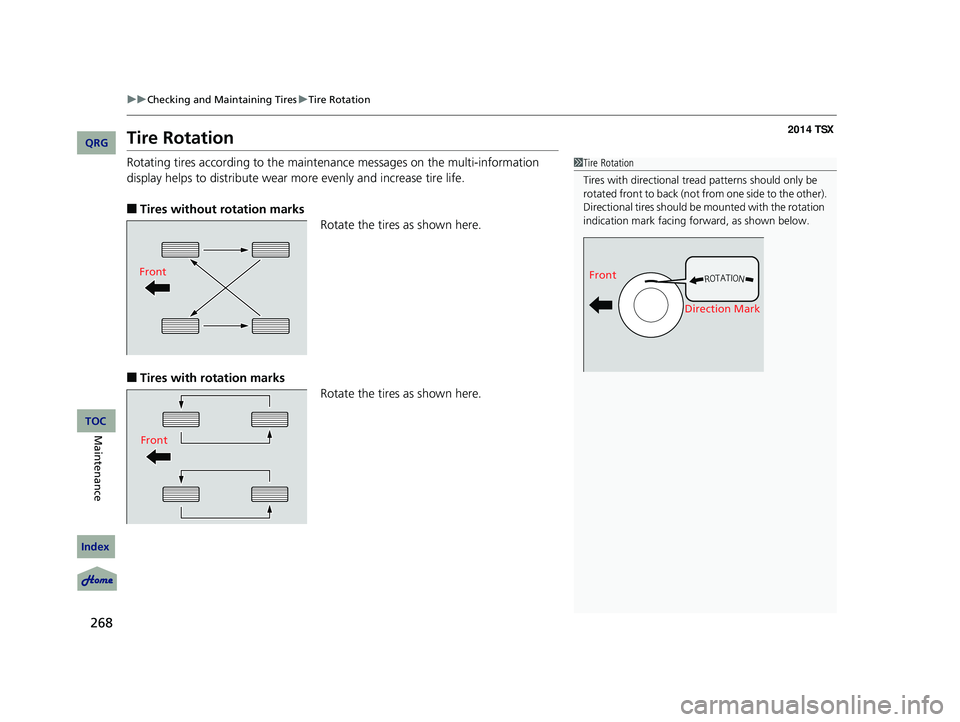

■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Front
Direction MarkFront
Front
14 ACURA TSX 4D-31TL16500.book 268 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

uu If a Tire Goes Flat u Changing a Flat Tire
286



1. Remove the center cap and place the flat
tire face down in the spare tire well.
2.Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
3. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in
the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on
the multi-information display and the TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1Storing the Flat Tire
3 WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer
Cone
Wing
Bolt
For
compact
spare tire For

full-size
tire
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.
14 ACURA TSX 4D-31TL16500.book 286 ページ ２０１３年６月１７日　月曜日　午前９時４０分
