width Acura ZDX 2012 Owner's Manual

DimensionsLength 193.1 in (4,904 mm)
Width 78.5 in (1,993 mm)
Height 62.8 in (1,596 mm)
Wheelbase 108.3 in (2,750 mm)
Track Front 67.7 in (1,720 mm)
Rear 67.7 in (1,719 mm)
Weights Gross vehicle weight rating See the tire information label attached to the driver's doorjamb.
Gross combined weight
ꭧ 1
rating (GCWR) 6,593 lbs (2,990 kg)
ꭧ 1: The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Air Conditioning Refrigerant type HFC-134a (R-134a)
Charge quantity 16.9 －18.7 oz (480 －530 g)
Lubricant type ND-OIL 8
Seating Capacities Total 5
Front 2
Rear 3 Capacities
Fuel tank Approx. 21.00 US gal (79.5 L)
Engine
coolant Change
ꭧ
1
1.77 US gal (6.7 L)
Total 2.27 US gal (8.6 L)
Engine oil Change
ꭧ 2
4.5 US qt (4.3 L)
Including
filter
Without
filter 4.2 US qt (4.0 L)
Total 5.3 US qt (5.0 L)
Automatic
transmission
fluid Change 3.3 US qt (3.1 L)
Total 8.5 US qt (8.0 L)
Rear
differential
fluid Change 2.67 US qt (2.53 L)
Total 2.93 US qt (2.77 L)
Transfer
assembly
fluid Change 0.45 US qt (0.43 L)
Total 0.48 US qt (0.45 L)
Windshield washer reservoir 5.2 US qt (4.9 L)
ꭧ 1: Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.18 US gal (0.675 L)
ꭧ 2: Excluding the oil remaining in the engine
Specifications60809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

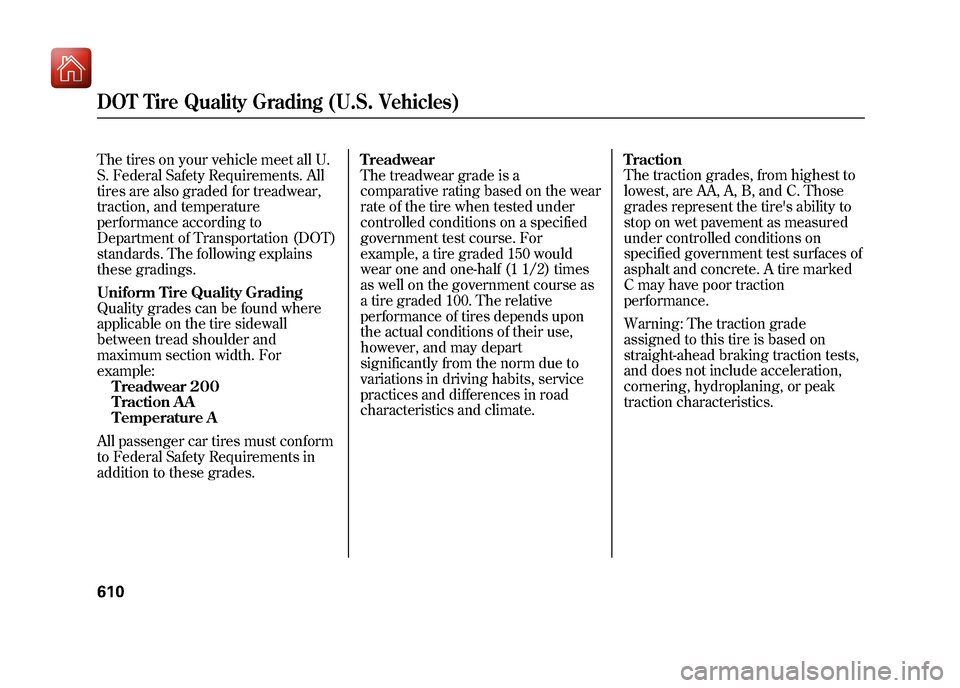

The tires on your vehicle meet all U.
S. Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature
performance according to
Department of Transportation (DOT)
standards. The following explains
these gradings.
Uniform Tire Quality Grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades. Treadwear
The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under
controlled conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half (1 1/2) times
as well on the government course as
a tire graded 100. The relative
performance of tires depends upon
the actual conditions of their use,
however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction
performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.DOT Tire Quality Grading (U.S. Vehicles)61009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Tire SizeWhenever tires are replaced, they
should be replaced with tires of the
same size. The following is an
example of tire size with an
explanation of what each component
means.P255/50R19 103H
P －Vehicle type (P indicates
passenger vehicle).
255 －Tire width in millimeters.
50 －Aspect ratio (the tire's
section height as a
percentage of its width).
R －Tire construction code (R
indicates radial).
19 －Rim diameter in inches. 103
－Load index (a numerical code
associated with the
maximum load the tire can
carry).
H －Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN)The tire identification number (TIN)
is a group of numbers and letters that
look like the following example. TIN
is located on the sidewall of the tire.
DOT B97R FW6X 2202
DOT －This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
B97R －Manufacturer's
identification mark.
TIRE LABELING EXAMPLE
(1) Tire Size
(2) Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load (4)
(3) (2)(1)
(1)Tire Labeling61209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
