uuBraking uCMBSTM (Collision Mitigation Braking SystemTM)*
Driving

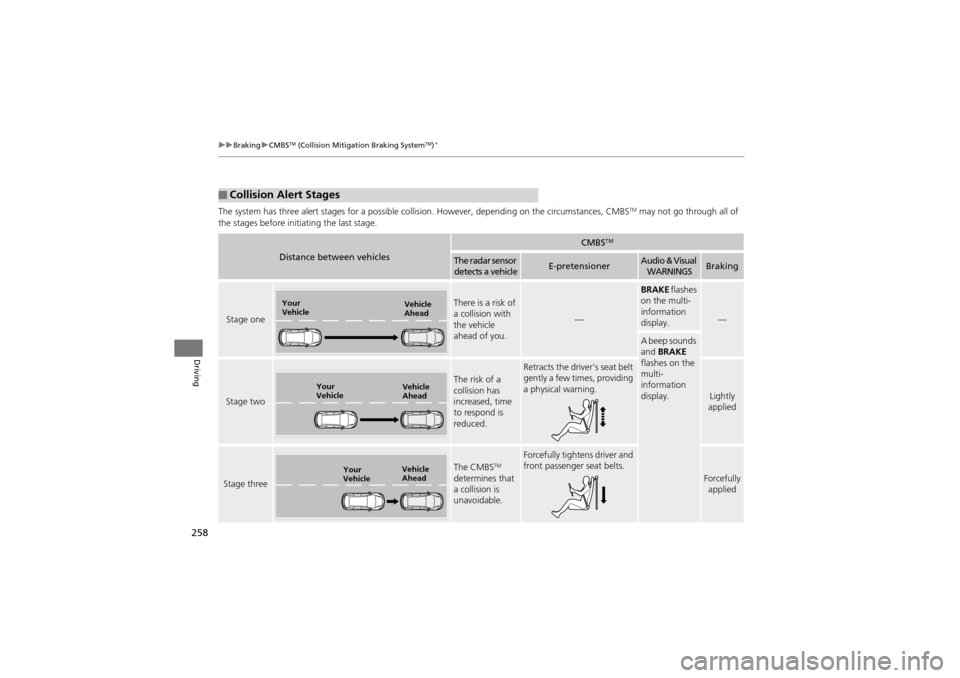

The system has three alert stages for a possible collis ion. However, depending on the circumstances, CMBSTM may not go through all of
the stages before init iating the last stage.
â– Collision Alert Stages
Distance between vehicles
CMBSTM
The radar sensor
detects a vehicleE-pretensionerAudio & Visual WARNINGSBraking
Stage one
There is a risk of
a collision with
the vehicle
ahead of you.
—
BRAKE flashes
on the multi-
information
display.
—
A beep sounds
and BRAKE
flashes on the
multi-
information
display.
Stage two
The risk of a
collision has
increased, time
to respond is
reduced.
Retracts the driver’s seat belt
gently a few times, providing
a physical warning.
Lightly
applied
Stage three
The CMBSTM
determines that
a collision is
unavoidable.
Forcefully tightens driver and
front passenger seat belts.
Forcefully applied
Your
Vehicle Vehicle
Ahead
Your
VehicleVehicle
Ahead
Your
VehicleVehicle
Ahead

Continued259
uuBraking uCMBSTM (Collision Mitigation Braking SystemTM)*
Driving
Press this button for about one second to turn
on and off the system.
When the CMBS
TM is off:
• The beeper sounds.
• The CMBS
TM indicator in the instrument
panel comes on.
• A message on the multi-information display
reminds you that the system is off.
The CMBS
TM is in the previously selected ON or
OFF setting each time yo u start the engine.

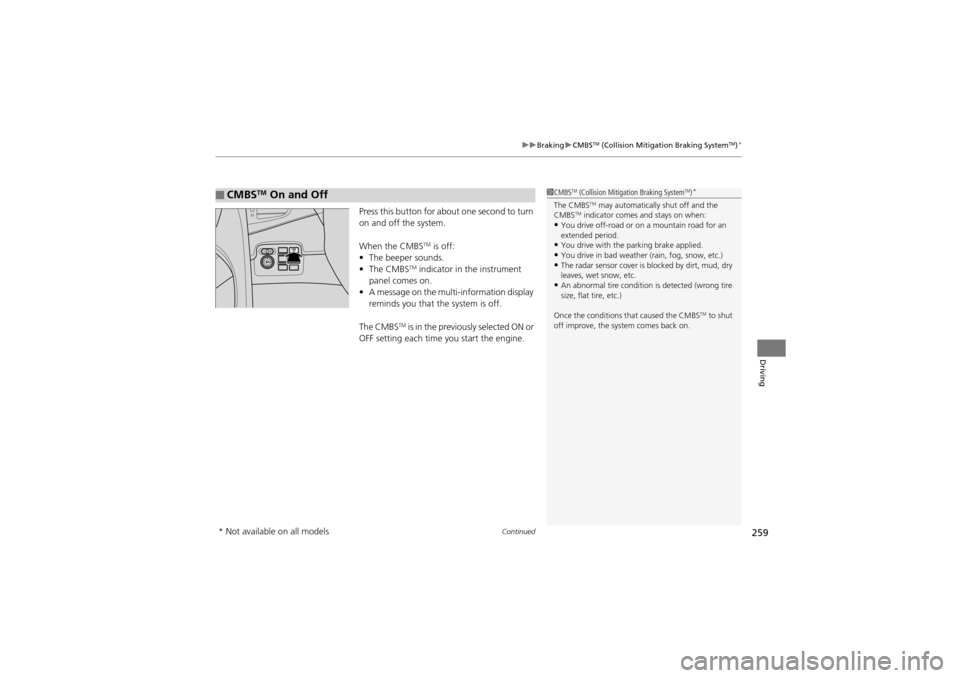

â– CMBSTM On and Off1CMBSTM (Collision Mitigation Braking SystemTM)*
The CMBSTM may automatically shut off and the
CMBSTM indicator comes and stays on when:•You drive off-road or on a mountain road for an
extended period.
•You drive with the parking brake applied.•You drive in bad weather (rain, fog, snow, etc.)•The radar sensor cover is blocked by dirt, mud, dry
leaves, wet snow, etc.
•An abnormal tire condition is detected (wrong tire
size, flat tire, etc.)
Once the conditions that caused the CMBS
TM to shut
off improve, the system comes back on.
* Not available on all models

uuBraking uCMBSTM (Collision Mitigation Braking SystemTM)*
260
Driving

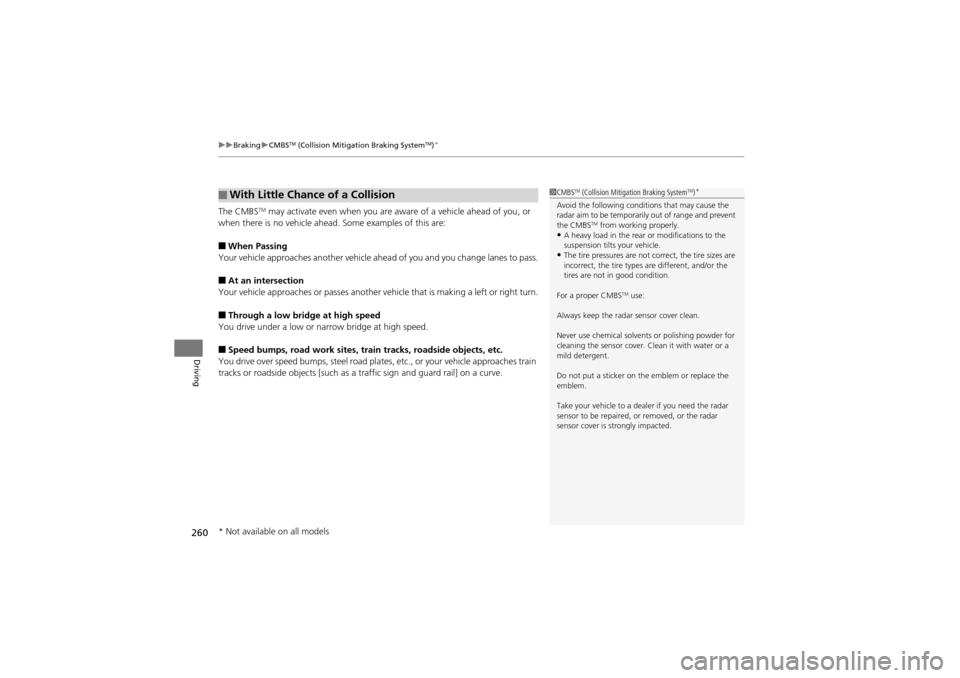

The CMBSTM may activate even when you are aw are of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
â– When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
â– At an intersection
Your vehicle approaches or passes another vehicle that is making a left or right turn.
â– Through a low bridge at high speed
You drive under a low or narrow bridge at high speed.
â– Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, steel road plat es, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve.
â– With Little Chance of a Collision1 CMBSTM (Collision Mitigation Braking SystemTM)*
Avoid the following conditions that may cause the
radar aim to be temporarily out of range and prevent
the CMBS
TM from working properly.•A heavy load in the rear or modifications to the
suspension tilts your vehicle.
•The tire pressures are not correct, the tire sizes are
incorrect, the tire types are different, and/or the
tires are not in good condition.
For a proper CMBS
TM use:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not put a sticker on the emblem or replace the
emblem.
Take your vehicle to a dealer if you need the radar
sensor to be repaired, or removed, or the radar
sensor cover is strongly impacted.
* Not available on all models

262
Driving
Rearview Camera
About Your Rearview Camera
For models with the navigation system, see the Navigation System Manual.
An image of the rear view is shown in your vehicle’s rearview mirror when the shift
lever is moved to
R.
The rearview camera has a unique lens that makes objects appear closer or further
than they actually are.
â– Rearview Camera Display Area
Models with navigation system
Models without navigation system
1 About Your Rearview Camera
The view provided by the re ar camera is restricted.
You cannot see the corner ends of the bumper and
what is underneath the bumper.
Visually confirm that it is safe to drive on before
backing up. Do not rely on the rearview display,
which does not give you complete information.
Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view.
Use a soft, moist cloth to ke ep the lens clean and free
of debris.
You can turn off the rearview display while the shift
lever is in
(R. Press the power button.
The rearview display is turned on every time you shift
to
(R, even if you turned it off the last time.
The rearview mirror gets hot If the rearview display is
used for an extended period.
Rearview Camera
Display
Power Button Sensor:
Adjusts the
display
brightness.
Screen display
Guide linesBumper Approx. 3 m (118 in)
Approx. 2 m (79 in)
Approx. 1 m (39 in)
Approx. 0.2 m (7.8 in)
Approx. 1 m (39 in)
Approx. 2 m (79 in)
Approx. 3 m (118 in) Camera

319Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery ground.
2. Put the shift lever in
P.
3. Set the parking brake.
4. Turn on the hazard warn ing lights and turn the ignition switch to LOCK
0*1.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model.
Do not use them with another vehicle.
Do not use another type of compact spare tire or
wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairing agent on a flat tire,
as it can dama ge the tire pressure sensor.

325
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the center cap and place the flat
tire face up under the hoist.
2. Insert the hoist bracket into the center hole
of the flat tire.
3. Turn the extension bar with the wheel nut
wrench clockwise until the flat tire rests
against the underbody of the vehicle and
you hear the hoist click.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
cargo area.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the TPMS indi cator will go off after a few miles
(kilometers).
â– Storing the Flat Tire1 Storing the Flat Tire
Always raise the spare tire hoist, even if you are not
stowing a tire. If the hoist is left down, it will be
damaged during driving and need to be replaced.
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Extension Bar
Wheel Nut
Wrench
â– TPMS and the Spare Tire
1TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.

Index
361
Index
A
ABS (Anti-lock Brake System).................. 255
Accessories and Modifications ................ 267
Accessory Power Sockets ......................... 157
Active Head Restraints ............................. 148
Adaptive Cruise Control (ACC) ................ 235
Additives
Coolant .................................................. 285
Engine Oil ............................................... 280
Washer ................................................... 290
Additives, Engine Oil ............................... 280
Adjusting Armrest .................................................. 150
Front Seats.............................................. 143
Head Restraints ....................................... 145
Mirrors.................................................... 141
Rear Seats ............................................... 149
Steering Wheel ....................................... 140
Temperature ............................................. 91
Air Conditioning System (Climate Control System) ...................... 163
Changing the Mode................................ 163
Defrosting the Windshield and Windows................ ....................... 164
Dust and Pollen Filter .............................. 312
Recirculation/Fresh Air Mo de................... 163
Sensor .................................................... 166
Synchronized Mode ................................ 165
Using Automatic Climate Control............ 163
Air Pressure ...................................... 301, 350 Airbags
........................................................ 35
Advanced Airbags ..................................... 41
After a Collision... ................................ 30, 39
Airbag Care ............................................... 49
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 38
Indicator ........................................ 46, 72, 75
Passenger Airbag Off Indicator .................. 47
Sensors...................................................... 35
Side Airbag Cutoff System ......................... 44
Side Airbag Off Indicator ........................... 48
Side Airbags .............................................. 42
Side Curtain Airbags .................................. 45
AM/FM Radio ............................................ 173
Anti-lock Brak e System (ABS) .................. 255
Indicator .................................................... 71
Armrest ..................................................... 150
Audio Remote Controls ............................ 190
Audio System ............................................ 168
Adjusting the Sound ................................ 172
Auxiliary Input Jack ........ .......................... 169
Error Messages ........................................ 188
General Information ................................ 191
MP3/WMA/AAC ...................................... 183
Reactivating............................................. 170
Recommended CDs ................................. 192
Recommended Devices ............................ 194
Remote Controls ..................................... 190
Security Code .......................................... 170
Theft Protection....................................... 170
USB Adapter Cable .................................. 169 USB Flash Drives ...................................... 194
Authorized Manuals ................................ 358
Auto Door Locking/Unlocking ................. 113
Automatic Lighting .................................. 132
Automatic Transmission ........................... 227
Creeping ................................................. 227
Fluid ........................................................ 287
Kickdown ................................................ 227
Operating the Shift Lever........... 13, 229, 231
Sequential Shift Mode ............................. 230
Shift Lever Does Not Move ...................... 331
Shifting ................................................... 228
Auxiliary Input Jack .................................. 169
Average Fuel Economy .............................. 91
Average Speed ........................................... 92
B
Battery...................................................... 309
Charging System Indicato r................. 69, 334
Jump Starting .......................................... 329
Maintenance (Checking th e Battery) ........ 309
Maintenance (Replacing) ......................... 310
Belts (Seat) .................................................. 27
Beverage Holders ..................................... 156
Blind Spot Information (BSI) .................... 246
Bluetooth ® HandsFreeLink ®..................... 197
Bluetooth ®Audio ...................................... 186
Booster Seats (For Children) ...................... 63
Brake System ............................................ 253
Anti-lock Brake System (A BS)................... 255

362
Index
Brake Assist System ................................. 256
Fluid ........................................................ 288
Foot Brake ............................................... 254
Indicator ............................................ 68, 336
Parking Brake .......................................... 253
Brightness Control (Instrument Panel) .... 136
Bulb Replacement ..................................... 291
Back-Up Lights......................................... 296
Daytime Running Light ....... ..................... 294
Fog Lights ................................................ 292
Front Side Marker Lights .......................... 293
Front Turn Signal/Parking Lights ............... 293
Headlights ............................................... 291
High-Mount Brake Light ..... ..................... 297
Rear License Plate Light............................ 297
Side Turn Signal/
Emergency Indicator Lights .................... 294
Stop Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights.................. 295
Bulb Specifications .................................... 350
C
Carbon Monoxide Gas ................................ 64
Cargo Hooks .............................................. 158
Carrying Cargo .................................. 211, 213
CD Changer ............................................... 177
Certification Label .................................... 351
Changing Bulbs ......................................... 291
Charging System Indicator ................. 69, 334Child Safety
................................................. 50
Childproof Door Locks............................. 112
Child Seat .................................................... 50
Booster Seats ............................................ 63
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 58
Larger Children ......................................... 62
Rear-facing Child Seat ......................... ...... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 60
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 315
Cleaning the Interior ................................ 313
Client Service Information ....................... 359
Climate Control System ............................ 163
Changing the Mode ................................ 163
Defrosting the Windshield
and Windows ............... ........................ 164
Dust and Pollen Filter............................... 312
Recirculation/Fresh Air Mode ................... 163
Sensor ..................................................... 166
Synchronized Mode................................. 165
Using Automatic Climate Control ............ 166
Clock .......................................................... 102
Coat Hook ................................................. 158
Compact Spare Tire .......................... 319, 350
Console Compartment ............................. 154
Controls ..................................................... 101 Coolant (Engine)
...................................... 285
Adding to the Radiator ... ........................ 286
Adding to the Reserve Tank .................... 285
Overheating ............................................ 332
Temperature Gauge .................................. 87
Creeping ................................................... 227
Cruise Control .......................................... 232
Indicator ................................................... 77
Cup Holders .............................................. 156
Customized Features ................................. 94
D
Daytime Running Lights .......................... 133
Dead Battery ............................................ 329
Devices that Emit Radio Waves ............... 352
Dimming Headlights .............................................. 131
Rearview Mirror .............. ........................ 141
Dipstick (Engine Oil) ................................ 281
Directional Signals (Turn Signal) ............. 131
Door Mirrors ............................................. 142
Doors ........................................................ 103
Auto Door Locking.......... ........................ 113
Auto Door Unlocking ...... ........................ 113
Door and Tailgate Open Indicator ....... 26, 73
Keys........................................................ 103
Locking/Unlocking the Doors from the Inside..................................... 111
Locking/Unlocking the Doors
from the Outside.................................. 106

367
Index
Off Indicator ............................................. 44
Side Curtain Airbags .................................. 45
Side Storage Compartment ..................... 155
Snow Tires ................................................ 308
Spare Tire ..................................... .... 319, 350
Spark Plugs ............................................... 350
Specifications ........................................... 350
Specified Fuel ....................... ............ 263, 350
Speedometer .............................................. 87
SRS Airbags (Airbags) ................................ 38
Starting the Engine .................................. 223
Does Not Start ........................................ 326
Engine Switch Buzzer .............................. 127
Jump Starting ......................................... 329
Steering Wheel ........................................ 140
Adjusting ................................................ 140
Stopping ................................................... 261
Super Handling-All Wheel Drive
TM
(SH-AWD ®) System ................................ 245
Supplemental Restraint System (SRS) ....... 38
Switches (Around the Steering Wheel) ....... 2, 3, 127
SYNC Mode .............................................. 165
System Message Indicator ......................... 74
T
Tachometer................................................ 87
Tailgate ..................................................... 114
Unable to Open ...................................... 347 Temperature
Outside Temperature Display ..................... 91
Temperature Sensor ................................. 166
Time (Setting) ........................................... 102
Tire Pressure Monitoring System (TPMS) .................................................... 248
Indicator ............................................ 74, 337
Tires ........................................................... 300
Air Pressure ..................................... 301, 350
Checking and Maintaining....................... 300
Compact Spare Tire ....... .......................... 319
Inspection................................................ 300
Labeling .................................................. 301
Puncture (Flat Tire)................................... 319
Regulations ............................................. 303
Rotation .................................................. 307
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter ..................................................... 308
Tools .......................................................... 318
Towing a Trailer ....................................... 215
Equipment and Accessories ..................... 216
Load Limits .............................................. 215
Towing Your Vehicle ................................ 219
Emergency .............................................. 344
TPMS (Tire Pressure Monitoring System) ........ 248
Indicator ............................................ 74, 337
Transmission ............................................. 228
Automatic ............................................... 228
Fluid ........................................................ 287 Number................................................... 351
Sequential Shift Mode ............................. 230
Shift Position Indicator....
................... 70, 229
Trip Meter ................................................... 91
Troubleshooting ....................................... 317
Blown Fuse.............................................. 338
Brake Pedal Vibrates .................................. 17
Buzzer Sounds When Opening Door.......... 18
Emergency Towing .................................. 344
Engine Won’t Start .................................. 326
Noise When Braking .................................. 18
Overheating ............................................ 332
Premium Gasoline ........................... 263, 350
Puncture/Flat Tire .................................... 319
Rear Door Won’t Open...................... 17, 112
Select Lever Won’t Move ......................... 331
Warning Indicators .................................... 68
Turn Signals .............................................. 131
Indicators (Instrument Panel) ..................... 75
U
Under-floor Storage Area ........................ 155
Unlocking the Doors ................................ 106
USB Adapter Cable ........................... 168, 169
USB Flash Drives ....................................... 194
V
Valet Key................................................... 105
Vanity Mirrors ............................................... 5
