Quick Reference Guide❙Headlights/Turn Signals (P 131)
❙Fog Lights (P 133)
❙Wipers/Washers (P 134)
❙Cruise Control Buttons* (P 232)
❙Paddle Shifter (Shift down) (P 231)
❙Paddle Shifter (Shift up) (P 231)
❙Audio Remote Control Buttons (P 190)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 197)
❙SEL/RESET Button (P 88)
❙/ (Information) Button (P 88)34
❙Horn (Press an area around .)
❙Brightness Control (P 136)
❙Keyless Access Remote Slot* (P 130)
❙Adaptive Cruise Control (ACC) Distance
Button* (P 240)
❙Adaptive Cruise Control (ACC)
Buttons* (P 235)
❙ENGINE START/STOP Button* (P 128)
* Not available on all models
Page 6 of 370
Visual Index
4
Quick Reference Guide❙Driving Position Memory System Buttons (P 139)
❙Power Tailgate Button (P 117)
❙Glove Box (P 153)
❙Parking Brake (P 253)
❙Hood Release Handle (P 278)
❙Power Door Lock Master Switch (Unlocking Fuel Fill Door) (P 111)
❙Interior Fuse Box (P 339)
❙Door Mirror Controls (P 142)
❙Power Window Switches (P 123)
❙Integrated Dynamics System
(IDS) Switch* (P 252)
❙Panoramic Glass Roof/
Sunshade Switch
(P 126)
❙Map Lights (Front) (P 152)
❙Rearview Mirror (P 141)
❙HomeLink® Button (P 195)
❙Driver’s Front Airbag (P 38)
❙Passenger’s Front Airbag
(P 38)
❙Shift Lever Automatic
Transmission
(P 227)
Page 14 of 370
12
Quick Reference Guide
Features (P 167)
Audio system (P 168)
For navigation system operation () See Navigation System Manual
Audio Display
SCAN/A.SEL (Auto
Select) Bar
AM/FM
Button
RETURN Button
Selector Knob
TITLE
Button
TUNE Bar VOL
(Volume/
Power) Knob
DISC Button
USB/AUX Button
CD Slot (CD Eject)
Button
Preset Buttons
(1-6)
SETUP Button
SKIP
Bar
CATEGORY Bar
LOAD Button (
XM ®)
Button
● Audio Remote Controls (P 190)
● VOL (Volume) Button
Press / to adjust the volume
up/down.
● MODE Button
Press and release to change the audio
mode: FM1 /FM2 /AM /XM1 /XM2 /CD/ AUX .
● CH (Channel) Button
Radio: Press and release to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
VOL Button
MODE Button
CH Button
34
Page 15 of 370
13
Quick Reference Guide
Driving (P 209)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
P.
Move the shift lever without
pressing the release button.
Press the rele
ase button to
move the shift lever.
Automatic Transmission (P 227)
● Shift to
P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Neutral
Transmission is not locked.
Drive
Normal driving. D-paddle shift mode can be used.
S Position
Sequential shift mode can be used. Paddle Shifters
(P 230)
M Indicator
Shift Down
Paddle Shifter
-Shift Up +
Paddle Shifter
●
Paddle shifters allow you to shift gears much like a manual
transmission (1st through 6th). This is useful for engine braking.
● D-paddle shift mode: The transmission will shift back to
automatic mode once the system detects that the vehicle is
cruising.
● Sequential shift mode: Holds the selected gear, and the M
indicator comes on.
Selected Gear Number
Page 57 of 370
55
uuChild Safety uSafety of Infants and Small Children
Continued

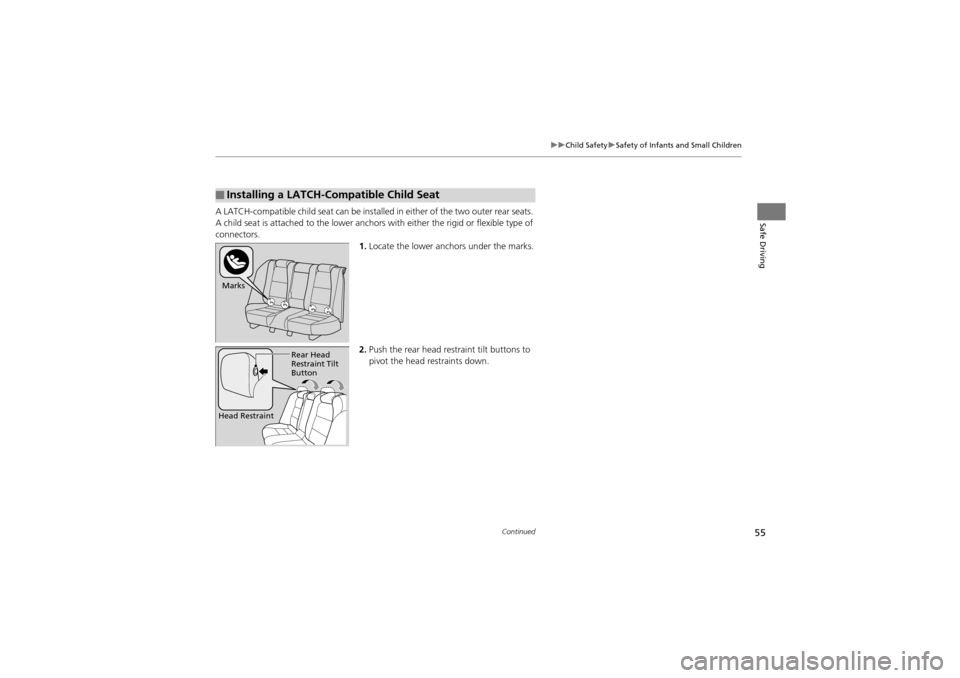

Safe DrivingA LATCH-compatible child seat can be installe d in either of the two outer rear seats.
A child seat is attached to th e lower anchors with either th e rigid or flexible type of
connectors.
1.Locate the lower anchors under the marks.
2. Push the rear head restraint tilt buttons to
pivot the head restraints down.
■Installing a LATCH-Compatible Child Seat
Marks
Rear Head
Restraint Tilt
Button
Head Restraint
Page 69 of 370
67
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and
Information Messages ...................... 80
Gauges and Multi-Information Display
Gauges .............................................. 87
Multi-Information Disp lay .................. 88
Page 141 of 370
139
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
Controls
1.Adjust the driver’s seat, the steering wheel and
the outside mirrors to the desired position, and
turn the ignition switch to ON
w*1.2. Press the SET button.
uYou will hear the beeper, and the memory
button indicator light will blink.
3. Press memory button 1 or 2 within five
seconds of pressing the SET button.
u Once the seat, the steering wheel and
the outside mirror pos itions have been
memorized, the indi cator light on the
button you pressed stays on.
1. Move the shift lever to
P.
2. Apply the parking brake.
3. Press a memory button (
1 or 2).
u You will hear the beeper, and the
indicator light will blink.
The seat, the steering wheel and the outside
mirrors will automatically move to the memorized
positions. When it has finished moving, you will
hear the beeper, and the indicator light stays on.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.
■Storing a Position in Memory1Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat, the steering wheel or the
outside mirror position before the double-beep.
•You turn the ignition switch to any position except
ON (w*1.
Set Button
Memory Button 1
Memory Button 2
■Recalling the Stored Position1
Recalling the Stored Position
The seat will stop moving if you:
•Press the SET button, or a memory button ((1 or (2).•Adjust the seat, the steer ing wheel or the outside
mirror position.
•Shift into any position except (P.
Memory Buttons
Page 143 of 370
141
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. Press the AUTO
button to turn this function on and off.
When activated, the AUTO indicator comes
on.
■Automatic Dimming Rearview Mirror
1 Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2 Adjusting the Seat Positions P. 143
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the shift
position is in
(R.Indicator
Auto ButtonSensor
Page 165 of 370
163Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that will, as quickly as
possible, raise or lower the interior temperature to your preference.
Use the system when the engine is running.
1. Press the driver’s or passenger’s AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
switch.
3. Press the button to cancel.
■Switching between the recirculation and fresh air modes
Press the (Recirculation) button and switch the mode depending on
environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are pressed while using the climate
control system in AUTO, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that was pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on AUTO, and setting the
temperature to low. Cha nge the fresh mode to
recirculation mode until th e temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Dashboard vents
and back of the
center console Dashboard and floor
vents, and back of the
center console Floor vents Floor and
defroster vents
(Driver’s side only)
Driver’s Side AUTO Button
Driver’s Side
Temperature
Control Switch (Recirculation)
Button
A/C (Air Conditioning) Button Passenger’s Side
Temperature
Control Switch
(Fan Control) Bar
Passenger’s Side AUTO Button
Page 170 of 370
168
Features
Audio System
About Your Audio System
On models with the navigation system, see the Navigation System Manual for
operation of the audio system, AcuraLink*, Bluetooth ® HandsFreeLink ®, and voice
commands for these features.
The audio system features AM/FM radio and the XM ® Radio service. It can also play
CDs, WMA/MP3/AAC files, iPods ®, USB flash drives, and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, or
the remote controls on the steering wheel.
1About Your Audio System
XM ® Radio is available on a subscription basis only.
For more information on XM ® Radio, contact a
dealer. 2 General Information on the Audio System
P. 191
XM ® Radio is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
XM ® is a registered trademark of Sirius XM Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod ® is a registered trademark owned by Apple Inc.
MP3 and AAC are standard audio compression
formats. WMA is an au dio compression format
developed by Microsoft Corporation.
Remote Control
iPod®
USB Flash
Drive XM
® Radio
* Not available on all models
