MESSAGES DISPLAYED
AT STARTING
After the engine oil level, the display will
show for a few seconds a message in-
dicating the procedure to follow to start
the engine (PRESS PEDAL AND
START: press brake or clutch pedal and
then press button START/STOPto
start the engine).Once on, the NIGHT PANfunction
can be deactivated as follows:❒by long press on button +(also with
external lights off);
❒removing the electronic key from the
ignition device.
When this function is off the display
shows “NIGHT PAN OFF”.
Messages “NIGHT PAN ON” or
“NIGHT PAN OFF” stay on the dis-
play for a few seconds, then they will
go off. To stop displaying before time,
briefly press button MENU.
ILLUMINATION OF REV
COUNTER/INSTRUMENTS
(NIGHT PAN)
This function enables to turn on/off
(ON/OFF) the lights of the rev
counter and instruments.
This function can be activated (only with
electronic key fitted into ignition device,
external lights on, and speedometer
built-in sensor in poor outside light set-
ting), by pressing for long button –.
When this function is on, the display will
show “NIGHT PAN ON”.
29
SAFETY
DEVICES
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS

121
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
If a failure is indicated, stop the car, turn
the engine off and then clean the sen-
sors. Make sure to be far from possible
ultrasound sources (e.g.: truck pneu-
matic brakes or pneumatic hammers).
If failure cause has been eliminated the
system will resume regular operation
and warning
tand the corresponding
warning message will turn off.
If the warning light stays on, contact Al-
fa Romeo Authorized Services to have
the system inspected, although the sys-
tem keeps on working. If the failure de-
tected does not impair system operation,
the system keeps on working and fail-
ure is stored in order to be then detect-
ed by Alfa Romeo Authorized Services
at next inspection.
GENERAL WARNINGS
When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors. Objects set close to the
car front or rear part, under certain cir-
cumstances are not detected and could
therefore cause damages to the car or
be damaged.
Indications sent by the sensors can be
altered by dirt, snow or ice deposited on
the sensors or by ultrasound systems
(e.g.: truck pneumatic brakes or pneu-
matic hammers) set nearby the car.
TOWING TRAILERS
Rear sensors are reactivated automati-
cally when removing the trailer cable
plug.
FAILURE INDICATIONS
The system control unit checks every
system component each time the key is
fitted into the ignition device. Sensors
and relevant electrical connections are
then constantly monitored during sys-
tem operation.
Sensor failure is indicated by turning on
of warning light
t(where provided)
on the instrument panel (on certain ver-
sions together with the message on the
display) (see section “Warning lights
and messages”).
Rear sensors operation
is deactivated automat-
ically when the trailer
electric cable plug is fitted into
the car tow hook socket.

122
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
The car can be equipped with the
T.P.M.S. (Tyre Pressure Monitoring Sys-
tem). This system consists of a radio-fre-
quency sensor, installed on each wheel
(on the rim inside the tyre) that sends
pressure information to the control unit.IMPORTANT NOTES
Failure indications will not be stored and
therefore will not be displayed when
turning the engine off and on again. If
failure persists, the control unit will send
warning indications to the instrument
panel only after a few seconds when the
car is moving.
Tyre pressure should be checked with
tyres cold. Should it become necessary
for whatever reason to check pressure
with hot tyres, do not reduce pressure
although it is higher than the prescribed
value but repeat the check when tyres
are cold (see section “Wheels” in sec-
tion “Technical Specifications”).
TYRE PRESSURE MONITORING SYSTEM -
T.P.M.S. (where provided)
(optional for versions/
markets where applicable)
The T.P.M.S. does not
exempt the driver from
checking tyre pressure, includ-
ing the space-saver spare
wheel (where provided) at
regular intervals.
WARNING
T.P.M.S. cannot indicate sudden tyre
pressure drops (e.g.: tyre burst). In this
event, brake the car cautiously and
avoid sudden steering.
The T.P.M.S. system requires special
equipment. Consult Alfa Romeo Autho-
rized Services to know what type of ac-
cessories are compatible with the sys-
tem (wheels, wheel caps, etc.). Using
other accessories could cause system
malfunctioning. Due to inflation valve
special characteristics, use only tyre re-
pair sealants approved by Alfa Romeo;
other sealants could cause system mal-
functioning.

165
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
LOW BRAKE FLUID/HANDBRAKE ON ..................... 167
BRAKE PAD WEAR ............................................. 167
SEAT BELTS NOT FASTENED ................................. 167
AIR BAG FAILURE................................................ 168
PASSANGER’S FRONT AIR BAGS DEACTIVATED ........ 169
ENGINE COOLANT HIGH TEMPERATURE.................. 169
ENGINE OIL HIGH TEMPERATURE .......................... 170
LOW ENGINE OIL PRESSURE/
EXHAUST OIL..................................................... 170
LOW BATTERY CHARGE ....................................... 170
INCOMPLETE DOOR LOCKING ............................... 171
BONNET OPEN ................................................... 171
BOOT OPEN....................................................... 171
INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE....................................... 171
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION................................. 172
ALARM FAILURE/BREAK-IN ATTEMPT
ELECTRONIC KEY NOT RECOGNIZED ...................... 172
POSSIBLE PRESENCE OF ICE ON THE ROAD............ 173
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE ....................... 173
WATER IN DIESEL FUEL FILTER ............................. 174
INERTIAL FUEL CUT-OFF SWITCHED ON ................. 174
ABS SYSTEM FAILURE......................................... 175
EBD SYSTEM FAILURE......................................... 175VDC SYSTEM .................................................... 175
HILL HOLDER FAILURE ........................................ 176
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............. 176
EXTERNAL LIGHTS FAILURE .................................. 176
BRAKE LIGHTS FAILURE ....................................... 177
REAR FOGLIGHTS ............................................... 177
FRONT FOG LIGHTS ............................................ 177
SIDE/TAILLIGHTS/FOLLOW ME HOME .................. 177
DIPPED BEAM HEADLIGHTS.................................. 177
MAIN BEAM HEADLIGHTS .................................... 177
LEFT-HAND DIRECTION INDICATOR ........................ 177
RIGHT-HAND DIRECTION INDICATOR ...................... 177
LIGHT SENSOR FAILURE........................................ 178
RAIN SENSOR FAILURE......................................... 178
PARKING SENSORS FAILURE ................................ 178
FUEL RESERVE – LIMITED CRUISING RANGE .......... 178
CRUISE CONTROL .............................................. 178
DIESEL PARTICULATE FILTER CLOGGED .................. 178
ANTIPINCH SYSTEM FAILURE ............................... 179
WINDSCREEN WASHER FLUID LOW LEVEL ............. 179
SPEED LIMIT EXCEEDED ..................................... 179
T.P.M.S. SYSTEM FAILURE ................................... 179
CHECK TYRE PRESSURE ...................................... 179
LOW INFLATION PRESSURE ................................. 180
TYRE PRESSURE UNSUITABLE FOR SPEED ............. 180

167
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES

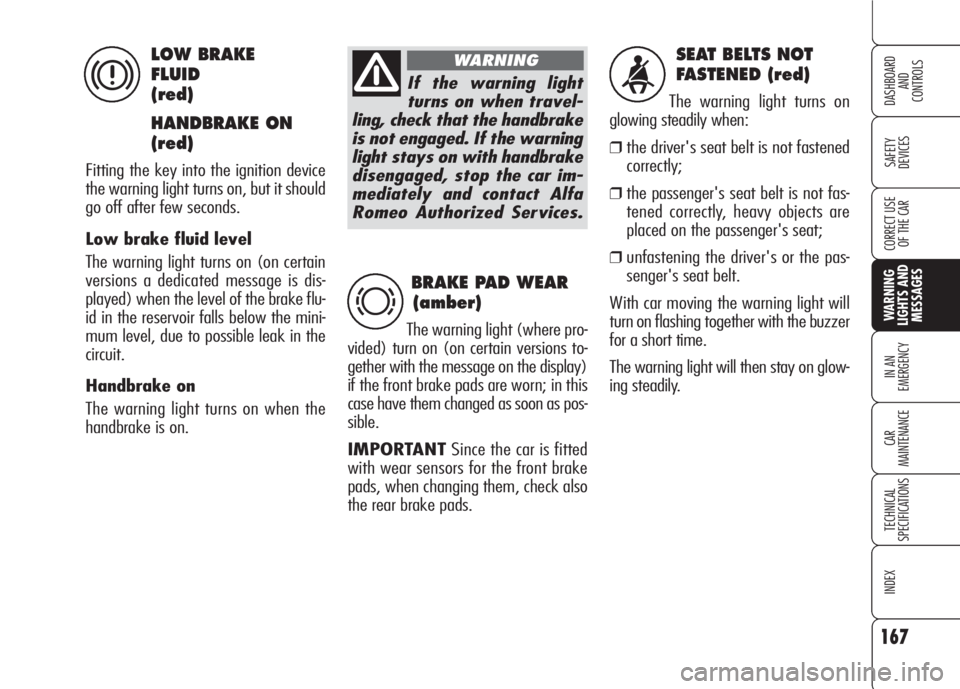

SEAT BELTS NOT
FASTENED (red)
The warning light turns on
glowing steadily when:
❒the driver's seat belt is not fastened
correctly;
❒the passenger's seat belt is not fas-
tened correctly, heavy objects are
placed on the passenger's seat;
❒unfastening the driver's or the pas-
senger's seat belt.
With car moving the warning light will
turn on flashing together with the buzzer
for a short time.
The warning light will then stay on glow-
ing steadily.
BRAKE PAD WEAR
(amber)
The warning light (where pro-
vided) turn on (on certain versions to-
gether with the message on the display)
if the front brake pads are worn; in this
case have them changed as soon as pos-
sible.
IMPORTANTSince the car is fitted
with wear sensors for the front brake
pads, when changing them, check also
the rear brake pads.
d
turns on when travel-
ling, check that the handbrake
is not engaged. If the warning
light stays on with handbrake
disengaged, stop the car im-
mediately and contact Alfa
Romeo Authorized Services.
WARNINGLOW BRAKE
FLUID
(red)
HANDBRAKE ON
(red)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
Low brake fluid level
The warning light turns on (on certain
versions a dedicated message is dis-
played) when the level of the brake flu-
id in the reservoir falls below the mini-
mum level, due to possible leak in the
circuit.
Handbrake on
The warning light turns on when the
handbrake is on.
x

216
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
USERS FUSE AMPERE FIGURE
Water in diesel fuel filter sensor/flow meter F35 7.5 56
Brake light switch/central console control panel F35 7.5 56
Cruise Control F35 7.5 56
AQS sensor F35 7.5 56
Boot branch point/front door branch point power F36 20 56
Instrument panel branch point F37 7.5 56
Front headlight control unit/Power to control unit for gas-discharge
headights (Bixenon) (where provided) F37 7.5 56
Boot locking/unlocking gearmotor F38 15 56
EOBD system diagnostic socket F39 10 56
T.P.M.S. control unit F39 10 56
Mobile phone presetting F39 10 56
Alarm system control unit (where provided) F39 10 56
Climate control system F39 10 56
Heated rear window F40 30 56
Windscreen washer/rear window washer nozzle demister F41 7.5 56
Heated mirror demister F41 7.5 56
Brake branch point power (ABS/VDC) –
Steering angle branch point – Yawing sensor F42 7.5 56
Windscreen wiper/washer F43 30 56

292
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
Bodywork (cleaning) ................ 245
Bonnet ................................... 105
Boot ................................ 101-277
– light replacement ................ 208
Brakes .................................... 256
Bulb (replacement) .................. 196
– general instructions ............. 196
– types of bulbs ..................... 197
Capacities ............................... 266
Car inactivity ............................ 164
Car maintenance................. 223
– periodical checks ................. 227
– use of the car under heavy
conditions .......................... 227
– service Schedule ................. 225
– scheduled service ................ 224
Carrying children safely ............. 135
– child restraint systems ......... 138
– passenger’s seat compliance . 138
– presetting for mounting the
“Universal Isofix” child restraint
system ....................... 140-285
Ceiling lights
– front ................................. 78
– rear .................................. 80Checking fluid levels ................. 228
Child lock device ...................... 97
Cigar lighter ............................. 85
Climate control system .............. 53
– automatic two-/three-zone .. 58
– manual .............................. 55
CO
2emissions ......................... 270
CODE card ............................... 12
Containing running costs ........... 157
Controls .................................. 81
Correct use of the car........ 151
Courtesy mirror light
– bulb replacement ................ 206
Cruise Control .......................... 76
Dashboard and controls.... 6
Dashboard buttons ................... 72
Diesel fuel filter ........................ 236
Dimensions ............................. 261
Dipped beam headlights
– bulb replacement ................ 200
– control ............................... 70
Direction indicators
– bulb replacement 200-201-203
– control ............................... 70
Doors ..................................... 96 ABS system ............................ 108
Accessories purchased
by the owner ......................... 117
Additional heater ...................... 69
Air/pollen filter ........................ 236
Air vents ................................. 54
Alarm ..................................... 17
Alfa Romeo CODE system .......... 10
Alfa 159 Sportwagon....... 275
Armrest
– central ............................... 82
– rear ............................ 83-84
Ashtray ................................... 87
ASR system ............................. 112
At the filling station .................. 125
Automatic headlight sensor ........ 71
Automatic two/three-zone
climate control system ............ 58
Battery
– checking the charge ............ 237
– jump starting ...................... 182
– recharging .......................... 219
– replacing ............................ 238
– useful advice for
lengthening the life ............. 239
I I
N N
D D
E E
X X

294
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX

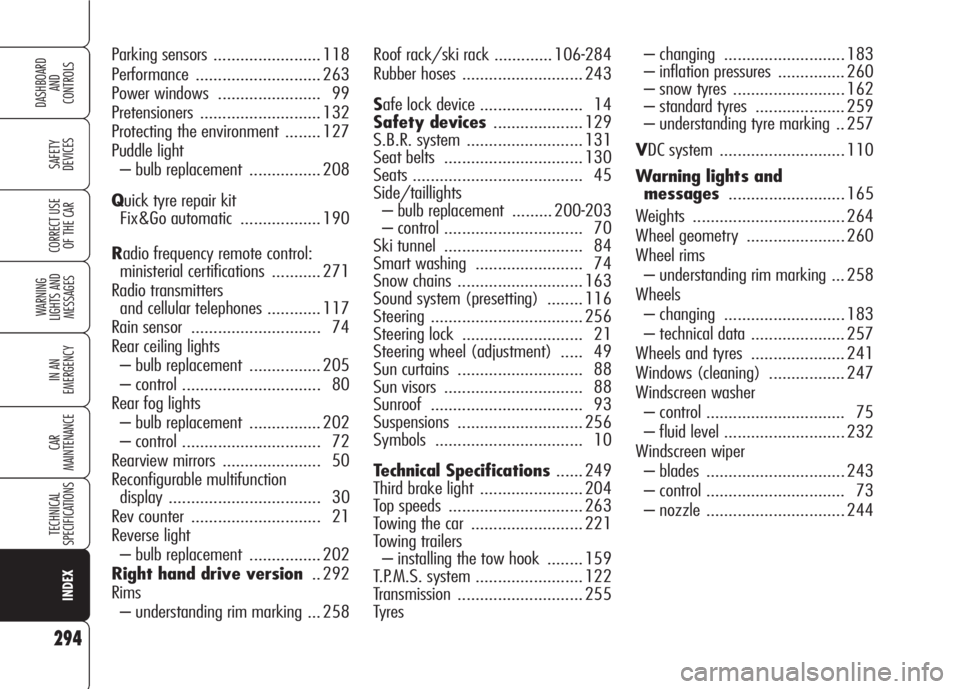

Roof rack/ski rack ............. 106-284
Rubber hoses ........................... 243
Safe lock device ....................... 14
Safety devices.................... 129
S.B.R. system .......................... 131
Seat belts ............................... 130
Seats ...................................... 45
Side/taillights
– bulb replacement ......... 200-203
– control ............................... 70
Ski tunnel ............................... 84
Smart washing ........................ 74
Snow chains ............................ 163
Sound system (presetting) ........ 116
Steering .................................. 256
Steering lock ........................... 21
Steering wheel (adjustment) ..... 49
Sun curtains ............................ 88
Sun visors ............................... 88
Sunroof .................................. 93
Suspensions ............................ 256
Symbols ................................. 10
Technical Specifications...... 249
Third brake light ....................... 204
Top speeds .............................. 263
Towing the car ......................... 221
Towing trailers
– installing the tow hook ........ 159
T.P.M.S. system ........................ 122
Transmission ............................ 255
Tyres– changing ........................... 183
– inflation pressures ............... 260
– snow tyres ......................... 162
– standard tyres .................... 259
– understanding tyre marking .. 257
VDC system ............................ 110
Warning lights and
messages.......................... 165
Weights .................................. 264
Wheel geometry ...................... 260
Wheel rims
– understanding rim marking ... 258
Wheels
– changing ........................... 183
– technical data ..................... 257
Wheels and tyres ..................... 241
Windows (cleaning) ................. 247
Windscreen washer
– control ............................... 75
– fluid level ........................... 232
Windscreen wiper
– blades ............................... 243
– control ............................... 73
– nozzle ............................... 244 Parking sensors ........................ 118
Performance ............................ 263
Power windows ....................... 99
Pretensioners ........................... 132
Protecting the environment ........ 127
Puddle light
– bulb replacement ................ 208
Quick tyre repair kit
Fix&Go automatic .................. 190
Radio frequency remote control:
ministerial certifications ........... 271
Radio transmitters
and cellular telephones ............ 117
Rain sensor ............................. 74
Rear ceiling lights
– bulb replacement ................ 205
– control ............................... 80
Rear fog lights
– bulb replacement ................ 202
– control ............................... 72
Rearview mirrors ...................... 50
Reconfigurable multifunction
display .................................. 30
Rev counter ............................. 21
Reverse light
– bulb replacement ................ 202
Right hand drive version.. 292
Rims
– understanding rim marking ... 258
