engine Alfa Romeo 159 2009 Owner handbook (in English)

193
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
❒after reaching the tyre pressure spec-
ified in paragraph “Wheels” in sec-
tion “Technical Specifications”, start
driving immediately;
❒if after 5 minutes it is still impossi-
ble to reach at least 1.5 bar, disen-
gage compressor from valve and cur-
rent outlet, then move the car forth
for approx. 10 metres in order to dis-
tribute the sealing fluid inside the tyre
evenly, then repeat the inflation op-
eration;
❒If after this operation it is still im-
possible after 5 minutes to reach at
least 1.8 bar, do start driving since
the tyre is excessively damaged and
the quick tyre repair kit cannot guar-
antee suitable sealing, contact Alfa
Romeo Authorized Services;
❒make sure the compressor switch A-
fig. 19is set to 0(off), start the
engine and fit plug A-fig. 20into
the outlet/cigar lighter on the front
console and then turn on the com-
pressor by setting switch A-fig. 19
toI(on);
❒Inflate the tyre to the pressure speci-
fied in paragraph “Wheels” in section
“Technical Specifications”. Check tyre
pressure on gauge B-fig. 19 with
compressor off to obtain precise read-
ing;
A0E0213mfig. 19A0E0217mfig. 20Apply the sticker in a
visible position for the
driver to indicate that the tyre
has been treated with the
quick tyre repair kit. Drive
carefully especially when cor-
nering and do not exceed 80
km/h. Avoid heavy braking
and accelerating.
WARNING
❒after driving for about 10 minutes
stop and check again the tyre pres-
sure;pull up the handbrake;
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 193

194
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
You shall absolutely
communicate that the
tyre has been repaired with
the quick tyre repair kit. Hand
the instruction brochure to the
personnel charged with treat-
ing the tyre repaired with the
kit.
WARNING
A0E0215mfig. 21A0E0216mfig. 22
CHECKING AND RESTORING
PRESSURE ONLY
The compressor can be also used just for
restoring pressure.
Disconnect the quick connectionA-fig.
21and connect it directly to the tyre
valvefig. 22; in this way the cylinder
is not connected to compressor and the
sealing fluid will not flow into the tyre.
If pressure falls below
1.8 bar, stop the car
since the tyre is excessively
damaged and the quick tyre
repair kit Fix & Go automatic
cannot guarantee suitable
sealing, contact Alfa Romeo
Authorized Services.
WARNING
❒if at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and
restart;
❒drive with the utmost care to the
nearest Alfa Romeo Authorized
Service.
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 194

214
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
FUSE SUMMARY TABLE
LIGTHS FUSE AMPERE FIGURE
Right main beam headlight F14 7.5 60
Left main beam headlight F15 7.5 60
Right dipped beam headlight F12 15 56
Left dipped beam headlight F13 15 56
Front fog light F30 15 60
Reversing light/Brake light F35 7.5 56
Third brake light F37 7.5 56
Front/rear ceiling light F39 10 56
Front ceiling light F49 7.5 56
Direction indicators F53 10 56
Hazard lights F53 10 56
USERS FUSE AMPERE FIGURE
Engine housing control unit services F70 (MEGA-FUSE) 150 58
Instrument panel control unit F71 70 58
Additional heater (passenger compartment water heating 600W)
(diesel versions) F72 50 58
Plug pre-heating control unit (diesel versions) F73 60 58
Instrument panel control unit F01 (MAXI-FUSE) 60 60
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 214

215
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
USERS FUSE AMPERE FIGURE
Climate control system fan (1.8 versions) F02 (MAXI-FUSE) 40 60
Climate control system fan (1.9 JTS and 2.2 JTS versions) F02 (MAXI-FUSE) 50 60
Electric steering lock F03 (MAXI-FUSE) 20 60
Brake branch point (pump) F04 (MAXI-FUSE) 40 60
Brake branch point (solenoid valve) (ABS version) F05 (MAXI-FUSE) 40 60
Brake branch point (solenoid valve) (VDC version) F05 (MAXI-FUSE) 20 60
Radiator fan (low speed) (1.8, 1.9 JTS, 2.2 JTS versions) F06 (MAXI-FUSE) 40 60
Radiator fan (high speed) F07 (MAXI-FUSE) 50 60
Additional heater supply (passenger compartment water heating 300W)
(diesel versions) F08 30 60
Headlight washer F09 20 60
Horns F10 15 60
Electronic injection system secondary loads F11 15 60
+ INT for electronic injection system F16 7.5 60
Electronic injection system primary loads F17 10 60
Battery positive of engine and automatic gearbox control units F18 10 60
Climate control system compressor F19 7.5 60
Rear window heating F20 20 60
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 215

216
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
USERS FUSE AMPERE FIGURE
Fuel pump supply F21 20 60
Electronic injection service F22 20 60
Sound system/radionavigation system power/Blue&Me F23 15 60
Supply + key for relay coils of engine compartment control unit/
dashboard control unit/Body Computer F31 7.5 56
Driver’s door branch point/passenger’s door branch point/
ignition device F32 15 56
Rear left window control/boot node F33 20 56
Rear right window control/boot node F34 20 56
Water in diesel fuel filter sensor/flow meter/Brake light switch/
central console control panel/Cruise Control/AQS sensor F35 7.5 56
Supply of boot node/locks actuators F36 20 56
Positive under key for stop lights/third stop/instrument/
lights direction F37 7.5 56
Boot opening F38 15 56
Supply + battery for air conditioner, ceiling lights, volumetric alarm,
EOBD system diagnostic socket F39 10 56
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 216

222
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY

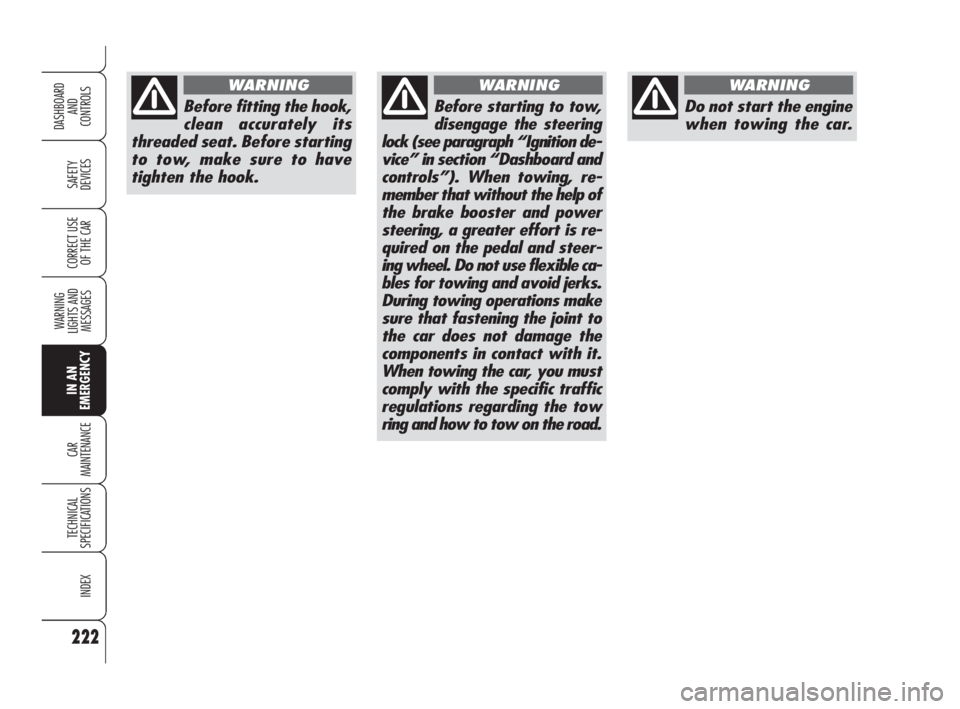

Do not start the engine
when towing the car.
WARNING
Before fitting the hook,
clean accurately its
threaded seat. Before starting
to tow, make sure to have
tighten the hook.
WARNING
Before starting to tow,
disengage the steering
lock (see paragraph “Ignition de-
vice” in section “Dashboard and
controls”). When towing, re-
member that without the help of
the brake booster and power
steering, a greater effort is re-
quired on the pedal and steer-
ing wheel. Do not use flexible ca-
bles for towing and avoid jerks.
During towing operations make
sure that fastening the joint to
the car does not damage the
components in contact with it.
When towing the car, you must
comply with the specific traffic
regulations regarding the tow
ring and how to tow on the road.
WARNING
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 222

225
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●
●●
●
●
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check light system operation (headlights, direction indicators, hazard lights,
boot lights, passenger compartment lights, glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,adjust nozzles if required
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts, underbody protection,
pipes and hoses (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels (brakes/hydraulic clutch,
power steering, windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions (except 1.8 version)
Sight inspect accessory drive belt conditions (1.8 version)
Sight inspect timing belt conditions (1.8 version)
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 225

226
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●
●●●●●
●●●●●
●●●●●
●
●
●
●
●
●●
●●
●●●●●
●●●●●
●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
Thousands of km
Check and adjust tappet clearance (1.9 JTDM8v version)
Check and adjust tappet clearance, if required (1.8 version)
Check exhaust emissions (petrol versions)
Check exhaust emissions/smoke (diesel versions)
Check engine control system operation (through diagnosis socket)
Replace accessory drive belt/s (except 1.8 version)
Replace accessory drive belt/s (1.8 version)
Replace timing belt (1.8 version) (*)
Replace timing belt (diesel versions) (*)
Change spark plugs (petrol versions except 1.8)
Change spark plugs (1.8 version)
Replace diesel fuel filter (diesel versions)
Change air cleaner cartridge (petrol versions)
Change air cleaner cartridge (diesel versions)
Change front transmission gear oil (3.2 JTS 4x4 versions)
Change engine oil and oil filter (1.8 petrol versions) (or every 12 months)
Changing engine oil and oil filter (petrol versions excluding 1.8 version)
(or every 24 months) (***)
Change engine oil and oil filter (dieselversions with DPF) (**)
(or every 24 months)
Change engine oil and oil filter (dieselversions without DPF)
(or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 24 months)
(*) Regardless of the km covered, the timing belt shall be replaced every 4 years for particularly demanding use (cold climates, driving in the city,
idling for a long time) or in any case every 5 years.
(**) Engine oil and oil filter shall actually be changed according to the conditions of use of the car and it is indicated by the relevant warning light or
message (where provided) on the instrument panel.
(***) If the car is mainly used for town driving or in particularly harsh climate conditions and has a low annual mileage, the engine oil and filter should
be changed every 12 months.
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 226

227
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
USE OF THE CAR
UNDER HEAVY
CONDITIONS
Should prevailing use of the car be un-
der one of the following specially heavy
conditions:
❒ trailer or caravan towing;
❒ dusty roads;
❒ short distances (less than 7-8 km)
and repeated with external temper-
atures below zero;
❒ frequently idling engines or long dis-
tance low speed driving (e.g.: door-
to-door deliveries) or in case of a long
term inactivity;
❒ urban routes;
carry out checks more frequently than
required on Service Schedule:
❒ check front disk brake pad conditions
and wear;
❒ check cleanness of bonnet and boot
locks and lever cleanness and lubri-
cation;
❒ sight inspect the conditions of: en-
gine, gearbox, transmission, pipes
and hoses (exhaust - fuel - brakes),
rubber parts (boots, sleeves, bushes,
etc.);
❒ check battery charge and fluid level
(electrolyte);
❒ visual check on various drive belt con-
ditions;
❒ change engine oil and oil filter, if re-
quired;
❒ check and replace pollen filter, if re-
quired;
❒ check and replace air cleaner, if re-
quired.
PERIODICAL CHECKS
Every 1,000 km or before long jour-
neys, check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒ tyre pressure and conditions.
❒ check light system operation (head-
lights, direction indicators, hazard
lights, etc.);
❒ check windscreen wiper/washer op-
eration and windscreen/rear window
blade position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL Se-
leniaproducts, designed and produced
specifically for Alfa Romeo cars (see
table “Capacities” in section “Techni-
cal specifications”).
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 227

228
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
CHECKING
FLUID LEVELS
For refilling amounts refer to Technical
Specifications section.
1.Engine oil - 2.Battery
3.Brake fluid - 4.Windscreen washer
fluid - 5.Engine coolant -
6.Power steering fluid
fig. 2 - 1.9 JTS - 2.2 JTS versionsA0E0161m
Never smoke while
working in the engine
compartment; gas and inflam-
mable vapours may be pre-
sent, with the risk of fire.
WARNING
When topping up take
care not to confuse the
various types of fluids:
they are all incompatible with
one another and could serious-
ly damage the car.
A0E0374mfig. 1 - 1.8 version
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 228
