Alfa Romeo 159 2010 Owner handbook (in English)

299

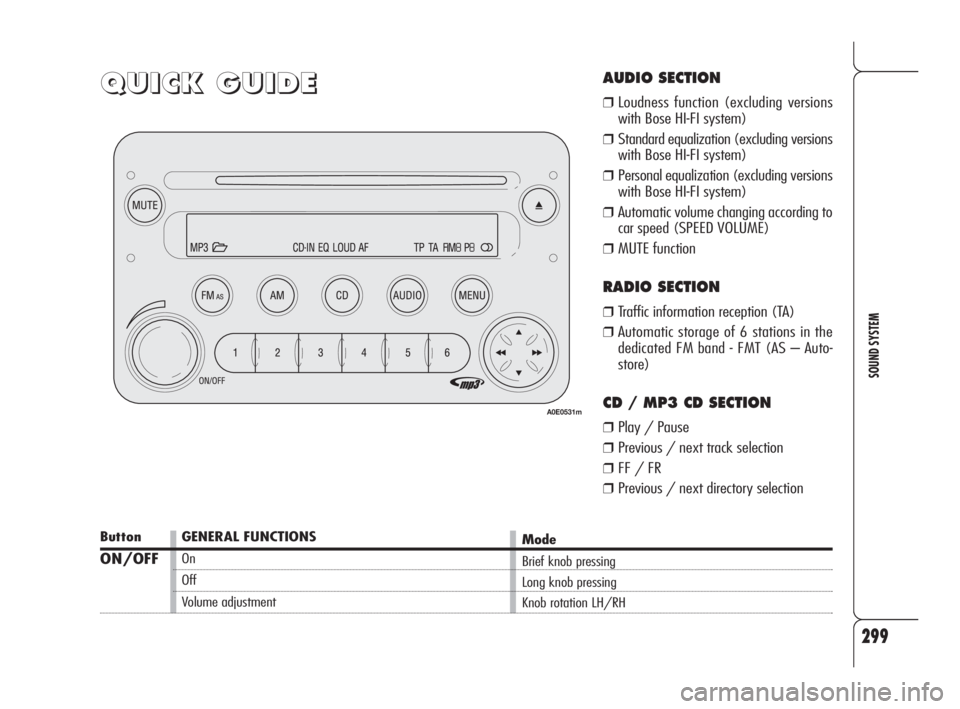

SOUND SYSTEM
Q Q
U U
I I
C C
K K

G G
U U
I I
D D
E EAUDIO SECTION
❒Loudness function (excluding versions
with Bose HI-FI system)
❒Standard equalization (excluding versions
with Bose HI-FI system)
❒Personal equalization (excluding versions
with Bose HI-FI system)
❒Automatic volume changing according to
car speed (SPEED VOLUME)
❒MUTE function
RADIO SECTION
❒Traffic information reception (TA)
❒Automatic storage of 6 stations in the
dedicated FM band - FMT (AS – Auto-
store)
CD / MP3 CD SECTION
❒Play / Pause
❒Previous / next track selection
❒FF / FR
❒Previous / next directory selection
Button
ON/OFF
Mode
Brief knob pressing
Long knob pressing
Knob rotation LH/RH
A0E0531m
GENERAL FUNCTIONS
On
Off
Volume adjustment
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 299

300
SOUND SYSTEM
Button
FM AS
AM
CD
MUTE
AUDIO
MENU
Button
÷N
˜
O
1 2 3 4 5 6
Button
ı
÷˜
N
O
GENERAL FUNCTIONS
Radio band selection FM1, FM2, FM Autostore
Radio band selection MW, LW
Audio source selection (radio/CD/CD-Changer)
Volume on/off (MUTE / PAUSE)
Audio settings: bass (BASS), treble (TREBLE),
right/left sound adjustment (BALANCE),
front/rear sound adjustment (FADER)
Advanced functions adjustmentMode
Brief cyclic button pressing
Brief cyclic button pressing
Brief cyclic button pressing
Brief button pressing
Menu activation: brief button pressing
Adjustment selection: press button
NorOValue adjustment: press button ÷or˜
Menu activation: brief button pressing
Adjustment selection: press button NorOValue adjustment: press button ÷or˜
RADIO FUNCTIONS
Radio station tuning:
•Automatic tuning
•Manual tuning
Current radio station storage
Stored station recallMode
Automatic tuning: press button ÷or˜(long pressing for fast forward)
Manual tuning: press button NorO(long pressing for fast forward)
Long button pressing
respectively for preset/memories from 1 to 6
Brief button pressing
respectively for preset/memories from 1 to 6
CD FUNCTIONS
CD ejection
Previous/next track playback
CD track fast forward/backward
Previous/next CD playback (for CD Changer)
Previous/next directory playback (for MP3 CD)
Mode
Brief button pressing
Brief pressing on buttons
÷or˜
Long pressing on buttons ÷or˜
Brief pressing on buttons NorO
Brief pressing on buttons NorO
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 300

301
SOUND SYSTEM
STEERING WHEEL CONTROLS
(where provided)
Button
^
+
–
SRC
N
O
÷
˜
FUNCTION
AudioMute on/off
(with sound system on)
Volume up
Volume down
Radio frequency
(FM1, FM2, FMT, MW, LW) and audio source
(Radio - CD - MP3 - CD Changer) selection button
Radio: recall preset stations (1 to 6)
MP3: select next directory
CD Changer: select next CD in the CD Changer
Radio: recall preset stations (6 to 1)
MP3: select previous directory
CD Changer: select previous CD in the CD Changer
Radio: automatic tuning to previous station
CD player: select previous track
CD Changer: select previous track
Radio: automatic tuning to next station
CD player: select next track
CD Changer: select next trackMode
Brief button pressing
Press button
Press button
Press button
Press button
Press button
Press button
Press button
A0E0532m
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 301

302
SOUND SYSTEM
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded.
Playing one of these CDs may
cause rustling and such a volume
as to compromise road safety, as
well as causing damage to the fi-
nal stages and speakers.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Directory selection (previous/next);
❒Track selection (forward/backward);
❒Fast forward/backward;
❒MP3 CD data display: directory name,
ID3-TAG info, time elapsed from start of
track, file name);
❒Playing audio CDs and R/RW CDs.
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function (excluding versions
with Bose HI-FI system);
❒7 band graphic equalizer (excluding ver-
sions with Bose HI-FI system);
❒Separate bass/treble adjustment;
❒Right/left channel balancing. Compact Disc section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/backward;
❒CD Display function: displaying CD
name/time elapsed from start of track;
❒Playing audio CDs and R/RW CDs.
GENERAL
The set possesses the following functions:
Radio section
❒PLL tuning with FM/AM/MW/LW fre-
quency bands;
❒RDS (Radio Data System) with TA (traf-
fic announcements) - TP (Program Type)
- EON (Enhanced Other Network) - REG
(Regional programmes);
❒AF: alternative frequency search selection
in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual storage of 36 stations: 18 in the
FM band (6 in FM1, 6 in FM2, 6 in
FMT), 6 in the MW band and 6 in the LW
band;
❒automatic storage (AUTOSTORE function)
of 6 stations in FM band;
❒SPEED VOLUME function (excluding ver-
sions with Bose HI-FI system): automat-
ic volume adjustment with car speed;
❒automatic Stereo/Mono switching.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 302

303
SOUND SYSTEM
SELECTING CD/CD CHANGER
FUNCTIONS
Pressing briefly and repeatedly button CD
it is possible to select the following audio
sources in sequence:
❒CD (only if the Compact Disc is inserted);
❒CHANGER (CD Changer - only if the CD
Changer is connected).
AUDIO SOURCE MEMORY
FUNCTION
If while listening to a CD another function is
selected (e.g.: the radio), playing is stopped
and when the CD mode is resumed, it starts
again from the point in which it was
stopped.
If while listening to the radio another func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.
VOLUME ADJUSTMENT
Adjust volume through button/knob
ON/OFF.
If the volume level is changed during the
broadcast of a traffic bulletin, the new set-
ting is maintained only until the end of the
bulletin.
SPEED VOLUME FUNCTION
(excluding versions with Bose
HI-FI system)
The SVC function makes it possible to au-
tomatically adapt the volume level to the
speed of the car, increasing it as the speed
increases to maintain the ratio with the noise
level inside the passenger compartment.
See section MENU for activat-
ing/deactivating this function.
TURNING THE
SOUND SYSTEM ON
The set is switched on pressing briefly the
button/knob ON/OFF.
When turning the sound system on, the vol-
ume level will be brought to 20 if it was set
to over.
If the radio is turned on when the key is not
fitted into the ignition device, it will turn off
automatically after about 20 minutes. After
automatic switching off, it is however possi-
ble to turn the radio on again for other 20 min-
utes by pressing the button/knob ON/OFF.
TURNING THE
SOUND SYSTEM OFF
Keep button/knob ON/OFF pressed.
SELECTING RADIO FUNCTIONS
Pressing briefly and repeatedly button FM-
AS it is possible to select the following func-
tions in sequence:
❒TUNER (“FM1”, “FM2”, “FMT”);
Pressing briefly and repeatedly button AM it
is possible to select the following functions
in sequence:
❒TUNER (“MW”, “LW”).
F F
U U
N N
C C
T T
I I
O O
N N
S S

A A
N N
D D

A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 303

304
SOUND SYSTEM
AUDIO ADJUSTMENTS
The options proposed by the audio menu dif-
fer according to the audio source selected:
AM/FM/CD/CDC.
To change Audio functions, press briefly but-
ton AUDIO. The display will show “BASS”.
To scroll the Menu options, use buttons
N
or O. To change the setting of the option
selected, press buttons
÷or ˜.
The display will show the current status of
the function selected.
The functions controlled by the menu are the
following:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance);
❒FADER (excluding versions with Bose HI-
FI system) (front/rear balance);
❒LOUDNESS (excluding versions with Bose
HI-FI system) (LOUDNESS on/off);
❒EQUALIZER (excluding versions with Bose
HI-FI system) (standard equalization ac-
tivation and selection);
❒USER EQUALISER (personal equalization
setting).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use button Nor Oto select “BASS”
or “TREBLE” in the AUDIO menu;
❒press button ÷or ˜to in-
crease/decrease the basses or trebles.
Pressing the buttons briefly the change is grad-
ual by steps. Pressing longer, changing is
faster.
BALANCE ADJUSTMENT
Proceed as follows:
❒Use button Nor Oto select “BALANCE”
in the AUDIO menu;
❒press button ÷to increase the sound
from the right speakers or button
˜to increase the sound from the left speak-
ers.
Pressing the buttons briefly the change is grad-
ual by steps. Pressing longer, changing is
faster.
Select “
÷0 ˜” to set the same val-
ue for both right and left speakers.
MUTE /PAUSE FUNCTION
(turning off the volume
completely)
To switch on the Mute function, briefly press
the button MUTE. Volume will gradually low-
er and the display will show the word
“MUTE” (when in radio mode) or “PAUSE”
(when in CD or CD-Changer mode).
To switch off the Mute function, press the
button MUTE again. Volume will gradually
become louder returning to the value set be-
fore switching on the Mute function.
Changing volume will deactivate the Mute
function and the volume will be set to the
new level selected.
With the Mute function on:
❒if an emergency alarm or a traffic bulletin
arrives with the TA function on, the mes-
sage ignores the Mute function. The Mute
function will be resumed at the end of the
traffic announcement.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 304

305
SOUND SYSTEM
PRESET/USER*/CLASSIC/
ROCK/JAZZ functions
(equalizer on/off)
The integrated equalizer can be turned on
or off. With the equalizer off, it is possible
to change the sound settings only adjust-
ing the bass (“BASS”) and treble tones
(“TREBLE”), while activating the function
makes it possible to adjust the sound curves.
To turn the equalizer off, select “PRESET”
by means of button
÷or ˜.
To turn the equalizer on, use button
÷or ˜to select one of the following op-
tions:
❒“USER” (adjustment of the 7 equalizer
bands that can be changed by the user);
❒“CLASSIC” (predefined equalizer adjust-
ment for best playing of classic music);
❒“ROCK” (predefined equalizer adjust-
ment for best playing of rock and pop mu-
sic);
❒“JAZZ” (predefined equalizer adjustment
for best playing of jazz music).
When one of the equalizer settings is on,
the display shows “EQ”.*USER EQ SETTINGS function
(only if the USER equalizer
setting has been selected)
(excluding versions with
Bose HI-FI system)
To set a personal equalizer adjustment, use
button
Nor Oto select USER and then
press button
Ofor long.
The display shows a graph with 7 bars,
where each bar represents a frequency.
Choose the bar to be adjusted using button
÷or ˜; the bar chosen starts to flash
and it is possible to adjust it using button
N
or O.
To store the new settings, press button AU-
DIO again. The display still shows “USER EQ
SETTINGS”.
ANTITHEFT PROTECTION
Refer to section “CD PLAYER”.
FADER ADJUSTMENT
Proceed as follows:
❒Use button Nor Oto select “FADER” in
the AUDIO menu;
❒press button ÷to increase the sound
from the rear speakers or button
˜to
increase the sound from the front speak-
ers.
Pressing the buttons briefly the change is grad-
ual by steps. Pressing longer, changing is
faster.
Select “
÷0 ˜” to set the same val-
ue for both front and rear speakers.
LOUDNESS FUNCTION
The Loudness function improves the sound
volume when listening at low level, in-
creasing the basses and trebles.
To switch the function on/off, use button
Nor Oto select “LOUDNESS” in the AU-
DIO menu. The function condition (on or off)
is shown on the display for few seconds by
“LOUDNESS ON” or “LOUDNESS OFF”.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 305

306
SOUND SYSTEM
SELECTING THE FREQUENCY
BAND
If in the Tuner mode, briefly and repeated-
ly press button FM or AM to select the re-
quired frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
❒Pressing button FM: “FM1”, “FM2”,
“FMT”;
❒Pressing button AM: , “MW” and “LW”.
Each band is shown by the respective word-
ing on the display.
The last station selected in the respective fre-
quency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT. The FMT reception band is re-
served to the stations stored automatically
with the AutoSTore function.
PRESETTING BUTTONS
The buttons with symbols from 1 to 6 make
it possible to set the following presettings:
❒18 in the FM band (6 in FM1, 6 in FM2,
6 in FMT);
❒6 in the MW band;
❒6 in the LW band;
To call a preset station, choose the required
frequency band and then press briefly the
corresponding preset button (from 1 to 6).
Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep.
STORING THE LAST STATION
HEARD
The radio automatically keeps in storage the
last station heard for each reception band,
which is then tuned when the radio is turned
on or the reception band is changed.
INTRODUCTION
When the set is turned on the last function
selected before turning off is played (Radio,
CD or CD Changer).
To select the Tuner source while listening
to another audio source, press briefly but-
tons FM or AM, according to the required
frequency band.
When Tuner is on, the display will show the
selected station name (RDS stations only)
(or frequency), the frequency band (e.g.:
FM1) and the preselection button number
(e.g.: P1).
R R
A A
D D
I I
O O

( (
T T
U U
N N
E E
R R
) )
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 306

307
SOUND SYSTEM
AUTOSTORE FUNCTION
(automatic station storage)
To switch on the AutoSTore function, keep
button FM-AS pressed until receiving the con-
firmation beep. With this function the ra-
dio automatically stores the six stations with
the strongest signal in decreasing order of
intensity of the FMT frequency band.
IMPORTANT Activating the AutoSTore func-
tion cancels the stations stored previously in
the FMT band.
If the TA function is on (traffic information),
only the stations that send traffic informa-
tion will be stored.
During automatic storage the display shows
“FM AST”.
To interrupt AutoSTore press button FM-AS
again: the radio will automatically tune to
the station heard before activation of the Au-
toSTore function.At the end of the AutoSTore function the ra-
dio automatically tunes on the first preset
station in the FMT band stored on preset but-
ton 1.
On buttons numbered from 1 to 6, the sta-
tions are automatically stored that give a
strong signal in that moment in the present
band.
Activating the AutoSTore function in MW or
LW bands will automatically select the FMT
band where the function is then run.
IMPORTANT Sometimes the AutoSTore func-
tion is unable to find 6 stations with a strong
signal. In this case the previous stations will
be stored on the free preset buttons.
AUTOMATIC TUNING
Briefly press button ÷or ˜to start
automatically searching the tuning for the
next station that it is possible to receive in
the direction chosen.
If button
÷or ˜is pressed for longer,
quick searching takes place. When the button
is released, the tuner stops on the next re-
ceivable station.
If the TA function is on (traffic information),
the tuner only searches stations which broad-
cast traffic bulletins.
MANUAL TUNING
This allows manual station searching in the
chosen band.
Select the required frequency band and then
press briefly and repeatedly button
Nor O
to start searching in the chosen band. Press-
ing one of the buttons
Nor Olonger obtains
fast forward searching, which is stopped when
the button is released.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 307

308
SOUND SYSTEM
EMERGENCY ALARM
RECEPTION
In the RDS mode the radio is set to receive
emergency announcements in the case of
exceptional circumstances or events that
may cause general danger (earthquakes,
floods, etc.), if they are broadcast by the
station tuned.
This function is activated automatically and
cannot be deactivated.
During emergency announcement the dis-
play will show the message “ALARM”. Dur-
ing this announcement the volume will
change as described for traffic announce-
ments (see paragraph “TA FUNCTION”).
EON FUNCTION
(Enhanced Other Network)
Certain countries have circuits which group
together several stations enabled to broad-
cast traffic information. In this case the pro-
gramme of the station being heard will be
interrupted temporarily:
❒to receive traffic information (only with
TA function on);
❒to listen to regional programmes every
time these bulletins are given by one of
the stations of the same circuits.
STEREOPHONIC STATIONS
If the signal received is weak, the device
switches automatically from Stereo to Mono.
MENU
MENU button functions
To activate the menu function, briefly press
button MENU. The display shows the word
“MENU”.
To scroll the menu functions use button
N
or O. To change the setting of the select-
ed function use button
÷or ˜.
The display will show the current status of
the function selected.
The functions controlled by the menu are the
following:
❒AF SWITCHING (ON/OFF)
❒TRAFFIC INFO (ON/OFF)
❒REGIONAL MODE regional programmes
(ON/OFF);
❒MP3 DISPLAY (MP3 CD data display);
❒SPEED VOLUME (excluding versions with
Bose HI-FI system) (automatic volume
control in relation to speed);
❒EXTERNAL AUDIO VOL (external audio
sources control)
❒RADIO OFF (System power off mode).
❒RESTORE DEFAULT
To exit the menu function, press button
MENU again.
293-318 Alfa 159 GB 8-04-2009 10:56 Pagina 308
