snow chains Alfa Romeo 159 2010 Owner handbook (in English)

113
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
The performance of the
system, in terms of ac-
tive safety should not induce
the driver to take pointless
and unnecessary risks. The
style of driving must in any
case always be adapted to the
conditions of the road surface,
visibility an traffic. Road safe-
ty is always the driver’s re-
sponsibility.
WARNINGThe action of the ASR is particularly help-
ful in the following circumstances:
❒slipping of the inner wheel due to the
effect of dynamic load changes or ex-
cessive acceleration;
❒ too much power transmitted to the
wheels also in relation to the condi-
tions of the road surface;
❒ acceleration on slippery, snowy or
frozen surfaces;
❒in the case of loss of grip on a wet
surface (aquaplaning).Switching the ASR system
on/off
ASR turns on automatically when turn-
ing the instrument panel on.
When travelling the ASR can be
switched off by pressing briefly the
ASR/VDC button on the central console.
When the ASR is switched off this is
shown by the lighting up of the
ASR/VDC button led (on versions fitted
with “Reconfigurable multifunction dis-
play” symbol Vwill also be dis-
played).
If the ASR is switched off when travel-
ling, it will turn on again automatically
the next time the engine is started.
When travelling on snowy roads with
snow chains, it may be helpful to turn
the ASR off: in fact, in these conditions,
slipping of the driving wheels when mov-
ing off makes it possible to obtain bet-
ter drive.
083-128 Alfa 159 GB 3-12-2009 14:09 Pagina 113

149
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
C C
O O
R R
R R
E E
C C
T T

U U
S S
E E

O O
F F

T T
H H
E E

C C
A A
R R
ENGINE STARTING ............................................. 150
PARKING .......................................................... 155
USING THE GEARBOX......................................... 156
CONTAINING RUNNING COSTS ............................. 157
TOWING TRAILERS............................................. 159
SNOW TYRES................................................... 162
SNOW CHAINS ................................................. 163
CAR INACTIVITY ............................................... 164
149-164 Alfa 159 GB 8-04-2009 10:51 Pagina 149

163
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IMPORTANTSnow chains cannot be
fitted to the space-saver spare wheel.
So, if a front (drive) wheel is punctured
and chains are needed, a rear wheel
should be fitted to the front of the car
and the spare wheel should be fitted to
the rear (adjust tyre pressure to the spec-
ified value as soon as possible). This
way with two normal drive wheels,
snow chains can be fitted to them to
solve an emergency.
Also for 3.2 JTS version,
snow chains shall be fit-
ted on the FRONT axle of
the car.

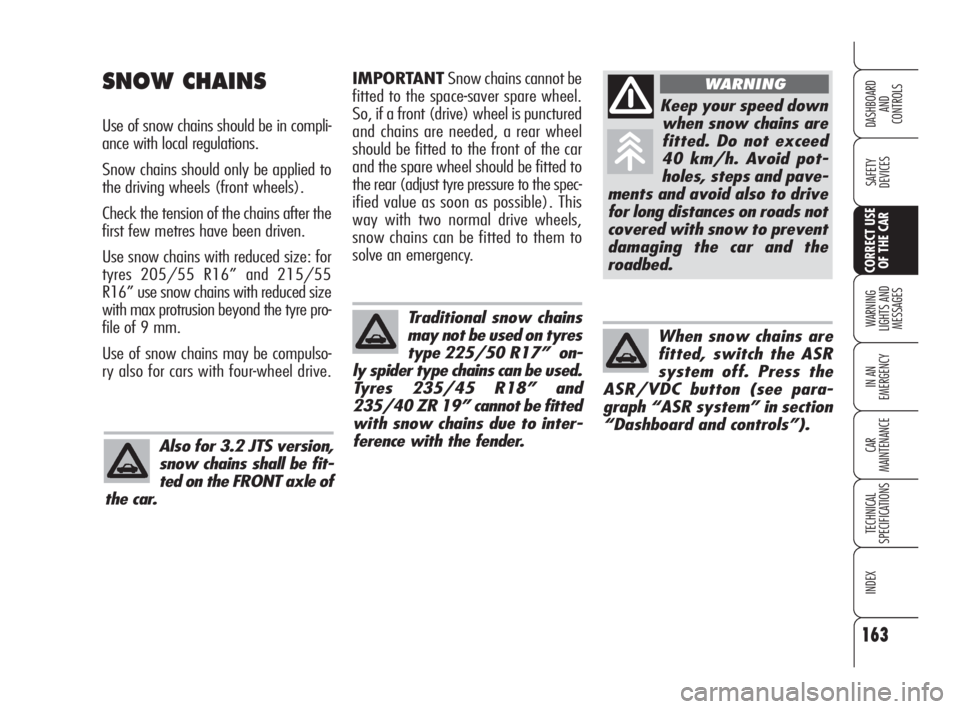

SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Snow chains should only be applied to
the driving wheels (front wheels).
Check the tension of the chains after the
first few metres have been driven.
Use snow chains with reduced size: for
tyres 205/55 R16” and 215/55
R16” use snow chains with reduced size
with max protrusion beyond the tyre pro-
file of 9 mm.
Use of snow chains may be compulso-
ry also for cars with four-wheel drive.
Traditional snow chains
may not be used on tyres
type 225/50 R17” on-
ly spider type chains can be used.
Tyres 235/45 R18” and
235/40 ZR 19” cannot be fitted
with snow chains due to inter-
ference with the fender.
Keep your speed down
when snow chains are
fitted. Do not exceed
40 km/h. Avoid pot-
holes, steps and pave-
ments and avoid also to drive
for long distances on roads not
covered with snow to prevent
damaging the car and the
roadbed.
WARNING
When snow chains are
fitted, switch the ASR
system off. Press the
ASR/VDC button (see para-
graph “ASR system” in section
“Dashboard and controls”).
149-164 Alfa 159 GB 8-04-2009 10:51 Pagina 163

184
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
The space-saver spare
wheel (for versions/
markets, where provided) is
specific to your car; do not use
it on other models, or use the
spare wheel of other models
on your car. The space-saver
spare wheel shall only be used
in an emergency. It shall only
be used for the distance nec-
essary to reach a service point
and the car speed shall not ex-
ceed 80 Km/h. The spare
wheel has a sticker that sum-
marises the main cautions for
use and limitations. The stick-
er should never be removed or
covered!. Never fit a wheel
cap on a space-saver spare
wheel.
WARNING
When driving with a
space-saver spare
wheel fitted, the driving per-
formance of the car changes.
Avoid accelerating or braking
sharply, abrupt turns or fast
cornerings. The life of the
spare wheel is approx. 3000
Km, after this distance it
should be replaced with an-
other of the same type. Nev-
er attempt to fit a conven-
tional tyre on a rim designed
for use as a space-saver spare
wheel. Have the punctured
wheel repaired and refitted as
soon as possible. Two or more
space-saver spare wheels
should never be used togeth-
er. Do not grease the threads
of bolts before installing them:
they might slip out.
WARNING
The jack shall only be
used for changing
wheels on the car with which
it is provided or on cars of the
same model. It must not be used
for other purposes such as for
instance raising cars of other
models. In no case should it be
used for repairs under the car.
Incorrect positioning of the jack
may cause the jacked car to fall.
Do not use the jack for higher
capacities than stated on its la-
bel. Snow chains cannot be fit-
ted to the space-saver spare
wheel. So, if a front (drive)
wheel is punctured and chains
are needed, a rear wheel should
be fitted to the front of the car
and the spare wheel should be
fitted to the rear. This way with
two normal drive wheels, snow
chains can be fitted to them to
solve an emergency.
WARNING
181-222 Alfa 159 GB 3-12-2009 14:10 Pagina 184

TYRES
259
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
TECHNICAL SPECIFICATIONS
Traditional snow chains may not be used on tyres type 225/50 R17” only spider type chains
can be used. Tyres 235/45 R18” and 235/40 ZR19” cannot be fitted with snow chains due
to interference with the fender. Also for 3.2 JTS and 2.4 JTD
M210 HP 4x4 version, snow chains shall be fitted on the FRONT
axle of the car.
4,00B x17"
T125/80 R17
TI
Versions
8Jx19" alloy
235/40 ZR19 96Y (▼)
tyre
rim
tyre
rim
tyre
rim
tyre
rim
tyre
rim
tyre
rim
1.9 JTDM8VECO
1.9 JTDM8V(**)
2.0 JTDMECO
2.0 JTDM(**)
7Jx16” steel
205/55 R16 91V
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
Standard tyres
For versions/markets,
where provided
Optionals
Space-saver
spare wheel
(for versions/markets,
where provided)
(*) Tyres that cannot be fitted with traditional snow chains. Only “spider” type chains can be used.
(**) For specific markets
IMPORTANTSnow tyres with speed index Hor superior are recommended.
(
▼) Unchainable tyres. When using winter tyres, use 225/50 R17 98 tyres or 235/45 R18 98. Vehicles with TI fittings should not use 16”
wheel rims.
1750 TURBO BENZINA
3.2 JTS - 2.4 JTDM200 CV
2.4 JTDM210 CV
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W (▼)
1.8 140 HP
1.9 JTDM8V1.9 JTDM16V2.0 JTDM
7Jx16” steel
205/55 R16 91V
7Jx16” steel
215/55 R16 93V
7Jx16” alloy
215/55 R16 93V
7,5Jx17” (*) alloy
225/50 R17 98W
8Jx18” alloy
235/45 R18 98W (▼)
249-270 Alfa 159 GB 3-12-2009 15:51 Pagina 259

Rims
– understanding rim marking ... 258
Roof rack/ski rack ............ 106-284
Rubber hoses .......................... 242
Safe lock device ...................... 14
Safety devices.................... 129
S.B.R. system ......................... 131
Seat belts ............................... 130
Seats ..................................... 45
Side/taillights
– bulb replacement ......... 200-203
– control .............................. 70
Ski tunnel ............................... 84
Smart washing ........................ 74
Snow chains ........................... 163
Sound system ......................... 293
Steering ................................. 256
Steering lock ........................... 21
Steering wheel (adjustment) ..... 49
Sun curtains ............................ 88
Sun visors ............................... 88
Sunroof .................................. 93
Suspensions ............................ 256
Symbols ................................. 10
Technical Specifications...... 249
Third brake light ...................... 204
Top speeds .............................. 263
Towing the car ......................... 221
Towing trailers
– installing the tow hook ........ 159
T.P.M.S. system ....................... 122Transmission ........................... 255
Tyres
– changing ........................... 183
– inflation pressures ............... 260
– snow tyres ........................ 162
– standard tyres .................... 259
– understanding tyre marking .. 257
VDC system ........................... 110
Warning lights and
messages.......................... 165
Weights ................................. 264
Wheel geometry ...................... 260
Wheel rims
– understanding rim marking ... 258
Wheels
– changing ........................... 183
– technical data .................... 257
Wheels and tyres ..................... 240
Windows (cleaning) ................. 246
Windscreen washer
– control .............................. 75
– fluid level .......................... 232
Windscreen wiper
– blades .............................. 242
– control .............................. 73
– nozzle .............................. 243 Parking lights
– control .............................. 72
Parking sensors ....................... 118
Performance ........................... 263
Power windows ....................... 99
Pretensioners .......................... 132
Protecting the environment ........ 127
Puddle light
– bulb replacement ................ 208
Quick tyre repair kit
Fix&Go automatic .................. 190
Radio frequency remote control:
ministerial certifications ........... 271
Radio transmitters
and cellular telephones ........... 117
Rain sensor ............................. 74
Rear ceiling lights
– bulb replacement ................ 205
– control .............................. 80
Rear fog lights
– bulb replacement ................ 202
– control .............................. 72
Rearview mirrors ...................... 50
Reconfigurable multifunction
display ................................. 30
Rev counter ............................ 21
Reverse light
– bulb replacement ................ 202
Right hand drive version.. 297
321
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
319-328 Alfa 159 GB 3-12-2009 15:53 Pagina 321
