KEY BATTERY CHANGE
If pressing the remote control buttons
(AorB-fig. 7), the led (C-fig. 7)
(where required) gives only one brief
flash and the alarm system led (where
fitted) (A-fig. 8) on the dashboard s-
tays on glowing steadily for about 2 min-
utes (after turning off the alarm and with
the ignition switch off), it is necessary to
replace the battery with a new one of the
equivalent type to be found c/o normal
retailers.
To replace the battery, remove the plas-
tic lid (A-fig. 9), insert the new battery
according to the correct polarity and put
the lid back on.For further information contact Autho-
rised Alfa Romeo Services.
OPERATION
Each time the ignition key is turned to
theSTOPposition, the Alfa Romeo
CODE system deactivates the functions of
the engine electronic control unit.Each time the engine is started, turning
the key to the MARposition, the control
unit of the Alfa Romeo CODE system
sends a recognition code to the engine
control unit to deactivate the inhibition of
the functions.
The recognition code, which is crypted
and variable between over 4 billion com-
binations, is only sent if the system con-
trol unit has recognised the code sent to
it by the key, which contains an electronic
transmitter, through an aerial in the igni-
tion switch. Dead batteries consti-
tute a hazard for the
environment and must
be disposed of in the special con-
tainers as specified by the rela-
tive laws.
fig. 7
1011PGSm
fig. 9
1034PGSm
fig. 8
305PGSm

20
This condition is indicated by a brief
flash of the warning light (A-fig.
10) on the check panel.
If the code has not been recognised cor-
rectly, the Alfa Romeo CODE system
warning light (A-fig. 10) stays on
together with the EOBD/fuel supply-igni-
tion system failure warning light (B-fig.
10) .
In this case, you are recommended to re-
turn the key to the STOPposition and
than back to MAR; if the inhibition per-
sists, try again possibly with the other key
provided with the car. If it is still impossible
to start the car, carry out the emergency
starting procedure described herein and
turn to an Alfa Romeo Authorized Service.
U
¢
¢IMPORTANTEvery electronic key has
its own code, which must be memorised
by the system control unit. To memorise
new keys, up to a maximum of seven,
apply solely to Alfa Romeo Authorized
Services taking with you all the keys in
your possession, the CODE card, a person-
al identity document and the car’s posses-
sion documents.
The codes of the keys
not provided during the
new memorising proce-
dure are erased from the memo-
ry. This is to ensure that any lost
or stolen keys can no longer be
used to start the car.
IMPORTANTThe Alfa Romeo CODE
warning light comes on when travelling
with the ignition key on MAR:
1) If the warning lamp lights up while
the car is moving, it means that the sys-
tem is running a self-diagnosis (e.g. due to
a voltage drop). The first time you stop y-
ou can test the system as follows: switch
the engine off by turning the ignition keytoSTOP; then turn the key back to
MAR: the warning lamp will light up and
should go out in the space of about one
second. If the warning lamp fails to go
out, leave the key at STOPfor more than
30 seconds and repeat the procedure de-
scribed previously. If the problem persists,
contact your Authorised Alfa Romeo Dealer.
2) If the warning lamp flashes it means
that the car is not protected by the immo-
biliser. Contact your Authorized Alfa
Romeo Code Dealer immediately and get
them to store the codes of all the keys in
the memory.
If after about 2 seconds
with the key in the
MAR position, the Alfa
Romeo CODE warning light turns
on again flashing at appr. half
second intervals, this means that
the code of the keys has not
been memorised, thus the car is
not protected by the Alfa Romeo
CODE system against attempted
theft. In this case, contact an Au-
thorized Alfa Romeo Service to
have the key codes memorised.
fig. 10
A0D0091m

21
IMPORTANTIn the case of fast start-
ing, turning the key directly from STOP
toAV V, the recognition code might not
be transmitted completely, preventing the
engine from starting: try again more
slowly.
IMPORTANTThe system is protected
by two fuses housed in the main fusebox
(see “If a fuse or relay blows” in the
chapter “In an emergency”).
EMERGENCY STARTING
If it is not possible to deactivate the en-
gine inhibitor with the ignition key, Alfa
Romeo Authorized Services can carry out
the emergency procedures using the code
of the CODE card, or, you may do this
yourself, following the procedure de-
scribed below.
IMPORTANTYou are advised to care-
fully read the entire procedure before car-
rying it out.If a mistake is made during the emer-
gency procedure, the ignition key should
be turned to the STOPposition and the
operations must be repeated from the s-
tart (point 1).
1) Read the 5-figure electronic code on
the CODE card.
2) Turn the ignition key to the MAR
position.
3) Fully depress the accelerator pedal
and keep it pressed. The EOBD/fuel sup-
ply-ignition system failure warning light
will come on for eight seconds ap-
proximately and will then go out; now re-
lease the accelerator pedal.
4) The warning light begins to
flash: after it has flashed for the same
number of times as the first digit on the
code of the card, press completely and
hold down the accelerator pedal until the
warning light comes on (for 4 sec-
onds) and then goes out again; now re-
lease the accelerator pedal.
5) The warning light will begin to
flash: after it has flashed for the same
number of times as the second digit on
the code of the CODE card, press com-
pletely and hold down the accelerator
pedal.
U
U
U
U
6) Repeat this procedure in the same
way for the other digits on the CODE card
code.
7) After entering the last figure, keep
the accelerator pedal pressed. The warn-
ing light turns on (for four seconds)
and then goes off; now release the accel-
erator pedal.
8) A quick flash of the warning light
(for appr. 4 seconds) confirms that
the operation has taken place correctly.
9) Start the car turning the ignition key
from the MARposition to the AVV po-
sition without returning the key to the
STOPposition.
Conversely, if the warning light
stays on, turn the ignition key to STOP
and repeat the procedure starting from
point 1).
IMPORTANTAfter emergency start-
ing it is advisable to turn to an Alfa
Romeo Authorized Service, because the
procedure described must be repeated
each time the engine is started.
U
U
U

24
3 flashes: right rear door
4 flashes: left rear door
5 flashes: volumetric sensors
6 flashes: bonnet
7 flashes: boot
8 flashes: tampering with car starting
cables
9 flashes: tampering with battery cables
or cutting emergency key cables
10 flashes: at least three causes of alarm.WHEN THE ALARM IS
TRIGGERED
When the alarm is engaged it will sound
when:
– One of the doors, the bonnet or the
boot is opened.
– The battery is disconnected or the
electric cables are cut, or the emergency
key cables are cut.
– Intrusion into the passenger compart-
ment, e.g. window being broken (volu-
metric protection).
– Attempt to start the engine (key at
MAR).
Depending on the markets, the trigger-
ing of the alarm will activate the siren
and the hazard warning lights (for about
26 seconds). The methods of operation
and the number of cycles may vary de-
pending on the versions/markets. How-
ever a maximum number of cycles is fore-
seen. Once the alarm cycle has come to
an end the system will return to its nor-
mal monitoring state.
SWITCHING OFF THE ALARM
To switch off the alarm, press the re-
mote control button on the key. If the
alarm does not turn off due to a flat re-
mote control battery or system fault,
open the door after unlocking with the
lock key, then place the key in the igni-
tion switch and turn it to MAR.
To turn on the alarm again, turn the key
toSTOPand remove it, then press the
remote control button after leaving the
car and shutting the doors. If the alarm
does not turn on and the led on the re-
mote control gives only one brief flash
while the led on the dashboard stays on
glowing steadily for about 2 minutes, the
key battery should be replaced by a new
one of the equivalent type on sale c/o
normal retailers. To change the battery
follow the instructions given at paragraph
“Key battery change” on previous pages.
If it is not possible to switch on the
alarm with a new remote control battery,
contact Alfa Romeo Authorised Services
to have the system checked.

27
IMPORTANTNever leave the key in
this position when the engine is station-
ary.
–AV V: starting the engine.
IMPORTANT If the engine does not
start return the ignition key to the STOP
position and repeat the sequence.
The ignition block is fitted with a safety
device preventing it from being moved to
theAVV position when the engine is al-
ready running.If the ignition device is
tampered with (for ex-
ample during an at-
tempted break-in) have it checked
over by Alfa Romeo Authorized
Services, before travelling again.
STEERING LOCK
Engaging lock:
– move the key to the STOPposition
and remove the key lightly turning the
steering wheel to facilitate the locking ac-
tion.
Releasing the lock:
– turn the key to the MARposition
and gently rock the steering wheel in
both directions.
When leaving the vehicle
always remove the key
from the ignition to prevent any
passenger in the car from inadver-
tently activating the controls.
Never leave children unattended in
a car. Remember to engage the
handbrake and if the vehicle is fac-
ing uphill, first gear and if the ve-
hicle is facing downhill, reverse.
WARNING
Never remove the key
with the car on the
move. The steering wheel would
lock automatically the first time
the steering wheel is turned. This
also occurs if the car is towed.
WARNING
It is absolutely forbidden
to carry out whatever af-
ter-market operation involving
steering system or steering column
modifications (e.g.: installation of
anti-theft Device) that could badly
affect performance and safety,
cause the lapse of warranty and
also result in non-compliance of the
car with homologation require-
ments.
WARNING

55
IMPORTANTSThe triggering of air
bags releases a small amount of powder.
This powder is not harmful and does not
indicate a start of fire; also the surfaces
of the deployed bag and the car interior
may be covered with dusty residue: this
may irritate the skin and eyes. In the
event of exposure, wash with neutral
soap and water.
The air bag system has a validity of 14
years as concerns the pyrotechnic charge
and 10 years as concerns the coil contact.
Contact Alfa Romeo Authorized Services as
this date approaches.IMPORTANTIf an accident has trig-
gered the air bag, Alfa Romeo Authorized
Services must be contacted to have the de-
vices activated replaced and to have the
whole system checked.
All operations involving checking, repair-
ing and replacing components concerning
the Air bag must be carried out by Alfa
Romeo Authorized Services.
If the car is to be demolished, Alfa Romeo
Authorized Services should be contacted be-
forehand to have the system deactivated.
If the car changes ownership, the new
owner must be informed of the instructions
for use and of the above warnings and be
given this “Owner’s Manual”.
IMPORTANTThe triggering of the pre-
tensioners, front air bags and side bags is
decided by the electronic control unit in a
differentiated manner depending on the
type of crash. The failure to trigger one or
more of them does not necessarily indicate
a system malfunction.GENERAL WARNINGS
Never lean head, arms
and elbows out of the
window.
WARNING
If the ¬warning light
does not turn on when
turning the ignition key to MAR or
if it stays on when travelling, this
could indicate a failure in safety re-
taining systems; under this condi-
tion air bags or pretensioners could
not trigger in the event of collision
or, in a restricted number of cases,
they could trigger accidentally.
Stop the car and contact a Alfa
Romeo Authorized Services to
have the system checked.
WARNING
Do not cover back rest of
front seats with trims or
covers there are not set for the
use of side bags.
WARNING

61
Windscreen wiper (fig. 72-73)
The lever can be moved to five different
positions corresponding to:
A- Stationary (off)
B- Intermittent.
With the lever in position B, turning the
ring (1-fig. 73) four possible intermit-
tent speeds are obtained (except versions
with rain sensor):
■= intermittent slow
■■= intermittent medium
■■■= intermittent medium-fast
■■■■= intermittent fast.
C- Continuous, slow
D- Continuous, fast
E- Fast, temporary (unstable position).
Operation in position Eis limited to the
time the lever is held in this position.
When the lever is released, it returns to
positionAautomatically stopping the
wiper.Rain sensor (fig. 72-73)
(optional for versions/markets where
applicable)
The rain sensor is an electronic device
coupled with the windscreen wiper and its
purpose is to automatically adapt the fre-
quency of the wiper strokes according to
the intensity of the rain during intermit-
tent operation.
All the other functions controlled by the
right-hand lever (switching the wiper off,
slow and fast continuous operation, fast
temporary operation, windscreen washer
and headlight washer) remain un-
changed.
The rain sensor is activated automatical-
ly moving the right-hand lever to position
(B) and its field of adjustment changes
gradually.Operating the windscreen washer with
the rain sensor activated (lever in position
B) the normal washing cycle is carried
out at the end of which the rain sensor
resumes normal operation automatically.
Moving the key to the STOPposition
the rain sensor is deactivated and the
next time the car is started (key in MAR
position) it is not reactivated even if the
lever is still in position (B). In this case to
activate the rain sensor, simply move the
lever to position (A) or (C) and then
back to position (B).
When the rain sensor is reactivated in
this way, the wiper performs at least one
stroke, even if the windscreen is dry, to
signal that the sensor has been reactivat-
ed.
The rain sensor is fastened to the wind-
screen inside the area cleaned by the
wiper and it controls an electronic control
unit, which in turn controls the wind-
screen wiper motor.
A0D0019m
fig. 73

62
At each start the rain sensor automati-
cally (in about 2 minutes) stabilises at a
temperature of about 40°C to eliminate
any condensation from the control surface
and prevent the formation of ice.
The rain sensor is capable of detecting
and adapting automatically to the pres-
ence of the following particular conditions
which call for different sensitivity:
– impurities on the control surface
(saline deposits, dirt, etc.)
– streaks of water caused by partial
wear of the windscreen wiper
– difference between day and night
(the human eye is more disturbed during
the night by a wet windscreen surface.Headlight washer (fig. 75)
(optional for versions/markets where
applicable)
These are operated when the low beam
headlights are on and the windscreen
washer is switched on. Windscreen washer (fig. 74)
The windscreen washer is operated by
pulling the lever towards the steering
wheel.
Keeping the lever pulled the windscreen
wiper is turned on continuously. When
the lever is released the wiper continues
for a few strokes and then stops or con-
tinues at the speed set.
A0D0020m
fig. 74
A0D0021m
fig. 75

74
If the warning light
comes on when the ve-
hicle is in movement,
switch the engine off immediate-
ly and contact Alfa Romeo Au-
thorized Services.v
Low engine oil level
This warning light stays on for approx.
15 seconds, after the check, when the
engine oil level is low.
With the ignition key at MAR, pressing
the check button, the warning light turns
on but must go out after approx. 6 sec-
onds.
The oil level is checked only pressing
the check button with the engine
stopped. If the engine is started during
the check, the check procedure is inter-
rupted.k
If the warning light
stays on after the
check, do not try to get
peak performance out of the en-
gine and top up the oil as soon
as possible.k
Insufficient oil pressure
This warning light should be out when
the engine is running.
When the ignition key is turned to the
MARposition the warning light comes
on and should go out as soon as the en-
gine is started. vLow battery charge
This warning light should be out when the
engine is running (a slight delay is permitted
when the engine is running at idle speed).
If the warning light comes on, Alfa
Romeo Authorized services should be con-
tacted immediately.
When the ignition key is moved to the
MARposition the warning light comes
on and should go out as soon as the en-
gine is started.w

76

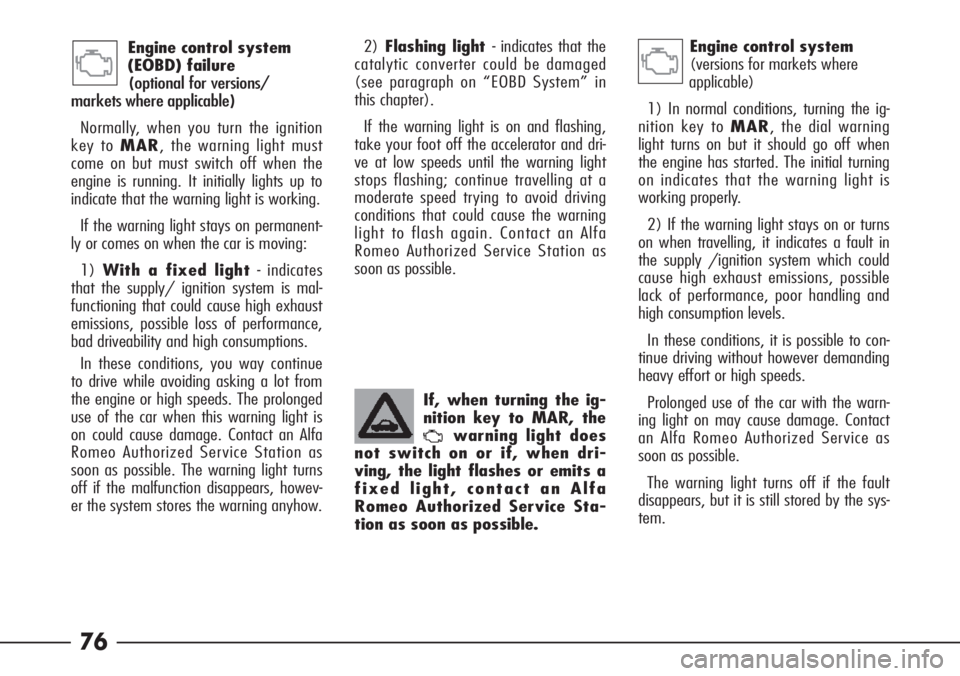

Engine control system
(EOBD) failure
(optional for versions/
markets where applicable)
Normally, when you turn the ignition
key to MAR, the warning light must
come on but must switch off when the
engine is running. It initially lights up to
indicate that the warning light is working.
If the warning light stays on permanent-
ly or comes on when the car is moving:
1)With a fixed light- indicates
that the supply/ ignition system is mal-
functioning that could cause high exhaust
emissions, possible loss of performance,
bad driveability and high consumptions.
In these conditions, you way continue
to drive while avoiding asking a lot from
the engine or high speeds. The prolonged
use of the car when this warning light is
on could cause damage. Contact an Alfa
Romeo Authorized Service Station as
soon as possible. The warning light turns
off if the malfunction disappears, howev-
er the system stores the warning anyhow.
U
2)Flashing light - indicates that the
catalytic converter could be damaged
(see paragraph on “EOBD System” in
this chapter).
If the warning light is on and flashing,
take your foot off the accelerator and dri-
ve at low speeds until the warning light
stops flashing; continue travelling at a
moderate speed trying to avoid driving
conditions that could cause the warning
light to flash again. Contact an Alfa
Romeo Authorized Service Station as
soon as possible.
If, when turning the ig-
nition key to MAR, the
Uwarning light does
not switch on or if, when dri-
ving, the light flashes or emits a
fixed light, contact an Alfa
Romeo Authorized Service Sta-
tion as soon as possible.
Engine control system
(versions for markets where
applicable)
1) In normal conditions, turning the ig-
nition key to MAR, the dial warning
light turns on but it should go off when
the engine has started. The initial turning
on indicates that the warning light is
working properly.
2) If the warning light stays on or turns
on when travelling, it indicates a fault in
the supply /ignition system which could
cause high exhaust emissions, possible
lack of performance, poor handling and
high consumption levels.
In these conditions, it is possible to con-
tinue driving without however demanding
heavy effort or high speeds.
Prolonged use of the car with the warn-
ing light on may cause damage. Contact
an Alfa Romeo Authorized Service as
soon as possible.
The warning light turns off if the fault
disappears, but it is still stored by the sys-
tem.
U
