Alfa Romeo 4C Spider 2019 Owner's Guide

WARNING!
Vehicles and other objects seen in the passenger
side convex mirror will look smaller and farther
away than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use
your inside mirror when judging the size or dis-
tance of a vehicle seen in the passenger side convex
mirror.
Power Mirrors
The power mirror controls are located on the center
console.The power mirror controls consist of a mirror select
knob and a four-way mirror control switch. To adjust a
mirror, turn the power mirror control knob to the left or
right to select the mirror that you want to adjust.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the selected
mirror to move.Power Mirror Control
3
GETTING TO KNOW YOUR VEHICLE 29

Folding Mirrors
The exterior mirrors are hinged to allow the mirror to
pivot forward or rearward to help avoid damage. The
mirror has three detent positions: full forward, full
rearward and normal.
Heated Mirrors
These mirrors are heated to melt frost or ice.
This feature can be activated whenever you
turn on the mirror defroster. The Door
Demist/Defrost button is located in the
switch bank above the Climate Controls.
EXTERIOR LIGHTS
Multifunction Lever
The multifunction lever, located on the left side of the
steering wheel, controls the operation of the headlights,
headlight high beams, lane change assist and turn
signals.
NOTE: The external lights can only be turned on with
the ignition in the ON/RUN position.
Folding Mirrors
Multifunction Lever
30 GETTING TO KNOW YOUR VEHICLE

Headlights
Rotate the end of the multifunction lever upward to the
first detent for headlight operation.
NOTE:When the headlights are turned on, the Daytime
Running Lights will be deactivated.
Daytime Running Lights
To activate the Daytime Running Lights (DRL), rotate
the end of the multifunction lever to the Osymbol.
NOTE: The low beams and side/tail lights will not be
on with DRL.
High Beams
With the low beams activated, pull the multifunction
lever towards the steering wheel to turn on the high
beams. A high beam symbol will illuminate in the
cluster to indicate the high beams are on. Pull the
multifunction lever a second time to switch the head-
lights back to low beam.
NOTE: If the vehicle’s ignition is turned OFF, both high
and low beam headlights will also turn off.
Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the
steering wheel. This will cause the high beam head-
lights to turn on until the lever is released.
Parking Lights
To turn on the parking lights, remove the key or turn
the ignition to OFF/LOCK position and turn on the
headlights.
Headlight Operation
3
GETTING TO KNOW YOUR VEHICLE 31

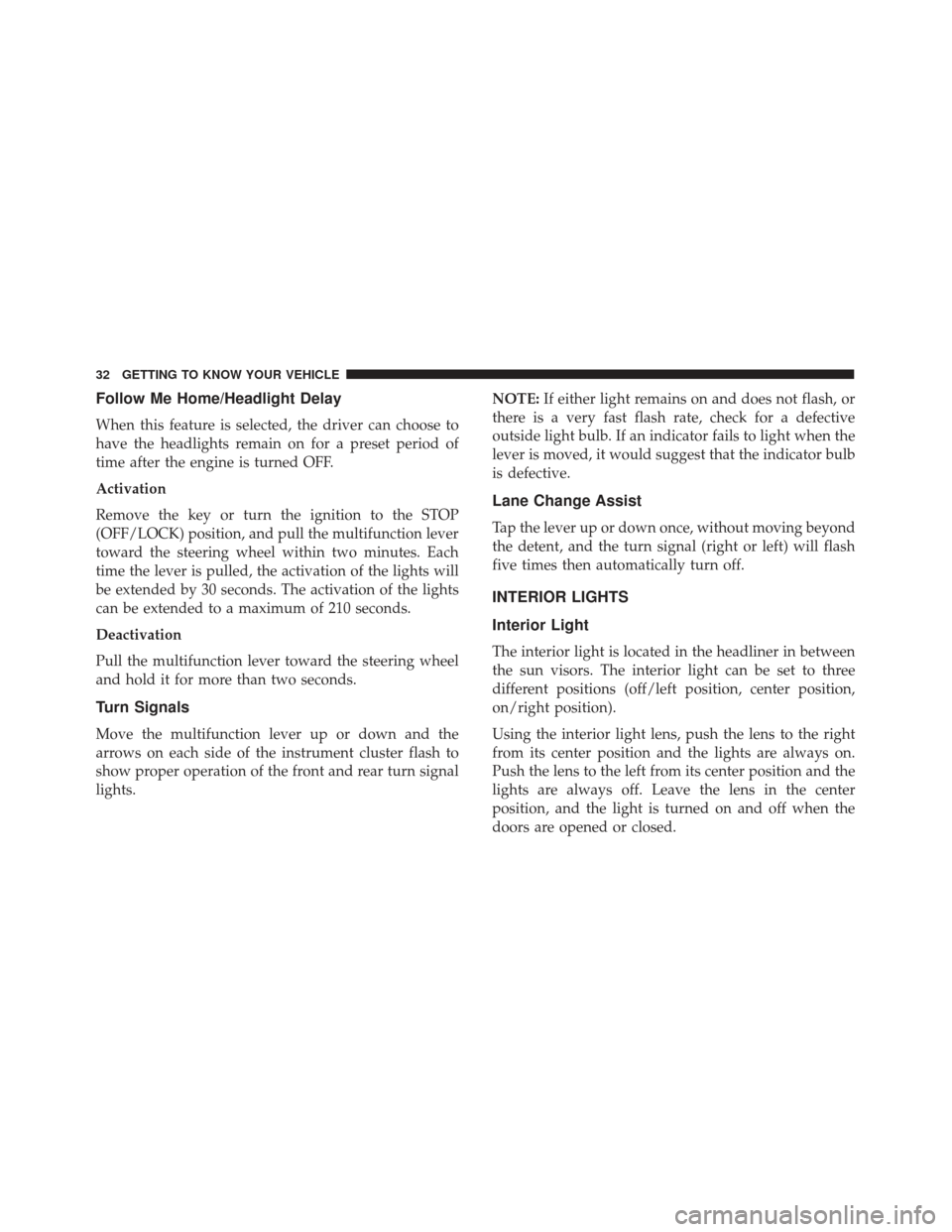

Follow Me Home/Headlight Delay
When this feature is selected, the driver can choose to
have the headlights remain on for a preset period of
time after the engine is turned OFF.
Activation
Remove the key or turn the ignition to the STOP
(OFF/LOCK) position, and pull the multifunction lever
toward the steering wheel within two minutes. Each
time the lever is pulled, the activation of the lights will
be extended by 30 seconds. The activation of the lights
can be extended to a maximum of 210 seconds.
Deactivation
Pull the multifunction lever toward the steering wheel
and hold it for more than two seconds.
Turn Signals
Move the multifunction lever up or down and the
arrows on each side of the instrument cluster flash to
show proper operation of the front and rear turn signal
lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective
outside light bulb. If an indicator fails to light when the
lever is moved, it would suggest that the indicator bulb
is defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
five times then automatically turn off.
INTERIOR LIGHTS
Interior Light
The interior light is located in the headliner in between
the sun visors. The interior light can be set to three
different positions (off/left position, center position,
on/right position).
Using the interior light lens, push the lens to the right
from its center position and the lights are always on.
Push the lens to the left from its center position and the
lights are always off. Leave the lens in the center
position, and the light is turned on and off when the
doors are opened or closed.
32 GETTING TO KNOW YOUR VEHICLE

CAUTION!
Before getting out of the vehicle be sure that the
Overhead Dome Lamp is in the center position or
that the lights are off to avoid draining the battery.
Interior Light Timing (Center Position)
There are four different modes of operation that can be
activated in this position:
•When one door is opened, a three minute timer is
activated. •
When the key is removed from the ignition (within
two minutes of the ignition being turned OFF), a 10
second timer is activated.
• When the doors are unlocked with the key fob, a 10
second timer is activated.
• When the doors are locked with the key fob, the
lights will turn off.
Dimmer Controls
The dimmer controls are located on the left side of the
instrument panel below the instrument cluster.
Interior Light (Off Position Shown)
Dimmer Controls
3
GETTING TO KNOW YOUR VEHICLE 33

Pushing the up or down arrow will increase or decrease
the brightness of the instrument panel lights.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer controls are located on
the windshield wiper/washer lever on the right side of
the steering column. The front wipers are operated by
rotating the end of the lever.
Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent
past the intermittent settings for low-speed wiper op-
eration. Rotate the end of the lever upward to the
second detent past the intermittent settings for high-
speed wiper operation.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
require a single wiping cycle with a variable pause
between cycles. To activate, rotate the end of the mul-
tifunction lever upward to the first detent position for
the first delay interval setting. Continue to rotate the
end of the lever to the other detents for the other delay
intervals that depend on the vehicle speed.
Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will start and continue to operate
for three wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
Windshield Wiper/Washer Lever
34 GETTING TO KNOW YOUR VEHICLE

If the lever is pulled while in the O (off) position, the
wipers will operate for three wipe cycles and then turn
off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist
Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Push the lever
upward to the MIST position and release for a single
wiping cycle.
NOTE:The Mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
instrument panel below the radio.
Climate Controls Overview
Climate Controls
3
GETTING TO KNOW YOUR VEHICLE 35

Climate Control Descriptions
IconDescription
A/C Button
Push and release to change the current setting, the indicator illuminates when A/C is on.
Performing this function again will cause the A/C operation to switch into manual mode
and the A/C indicator will turn off.
MAX A/C
For maximum cooling, use the A/C and recirculation modes at the same time.
ECONOMY MODE
If economy mode is desired, press the A/C switch to turn off the A/C compressor. Then,
rotate the temperature control to the desired temperature.
Recirculation And Outside Air Knob
Slide this knob over to one of the two settings to change the system between recirculation
mode and outside air mode. Recirculation can be used when outside conditions such as
smoke, odors, dust, or high humidity are present.
NOTE:
•Continuous use of the Recirculation mode may make the inside air stuffy and window
fogging may occur. Extended use of this mode is not recommended.
•The use of the Recirculation mode in cold or damp weather could cause windows to fog
on the inside, because of moisture buildup inside the vehicle. Select the outside air posi-
tion for maximum defogging.
•Recirculation can be used in all modes except for Defrost.
•The A/C can be deselected manually without disturbing the mode control selection.
36 GETTING TO KNOW YOUR VEHICLE

IconDescription
Demist/Defrost Button
Push and release the Demist/Defrost button to turn on the outside mirror defroster. An
indicator will illuminate when the outside mirror defroster is on. The outside mirror de-
froster automatically turns off after 20 minutes.
Temperature Control Knob
Temperature control is used to regulate the temperature of the air forced through the cli-
mate system. The temperature can be selected using the temperature control knob on the
faceplate. The temperature increases as you turn the temperature control knob clockwise.
The temperature decreases as you turn the temperature control knob counterclockwise.
Blower Control Knob
Blower control is used to regulate the amount of air forced through the climate system. The
speeds can be selected by rotating the blower control knob on the faceplate clockwise, or
counterclockwise. The larger the number of the setting, the faster the blower speed.
Mode Control Knob
Mode control is used to regulate the mode airflow is distributed into the cabin. The airflow
distribution mode can be adjusted so air comes from the instrument panel outlets, floor
outlets, defrost outlets and demist outlets.
Panel Mode
Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individu-
ally adjusted to direct the flow of air. The air vanes of the center outlets and outboard out-
lets can be moved up and down or side to side to regulate airflow direction.
3
GETTING TO KNOW YOUR VEHICLE 37

IconDescription
Bi-Level Mode
Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is
directed through the defrost and side window demister outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel
outlets and warmer air from the floor outlets.
Floor Mode
Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and
side window demister outlets.
Mix Mode
Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting
works best in cold or snowy conditions that require extra heat to the windshield. This set-
ting is good for maintaining comfort while reducing moisture on the windshield.
Front Defrost Mode
Air comes from the windshield and side window demist outlets. When the defrost mode is
selected, the blower level will increase. Use Defrost mode with maximum temperature set-
tings for best windshield and side window defrosting and defogging.
38 GETTING TO KNOW YOUR VEHICLE
