GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ................60
▫ Instrument Cluster Descriptions ...........61
INSTRUMENT CLUSTER DISPLAY ..........62
▫ Location And Controls ..................62
▫ Change Engine Oil Indicator System .......64
▫ Instrument Cluster Display Programmable
Menu .............................64
▫ Values Displayed .....................71
TRIP COMPUTER ......................73
▫ Trip Button .........................73
▫ Trip Functions .......................73
▫ NewTrip...........................74
▫ Start Of Trip Procedure .................74 ▫
Exit Trip ...........................74
WARNING LIGHTS AND MESSAGES ........74
▫ Red Warning Lights ....................75
▫ Yellow Warning Lights ..................78
▫ Green Indicator Lights ..................82
▫ Blue Indicator Lights ...................82
ONBOARD DIAGNOSTIC SYSTEM —
OBDII ..............................83
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................83
EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............844
Page 62 of 292
INSTRUMENT CLUSTER
Instrument Cluster
60 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 63 of 292

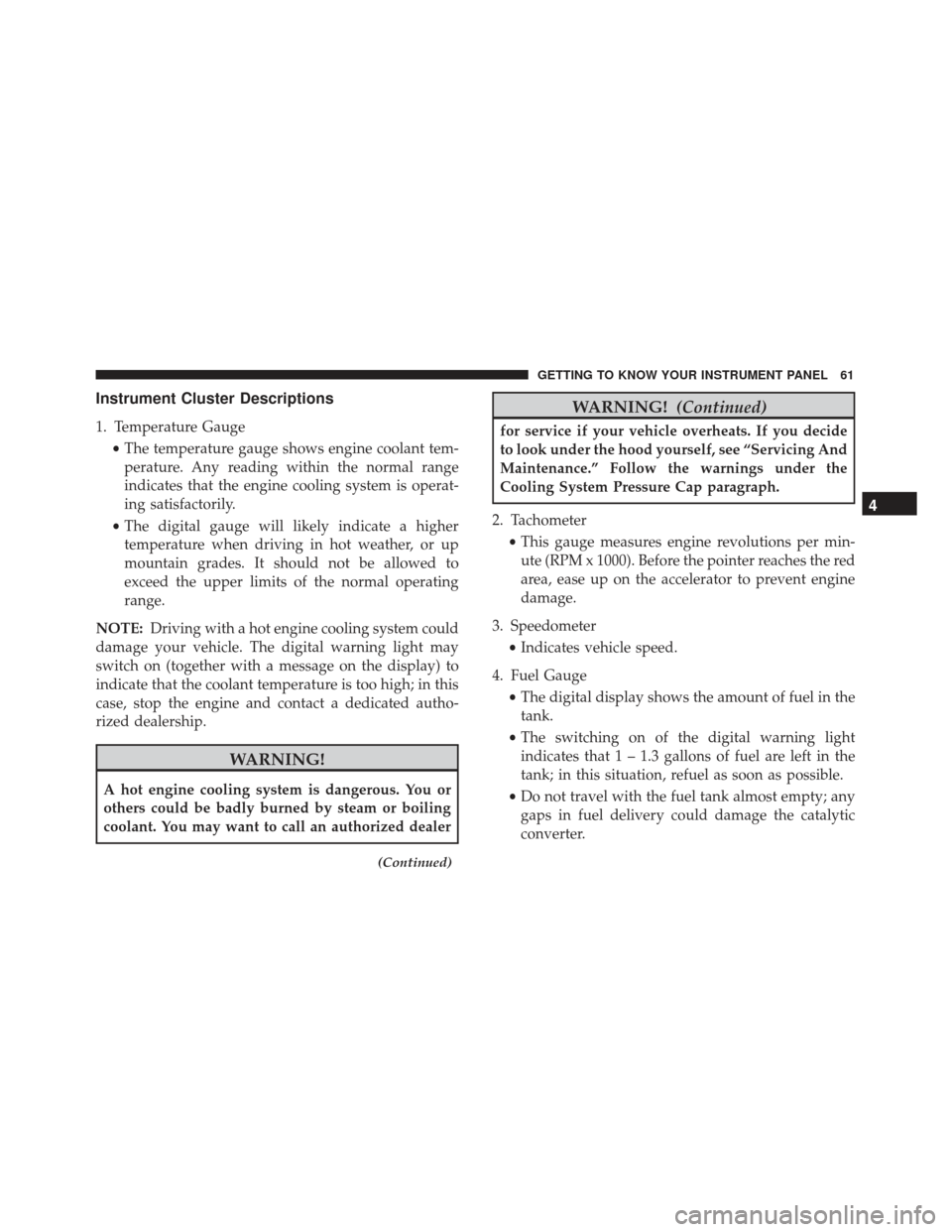

Instrument Cluster Descriptions
1. Temperature Gauge•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range
indicates that the engine cooling system is operat-
ing satisfactorily.
• The digital gauge will likely indicate a higher
temperature when driving in hot weather, or up
mountain grades. It should not be allowed to
exceed the upper limits of the normal operating
range.
NOTE: Driving with a hot engine cooling system could
damage your vehicle. The digital warning light may
switch on (together with a message on the display) to
indicate that the coolant temperature is too high; in this
case, stop the engine and contact a dedicated autho-
rized dealership.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
(Continued)
WARNING! (Continued)
for service if your vehicle overheats. If you decide
to look under the hood yourself, see “Servicing And
Maintenance.” Follow the warnings under the
Cooling System Pressure Cap paragraph.
2. Tachometer •This gauge measures engine revolutions per min-
ute (RPM x 1000). Before the pointer reaches the red
area, ease up on the accelerator to prevent engine
damage.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The digital display shows the amount of fuel in the
tank.
• The switching on of the digital warning light
indicates that 1 – 1.3 gallons of fuel are left in the
tank; in this situation, refuel as soon as possible.
• Do not travel with the fuel tank almost empty; any
gaps in fuel delivery could damage the catalytic
converter.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 61
Page 64 of 292
•The fuel pump symbol points to the side of
the vehicle where the fuel door is located.
5. “Alfa DNA” Driving Mode Indicator
•This area of the cluster displays which driving
mode the vehicle is currently in. A letter (d, n, or a)
corresponding to the active driving mode (dynamic
or race, natural, all weather) and a dedicated mes-
sage is shown on the display.
NOTE: The hard telltales will illuminate for a bulb
check when the ignition is first cycled.
INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument cluster
display, which offers useful information to the driver.
With the ignition in the STOP (OFF/LOCK) position
(and the key removed, for vehicles with mechanical
key), opening/closing of a door will activate the display
for viewing, and display the total miles or kilometers in
the odometer. Your instrument cluster display is de-
signed to display important information about your
vehicle’s systems and features. Using a driver interac-
tive display located on the instrument panel, your
instrument cluster display can show you how systems
are working and give you warnings when they aren’t. The steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You
can access the specific information you want and make
selections and adjustments.
Location And Controls
The instrument cluster display features a driver-
interactive display that is located in the instrument
cluster.
The instrument cluster display consists of the following:
•
Digital Speedometer
Instrument Cluster Display
62 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 65 of 292

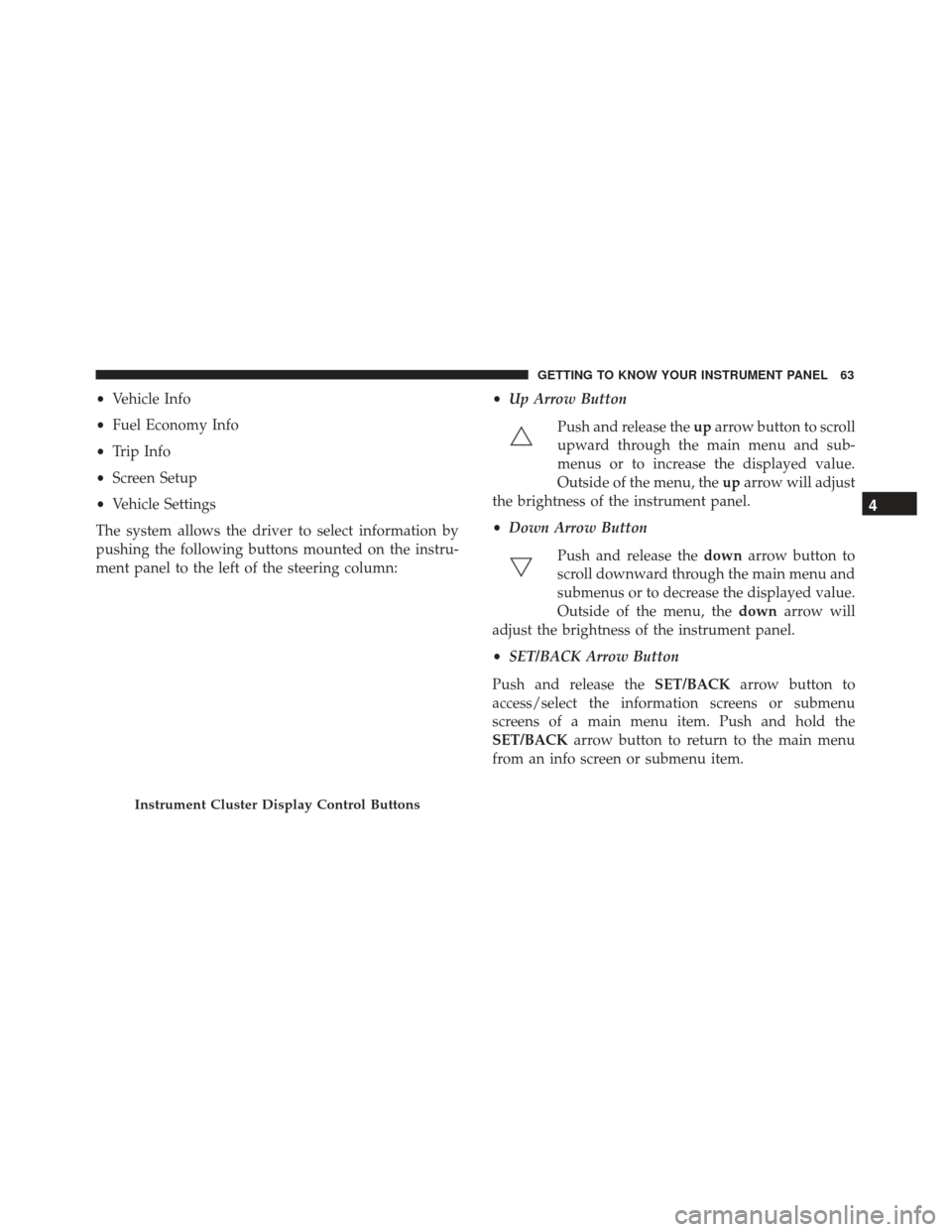

•Vehicle Info
• Fuel Economy Info
• Trip Info
• Screen Setup
• Vehicle Settings
The system allows the driver to select information by
pushing the following buttons mounted on the instru-
ment panel to the left of the steering column: •
Up Arrow Button
Push and release the uparrow button to scroll
upward through the main menu and sub-
menus or to increase the displayed value.
Outside of the menu, the uparrow will adjust
the brightness of the instrument panel.
• Down Arrow Button
Push and release the downarrow button to
scroll downward through the main menu and
submenus or to decrease the displayed value.
Outside of the menu, the downarrow will
adjust the brightness of the instrument panel.
• SET/BACK Arrow Button
Push and release the SET/BACKarrow button to
access/select the information screens or submenu
screens of a main menu item. Push and hold the
SET/BACK arrow button to return to the main menu
from an info screen or submenu item.
Instrument Cluster Display Control Buttons
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 63
Page 66 of 292

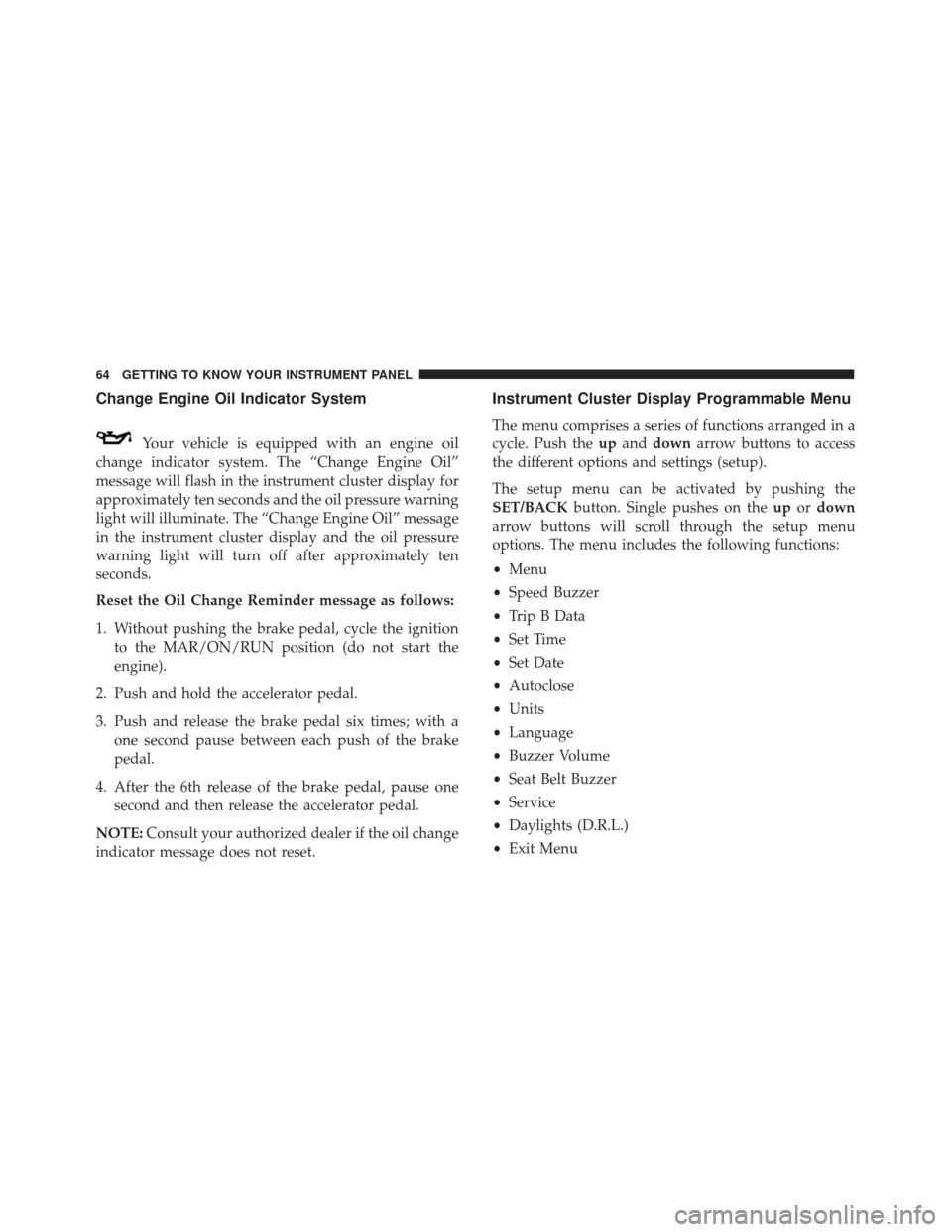

Change Engine Oil Indicator System
Your vehicle is equipped with an engine oil
change indicator system. The “Change Engine Oil”
message will flash in the instrument cluster display for
approximately ten seconds and the oil pressure warning
light will illuminate. The “Change Engine Oil” message
in the instrument cluster display and the oil pressure
warning light will turn off after approximately ten
seconds.
Reset the Oil Change Reminder message as follows:
1. Without pushing the brake pedal, cycle the ignition to the MAR/ON/RUN position (do not start the
engine).
2. Push and hold the accelerator pedal.
3. Push and release the brake pedal six times; with a one second pause between each push of the brake
pedal.
4. After the 6th release of the brake pedal, pause one second and then release the accelerator pedal.
NOTE: Consult your authorized dealer if the oil change
indicator message does not reset.
Instrument Cluster Display Programmable Menu
The menu comprises a series of functions arranged in a
cycle. Push the upand down arrow buttons to access
the different options and settings (setup).
The setup menu can be activated by pushing the
SET/BACK button. Single pushes on the upordown
arrow buttons will scroll through the setup menu
options. The menu includes the following functions:
• Menu
• Speed Buzzer
• Trip B Data
• Set Time
• Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Seat Belt Buzzer
• Service
• Daylights (D.R.L.)
• Exit Menu
64 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 67 of 292

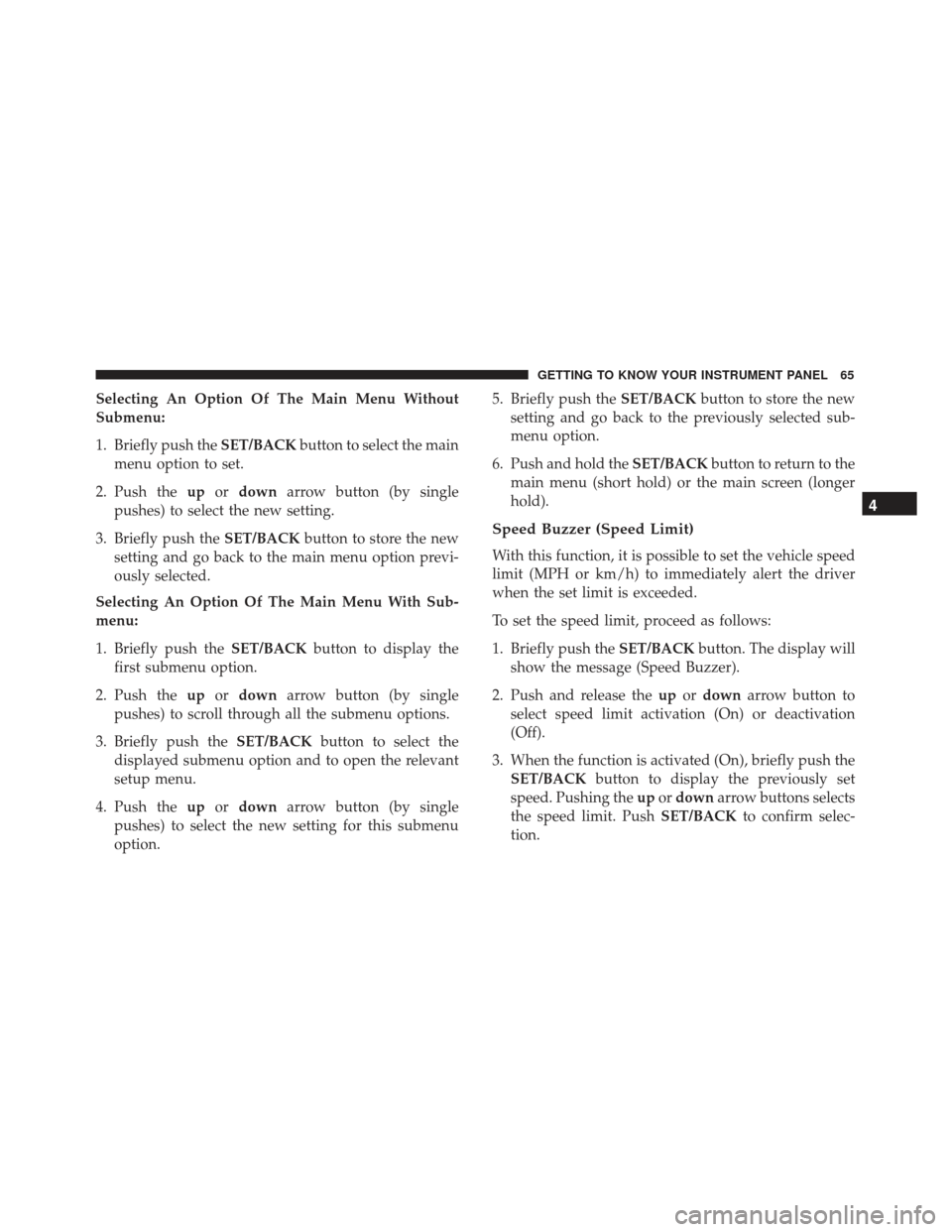

Selecting An Option Of The Main Menu Without
Submenu:
1. Briefly push theSET/BACKbutton to select the main
menu option to set.
2. Push the upordown arrow button (by single
pushes) to select the new setting.
3. Briefly push the SET/BACKbutton to store the new
setting and go back to the main menu option previ-
ously selected.
Selecting An Option Of The Main Menu With Sub-
menu:
1. Briefly push the SET/BACKbutton to display the
first submenu option.
2. Push the upordown arrow button (by single
pushes) to scroll through all the submenu options.
3. Briefly push the SET/BACKbutton to select the
displayed submenu option and to open the relevant
setup menu.
4. Push the upordown arrow button (by single
pushes) to select the new setting for this submenu
option. 5. Briefly push the
SET/BACKbutton to store the new
setting and go back to the previously selected sub-
menu option.
6. Push and hold the SET/BACKbutton to return to the
main menu (short hold) or the main screen (longer
hold).
Speed Buzzer (Speed Limit)
With this function, it is possible to set the vehicle speed
limit (MPH or km/h) to immediately alert the driver
when the set limit is exceeded.
To set the speed limit, proceed as follows:
1. Briefly push the SET/BACKbutton. The display will
show the message (Speed Buzzer).
2. Push and release the upordown arrow button to
select speed limit activation (On) or deactivation
(Off).
3. When the function is activated (On), briefly push the SET/BACK button to display the previously set
speed. Pushing the upordown arrow buttons selects
the speed limit. Push SET/BACKto confirm selec-
tion.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 65
Page 68 of 292

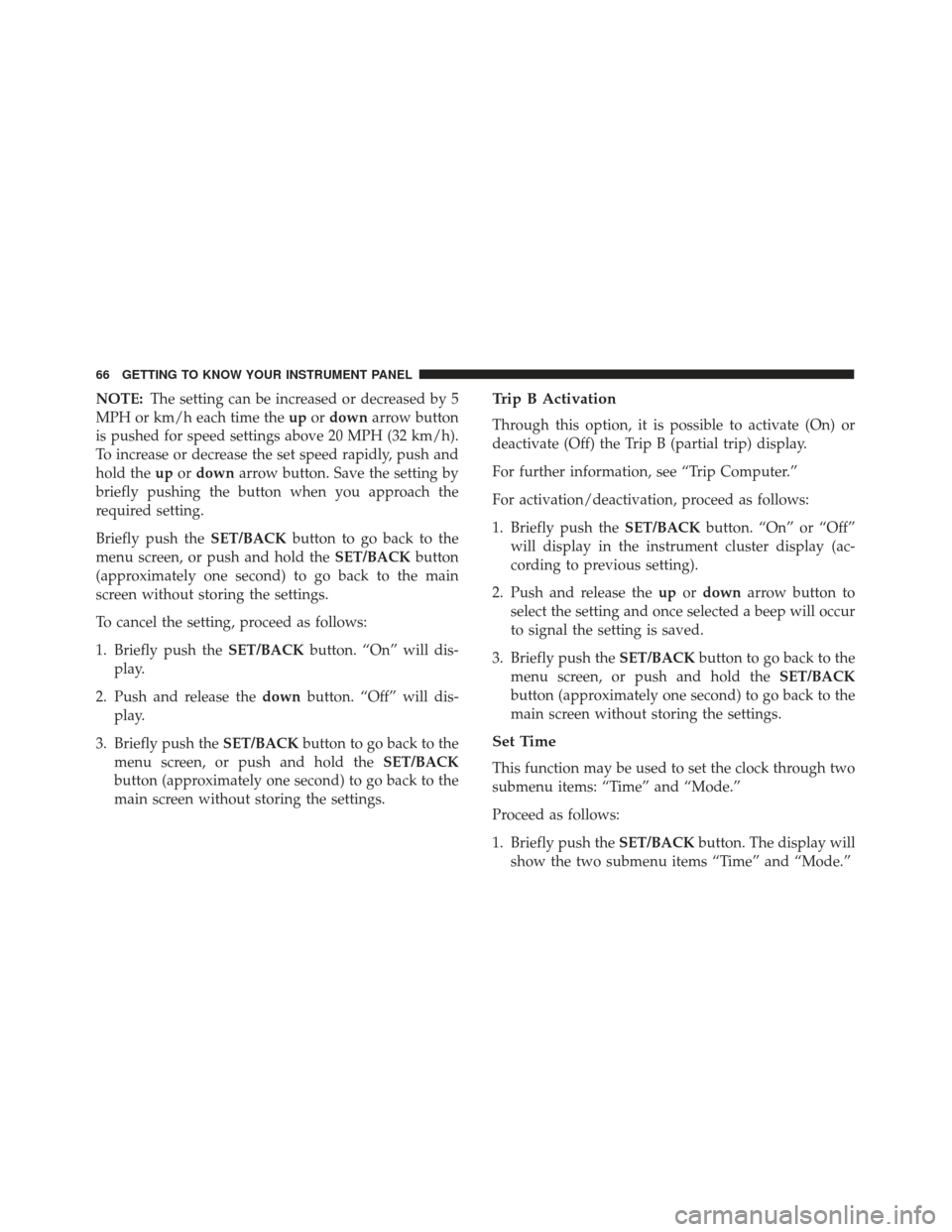

NOTE:The setting can be increased or decreased by 5
MPH or km/h each time the upordown arrow button
is pushed for speed settings above 20 MPH (32 km/h).
To increase or decrease the set speed rapidly, push and
hold the upordown arrow button. Save the setting by
briefly pushing the button when you approach the
required setting.
Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
To cancel the setting, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” will dis-
play.
2. Push and release the downbutton. “Off” will dis-
play.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.Trip B Activation
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation/deactivation, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” or “Off”
will display in the instrument cluster display (ac-
cording to previous setting).
2. Push and release the upordown arrow button to
select the setting and once selected a beep will occur
to signal the setting is saved.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Set Time
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly push the SET/BACKbutton. The display will
show the two submenu items “Time” and “Mode.”
66 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 69 of 292

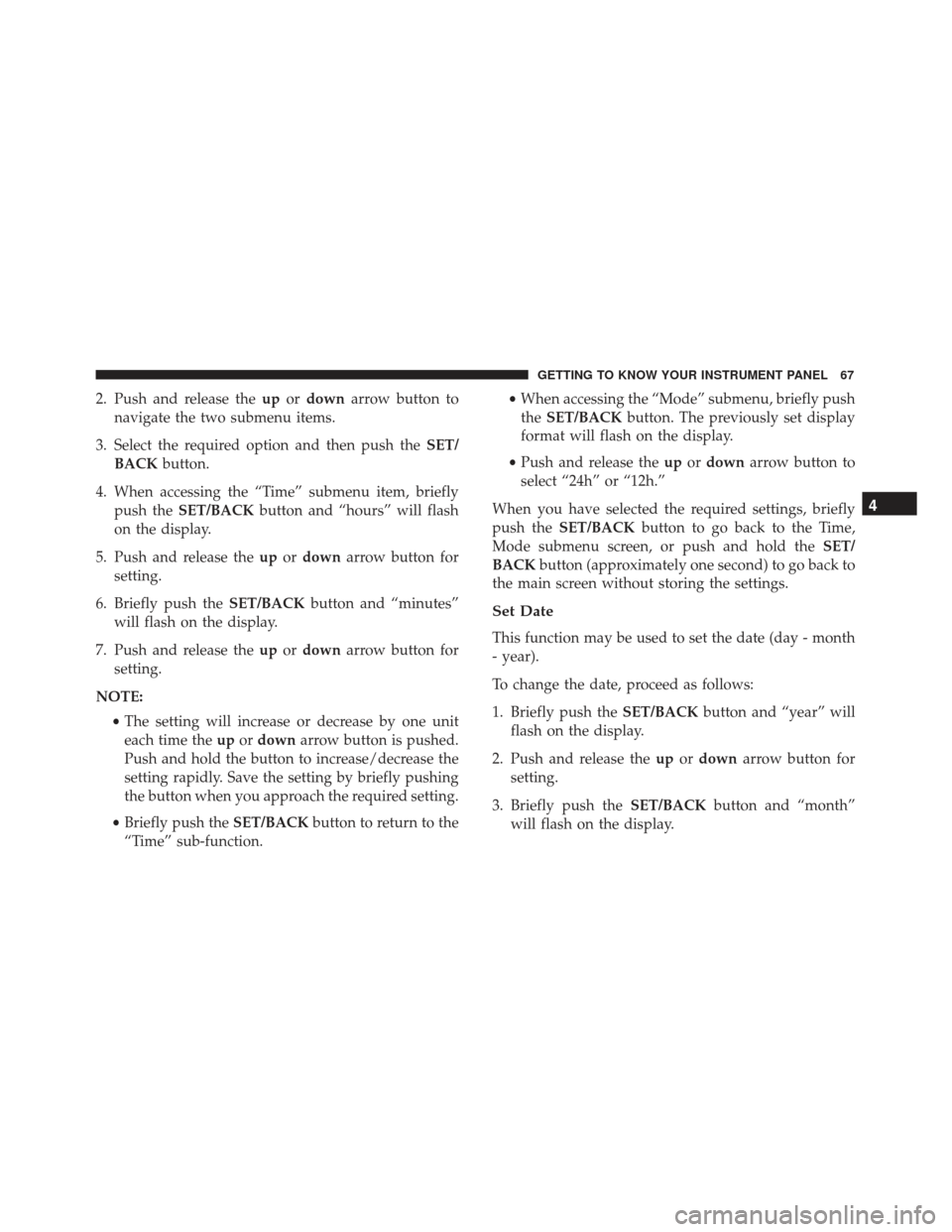

2. Push and release theupordown arrow button to
navigate the two submenu items.
3. Select the required option and then push the SET/
BACK button.
4. When accessing the “Time” submenu item, briefly push the SET/BACK button and “hours” will flash
on the display.
5. Push and release the upordown arrow button for
setting.
6. Briefly push the SET/BACKbutton and “minutes”
will flash on the display.
7. Push and release the upordown arrow button for
setting.
NOTE: •The setting will increase or decrease by one unit
each time the upordown arrow button is pushed.
Push and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pushing
the button when you approach the required setting.
• Briefly push the SET/BACKbutton to return to the
“Time” sub-function. •
When accessing the “Mode” submenu, briefly push
the SET/BACK button. The previously set display
format will flash on the display.
• Push and release the upordown arrow button to
select “24h” or “12h.”
When you have selected the required settings, briefly
push the SET/BACK button to go back to the Time,
Mode submenu screen, or push and hold the SET/
BACK button (approximately one second) to go back to
the main screen without storing the settings.
Set Date
This function may be used to set the date (day - month
- year).
To change the date, proceed as follows:
1. Briefly push the SET/BACKbutton and “year” will
flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton and “month”
will flash on the display.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 67
Page 70 of 292

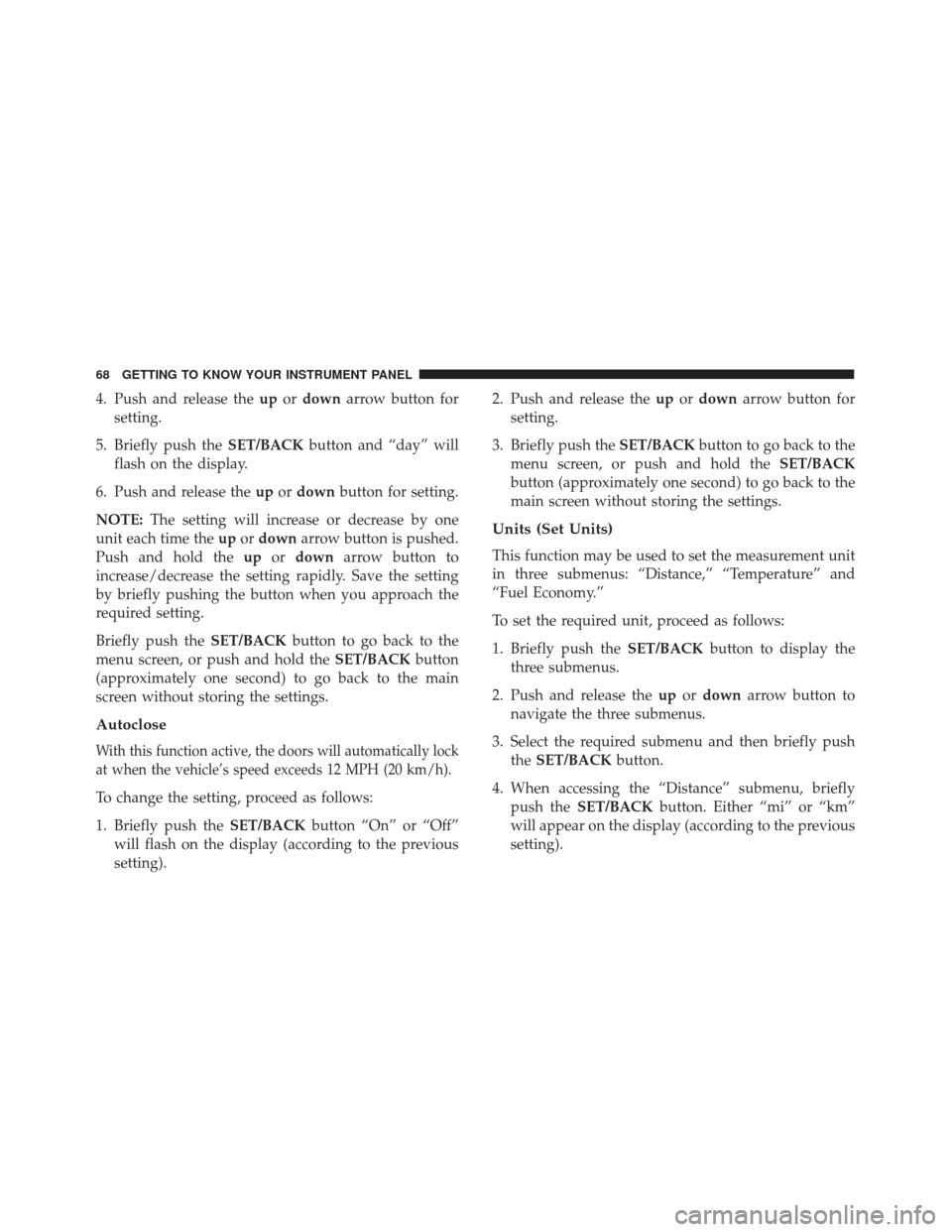

4. Push and release theupordown arrow button for
setting.
5. Briefly push the SET/BACKbutton and “day” will
flash on the display.
6. Push and release the upordown button for setting.
NOTE: The setting will increase or decrease by one
unit each time the upordown arrow button is pushed.
Push and hold the upordown arrow button to
increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting.
Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Autoclose
With this function active, the doors will automatically lock
at when the vehicle’s speed exceeds 12 MPH (20 km/h).
To change the setting, proceed as follows:
1. Briefly push the SET/BACKbutton “On” or “Off”
will flash on the display (according to the previous
setting). 2. Push and release the
upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit
in three submenus: “Distance,” “Temperature” and
“Fuel Economy.”
To set the required unit, proceed as follows:
1. Briefly push the SET/BACKbutton to display the
three submenus.
2. Push and release the upordown arrow button to
navigate the three submenus.
3. Select the required submenu and then briefly push the SET/BACK button.
4. When accessing the “Distance” submenu, briefly push the SET/BACK button. Either “mi” or “km”
will appear on the display (according to the previous
setting).
68 GETTING TO KNOW YOUR INSTRUMENT PANEL
