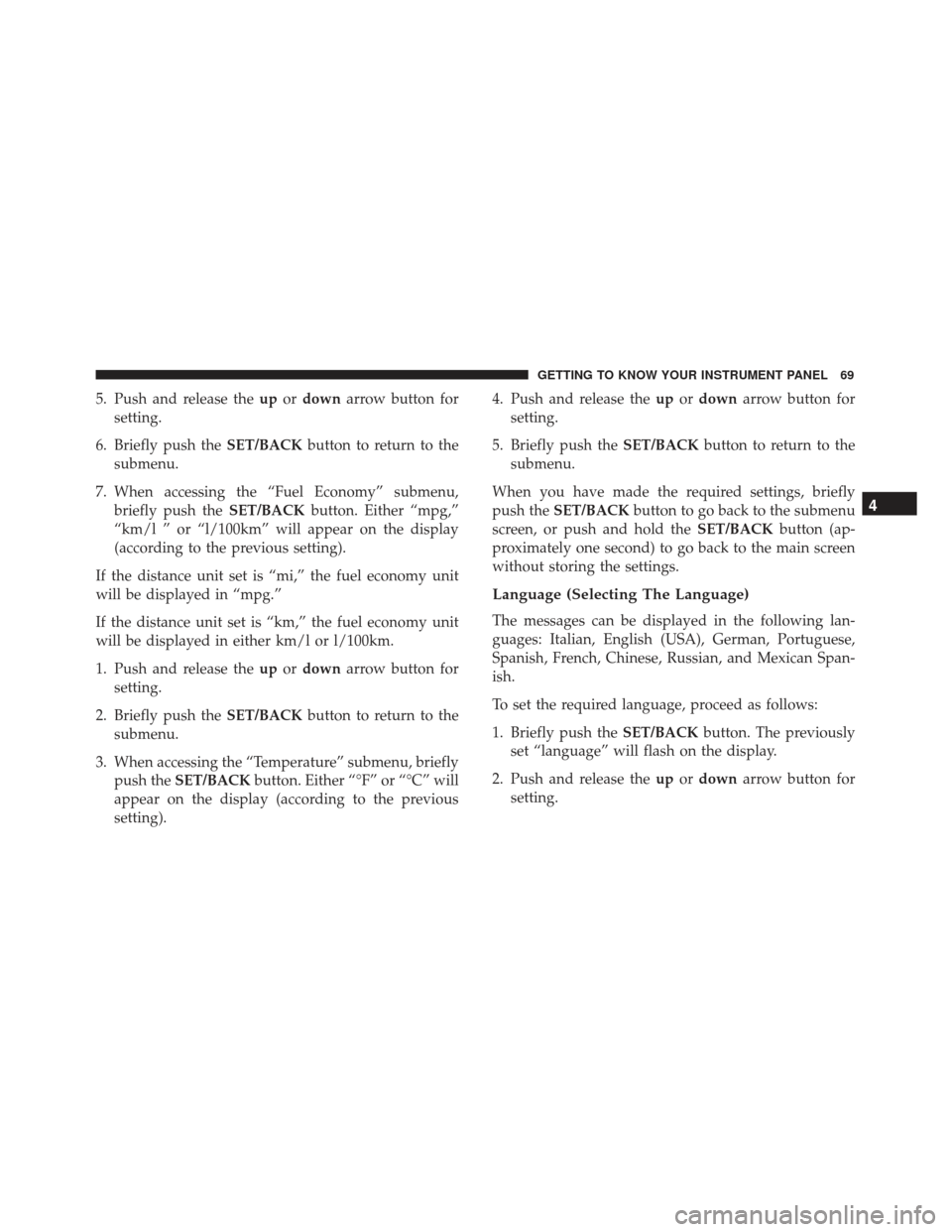

5. Push and release theupordown arrow button for
setting.
6. Briefly push the SET/BACKbutton to return to the
submenu.
7. When accessing the “Fuel Economy” submenu, briefly push the SET/BACKbutton. Either “mpg,”
“km/l ” or “l/100km” will appear on the display
(according to the previous setting).
If the distance unit set is “mi,” the fuel economy unit
will be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit
will be displayed in either km/l or l/100km.
1. Push and release the upordown arrow button for
setting.
2. Briefly push the SET/BACKbutton to return to the
submenu.
3. When accessing the “Temperature” submenu, briefly push the SET/BACK button. Either “°F” or “°C” will
appear on the display (according to the previous
setting). 4. Push and release the
upordown arrow button for
setting.
5. Briefly push the SET/BACKbutton to return to the
submenu.
When you have made the required settings, briefly
push the SET/BACK button to go back to the submenu
screen, or push and hold the SET/BACKbutton (ap-
proximately one second) to go back to the main screen
without storing the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican Span-
ish.
To set the required language, proceed as follows:
1. Briefly push the SET/BACKbutton. The previously
set “language” will flash on the display.
2. Push and release the upordown arrow button for
setting.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 69

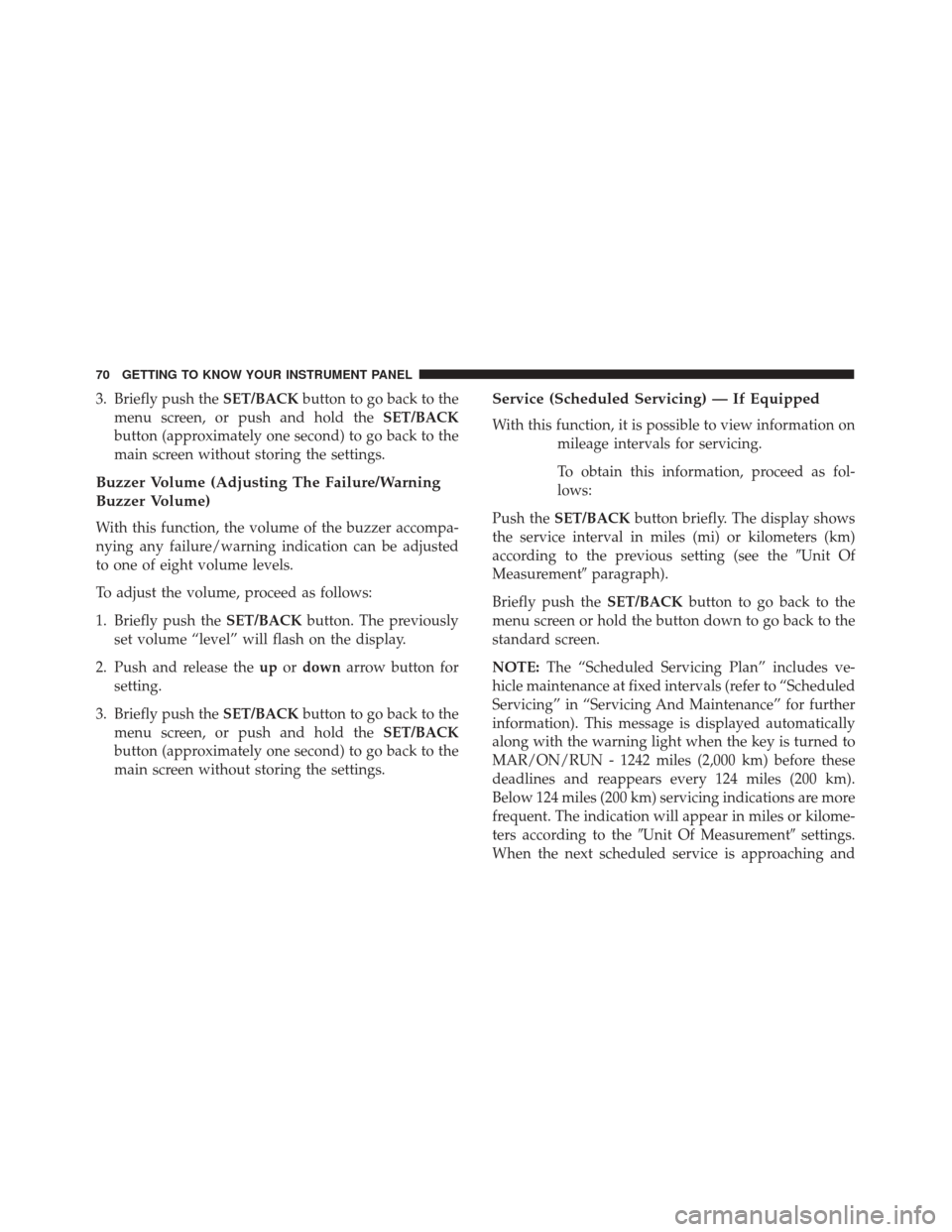

3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function, the volume of the buzzer accompa-
nying any failure/warning indication can be adjusted
to one of eight volume levels.
To adjust the volume, proceed as follows:
1. Briefly push the SET/BACKbutton. The previously
set volume “level” will flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Service (Scheduled Servicing) — If Equipped
With this function, it is possible to view information on mileage intervals for servicing.
To obtain this information, proceed as fol-
lows:
Push the SET/BACK button briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see the Unit Of
Measurement paragraph).
Briefly push the SET/BACKbutton to go back to the
menu screen or hold the button down to go back to the
standard screen.
NOTE: The “Scheduled Servicing Plan” includes ve-
hicle maintenance at fixed intervals (refer to “Scheduled
Servicing” in “Servicing And Maintenance” for further
information). This message is displayed automatically
along with the warning light when the key is turned to
MAR/ON/RUN - 1242 miles (2,000 km) before these
deadlines and reappears every 124 miles (200 km).
Below 124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilome-
ters according to the Unit Of Measurement settings.
When the next scheduled service is approaching and
70 GETTING TO KNOW YOUR INSTRUMENT PANEL

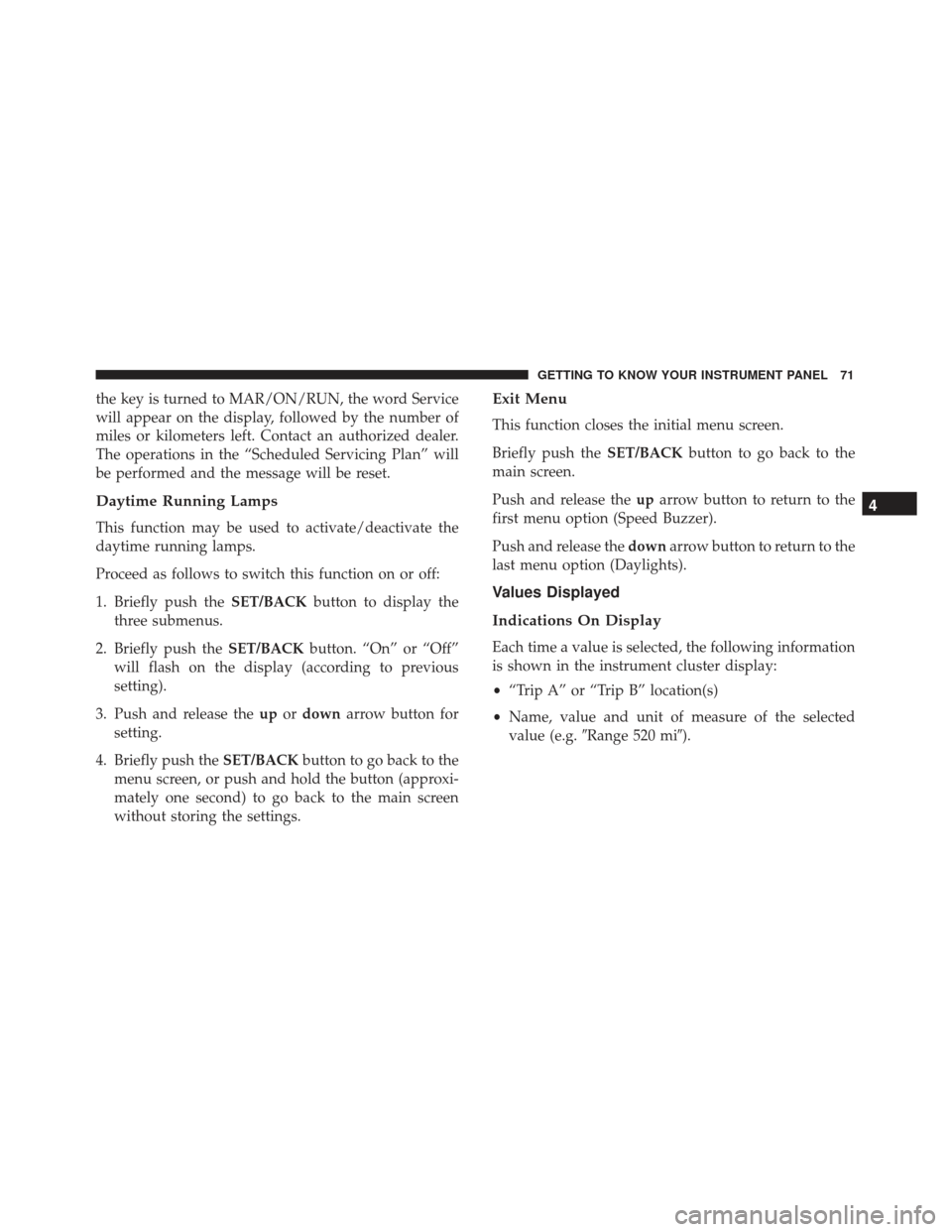

the key is turned to MAR/ON/RUN, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact an authorized dealer.
The operations in the “Scheduled Servicing Plan” will
be performed and the message will be reset.
Daytime Running Lamps
This function may be used to activate/deactivate the
daytime running lamps.
Proceed as follows to switch this function on or off:
1. Briefly push theSET/BACKbutton to display the
three submenus.
2. Briefly push the SET/BACKbutton. “On” or “Off”
will flash on the display (according to previous
setting).
3. Push and release the upordown arrow button for
setting.
4. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.
Exit Menu
This function closes the initial menu screen.
Briefly push the SET/BACKbutton to go back to the
main screen.
Push and release the uparrow button to return to the
first menu option (Speed Buzzer).
Push and release the downarrow button to return to the
last menu option (Daylights).
Values Displayed
Indications On Display
Each time a value is selected, the following information
is shown in the instrument cluster display:
• “Trip A” or “Trip B” location(s)
• Name, value and unit of measure of the selected
value (e.g. Range 520 mi).
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 71

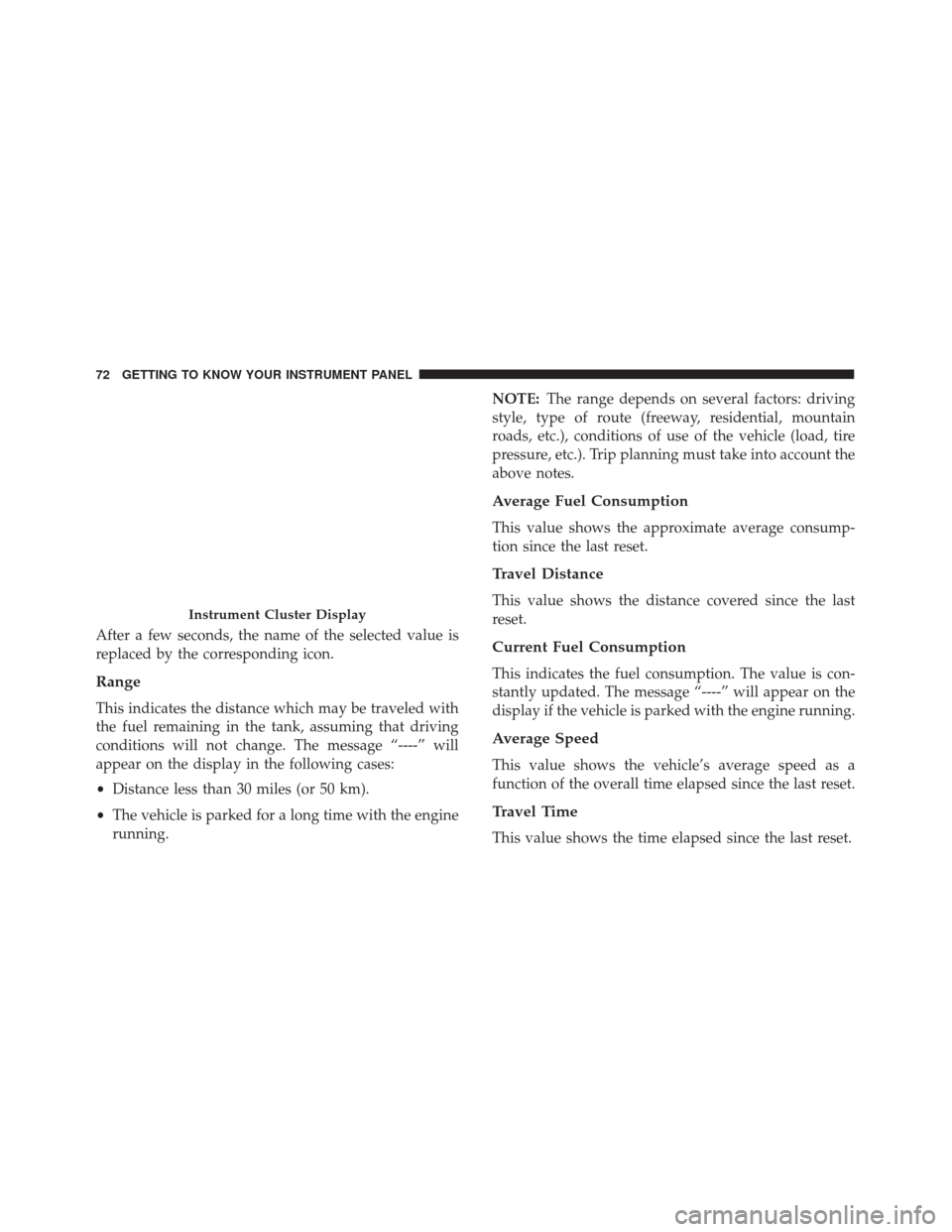

After a few seconds, the name of the selected value is
replaced by the corresponding icon.
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
•Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine
running. NOTE:
The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the vehicle (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Average Fuel Consumption
This value shows the approximate average consump-
tion since the last reset.
Travel Distance
This value shows the distance covered since the last
reset.
Current Fuel Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the vehicle is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Instrument Cluster Display
72 GETTING TO KNOW YOUR INSTRUMENT PANEL

Tire Pressure Values
This screen will display OK at each Tire Pressure
Monitoring sensor. Refer to “Tire Pressure Monitoring
System” in “Safety” for further information.
TRIP COMPUTER
The Trip Computer is located in the instrument cluster.
It features a driver-interactive display (displays infor-
mation such as trip information, range, fuel consump-
tion, average speed, and travel time).
NOTE:The Uconnect System also has a Trip Computer
display and menus to customize the information dis-
played in the cluster. For further information, refer to
“Uconnect Settings” in “Multimedia”.
Trip Button
The TRIP/RESET button, located on the right steering
column stalk, can be used to display and to reset the trip
values. •
A short button push displays the different values.
• A long button push resets the system and then starts
a new trip.Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
• Range
• Average Fuel Consumption
• Travel Distance
TRIP/RESET Button
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 73

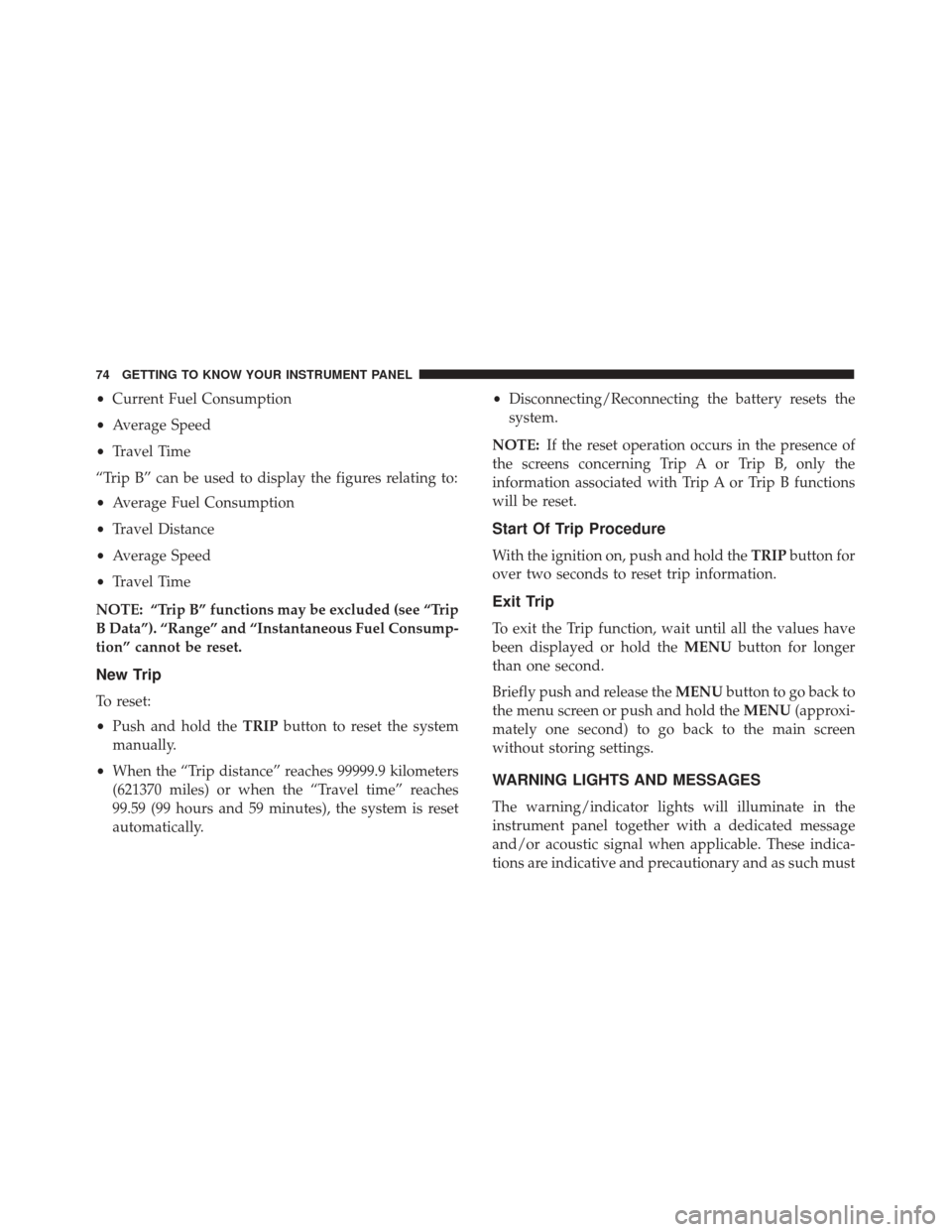

•Current Fuel Consumption
• Average Speed
• Travel Time
“Trip B” can be used to display the figures relating to:
• Average Fuel Consumption
• Travel Distance
• Average Speed
• Travel Time
NOTE: “Trip B” functions may be excluded (see “Trip
B Data”). “Range” and “Instantaneous Fuel Consump-
tion” cannot be reset.
New Trip
To reset:
• Push and hold the TRIPbutton to reset the system
manually.
• When the “Trip distance” reaches 99999.9 kilometers
(621370 miles) or when the “Travel time” reaches
99.59 (99 hours and 59 minutes), the system is reset
automatically. •
Disconnecting/Reconnecting the battery resets the
system.
NOTE: If the reset operation occurs in the presence of
the screens concerning Trip A or Trip B, only the
information associated with Trip A or Trip B functions
will be reset.
Start Of Trip Procedure
With the ignition on, push and hold the TRIPbutton for
over two seconds to reset trip information.
Exit Trip
To exit the Trip function, wait until all the values have
been displayed or hold the MENUbutton for longer
than one second.
Briefly push and release the MENUbutton to go back to
the menu screen or push and hold the MENU(approxi-
mately one second) to go back to the main screen
without storing settings.
WARNING LIGHTS AND MESSAGES
The warning/indicator lights will illuminate in the
instrument panel together with a dedicated message
and/or acoustic signal when applicable. These indica-
tions are indicative and precautionary and as such must
74 GETTING TO KNOW YOUR INSTRUMENT PANEL

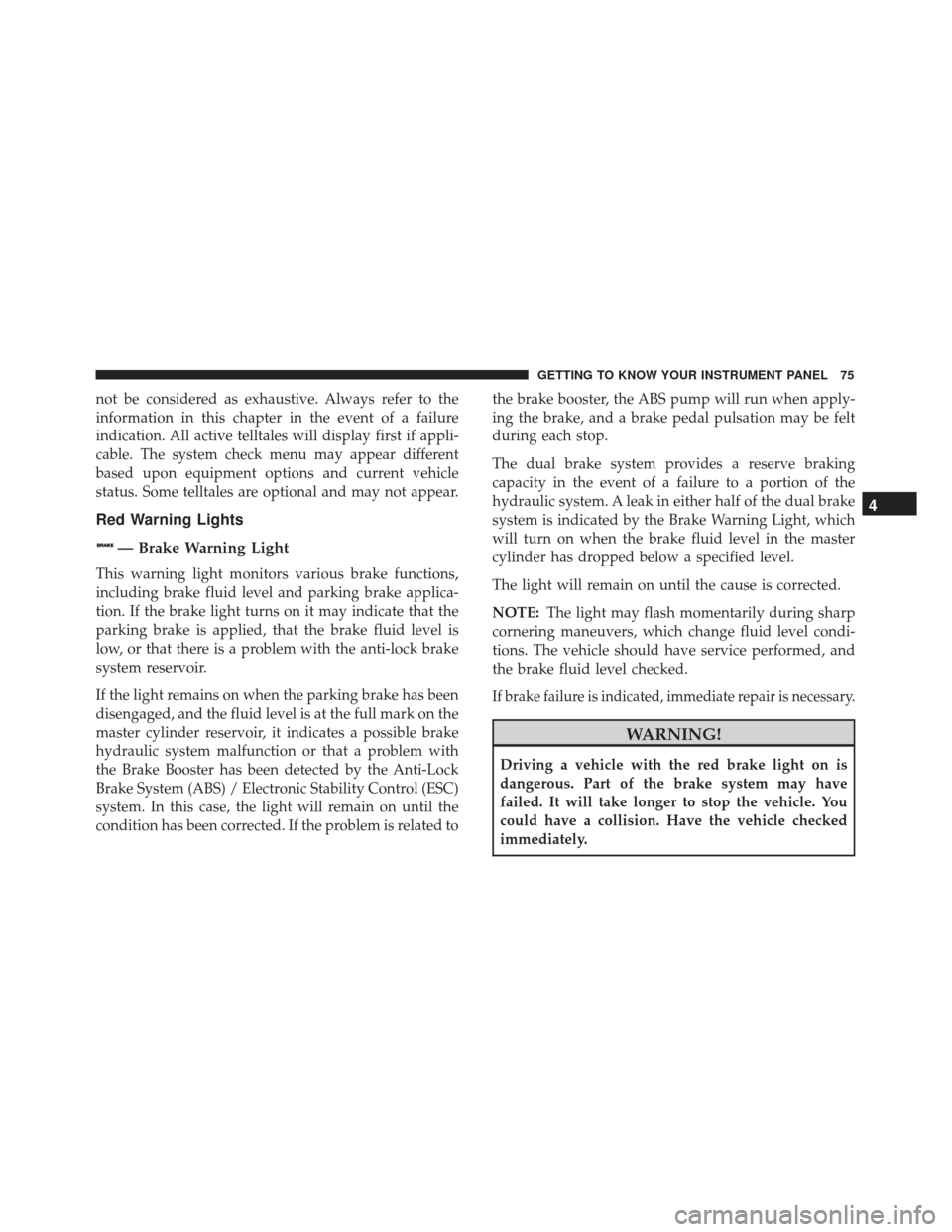

not be considered as exhaustive. Always refer to the
information in this chapter in the event of a failure
indication. All active telltales will display first if appli-
cable. The system check menu may appear different
based upon equipment options and current vehicle
status. Some telltales are optional and may not appear.
Red Warning Lights
— Brake Warning Light
This warning light monitors various brake functions,
including brake fluid level and parking brake applica-
tion. If the brake light turns on it may indicate that the
parking brake is applied, that the brake fluid level is
low, or that there is a problem with the anti-lock brake
system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with
the Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC)
system. In this case, the light will remain on until the
condition has been corrected. If the problem is related tothe brake booster, the ABS pump will run when apply-
ing the brake, and a brake pedal pulsation may be felt
during each stop.
The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual brake
system is indicated by the Brake Warning Light, which
will turn on when the brake fluid level in the master
cylinder has dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE:
The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is necessary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 75

Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.

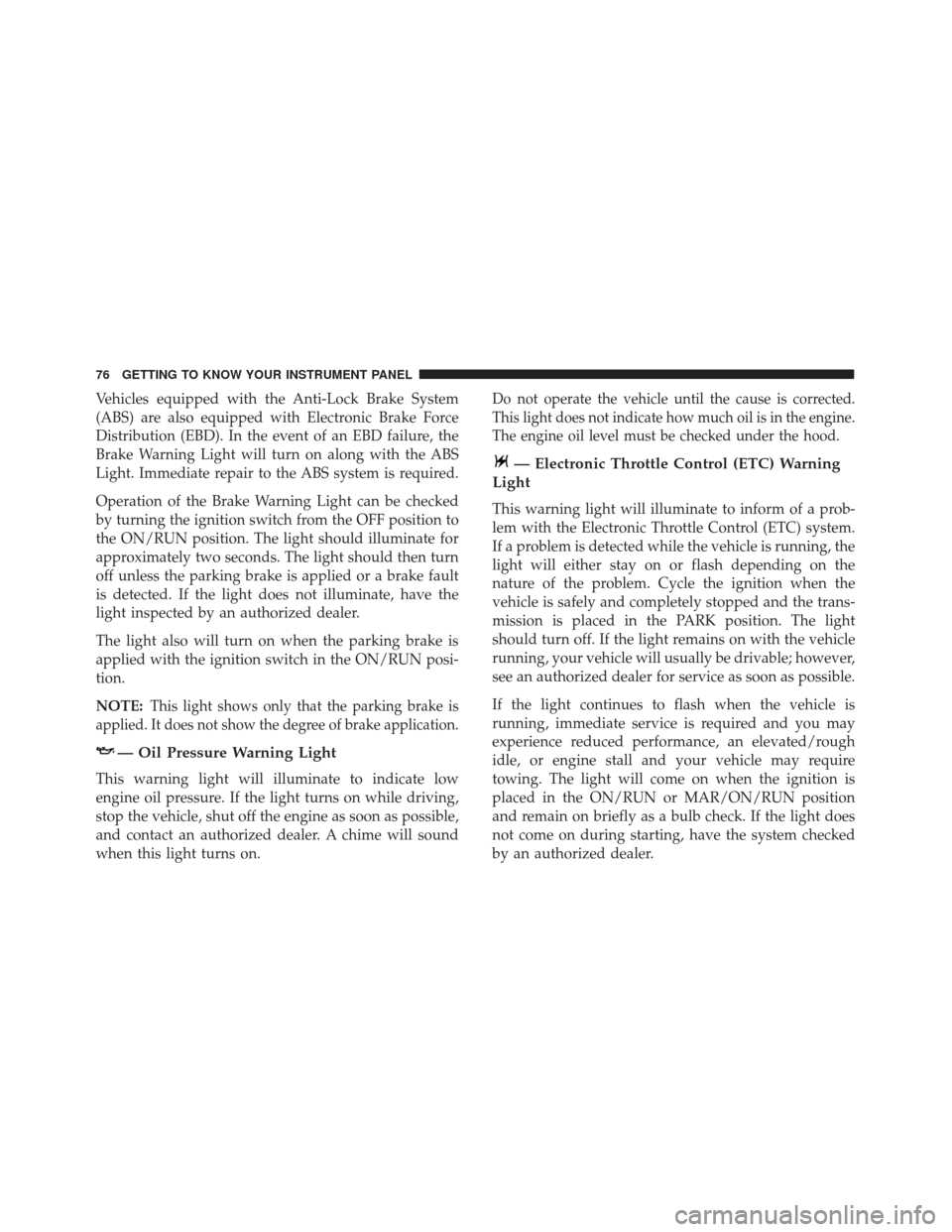

Operation of the Brake Warning Light can be checked
by turning the ignition switch from the OFF position to
the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
off unless the parking brake is applied or a brake fault
is detected. If the light does not illuminate, have the
light inspected by an authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi-
tion.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake application.
— Oil Pressure Warning Light
This warning light will illuminate to indicate low
engine oil pressure. If the light turns on while driving,
stop the vehicle, shut off the engine as soon as possible,
and contact an authorized dealer. A chime will sound
when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
— Electronic Throttle Control (ETC) Warning
Light
This warning light will illuminate to inform of a prob-
lem with the Electronic Throttle Control (ETC) system.
If a problem is detected while the vehicle is running, the
light will either stay on or flash depending on the
nature of the problem. Cycle the ignition when the
vehicle is safely and completely stopped and the trans-
mission is placed in the PARK position. The light
should turn off. If the light remains on with the vehicle
running, your vehicle will usually be drivable; however,
see an authorized dealer for service as soon as possible.
If the light continues to flash when the vehicle is
running, immediate service is required and you may
experience reduced performance, an elevated/rough
idle, or engine stall and your vehicle may require
towing. The light will come on when the ignition is
placed in the ON/RUN or MAR/ON/RUN position
and remain on briefly as a bulb check. If the light does
not come on during starting, have the system checked
by an authorized dealer.
76 GETTING TO KNOW YOUR INSTRUMENT PANEL

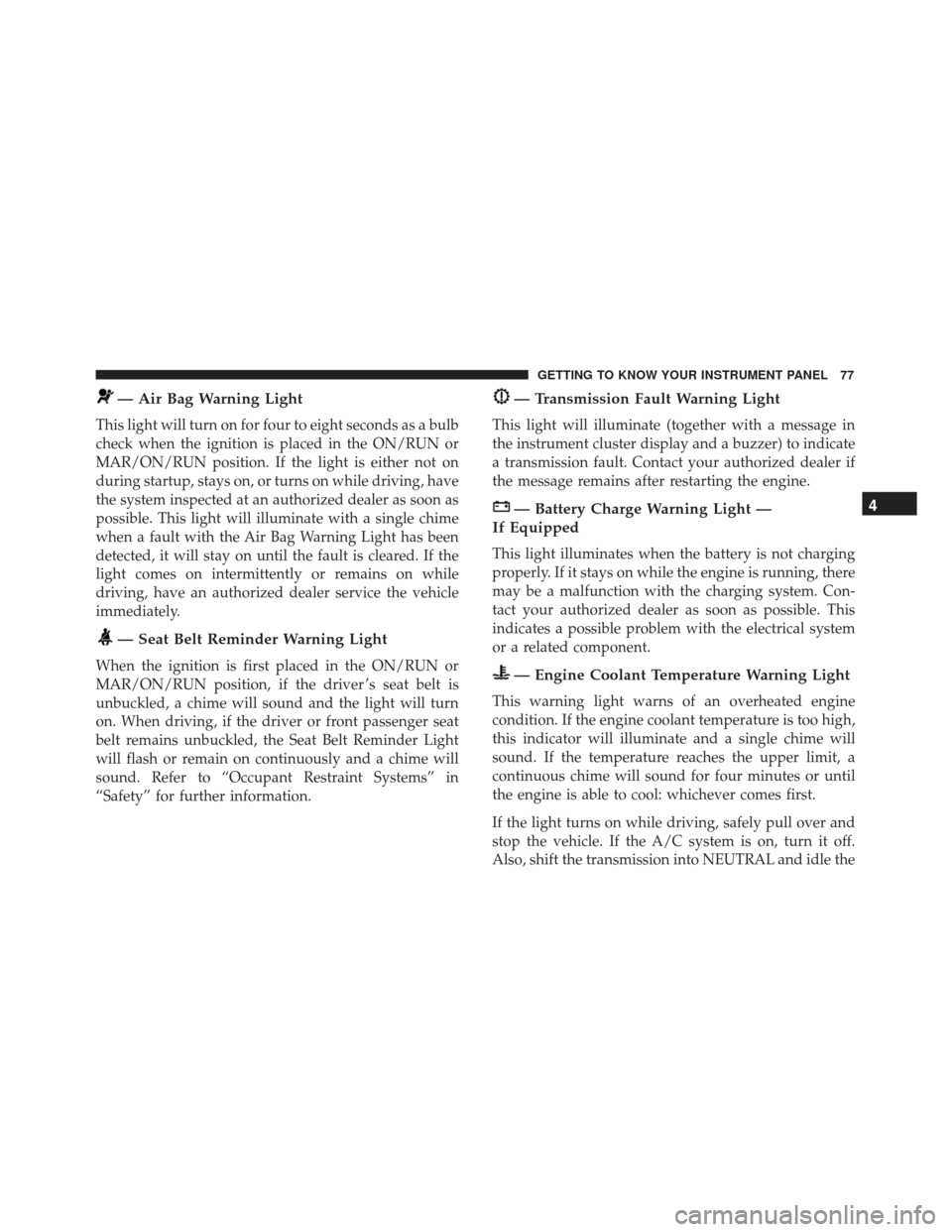

— Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb
check when the ignition is placed in the ON/RUN or
MAR/ON/RUN position. If the light is either not on
during startup, stays on, or turns on while driving, have
the system inspected at an authorized dealer as soon as
possible. This light will illuminate with a single chime
when a fault with the Air Bag Warning Light has been
detected, it will stay on until the fault is cleared. If the
light comes on intermittently or remains on while
driving, have an authorized dealer service the vehicle
immediately.
— Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN or
MAR/ON/RUN position, if the driver ’s seat belt is
unbuckled, a chime will sound and the light will turn
on. When driving, if the driver or front passenger seat
belt remains unbuckled, the Seat Belt Reminder Light
will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraint Systems” in
“Safety” for further information.
— Transmission Fault Warning Light
This light will illuminate (together with a message in
the instrument cluster display and a buzzer) to indicate
a transmission fault. Contact your authorized dealer if
the message remains after restarting the engine.
— Battery Charge Warning Light —
If Equipped
This light illuminates when the battery is not charging
properly. If it stays on while the engine is running, there
may be a malfunction with the charging system. Con-
tact your authorized dealer as soon as possible. This
indicates a possible problem with the electrical system
or a related component.
— Engine Coolant Temperature Warning Light
This warning light warns of an overheated engine
condition. If the engine coolant temperature is too high,
this indicator will illuminate and a single chime will
sound. If the temperature reaches the upper limit, a
continuous chime will sound for four minutes or until
the engine is able to cool: whichever comes first.
If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off.
Also, shift the transmission into NEUTRAL and idle the
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 77

vehicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service.
Refer to “If Your Engine Overheats” in “In Case Of
Emergency” for further information.

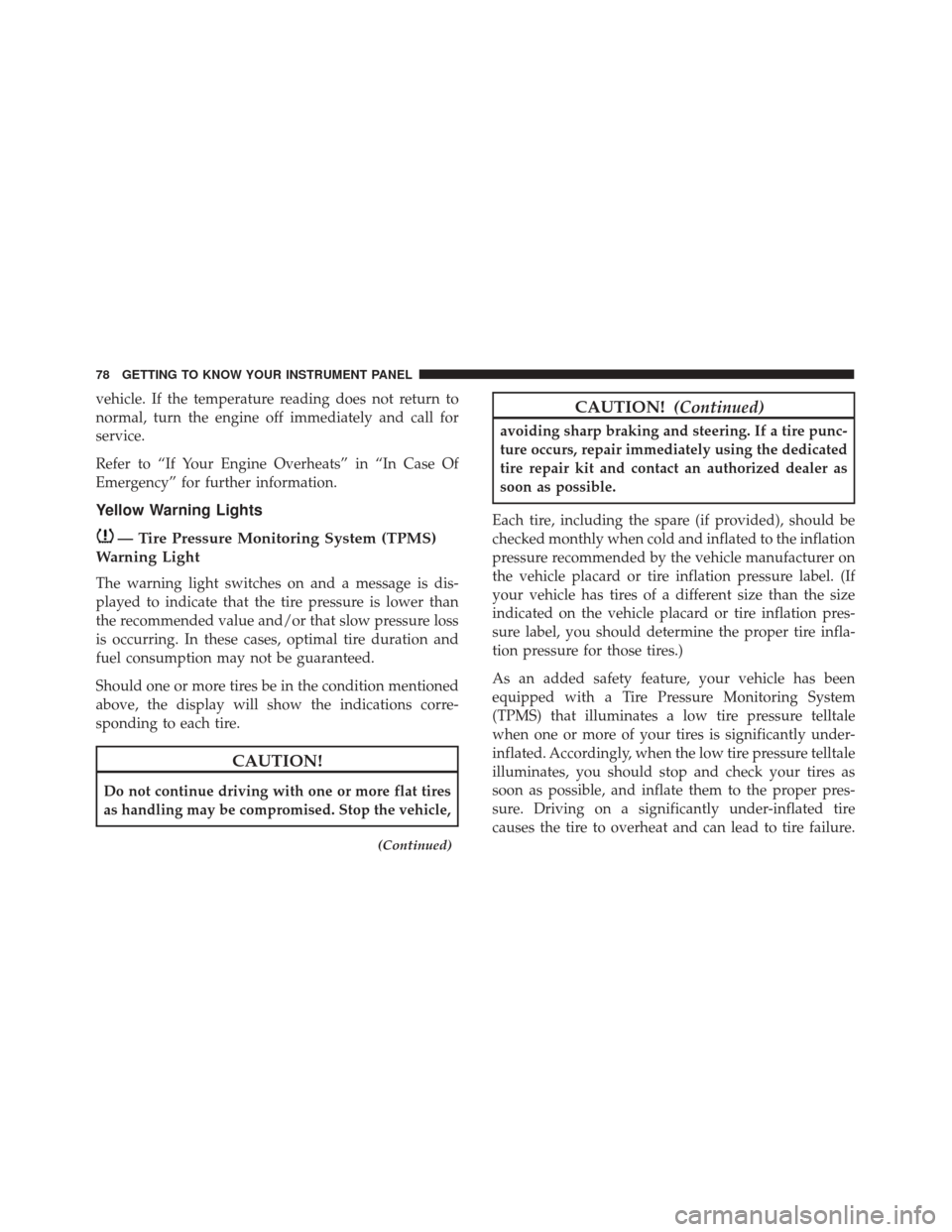

Yellow Warning Lights
— Tire Pressure Monitoring System (TPMS)
Warning Light
The warning light switches on and a message is dis-
played to indicate that the tire pressure is lower than
the recommended value and/or that slow pressure loss
is occurring. In these cases, optimal tire duration and
fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned
above, the display will show the indications corre-
sponding to each tire.
CAUTION!
Do not continue driving with one or more flat tires
as handling may be compromised. Stop the vehicle,
(Continued)
CAUTION! (Continued)
avoiding sharp braking and steering. If a tire punc-
ture occurs, repair immediately using the dedicated
tire repair kit and contact an authorized dealer as
soon as possible.
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label. (If
your vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation pres-
sure label, you should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale
when one or more of your tires is significantly under-
inflated. Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires as
soon as possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire failure.
78 GETTING TO KNOW YOUR INSTRUMENT PANEL
