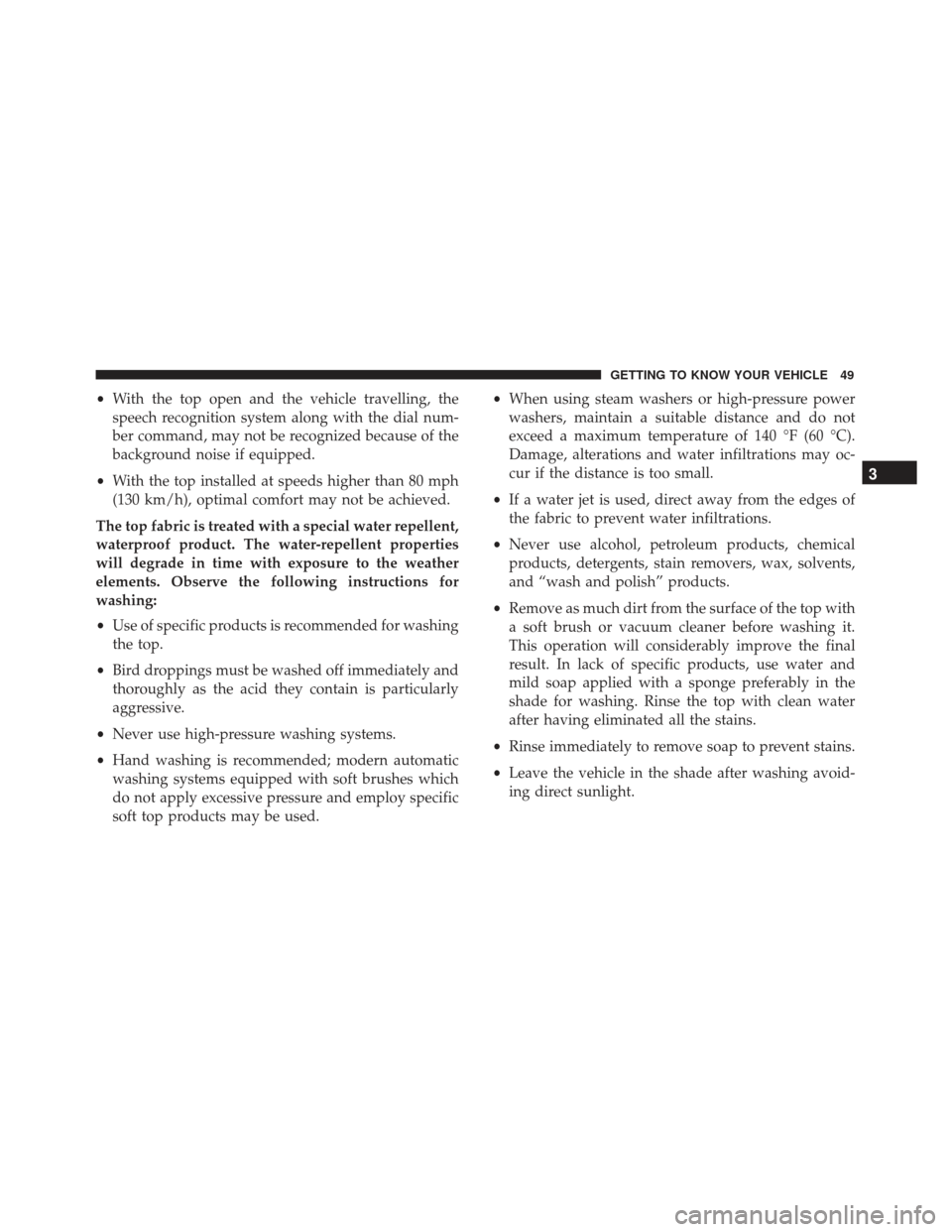

•With the top open and the vehicle travelling, the
speech recognition system along with the dial num-
ber command, may not be recognized because of the
background noise if equipped.
• With the top installed at speeds higher than 80 mph
(130 km/h), optimal comfort may not be achieved.
The top fabric is treated with a special water repellent,
waterproof product. The water-repellent properties
will degrade in time with exposure to the weather
elements. Observe the following instructions for
washing:
• Use of specific products is recommended for washing
the top.
• Bird droppings must be washed off immediately and
thoroughly as the acid they contain is particularly
aggressive.
• Never use high-pressure washing systems.
• Hand washing is recommended; modern automatic
washing systems equipped with soft brushes which
do not apply excessive pressure and employ specific
soft top products may be used. •
When using steam washers or high-pressure power
washers, maintain a suitable distance and do not
exceed a maximum temperature of 140 °F (60 °C).
Damage, alterations and water infiltrations may oc-
cur if the distance is too small.
• If a water jet is used, direct away from the edges of
the fabric to prevent water infiltrations.
• Never use alcohol, petroleum products, chemical
products, detergents, stain removers, wax, solvents,
and “wash and polish” products.
• Remove as much dirt from the surface of the top with
a soft brush or vacuum cleaner before washing it.
This operation will considerably improve the final
result. In lack of specific products, use water and
mild soap applied with a sponge preferably in the
shade for washing. Rinse the top with clean water
after having eliminated all the stains.
• Rinse immediately to remove soap to prevent stains.
• Leave the vehicle in the shade after washing avoid-
ing direct sunlight.
3
GETTING TO KNOW YOUR VEHICLE 49
Page 52 of 292
•Use specific waterproofing products for fabric tops
and follow the instructions on the product container
for best results.
• The rubber seals of the top must be washed with
water only. Apply talcum power or use specific
rubber care products (silicone spray) if the seals are
dry or partially stuck.
DECKLID
To Open The Decklid
CAUTION!
• To prevent possible damage, do not slam the
decklid to close it. Use a firm downward push at
the center of the decklid to ensure the decklid
latch is fully engaged.
• During normal vehicle operation, the luggage
compartment (located rear of the engine) can
reach temperatures above 149 °F (65 °C). Do not
transport objects in the luggage compartment that
may be damaged at such temperatures. Do not
place aerosol cans in the luggage compartment. To open the decklid:
1. Open the driver’s side door.
2. Pull the decklid release lever located on the rear of
the driver’s door sill.
Decklid Release Lever
50 GETTING TO KNOW YOUR VEHICLE
Page 53 of 292
3. Move to the rear of the vehicle and lift the decklid. 4. Lift upward on the decklid prop rod to release itfrom the stowage retainer.
Decklid Lift Point Location
Decklid Prop Rod Location
1 — Decklid Prop Rod
2 — Stowage Retainer Location
3
GETTING TO KNOW YOUR VEHICLE 51
Page 54 of 292
5. Place the decklid prop rod in the decklid slot tosecure the decklid in the open position.
WARNING!
•The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
(Continued)
WARNING! (Continued)
•Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
To Close The Decklid
1. Hold the decklid up with one hand and use the other to remove rod from housing and reinsert it in its
locking device.
2. Lower the decklid approximately 7.8 inches (20 cm) from the engine compartment and let it drop. Make
sure that the decklid is completely closed and not
only fastened in safety position by trying to open it.
If it is not completely closed, do not push the decklid
down, but raise it and repeat the procedure.
Decklid Prop Rod Slot
52 GETTING TO KNOW YOUR VEHICLE
Page 55 of 292
NOTE:Always check that the decklid is closed correctly
to prevent it from opening while the vehicle is travel-
ling.
WARNING!
• The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
• Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
INTERNAL EQUIPMENT
Storage
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Console Storage
There is a cargo pouch storage area located between the
driver and passenger seat.
Driver ’s Side Seatback Storage
3
GETTING TO KNOW YOUR VEHICLE 53
Page 56 of 292
Rear Compartment Storage
CAUTION!
•To prevent possible damage, do not slam the
decklid to close it. Use a firm downward push at
the center of the decklid to ensure the decklid
latch is fully engaged.
• During normal vehicle operation, the luggage
compartment (located rear of the engine) can
reach temperatures above 149 °F (65 °C). Do not
(Continued)
CAUTION! (Continued)
transport objects in the luggage compartment that
may be damaged at such temperatures. Do not
place aerosol cans in the luggage compartment.
Your vehicle is equipped with a storage area located
under the decklid.
Cargo Pouch Storage Location
Decklid Emergency Release
54 GETTING TO KNOW YOUR VEHICLE
Page 57 of 292
WARNING!
Do not allow children to have access to rear storage
compartment. Always close the decklid when your
vehicle is unattended. Once in the rear storage
compartment, young children may not be able to
escape. If trapped in the rear compartment, children
can die from suffocation or heat stroke.
As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent
handle attached to the decklid latching mechanism.
WARNING!
• The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
(Continued)
Rear Compartment Light
3
GETTING TO KNOW YOUR VEHICLE 55
Page 58 of 292
WARNING!(Continued)
•Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
Cupholder
A cupholder is located in the rear of the center console.
Center Console Cupholder
56 GETTING TO KNOW YOUR VEHICLE
Page 59 of 292

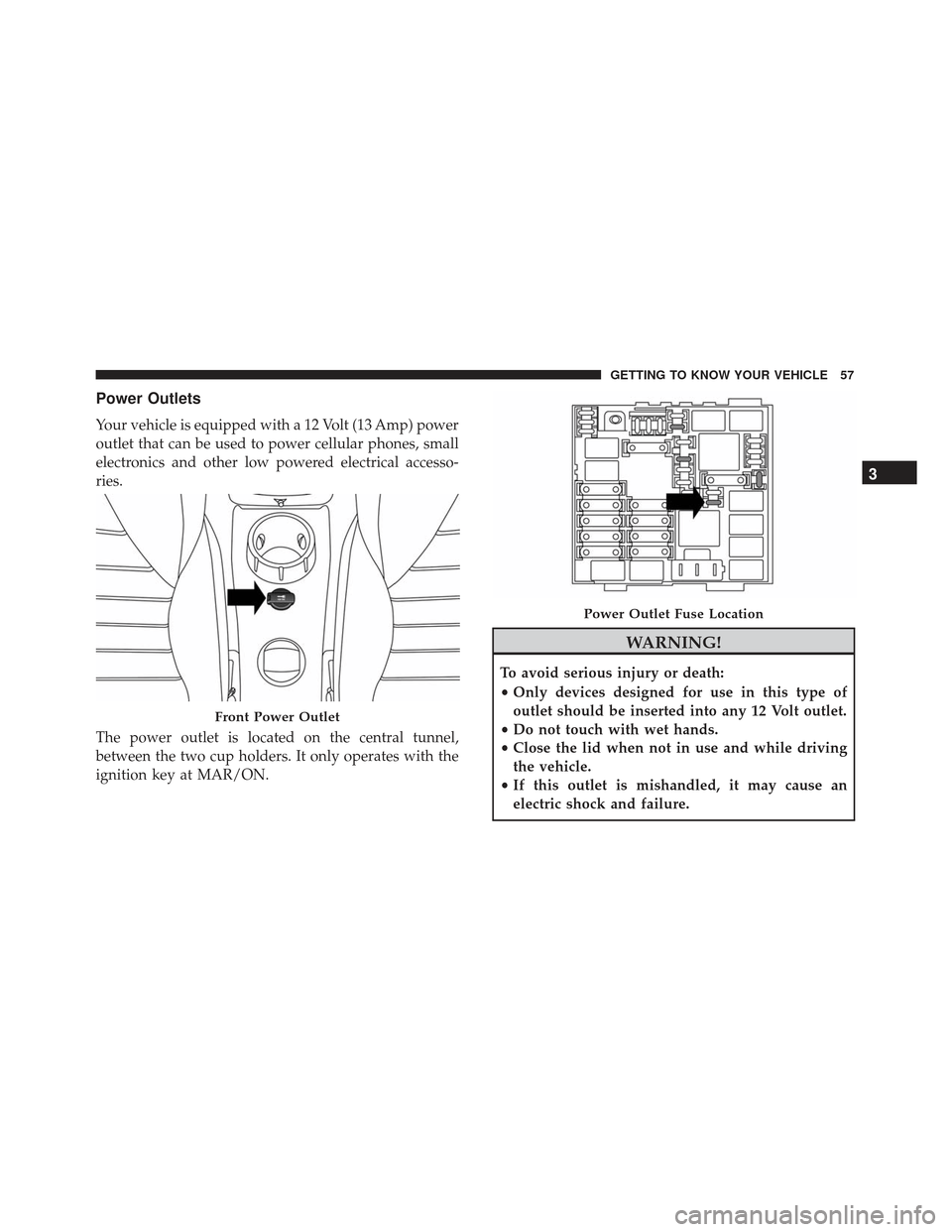

Power Outlets
Your vehicle is equipped with a 12 Volt (13 Amp) power
outlet that can be used to power cellular phones, small
electronics and other low powered electrical accesso-
ries.
The power outlet is located on the central tunnel,
between the two cup holders. It only operates with the
ignition key at MAR/ON.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving
the vehicle.
• If this outlet is mishandled, it may cause an
electric shock and failure.
Front Power Outlet
Power Outlet Fuse Location
3
GETTING TO KNOW YOUR VEHICLE 57
Page 60 of 292

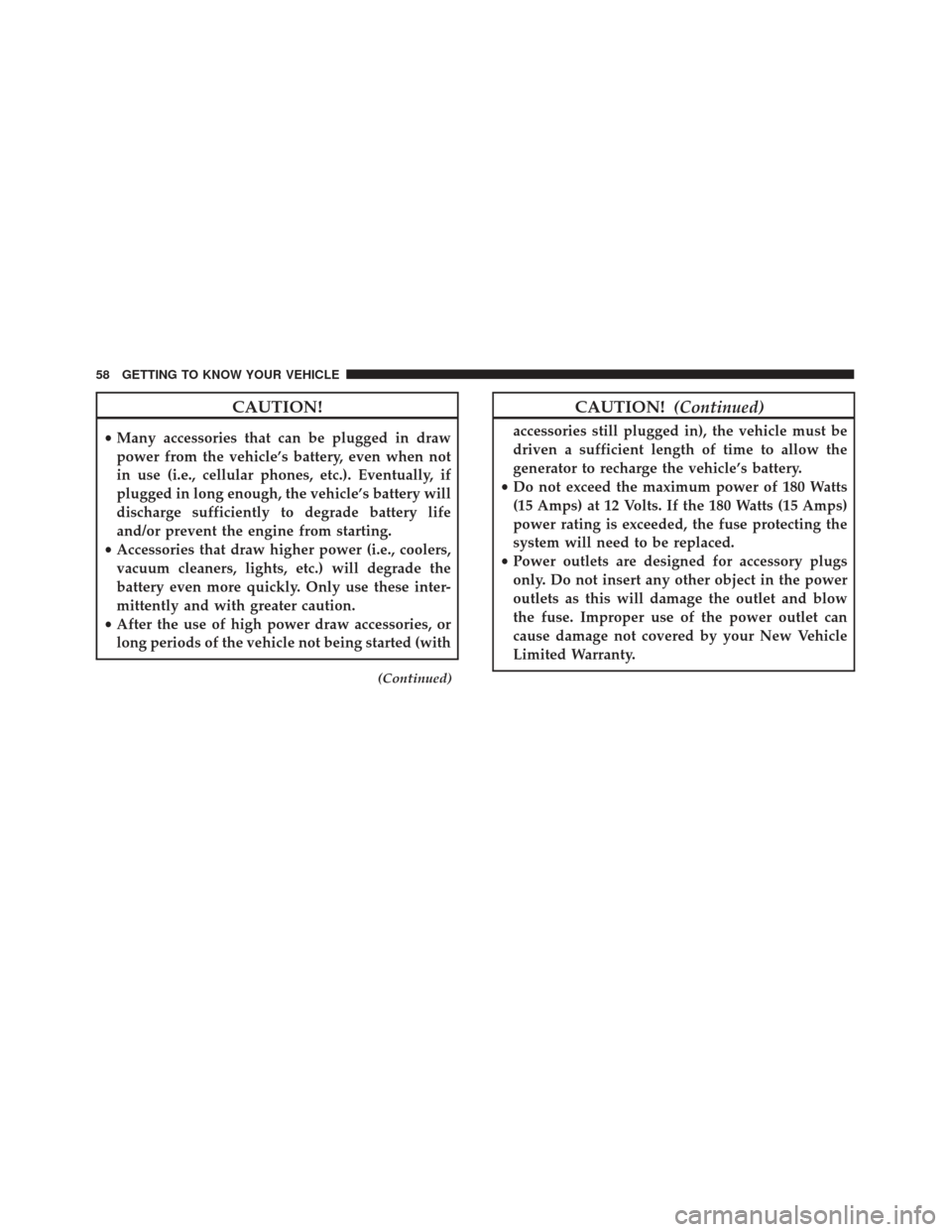

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
(Continued)
CAUTION! (Continued)
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
• Do not exceed the maximum power of 180 Watts
(15 Amps) at 12 Volts. If the 180 Watts (15 Amps)
power rating is exceeded, the fuse protecting the
system will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow
the fuse. Improper use of the power outlet can
cause damage not covered by your New Vehicle
Limited Warranty.
58 GETTING TO KNOW YOUR VEHICLE
