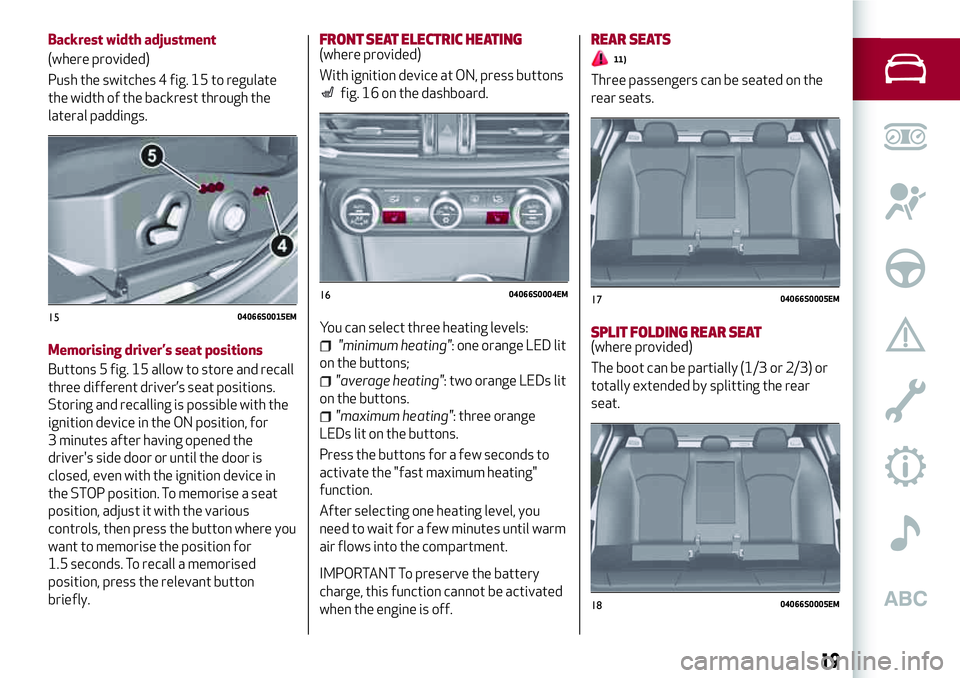

Backrest width adjustment
(where provided)
Push the switches 4 fig. 15 to regulate
the width of the backrest through the
lateral paddings.
Memorising driver’s seat positions
Buttons 5 fig. 15 allow to store and recall
three different driver’s seat positions.
Storing and recalling is possible with the
ignition device in the ON position, for
3 minutes after having opened the
driver's side door or until the door is
closed, even with the ignition device in
the STOP position. To memorise a seat
position, adjust it with the various
controls, then press the button where you
want to memorise the position for
1.5 seconds. To recall a memorised
position, press the relevant button
briefly.FRONT SEAT ELECTRIC HEATING(where provided)
With ignition device at ON, press buttons
fig. 16 on the dashboard.
You can select three heating levels:
"minimum heating": one orange LED lit
on the buttons;
"average heating": two orange LEDs lit
on the buttons.
"maximum heating": three orange
LEDs lit on the buttons.
Press the buttons for a few seconds to
activate the "fast maximum heating"
function.
After selecting one heating level, you
need to wait for a few minutes until warm
air flows into the compartment.
IMPORTANT To preserve the battery
charge, this function cannot be activated
when the engine is off.REAR SEATS
11)
Three passengers can be seated on the
rear seats.
SPLIT FOLDING REAR SEAT(where provided)
The boot can be partially (1/3 or 2/3) or
totally extended by splitting the rear
seat.
1504066S0015EM
1604066S0004EM1704066S0005EM
1804066S0005EM
19
Page 22 of 204

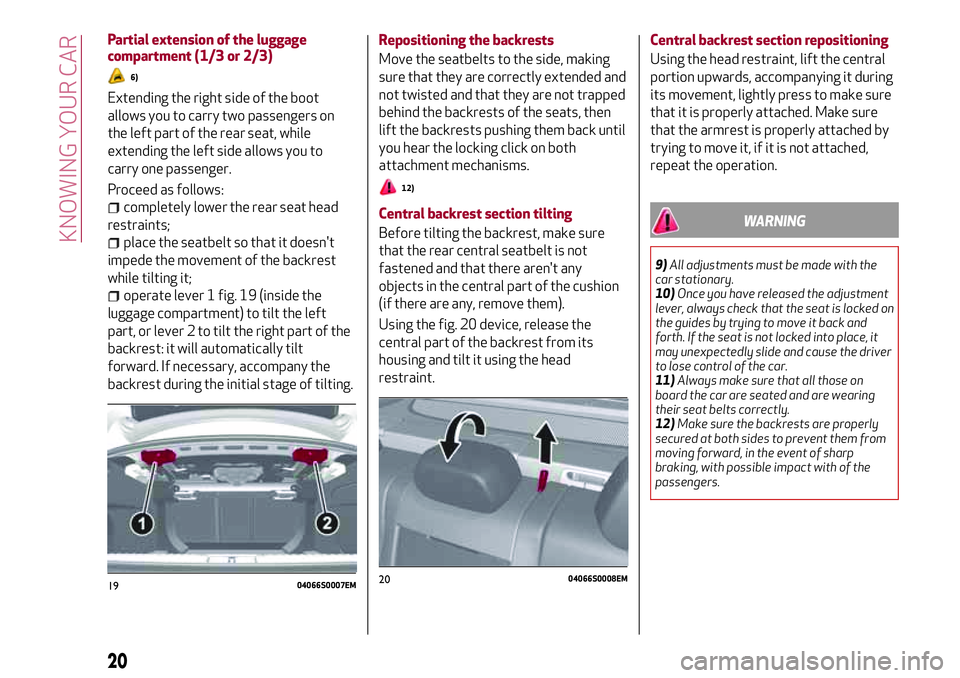

Partial extension of the luggage
compartment (1/3 or 2/3)
6)
Extending the right side of the boot
allows you to carry two passengers on
the left part of the rear seat, while
extending the left side allows you to
carry one passenger.
Proceed as follows:
completely lower the rear seat head
restraints;
place the seatbelt so that it doesn't
impede the movement of the backrest
while tilting it;
operate lever 1 fig. 19 (inside the
luggage compartment) to tilt the left
part, or lever 2 to tilt the right part of the
backrest: it will automatically tilt
forward. If necessary, accompany the
backrest during the initial stage of tilting.Repositioning the backrests
Move the seatbelts to the side, making
sure that they are correctly extended and
not twisted and that they are not trapped
behind the backrests of the seats, then
lift the backrests pushing them back until
you hear the locking click on both
attachment mechanisms.
12)
Central backrest section tilting
Before tilting the backrest, make sure
that the rear central seatbelt is not
fastened and that there aren't any
objects in the central part of the cushion
(if there are any, remove them).
Using the fig. 20 device, release the
central part of the backrest from its
housing and tilt it using the head
restraint.Central backrest section repositioning
Using the head restraint, lift the central
portion upwards, accompanying it during
its movement, lightly press to make sure
that it is properly attached. Make sure
that the armrest is properly attached by
trying to move it, if it is not attached,
repeat the operation.WARNING
9)All adjustments must be made with the
car stationary.
10)Once you have released the adjustment
lever, always check that the seat is locked on
the guides by trying to move it back and
forth. If the seat is not locked into place, it
may unexpectedly slide and cause the driver
to lose control of the car.
11)Always make sure that all those on
board the car are seated and are wearing
their seat belts correctly.
12)Make sure the backrests are properly
secured at both sides to prevent them from
moving forward, in the event of sharp
braking, with possible impact with of the
passengers.
1904066S0007EM2004066S0008EM
20
KNOWING YOUR CAR
Page 23 of 204
IMPORTANT
4)The fabric upholstery of the seats has
been designed to withstand long-term wear
deriving from normal use of the car. Some
precautions are however required. Avoid
prolonged and/or excessive rubbing against
clothing accessories such as metal buckles
and Velcro strips which, by applying a high
pressure on the fabric in a small area, could
cause it to break, thereby damaging the
upholstery.
5)Do not place any kind of items under the
electrically adjusted seats as they could
impede their movement or otherwise
damage the controls.
6)Before tilting the backrest, remove any
objects on the seat cushion.

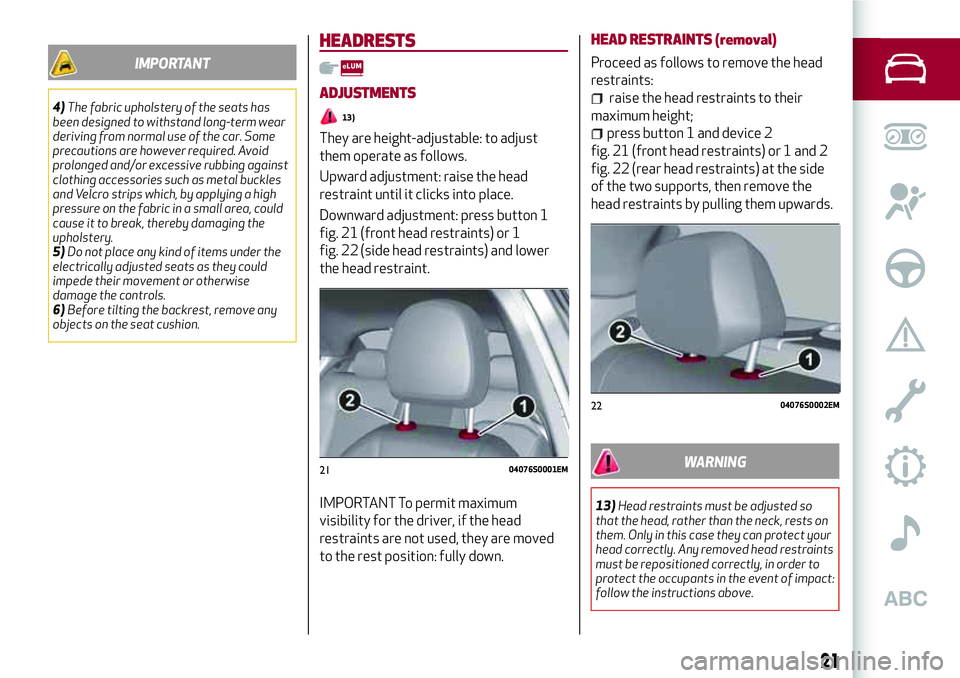

HEADRESTS
ADJUSTMENTS
13)
They are height-adjustable: to adjust
them operate as follows.
Upward adjustment: raise the head
restraint until it clicks into place.
Downward adjustment: press button 1
fig. 21 (front head restraints) or 1
fig. 22 (side head restraints) and lower
the head restraint.
IMPORTANT To permit maximum
visibility for the driver, if the head
restraints are not used, they are moved
to the rest position: fully down.HEAD RESTRAINTS (removal)
Proceed as follows to remove the head
restraints:
raise the head restraints to their
maximum height;
press button 1 and device 2
fig. 21 (front head restraints) or 1 and 2
fig. 22 (rear head restraints) at the side
of the two supports, then remove the
head restraints by pulling them upwards.
WARNING
13)Head restraints must be adjusted so
that the head, rather than the neck, rests on
them. Only in this case they can protect your
head correctly. Any removed head restraints
must be repositioned correctly, in order to
protect the occupants in the event of impact:
follow the instructions above.
2104076S0001EM
2204076S0002EM
21
Page 24 of 204

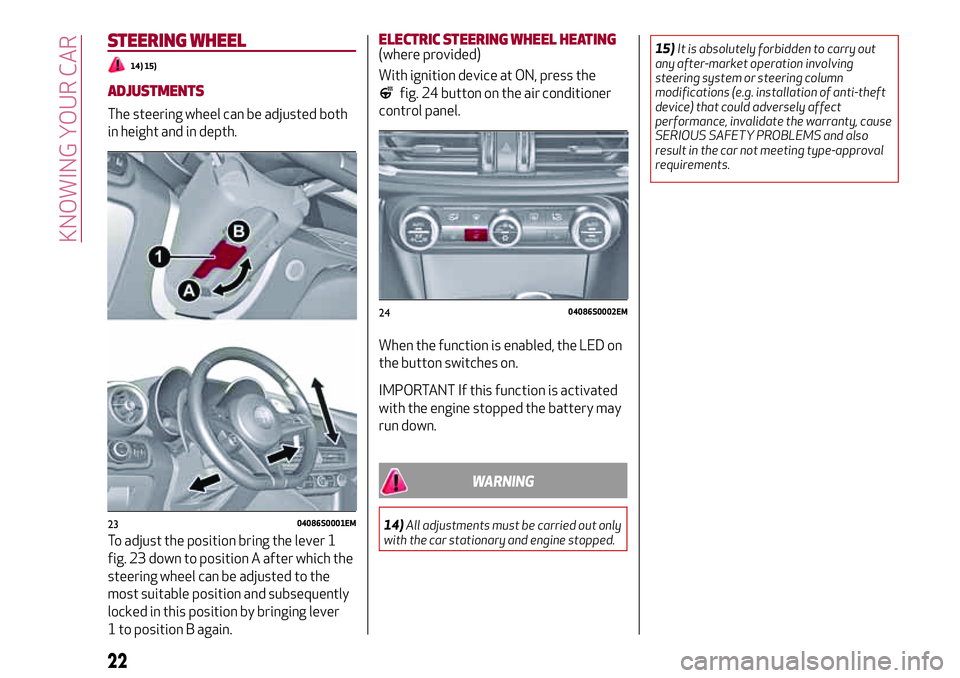

STEERING WHEEL
14) 15)
ADJUSTMENTS
The steering wheel can be adjusted both
in height and in depth.
To adjust the position bring the lever 1
fig. 23 down to position A after which the
steering wheel can be adjusted to the
most suitable position and subsequently
locked in this position by bringing lever
1 to position B again.
ELECTRIC STEERING WHEEL HEATING(where provided)
With ignition device at ON, press the
fig. 24 button on the air conditioner
control panel.
When the function is enabled, the LED on
the button switches on.
IMPORTANT If this function is activated
with the engine stopped the battery may
run down.
WARNING
14)All adjustments must be carried out only
with the car stationary and engine stopped.15)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could adversely affect
performance, invalidate the warranty, cause
SERIOUS SAFETY PROBLEMS and also
result in the car not meeting type-approval
requirements.2304086S0001EM
2404086S0002EM
22
KNOWING YOUR CAR
Page 25 of 204

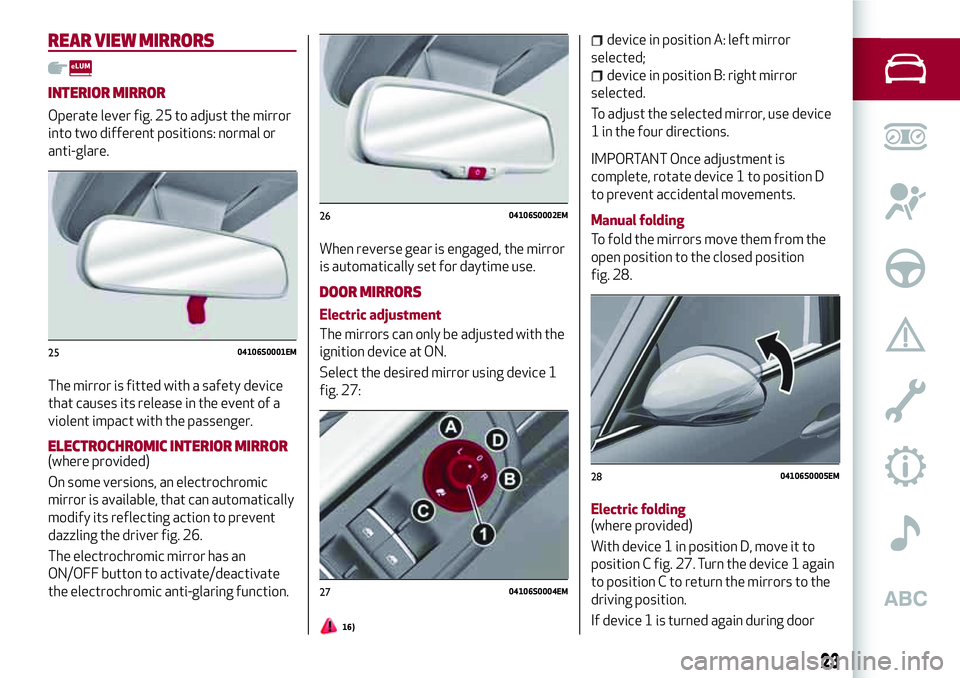

REAR VIEW MIRRORS
INTERIOR MIRROR
Operate lever fig. 25 to adjust the mirror
into two different positions: normal or
anti-glare.
The mirror is fitted with a safety device
that causes its release in the event of a
violent impact with the passenger.
ELECTROCHROMIC INTERIOR MIRROR(where provided)
On some versions, an electrochromic
mirror is available, that can automatically
modify its reflecting action to prevent
dazzling the driver fig. 26.
The electrochromic mirror has an
ON/OFF button to activate/deactivate
the electrochromic anti-glaring function.When reverse gear is engaged, the mirror
is automatically set for daytime use.
DOOR MIRRORS
Electric adjustment
The mirrors can only be adjusted with the
ignition device at ON.
Select the desired mirror using device 1
fig. 27:
16)
device in position A: left mirror
selected;
device in position B: right mirror
selected.
To adjust the selected mirror, use device
1 in the four directions.
IMPORTANT Once adjustment is
complete, rotate device 1 to position D
to prevent accidental movements.
Manual folding
To fold the mirrors move them from the
open position to the closed position
fig. 28.
Electric folding
(where provided)
With device 1 in position D, move it to
position C fig. 27. Turn the device 1 again
to position C to return the mirrors to the
driving position.
If device 1 is turned again during door
2504106S0001EM
2604106S0002EM
2704106S0004EM
2804106S0005EM
23
Page 26 of 204

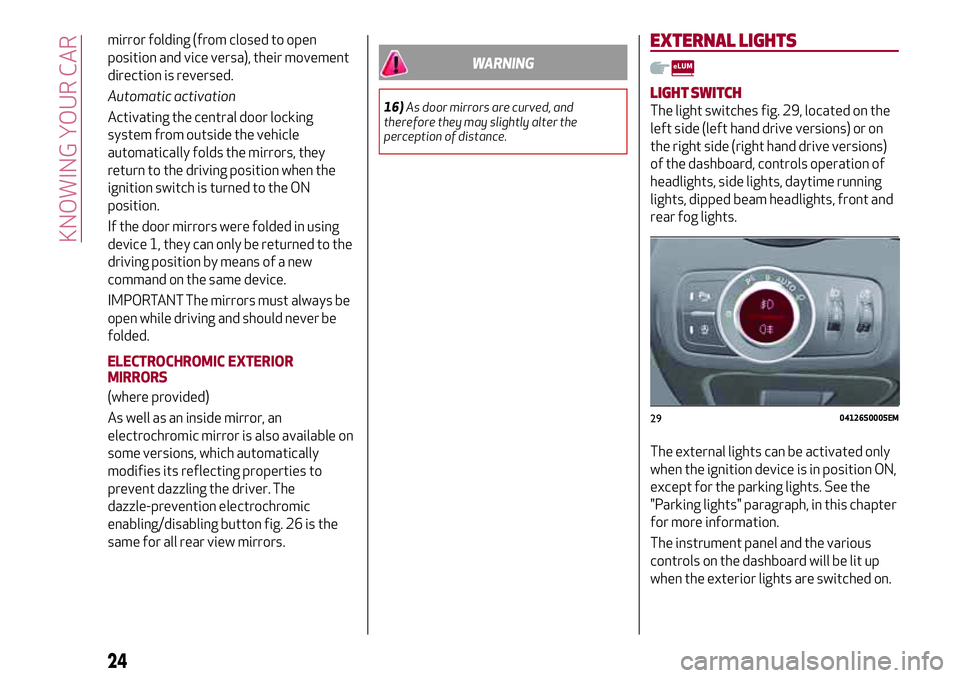

mirror folding (from closed to open
position and vice versa), their movement
direction is reversed.
Automatic activation
Activating the central door locking
system from outside the vehicle
automatically folds the mirrors, they
return to the driving position when the
ignition switch is turned to the ON
position.
If the door mirrors were folded in using
device 1, they can only be returned to the
driving position by means of a new
command on the same device.
IMPORTANT The mirrors must always be
open while driving and should never be
folded.
ELECTROCHROMIC EXTERIOR
MIRRORS
(where provided)
As well as an inside mirror, an
electrochromic mirror is also available on
some versions, which automatically
modifies its reflecting properties to
prevent dazzling the driver. The
dazzle-prevention electrochromic
enabling/disabling button fig. 26 is the
same for all rear view mirrors.
WARNING
16)As door mirrors are curved, and
therefore they may slightly alter the
perception of distance.
EXTERNAL LIGHTS
LIGHT SWITCH
The light switches fig. 29, located on the
left side (left hand drive versions) or on
the right side (right hand drive versions)
of the dashboard, controls operation of
headlights, side lights, daytime running
lights, dipped beam headlights, front and
rear fog lights.
The external lights can be activated only
when the ignition device is in position ON,
except for the parking lights. See the
"Parking lights" paragraph, in this chapter
for more information.
The instrument panel and the various
controls on the dashboard will be lit up
when the exterior lights are switched on.
2904126S0005EM
24
KNOWING YOUR CAR
Page 27 of 204

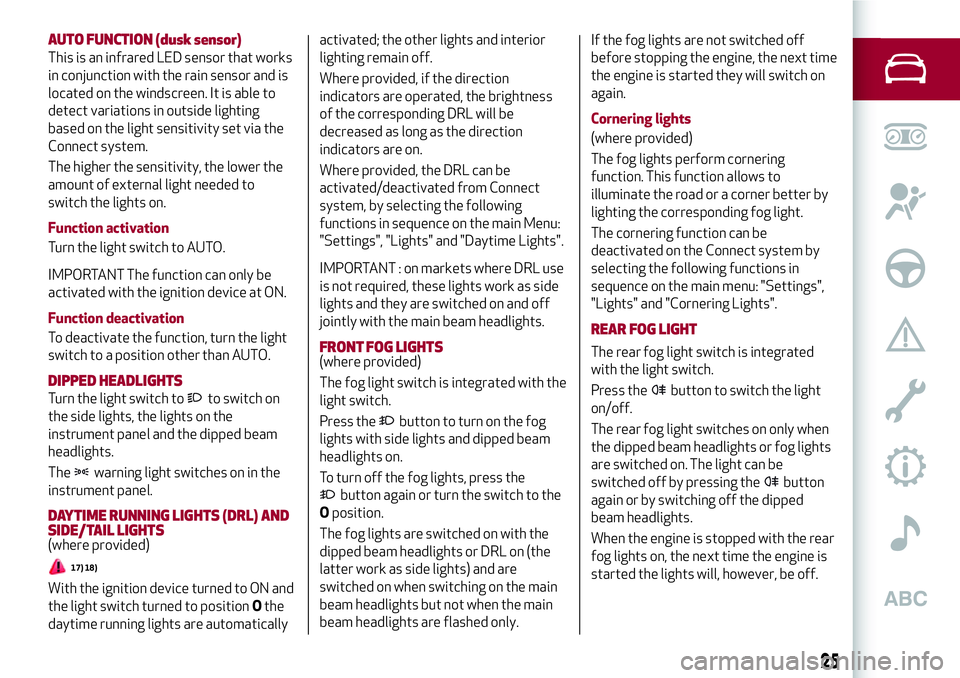

AUTO FUNCTION (dusk sensor)
This is an infrared LED sensor that works
in conjunction with the rain sensor and is
located on the windscreen. It is able to
detect variations in outside lighting
based on the light sensitivity set via the
Connect system.
The higher the sensitivity, the lower the
amount of external light needed to
switch the lights on.
Function activation
Turn the light switch to AUTO.
IMPORTANT The function can only be
activated with the ignition device at ON.
Function deactivation
To deactivate the function, turn the light
switch to a position other than AUTO.
DIPPED HEADLIGHTS
Turn the light switch toto switch on
the side lights, the lights on the
instrument panel and the dipped beam
headlights.
The
warning light switches on in the
instrument panel.
DAYTIME RUNNING LIGHTS (DRL) AND
SIDE/TAIL LIGHTS
(where provided)
17) 18)
With the ignition device turned to ON and
the light switch turned to positionOthe
daytime running lights are automaticallyactivated; the other lights and interior
lighting remain off.
Where provided, if the direction
indicators are operated, the brightness
of the corresponding DRL will be
decreased as long as the direction
indicators are on.
Where provided, the DRL can be
activated/deactivated from Connect
system, by selecting the following
functions in sequence on the main Menu:
"Settings", "Lights" and "Daytime Lights".
IMPORTANT : on markets where DRL use
is not required, these lights work as side
lights and they are switched on and off
jointly with the main beam headlights.
FRONT FOG LIGHTS
(where provided)
The fog light switch is integrated with the
light switch.
Press the
button to turn on the fog
lights with side lights and dipped beam
headlights on.
To turn off the fog lights, press the
button again or turn the switch to the
Oposition.
The fog lights are switched on with the
dipped beam headlights or DRL on (the
latter work as side lights) and are
switched on when switching on the main
beam headlights but not when the main
beam headlights are flashed only.If the fog lights are not switched off
before stopping the engine, the next time
the engine is started they will switch on
again.
Cornering lights
(where provided)
The fog lights perform cornering
function. This function allows to
illuminate the road or a corner better by
lighting the corresponding fog light.
The cornering function can be
deactivated on the Connect system by
selecting the following functions in
sequence on the main menu: "Settings",
"Lights" and "Cornering Lights".
REAR FOG LIGHT
The rear fog light switch is integrated
with the light switch.
Press the
button to switch the light
on/off.
The rear fog light switches on only when
the dipped beam headlights or fog lights
are switched on. The light can be
switched off by pressing the
button
again or by switching off the dipped
beam headlights.
When the engine is stopped with the rear
fog lights on, the next time the engine is
started the lights will, however, be off.
25
Page 28 of 204

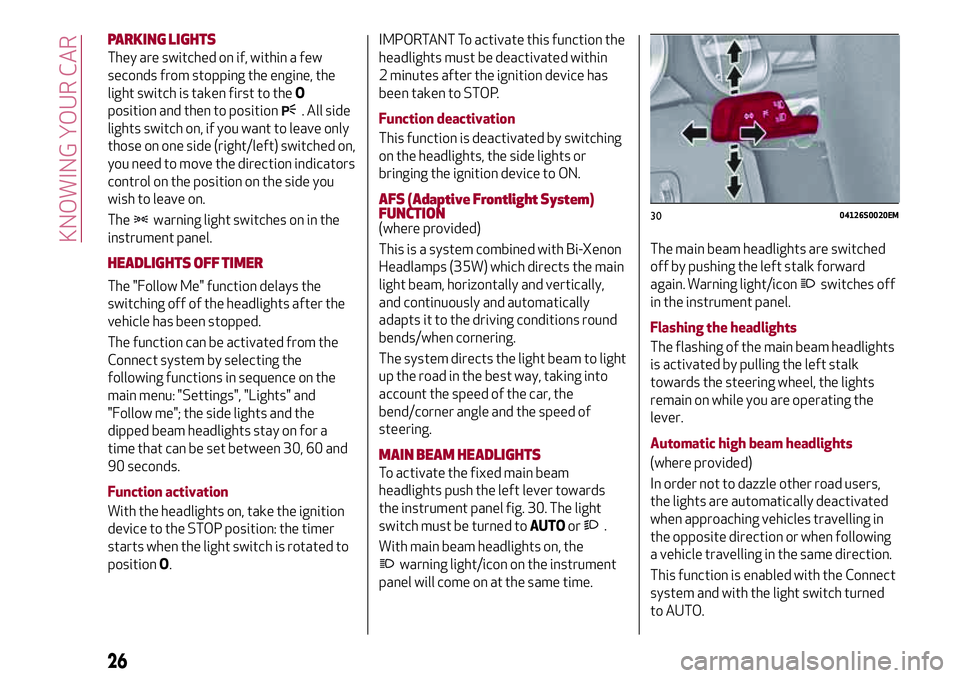

PARKING LIGHTS
They are switched on if, within a few
seconds from stopping the engine, the
light switch is taken first to theO
position and then to position
. All side
lights switch on, if you want to leave only
those on one side (right/left) switched on,
you need to move the direction indicators
control on the position on the side you
wish to leave on.
The
warning light switches on in the
instrument panel.
HEADLIGHTS OFF TIMER
The "Follow Me" function delays the
switching off of the headlights after the
vehicle has been stopped.
The function can be activated from the
Connect system by selecting the
following functions in sequence on the
main menu: "Settings", "Lights" and
"Follow me"; the side lights and the
dipped beam headlights stay on for a
time that can be set between 30, 60 and
90 seconds.
Function activation
With the headlights on, take the ignition
device to the STOP position: the timer
starts when the light switch is rotated to
positionO.
IMPORTANT To activate this function the
headlights must be deactivated within
2 minutes after the ignition device has
been taken to STOP.
Function deactivation
This function is deactivated by switching
on the headlights, the side lights or
bringing the ignition device to ON.
AFS (Adaptive Frontlight System)
FUNCTION
(where provided)
This is a system combined with Bi-Xenon
Headlamps (35W) which directs the main
light beam, horizontally and vertically,
and continuously and automatically
adapts it to the driving conditions round
bends/when cornering.
The system directs the light beam to light
up the road in the best way, taking into
account the speed of the car, the
bend/corner angle and the speed of
steering.
MAIN BEAM HEADLIGHTS
To activate the fixed main beam
headlights push the left lever towards
the instrument panel fig. 30. The light
switch must be turned toAUTOor
.
With main beam headlights on, the
warning light/icon on the instrument
panel will come on at the same time.The main beam headlights are switched
off by pushing the left stalk forward
again. Warning light/icon
switches off
in the instrument panel.
Flashing the headlights
The flashing of the main beam headlights
is activated by pulling the left stalk
towards the steering wheel, the lights
remain on while you are operating the
lever.
Automatic high beam headlights
(where provided)
In order not to dazzle other road users,
the lights are automatically deactivated
when approaching vehicles travelling in
the opposite direction or when following
a vehicle travelling in the same direction.
This function is enabled with the Connect
system and with the light switch turned
to AUTO.
3004126S0020EM
26
KNOWING YOUR CAR
Page 29 of 204

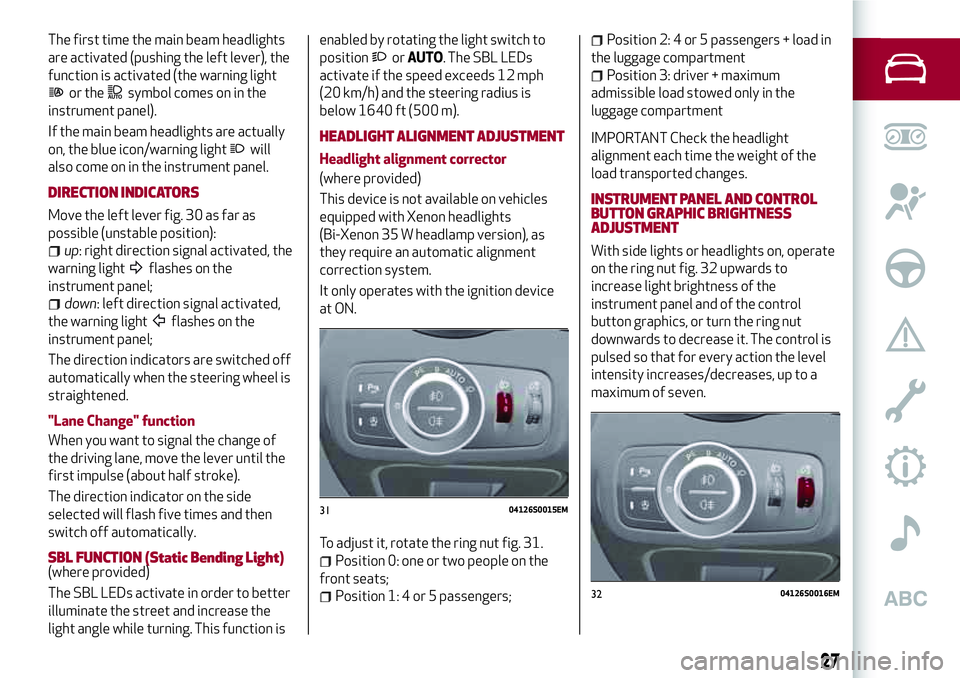

The first time the main beam headlights
are activated (pushing the left lever), the
function is activated (the warning light
or thesymbol comes on in the
instrument panel).
If the main beam headlights are actually
on, the blue icon/warning light
will
also come on in the instrument panel.
DIRECTION INDICATORS
Move the left lever fig. 30 as far as
possible (unstable position):
up: right direction signal activated, the
warning light
flashes on the
instrument panel;
down: left direction signal activated,
the warning light
flashes on the
instrument panel;
The direction indicators are switched off
automatically when the steering wheel is
straightened.
"Lane Change" function
When you want to signal the change of
the driving lane, move the lever until the
first impulse (about half stroke).
The direction indicator on the side
selected will flash five times and then
switch off automatically.
SBL FUNCTION (Static Bending Light)(where provided)
The SBL LEDs activate in order to better
illuminate the street and increase the
light angle while turning. This function isenabled by rotating the light switch to
position
orAUTO. The SBL LEDs
activate if the speed exceeds 12 mph
(20 km/h) and the steering radius is
below 1640 ft (500 m).
HEADLIGHT ALIGNMENT ADJUSTMENT
Headlight alignment corrector
(where provided)
This device is not available on vehicles
equipped with Xenon headlights
(Bi-Xenon 35 W headlamp version), as
they require an automatic alignment
correction system.
It only operates with the ignition device
at ON.
To adjust it, rotate the ring nut fig. 31.
Position 0: one or two people on the
front seats;
Position 1: 4 or 5 passengers;
Position 2: 4 or 5 passengers + load in
the luggage compartment
Position 3: driver + maximum
admissible load stowed only in the
luggage compartment
IMPORTANT Check the headlight
alignment each time the weight of the
load transported changes.
INSTRUMENT PANEL AND CONTROL
BUTTON GRAPHIC BRIGHTNESS
ADJUSTMENT
With side lights or headlights on, operate
on the ring nut fig. 32 upwards to
increase light brightness of the
instrument panel and of the control
button graphics, or turn the ring nut
downwards to decrease it. The control is
pulsed so that for every action the level
intensity increases/decreases, up to a
maximum of seven.
3104126S0015EM
3204126S0016EM
27
Page 30 of 204

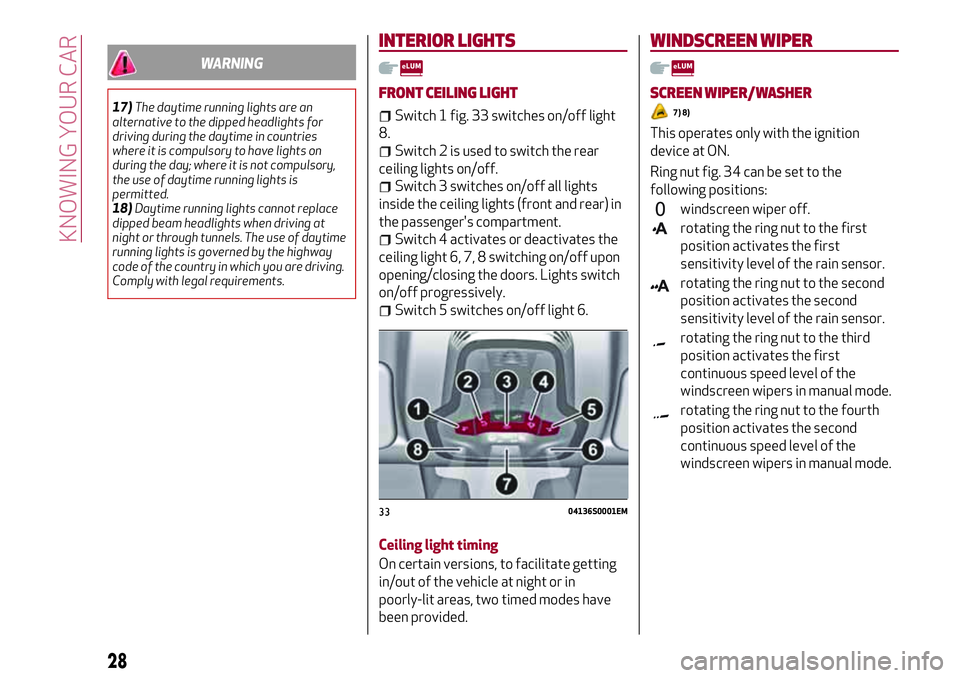

WARNING
17)The daytime running lights are an
alternative to the dipped headlights for
driving during the daytime in countries
where it is compulsory to have lights on
during the day; where it is not compulsory,
the use of daytime running lights is
permitted.
18)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of daytime
running lights is governed by the highway
code of the country in which you are driving.
Comply with legal requirements.
INTERIOR LIGHTS
FRONT CEILING LIGHT
Switch 1 fig. 33 switches on/off light
8.
Switch 2 is used to switch the rear
ceiling lights on/off.
Switch 3 switches on/off all lights
inside the ceiling lights (front and rear) in
the passenger's compartment.
Switch 4 activates or deactivates the
ceiling light 6, 7, 8 switching on/off upon
opening/closing the doors. Lights switch
on/off progressively.
Switch 5 switches on/off light 6.
Ceiling light timing
On certain versions, to facilitate getting
in/out of the vehicle at night or in
poorly-lit areas, two timed modes have
been provided.
WINDSCREEN WIPER
SCREEN WIPER/WASHER
7) 8)
This operates only with the ignition
device at ON.
Ring nut fig. 34 can be set to the
following positions:
windscreen wiper off.
rotating the ring nut to the first
position activates the first
sensitivity level of the rain sensor.
rotating the ring nut to the second
position activates the second
sensitivity level of the rain sensor.
rotating the ring nut to the third
position activates the first
continuous speed level of the
windscreen wipers in manual mode.
rotating the ring nut to the fourth
position activates the second
continuous speed level of the
windscreen wipers in manual mode.
3304136S0001EM
28
KNOWING YOUR CAR
