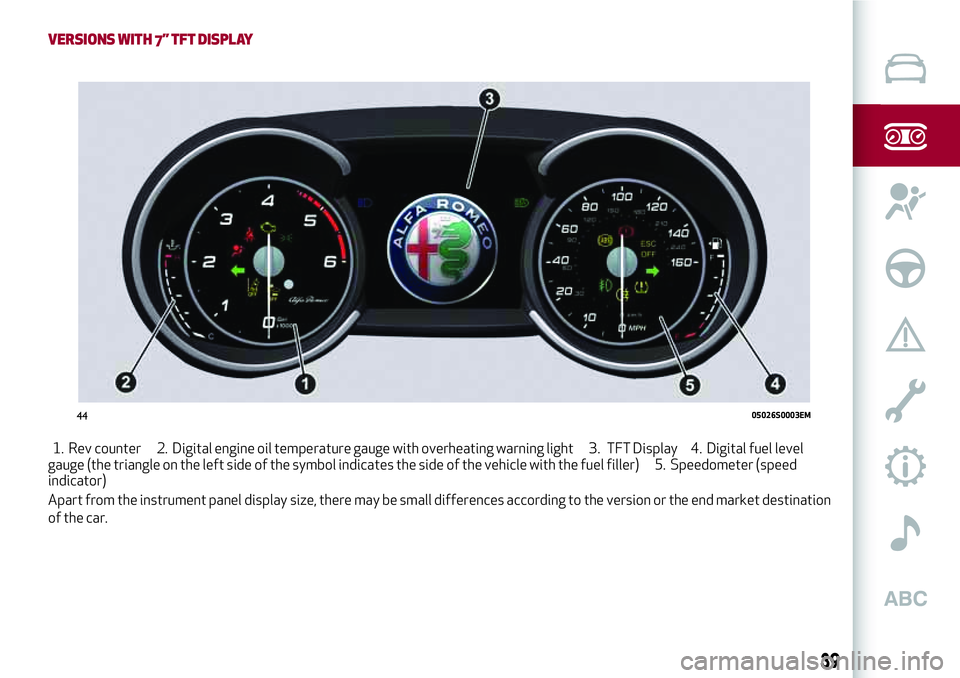

VERSIONS WITH 7” TFT DISPLAY
1. Rev counter 2. Digital engine oil temperature gauge with overheating warning light 3. TFT Display 4. Digital fuel level
gauge (the triangle on the left side of the symbol indicates the side of the vehicle with the fuel filler) 5. Speedometer (speed
indicator)
Apart from the instrument panel display size, there may be small differences according to the version or the end market destination
of the car.
4405026S0003EM
39
Page 42 of 204
DISPLAY
DESCRIPTION

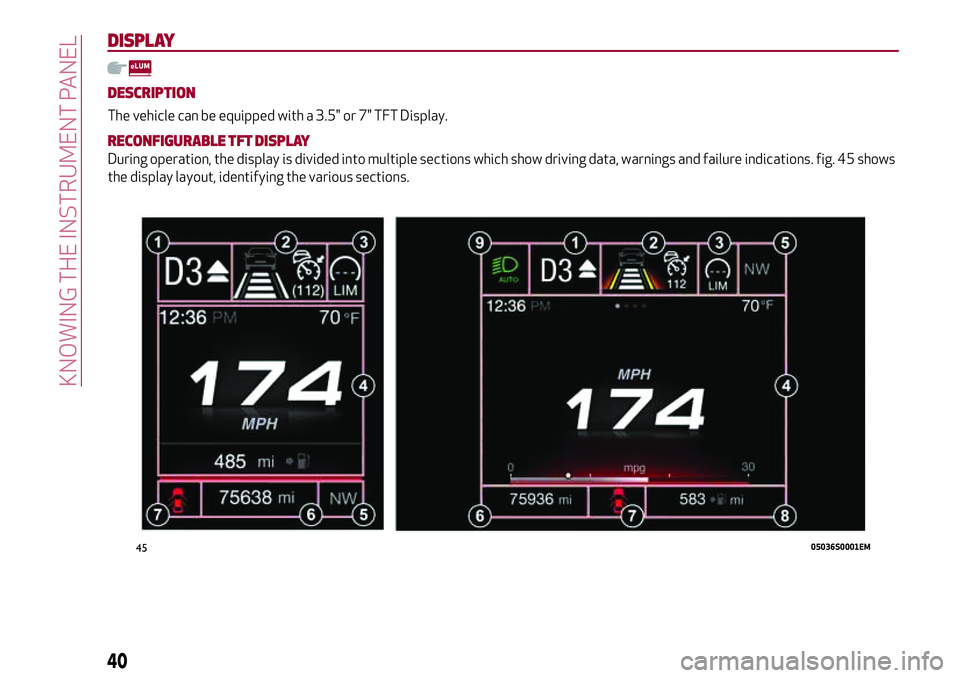

The vehicle can be equipped with a 3.5" or 7" TFT Display.
RECONFIGURABLE TFT DISPLAY
During operation, the display is divided into multiple sections which show driving data, warnings and failure indications. fig. 45 shows
the display layout, identifying the various sections.
4505036S0001EM
40
KNOWING THE INSTRUMENT PANEL
Page 43 of 204
1 Gearbox Information
Automatic transmission
Displays the following information
regarding the gearbox operation:
gearbox operation mode (M, P, R, N, D).
In D mode, when changing gear using the
steering wheel lever (where present), or
manually M, it also show the gear
engaged with a number. In M mode, it
indicates whether it needs to be shifted
by one gear (single arrow suggests one
gear) or by two gears (double arrow
suggests two gears) both up and down.
Manual gearbox
Displays the following information
regarding the gearbox operation:
the gear engaged (1, 2, 3, 4, 5, 6, N or
R) and indicates whether it needs to be
shifted by one gear (single arrow
suggests one gear) or by two gears
(double arrow suggests two gears) both
up and down.
2 Front, side anti-collision systems,
Cruise Control
Displays the operation the following
modes:
Forward Collision Warning (FCW);
Lane Departure Warning (LDW);
Cruise Control (CC) or Active Cruise
Control (ACC) (where provided).
For further information, see relevant
paragraphs.3 Speed limit warning light
Shows information regarding the Speed
Limiter function.
For further information, see relevant
paragraph.
4 Reconfigurable main area
Can display the following screens:
Home.
Trip A.
Trip B (can be activated/deactivated
on the Connect system)
Performance.
The screens can be selected, on rotation,
by pressing the button shown in fig. 46.
Depending on the chosen driving mode
(Dynamic, Normal, Advanced Efficiency
and RACE), which can be selected
through the “Alfa DNA™ Pro” system, the
screens can be graphically different.
Navigation instructions and call
information can be repeated, besides onthe Connect system display, also in this
area of the display, these functions can
be set on the Connect system.
Home
The parameters shown on the display, for
the modes: Dynamic, Normal and
Advanced Efficiency are:
Time fig. 47 or fig. 48 (on the 3.5" FT
display shown only if the Phone function
fig. 49 repeat mode has not previously
been activated).
Outside temperature (on the 3.5" FT
display shown only if the Phone function
repeat mode has not previously been
activated).
Current speed (shown if the repeat
modes of the Phone and Navigation
functions have not been previously
activated).
Range (on the 3.5" FT display shown if
the Radio and Media functions repeat
mode have not been previously
activated).
4605036S0002EM
41
Page 44 of 204
3.5” TFT Display

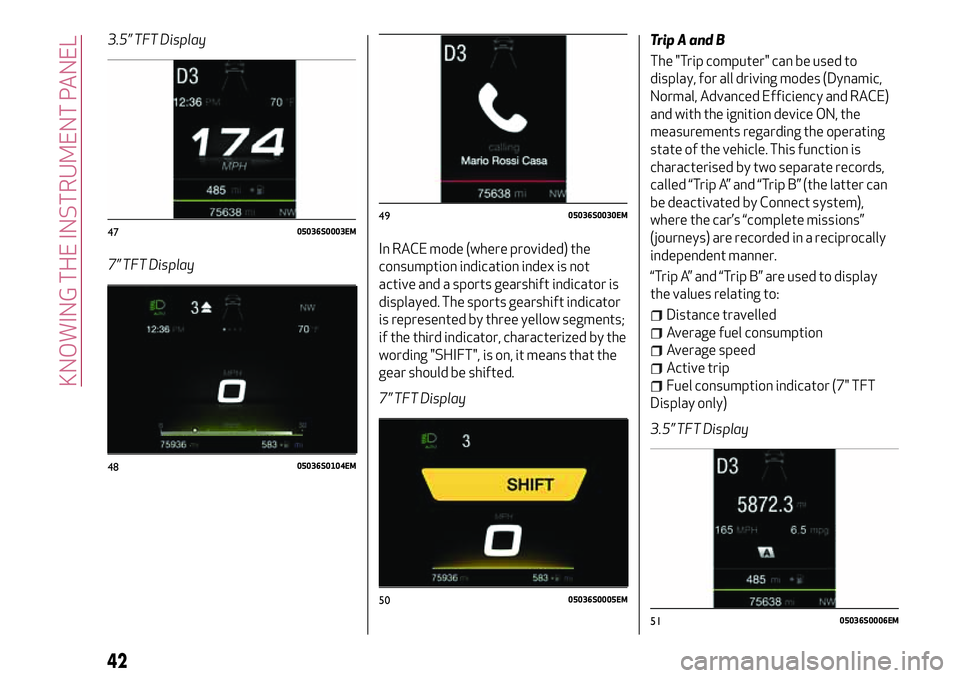

7” TFT DisplayIn RACE mode (where provided) the
consumption indication index is not
active and a sports gearshift indicator is
displayed. The sports gearshift indicator
is represented by three yellow segments;
if the third indicator, characterized by the
wording "SHIFT", is on, it means that the
gear should be shifted.
7” TFT DisplayTrip A and B
The "Trip computer" can be used to
display, for all driving modes (Dynamic,
Normal, Advanced Efficiency and RACE)
and with the ignition device ON, the
measurements regarding the operating
state of the vehicle. This function is
characterised by two separate records,
called “Trip A” and “Trip B” (the latter can
be deactivated by Connect system),
where the car’s “complete missions”
(journeys) are recorded in a reciprocally
independent manner.
“Trip A” and “Trip B” are used to display
the values relating to:
Distance travelled
Average fuel consumption
Average speed
Active trip
Fuel consumption indicator (7" TFT
Display only)
3.5” TFT Display
4705036S0003EM
4805036S0104EM
4905036S0030EM
5005036S0005EM
5105036S0006EM
42
KNOWING THE INSTRUMENT PANEL
Page 45 of 204
7” TFT Display

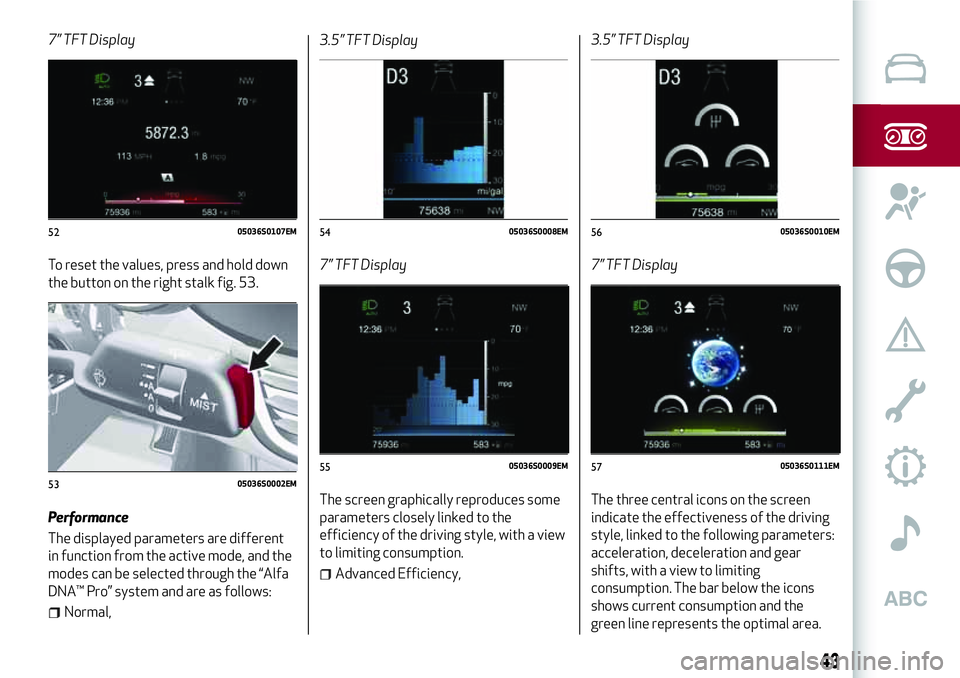

To reset the values, press and hold down
the button on the right stalk fig. 53.
Performance
The displayed parameters are different
in function from the active mode, and the
modes can be selected through the “Alfa
DNA™ Pro” system and are as follows:
Normal,3.5” TFT Display
7” TFT Display
The screen graphically reproduces some
parameters closely linked to the
efficiency of the driving style, with a view
to limiting consumption.
Advanced Efficiency,3.5” TFT Display
7” TFT Display
The three central icons on the screen
indicate the effectiveness of the driving
style, linked to the following parameters:
acceleration, deceleration and gear
shifts, with a view to limiting
consumption. The bar below the icons
shows current consumption and the
green line represents the optimal area.
5205036S0107EM
5305036S0002EM
5405036S0008EM
5505036S0009EM
5605036S0010EM
5705036S0111EM
43
Page 46 of 204
The globe (7" TFT Display) lights up
gradually according to lower
consumption.
Dynamic,
3.5” TFT Display
7” TFT Display
The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),considering gravitational acceleration as
a reference unit.
Lateral acceleration peaks are also
indicated.
Race (where provided),
7” TFT Display
The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),
considering gravitational acceleration as
a reference unit.
Lateral and longitudinal
fig. 60 acceleration peaks are also
indicated.
5 Compass
Views the position indicating the cardinal
point.6 Milometer
Indicates the total kilometres (or miles)
travelled.
7 Failure warning lights
Area dedicated to displaying failures, the
following symbols could be displayed on
rotation:
Low criticality symbols (yellow amber).
High criticality symbols (red).
8 Range(7” TFT Display only)
Indicates the kilometres (or miles) left
before the fuel tank is empty.
9 Warning lights(7” TFT Display only)
Displays the warning light related to the
active mode among the following:
low beam headlights;
main beam headlights;
Auto low beam headlights;
Auto main beam headlights.
5805036S0012EM
5905036S0113EM
6005036S0014EM
44
KNOWING THE INSTRUMENT PANEL
Page 47 of 204
PARAMETERS SET BY USER
A series of functions programmable by
the user can be set using the Connect
system, this paragraph describes only the
basic settings, such as:
Units & Language
Clock & Date
Cluster
To access the list with the
aforementioned items, proceed as
follows: from the main menu, activated
by pressing the MENU button fig. 62,
select the function "Settings", by turning
and pressing the Rotary knob.
Turn the Rotary Pad to choose the
desired option and press to activate it.Units & Language
The following settings can be modified
when this mode is selected fig. 63:
Units (by selecting this item you can
choose between the metric, imperial or
custom systems; this last option lets you
set the measure unit for each individual
size).
Language (by selecting this item you
can choose the system viewing language).
Restore Settings (deletes the current
settings and restores the factory
settings).
To access and set the various functions,
turn and press the Rotary Pad to select
and confirm the selection.
Clock & Date
The following settings can be modified
when this mode is selected fig. 64:
Sync with GPS Time (activates/
deactivates the clock synchronization
through the GPS; if the function is
deactivated, the options Set Time and
Set Date are enabled).
Set time (allows to manually set the
time).
Time format (allows to choose the
time format between a 12-hour and a
24-hour clock).
Set date (allows to manually set the
date).
6105036S0015EM
6205036S0040EM
6305036S0016EM
6405036S0017EM
45
Page 48 of 204
Restore Settings (deletes the current
settings and restores the factory
settings).
To access and set the various functions,
turn and press the Rotary Pad to select
and confirm the selection.

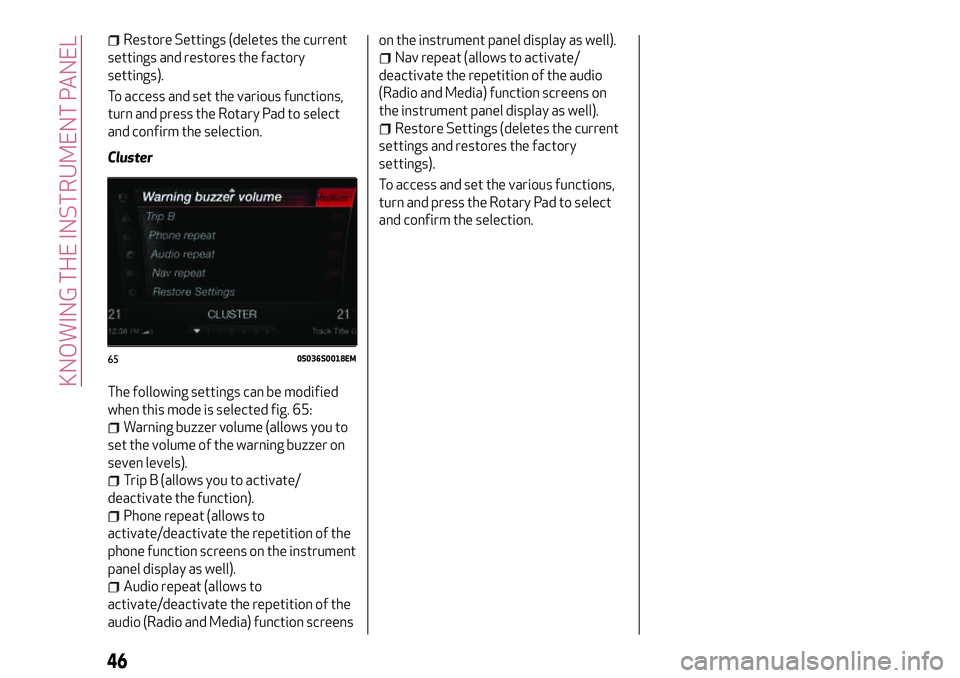

Cluster
The following settings can be modified
when this mode is selected fig. 65:
Warning buzzer volume (allows you to
set the volume of the warning buzzer on
seven levels).
Trip B (allows you to activate/
deactivate the function).
Phone repeat (allows to
activate/deactivate the repetition of the
phone function screens on the instrument
panel display as well).
Audio repeat (allows to
activate/deactivate the repetition of the
audio (Radio and Media) function screenson the instrument panel display as well).
Nav repeat (allows to activate/
deactivate the repetition of the audio
(Radio and Media) function screens on
the instrument panel display as well).
Restore Settings (deletes the current
settings and restores the factory
settings).
To access and set the various functions,
turn and press the Rotary Pad to select
and confirm the selection.
6505036S0018EM
46
KNOWING THE INSTRUMENT PANEL
Page 49 of 204

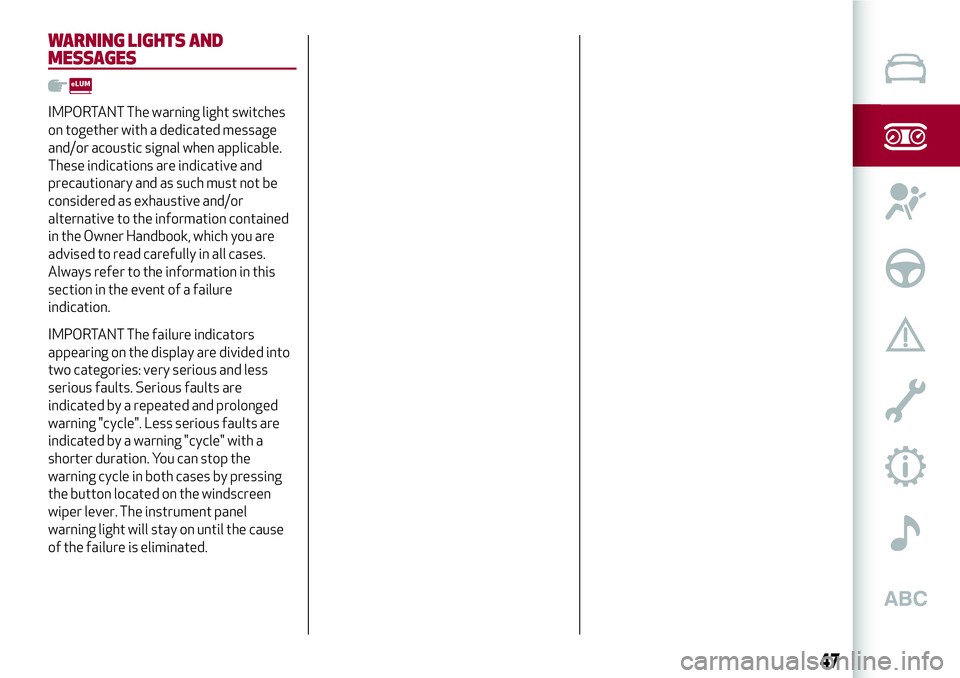

WARNING LIGHTS AND
MESSAGES
IMPORTANT The warning light switches
on together with a dedicated message
and/or acoustic signal when applicable.
These indications are indicative and
precautionary and as such must not be
considered as exhaustive and/or
alternative to the information contained
in the Owner Handbook, which you are
advised to read carefully in all cases.
Always refer to the information in this
section in the event of a failure
indication.
IMPORTANT The failure indicators
appearing on the display are divided into
two categories: very serious and less
serious faults. Serious faults are
indicated by a repeated and prolonged
warning "cycle". Less serious faults are
indicated by a warning "cycle" with a
shorter duration. You can stop the
warning cycle in both cases by pressing
the button located on the windscreen
wiper lever. The instrument panel
warning light will stay on until the cause
of the failure is eliminated.
47
Page 50 of 204

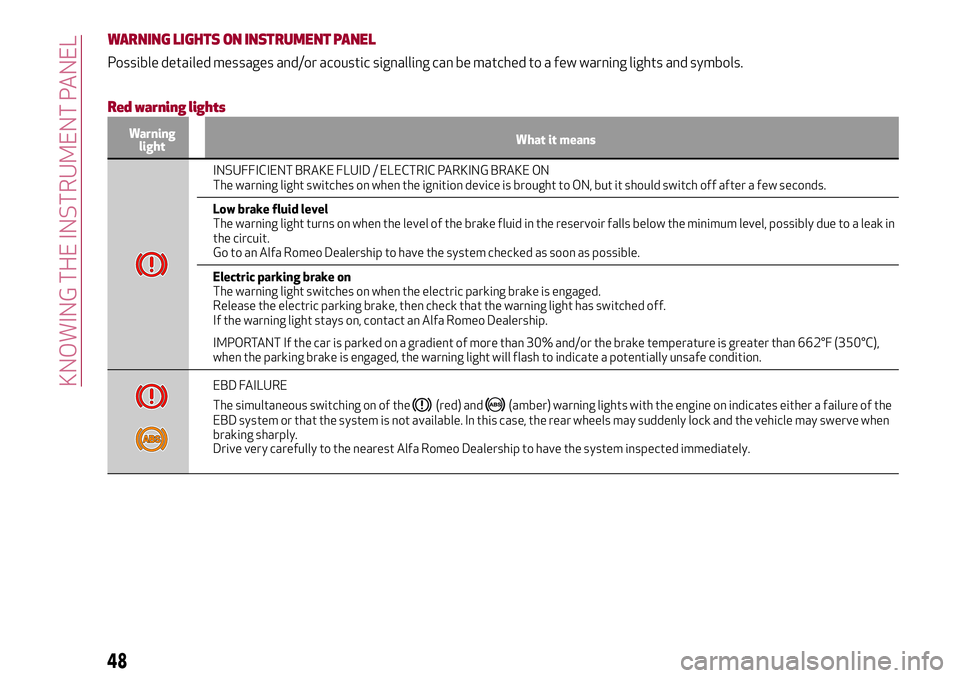

WARNING LIGHTS ON INSTRUMENT PANEL
Possible detailed messages and/or acoustic signalling can be matched to a few warning lights and symbols.
Red warning lights
Warning
lightWhat it means
INSUFFICIENT BRAKE FLUID / ELECTRIC PARKING BRAKE ON
The warning light switches on when the ignition device is brought to ON, but it should switch off after a few seconds.
Low brake fluid level
The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level, possibly due to a leak in
the circuit.
Go to an Alfa Romeo Dealership to have the system checked as soon as possible.
Electric parking brake on
The warning light switches on when the electric parking brake is engaged.
Release the electric parking brake, then check that the warning light has switched off.
If the warning light stays on, contact an Alfa Romeo Dealership.
IMPORTANT If the car is parked on a gradient of more than 30% and/or the brake temperature is greater than 662°F (350°C),
when the parking brake is engaged, the warning light will flash to indicate a potentially unsafe condition.
EBD FAILURE
The simultaneous switching on of the
(red) and(amber) warning lights with the engine on indicates either a failure of the
EBD system or that the system is not available. In this case, the rear wheels may suddenly lock and the vehicle may swerve when
braking sharply.
Drive very carefully to the nearest Alfa Romeo Dealership to have the system inspected immediately.
48
KNOWING THE INSTRUMENT PANEL
