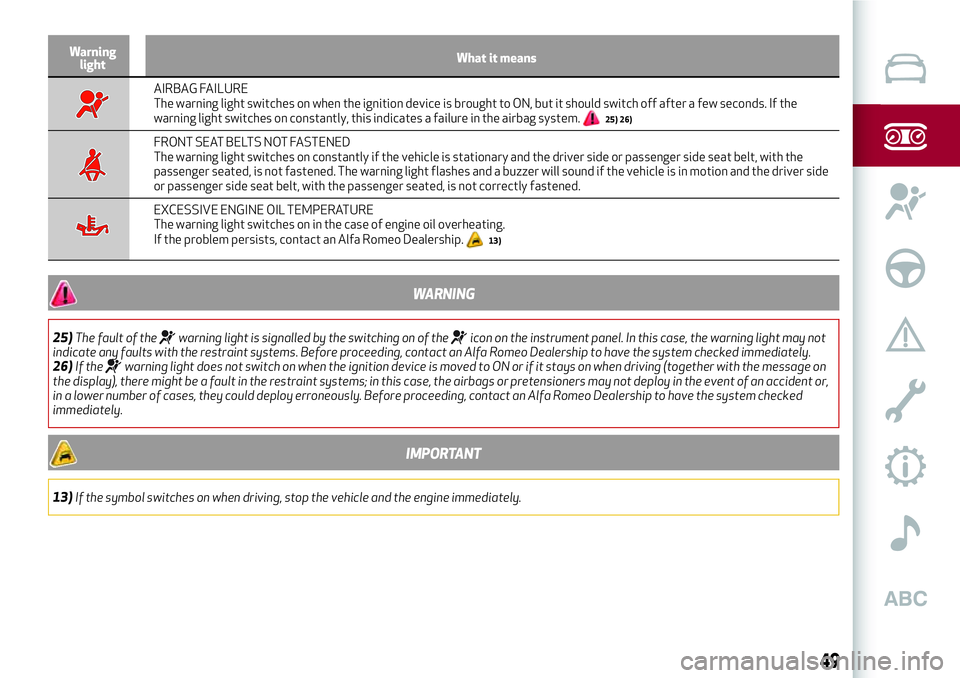

Warning
lightWhat it means
AIRBAG FAILURE
The warning light switches on when the ignition device is brought to ON, but it should switch off after a few seconds. If the
warning light switches on constantly, this indicates a failure in the airbag system.
25) 26)
FRONT SEAT BELTS NOT FASTENED
The warning light switches on constantly if the vehicle is stationary and the driver side or passenger side seat belt, with the
passenger seated, is not fastened. The warning light flashes and a buzzer will sound if the vehicle is in motion and the driver side
or passenger side seat belt, with the passenger seated, is not correctly fastened.
EXCESSIVE ENGINE OIL TEMPERATURE
The warning light switches on in the case of engine oil overheating.
If the problem persists, contact an Alfa Romeo Dealership.
13)
WARNING
25)The fault of thewarning light is signalled by the switching on of theicon on the instrument panel. In this case, the warning light may not
indicate any faults with the restraint systems. Before proceeding, contact an Alfa Romeo Dealership to have the system checked immediately.
26)If the
warning light does not switch on when the ignition device is moved to ON or if it stays on when driving (together with the message on
the display), there might be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event of an accident or,
in a lower number of cases, they could deploy erroneously. Before proceeding, contact an Alfa Romeo Dealership to have the system checked
immediately.
IMPORTANT
13)If the symbol switches on when driving, stop the vehicle and the engine immediately.
49
Page 52 of 204

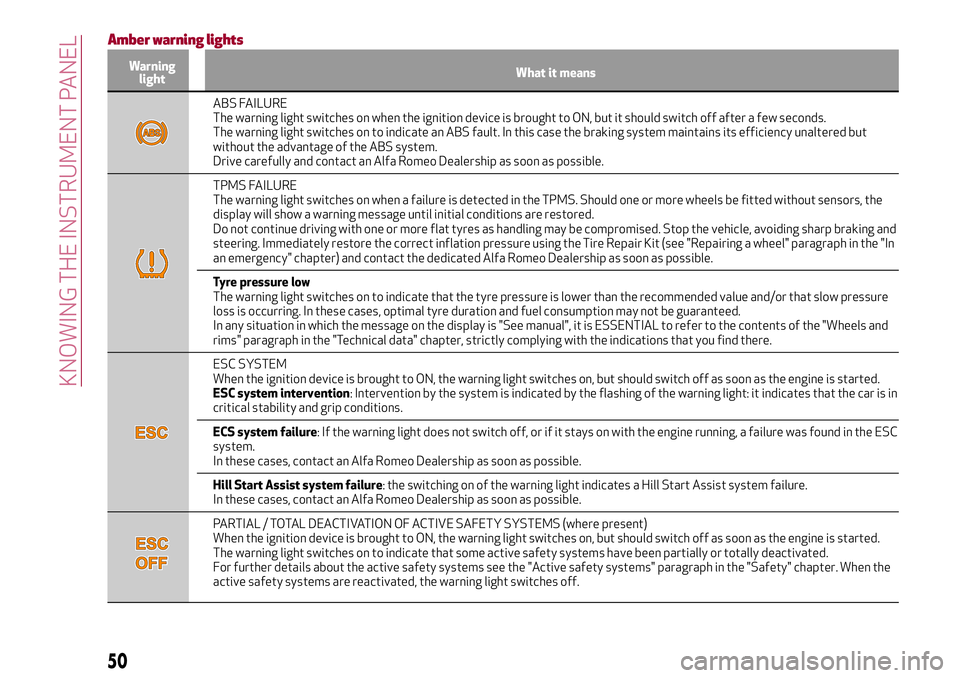

Amber warning lights
Warning
lightWhat it means
ABS FAILURE
The warning light switches on when the ignition device is brought to ON, but it should switch off after a few seconds.
The warning light switches on to indicate an ABS fault. In this case the braking system maintains its efficiency unaltered but
without the advantage of the ABS system.
Drive carefully and contact an Alfa Romeo Dealership as soon as possible.
TPMS FAILURE
The warning light switches on when a failure is detected in the TPMS. Should one or more wheels be fitted without sensors, the
display will show a warning message until initial conditions are restored.
Do not continue driving with one or more flat tyres as handling may be compromised. Stop the vehicle, avoiding sharp braking and
steering. Immediately restore the correct inflation pressure using the Tire Repair Kit (see "Repairing a wheel" paragraph in the "In
an emergency" chapter) and contact the dedicated Alfa Romeo Dealership as soon as possible.
Tyre pressure low
The warning light switches on to indicate that the tyre pressure is lower than the recommended value and/or that slow pressure
loss is occurring. In these cases, optimal tyre duration and fuel consumption may not be guaranteed.
In any situation in which the message on the display is "See manual", it is ESSENTIAL to refer to the contents of the "Wheels and
rims" paragraph in the "Technical data" chapter, strictly complying with the indications that you find there.
ESC SYSTEM
When the ignition device is brought to ON, the warning light switches on, but should switch off as soon as the engine is started.
ESC system intervention: Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in
critical stability and grip conditions.
ECS system failure: If the warning light does not switch off, or if it stays on with the engine running, a failure was found in the ESC
system.
In these cases, contact an Alfa Romeo Dealership as soon as possible.
Hill Start Assist system failure: the switching on of the warning light indicates a Hill Start Assist system failure.
In these cases, contact an Alfa Romeo Dealership as soon as possible.
PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS (where present)
When the ignition device is brought to ON, the warning light switches on, but should switch off as soon as the engine is started.
The warning light switches on to indicate that some active safety systems have been partially or totally deactivated.
For further details about the active safety systems see the "Active safety systems" paragraph in the "Safety" chapter. When the
active safety systems are reactivated, the warning light switches off.
50
KNOWING THE INSTRUMENT PANEL
Page 53 of 204
Warning
lightWhat it means
FUEL RESERVE / LIMITED RANGE
The warning light (or the icon on the display) switches on when there are about 1.8 UK gal (8 litres) of fuel left in the tank, for
diesel versions, and about 2.4 UK gal (9 litres) of fuel for petrol versions.
27)
INJECTION / EOBD SYSTEM FAILURE
In normal conditions, when the ignition device is brought to ON, the warning light switches on, but it should switch off as soon as
the engine is started.
The operation of the warning light may be checked by the traffic police using specific devices. Comply with the laws and
regulations of the country where you are driving.
14)
Injection system failure
If the warning light remains on, or it switches on whilst driving, the injection system is not working properly. The warning light on
constantly signals a malfunction in the supply/ignition system which could cause high exhaust emissions, a possible loss of
performance, poor driveability and high consumption.
The warning light switches off if the malfunction disappears, but is still stored by the system.
Under these conditions, the vehicle can continue travelling at moderate speed but without demanding excessive effort from the
engine or high speed. Prolonged use of the car with the warning light on constantly may cause damage. Contact an Alfa Romeo
Dealership as soon as possible.
Catalytic converter damaged
If the warning light flashes, it means that the catalytic converter may be damaged.
Release the accelerator pedal to lower the speed of the engine until the warning light stops flashing. Continue the journey at
moderate speed, trying to avoid driving conditions that may cause further flashing and contact an Alfa Romeo Dealership as soon
as possible.
WARNING
27)If the warning light (or the icon on the display) flashes whilst driving, contact an Alfa Romeo Dealership.
IMPORTANT
14)If, turning the ignition device to ON, the warning lightdoes not turn on or if it turns on steadily or flashing when travelling (on some versions
together with the message on the display), contact an Alfa Romeo Dealership as soon as possible.
51
Page 54 of 204

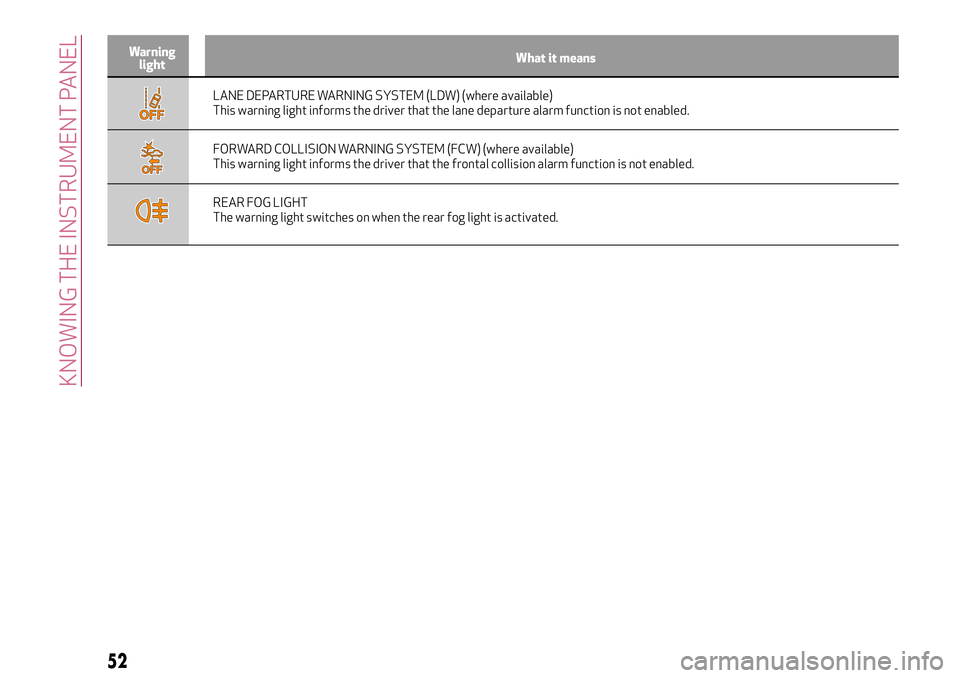

Warning
lightWhat it means
LANE DEPARTURE WARNING SYSTEM (LDW) (where available)
This warning light informs the driver that the lane departure alarm function is not enabled.
FORWARD COLLISION WARNING SYSTEM (FCW) (where available)
This warning light informs the driver that the frontal collision alarm function is not enabled.
REAR FOG LIGHT
The warning light switches on when the rear fog light is activated.
52
KNOWING THE INSTRUMENT PANEL
Page 55 of 204

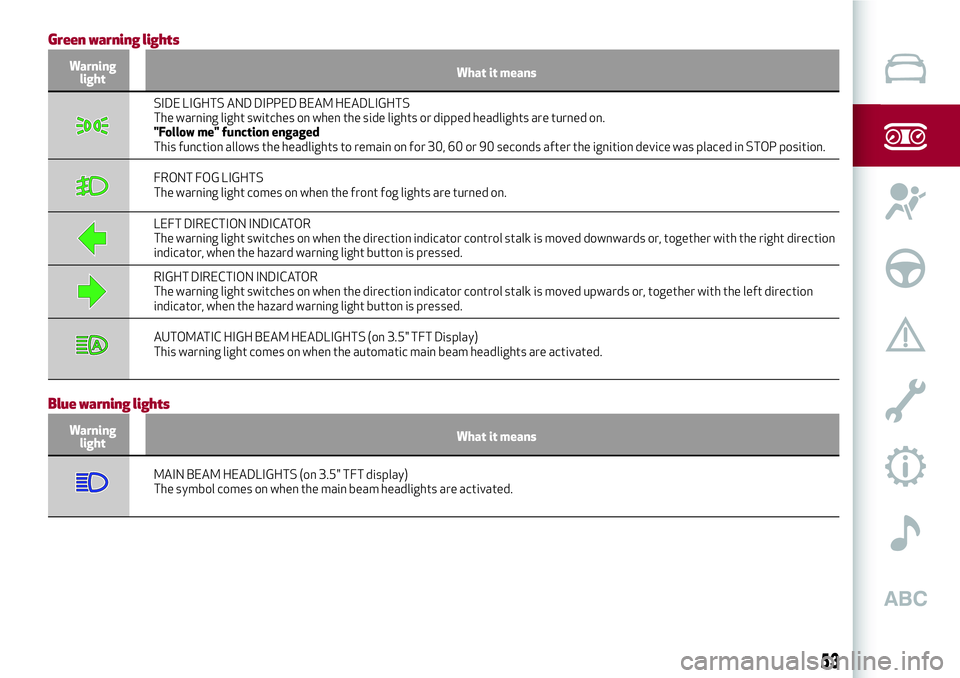

Green warning lights
Warning
lightWhat it means
SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS
The warning light switches on when the side lights or dipped headlights are turned on.
"Follow me" function engaged
This function allows the headlights to remain on for 30, 60 or 90 seconds after the ignition device was placed in STOP position.
FRONT FOG LIGHTS
The warning light comes on when the front fog lights are turned on.
LEFT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved downwards or, together with the right direction
indicator, when the hazard warning light button is pressed.
RIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with the left direction
indicator, when the hazard warning light button is pressed.
AUTOMATIC HIGH BEAM HEADLIGHTS (on 3.5" TFT Display)
This warning light comes on when the automatic main beam headlights are activated.
Blue warning lights
Warning
lightWhat it means
MAIN BEAM HEADLIGHTS (on 3.5" TFT display)
The symbol comes on when the main beam headlights are activated.
53
Page 56 of 204

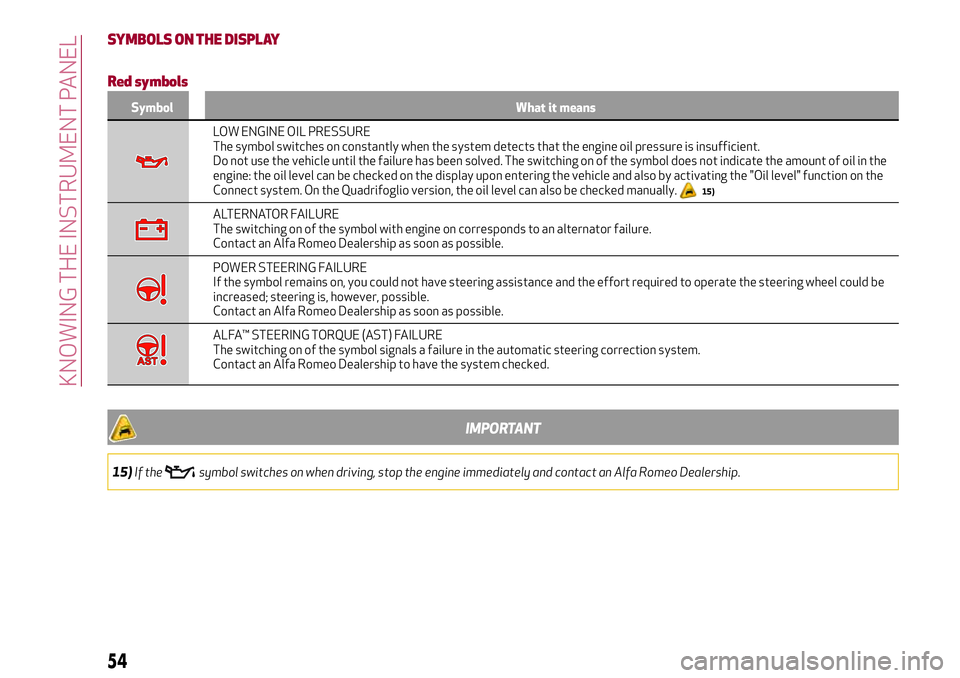

SYMBOLS ON THE DISPLAY
Red symbols
Symbol What it means
LOW ENGINE OIL PRESSURE
The symbol switches on constantly when the system detects that the engine oil pressure is insufficient.
Do not use the vehicle until the failure has been solved. The switching on of the symbol does not indicate the amount of oil in the
engine: the oil level can be checked on the display upon entering the vehicle and also by activating the "Oil level" function on the
Connect system. On the Quadrifoglio version, the oil level can also be checked manually.
15)
ALTERNATOR FAILURE
The switching on of the symbol with engine on corresponds to an alternator failure.
Contact an Alfa Romeo Dealership as soon as possible.
POWER STEERING FAILURE
If the symbol remains on, you could not have steering assistance and the effort required to operate the steering wheel could be
increased; steering is, however, possible.
Contact an Alfa Romeo Dealership as soon as possible.
ALFA™ STEERING TORQUE (AST) FAILURE
The switching on of the symbol signals a failure in the automatic steering correction system.
Contact an Alfa Romeo Dealership to have the system checked.
IMPORTANT
15)If thesymbol switches on when driving, stop the engine immediately and contact an Alfa Romeo Dealership.
54
KNOWING THE INSTRUMENT PANEL
Page 57 of 204

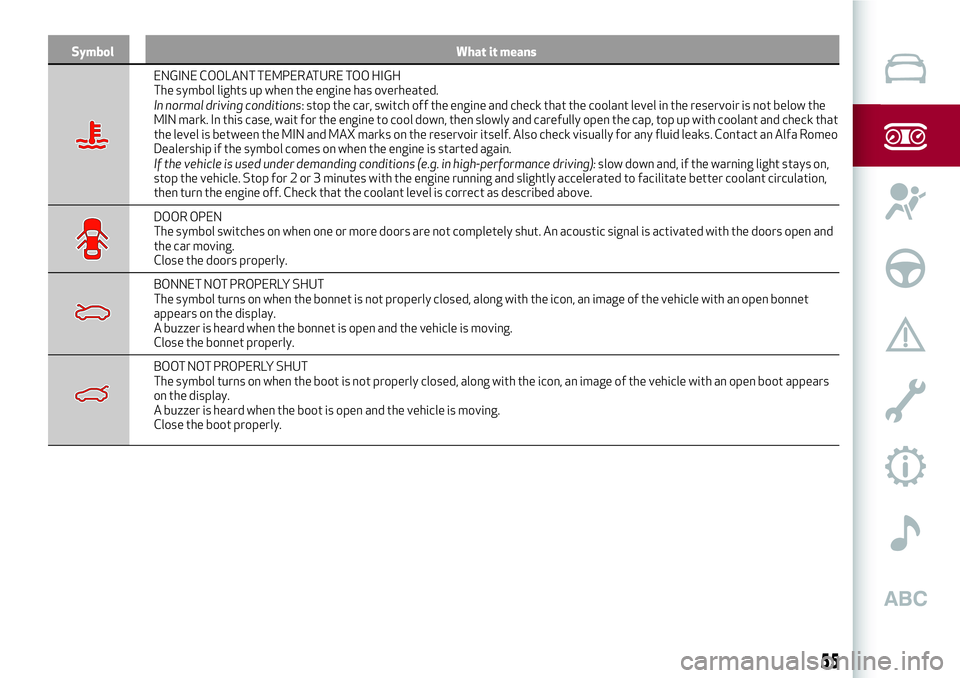

Symbol What it means
ENGINE COOLANT TEMPERATURE TOO HIGH
The symbol lights up when the engine has overheated.
In normal driving conditions: stop the car, switch off the engine and check that the coolant level in the reservoir is not below the
MIN mark. In this case, wait for the engine to cool down, then slowly and carefully open the cap, top up with coolant and check that
the level is between the MIN and MAX marks on the reservoir itself. Also check visually for any fluid leaks. Contact an Alfa Romeo
Dealership if the symbol comes on when the engine is started again.
If the vehicle is used under demanding conditions (e.g. in high-performance driving):slow down and, if the warning light stays on,
stop the vehicle. Stop for 2 or 3 minutes with the engine running and slightly accelerated to facilitate better coolant circulation,
then turn the engine off. Check that the coolant level is correct as described above.
DOOR OPEN
The symbol switches on when one or more doors are not completely shut. An acoustic signal is activated with the doors open and
the car moving.
Close the doors properly.
BONNET NOT PROPERLY SHUT
The symbol turns on when the bonnet is not properly closed, along with the icon, an image of the vehicle with an open bonnet
appears on the display.
A buzzer is heard when the bonnet is open and the vehicle is moving.
Close the bonnet properly.
BOOT NOT PROPERLY SHUT
The symbol turns on when the boot is not properly closed, along with the icon, an image of the vehicle with an open boot appears
on the display.
A buzzer is heard when the boot is open and the vehicle is moving.
Close the boot properly.
55
Page 58 of 204

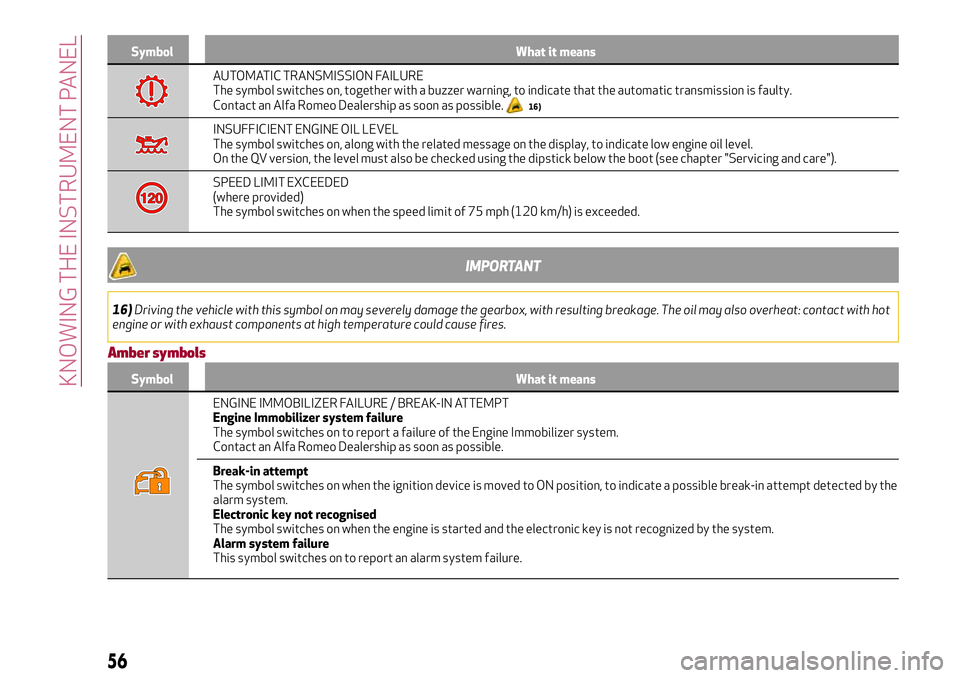

Symbol What it means
AUTOMATIC TRANSMISSION FAILURE
The symbol switches on, together with a buzzer warning, to indicate that the automatic transmission is faulty.
Contact an Alfa Romeo Dealership as soon as possible.
16)
INSUFFICIENT ENGINE OIL LEVEL
The symbol switches on, along with the related message on the display, to indicate low engine oil level.
On the QV version, the level must also be checked using the dipstick below the boot (see chapter "Servicing and care").
SPEED LIMIT EXCEEDED
(where provided)
The symbol switches on when the speed limit of 75 mph (120 km/h) is exceeded.
IMPORTANT
16)Driving the vehicle with this symbol on may severely damage the gearbox, with resulting breakage. The oil may also overheat: contact with hot
engine or with exhaust components at high temperature could cause fires.
Amber symbols
Symbol What it means
ENGINE IMMOBILIZER FAILURE / BREAK-IN ATTEMPT
Engine Immobilizer system failure
The symbol switches on to report a failure of the Engine Immobilizer system.
Contact an Alfa Romeo Dealership as soon as possible.
Break-in attempt
The symbol switches on when the ignition device is moved to ON position, to indicate a possible break-in attempt detected by the
alarm system.
Electronic key not recognised
The symbol switches on when the engine is started and the electronic key is not recognized by the system.
Alarm system failure
This symbol switches on to report an alarm system failure.
56
KNOWING THE INSTRUMENT PANEL
Page 59 of 204
Symbol What it means
FUEL CUT-OFF SYSTEM OPERATION
The symbol switches on in the event of fuel cut-off system intervention.
For reactivating the fuel cut-off system, refer to the description in the "Fuel cut-off system" section in the "In an emergency"
chapter. If it is not possible to restore the fuel supply, contact an Alfa Romeo Dealership.
PARK SENSORS SYSTEM FAILURE
Lights up when the system has failed or is not available.
Contact an Alfa Romeo Dealership to have the system checked.
POSSIBLE ICE ON ROAD
The symbol turns on when the outside temperature falls to or below 37°F (3°C).
ENGINE OIL DETERIORATED
(where provided)
The symbol is displayed only for a limited time.
IMPORTANT After the first indication, each time the engine is started the symbol will continue to switch on as described above
until the oil is changed.
If the symbol flashes, this does not mean that there is a fault on the vehicle, rather it simply reports that it is now necessary to
change the oil as a result of regular use of the vehicle. The deterioration of engine oil is accelerated by using the vehicle for short
drives, preventing the engine from reaching operating temperature.
Contact an Alfa Romeo Dealership as soon as possible.
17)
IMPORTANT
17)Deteriorated engine oil should be replaced as soon as possible after the symbol is switched on, and never more than 500 km after it first
switches on. Failure to observe the above may result in severe damage to the engine and invalidate the warranty. When this symbol comes on, it
does not mean that the level of engine oil is low, so if it flashes you do not need to top up the engine oil.
Symbol What it means
GLOW PLUG PREHEATING (Diesel versions)
This warning light comes on when the ignition device is brought to ON and will switch off when the glow plugs have reached the
preset temperature. The engine can be started as soon as the warning light switches off.
IMPORTANT In mild or high temperature conditions, the warning light comes on for a very short time only.
57
Page 60 of 204

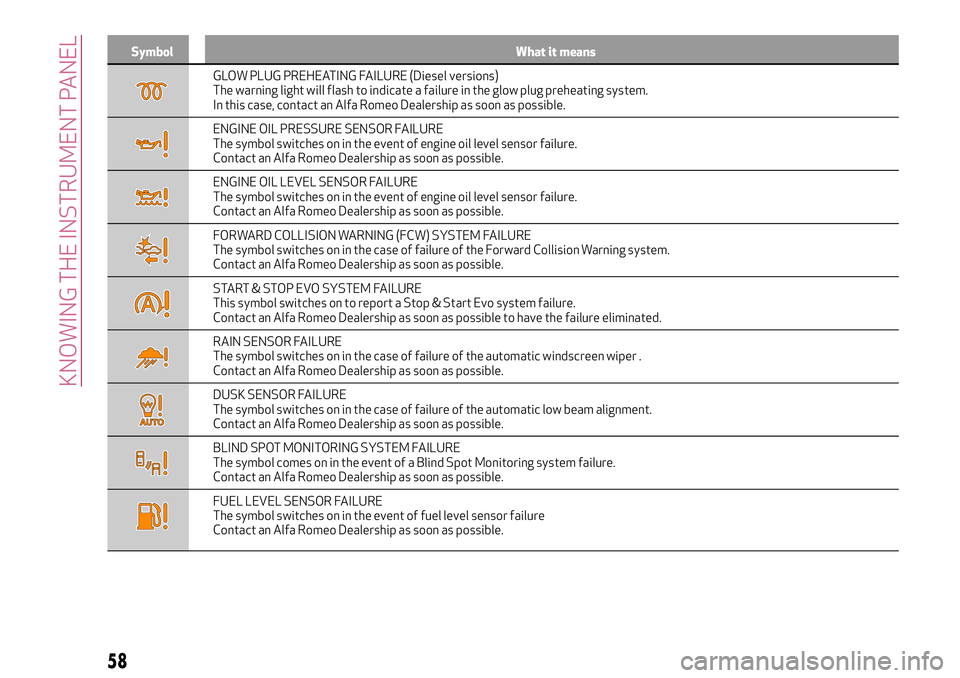

Symbol What it means
GLOW PLUG PREHEATING FAILURE (Diesel versions)
The warning light will flash to indicate a failure in the glow plug preheating system.
In this case, contact an Alfa Romeo Dealership as soon as possible.
ENGINE OIL PRESSURE SENSOR FAILURE
The symbol switches on in the event of engine oil level sensor failure.
Contact an Alfa Romeo Dealership as soon as possible.
ENGINE OIL LEVEL SENSOR FAILURE
The symbol switches on in the event of engine oil level sensor failure.
Contact an Alfa Romeo Dealership as soon as possible.
FORWARD COLLISION WARNING (FCW) SYSTEM FAILURE
The symbol switches on in the case of failure of the Forward Collision Warning system.
Contact an Alfa Romeo Dealership as soon as possible.
START & STOP EVO SYSTEM FAILURE
This symbol switches on to report a Stop & Start Evo system failure.
Contact an Alfa Romeo Dealership as soon as possible to have the failure eliminated.
RAIN SENSOR FAILURE
The symbol switches on in the case of failure of the automatic windscreen wiper .
Contact an Alfa Romeo Dealership as soon as possible.
DUSK SENSOR FAILURE
The symbol switches on in the case of failure of the automatic low beam alignment.
Contact an Alfa Romeo Dealership as soon as possible.
BLIND SPOT MONITORING SYSTEM FAILURE
The symbol comes on in the event of a Blind Spot Monitoring system failure.
Contact an Alfa Romeo Dealership as soon as possible.
FUEL LEVEL SENSOR FAILURE
The symbol switches on in the event of fuel level sensor failure
Contact an Alfa Romeo Dealership as soon as possible.
58
KNOWING THE INSTRUMENT PANEL
