Alfa Romeo Giulia 2018 User Guide

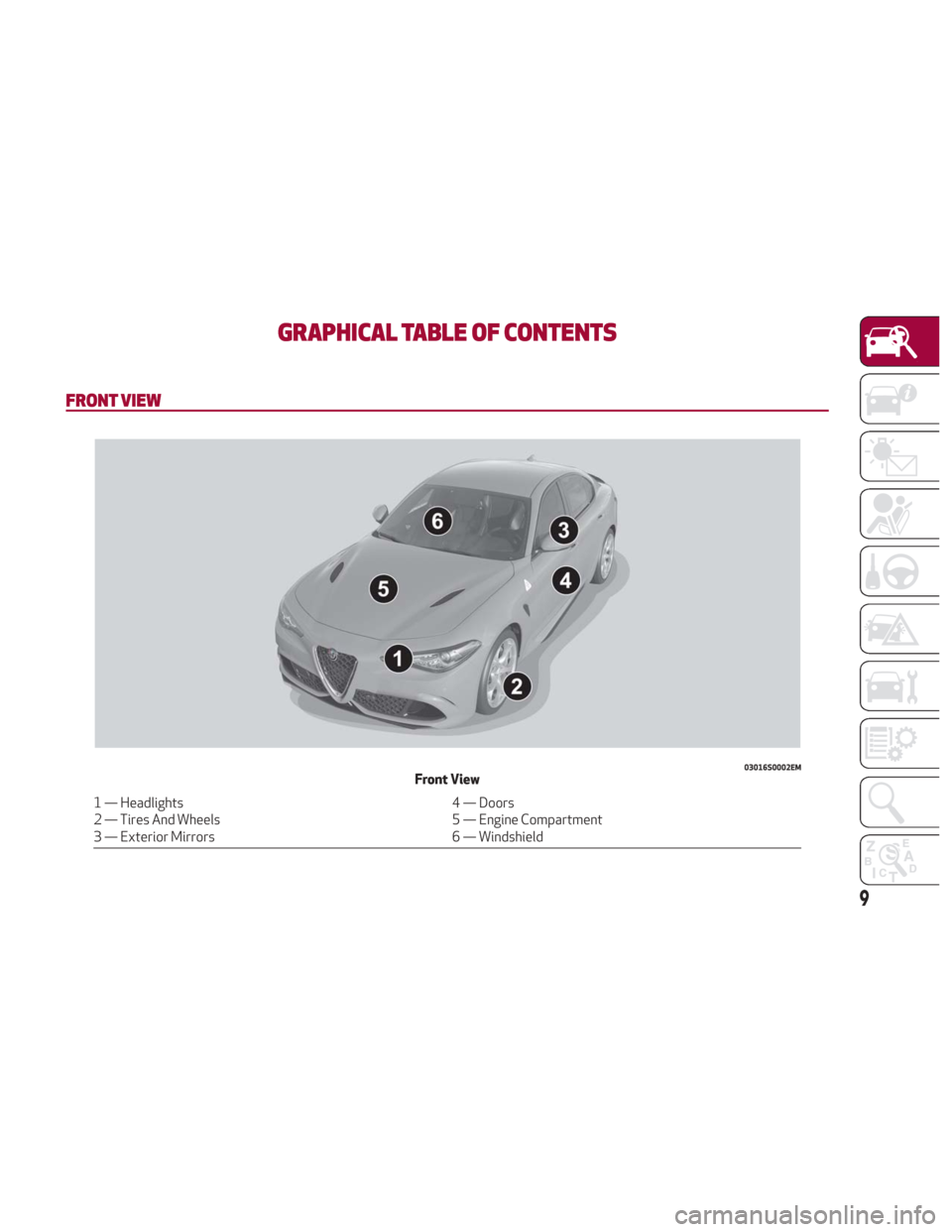

GRAPHICAL TABLE OF CONTENTS
FRONT VIEW
03016S0002EMFront View
1 — Headlights4 — Doors
2 — Tires And Wheels 5 — Engine Compartment
3 — Exterior Mirrors 6 — Windshield
9

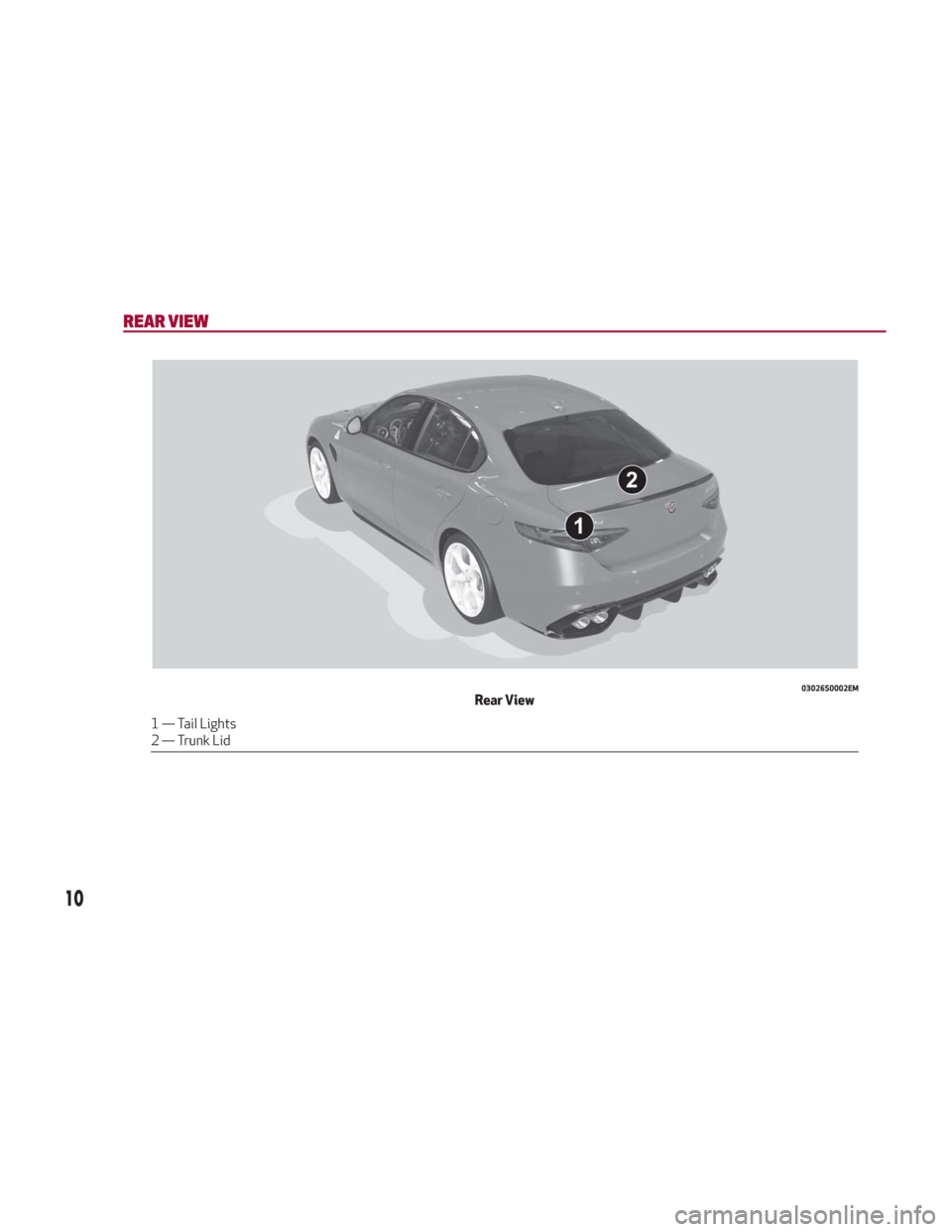

REAR VIEW
03026S0002EMRear View
1 — Tail Lights
2 — Trunk Lid
10

INSTRUMENT PANEL
03036S0050EMInstrument Panel
1 — Headlight Switch5 — Instrument Cluster9 — Climate Control System
2 — Air Vents 6 — Steering Wheel10 — Glove Compartment
3 — Multifunction Stalk 7 — Windshield Wiper Stalk11 — Passenger-Side Air Bag
4 — Controls On Steering Wheel 8 — Information And Entertainment System
11

VEHICLE INTERIOR
03046S0001EMVehicle Interior
1 — Driver Seat4 — Hazard Warning Lights
2 — Power Windows/Power Mirrors Controls 5 — Alfa DNA Pro Drive Mode System
3 — Gear Selector/Paddle Shifter — If Equipped
12

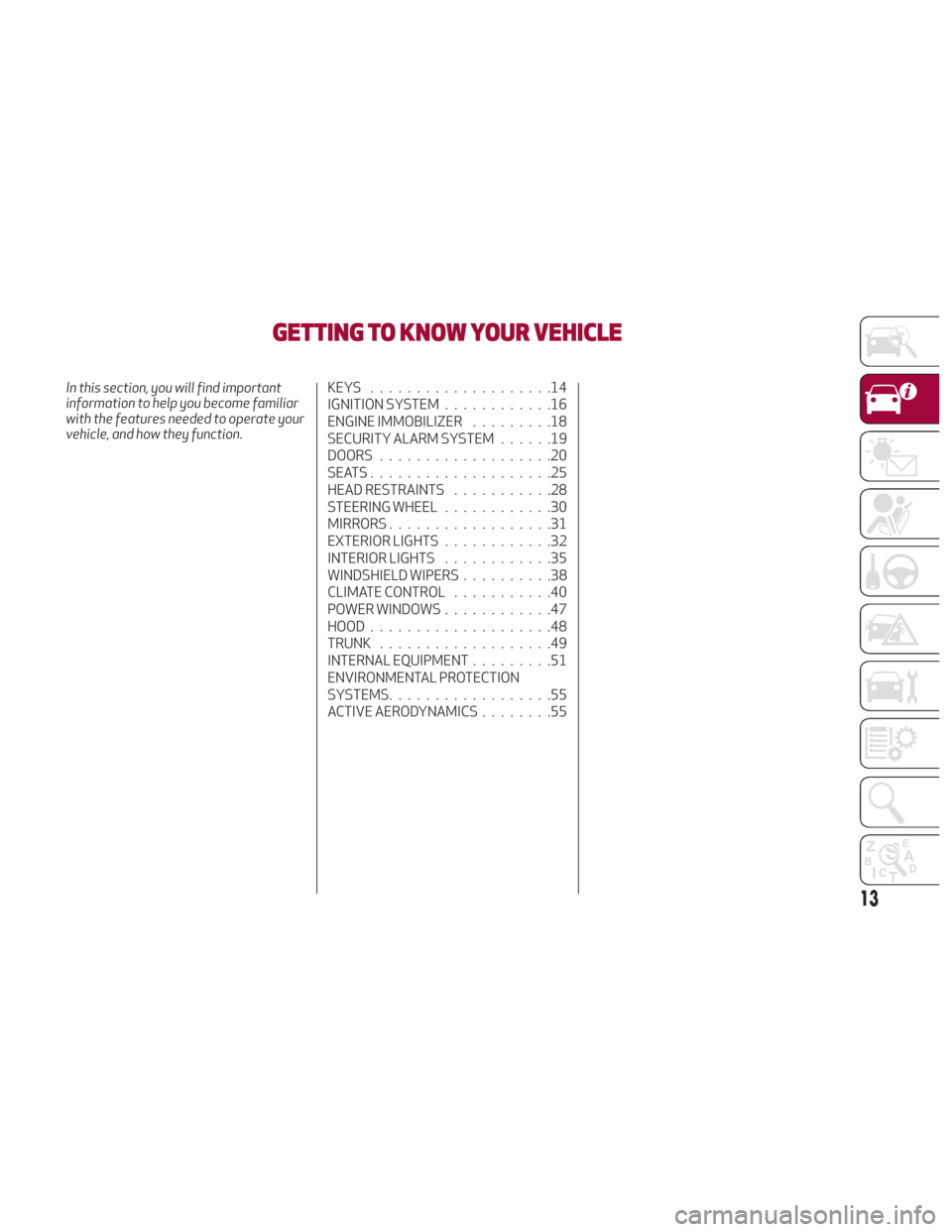

GETTING TO KNOW YOUR VEHICLE
In this section, you will find important
information to help you become familiar
with the features needed to operate your
vehicle, and how they function.KEYS ....................14
IGNITION SYSTEM............16
ENGINE IMMOBILIZER .........18
SECURITY ALARM SYSTEM ......19
DOORS ...................20
SEATS....................25
HEAD RESTRAINTS ...........28
STEERING WHEEL ............30
MIRRORS ..................31
EXTERIOR LIGHTS ............32
INTERIOR LIGHTS ............35
WINDSHIELD WIPERS ..........38
CLIMATE CONTROL ...........40
POWERWINDOWS............47
HOOD....................48
TRUNK ...................49
INTERNAL EQUIPMENT .........51
ENVIRONMENTAL PROTECTION
SYSTEMS ..................55
ACTIVE AERODYNAMICS ........55
13

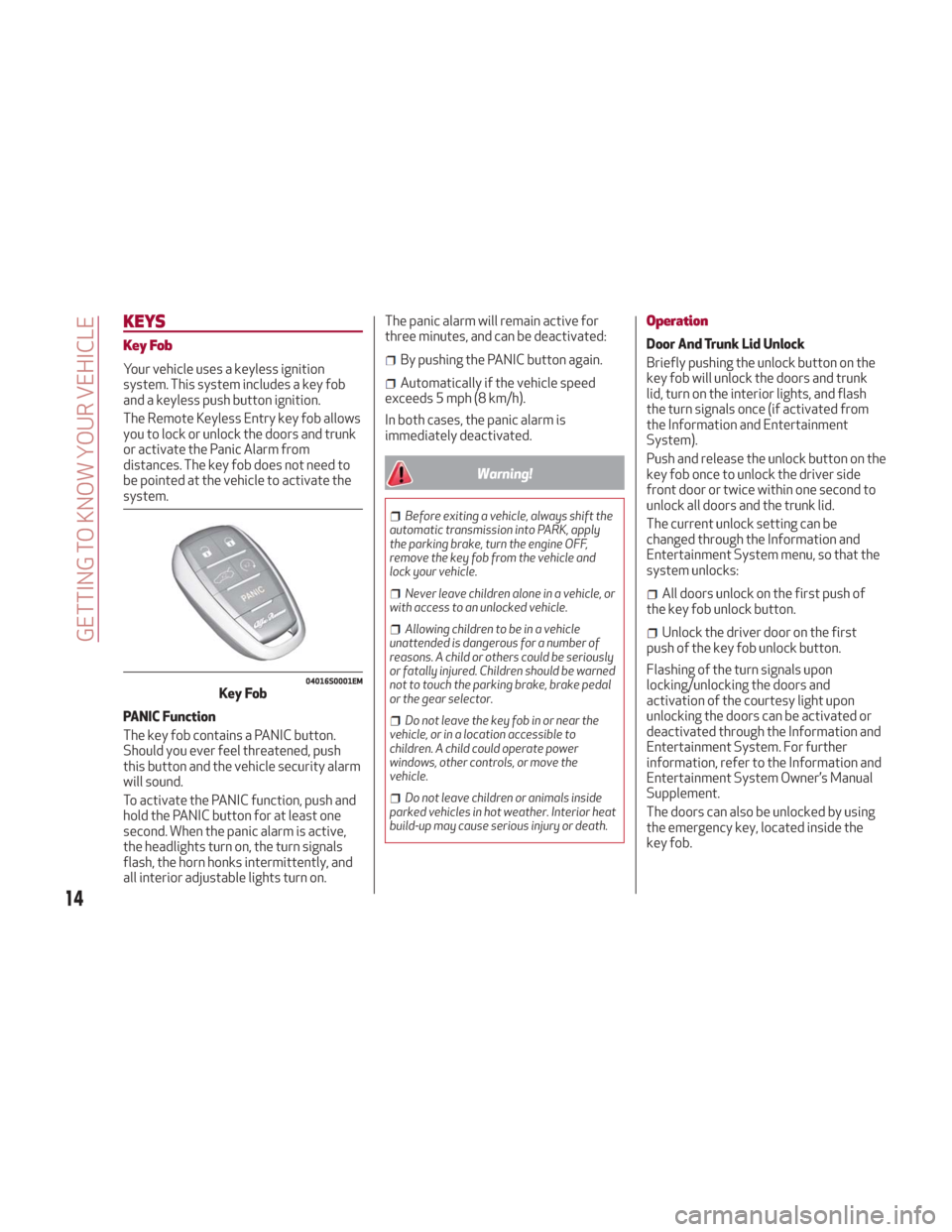

KEYS
Key Fob
Your vehicle uses a keyless ignition
system. This system includes a key fob
and a keyless push button ignition.
The Remote Keyless Entry key fob allows
you to lock or unlock the doors and trunk
or activate the Panic Alarm from
distances. The key fob does not need to
be pointed at the vehicle to activate the
system.
PANIC Function
The key fob contains a PANIC button.
Should you ever feel threatened, push
this button and the vehicle security alarm
will sound.
To activate the PANIC function, push and
hold the PANIC button for at least one
second. When the panic alarm is active,
the headlights turn on, the turn signals
flash, the horn honks intermittently, and
all interior adjustable lights turn on.The panic alarm will remain active for
three minutes, and can be deactivated:By pushing the PANIC button again.
Automatically if the vehicle speed
exceeds 5 mph (8 km/h).
In both cases, the panic alarm is
immediately deactivated.
Warning!
Before exiting a vehicle, always shift the
automatic transmission into PARK, apply
the parking brake, turn the engine OFF,
remove the key fob from the vehicle and
lock your vehicle.
Never leave children alone in a vehicle, or
with access to an unlocked vehicle.
Allowing children to be in a vehicle
unattended is dangerous for a number of
reasons. A child or others could be seriously
or fatally injured. Children should be warned
not to touch the parking brake, brake pedal
or the gear selector.
Do not leave the key fob in or near the
vehicle, or in a location accessible to
children. A child could operate power
windows, other controls, or move the
vehicle.
Do not leave children or animals inside
parked vehicles in hot weather. Interior heat
build-up may cause serious injury or death.
Operation
Door And Trunk Lid Unlock
Briefly pushing the unlock button on the
key fob will unlock the doors and trunk
lid, turn on the interior lights, and flash
the turn signals once (if activated from
the Information and Entertainment
System).
Push and release the unlock button on the
key fob once to unlock the driver side
front door or twice within one second to
unlock all doors and the trunk lid.
The current unlock setting can be
changed through the Information and
Entertainment System menu, so that the
system unlocks:
All doors unlock on the first push of
the key fob unlock button.
Unlock the driver door on the first
push of the key fob unlock button.
Flashing of the turn signals upon
locking/unlocking the doors and
activation of the courtesy light upon
unlocking the doors can be activated or
deactivated through the Information and
Entertainment System. For further
information, refer to the Information and
Entertainment System Owner’s Manual
Supplement.
The doors can also be unlocked by using
the emergency key, located inside the
key fob.
04016S0001EMKey Fob
14
GETTING TO KNOW YOUR VEHICLE

Door And Trunk Lid Lock
Briefly pushing the lock button on the key
fob will lock the doors and trunk lid, turn
off the interior lights, and flash the turn
signals (if activated in the Information
and Entertainment System).
If one or more doors are open, these
doors will also lock, and this is indicated
by a rapid flashing of the turn signals.
The doors prepare for locking, which
becomes active from the moment they
are closed. The doors will unlock again
only if the key fob is detected inside the
passenger compartment.
The doors can be locked by using the
emergency key in the driver’s side door
lock.
Trunk Lid Opening
Rapidly push the trunk lid key fob button
twice to open the trunk lid. The turn
signals will flash to indicate that the
trunk lid has been opened.
Remote Start
The remote start button on the key fob
enables engine starting (push the button
twice within five seconds to start the
engine).
Car Finder
Push the lock or unlock button to
remotely and temporarily turn on the turn
signals and headlights.
This is useful for finding the vehicle easily
in a crowded area like a parking garage,
for example.Pushing the lock or unlock button again
will restart the lights turn on timer (if the
parking lights functions were already
active, it will remain active).
This function is available only if the doors
are closed.
Replacing The Electronic Key Fob
Battery
To replace the battery, proceed as
follows:
1. Push the sides of the key fob inward
and extract the cover pulling downwards.
2. Remove the emergency key from its
housing.
3. Remove the battery plug by rotating it
counter clockwise.
04016S0002EMKey Fob Cover Removal
04016S0003EMRemoving Emergency Key
04016S0004EMRemoving Battery Plug
15

4. Remove the battery from its slot and
replace it with a new one of the same
type.
Proceed in reverse order to reassemble
the key.
Caution!
The battery replacement operation must be
done with care, in order not to damage the
electronic key.
Request For Additional Keys
The system can recognize up to eight key
fobs with remote control.
To guarantee that the engine starts and
the vehicle operates correctly, use only
electronic key fobs specifically coded for
the vehicle’s electronics.If an electronic key fob is coded for a
vehicle, it cannot be used on any other
vehicle.
Duplicating Keys
If you need a replacement key fob, go to
an authorized dealer.
General Information
The following regulatory statement
applies to all Radio Frequency (RF)
devices equipped in this vehicle:
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
IGNITION SYSTEM
Operation
To activate the keyless ignition, the key
fob must be inside the passenger
compartment.
The keyless ignition has the following
modes:
STOP: engine off, steering locked.
Some electrical devices (e.g. central door
locking system, alarm, etc.) are still
available.
ON: all electrical devices are available.
This state can be entered by pushing the
ignition button once, without pressing the
brake pedal.
AVV: engine starting. This state can be
entered by pushing the ignition button
once while pressing the brake pedal.
04016S0005EMBattery Location
04026S0001EMKeyless Ignition START/STOP Button
16
GETTING TO KNOW YOUR VEHICLE

Note:
With the keyless ignition in the ON
position: if 30 minutes pass with the
gear selector in P (Park) and the engine
stopped, the keyless ignition will
automatically reset to the STOP
position.
With the engine started, it is possible
to remove the key fob from the vehicle.
The engine will remain running and the
instrument cluster will indicate the
absence of the key fob when the door is
closed.
For more information on the engine
start-up, refer to "Starting The Engine" in
"Starting And Operating."
Warning!
Never use the PARK position as a
substitute for the parking brake. Always
apply the parking brake fully when parked
to guard against vehicle movement and
possible injury or damage.
When exiting the vehicle, always make
sure the ignition is in the OFF mode, remove
the key fob from the vehicle, and lock your
vehicle.
Never leave children alone in a vehicle, or
with access to an unlocked vehicle. Allowing
children to be in a vehicle unattended is
dangerous for a number of reasons. A child
or others could be seriously or fatally
injured. Children should be warned not to
touch the parking brake, brake pedal or the
transmission gear selector.
Do not leave the key fob in or near the
vehicle, (or in a location accessible to
children), and do not leave the ignition in the
AVV or ON/RUN mode. A child could operate
power windows, other controls, or move the
vehicle.
Be sure the parking brake is fully
disengaged before driving; failure to do so
can lead to brake failure and a collision.
Always fully apply the parking brake when
leaving your vehicle, or it may roll and cause
damage or injury. Also be certain to leave
the transmission in PARK. Failure to do so
may allow the vehicle to roll and cause
damage or injury.
Driving the vehicle with the parking brake
engaged, or repeated use of the parking
brake to slow the vehicle may cause serious
damage to the brake system.
Caution!
If the Brake System Warning Light remains
on with the parking brake released, a brake
system malfunction is indicated. Have the
brake system serviced by an authorized
dealer immediately.
Starting With A Discharged Key Fob
Battery
If the key fob battery is discharged,
proceed as follows to start the vehicle:
1. Lift the front armrest.
2. Lay the key fob on the key fob outline
found on the floor of the armrest
compartment while pushing the
START/STOP button to start the ignition.
04026S0002EMKey Fob Placement Location
17

General Information
The following regulatory statement
applies to all Radio Frequency (RF)
devices equipped in this vehicle:
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Note:Changes or modifications not
expressly approved by the party
responsible for compliance could void the
user’s authority to operate the
equipment.
ENGINE IMMOBILIZER
Engine Immobilizer Operation
The Engine Immobilizer system prevents
unauthorized use of the vehicle by
disabling engine starting.
The system does not need to be enabled
or activated. Operation of the
immobilizer is automatic whether the
vehicle's doors are locked or unlocked.
When the ignition is set to ON, the Engine
Immobilizer system identifies the code
transmitted by the key. If the code is
recognized as valid, the Engine
Immobilizer system enables engine
starting.
When the ignition is brought back to
STOP, the Engine Immobilizer system
deactivates the control unit controlling
the engine, disabling engine starting.
For the correct engine starting
procedures, refer to “Starting The
Engine” in “Starting And Operating.”
Irregular Operation
If the key code is not recognized during
starting, the Engine Immobilizer
Failure/Break-in Attempt
icon is
displayed on the instrument panel (refer
to "Warning Lights And Messages" in
"Getting To Know Your Instrument
Panel"). This condition leads to the engine
turning off after two seconds. In this
case, switch the ignition to STOP and then to ON; if it is still blocked, try with
the other keys provided. If it is still not
possible to start the engine, contact an
authorized dealer.
If the Engine Immobilizer Failure/
Break-in Attempt
icon is displayed
while driving, this means that the system
is running a self-diagnosis (e.g. due to a
voltage drop). If the display persists,
contact an authorized dealer.
Note:
Do not tamper with the Engine
Immobilizer system. Any modifications
or alterations could cause the protection
function to be deactivated.
The Engine Immobilizer system is not
compatible with certain aftermarket
remote starting systems. The use of
these devices could cause problems
when starting, as well as the
deactivation of the protection function.
All keys provided with the vehicle
have been programmed in accordance
with the electronics on the vehicle itself.
Each key has its own code which must
be stored by the system's control unit.
Contact an authorized dealer to have
new keys (up to eight) stored with a
code.
18
GETTING TO KNOW YOUR VEHICLE
