Alfa Romeo Giulietta 2010 Owner handbook (in English)
Manufacturer: ALFA ROMEO, Model Year: 2010, Model line: Giulietta, Model: Alfa Romeo Giulietta 2010Pages: 294, PDF Size: 5.25 MB
Page 151 of 294

150
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
If the warning light ¬does not turn on when the key
is turned to MAR, or if it stays on when travelling (to-
gether with the message on the display on some ver-
sions), there could be a failure in the restraint systems. If
this is the case, the air bags or pretensioners may not be de-
ployed in the event of an accident or, less likely, they may
be deployed accidentally. Do not drive the car and contact
a Alfa Romeo Authorised Service Provider to have the sys-
tem checked immediately.
The expiry dates of the pyrotechnic charge and
clock contact are shown in the plate installed in-
side the glove compartment. Go to an Alfa Romeo
Authorised Service Provider when the time to have them
replaced approaches.
Do not travel with objects on your lap, in front of
your chest, or between your lips (e.g. pipes, pen-
cils, etc.): you may be seriously injured in the event
of a crash with air bag deployment.
If someone tries to steal or damage your car, and
in the event of floods, have the air bag system
checked by an Alfa Romeo Authorised Service
Provider.
With the ignition key inserted and turned to MAR,
the air bags can be deployed also with the car at
a standstill, if it is hit by another vehicle even if the
engine is off. For this reason, children must never sit on
the front seat, even if the car is not moving. Remember
that no safety device (airbag or pretensioner) will be de-
ployed in a crash if the key is inserted and turned to the
STOP position. Failure to deploy in such cases must not
be considered a sign of malfunction.
When the ignition key is turned to MAR, the “
warning light turns on (front airbag on passenger’s
side enabled) and will blinks for a few seconds as
a reminder that the passenger airbag will be deployed
in the event of a crash and then go off.
The front air bags are deployed in the event of
more severe collisions than those required for de-
ploying the pretensioners.
For collisions in the range between the two thresholds, it
is normal for only the pretensioners to be activated.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 150
Page 152 of 294

151
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

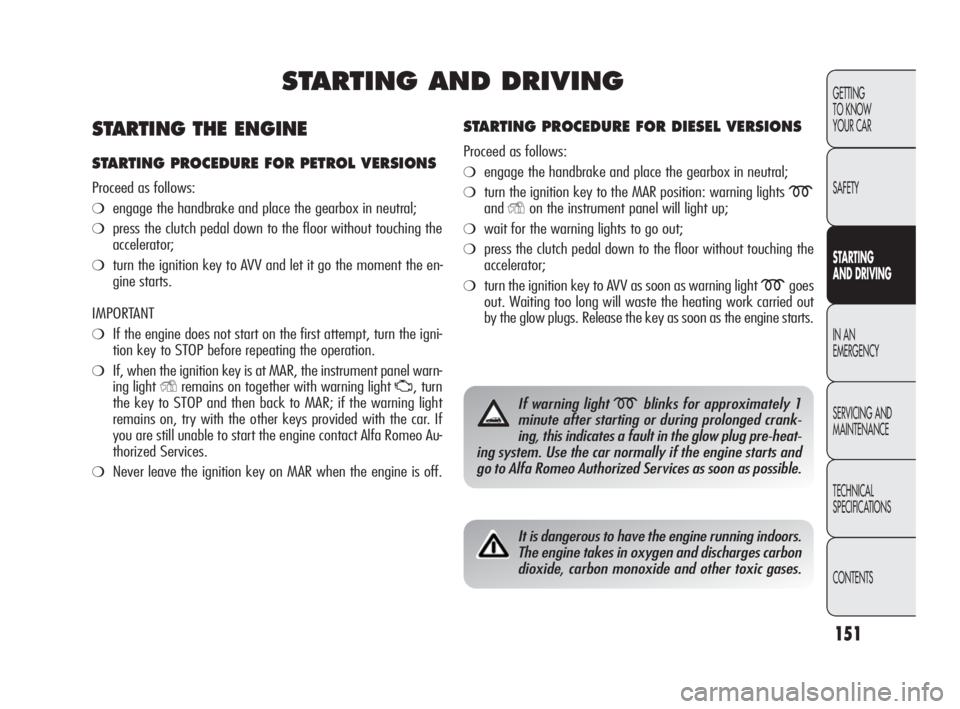

STARTING AND DRIVING
STARTING PROCEDURE FOR DIESEL VERSIONS
Proceed as follows:
âengage the handbrake and place the gearbox in neutral;
âturn the ignition key to the MAR position: warning lights m
and Yon the instrument panel will light up;
âwait for the warning lights to go out;
âpress the clutch pedal down to the floor without touching the
accelerator;
âturn the ignition key to AVV as soon as warning light mgoes
out. Waiting too long will waste the heating work carried out
by the glow plugs. Release the key as soon as the engine starts.
If warning light mblinks for approximately 1
minute after starting or during prolonged crank-
ing, this indicates a fault in the glow plug pre-heat-
ing system. Use the car normally if the engine starts and
go to Alfa Romeo Authorized Services as soon as possible.
It is dangerous to have the engine running indoors.
The engine takes in oxygen and discharges carbon
dioxide, carbon monoxide and other toxic gases.
STARTING THE ENGINE
STARTING PROCEDURE FOR PETROL VERSIONS
Proceed as follows:
âengage the handbrake and place the gearbox in neutral;
âpress the clutch pedal down to the floor without touching the
accelerator;
âturn the ignition key to AVV and let it go the moment the en-
gine starts.
IMPORTANT
âIf the engine does not start on the first attempt, turn the igni-
tion key to STOP before repeating the operation.
âIf, when the ignition key is at MAR, the instrument panel warn-
ing light
Yremains on together with warning light U, turn
the key to STOP and then back to MAR; if the warning light
remains on, try with the other keys provided with the car. If
you are still unable to start the engine contact Alfa Romeo Au-
thorized Services.
âNever leave the ignition key on MAR when the engine is off.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 151
Page 153 of 294

152
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
It is advisable not to demand maximum perfor-
mance from your car (e.g. excessive acceleration,
long distances at top rpm, excessively intense brak-
ing, etc.) when it is first used.
Remember that the brake servo and electro-
mechanical power steering are not operational un-
til the engine has been started, therefore much
more effort than usual is required on the brake pedal and
steering wheel.
Never jump start the engine by pushing, towing or
driving downhill. These manoeuvres may damage
the catalytic converter.
When the engine is switched off never leave the
key in the MAR position to prevent useless cur-
rent absorption from draining the battery.
HOW TO WARM UP THE ENGINE
AFTER IT HAS JUST STARTED
Proceed as follows:
âdrive off slowly, letting the engine turn at medium speed. Do
not accelerate abruptly;
âdo not demand maximum performance for the first few kilo-
metres. Wait until the engine coolant temperature indicator
starts moving.
STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is idling.
IMPORTANT After a taxing drive, before turning the engine off you
should allow it to idle to allow the temperature in the engine com-
partment to fall.
A quick burst on the accelerator before turning off
the engine serves absolutely no practical purpose;
it wastes fuel and is especially damaging to tur-
bocharged engines.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 152
Page 154 of 294

153
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT Carry out these manoeuvres with the brake pedal pressed.
IMPORTANT For cars equipped with a front armrest, lift this up to
ensure that it does not interfere with the action of the handbrake.
fig. 110A0K0073m
The car should be locked after a few notches: if this
is not so, contact Alfa Romeo Authorized Services to
have the handbrake adjusted.

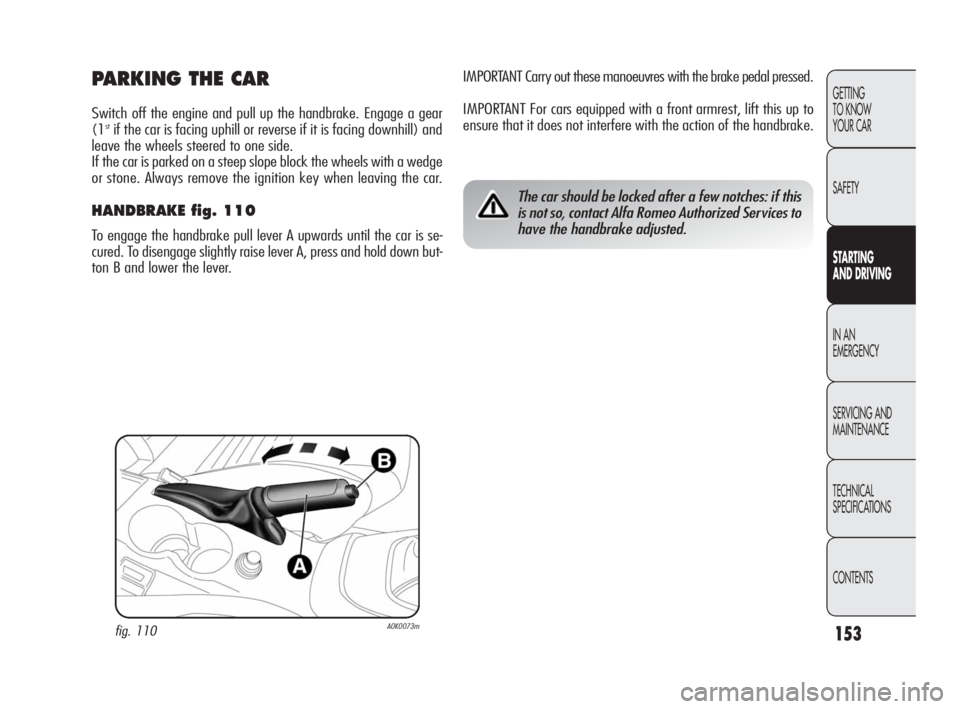

PARKING THE CAR
Switch off the engine and pull up the handbrake. Engage a gear
(1stif the car is facing uphill or reverse if it is facing downhill) and
leave the wheels steered to one side.
If the car is parked on a steep slope block the wheels with a wedge
or stone. Always remove the ignition key when leaving the car.
HANDBRAKE fig. 110
To engage the handbrake pull lever A upwards until the car is se-
cured. To disengage slightly raise lever A, press and hold down but-
ton B and lower the lever.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 153
Page 155 of 294

154
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

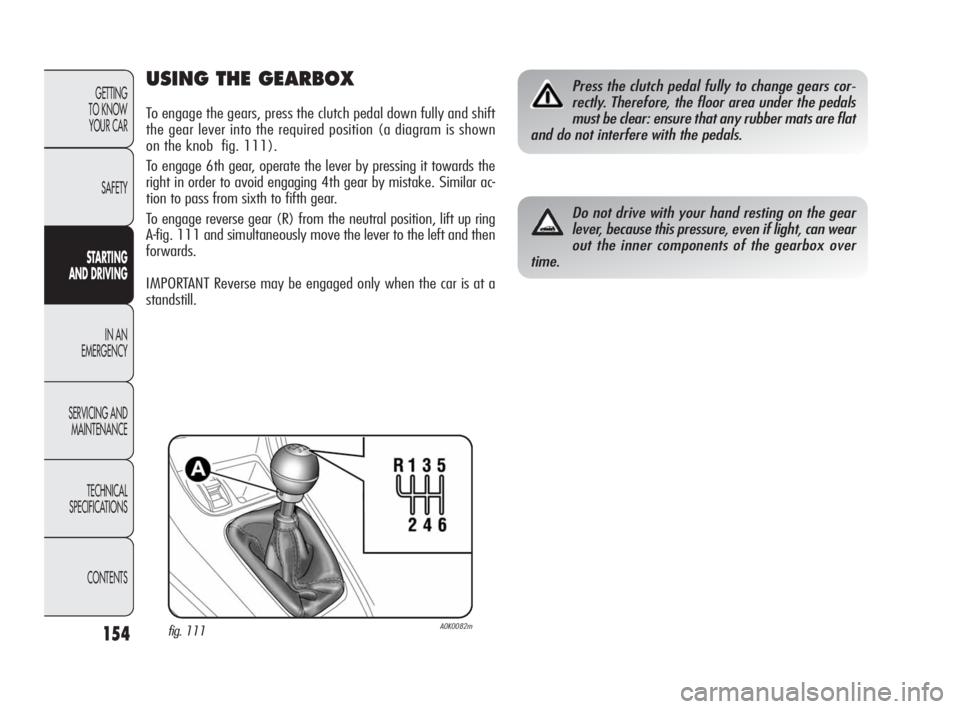

USING THE GEARBOX
To engage the gears, press the clutch pedal down fully and shift
the gear lever into the required position (a diagram is shown
on the knob fig. 111).
To engage 6th gear, operate the lever by pressing it towards the
right in order to avoid engaging 4th gear by mistake. Similar ac-
tion to pass from sixth to fifth gear.
To engage reverse gear (R) from the neutral position, lift up ring
A-fig. 111 and simultaneously move the lever to the left and then
forwards.
IMPORTANT Reverse may be engaged only when the car is at a
standstill.
fig. 111A0K0082m
Press the clutch pedal fully to change gears cor-
rectly. Therefore, the floor area under the pedals
must be clear: ensure that any rubber mats are flat
and do not interfere with the pedals.
Do not drive with your hand resting on the gear
lever, because this pressure, even if light, can wear
out the inner components of the gearbox over
time.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 154
Page 156 of 294

155
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

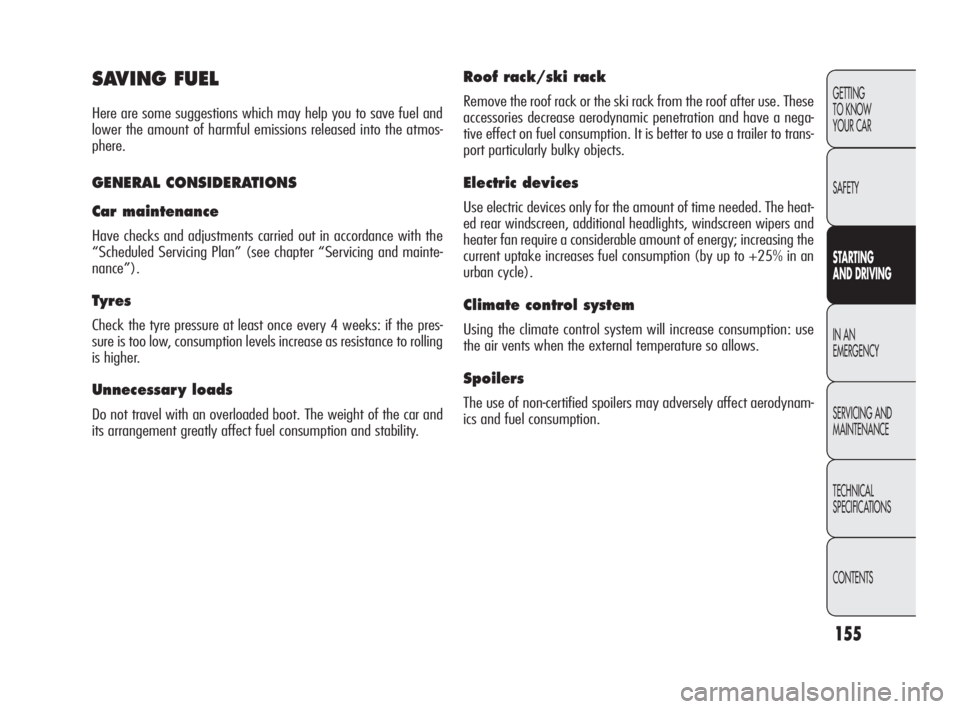

SAVING FUEL
Here are some suggestions which may help you to save fuel and
lower the amount of harmful emissions released into the atmos-
phere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in accordance with the
“Scheduled Servicing Plan†(see chapter “Servicing and mainte-
nanceâ€).
Tyres
Check the tyre pressure at least once every 4 weeks: if the pres-
sure is too low, consumption levels increase as resistance to rolling
is higher.
Unnecessar y loads
Do not travel with an overloaded boot. The weight of the car and
its arrangement greatly affect fuel consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof after use. These
accessories decrease aerodynamic penetration and have a nega-
tive effect on fuel consumption. It is better to use a trailer to trans-
port particularly bulky objects.
Electric devices
Use electric devices only for the amount of time needed. The heat-
ed rear windscreen, additional headlights, windscreen wipers and
heater fan require a considerable amount of energy; increasing the
current uptake increases fuel consumption (by up to +25% in an
urban cycle).
Climate control system
Using the climate control system will increase consumption: use
the air vents when the external temperature so allows.
Spoilers
The use of non-certified spoilers may adversely affect aerodynam-
ics and fuel consumption.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 155
Page 157 of 294

156
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

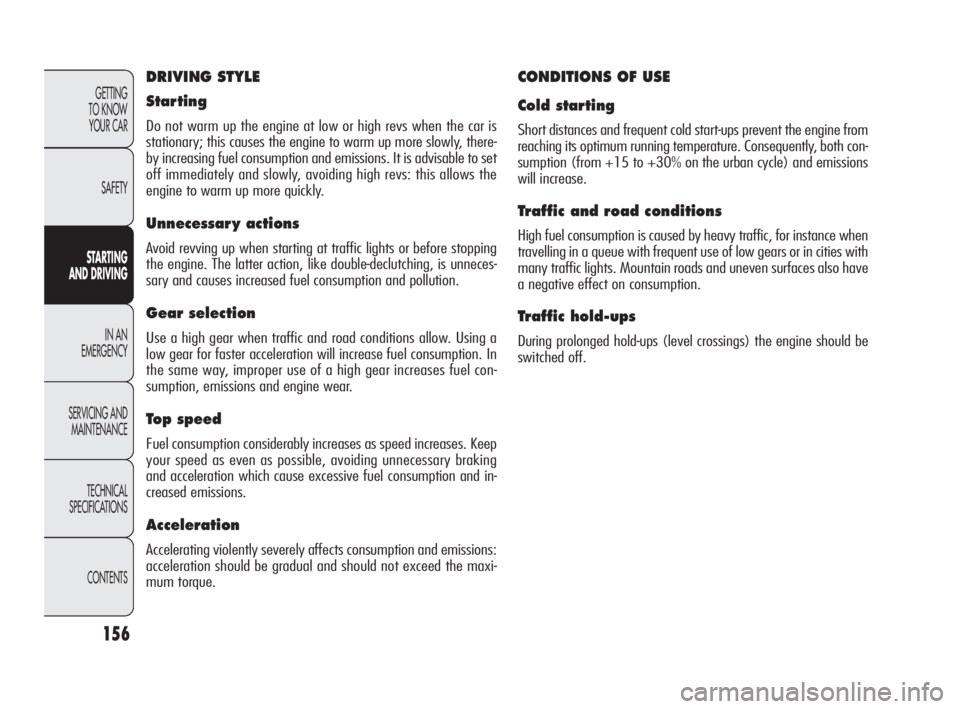

DRIVING STYLE
Starting
Do not warm up the engine at low or high revs when the car is
stationary; this causes the engine to warm up more slowly, there-
by increasing fuel consumption and emissions. It is advisable to set
off immediately and slowly, avoiding high revs: this allows the
engine to warm up more quickly.
Unnecessar y actions
Avoid revving up when starting at traffic lights or before stopping
the engine. The latter action, like double-declutching, is unneces-
sary and causes increased fuel consumption and pollution.
Gear selection
Use a high gear when traffic and road conditions allow. Using a
low gear for faster acceleration will increase fuel consumption. In
the same way, improper use of a high gear increases fuel con-
sumption, emissions and engine wear.
Top speed
Fuel consumption considerably increases as speed increases. Keep
your speed as even as possible, avoiding unnecessary braking
and acceleration which cause excessive fuel consumption and in-
creased emissions.
Acceleration
Accelerating violently severely affects consumption and emissions:
acceleration should be gradual and should not exceed the maxi-
mum torque.
CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-ups prevent the engine from
reaching its optimum running temperature. Consequently, both con-
sumption (from +15 to +30% on the urban cycle) and emissions
will increase.
Traffic and road conditions
High fuel consumption is caused by heavy traffic, for instance when
travelling in a queue with frequent use of low gears or in cities with
many traffic lights. Mountain roads and uneven surfaces also have
a negative effect on consumption.
Traffic hold-ups
During prolonged hold-ups (level crossings) the engine should be
switched off.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 156
Page 158 of 294

157
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

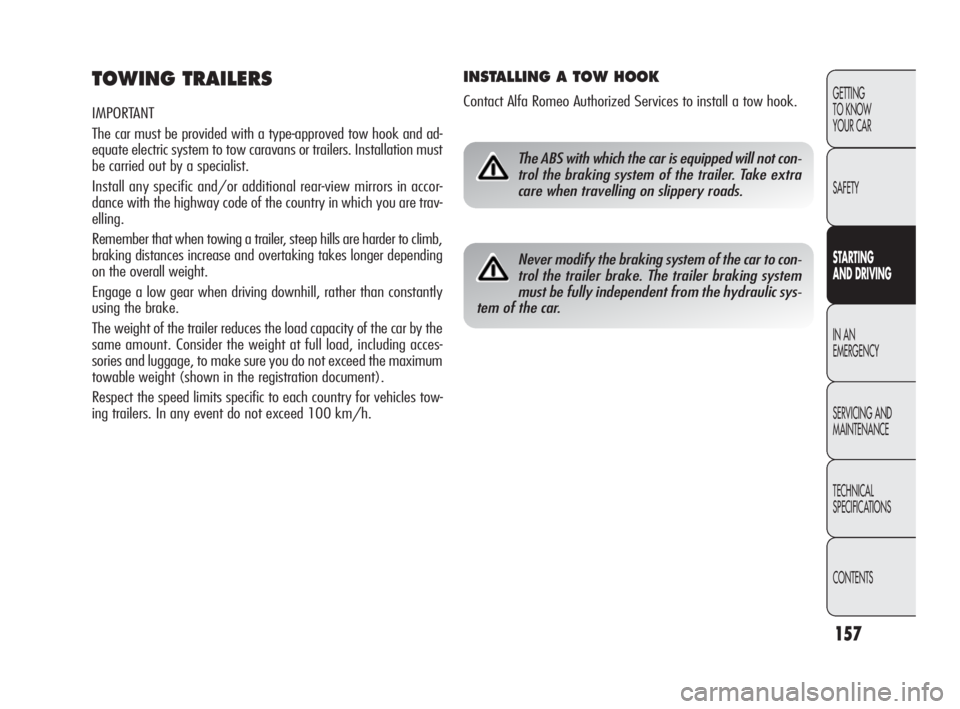

TOWING TRAILERS
IMPORTANT
The car must be provided with a type-approved tow hook and ad-
equate electric system to tow caravans or trailers. Installation must
be carried out by a specialist.
Install any specific and/or additional rear-view mirrors in accor-
dance with the highway code of the country in which you are trav-
elling.
Remember that when towing a trailer, steep hills are harder to climb,
braking distances increase and overtaking takes longer depending
on the overall weight.
Engage a low gear when driving downhill, rather than constantly
using the brake.
The weight of the trailer reduces the load capacity of the car by the
same amount. Consi
der the weight at full load, including acces-
sories and luggage, to make sure you do not exceed the maximum
towable weight (shown in the registration document).
Respect the speed limits specific to each country for vehicles tow-
ing trailers. In any event do not exceed 100 km/h.
INSTALLING A TOW HOOK
Contact Alfa Romeo Authorized Services to install a tow hook.
The ABS with which the car is equipped will not con-
trol the braking system of the trailer. Take extra
care when travelling on slippery roads.
Never modify the braking system of the car to con-
trol the trailer brake. The trailer braking system
must be fully independent from the hydraulic sys-
tem of the car.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 157
Page 159 of 294

158
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

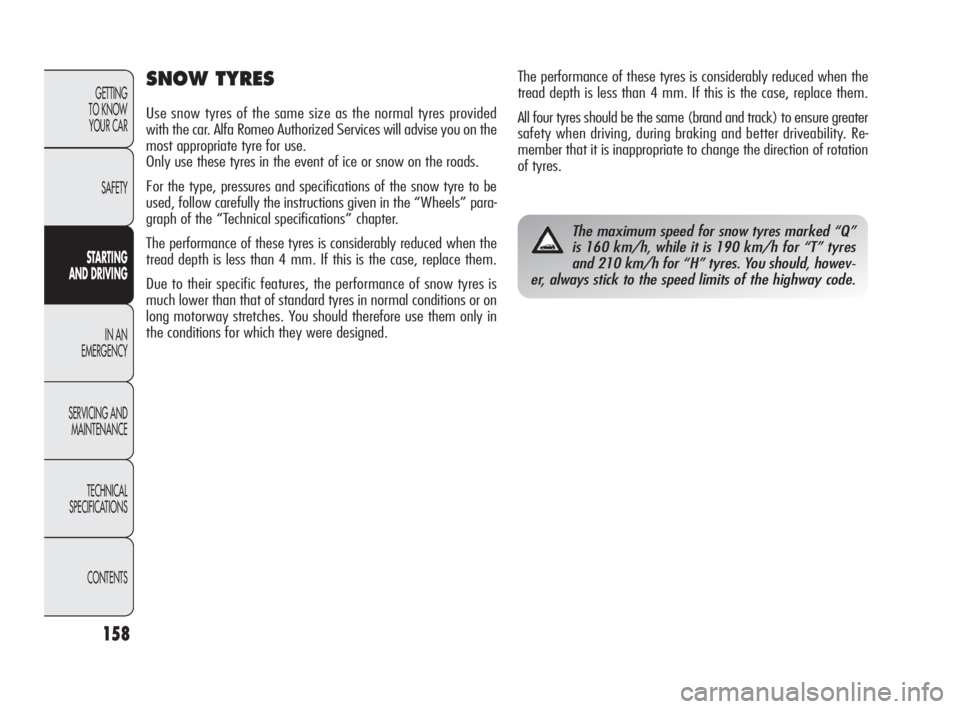

SNOW TYRES
Use snow tyres of the same size as the normal tyres provided
with the car. Alfa Romeo Authorized Services will advise you on the
most appropriate tyre for use.
Only use these tyres in the event of ice or snow on the roads.
For the type, pressures and specifications of the snow tyre to be
used, follow carefully the instructions given in the “Wheels†para-
graph of the “Technical specifications†chapter.
The performance of these tyres is considerably reduced when the
tread depth is less than 4 mm. If this is the case, replace them.
Due to their specific features, the performance of snow tyres is
much lower than that of standard tyres in normal conditions or on
long motorway stretches. You should therefore use them only in
the conditions for which they were designed. The performance of these tyres is considerably reduced when the
tread depth is less than 4 mm. If this is the case, replace them.
All four tyres should be the same (brand and track) to ensure greater
safety when driving, during braking and better driveability. Re-
member that it is inappropriate to change the direction of rotation
of tyres.
The maximum speed for snow tyres marked “Qâ€
is 160 km/h, while it is 190 km/h for “T†tyres
and 210 km/h for “H†tyres. You should, howev-
er, always stick to the speed limits of the highway code.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 158
Page 160 of 294

159
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Keep your speed down when snow chains are fit-
ted - do not exceed 50 km/h. Avoid potholes, steps
and pavements and also avoid driving for long dis-
tances on roads not covered with snow to avoid damag-
ing the car and the road surface.
SNOW CHAINS
The use of snow chains should be in compliance with local regu-
lations. Snow chains may be fitted only to the front wheel tyres
(drive wheels).
Check the tension of the chains after the first few metres have been
driven.
Use reduced bulk snow chains:
– All versions: for 195/55 R16â€, 205/55 R16†and 225/45
R17†size tyres use low-clearance snow chains with a maximum
protrusion beyond the tyre profile of 9 mm.
IMPORTANT The space-saver wheel cannot be fitted with snow
chains. If a front (drive) wheel is punctured and snow chains must
be used, you must remove a normal wheel from the rear and re-
place this one with the space-saver wheel. In this way, with two
normal drive wheels, it is possible to use snow cha
ins.
STORING THE CAR
If the car is to be left inactive for longer than a month, the following
precautions should be noted:
âpark the car in a dry, covered and, if possible, ventilated area;
engage a gear and check that the handbrake is not engaged;
âdisconnect the negative battery terminal and check battery
charge. Repeat this check once every three months during stor-
age;
âclean and protect painted areas using protective wax;
âclean and protect the shiny metal areas using special com-
mercially-available products;
âsprinkle talcum powder on the rubber windscreen and rear win-
dow wiper blades and lift them off the glass;
âslightly open the windows;
âcover the car with a fabric or perforated plastic sheet. Do not
use compact plastic sheets which do not allow humidity to evap-
orate from the surface of the car.
âinflate tyres to a pressure of +0.5 bar above the normal spec-
ified pressure and check the pressure at regular intervals;
âif you have not disconnected the battery, check the battery
charge every thirty days;
âdo not drain the engine cooling system.
151-160 Alfa Giulietta EN 3ed 13-04-2010 11:46 Pagina 159
