Alfa Romeo Giulietta 2010 Owner handbook (in English)

140
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
GROUP 2 fig. 101
Children from 15 to 25 kg can be secured using the car seat belts
directly. The child seat is needed only to position the child correctly
with respect to the belts so that the diagonal section crosses the
child’s chest and never the neck, and the lower part is snug on
the hips not the abdomen.
GROUP 3 fig. 102
For children between 22 kg and 36 kg, there are boosters allow-
ing the seat belt to fit correctly.
Fig. 102 shows proper child seat positioning on the rear seat.
fig. 101A0K0016mfig. 102A0K0017m
The diagrams are indicative and provided for as-
sembly purposes only. For assembly, refer to the
instructions supplied with the child seat.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 140

141
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SUITABILITY OF PASSENGER SEATS FOR CHILD SEAT USE
The car complies with the new European Directive 2000/3/EC which governs the arrangement possibilities for child seats on the var-
ious seats of the car as shown in the following table:
Key:
U = suitable for restraint systems in the “Universal” category, according to European Standard ECE-R44 for the specified “Groups”.
(*) With seat adjustable in height, position the backrest upright.
Front Rear side and middle
Group Weight range passenger passenger
Group 0, 0+ up to 13 kg U (*) U
Group 1 9-18 kg U (*) U
Group 2 15-25 kg U (*) U
Group 3 22-36 kg U (*) U
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 141

142
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Main safety rules to be followed
when carr ying children:
❍install the child seats on the rear seat, which is the most pro-
tected position in the event of an accident.
❍when the passenger front air bag is deactivated always check
that the
Fwarning light remains permanently lit to confirm
the deactivation;
❍carefully follow the instructions supplied with the child seat,
which are mandatory by law. Keep the instructions in the car
along with the other papers and this handbook. Do not use
child seats without instructions;
❍always check the seat belt is well fastened by pulling the belt;
❍only one child is to be strapped to each retaining system;
❍always check the seat belts do not rest around the child’s neck;
❍while travelling, do not let the child sit incorrectly or release the
belts;
❍Never carry children on your lap, even newborns. No-one could
hold on to a child in the event of an accident;
❍In the event of an accident, replace the child seat with a new
one.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 142

143
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
“ISOFIX” CHILD SEAT ASSEMBLY
SETUP
The car is provisioned for a Universal Isofix child seat, a new Eu-
ropean standardised system for carrying children safely.
fig. 103A0K0018m
Isofix systems can be fitted alongside a traditional child seat. An
example of an Universal Isofix child seat for weight group 1 is
shown in fig. 103.
The other weight groups are covered by the specific Isofix child seat,
which can be used only if specifically designed, tested and approved
for this car (see car list provided with the child seat).
WARNING The centre rear seat is not certified for any type of child’s
seat.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 143

144
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
INSTALLING A UNIVERSAL ISOFIX CHILD SEAT
Couple the child seat to the specific lower metallic rings B-fig. 104
positioned inside the rear seat backrest (lift the hinge A upwards
to access the rings) and then fix the upper belt (provided with
the seat) to the upper couplings C-fig. 105 located on the back
of the backrest.
Systems can be fitted along side a traditional child seat “Univer-
sal Isofix”. Remember that when using a Universal Isofix child seat,
you can only use approved seats with the marking ECE R44/03
“Universal Isofix”.
The Universal Isofix “Duo Plus” child seat and the special “G 0/1 S”
seat are available from Lineaccessori Alfa Romeo. For any further
installation/details on usage, refer to the “Instruction Manual” sup-
plied with the child seat.
fig. 104A0K0109mfig. 105A0K0108m
Fit the child seat when the car is stationary. The
child seat is correctly anchored to the brackets
when you hear the click. Follow the instructions for
assembly, disassembly and positioning that the child seat
manufacturer must supply.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 144

145
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
PASSENGER SEAT SUITABILITY FOR ISOFIX CHILD SEATS
The table below, in compliance with European Directive ECE 16, shows the different installation possibilities of Isofix seats on seats fit-
ted with Isofix fasteners.
IUF: suitable for forward-facing Isofix child seats, universal class (fitted with third upper fastener), type-approved for use in this weight group.
X: Isofix position not suitable for Isofix retaining system in this weight group and/or size.
IL (*): the Isofix child seat can be installed by adjusting the front seat.
Weight group Seat Isofix Rear passenger seat
orientation size class
CradleFacing backwards F X
Facing backwards G X
Group 0 up to 10 kg Facing backwards E IL (*)
Facing backwards E IL (*)
Group 0+ up to 13 kg Facing backwards D IL (*)
Facing backwards C IL (*)
Facing backwards D IL (*)
Facing backwards C IL (*)
Group I from 9 to 18 kg Facing forwards B IUF
Facing forwards BI IUF
Facing forwards A IUF
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 145

146
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
FRONT AIRBAGS
The car is provided with multistage front air bags (“Smart bag”)
for driver and passenger.
“SMART BAG” SYSTEM
(MULTISTAGE FRONT AIR BAGS)
The front driver/passenger air bags are designed to protect occu-
pants in the event of head-on crashes of medium-high severity,
by placing the bag between the occupant and the steering wheel
or dashboard.
The air bag do not replace, but rather complement the use of seat
belts, which should always be worn. In the event of an impact,
someone not wearing a seat belt could move forward and come
into contact with a bag which is still in the opening phase. The pro-
tection offered by the bag is reduced in such a case.
Front air bags may not be activated in the following situations:
❍front collisions against highly deformable objects not affect-
ing the front surface of the car (e.g. bumper collision against
guard rail, etc.);
❍car penetration under other vehicles or protective barriers (e.g.
trucks or guard rails);
in these instances they could not provide any additional protec-
tion compared with seat belts, so their deployment would not be
useful. In these cases, non-deployment of the airbag does not nec-
essarily indicate a system malfunction.
FRONT AIR BAG ON DRIVER’S SIDE fig. 106
This is located in a dedicated compartment in the centre of the steer-
ing wheel.
Do not apply stickers or other objects to the steer-
ing wheel, passenger side air bag cover or upper
side upholstery. Do not place objects on the pas-
senger side dashboard because these could interfere with
the correct opening of the air bag and cause severe injury
to occupants.
fig. 106A0K0080m
Always drive with your hands on the steering wheel
rim so that the air bag can inflate freely if need-
ed. Do not drive with your body bent forward.
Keep your back straight against the backrest.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 146

147
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
FRONT AIRBAG ON PASSENGER’S SIDE
fig. 107
This is located in a dedicated compartment in the dashboard.
fig. 107A0K0135m
Do not arrange cradle child seats facing backwards
if the front air bag on the passenger’s side is en-
abled. Deployment of the air bag in an accident
could cause fatal injuries to the baby regardless of
the severity of the collision. Always deactivate the
passenger’s air bag when placing a child seat on the front
seat. Also, the passenger seat should be as far back as
possible to avoid contact between the child seat and the
dashboard. Although this is not mandatory by law, the air
bag should be immediately reactivated when children are
no longer carried to ensure better protection for adults.
To deactivate the air bags see “Knowing your
car” chapter, “Menu Items” paragraph.
Deactivating the passenger front air bag and
side bag
Deactivate the passenger front air bag and chest protection side
bags when carrying a chid on the front seat. With the air bags de-
activated, the
“warning light is lit in the instrument panel.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 147

148
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SIDE AIR BAGS
(SIDE BAG - WINDOW BAG)
The car is fitted with front side bags for driver and passenger for
protecting the chest, and window bags for protecting front and rear
passengers’ heads.
FRONT SIDE BAGS fig. 108
These are comprised of two types of bags located in the front
back/rests, which protect the chest and pelvis area of passengers
in the event of a side impact of medium-high severity.
fig. 108A0K0081mfig. 109A0K0035m
HEAD PROTECTION SIDE AIR BAGS
(WINDOW BAGS) fig. 109
It is formed by two "curtain" window bags are located behind the
side roof upholstery and are covered by special trimming.
They were designed to protect the head of front and rear passen-
gers in case of side collisions, thanks to the wide cushion inflation
surface.
The air bags are not deployed in the event of impact of low sever-
ity (for which the retaining action of the seat belts is sufficient).
It is therefore always necessary to wear seat belts.
In the event of a side impact, the system provides best protection
if the passenger sits on the seat in a correct position, thus allow-
ing correct window bag deployment.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 148

149
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

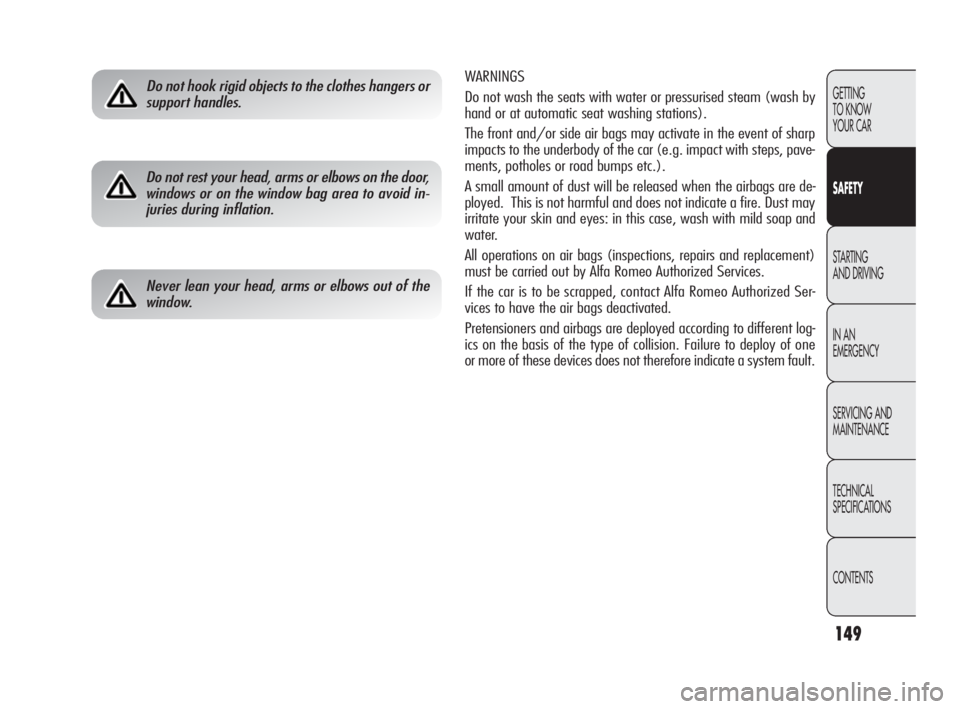

WARNINGS
Do not wash the seats with water or pressurised steam (wash by
hand or at automatic seat washing stations).
The front and/or side air bags may activate in the event of sharp
impacts to the underbody of the car (e.g. impact with steps, pave-
ments, potholes or road bumps etc.).
A small amount of dust will be released when the airbags are de-
ployed. This is not harmful and does not indicate a fire. Dust may
irritate your skin and eyes: in this case, wash with mild soap and
water.
All operations on air bags (inspections, repairs and replacement)
must be carried out by Alfa Romeo Authorized Services.
If the car is to be scrapped, contact Alfa Romeo Authorized Ser-
vices to have the air bags deactivated.
Pretensioners and airbags are deployed according to different log-
ics on the basis of the type of collision. Failure to deploy of one
or more of these devices does not therefore indicate a system fault.Do not hook rigid objects to the clothes hangers or
support handles.
Do not rest your head, arms or elbows on the door,
windows or on the window bag area to avoid in-
juries during inflation.
Never lean your head, arms or elbows out of the
window.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 149
