EXTERIOR COURTESY LIGHTS
This function lights up the vehicle and the space around it when
the doors are unlocked.
Activation
When the car is parked and the doors are unlocked by pressing the
Ëbutton on the remote control (or the boot is unlocked by press-
ing
R), the dipped beam headlights, side lights and number
plate lights are activated.
The lights remain lit for approximately 25 seconds unless the doors
and boot are locked once again, the doors or boot are opened
and closed or the instrument panel is activated. In these cases they
go out after 5 seconds.
The exterior courtesy lights can be enabled/disabled using the Set-
up Menu (see the paragraph “Menu Items” in this chapter).
“FOLLOW ME HOME” DEVICE
This device allows you to illuminate the area in front of the car
for a certain amount of time.
Activation
With the ignition key on STOP or removed, pull A stalk fig. 40 to-
wards the steering wheel within 2 minutes of the engine switch-
ing off.
Each time the stalk is moved, the lights stay on for an extra 30
seconds up to a maximum of 210 seconds; then the lights are
switched off automatically.
The
3warning light on the instrument panel will light up (and
the corresponding message will appear on the display) as long as
the function is active.
The light comes on when the stalk is first moved and stays on un-
til the function is automatically deactivated. Each movement of the
stalk increases only the amount of time the lights stay on.
Deactivation
Keep the A stalk fig. 40 pulled towards the steering wheel for more
than 2 seconds.

80
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
INCREASING THE STORED SPEED
Press the accelerator and store the new speed or move the stalk
upwards (+). Each movement of the stalk will correspond to an
increase in speed of about 1 km/h, while keeping the stalk held
upwards the speed will continuously increase.
REDUCING THE STORED SPEED
Deactivate the device and store the new speed or move the stalk
downwards (–) until the new speed is reached. It will then auto-
matically be stored. Each movement of the stalk will correspond
to a reduction in speed of about 1 km/h, while keeping the stalk
held downwards will continuously reduce the speed.
TURNING THE DEVICE OFF
To release:
❍turn the A ring fig. 43 to OFF;
or
❍stop the engine;
or
❍press the brake pedal, the clutch or the accelerator; in this
last case the system is not actually turned off but the system
gives priority to the acceleration request. The device still re-
mains active, without the need to press the RES button to re-
turn to the previous condition once acceleration is concluded.
STORING THE SPEED
Proceed as follows:
❍turn A ring fig. 43 to ON and press the accelerator until the
car reaches the desired speed;
❍move the stalk upwards (+) for at least one second, then re-
lease it. The speed is now stored and you can therefore release
the accelerator pedal.
If needed (when overtaking for instance), you can accelerate sim-
ply by pressing the accelerator pedal; when you come off the ped-
al, the car will return to the speed memorised previously.
RESTORING STORED SPEED
If the device was disengaged - for example by pressing the brake
or clutch pedal - the stored speed can be reset as follows:
❍accelerate gradually until reaching a speed approaching the one
stored;
❍engage the gear selected at the time of speed storing;
❍press RES button (B-fig. 43).

86
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
AFS ADAPTIVE LIGHTS
(Adaptive Frontlight System) fig. 52
(for versions/markets, where provided)
This is a system combined with xenon headlamps which directs the
main light beam and continuously and automatically adapts it to
the driving conditions round bends/when cornering. The system
directs the light beam to light up the road in the best way, taking
into account the speed of the vehicle, the bend/corner angle and
the speed of steering.
The adaptive lights are automatically activated when the engine
is started. In this condition, LED A-fig. 52 will stay off. When the
button is pressed the adaptive lights (if on) are deactivated and the
LED A-fig. 52 in the button comes on continuously.
Press button again to turn the adaptive lights on (LED off).
fig. 52A0K0123m
DOOR LOCK fig. 53
Press≈to lock all the doors at the same time (the LED on the
button will light up when the doors are locked. Locking takes place
regardless of the position of the ignition key.
FUEL CUT-OFF SYSTEM
This system is tripped after a collision and activates the following
functions:
❍cutting off fuel supply and consequently stopping the engine;
❍automatically unlocking the doors;
❍turning on the inside lights.
The intervention of the system is indicated by a message shown
on the display. Carefully check the car for fuel leaks, for instance
in the engine compartment, below the car or near the tank area.
After a crash, turn the ignition key to STOP to avoid draining the
battery.
fig. 53A0K0145m

92
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
ELECTRIC SUN ROOF
(for versions/markets, where provided)
The sun roof comprises two glass panels; the front one is mobile
and the rear one fixed. These are equipped with two sun blinds
(front and rear) that can be moved manually. With the sun roof
closed, the blinds can be placed in any position.
OPERATION
The sunroof can be operated only with the ignition key turned to
MAR. The controls A and B-Fig. 63 on the front courtesy light trim,
operate the sun roof opening/closing functions.
Opening the sunroof
Press button A-fig. 63 and hold it pressed: the front glass panel will
assume the spoiler position. Press button A again and operate the
control for longer than half a second to move the roof window to
an intermediate position (“Comfort” position).
Press the opening control for longer than half a second to open the
roof entirely. The front panel can be stopped in an intermediate po-
sition by pressing button A again.
Closing the sunroof
With the sunroof in the fully open position, press button B-fig. 62
and, if the button is operated for more than half a second, the front
roof glass with automatically assume the intermediate position
(comfort position).
If the button is operated again for about half a second the roof
will assume the spoiler position. Lastly, if the button B is pressed
again, the roof will assume the fully closed position.
fig. 63A0K0131m

98
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
ELECTRIC WINDOWS
The window winders work with the ignition key at MAR and for
approximately three minutes after turning the key to STOP or ex-
tracting it and opening one of the front doors.
The control buttons are located in the door panels (the driver’s door
panel can be used to operate all the windows).
An anti-pinch device is operated when the front and rear windows
are wound up.
CONTROLS fig. 68
Front door driver’s side
A. opening/closing left hand front window; “continuous auto-
matic” operation during window opening/closing stage;
B. opening/closing right hand front window; “continuous auto-
matic” operation during window opening/closing stage;
C. enabling/disabling of rear door electric window controls;
D. opening/closing left hand rear window (for versions/markets,
where provided); “continuous automatic” operation during win-
dow opening/closing stage;
E. opening/closing right hand rear window (for versions/markets,
where provided); “continuous automatic” operation during win-
dow opening/closing stage;
Press the buttons to open/close the required window. When one
of the two buttons is pressed briefly, the window moves in stages;
if the button is held down, “continuous automatic” operation is ac-
tivated both for closing and opening. If the button is pressed again
the window will stop in its current position. Holding the button
pressed for a few seconds, the window automatically raises or low-
ers (only with key on MAR).
Front door passenger’s side/rear doors
(for versions/markets, where provided)
On the passenger side front door control panel, and on some ver-
sions also on the rear doors, buttons F-fig. 68 are provided to con-
trol the relevant windows
fig. 68A0K0067m

99
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT With ignition key at STOP or removed, the electric win-
dows remain active for about 3 minutes and are deactivated the
moment a door is opened.
IMPORTANT On some versions when the
Ëbutton on the remote
control is pressed for longer than 2 seconds the windows will open,
whilst if the
Ábutton is pressed for longer than 2 seconds the
windows will close.
The system conforms to the 2000/4/EC standard
concerning the safety of passengers leaning out of
the passenger compartment.
Incorrect use of the electric windows may be danger-
ous. Before and during operation, always check that
no passenger is at risk of being injured directly by
the moving window or by objects getting caught in or dragged
by the window. When leaving the car, always remove the key
from the ignition device to avoid the risk of injury due to ac-
cidental operation of the electric windows. This is a danger to
the people still on board.
Anti-pinch device
The car is equipped with an anti-pinch safety device for the upwards
motion of the windows.
The windows are fitted with an anti-pinch safety system that de-
tects the presence of an obstacle when they are closing and cuts
in by stopping the window and reversing it according to the posi-
tion of the window. This device is also useful when the windows
are activated accidentally by children on board the car.
The anti-pinch function is active both during manual and automat-
ic operation of the electric windows. Following the intervention of
the anti-pinch system, the window travel is immediately interrupt-
ed and subsequently reversed until the lower end of travel is
reached. The window cannot be operated in any way during this
time.
IMPORTANT If the anti-pinch protection intervenes 5 consecutive
times within a minute or is faulty, the automatic closing operation
of the window is inhibited, only allowing it in steps of half a sec-
ond; the button is released for the subsequent manoeuvre.
Open the concerned window to restore correct operation of the sys-
tem.

100
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Electric window system initialisation
The system must be re-initialised after disconnecting the battery
or if the relevant protection fuse is blown.
Initialisation procedure:
❍fully close the window manually to initialise;
❍after the window has reached the upper end of travel, hold the
up button pressed for at least one second.
IMPORTANT For versions/markets where provided, following the
disconnection of the power supply (replacing or disconnecting the
battery or replacing the protection fuse for the electric window con-
trol units), the automatic setting for the electric windows must be
reset.The reset operation should be carried out with the doors closed
according to the following procedure:
1. completely lower the driver-side window and keep the button
pressed for at least 3 seconds once the end of travel position
has been reached (lower end stop);
2. completely raise the driver-side window and keep the button
pressed for at least 3 seconds once the end of travel position
has been reached (upper end stop);
3. repeat stages 1 and 2 also for the passenger’s window
4. check that the initialisation has taken place correctly by check-
ing the automatic operation of the windows.

117
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
TURNING THE SYSTEM ON/OFF MANUALLY
PressTfig. 82 on the dashboard to turn the system on and off
manually.
Turning the Start&Stop system on
A message will appear on the display when the Start&Stop system
is on. In this condition, LED A-fig. 82 located over button
Tis off.
Turning the Start&Stop on
❍Versions with multifunction display: a message will appear on
the display when the Start&Stop system is off.
❍Versions with reconfigurable multifunction display: symbol T
and a message will appear on the display when the Start&Stop
system is off.
LED A-fig. 82 is on when the system is off.
fig. 82A0K0121m
FAILED ENGINE CUT-OUT CONDITIONS
When the system is operating, due to comfort, emission control
and safety reasons, the engine does not stop in some conditions,
among which:
❍engine still cold;
❍very cold outside temperature;
❍battery not sufficiently charged;
❍heated rear windscreen on;
❍windscreen wipers working at maximum speed;
❍particulate filter regeneration in progress (diesel engines only);
❍driver’s door not shut;
❍driver’s seat belt not fastened
❍reverse gear engaged (for example, for parking manoeuvres);
❍for versions equipped with dual zone automatic climate control
system (for versions/markets, where provided), if an adequate
level of thermal comfort has not been reached or MAX-DEF func-
tion activation;
❍during the first period of use, to initialize the system;
In these cases, a message is shown on the display and the sym-
bol
Uwill blink (the latter for versions/markets, where provid-
ed).
If climate comfort is to be favoured, the
Start&Stop system can be disabled, for a contin-
uous operation of the climate control system.

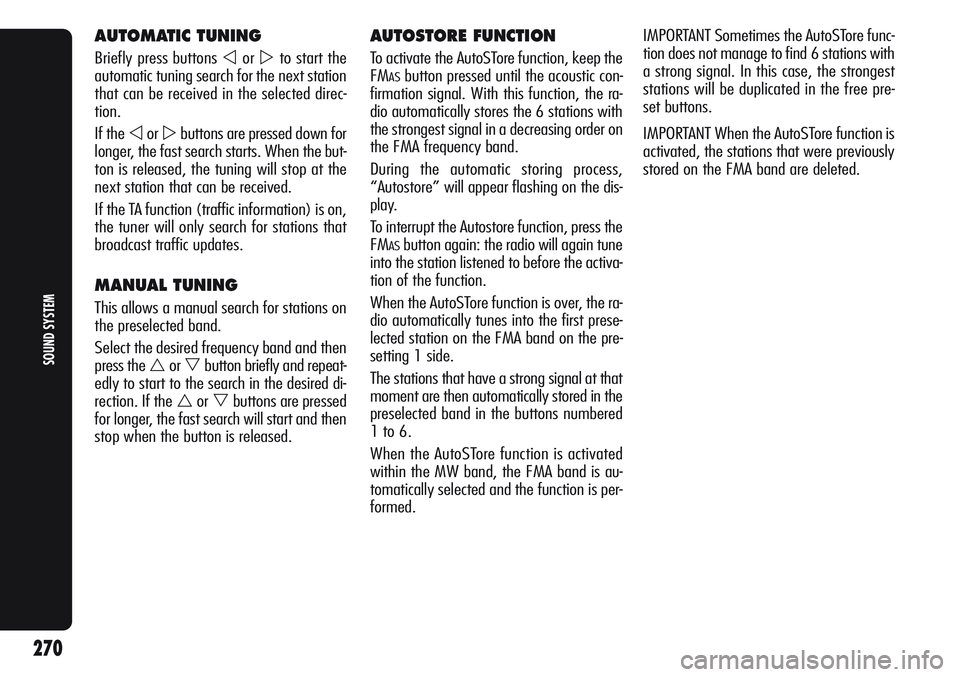

AUTOMATIC TUNING
Briefly press buttons orto start the
automatic tuning search for the next station
that can be received in the selected direc-
tion.
If the
orbuttons are pressed down for
longer, the fast search starts. When the but-
ton is released, the tuning will stop at the
next station that can be received.
If the TA function (traffic information) is on,
the tuner will only search for stations that
broadcast traffic updates.
MANUAL TUNING
This allows a manual search for stations on
the preselected band.
Select the desired frequency band and then
press the
orbutton briefly and repeat-
edly to start to the search in the desired di-
rection. If the
orbuttons are pressed
for longer, the fast search will start and then
stop when the button is released.
AUTOSTORE FUNCTION
To activate the AutoSTore function, keep the
FM
ASbutton pressed until the acoustic con-
firmation signal. With this function, the ra-
dio automatically stores the 6 stations with
the strongest signal in a decreasing order on
the FMA frequency band.
During the automatic storing process,
“Autostore” will appear flashing on the dis-
play.
To interrupt the Autostore function, press the
FM
ASbutton again: the radio will again tune
into the station listened to before the activa-
tion of the function.
When the AutoSTore function is over, the ra-
dio automatically tunes into the first prese-
lected station on the FMA band on the pre-
setting 1 side.
The stations that have a strong signal at that
moment are then automatically stored in the
preselected band in the buttons numbered
1 to 6.
When the AutoSTore function is activated
within the MW band, the FMA band is au-
tomatically selected and the function is per-
formed.IMPORTANT Sometimes the AutoSTore func-
tion does not manage to find 6 stations with
a strong signal. In this case, the strongest
stations will be duplicated in the free pre-
set buttons.
IMPORTANT When the AutoSTore function is
activated, the stations that were previously
stored on the FMA band are deleted.
SOUND SYSTEM
270

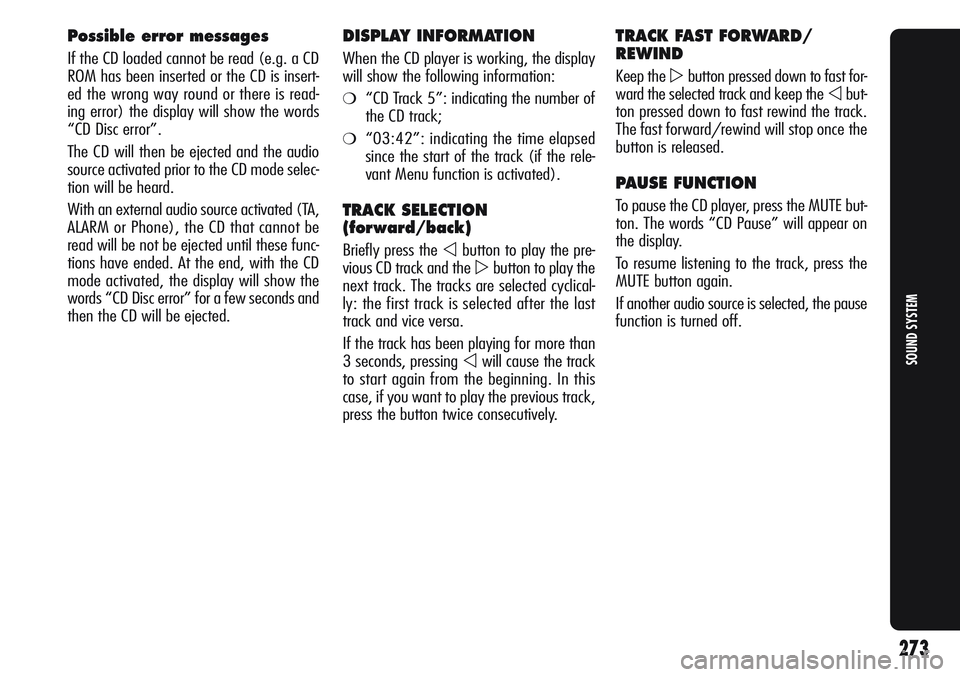

Possible error messages
If the CD loaded cannot be read (e.g. a CD
ROM has been inserted or the CD is insert-
ed the wrong way round or there is read-
ing error) the display will show the words
“CD Disc error”.
The CD will then be ejected and the audio
source activated prior to the CD mode selec-
tion will be heard.
With an external audio source activated (TA,
ALARM or Phone), the CD that cannot be
read will be not be ejected until these func-
tions have ended. At the end, with the CD
mode activated, the display will show the
words “CD Disc error” for a few seconds and
then the CD will be ejected.
DISPLAY INFORMATION
When the CD player is working, the display
will show the following information:
❍“CD Track 5”: indicating the number of
the CD track;
❍“03:42”: indicating the time elapsed
since the start of the track (if the rele-
vant Menu function is activated).
TRACK SELECTION
(forward/back)
Briefly press the button to play the pre-
vious CD track and the
button to play the
next track. The tracks are selected cyclical-
ly: the first track is selected after the last
track and vice versa.
If the track has been playing for more than
3 seconds, pressing
will cause the track
to start again from the beginning. In this
case, if you want to play the previous track,
press the button twice consecutively.
TRACK FAST FORWARD/
REWIND
Keep the button pressed down to fast for-
ward the selected track and keep the
but-
ton pressed down to fast rewind the track.
The fast forward/rewind will stop once the
button is released.
PAUSE FUNCTION
To pause the CD player, press the MUTE but-
ton. The words “CD Pause” will appear on
the display.
To resume listening to the track, press the
MUTE button again.
If another audio source is selected, the pause
function is turned off.
SOUND SYSTEM
273
