key Alfa Romeo Giulietta 2011 Owner handbook (in English)

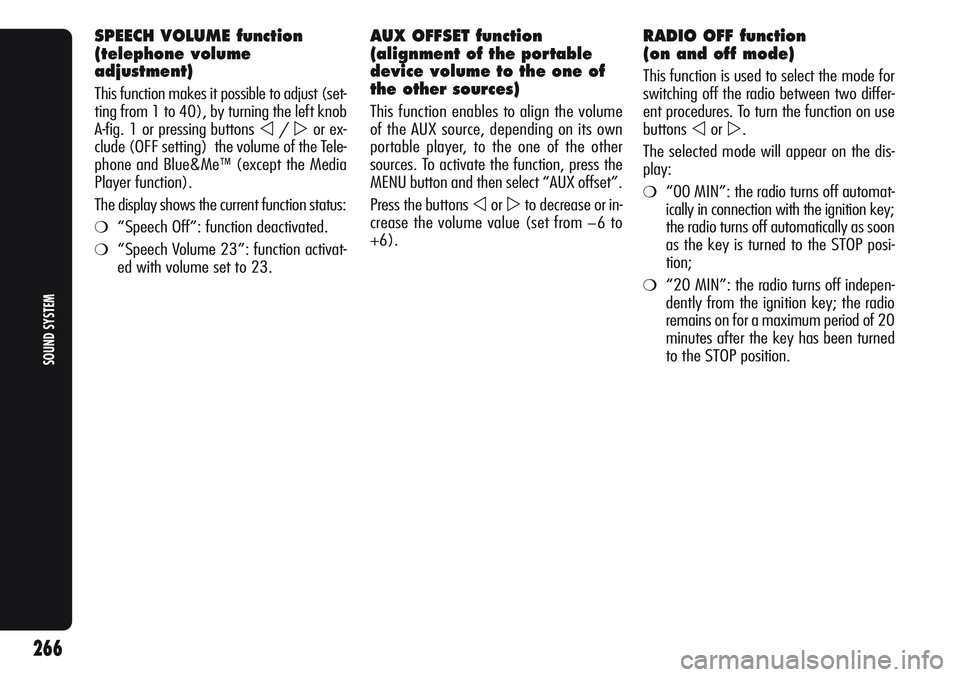

SPEECH VOLUME function
(telephone volume
adjustment)
This function makes it possible to adjust (set-
ting from 1 to 40), by turning the left knob
A-fig. 1 or pressing buttons
/or ex-
clude (OFF setting) the volume of the Tele-
phone and Blue&Me
™(except the Media
Player function).
The display shows the current function status:
❍“Speech Off”: function deactivated.
❍“Speech Volume 23”: function activat-
ed with volume set to 23.
AUX OFFSET function
(alignment of the portable
device volume to the one of
the other sources)
This function enables to align the volume
of the AUX source, depending on its own
portable player, to the one of the other
sources. To activate the function, press the
MENU button and then select “AUX offset”.
Press the buttons
orto decrease or in-
crease the volume value (set from −6 to
+6).
RADIO OFF function
(on and off mode)
This function is used to select the mode for
switching off the radio between two differ-
ent procedures. To turn the function on use
buttons
or.
The selected mode will appear on the dis-
play:
❍“00 MIN”: the radio turns off automat-
ically in connection with the ignition key;
the radio turns off automatically as soon
as the key is turned to the STOP posi-
tion;
❍“20 MIN”: the radio turns off indepen-
dently from the ignition key; the radio
remains on for a maximum period of 20
minutes after the key has been turned
to the STOP position.
SOUND SYSTEM
266

C C
D D
P P
L L
A A
Y Y
E E
R R

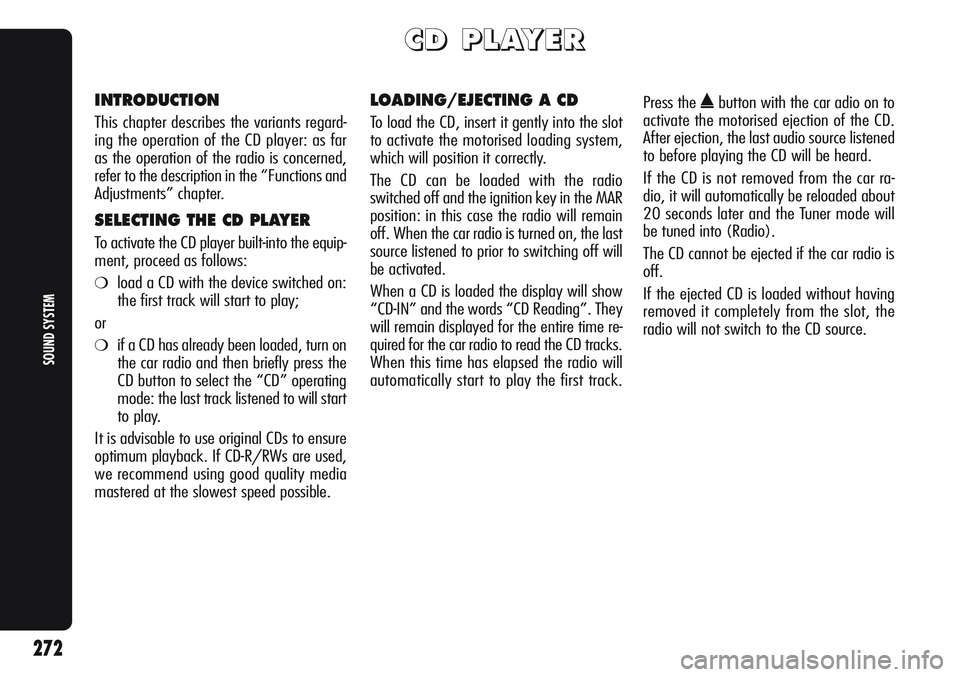

INTRODUCTION
This chapter describes the variants regard-
ing the operation of the CD player: as far
as the operation of the radio is concerned,
refer to the description in the “Functions and
Adjustments” chapter.
SELECTING THE CD PLAYER
To activate the CD player built-into the equip-
ment, proceed as follows:
❍load a CD with the device switched on:
the first track will start to play;
or
❍if a CD has already been loaded, turn on
the car radio and then briefly press the
CD button to select the “CD” operating
mode: the last track listened to will start
to play.
It is advisable to use original CDs to ensure
optimum playback. If CD-R/RWs are used,
we recommend using good quality media
mastered at the slowest speed possible.
LOADING/EJECTING A CD
To load the CD, insert it gently into the slot
to activate the motorised loading system,
which will position it correctly.
The CD can be loaded with the radio
switched off and the ignition key in the MAR
position: in this case the radio will remain
off. When the car radio is turned on, the last
source listened to prior to switching off will
be activated.
When a CD is loaded the display will show
“CD-IN” and the words “CD Reading”. They
will remain displayed for the entire time re-
quired for the car radio to read the CD tracks.
When this time has elapsed the radio will
automatically start to play the first track. Press the
˚button with the car adio on to
activate the motorised ejection of the CD.
After ejection, the last audio source listened
to before playing the CD will be heard.
If the CD is not removed from the car ra-
dio, it will automatically be reloaded about
20 seconds later and the Tuner mode will
be tuned into (Radio).
The CD cannot be ejected if the car radio is
off.
If the ejected CD is loaded without having
removed it completely from the slot, the
radio will not switch to the CD source.
SOUND SYSTEM
272

288
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Headlights.............................. 108
– headlight alignment corrector 108
– light beam direction ............ 108
Heated rear window
(activation) .................... 63-72
Hill Holder system .................... 110
How to save fuel .................... 155
Identification data
– chassis marking ................. 226
– engine marking ................. 226
– identification data plate ....... 225
– paintwork identification plate 226
Ignition switch ........................ 49
– steering lock ...................... 49
In an emergency................ 161
Installing electrical/electronic
devices ................................ 123
Installing navigation system
(set-up)............................... 123
Instrument panel and instruments 4-5
Interior fittings......................... 87Interiors (cleaning) .................. 222
“Isofix” child seat set-up .......... 143
Jack...................................... 163
Keys
– changing remote
control battery ................... 44
– key with remote control ....... 42
– key without remote control ... 42
Light clusters
– front light clusters
(changing a bulb).............. 177
– rear light clusters
(changing a bulb).............. 179
Load limiters .......................... 135
Lubricants (specifications) ... 242-243
Main beam headlights
– bulb replacement ................ 177
– control............................... 75
Manual climate control system .. 60Menu items ........................... 26
Mirror courtesy lights ............... 83
– bulb replacement ................ 184
MSR system........................... 112
Number plate lights
– bulb replacement ................ 181
On board instruments ............. 4-5
– engine coolant
temperature gauge ............. 6
– fuel level indicator .............. 6
– multifunction display ........... 20
– reconfigurable multifunction
display ............................. 21
– rev counter ........................ 6
– speedometer ..................... 6
Parking lights (activation) ....... 74
Parking the car ....................... 153
Performance (top speeds) ........ 237
