WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Radial type tubeless tyres. All approved
tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the information
provided in this “Owner’s handbook” and the “Log book”, con-
sider the specifications shown in the log book only.
Comply with the prescribed size to ensure safety of the car in move-
ment. Fit tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
SPACE SAVER SPARE WHEEL
Pressed steel rim Tubeless tyre.

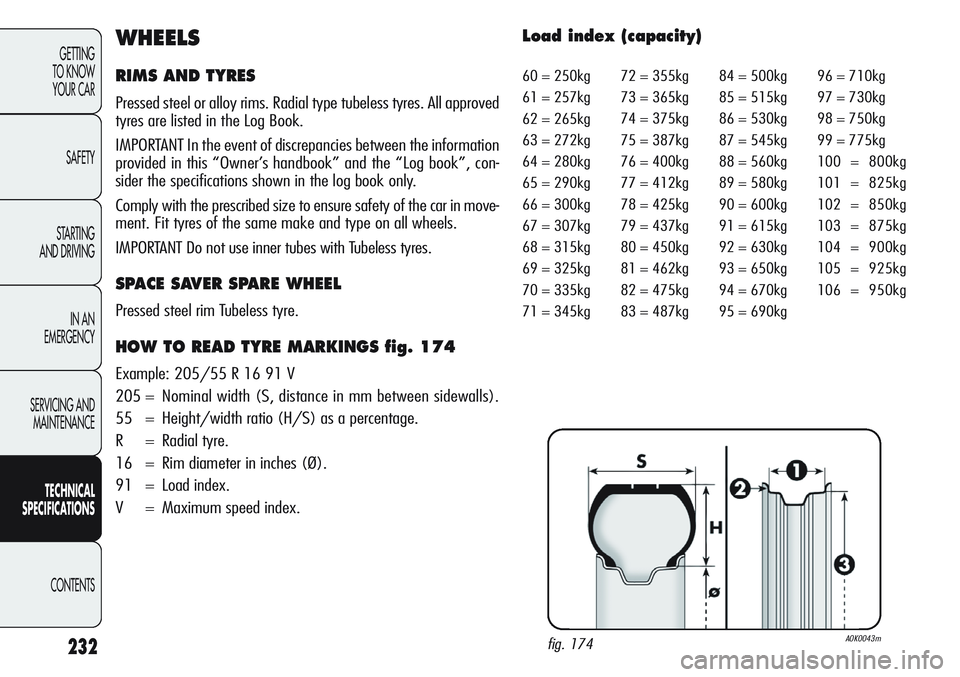

HOW TO READ TYRE MARKINGS fig. 174
Example: 205/55 R 16 91 V
205 = Nominal width (S, distance in mm between sidewalls).
55 = Height/width ratio (H/S) as a percentage.
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load index.
V = Maximum speed index.
Load index (capacity)
fig. 174A0K0043m
60 = 250kg
61 = 257kg
62 = 265kg
63 = 272kg
64 = 280kg
65 = 290kg
66 = 300kg
67 = 307kg
68 = 315kg
69 = 325kg
70 = 335kg
71 = 345kg72 = 355kg
73 = 365kg
74 = 375kg
75 = 387kg
76 = 400kg
77 = 412kg
78 = 425kg
79 = 437kg
80 = 450kg
81 = 462kg
82 = 475kg
83 = 487kg84 = 500kg
85 = 515kg
86 = 530kg
87 = 545kg
88 = 560kg
89 = 580kg
90 = 600kg
91 = 615kg
92 = 630kg
93 = 650kg
94 = 670kg
95 = 690kg96 = 710kg
97 = 730kg
98 = 750kg
99 = 775kg
100 = 800kg
101 = 825kg
102 = 850kg
103 = 875kg
104 = 900kg
105 = 925kg
106 = 950kg
