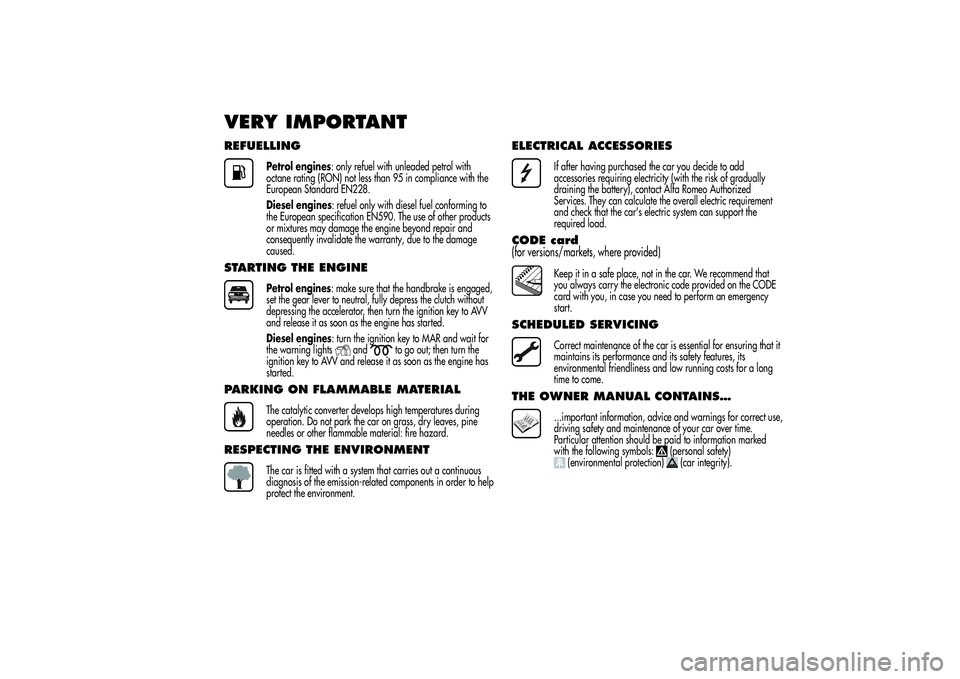

VERY IMPORTANTREFUELLING
Petrol engines: only refuel with unleaded petrol with
octane rating (RON) not less than 95 in compliance with the
European Standard EN228.
Diesel engines: refuel only with diesel fuel conforming to
the European specification EN590. The use of other products
or mixtures may damage the engine beyond repair and
consequently invalidate the warranty, due to the damage
caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged,
set the gear lever to neutral, fully depress the clutch without
depressing the accelerator, then turn the ignition key to AVV
and release it as soon as the engine has started.
Diesel engines: turn the ignition key to MAR and wait for
the warning lights
and
to go out; then turn the
ignition key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during
operation. Do not park the car on grass, dry leaves, pine
needles or other flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a continuous
diagnosis of the emission-related components in order to help
protect the environment.
ELECTRICAL ACCESSORIES
If after having purchased the car you decide to add
accessories requiring electricity (with the risk of gradually
draining the battery), contact Alfa Romeo Authorized
Services. They can calculate the overall electric requirement
and check that the car's electric system can support the
required load.
CODE card(for versions/markets, where provided)
Keep it in a safe place, not in the car. We recommend that
you always carry the electronic code provided on the CODE
card with you, in case you need to perform an emergency
start.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring that it
maintains its performance and its safety features, its
environmental friendliness and low running costs for a long
time to come.
THE OWNER MANUAL CONTAINS…
...important information, advice and warnings for correct use,
driving safety and maintenance of your car over time.
Particular attention should be paid to information marked
with the following symbols:
(personal safety)
(environmental protection)
(car integrity).

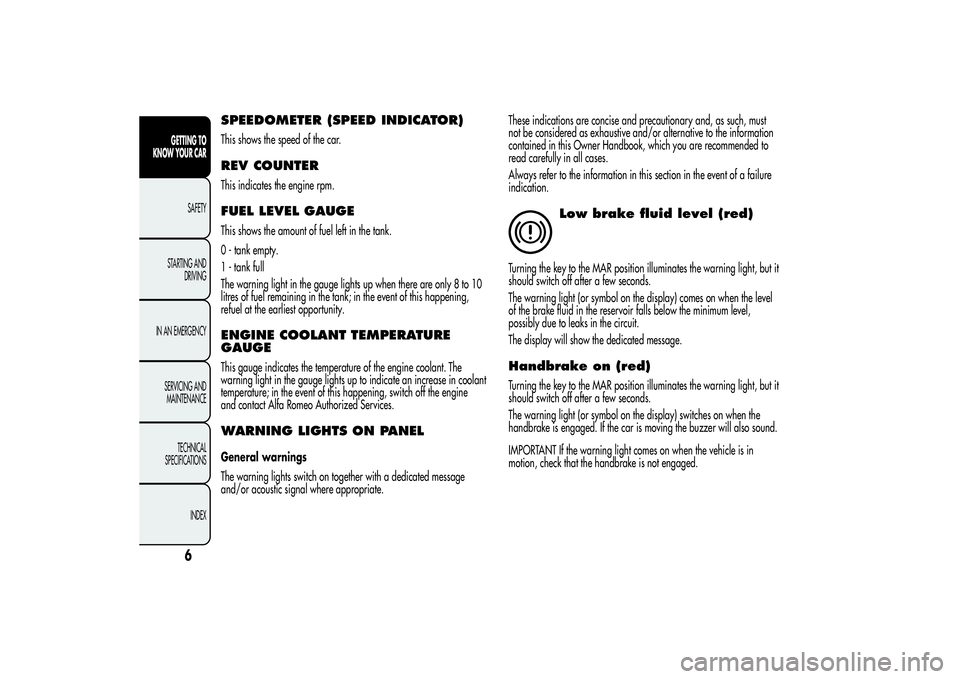

SPEEDOMETER (SPEED INDICATOR)This shows the speed of the car.REV COUNTERThis indicates the engine rpm.FUEL LEVEL GAUGEThis shows the amount of fuel left in the tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 8 to 10
litres of fuel remaining in the tank; in the event of this happening,
refuel at the earliest opportunity.ENGINE COOLANT TEMPERATURE
GAUGEThis gauge indicates the temperature of the engine coolant. The
warning light in the gauge lights up to indicate an increase in coolant
temperature; in the event of this happening, switch off the engine
and contact Alfa Romeo Authorized Services.WARNING LIGHTS ON PANELGeneral warnings
The warning lights switch on together with a dedicated message
and/or acoustic signal where appropriate.These indications are concise and precautionary and, as such, must
not be considered as exhaustive and/or alternative to the information
contained in this Owner Handbook, which you are recommended to
read carefully in all cases.
Always refer to the information in this section in the event of a failure
indication.
Low brake fluid level (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) comes on when the level
of the brake fluid in the reservoir falls below the minimum level,
possibly due to leaks in the circuit.
The display will show the dedicated message.Handbrake on (red)Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) switches on when the
handbrake is engaged. If the car is moving the buzzer will also sound.
IMPORTANT If the warning light comes on when the vehicle is in
motion, check that the handbrake is not engaged.
6
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

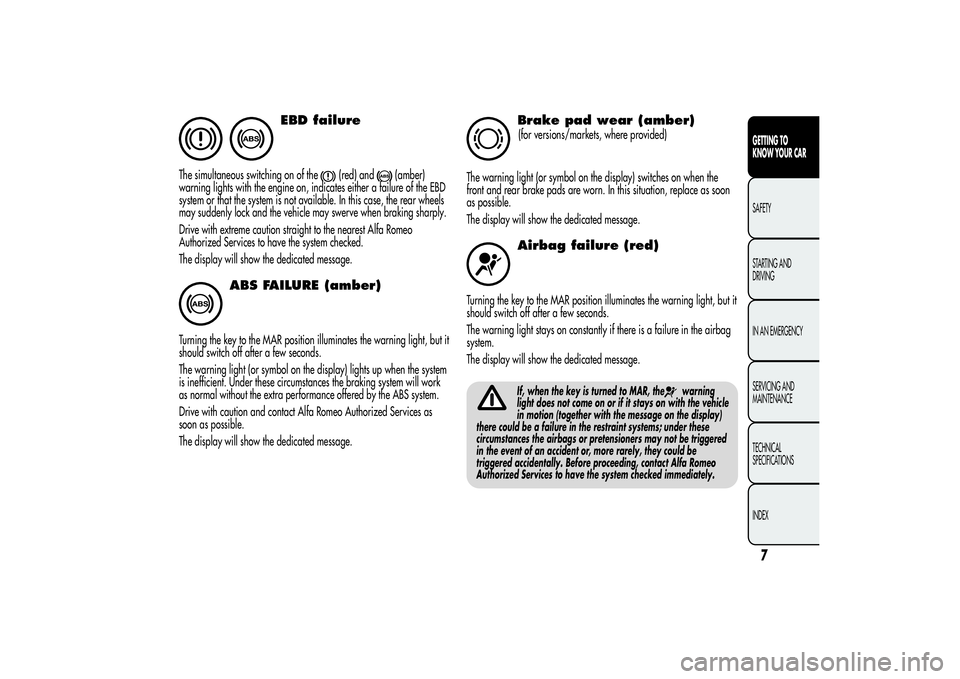

EBD failure
The simultaneous switching on of the
(red) and
(amber)
warning lights with the engine on, indicates either a failure of the EBD
system or that the system is not available. In this case, the rear wheels
may suddenly lock and the vehicle may swerve when braking sharply.
Drive with extreme caution straight to the nearest Alfa Romeo
Authorized Services to have the system checked.
The display will show the dedicated message.
ABS FAILURE (amber)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) lights up when the system
is inefficient. Under these circumstances the braking system will work
as normal without the extra performance offered by the ABS system.
Drive with caution and contact Alfa Romeo Authorized Services as
soon as possible.
The display will show the dedicated message.
Brake pad wear (amber)(for versions/markets, where provided)
The warning light (or symbol on the display) switches on when the
front and rear brake pads are worn. In this situation, replace as soon
as possible.
The display will show the dedicated message.Airbag failure (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light stays on constantly if there is a failure in the airbag
system.
The display will show the dedicated message.
If, when the key is turned to MAR, the
warning
light does not come on or if it stays on with the vehicle
in motion (together with the message on the display)
there could be a failure in the restraint systems; under these
circumstances the airbags or pretensioners may not be triggered
in the event of an accident or, more rarely, they could be
triggered accidentally. Before proceeding, contact Alfa Romeo
Authorized Services to have the system checked immediately.
7GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The failure of the
warning light is indicated by the
flashing, for more than the normal 4 seconds, of the
front passenger airbag deactivated warning light
.
In addition, the airbag system automatically disables the airbags
on the passenger’s side (front airbag and side bags for
versions/markets, where provided). In this case, the
warning
light may not indicate a fault in the restraint systems. Before
proceeding, contact Alfa Romeo Authorized Services to have the
system checked immediately.

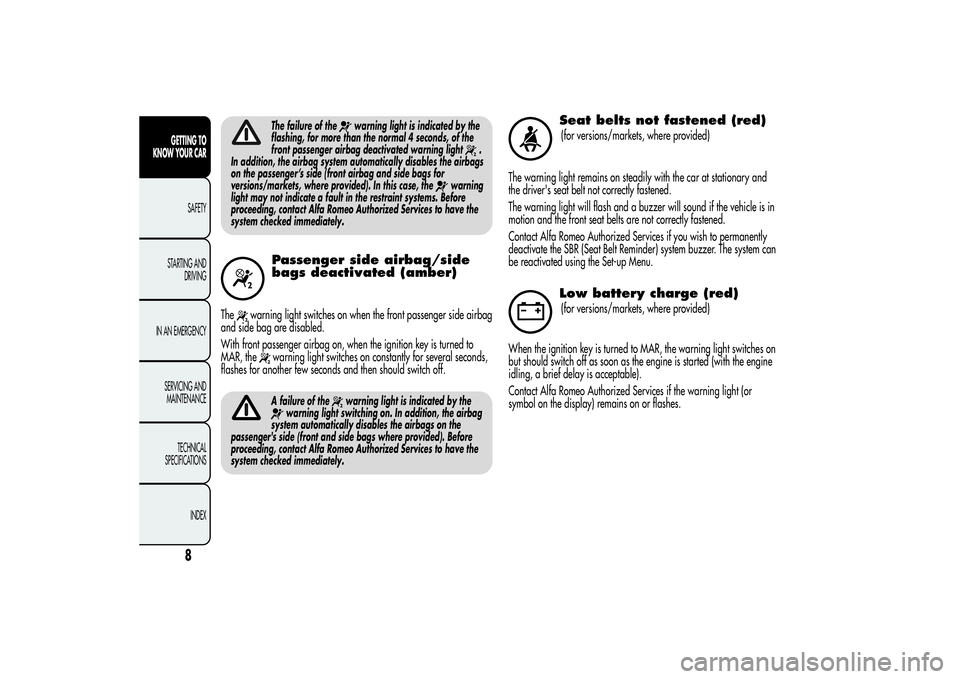

Passenger side airbag/side
bags deactivated (amber)
The
warning light switches on when the front passenger side airbag
and side bag are disabled.
With front passenger airbag on, when the ignition key is turned to
MAR, the
warning light switches on constantly for several seconds,
flashes for another few seconds and then should switch off.A failure of the
warning light is indicated by the
warning light switching on. In addition, the airbag
system automatically disables the airbags on the
passenger's side (front and side bags where provided). Before
proceeding, contact Alfa Romeo Authorized Services to have the
system checked immediately.
Seat belts not fastened (red)(for versions/markets, where provided)
The warning light remains on steadily with the car at stationary and
the driver's seat belt not correctly fastened.
The warning light will flash and a buzzer will sound if the vehicle is in
motion and the front seat belts are not correctly fastened.
Contact Alfa Romeo Authorized Services if you wish to permanently
deactivate the SBR (Seat Belt Reminder) system buzzer. The system can
be reactivated using the Set-up Menu.Low battery charge (red)(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning light switches on
but should switch off as soon as the engine is started (with the engine
idling, a brief delay is acceptable).
Contact Alfa Romeo Authorized Services if the warning light (or
symbol on the display) remains on or flashes.
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒use of the car for short drives, in which the engine does not have
time to reach its regular operating temperature;
❒repeated interruption of the regeneration process, signalled by the
DPF warning light coming on.
If the warning light switches on, the deteriorated
engine oil must be changed as soon as possible, and
never more than 500 km from the first time that the
warning light switches on. Failure to observe the above may
result in severe damage to the engine and invalidate the
warranty. Remember that the operation of this warning light is
not related to the amount of oil in the engine. Therefore, never
top up with oil when the warning light starts flashing.Engine coolant overheating
(red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light turns on when the engine is overheated.
The display will show the dedicated message.
If the warning light comes on when driving, proceed as follows:
❒normal driving conditions: stop the car, switch off the engine and
check that the water level in the reservoir is not below the MIN
mark. In this case, wait for a few minutes for the engine to cool
down, then slowly and carefully open the cap, top up with coolant
and check that the level is between the MIN and MAX reference
on the reservoir itself. Also check visually for any fluid leaks. If the
warning light comes on again at the next engine start-up, contact
Alfa Romeo Authorized Services.❒If the car is used under demanding conditions (e.g. towing trailers
uphill or fully loaded): slow down and, if the light stays on, stop
the car. Stand for 2 or 3 minutes with the engine running and
slightly accelerated to promote a better circulation of coolant. Then
stop the engine. Check the correct liquid level as described above.
IMPORTANT Under severe use of the car, it is advisable to keep the
engine on and slightly accelerated for a few minutes before switching it
off.
Doors not closed correctly
(red)(for versions/markets, where provided)
The warning light (or symbol on the display) lights up when one or
more doors or the tailgate are not closed correctly. An acoustic signal
is activated with the doors open and the car moving.
On some versions the warning light (or symbol on the display) also
lights up when the bonnet is not closed correctly.EOBD/injection system failure
(amber)
Under normal conditions, when the ignition key is turned to MAR-ON,
the warning light switches on, but should switch off as soon as the
engine is started.
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

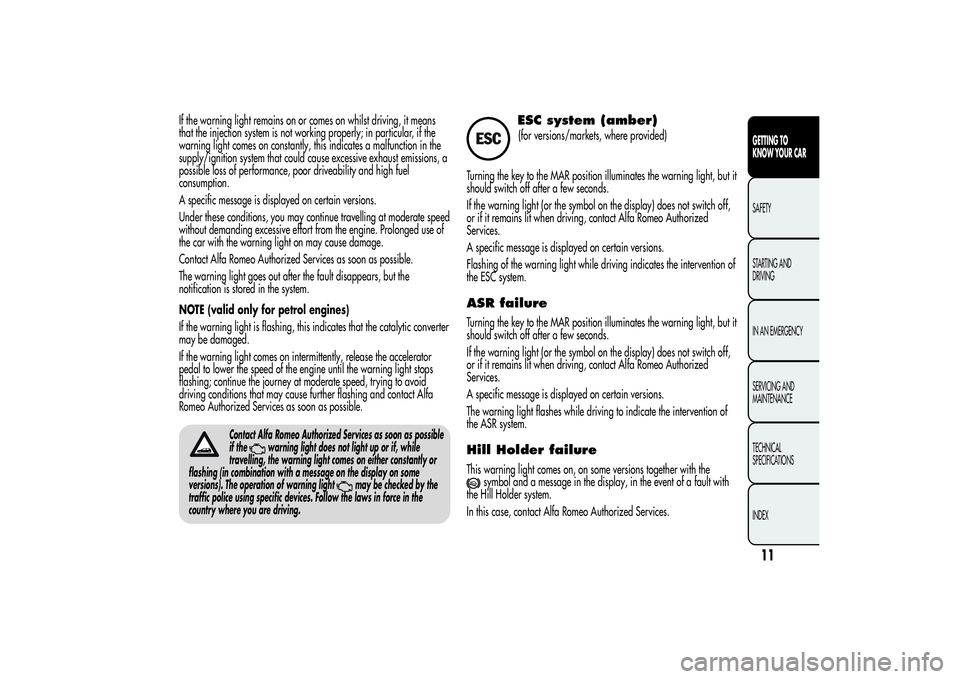

If the warning light remains on or comes on whilst driving, it means
that the injection system is not working properly; in particular, if the
warning light comes on constantly, this indicates a malfunction in the
supply/ignition system that could cause excessive exhaust emissions, a
possible loss of performance, poor driveability and high fuel
consumption.
A specific message is displayed on certain versions.
Under these conditions, you may continue travelling at moderate speed
without demanding excessive effort from the engine. Prolonged use of
the car with the warning light on may cause damage.
Contact Alfa Romeo Authorized Services as soon as possible.
The warning light goes out after the fault disappears, but the
notification is stored in the system.
NOTE (valid only for petrol engines)
If the warning light is flashing, this indicates that the catalytic converter
may be damaged.
If the warning light comes on intermittently, release the accelerator
pedal to lower the speed of the engine until the warning light stops
flashing; continue the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing and contact Alfa
Romeo Authorized Services as soon as possible.
Contact Alfa Romeo Authorized Services as soon as possible
if the
warning light does not light up or if, while
travelling, the warning light comes on either constantly or
flashing (in combination with a message on the display on some
versions). The operation of warning light
may be checked by the
traffic police using specific devices. Follow the laws in force in the
country where you are driving.
ESC system (amber)(for versions/markets, where provided)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or the symbol on the display) does not switch off,
or if it remains lit when driving, contact Alfa Romeo Authorized
Services.
A specific message is displayed on certain versions.
Flashing of the warning light while driving indicates the intervention of
the ESC system.
ASR failureTurning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or the symbol on the display) does not switch off,
or if it remains lit when driving, contact Alfa Romeo Authorized
Services.
A specific message is displayed on certain versions.
The warning light flashes while driving to indicate the intervention of
the ASR system.Hill Holder failureThis warning light comes on, on some versions together with the
symbol and a message in the display, in the event of a fault with
the Hill Holder system.
In this case, contact Alfa Romeo Authorized Services.
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

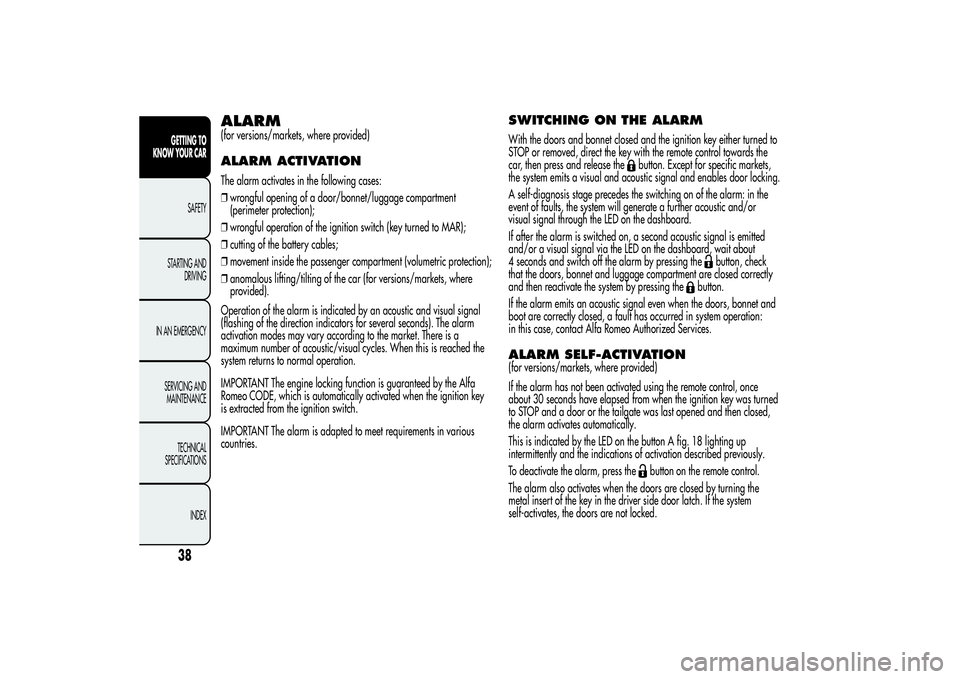

ALARM(for versions/markets, where provided)ALARM ACTIVATIONThe alarm activates in the following cases:
❒wrongful opening of a door/bonnet/luggage compartment
(perimeter protection);
❒wrongful operation of the ignition switch (key turned to MAR);
❒cutting of the battery cables;
❒movement inside the passenger compartment (volumetric protection);
❒anomalous lifting/tilting of the car (for versions/markets, where
provided).
Operation of the alarm is indicated by an acoustic and visual signal
(flashing of the direction indicators for several seconds). The alarm
activation modes may vary according to the market. There is a
maximum number of acoustic/visual cycles. When this is reached the
system returns to normal operation.
IMPORTANT The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated when the ignition key
is extracted from the ignition switch.
IMPORTANT The alarm is adapted to meet requirements in various
countries.
SWITCHING ON THE ALARMWith the doors and bonnet closed and the ignition key either turned to
STOP or removed, direct the key with the remote control towards the
car, then press and release the
button. Except for specific markets,
the system emits a visual and acoustic signal and enables door locking.
A self-diagnosis stage precedes the switching on of the alarm: in the
event of faults, the system will generate a further acoustic and/or
visual signal through the LED on the dashboard.
If after the alarm is switched on, a second acoustic signal is emitted
and/or a visual signal via the LED on the dashboard, wait about
4 seconds and switch off the alarm by pressing the
button, check
that the doors, bonnet and luggage compartment are closed correctly
and then reactivate the system by pressing the
button.
If the alarm emits an acoustic signal even when the doors, bonnet and
boot are correctly closed, a fault has occurred in system operation:
in this case, contact Alfa Romeo Authorized Services.
ALARM SELF-ACTIVATION(for versions/markets, where provided)
If the alarm has not been activated using the remote control, once
about 30 seconds have elapsed from when the ignition key was turned
to STOP and a door or the tailgate was last opened and then closed,
the alarm activates automatically.
This is indicated by the LED on the button A fig. 18 lighting up
intermittently and the indications of activation described previously.
To deactivate the alarm, press the
button on the remote control.
The alarm also activates when the doors are closed by turning the
metal insert of the key in the driver side door latch. If the system
self-activates, the doors are not locked.
38GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

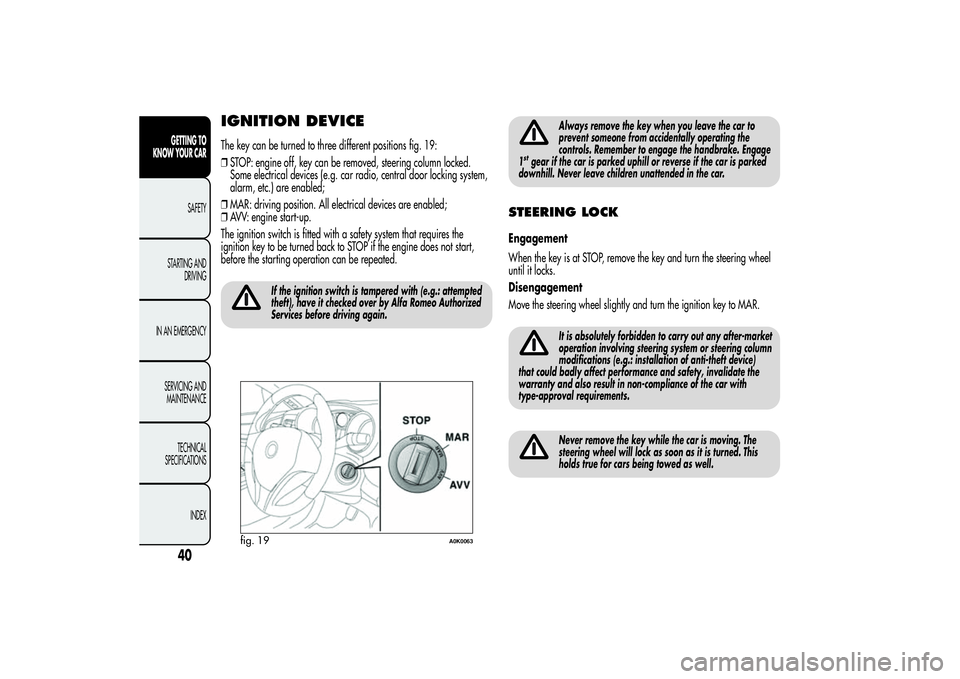

IGNITION DEVICEThe key can be turned to three different positions fig. 19:
❒STOP: engine off, key can be removed, steering column locked.
Some electrical devices (e.g. car radio, central door locking system,
alarm, etc.) are enabled;
❒MAR: driving position. All electrical devices are enabled;
❒AVV: engine start-up.
The ignition switch is fitted with a safety system that requires the
ignition key to be turned back to STOP if the engine does not start,
before the starting operation can be repeated.
If the ignition switch is tampered with (e.g.: attempted
theft), have it checked over by Alfa Romeo Authorized
Services before driving again.
Always remove the key when you leave the car to
prevent someone from accidentally operating the
controls. Remember to engage the handbrake. Engage
1
stgear if the car is parked uphill or reverse if the car is parked
downhill. Never leave children unattended in the car.
STEERING LOCKEngagement
When the key is at STOP, remove the key and turn the steering wheel
until it locks.
Disengagement
Move the steering wheel slightly and turn the ignition key to MAR.
It is absolutely forbidden to carry out any after-market
operation involving steering system or steering column
modifications (e.g.: installation of anti-theft device)
that could badly affect performance and safety, invalidate the
warranty and also result in non-compliance of the car with
type-approval requirements.Never remove the key while the car is moving. The
steering wheel will lock as soon as it is turned. This
holds true for cars being towed as well.
fig. 19
A0K0063
40GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

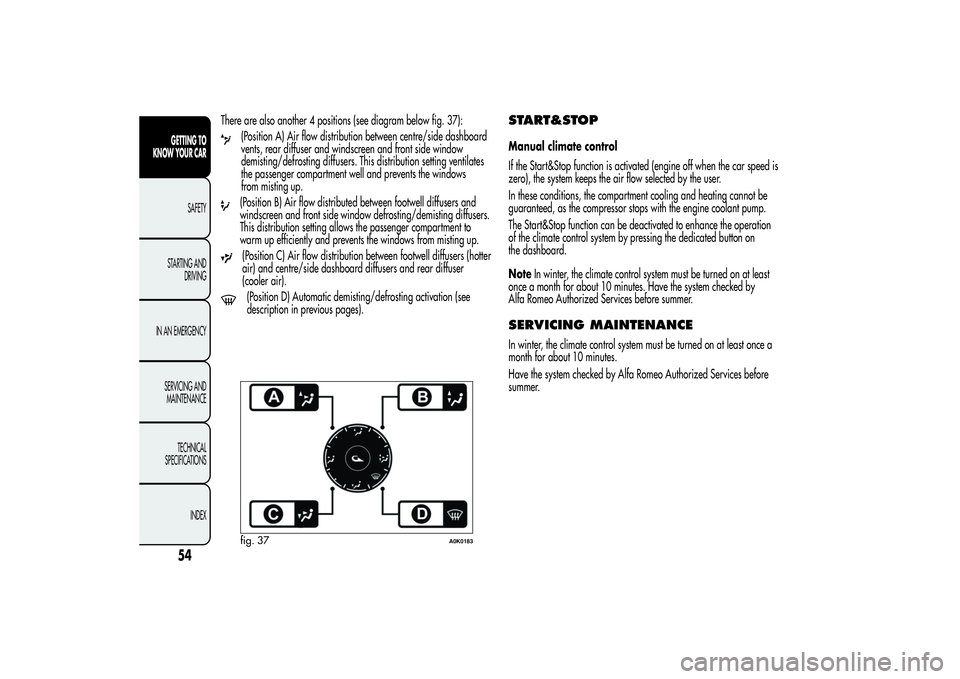

There are also another 4 positions (see diagram below fig. 37):
(Position A) Air flow distribution between centre/side dashboard
vents, rear diffuser and windscreen and front side window
demisting/defrosting diffusers. This distribution setting ventilates
the passenger compartment well and prevents the windows
from misting up.(Position B) Air flow distributed between footwell diffusers and
windscreen and front side window defrosting/demisting diffusers.
This distribution setting allows the passenger compartment to
warm up efficiently and prevents the windows from misting up.(Position C) Air flow distribution between footwell diffusers (hotter
air) and centre/side dashboard diffusers and rear diffuser
(cooler air).(Position D) Automatic demisting/defrosting activation (see
description in previous pages).
START&STOPManual climate control
If the Start&Stop function is activated (engine off when the car speed is
zero), the system keeps the air flow selected by the user.
In these conditions, the compartment cooling and heating cannot be
guaranteed, as the compressor stops with the engine coolant pump.
The Start&Stop function can be deactivated to enhance the operation
of the climate control system by pressing the dedicated button on
the dashboard.
NoteIn winter, the climate control system must be turned on at least
once a month for about 10 minutes. Have the system checked by
Alfa Romeo Authorized Services before summer.SERVICING MAINTENANCEIn winter, the climate control system must be turned on at least once a
month for about 10 minutes.
Have the system checked by Alfa Romeo Authorized Services before
summer.
fig. 37
A0K0183
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

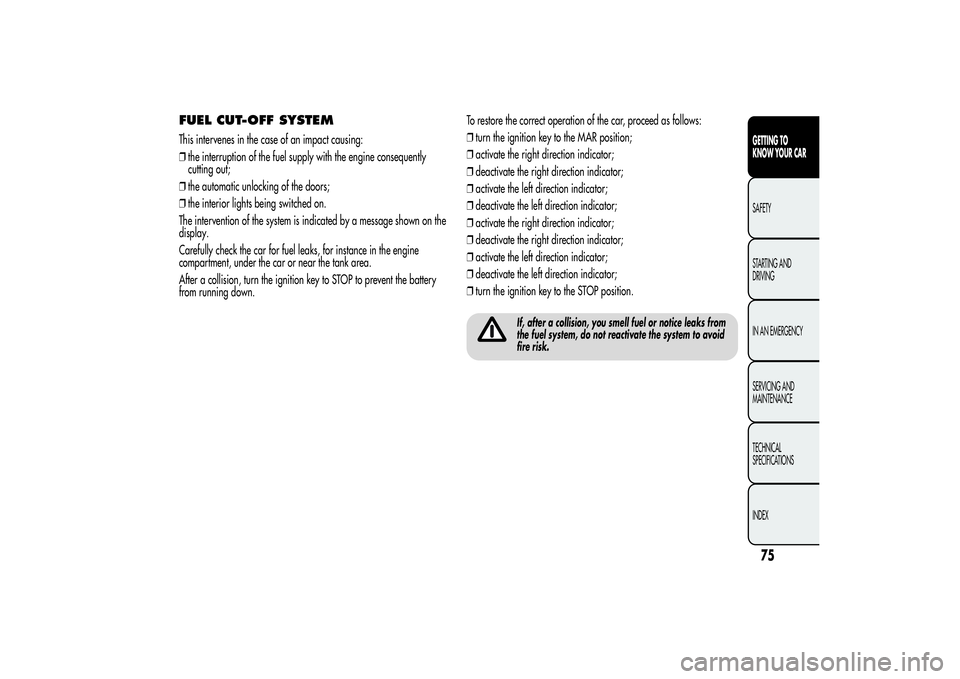

FUEL CUT-OFF SYSTEMThis intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the engine consequently
cutting out;
❒the automatic unlocking of the doors;
❒the interior lights being switched on.
The intervention of the system is indicated by a message shown on the
display.
Carefully check the car for fuel leaks, for instance in the engine
compartment, under the car or near the tank area.
After a collision, turn the ignition key to STOP to prevent the battery
from running down.To restore the correct operation of the car, proceed as follows:
❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.
If, after a collision, you smell fuel or notice leaks from
the fuel system, do not reactivate the system to avoid
fire risk.
75GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
