OWNER HANDBOOK
ENGLISH
Alfa Services
Cop Alfa Giulietta GB:Alfa 159 cop. LUM GB 11-01-2012 16:41 Pagina 1

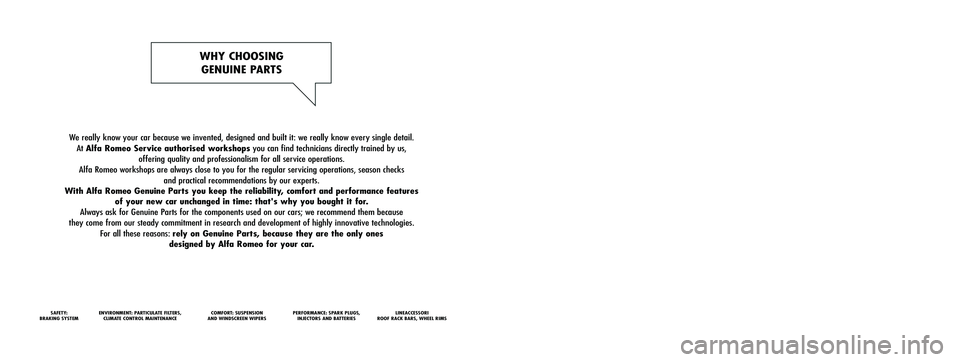

We really know your car because we invented, designed and built it: we really know every single detail.
At Alfa Romeo Service authorised workshopsyou can find technicians directly trained by us,
offering quality and professionalism for all service operations.
Alfa Romeo workshops are always close to you for the regular servicing operations, season checks
and practical recommendations by our experts.
With Alfa Romeo Genuine Parts you keep the reliability, comfort and performance features
of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we recommend them because
they come from our steady commitment in research and development of highly innovative technologies.
For all these reasons: rely on Genuine Parts, because they are the only ones
designed by Alfa Romeo for your car.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL MAINTENANCECOMFORT: SUSPENSION
AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS,
INJECTORS AND BATTERIESLINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
Cop Alfa Giulietta GB:Alfa 159 cop. LUM GB 11-01-2012 16:41 Pagina 2

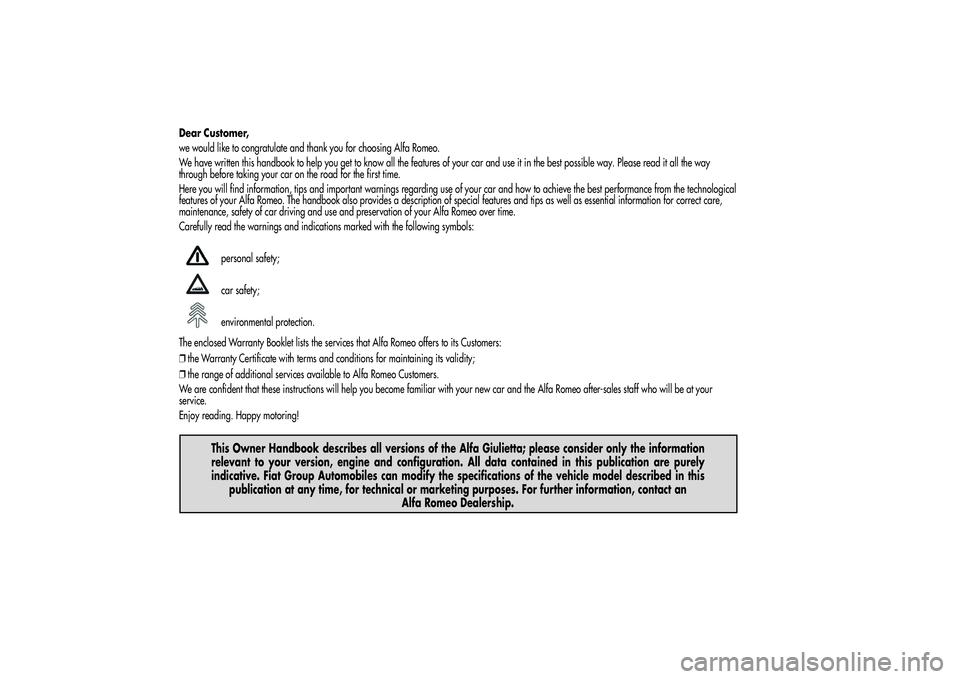

Dear Customer,
we would like to congratulate and thank you for choosing Alfa Romeo.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way. Please read it all the way
through before taking your car on the road for the first time.
Here you will find information, tips and important warnings regarding use of your car and how to achieve the best performance from the technological
features of your Alfa Romeo. The handbook also provides a description of special features and tips as well as essential information for correct care,
maintenance, safety of car driving and use and preservation of your Alfa Romeo over time.
Carefully read the warnings and indications marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Alfa Romeo offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity;
❒the range of additional services available to Alfa Romeo Customers.
We are confident that these instructions will help you become familiar with your new car and the Alfa Romeo after-sales staff who will be at your
service.
Enjoy reading. Happy motoring!
This Owner Handbook describes all versions of the Alfa Giulietta; please consider only the information
relevant to your version, engine and configuration. All data contained in this publication are purely
indicative. Fiat Group Automobiles can modify the specifications of the vehicle model described in this
publication at any time, for technical or marketing purposes. For further information, contact an
Alfa Romeo Dealership.

VERY IMPORTANTREFUELLING
Petrol engines: only refuel with unleaded petrol with
octane rating (RON) not less than 95 in compliance with the
European Standard EN228.
Diesel engines: refuel only with diesel fuel conforming to
the European specification EN590. The use of other products
or mixtures may damage the engine beyond repair and
consequently invalidate the warranty, due to the damage
caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged,
set the gear lever to neutral, fully depress the clutch without
depressing the accelerator, then turn the ignition key to AVV
and release it as soon as the engine has started.
Diesel engines: turn the ignition key to MAR and wait for
the warning lights
and
to go out; then turn the
ignition key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during
operation. Do not park the car on grass, dry leaves, pine
needles or other flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a continuous
diagnosis of the emission-related components in order to help
protect the environment.
ELECTRICAL ACCESSORIES
If after having purchased the car you decide to add
accessories requiring electricity (with the risk of gradually
draining the battery), contact Alfa Romeo Authorized
Services. They can calculate the overall electric requirement
and check that the car's electric system can support the
required load.
CODE card(for versions/markets, where provided)
Keep it in a safe place, not in the car. We recommend that
you always carry the electronic code provided on the CODE
card with you, in case you need to perform an emergency
start.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring that it
maintains its performance and its safety features, its
environmental friendliness and low running costs for a long
time to come.
THE OWNER MANUAL CONTAINS…
...important information, advice and warnings for correct use,
driving safety and maintenance of your car over time.
Particular attention should be paid to information marked
with the following symbols:
(personal safety)
(environmental protection)
(car integrity).

GETTING TO KNOW YOUR CAR
DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.1. Fixed vent for directing air to the side windows 2. Adjustable air vent 3. Exterior light control lever 4. Instrument panel 5. Windscreen wiper/rear
window wiper/trip computer control lever 6. Adjustable upper vents 7. Radio navigator display (for versions/markets, where provided) 8. Hazard
warning lights 9. Passenger front airbag 10. Glove compartment 11. Adjustable central air vents 12. Car radio (for versions/markets, where provided)
13. Heating/ventilation/climate control system controls 14. Gear lever 15. "Alfa DNA" system 16. Control buttons: fog lights/rear fog lights,
Start&Stop system (for versions/markets, where provided), door lock/unlock, AFS light on/off (for versions/markets, where provided) 17. Ignition
device 18. Driver front airbag 19. Cruise Control lever (for versions/markets, where provided) 20. Headlight alignment corrector (for versions/markets,
where provided) and Set Up Menu access buttons.
fig. 1
A0K0074
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

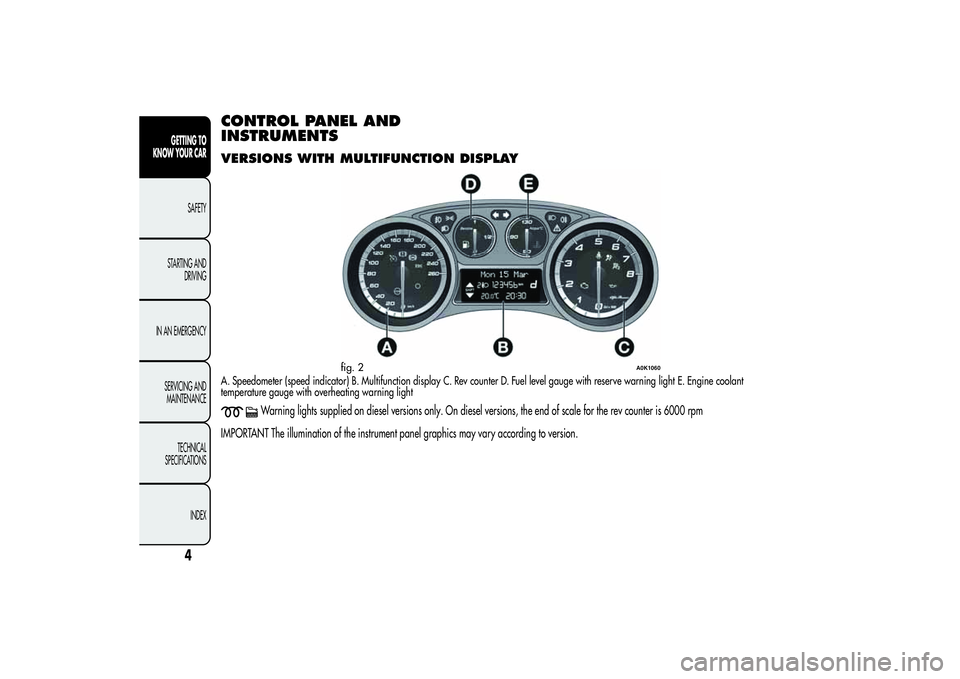

CONTROL PANEL AND
INSTRUMENTSVERSIONS WITH MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) B. Multifunction display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine coolant
temperature gauge with overheating warning light
Warning lights supplied on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
fig. 2
A0K1060
4
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

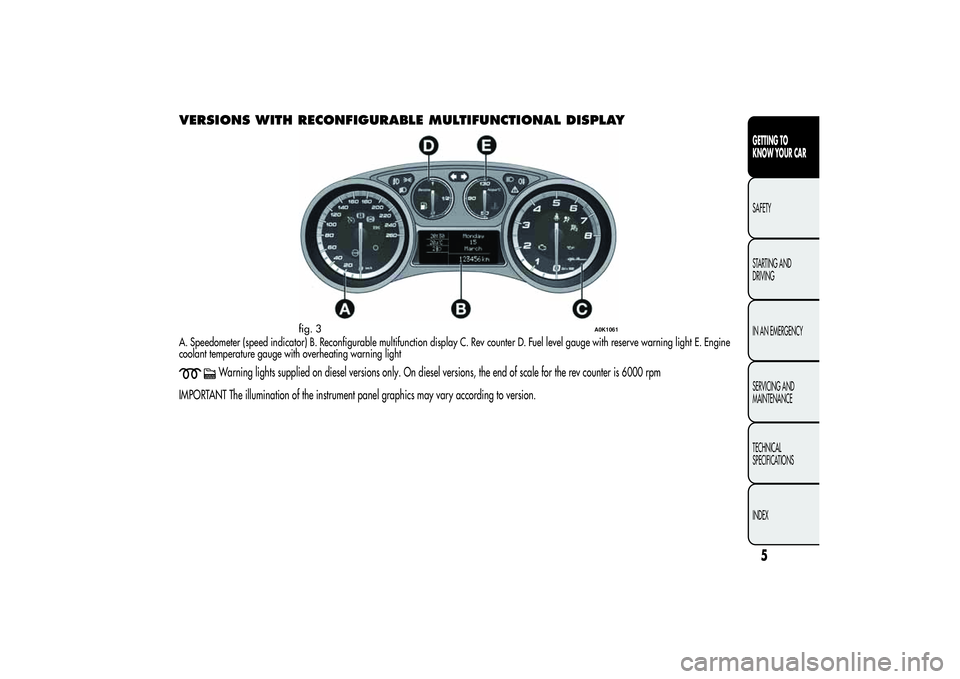

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAYA. Speedometer (speed indicator) B. Reconfigurable multifunction display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine
coolant temperature gauge with overheating warning light
Warning lights supplied on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
fig. 3
A0K1061
5GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SPEEDOMETER (SPEED INDICATOR)This shows the speed of the car.REV COUNTERThis indicates the engine rpm.FUEL LEVEL GAUGEThis shows the amount of fuel left in the tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 8 to 10
litres of fuel remaining in the tank; in the event of this happening,
refuel at the earliest opportunity.ENGINE COOLANT TEMPERATURE
GAUGEThis gauge indicates the temperature of the engine coolant. The
warning light in the gauge lights up to indicate an increase in coolant
temperature; in the event of this happening, switch off the engine
and contact Alfa Romeo Authorized Services.WARNING LIGHTS ON PANELGeneral warnings
The warning lights switch on together with a dedicated message
and/or acoustic signal where appropriate.These indications are concise and precautionary and, as such, must
not be considered as exhaustive and/or alternative to the information
contained in this Owner Handbook, which you are recommended to
read carefully in all cases.
Always refer to the information in this section in the event of a failure
indication.
Low brake fluid level (red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) comes on when the level
of the brake fluid in the reservoir falls below the minimum level,
possibly due to leaks in the circuit.
The display will show the dedicated message.Handbrake on (red)Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light (or symbol on the display) switches on when the
handbrake is engaged. If the car is moving the buzzer will also sound.
IMPORTANT If the warning light comes on when the vehicle is in
motion, check that the handbrake is not engaged.
