Alfa Romeo Giulietta 2016 Owner's Manual

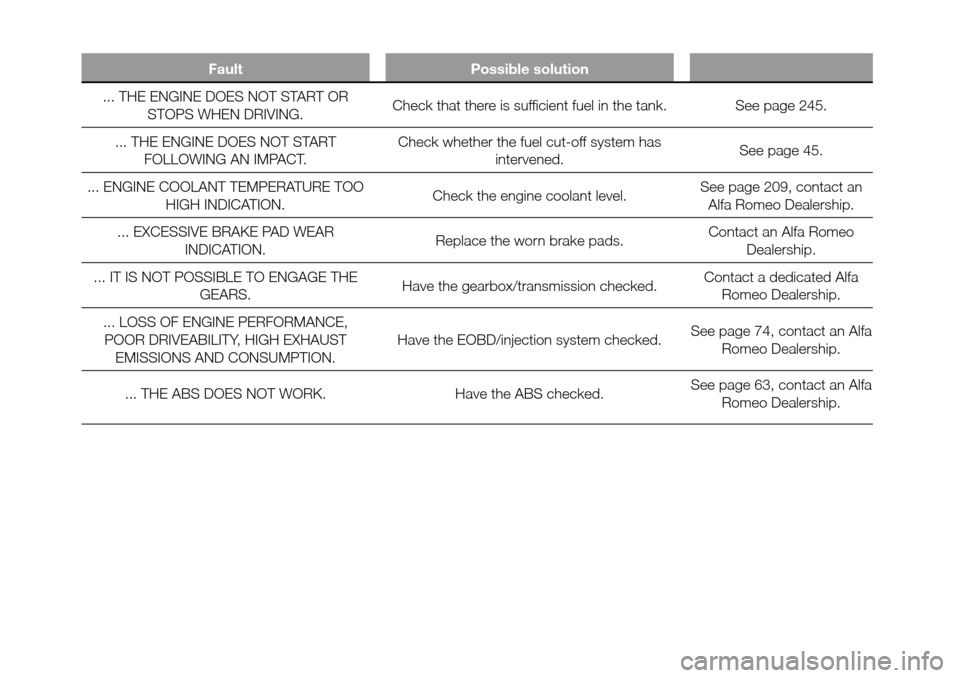

Fault Possible solution
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank. See page 245.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Check whether the fuel cut-off system has
intervened.See page 45.
... ENGINE COOLANT TEMPERATURE TOO
HIGH INDICATION.Check the engine coolant level.See page 209, contact an
Alfa Romeo Dealership.
... EXCESSIVE BRAKE PAD WEAR
INDICATION.Replace the worn brake pads.Contact an Alfa Romeo
Dealership.
... IT IS NOT POSSIBLE TO ENGAGE THE
GEARS.Have the gearbox/transmission checked.Contact a dedicated Alfa
Romeo Dealership.
... LOSS OF ENGINE PERFORMANCE,
POOR DRIVEABILITY, HIGH EXHAUST
EMISSIONS AND CONSUMPTION.Have the EOBD/injection system checked.See page 74, contact an Alfa
Romeo Dealership.
... THE ABS DOES NOT WORK. Have the ABS checked.See page 63, contact an Alfa
Romeo Dealership.

This page is intentionally left blank

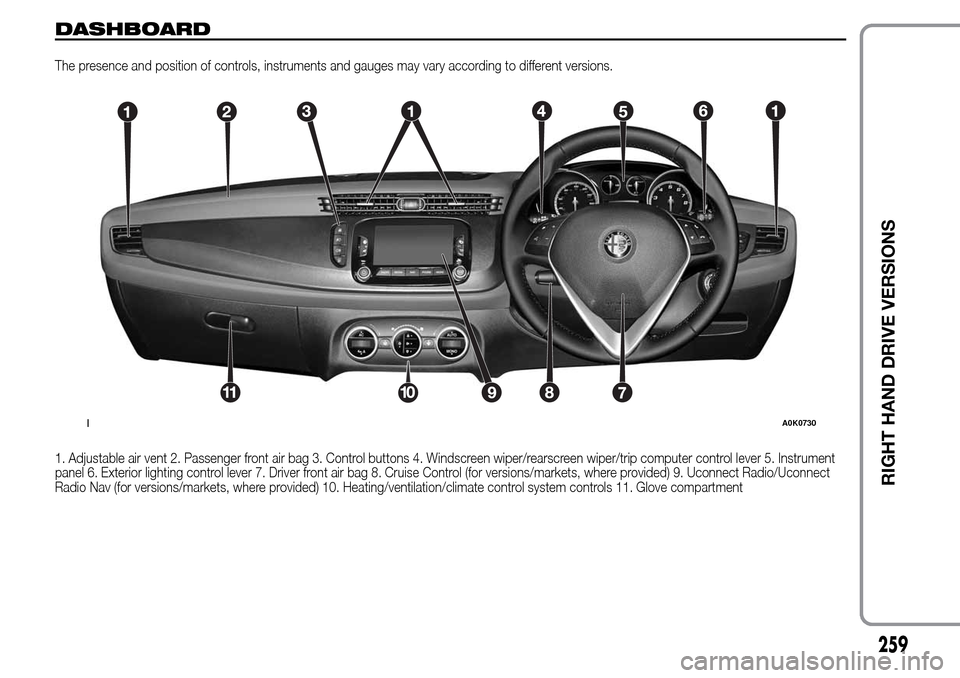

DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Adjustable air vent 2. Passenger front air bag 3. Control buttons 4. Windscreen wiper/rearscreen wiper/trip computer control lever 5. Instrument
panel 6. Exterior lighting control lever 7. Driver front air bag 8. Cruise Control (for versions/markets, where provided) 9. Uconnect Radio/Uconnect
Radio Nav (for versions/markets, where provided) 10. Heating/ventilation/climate control system controls 11. Glove compartment
1A0K0730
259
RIGHT HAND DRIVE VERSIONS

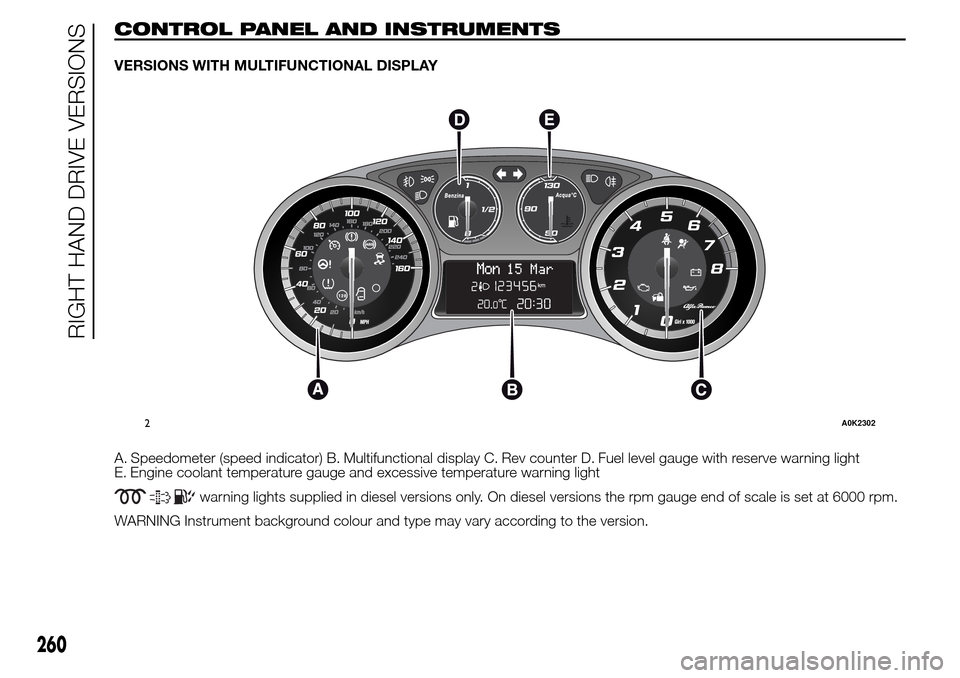

CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTIONAL DISPLAY
A. Speedometer (speed indicator) B. Multifunctional display C. Rev counter D. Fuel level gauge with reserve warning light
E. Engine coolant temperature gauge and excessive temperature warning light
warning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm.
WARNING Instrument background colour and type may vary according to the version.
2A0K2302
260
RIGHT HAND DRIVE VERSIONS

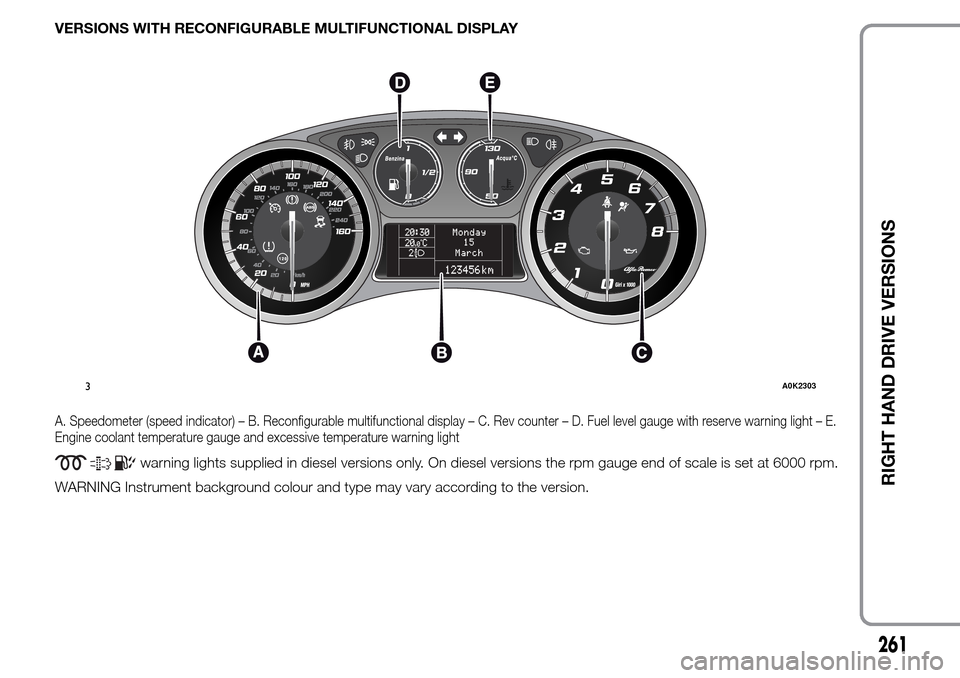

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
A. Speedometer (speed indicator) – B. Reconfigurable multifunctional display – C. Rev counter – D. Fuel level gauge with reserve warning light – E.
Engine coolant temperature gauge and excessive temperature warning light
warning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm.
WARNING Instrument background colour and type may vary according to the version.
3A0K2303
261
RIGHT HAND DRIVE VERSIONS

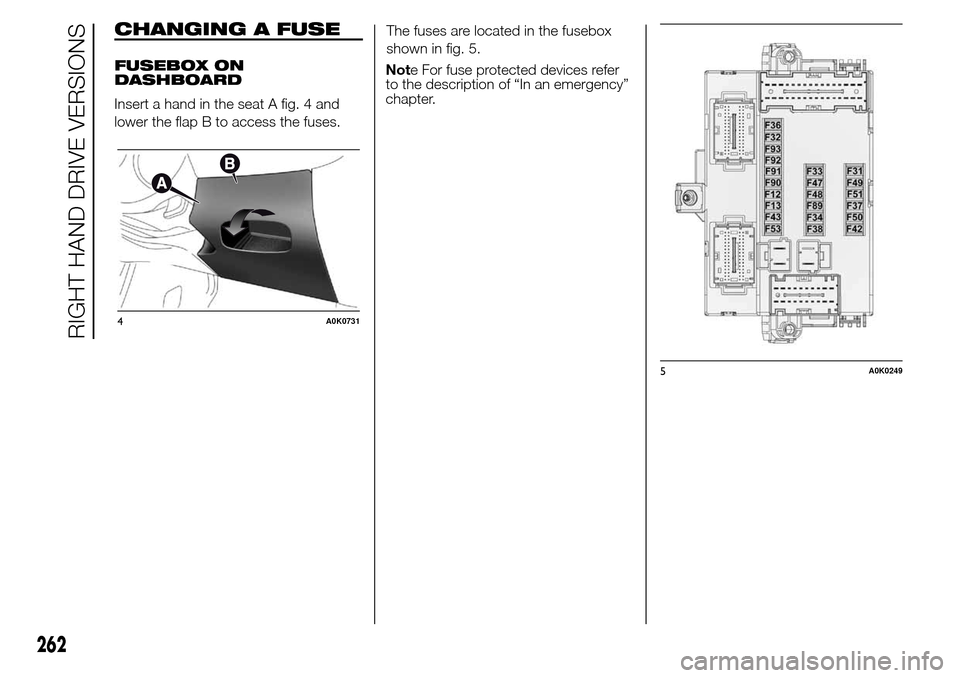

CHANGING A FUSE
FUSEBOX ON
DASHBOARD
Insert a hand in the seat A fig. 4 and
lower the flap B to access the fuses.The fuses are located in the fusebox
shown in fig. 5.
Not
to the description of “In an emergency”
chapter.
4A0K0731
5A0K0249
2
RIGHT HAND DRIVE VERSIONS
e For fuse protected devices refer
62

NOTES
