Alfa Romeo Giulietta 2016 Owner's Manual

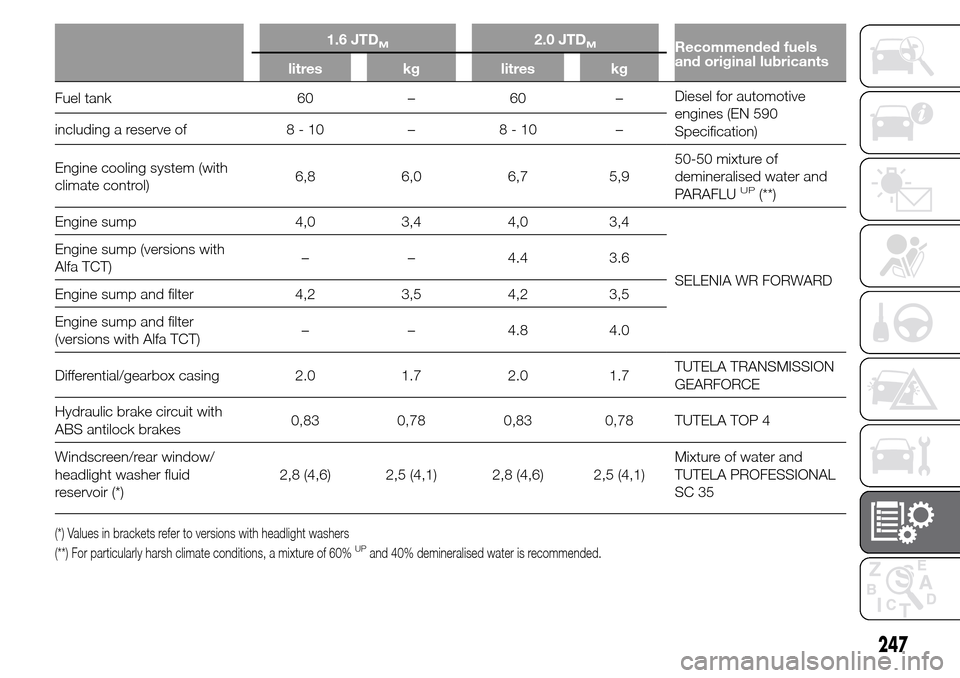

1.6 JTDM2.0 JTDMRecommended fuels
and original lubricants
litres kg litres kg
Fuel tank 60 – 60 –Diesel for automotive
engines (EN 590
Specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)6,8 6,0 6,7 5,950-50 mixture of
demineralised water and
PARAFLU
UP(**)
Engine sump 4,0 3,4 4,0 3,4
SELENIA WR FORWARD Engine sump (versions with
Alfa TCT)– – 4.4 3.6
Engine sump and filter 4,2 3,5 4,2 3,5
Engine sump and filter
(versions with Alfa TCT)– – 4.8 4.0
Differential/gearbox casing 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir (*)2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and
TUTELA PROFESSIONAL
SC 35
(**) For particularly harsh climate conditions, a mixture of 60%UPand 40% demineralised water is recommended. (*) Values in brackets refer to versions with headlight washers
247

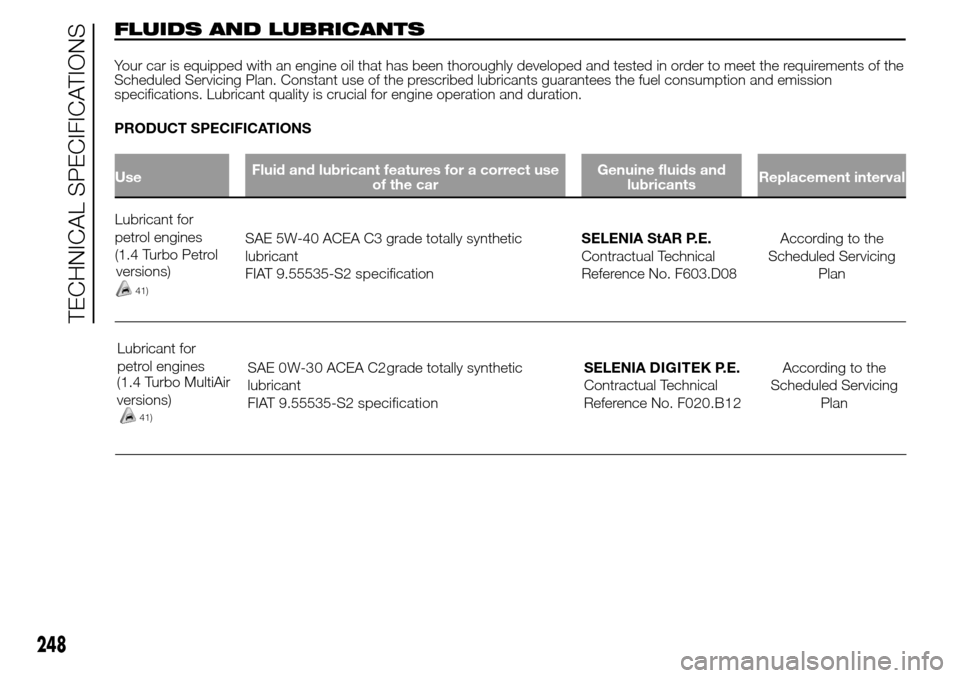

FLUIDS AND LUBRICANTS
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
248
TECHNICAL SPECIFICATIONS
UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsReplacement interval
Lubricant for
petrol engines
(1.4 Turbo Petrol
versions)
41)
SAE 5W-40 ACEA C3 grade totally synthetic
lubricant
FIAT 9.55535-S2 ificationSELENIA StAR P.E.
Contractual Technical
Reference No. F603.D08According to the
Scheduled Servicing
Plan
Lubricant for
petrol engines
versions)SAE 0W-30 ACEA C2grade totally synthetic
lubricant
FIAT 9.55535-S2specificationSELENIA P.E.
Contractual Technical
Reference No. F020.B12According to the
Scheduled Servicing
Plan
DIGITEK
(1.4 Turbo MultiAir
41)
spec

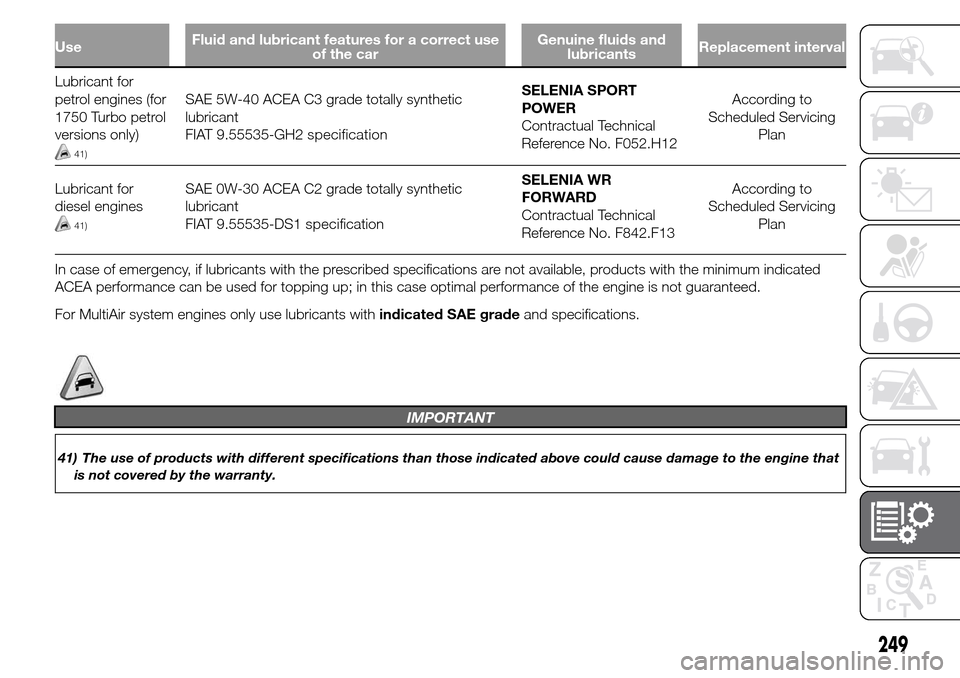

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsReplacement interval
Lubricant for
petrol engines (for
1750 Turbo petrol
versions only)
41)
SAE 5W-40 ACEA C3 grade totally synthetic
lubricant
FIAT 9.55535-GH2specificationSELENIA SPORT
POWER
Contractual Technical
Reference No. F052.H12According to
Scheduled Servicing
Plan
Lubricant for
diesel engines
41)
SAE 0W-30 ACEA C2 grade totally synthetic
lubricant
FIAT 9.55535-DS1specificationSELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to
Scheduled Servicing
Plan
In case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
For MultiAir system engines only use lubricants withindicated SAE gradeand specifications.
IMPORTANT
41) The use of products with different specifications than those indicated above could cause damage to the engine that
is not covered by the warranty.
249

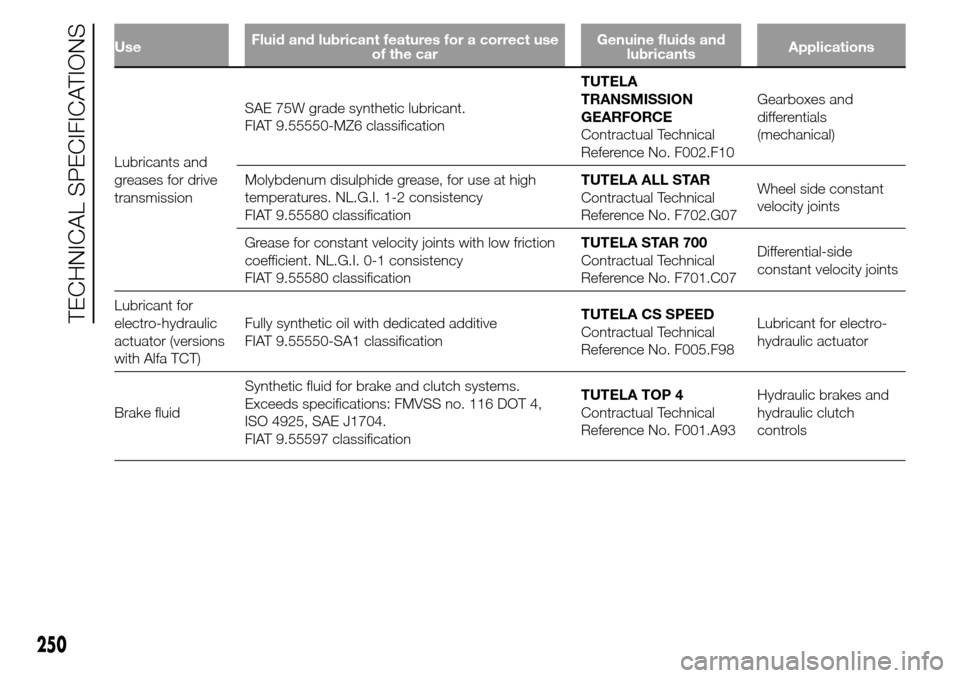

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W grade synthetic lubricant.
FIAT 9.55550-MZ6 classificationTUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Gearboxes and
differentials
(mechanical)
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 classificationTUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient. NL.G.I. 0-1 consistency
FIAT 9.55580 classificationTUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side
constant velocity joints
Lubricant for
electro-hydraulic
actuator (versions
with Alfa TCT)Fully synthetic oil with dedicated additive
FIAT 9.55550-SA1 classificationTUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Lubricant for electro-
hydraulic actuator
Brake fluidSynthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J1704.
FIAT 9.55597 classificationTUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch
controls
250
TECHNICAL SPECIFICATIONS

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications

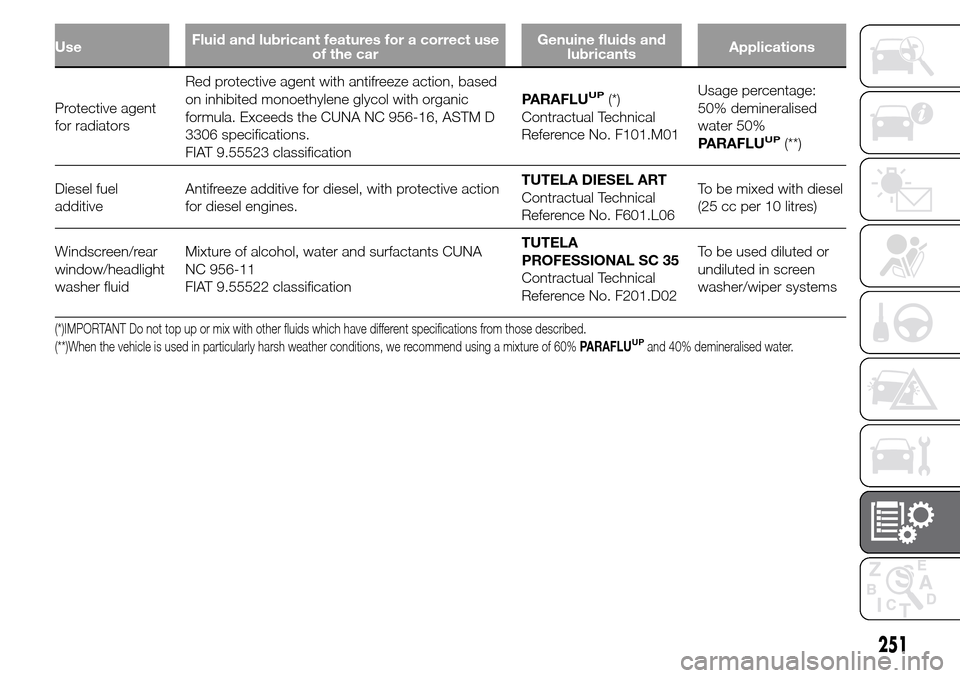

Protective agent
for radiatorsRed protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds the CUNA NC 956-16, ASTM D
3306 specifications.
FIAT 9.55523 classificationPARAFLUUP(*)
Contractual Technical
Reference No. F101.M01Usage percentage:
50% demineralised
water 50%
PARAFLU
UP(**)
Diesel fuel
additiveAntifreeze additive for diesel, with protective action
for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/rear
window/headlight
washer fluidMixture of alcohol, water and surfactants CUNA
NC 956-11
FIAT 9.55522 classificationTUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
251

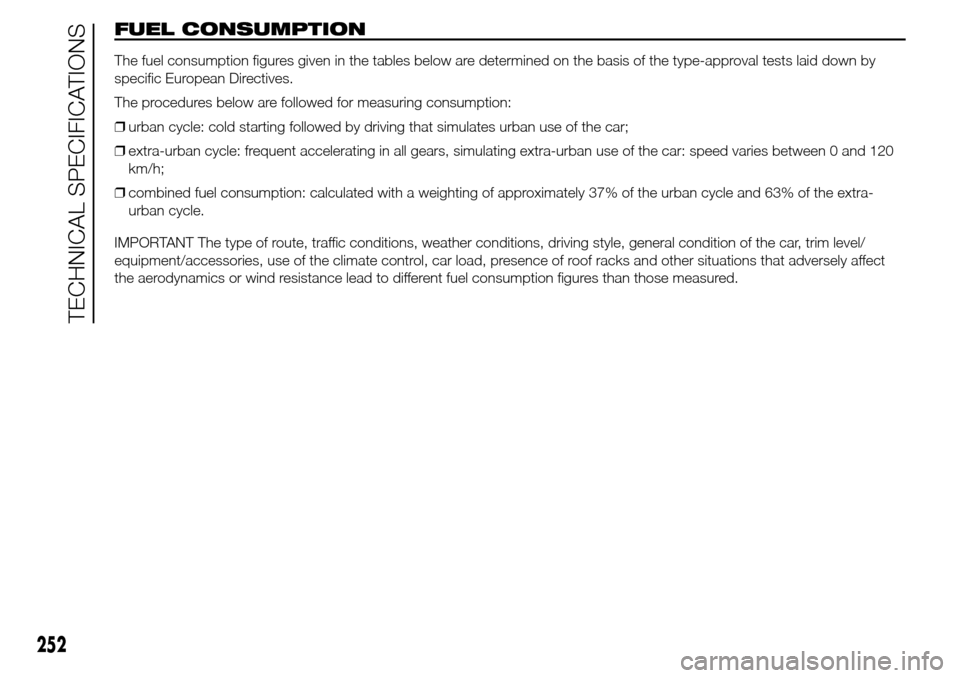

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120
km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-
urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control, car load, presence of roof racks and other situations that adversely affect
the aerodynamics or wind resistance lead to different fuel consumption figures than those measured.
252
TECHNICAL SPECIFICATIONS

2.0 JTDM175 HP TCT5.2 3.9 4.4
253
(*) For versions/markets, where provided

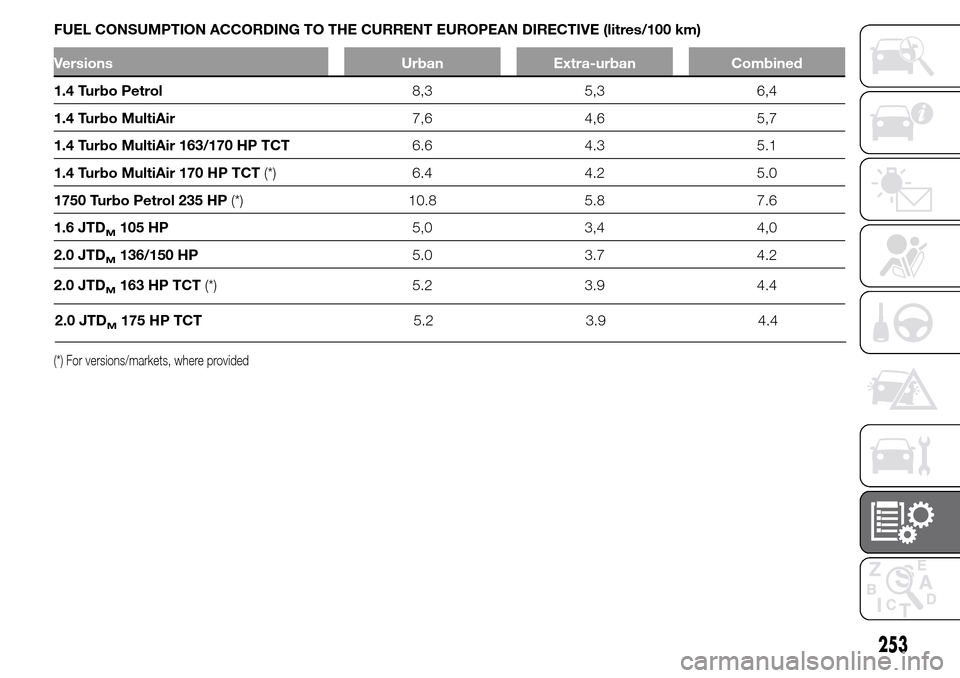

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
1.4 Turbo Petrol8,3 5,3 6,4
1.4 Turbo MultiAir7,6 4,6 5,7
1.4 Turbo MultiAir 163/170 HP TCT6.6 4.3 5.1
1.4 Turbo MultiAir 170 HP TCT(*) 6.4 4.2 5.0
1750 Turbo Petrol 235 HP(*) 10.8 5.8 7.6
1.6 JTD
M105 HP5,0 3,4 4,0
2.0 JTD
M136/150 HP5.0 3.7 4.2
2.0 JTD
M163 HP TCT(*) 5.2 3.9 4.4

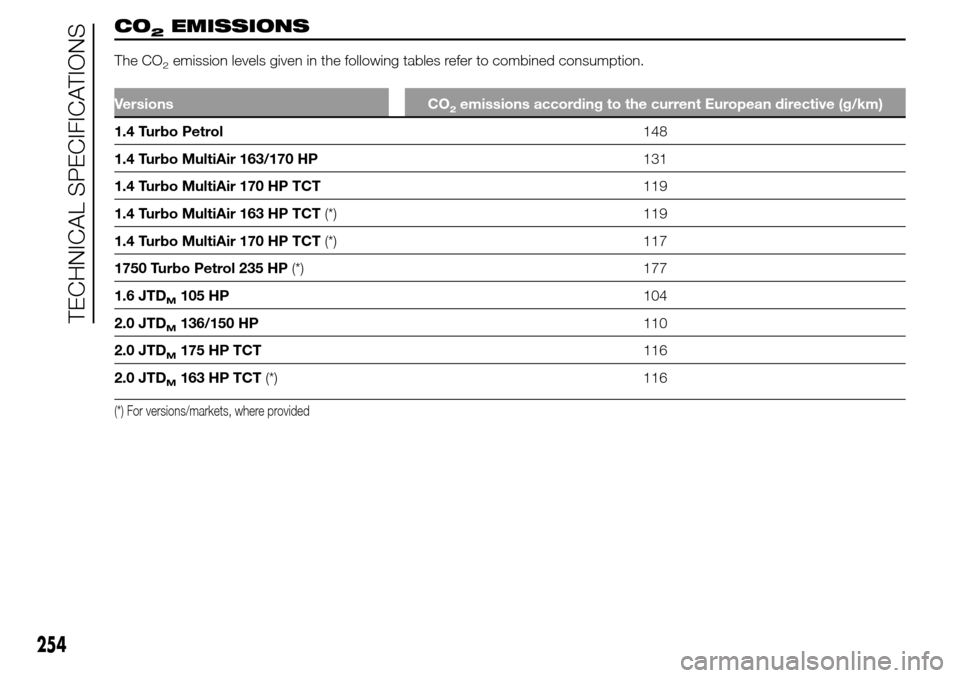

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
Versions CO2emissions according to the current European directive (g/km)
1.4 Turbo Petrol148
1.4 Turbo MultiAir 163/170 HP131
1.4 Turbo MultiAir 170 HP TCT119
1.4 Turbo MultiAir 163 HP TCT(*) 119
1.4 Turbo MultiAir 170 HP TCT(*) 117
1750 Turbo Petrol 235 HP(*) 177
1.6 JTD
M105 HP104
2.0 JTD
M136/150 HP110
2.0 JTD
M175 HP TCT116
2.0 JTD
M163 HP TCT(*) 116
(*) For versions/markets, where provided
254
TECHNICAL SPECIFICATIONS

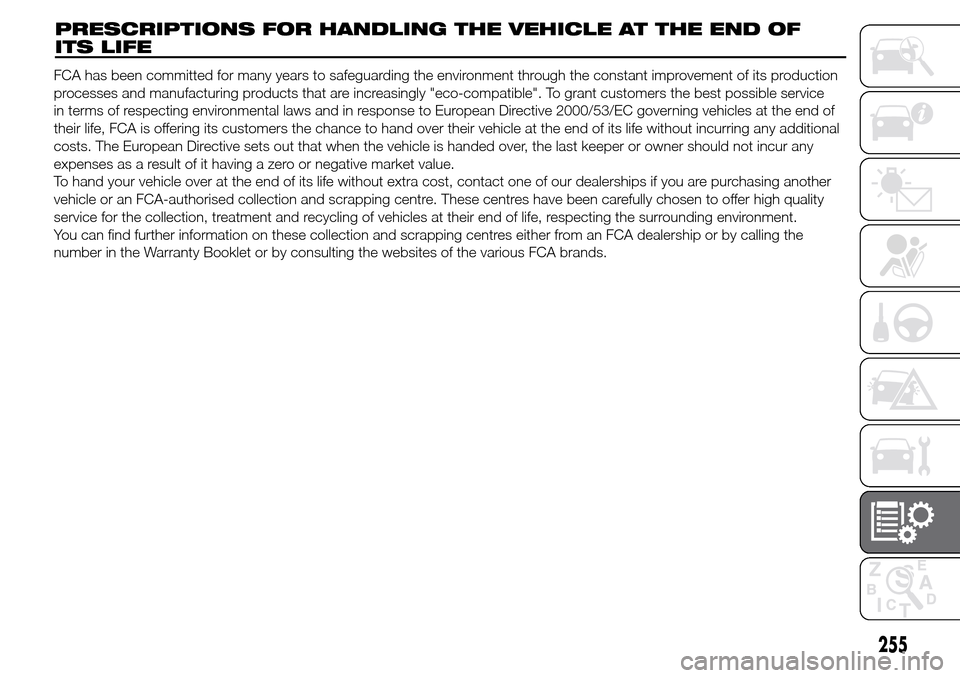

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
255
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.

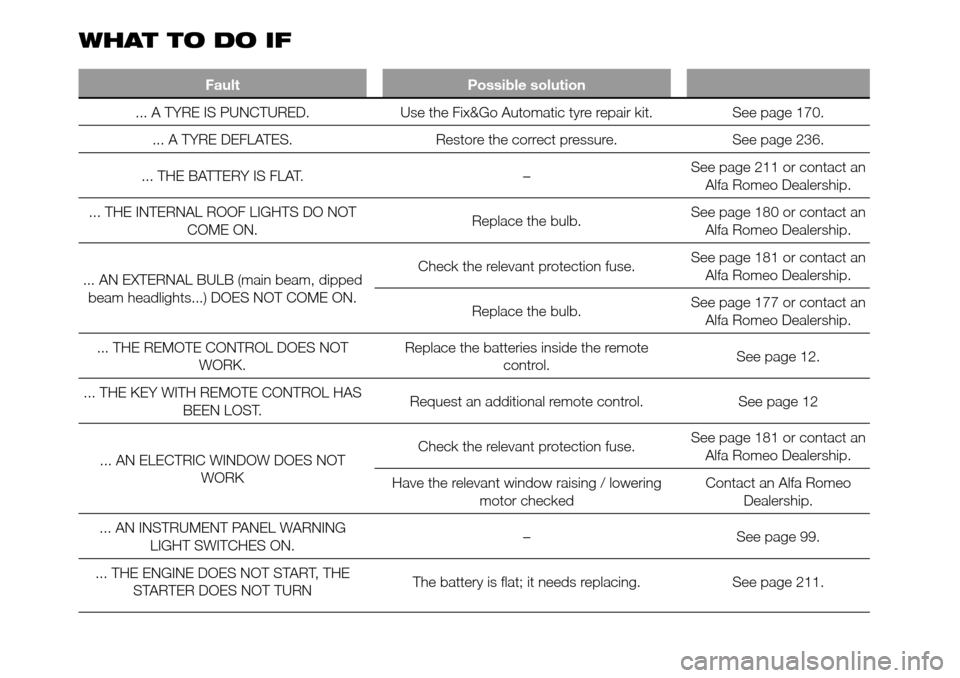

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED. Use the Fix&Go Automatic tyre repair kit. See page 170.
... A TYRE DEFLATES. Restore the correct pressure. See page 236.
... THE BATTERY IS FLAT. –See page 211 or contact an
Alfa Romeo Dealership.
... THE INTERNAL ROOF LIGHTS DO NOT
COME ON.Replace the bulb.See page 180 or contact an
Alfa Romeo Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Check the relevant protection fuse.See page 181 or contact an
Alfa Romeo Dealership.
Replace the bulb.See page 177 or contact an
Alfa Romeo Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 12.
... THE KEY WITH REMOTE CONTROL HAS
BEEN LOST.Request an additional remote control. See page 12
... AN ELECTRIC WINDOW DOES NOT
WORKCheck the relevant protection fuse.See page 181 or contact an
Alfa Romeo Dealership.
Have the relevant window raising / lowering
motor checkedContact an Alfa Romeo
Dealership.
... AN INSTRUMENT PANEL WARNING
LIGHT SWITCHES ON.– See page 99.
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURNThe battery is flat; it needs replacing. See page 211.
