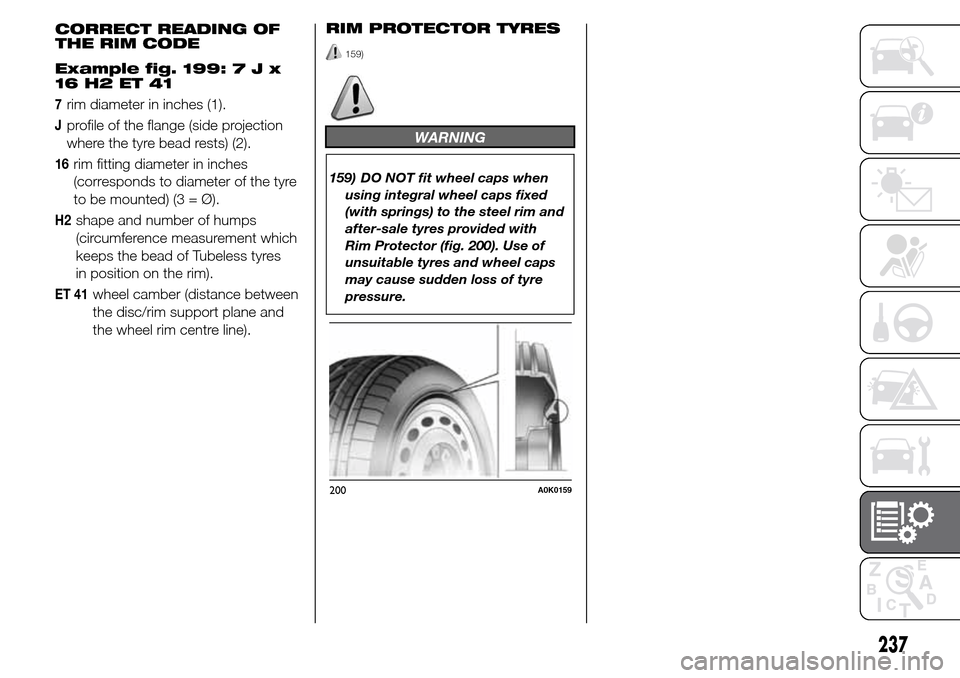

Example fig. 199:7Jx
16 H2 ET 41
7rim diameter in inches (1).
Jprofile of the flange (side projection
where the tyre bead rests) (2).
16rim fitting diameter in inches
(corresponds to diameter of the tyre
to be mounted) (3 = Ø).
H2shape and number of humps
(circumference measurement which
keeps the bead of Tubeless tyres
in position on the rim).
ET 41wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).RIM PROTECTOR TYRES
159)
WARNING
159) DO NOT fit wheel caps when
using integral wheel caps fixed
(with springs) to the steel rim and
after-sale tyres provided with
Rim Protector (fig. 200). Use of
unsuitable tyres and wheel caps
may cause sudden loss of tyre
pressure.
200A0K0159
237
CORRECT READING OF
THE RIM CODE

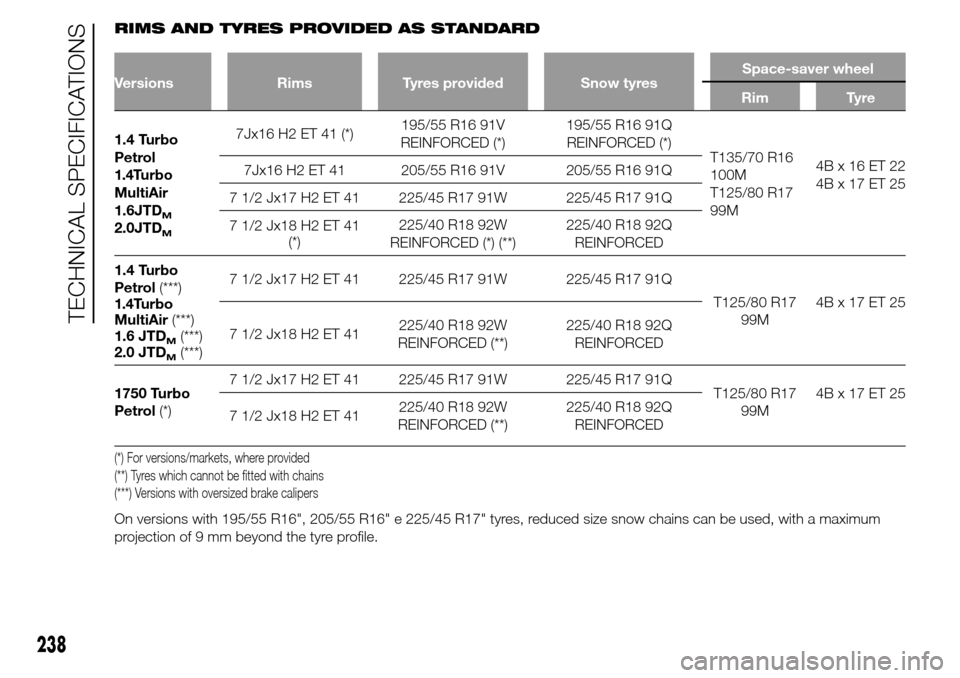

RIMS AND TYRES PROVIDED AS STANDARD
Versions Rims Tyres provided Snow tyresSpace-saver wheel
Rim Tyre
1.4 Turbo
Petrol
MultiAir
M
M
7Jx16 H2 ET 41 (*)195/55 R16 91V
REINFORCED (*)195/55 R16 91Q
REINFORCED (*)
T135/70 R16
100M
T125/80 R17
99M4Bx16ET22
4Bx17ET25 7Jx16 H2 ET 41 205/55 R16 91V 205/55 R16 91Q
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
7 1/2 Jx18 H2 ET 41
(*)225/40 R18 92W
REINFORCED (*) (**)225/40 R18 92Q
REINFORCED
1.4 Turbo
Petrol(***)
MultiAir(***)
1.6 JTD
M(***)
2.0 JTD
M(***)7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/80 R17
99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED (**)225/40 R18 92Q
REINFORCED
1750 Turbo
Petrol(*)7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/80 R17
99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED (**)225/40 R18 92Q
REINFORCED
(*) For versions/markets, where provided
(**) Tyres which cannot be fitted with chains
(***) Versions with oversized brake calipers
On versions with 195/55 R16", 205/55 R16" e 225/45 R17" tyres, reduced size snow chains can be used, with a maximum
projection of 9 mm beyond the tyre profile.
238
TECHNICAL SPECIFICATIONS
1.4 Turbo
2.0JTD 1.6JTD
1.4Turbo

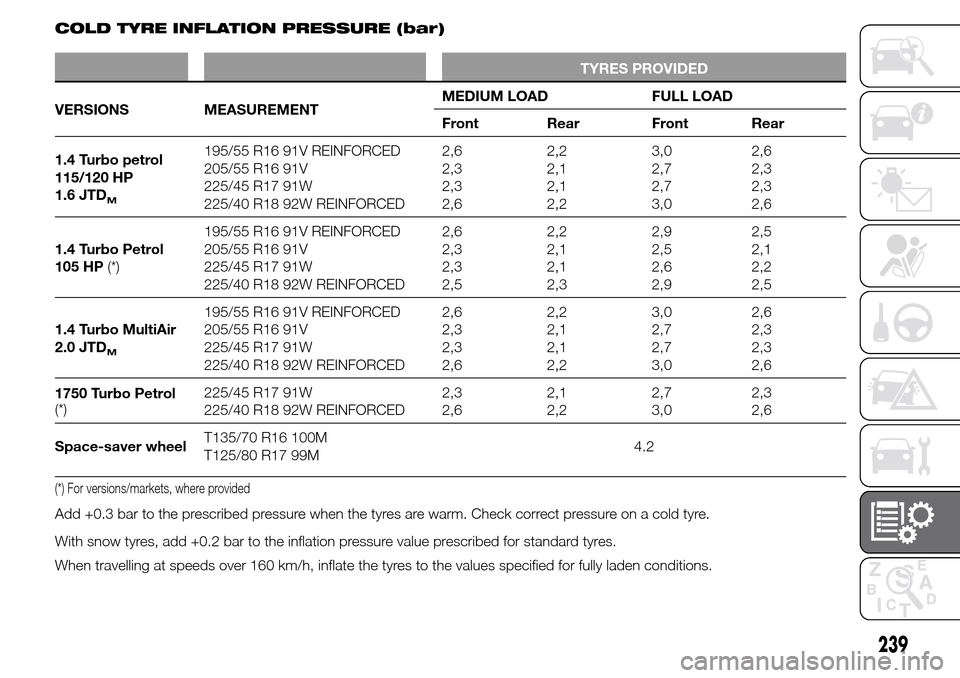

COLD TYRE INFLATION PRESSURE (bar)
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
1.4 Turbo petrol
115/120 HP
1.6 JTD
M
195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,62,2
2,1
2,1
2,23,0
2,7
2,7
3,02,6
2,3
2,3
2,6
1.4 Turbo Petrol
105 HP(*)195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,52,2
2,1
2,1
2,32,9
2,5
2,6
2,92,5
2,1
2,2
2,5
1.4 Turbo MultiAir
2.0 JTD
M
195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,62,2
2,1
2,1
2,23,0
2,7
2,7
3,02,6
2,3
2,3
2,6
1750 Turbo Petrol
(*)225/45 R17 91W
225/40 R18 92W REINFORCED2,3
2,62,1
2,22,7
3,02,3
2,6
Space-saver wheelT135/70 R16 100M
T125/80 R17 99M4.2
(*) For versions/markets, where provided
Add +0.3 bar to the prescribed pressure when the tyres are warm. Check correct pressure on a cold tyre.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
239

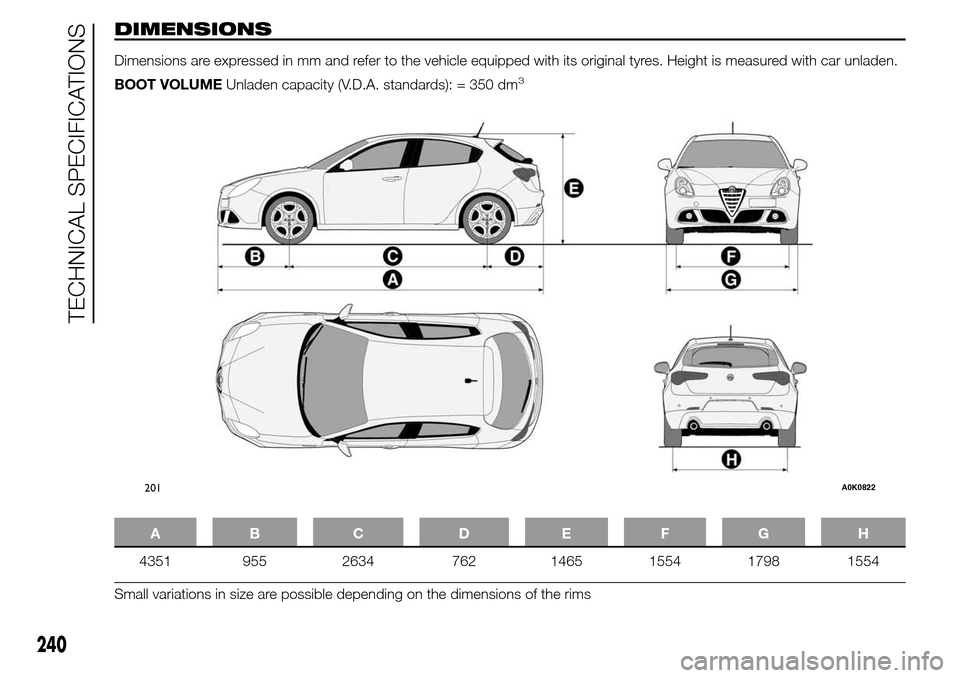

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres. Height is measured with car unladen.
BOOT VOLUMEUnladen capacity (V.D.A. standards): = 350 dm
3
AB C D EFGH
4351 955 2634 762 1465 1554 1798 1554
Small variations in size are possible depending on the dimensions of the rims
201A0K0822
240
TECHNICAL SPECIFICATIONS

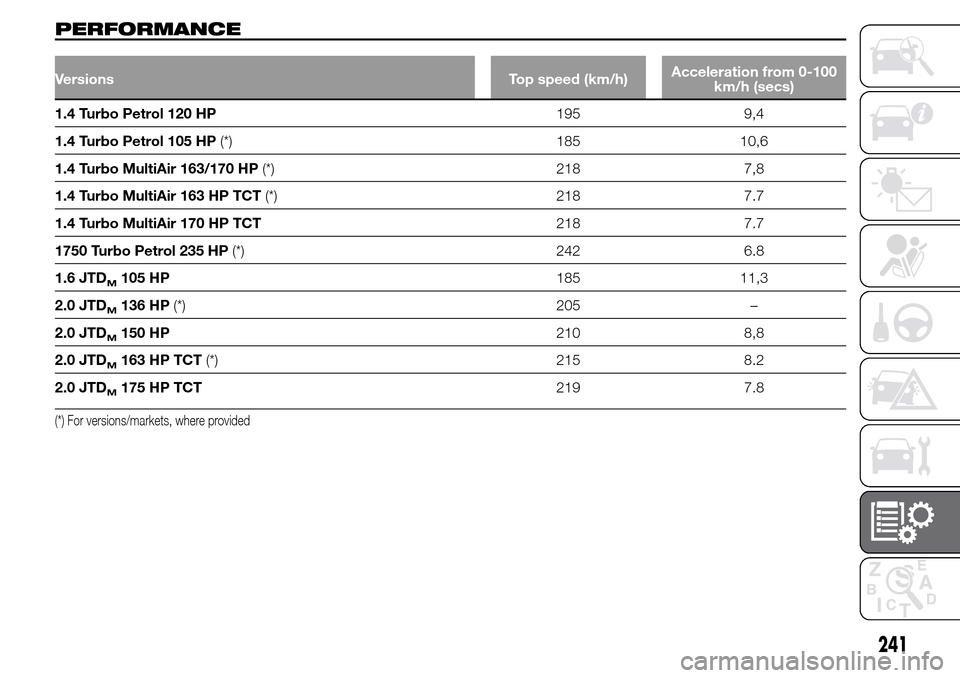

PERFORMANCE
Versions Top speed (km/h)Acceleration from 0-100
km/h (secs)
1.4 Turbo Petrol 120 HP195 9,4
1.4 Turbo Petrol 105 HP(*) 185 10,6
1.4 Turbo MultiAir 163/170 HP(*) 218 7,8
1.4 Turbo MultiAir 163 HP TCT(*) 218 7.7
1.4 Turbo MultiAir 170 HP TCT218 7.7
1750 Turbo Petrol 235 HP(*) 242 6.8
1.6 JTD
M105 HP185 11,3
2.0 JTD
M136 HP(*) 205 –
2.0 JTD
M150 HP210 8,8
2.0 JTD
M163 HP TCT(*) 215 8.2
2.0 JTD
M175 HP TCT219 7.8
(*) For versions/markets, where provided
241

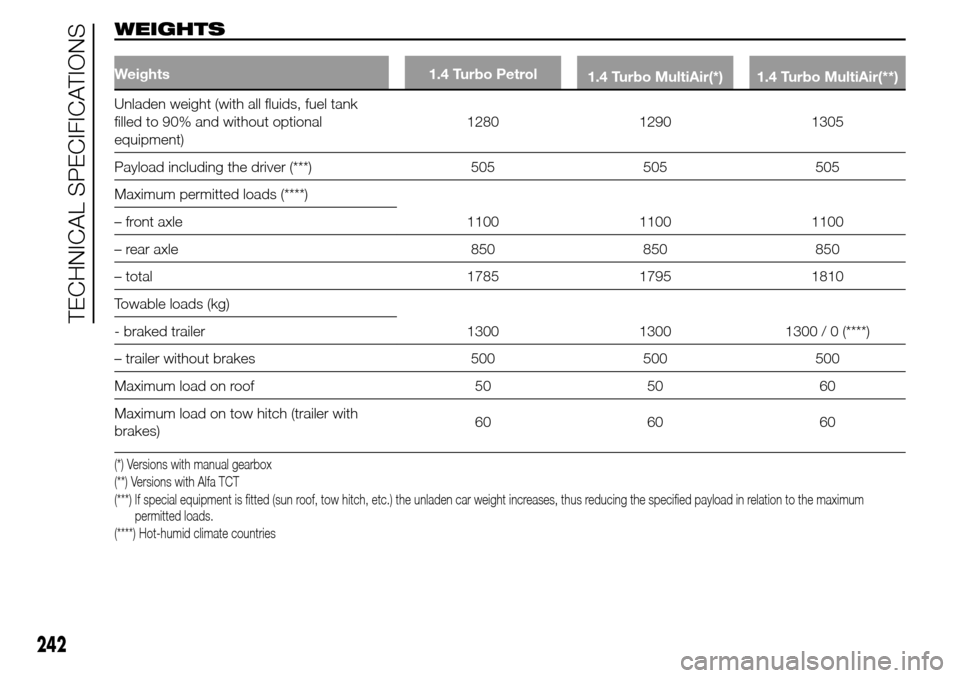

WEIGHTS
Weights 1.4 Turbo Petrol
1.4 Turbo MultiAir(*) 1.4 Turbo MultiAir(**)
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional
equipment)1280 1290 1305
Payload including the driver (***) 505 505 505
Maximum permitted loads (****)
1100 1100 1100 – front axle
– rear axle 850 850 850
– total 1785 1795 1810
Towable loads (kg)
1300 1300 1300 / 0 (****) - braked trailer
– trailer without brakes 500 500 500
Maximum load on roof 50 50 60
Maximum load on tow hitch (trailer with
brakes)60 60 60
(*) Versions with manual gearbox
(**) Versions with Alfa TCT
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Hot-humid climate countries
242

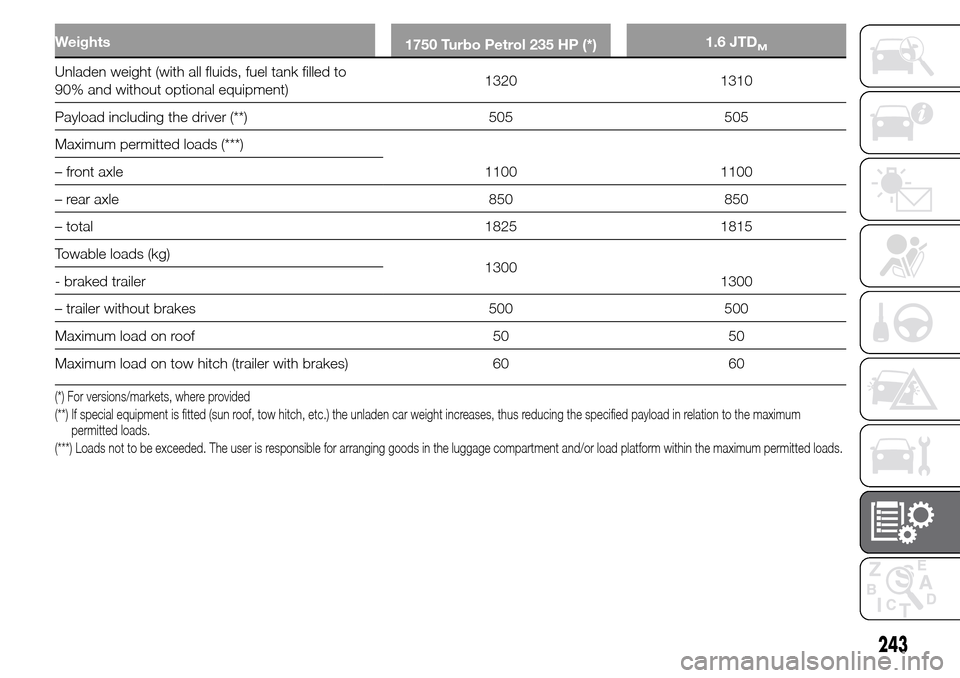

TECHNICAL SPECIFICATIONS

Weights
1750 Turbo Petrol 235 HP (*)1.6 JTDM
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1320 1310
Payload including the driver (**) 505 505
Maximum permitted loads (***)
1100 1100 – front axle
– rear axle 850 850
– total 1825 1815
Towable loads (kg)
1300
1300 - braked trailer
– trailer without brakes 500 500
Maximum load on roof 50 50
Maximum load on tow hitch (trailer with brakes) 60 60
(*) For versions/markets, where provided
(**) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
243

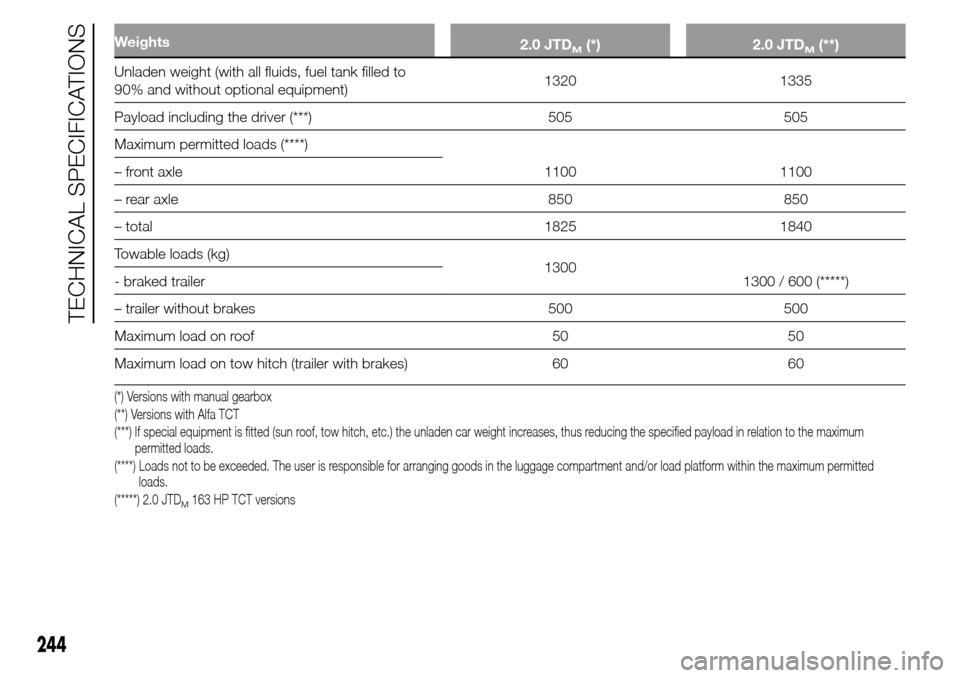

Weights
2.0 JTDM(*) 2.0 JTDM(**)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1320 1335
Payload including the driver (***) 505 505
Maximum permitted loads (****)
1100 1100 – front axle
– rear axle 850 850
– total 1825 1840
Towable loads (kg)
1300
1300 / 600 (*****) - braked trailer
– trailer without brakes 500 500
Maximum load on roof 50 50
Maximum load on tow hitch (trailer with brakes) 60 60
(*) Versions with manual gearbox
(**) Versions with Alfa TCT
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
(*****) 2.0 JTD
M163 HP TCT versions
244
TECHNICAL SPECIFICATIONS

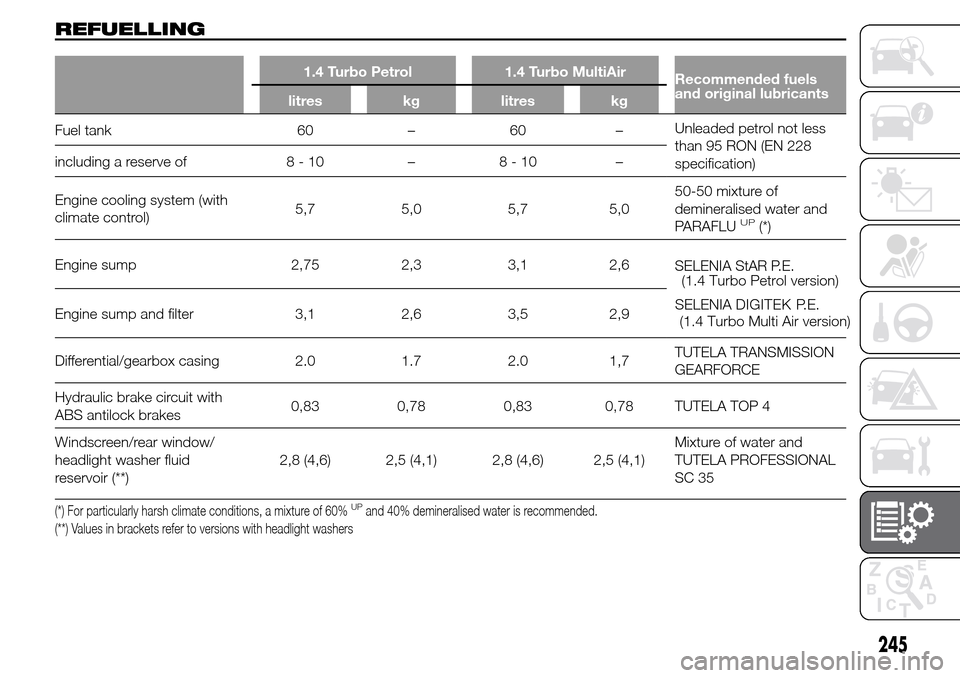

REFUELLING
1.4 Turbo Petrol 1.4 Turbo MultiAir
Recommended fuels
and original lubricants
litres kg litres kg
Fuel tank 60 – 60 –Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)5,7 5,0 5,7 5,050-50 mixture of
demineralised water and
PARAFLU
UP(*)
Engine sump 2,75 2,3 3,1 2,6
SELENIAStAR P.E.
Engine sump and filter 3,1 2,6 3,5 2,9
Differential/gearbox casing 2.0 1.7 2.0 1,7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir (**)2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and
TUTELA PROFESSIONAL
SC 35
(*) For particularly harsh climate conditions, a mixture of 60%UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
245

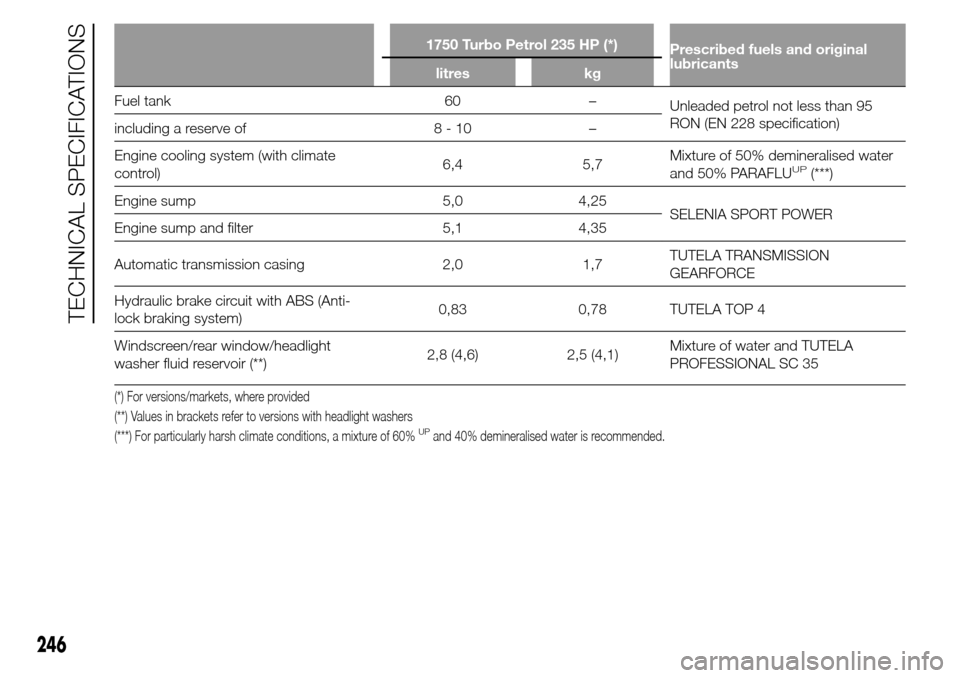

SELENIADIGITEK P.E.
(1.4 Turbo Petrol version)
(1.4 Turbo l version)Mu ti Air

1750 Turbo Petrol 235 HP (*)
Prescribed fuels and original
lubricants
litres kg
Fuel tank 60 –
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 8 - 10 –
Engine cooling system (with climate
control)6,4 5,7Mixture of 50% demineralised water
and 50% PARAFLU
UP(***)
Engine sump 5,0 4,25
SELENIA SPORT POWER
Engine sump and filter 5,1 4,35
Automatic transmission casing 2,0 1,7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS (Anti-
lock braking system)0,83 0,78 TUTELA TOP 4
Windscreen/rear window/headlight
washer fluid reservoir (**)2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For versions/markets, where provided
(***) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended. (**) Values in brackets refer to versions with headlight washers
246
