GENERAL INFORMATION
1.4 Turbo MultiAir 163 HP (*)1.4 Turbo MultiAir 170 HP
Engine code 955A8000 940A2000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 84.0 72.0 x 84.0
Total displacement (cm³) 1368 1368
Compression ratio 10 10
Maximum power (EC) (kW) 120 125
Maximum power (EC) (HP) 163 170
corresponding engine speed (rpm) 5500 5500
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250 230 250
Maximum torque (EC) (kgm) 23.4 25.4 23.4 25.4
corresponding engine speed (rpm) 2250 2500 2250 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 RON or 98 RON
(EN 228 Specification)Unleaded petrol 95 RON or 98 RON
(EN 228 Specification)
(*) For versions/markets, where provided
227

GENERAL INFORMATION

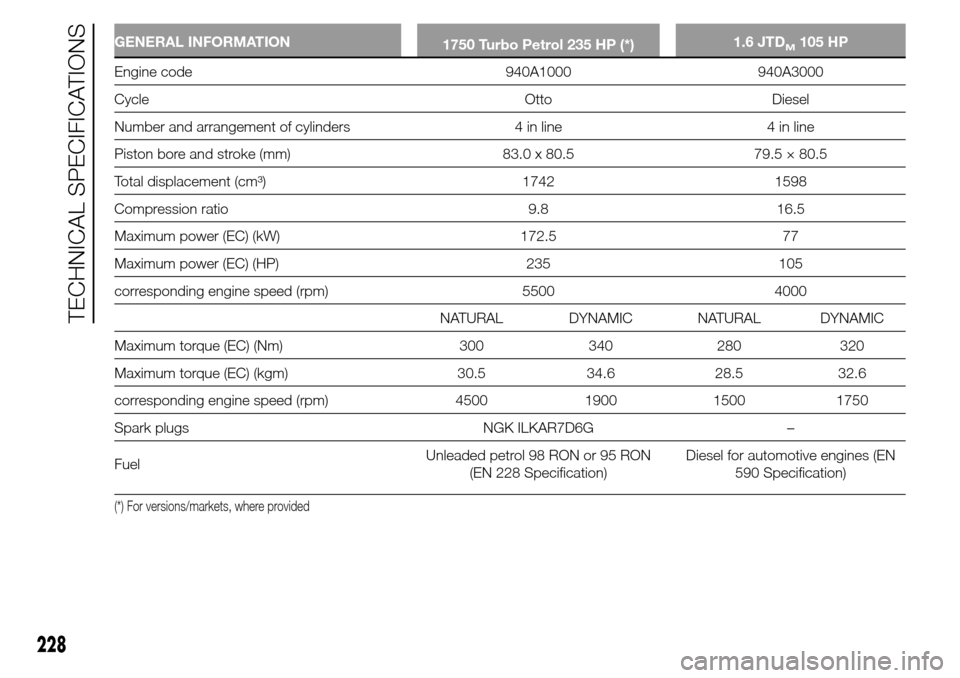

1750 Turbo Petrol 235 HP (*)1.6 JTDM105 HP
Engine code 940A1000 940A3000
Cycle Otto Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83.0 x 80.5 79.5 × 80.5
Total displacement (cm³) 1742 1598
Compression ratio 9.8 16.5
Maximum power (EC) (kW) 172.5 77
Maximum power (EC) (HP) 235 105
corresponding engine speed (rpm) 5500 4000
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 300 340 280 320
Maximum torque (EC) (kgm) 30.5 34.6 28.5 32.6
corresponding engine speed (rpm) 4500 1900 1500 1750
Spark plugs NGK ILKAR7D6G –
FuelUnleaded petrol 98 RON or 95 RON
(EN 228 Specification)Diesel for automotive engines (EN
590 Specification)
(*) For versions/markets, where provided
228
TECHNICAL SPECIFICATIONS

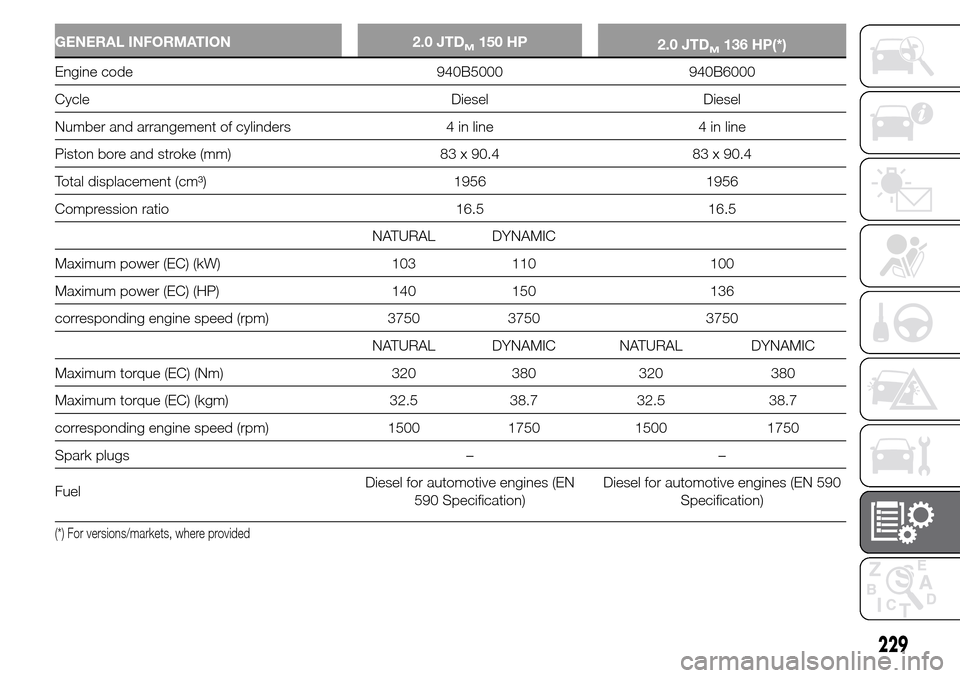

GENERAL INFORMATION 2.0 JTDM150 HP
2.0 JTDM136 HP(*)
Engine code 940B5000 940B6000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 x 90.4 83 x 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 103 110 100
Maximum power (EC) (HP) 140 150 136
corresponding engine speed (rpm) 3750 3750 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 380 320 380
Maximum torque (EC) (kgm) 32.5 38.7 32.5 38.7
corresponding engine speed (rpm) 1500 1750 1500 1750
Spark plugs – –
FuelDiesel for automotive engines (EN
590 Specification)Diesel for automotive engines (EN 590
Specification)
(*) For versions/markets, where provided
229

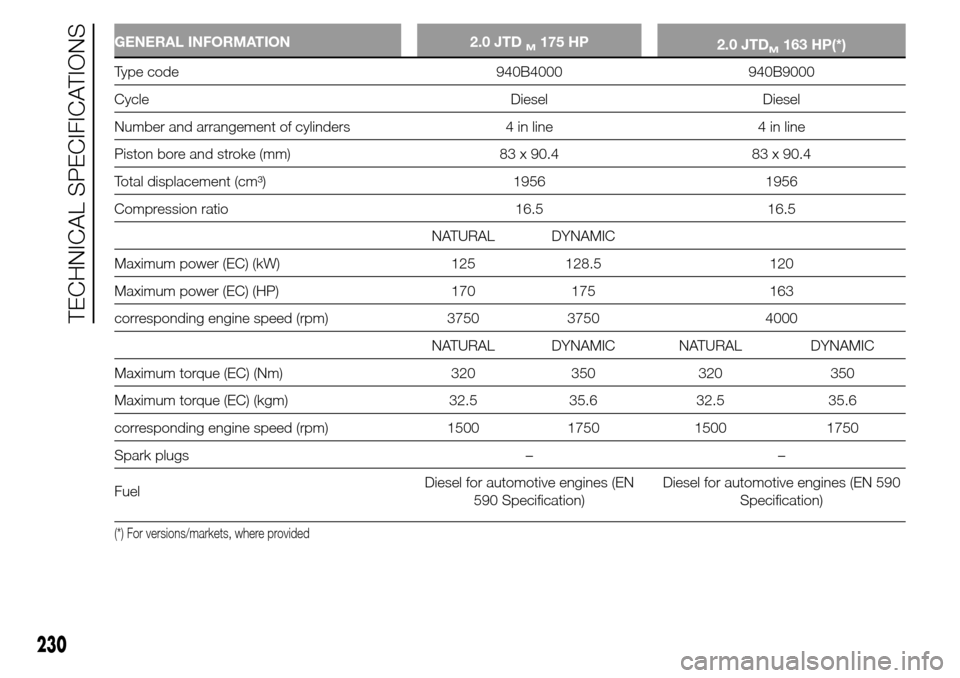

GENERAL INFORMATION 2.0 JTDM175 HP
2.0 JTDM163 HP(*)
Type code 940B4000 940B9000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 x 90.4 83 x 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 125 128.5 120
Maximum power (EC) (HP) 170 175 163
corresponding engine speed (rpm) 3750 3750 4000
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 350 320 350
Maximum torque (EC) (kgm) 32.5 35.6 32.5 35.6
corresponding engine speed (rpm) 1500 1750 1500 1750
Spark plugs – –
FuelDiesel for automotive engines (EN
590 Specification)Diesel for automotive engines (EN 590
Specification)
(*) For versions/markets, where provided
230
TECHNICAL SPECIFICATIONS

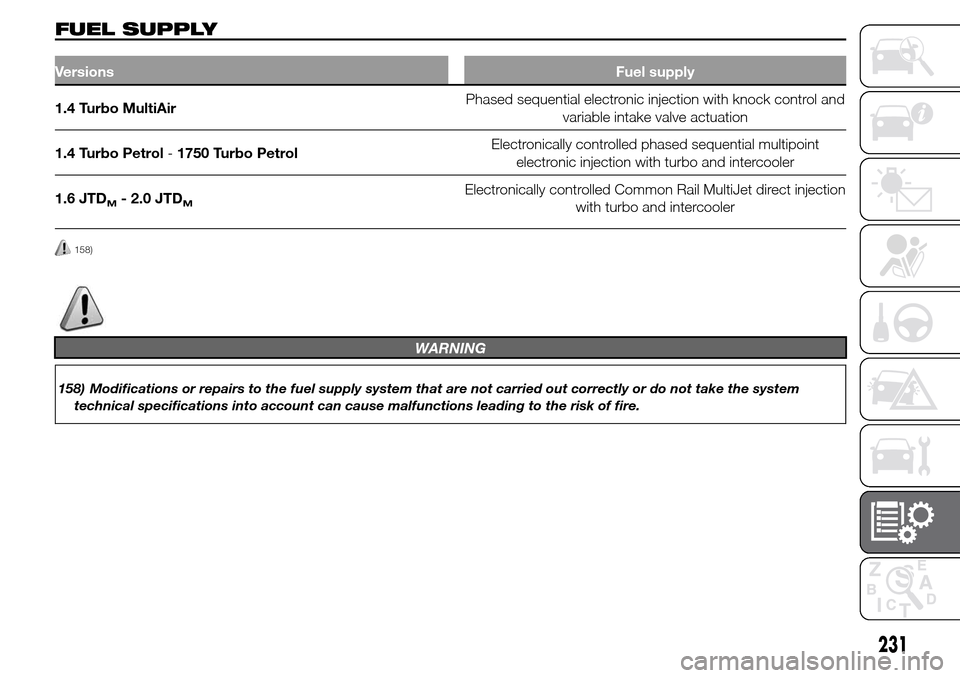

FUEL SUPPLY
VersionsFuel supply
1.4 Turbo MultiAirPhased sequential electronic injection with knock control and
variable intake valve actuation
1.4 Turbo Petrol-1750 Turbo PetrolElectronically controlled phased sequential multipoint
electronic injection with turbo and intercooler
1.6 JTD
M- 2.0 JTDMElectronically controlled Common Rail MultiJet direct injection
with turbo and intercooler
158)
WARNING
158) Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system
technical specifications into account can cause malfunctions leading to the risk of fire.
231

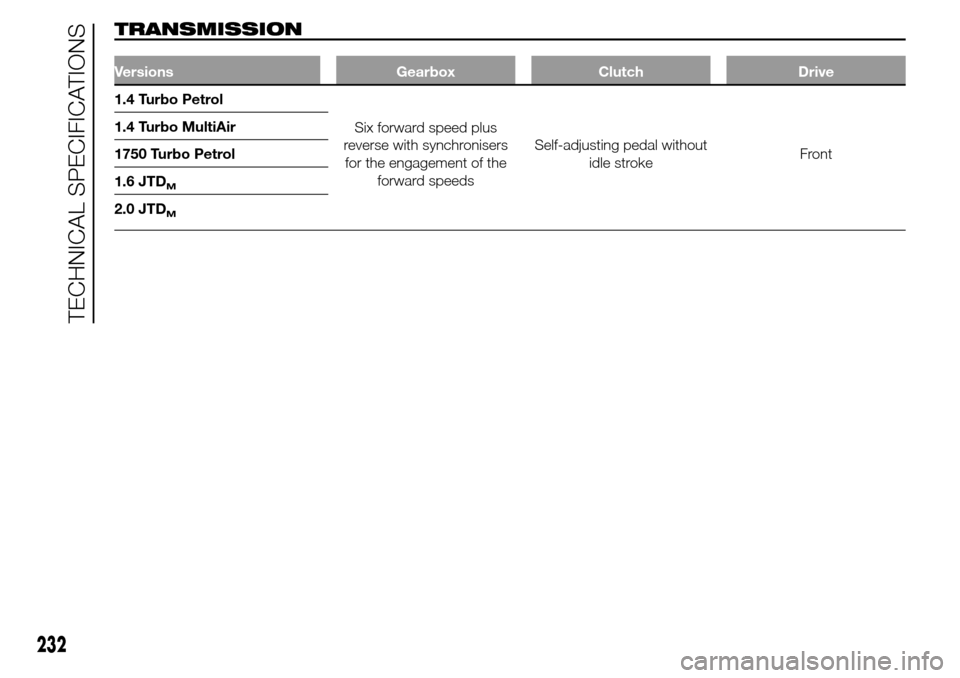

TRANSMISSION
Versions Gearbox Clutch Drive
1.4 Turbo Petrol
Six forward speed plus
reverse with synchronisers
for the engagement of the
forward speedsSelf-adjusting pedal without
idle strokeFront 1.4 Turbo MultiAir
1750 Turbo Petrol
1.6 JTD
M
2.0 JTDM
232
TECHNICAL SPECIFICATIONS

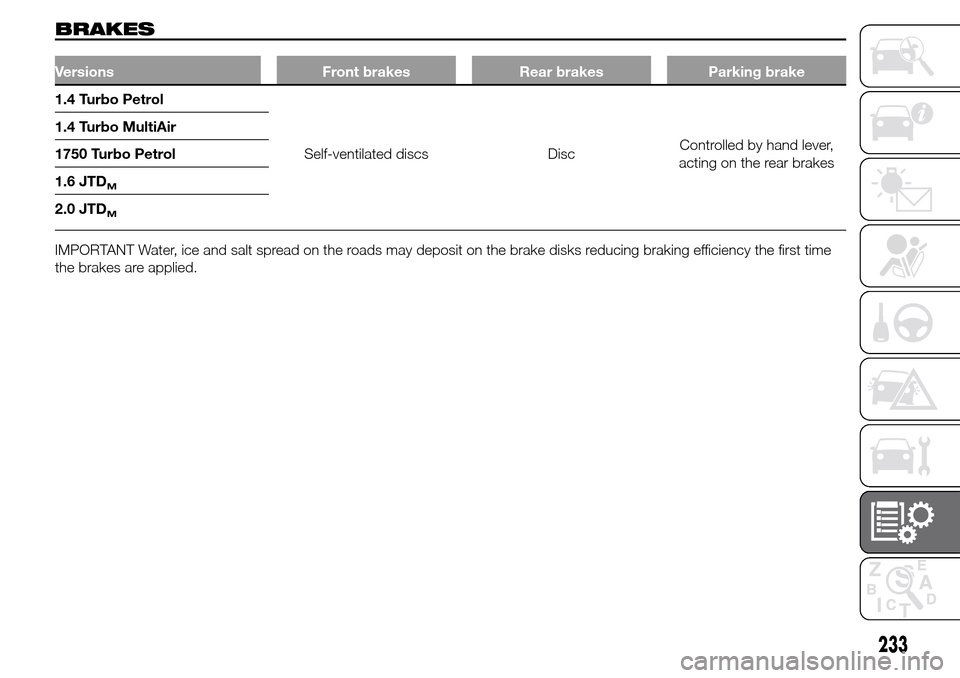

BRAKES
Versions Front brakes Rear brakes Parking brake
1.4 Turbo Petrol
Self-ventilated discs DiscControlled by hand lever,
acting on the rear brakes 1.4 Turbo MultiAir
1750 Turbo Petrol
1.6 JTD
M
2.0 JTDM
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking efficiency the first time
the brakes are applied.
233

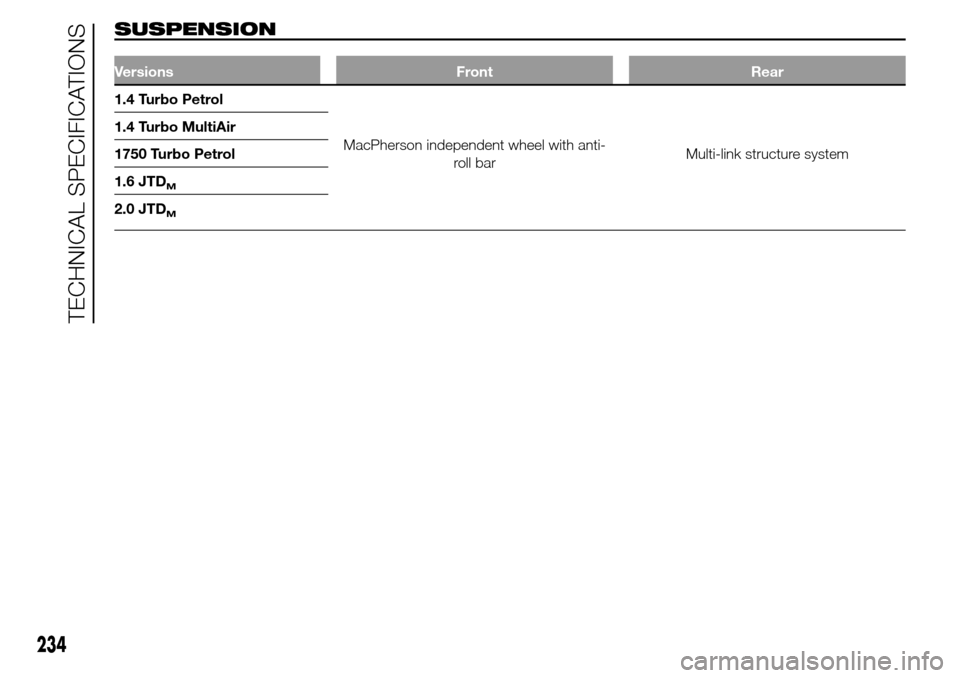

SUSPENSION
Versions Front Rear
1.4 Turbo Petrol
MacPherson independent wheel with anti-
roll barMulti-link structure system 1.4 Turbo MultiAir
1750 Turbo Petrol
1.6 JTD
M
2.0 JTDM
234
TECHNICAL SPECIFICATIONS

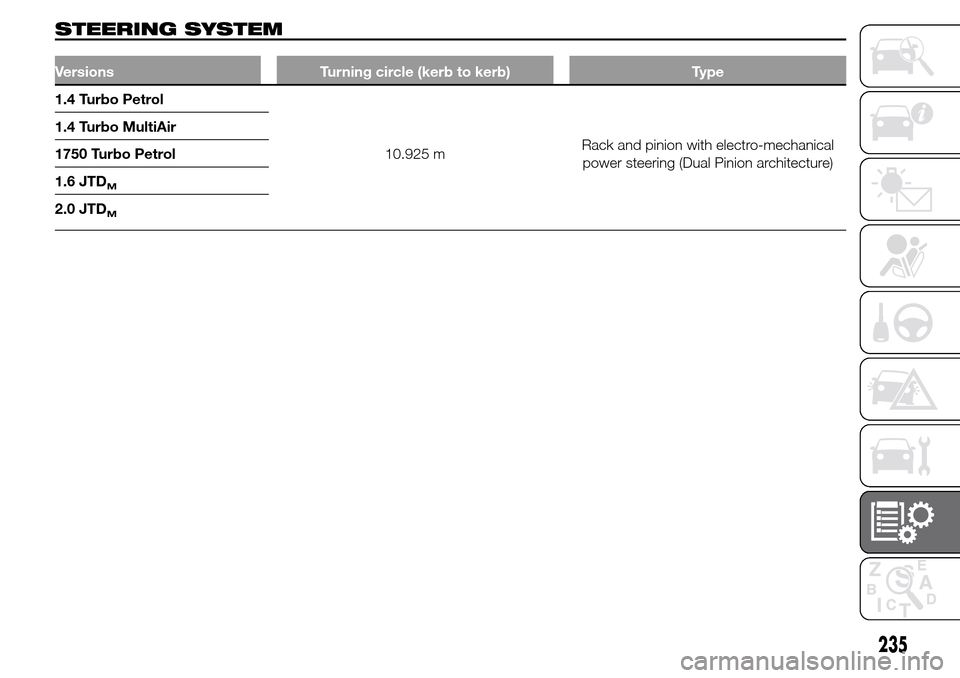

STEERING SYSTEM
Versions Turning circle (kerb to kerb) Type
1.4 Turbo Petrol
10.925 mRack and pinion with electro-mechanical
power steering (Dual Pinion architecture) 1.4 Turbo MultiAir
1750 Turbo Petrol
1.6 JTD
M
2.0 JTDM
235

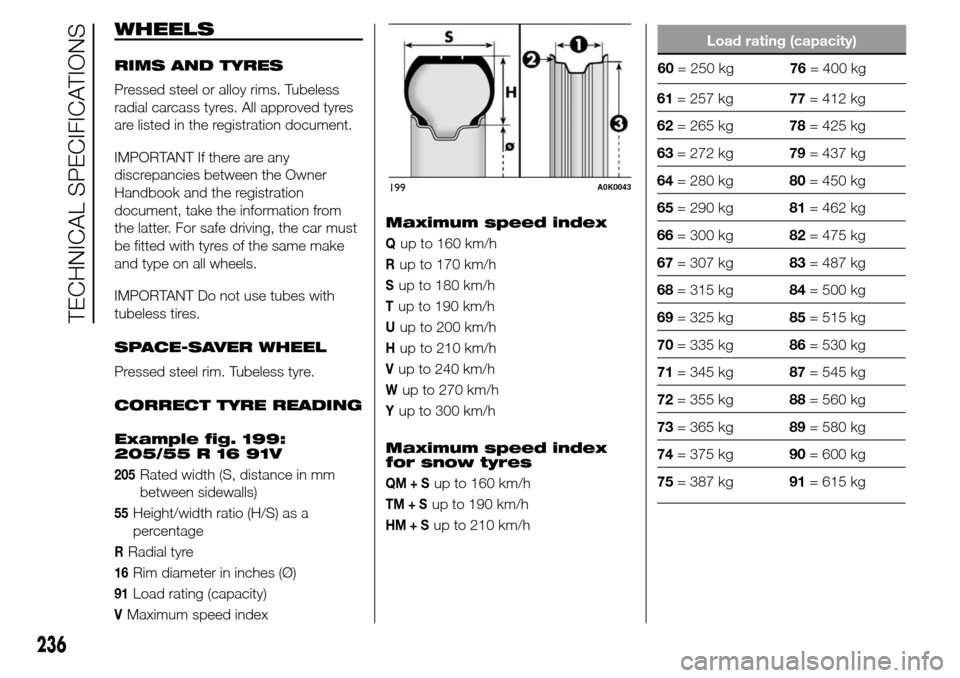

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the registration
document, take the information from
the latter. For safe driving, the car must
be fitted with tyres of the same make
and type on all wheels.
IMPORTANT Do not use tubes with
tubeless tires.
SPACE-SAVER WHEEL
Pressed steel rim. Tubeless tyre.
CORRECT TYRE READING
Example fig. 199:
205/55 R 16 91V
205Rated width (S, distance in mm
between sidewalls)
55Height/width ratio (H/S) as a
percentage
RRadial tyre
16Rim diameter in inches (Ø)
91Load rating (capacity)
VMaximum speed indexMaximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load rating (capacity)
60= 250 kg76= 400 kg
61= 257 kg77= 412 kg
62= 265 kg78= 425 kg
63= 272 kg79= 437 kg
64= 280 kg80= 450 kg
65= 290 kg81= 462 kg
66= 300 kg82= 475 kg
67= 307 kg83= 487 kg
68= 315 kg84= 500 kg
69= 325 kg85= 515 kg
70= 335 kg86= 530 kg
71= 345 kg87= 545 kg
72= 355 kg88= 560 kg
73= 365 kg89= 580 kg
74= 375 kg90= 600 kg
75= 387 kg91= 615 kg
199A0K0043
236
