Alfa Romeo Giulietta 2017 Owner's Manual
Manufacturer: ALFA ROMEO, Model Year: 2017, Model line: Giulietta, Model: Alfa Romeo Giulietta 2017Pages: 212, PDF Size: 4.56 MB
Page 1 of 212
OWNER HANDBOOK
ENGLISH
cop lum giulia GB.indd 1
cop lum giulia GB.indd 111/12/15 10:58
11/12/15 10:58
Page 2 of 212

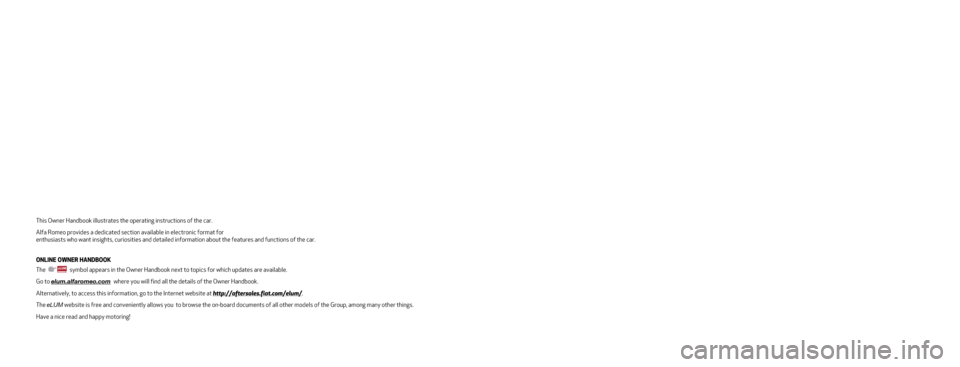

This Owner Handbook illustrates the operating instructions of the car.
Alfa Romeo provides a dedicated section available in electronic format f\
or
enthusiasts who want insights, curiosities and detailed information abou\
t the features and functions of the car.
ONLINE OWNER HANDBOOK
The symbol appears in the Owner Handbook next to topics for which updates ar\
e available.
Go to elum.alfaromeo.com
where you will find all the details of the Owner Handbook.
Alternatively, to access this information, go to the Internet website at\
http://aftersales.fiat.com/elum/
.
The eLUM website is free and conveniently allows you to browse the on-board docu\
ments of all other models of the Group, among many other things.
Have a nice read and happy motoring!
ALFA ROMEO GENUINE SPARE PARTS AND ACCESSORIES
PERFECT FOR YOUR VEHICLE, RIGHT DOWN TO THE SMALLEST DETAIL
The Alf
a Romeo Genuine Spare Parts and Accessories follow the rigid component engineering and manufacturing specifi cations
used in the assembly line to meet the technical specifi cations of your new Alfa Romeo and to enhance its style and performance. They undergo strict approval tests and quality controls to ensure they comply with safety and environmental standards.
All of the components on your new Alfa Romeo, from the smallest bulb to the most complex mechanical, electrical and electronic systems, are designed to work in harmony and guarantee you a comfortable and safe drive, in full respect for the environment. T he
Genuine Accessories fully enhance the style of your new vehicle.
Entrust the experience and quality of Alfa Romeo Dealerships to fi nd the full range of Alfa Romeo Genuine Spare Parts and
Accessories.
Find your nearest Dealership on www.alfaromeo.com
retro cop alfa giulia EN.qxp_500 UM ITA 16/12/15 09:26 Pagina 1
Page 3 of 212
Dear Customer,
We would like to congratulate and thank you for choosing an Alfa Romeo.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.
Here you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best performance
from the technical features of your Alfa Giulietta.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all
with those concerning brakes, steering and gearbox; at the same time, you can understand the vehicle behaviour on different road
surfaces.
This document also provides a description of special features and tips, as well as essential information for the safe driving, care and
maintenance of your Alfa Giulietta over time.
In the attached Warranty Booklet you will also find the description of the Services that Alfa Romeo offers to its customers, the
Warranty Certificate and the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new car and the service provided by the people at Alfa
Romeo.
Enjoy reading. Happy motoring!
Page 4 of 212
READ THIS CAREFULLYREFUELLINGPetrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95 in compliance with the European specification EN228.
Diesel engines: refuel only with diesel fuel for motor vehicles conforming to the European specification EN590. The use of other products or
mixtures may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused.LPG engines: refuel only with
LPG for motor vehicles conforming to the European specification EN589. The use of other products or mixtures may damage the engine beyond
repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the
accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.Diesel engines: turn the ignition key to MAR and wait
for the
icon andwarning light to switch off. Then turn the ignition key to AVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park the car on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that carries out a continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (with the risk of gradually draining the battery), contact an Alfa Romeo Dealership.
They will calculate the overall electrical requirement and check that the car’s electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring that it maintains its performance and its safety features, its environmental friendliness and
low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS
…important information, advice and warnings for correct use, driving safety and maintenance of the car over time. Special attention must be paid to
the symbols(personal safety)(environmental protection)(car integrity).
Page 5 of 212

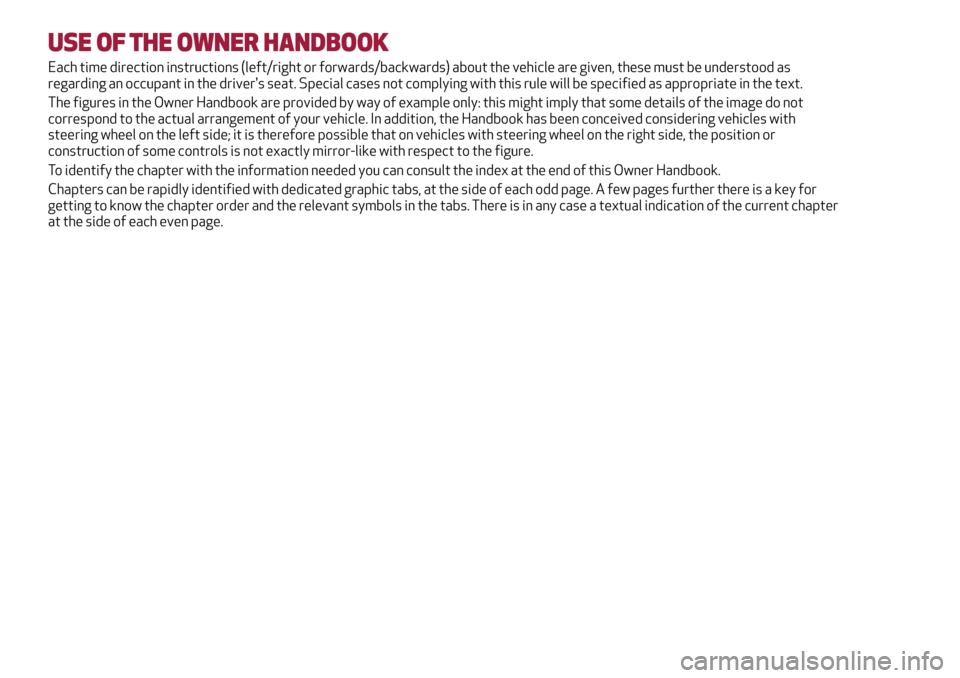

USE OF THE OWNER HANDBOOK
Each time direction instructions (left/right or forwards/backwards) about the vehicle are given, these must be understood as
regarding an occupant in the driver's seat. Special cases not complying with this rule will be specified as appropriate in the text.
The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the image do not
correspond to the actual arrangement of your vehicle. In addition, the Handbook has been conceived considering vehicles with
steering wheel on the left side; it is therefore possible that on vehicles with steering wheel on the right side, the position or
construction of some controls is not exactly mirror-like with respect to the figure.
To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook.
Chapters can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further there is a key for
getting to know the chapter order and the relevant symbols in the tabs. There is in any case a textual indication of the current chapter
at the side of each even page.
Page 6 of 212
PRECAUTIONS AND WARNINGS
While reading this Owner Handbook you will find a series ofWARNINGSto prevent procedures that could damage your vehicle.
There are alsoPRECAUTIONSthat must be carefully followed to prevent incorrect use of the components of the vehicle, which could
cause accidents or injuries.
Therefore, allWARNINGSandPRECAUTIONSmust always be followed carefully.
WARNINGSandPRECAUTIONSare recalled in the text with the following symbols:
personal safety;
vehicle safety;
environmental protection.
NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a number. That
number recalls the corresponding warning at the end of the relevant section.
IMPORTANT
This Owner Handbook describes all Alfa Giulietta versions. Options, equipment dedicated to specific markets or versions are
not explicitly indicated in the text: as a consequence, you should only consider the information which is related to the trim
level, engine and version that you have purchased. Any content introduced throughout the production of the model, outside the
explicit request of options at the time of purchase, will be identified with the wording (for versions/markets, where provided).
All data contained in this publication are intended to help you use your vehicle in the best possible way. FCA Italy S.p.A. aims at
a constant improvement of the vehicles produced. For this reason it reserves the right to make changes to the model described
for technical and/or commercial reasons.
For further information, contact an Alfa Romeo Dealership.
VEHICLE CHANGES / ALTERATIONS
IMPORTANT Any change or alteration of the vehicle might seriously affect its safety and road holding, thus causing accidents, in
which the occupants could even be fatally injured.
4
Page 7 of 212

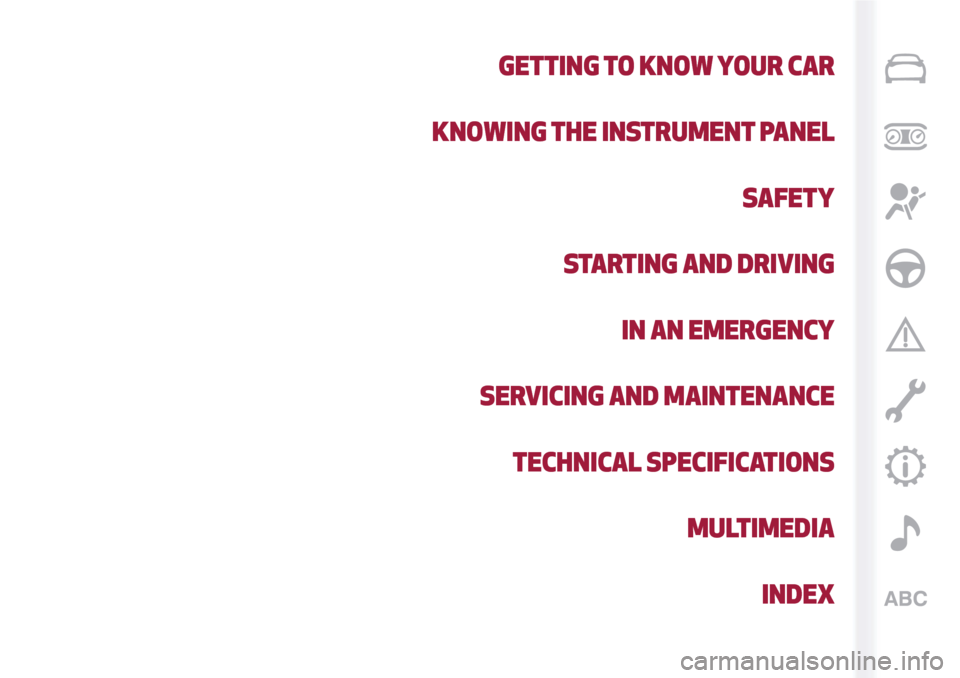

GETTING TO KNOW YOUR CAR
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL SPECIFICATIONS
MULTIMEDIA
INDEX
Page 8 of 212
Page 9 of 212

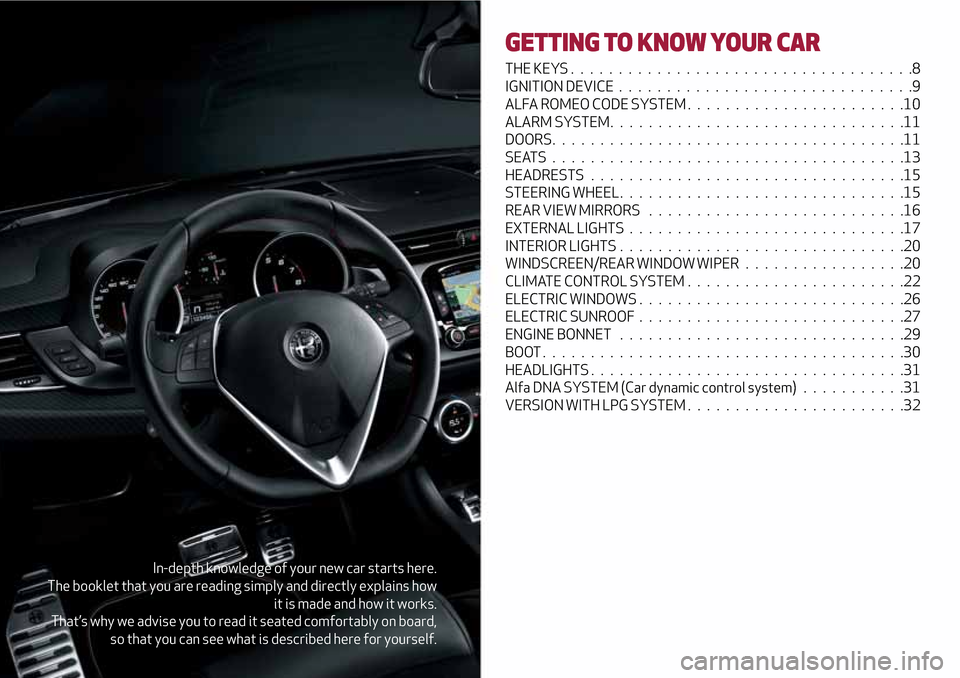

In-depth knowledge of your new car starts here.
The booklet that you are reading simply and directly explains how
it is made and how it works.
That’s why we advise you to read it seated comfortably on board,
so that you can see what is described here for yourself.
GETTING TO KNOW YOUR CAR
THEKEYS....................................8
IGNITION DEVICE...............................9
ALFA ROMEO CODE SYSTEM.......................10
ALARM SYSTEM ...............................11
DOORS.....................................11
SEATS.....................................13
HEADRESTS.................................15
STEERING WHEEL..............................15
REAR VIEW MIRRORS...........................16
EXTERNAL LIGHTS .............................17
INTERIOR LIGHTS..............................20
WINDSCREEN/REAR WINDOW WIPER . ................20
CLIMATE CONTROL SYSTEM.......................22
ELECTRIC WINDOWS............................26
ELECTRIC SUNROOF............................27
ENGINE BONNET . .............................29
BOOT......................................30
HEADLIGHTS.................................31
Alfa DNA SYSTEM (Car dynamic control system) . . .........31
VERSION WITH LPG SYSTEM.......................32
Page 10 of 212

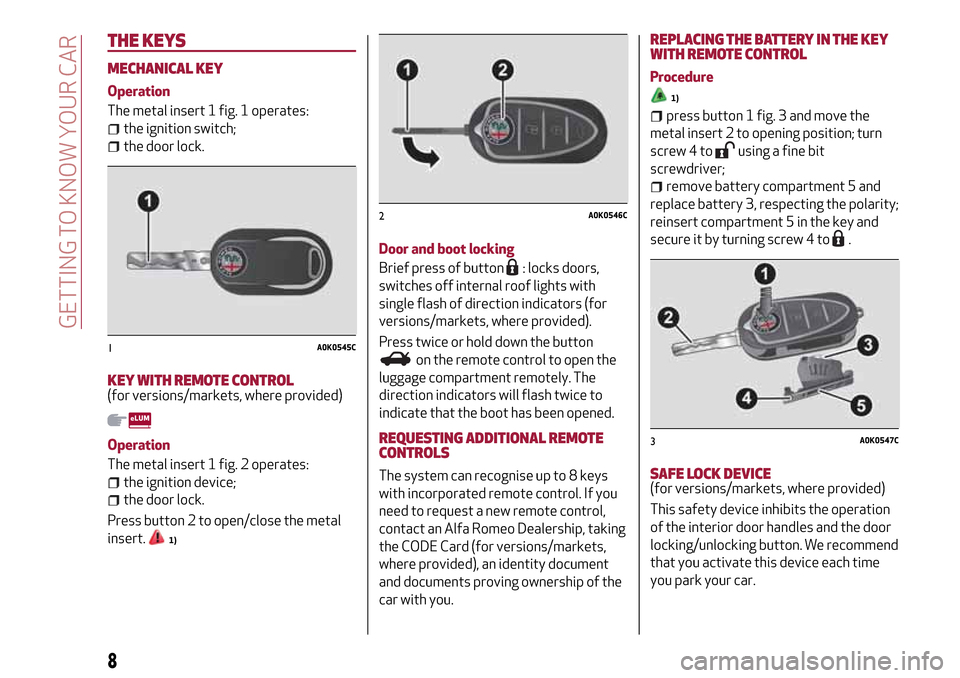

THE KEYS
MECHANICAL KEY
Operation
The metal insert 1 fig. 1 operates:
the ignition switch;
the door lock.
KEY WITH REMOTE CONTROL(for versions/markets, where provided)
Operation
The metal insert 1 fig. 2 operates:
the ignition device;
the door lock.
Press button 2 to open/close the metal
insert.
1)
Door and boot locking
Brief press of button
: locks doors,
switches off internal roof lights with
single flash of direction indicators (for
versions/markets, where provided).
Press twice or hold down the button
on the remote control to open the
luggage compartment remotely. The
direction indicators will flash twice to
indicate that the boot has been opened.
REQUESTING ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 keys
with incorporated remote control. If you
need to request a new remote control,
contact an Alfa Romeo Dealership, taking
the CODE Card (for versions/markets,
where provided), an identity document
and documents proving ownership of the
car with you.
REPLACING THE BATTERY IN THE KEY
WITH REMOTE CONTROL
Procedure
1)
press button 1 fig. 3 and move the
metal insert 2 to opening position; turn
screw 4 to
using a fine bit
screwdriver;
remove battery compartment 5 and
replace battery 3, respecting the polarity;
reinsert compartment 5 in the key and
secure it by turning screw 4 to
.
SAFE LOCK DEVICE(for versions/markets, where provided)
This safety device inhibits the operation
of the interior door handles and the door
locking/unlocking button. We recommend
that you activate this device each time
you park your car.
1A0K0545C
2A0K0546C
3A0K0547C
8
GETTING TO KNOW YOUR CAR
