Alfa Romeo GT 2007 Owner handbook (in English)

GETTING TO KNOW YOUR CAR
29
Pre-tensioning devices can
only be used once. After
they have been triggered
contact Alfa Romeo Authorised Ser-
vices to have them replaced. The
validity of the device is 10 years
from the date of production on the
sticker; the pretensioners should be
changed at an Alfa Romeo Autho-
rised Service as this date ap-
proaches.Operations involving bang-
ing, vibrations or heating
(above 100°C for a maxi-
mum of 6 hours) in the area of the
pretensioners may damage or trig-
ger off the device. Vibrations from
rough road surfaces or accidental
jolting caused by mounting pave-
ments etc. do not have any effect on
the pretensioner. If, however, you
need assistance, go to Alfa Romeo
Authorised Services.
fig. 40
A0A0675b
LOAD LIMITERS
To increase passengers’ protection in the
event of an accident, the front and rear
(where provided) seat belt reels contain a
load limiter which allows controlled sag in
such a way as to dose the force acting on
the shoulders and chest during the belt re-
straining action in case of a crash.
GENERAL INSTRUCTIONS
FOR THE USE OF THE SEAT
BELTS
All the occupants of the car are obliged to
respect the local traffic laws regarding the
wearing of seat belts.
Always fasten the seat belts before starting.
Seat belts are also to be worn by expec-
tant mothers: the risk of injury in the case
of accident is greatly reduced for them and
the unborn child if they are wearing a seat
belt. Pregnant women must of course posi-
tion the lower part of the belt very low down
so that it passes under the abdomen (as il-
lustrated in fig. 40). Pretensioner activation may produce a
small amount of smoke. This smoke is in no
way toxic and presents no fire hazard.
The emergency tensioning retractor needs
no maintenance or lubrication. Any modifi-
cation to its original features will nullify the
retractor effectiveness. If, due to unusual
natural events (floods, high waves, etc.),
the device has been affected by water and
mud, it must be replaced.

GETTING TO KNOW YOUR CAR
30
Under no circumstances
should the components of
the seat belt and preten-
sioner be tampered with or re-
moved. Any operation should be
carried out by qualified and autho-
rised personnel. Always contact an
Alfa Romeo Authorised Service. IMPORTANTThe seat belt must not be
twisted. The upper part must pass over the
shoulder and diagonally across the chest. The
lower part must rest across the pelvis and not
across the (fig. 41) stomach. Do not use
devices (clips, stoppers, etc.) which keep the
belts away from the body.To ensure the highest de-
gree of protection, you are
recommended to keep the
seat backrest in the straightest po-
sition possible, and the belt adher-
ing well to the chest and pelvis.
Seat belts should always be worn
in both the front and rear positions!
Travelling without seat belt in-
creases the risk of serious injury or
death in the case of accident.
fig. 41
A0A0673b
fig. 42
A0A0051b
IMPORTANT Each seat belt shall be worn
only by one person: do not carry children on
your knee using a single seat belt for both
(fig. 42). Do not fasten other objects to the
body.

GETTING TO KNOW YOUR CAR
31

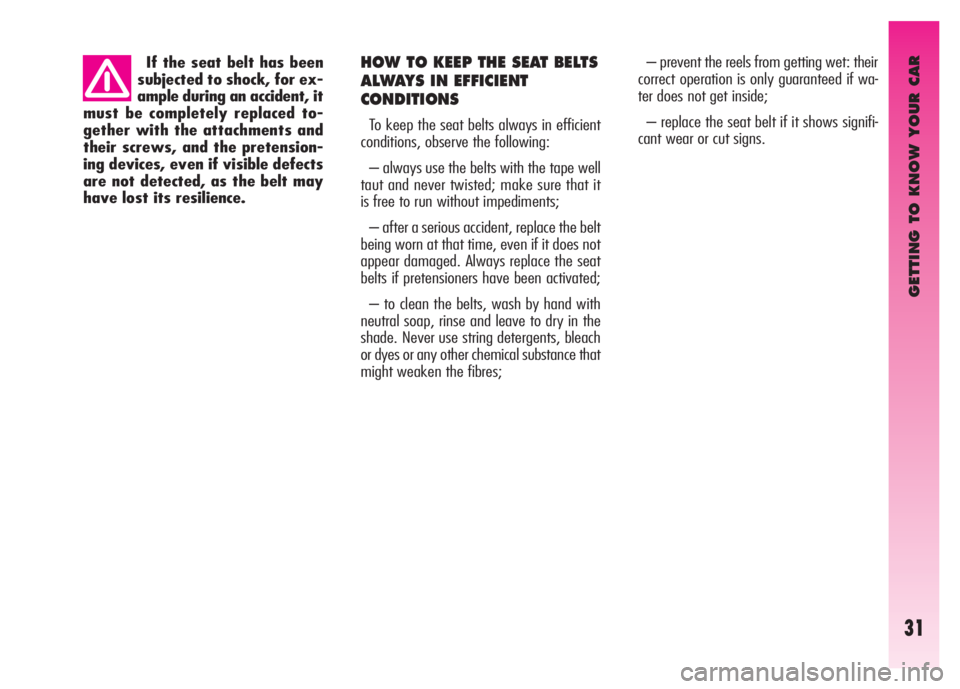

HOW TO KEEP THE SEAT BELTS
ALWAYS IN EFFICIENT
CONDITIONS
To keep the seat belts always in efficient
conditions, observe the following:
– always use the belts with the tape well
taut and never twisted; make sure that it
is free to run without impediments;
– after a serious accident, replace the belt
being worn at that time, even if it does not
appear damaged. Always replace the seat
belts if pretensioners have been activated;
– to clean the belts, wash by hand with
neutral soap, rinse and leave to dry in the
shade. Never use string detergents, bleach
or dyes or any other chemical substance that
might weaken the fibres;– prevent the reels from getting wet: their
correct operation is only guaranteed if wa-
ter does not get inside;
– replace the seat belt if it shows signifi-
cant wear or cut signs. If the seat belt has been
subjected to shock, for ex-
ample during an accident, it
must be completely replaced to-
gether with the attachments and
their screws, and the pretension-
ing devices, even if visible defects
are not detected, as the belt may
have lost its resilience.

GETTING TO KNOW YOUR CAR
32
CARRYING
CHILDREN SAFELY
For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems. This is
even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Compared with adults, their head is pro-
portionally larger and heavier than the rest
of the body, while the muscles and bone
structure are not completely developed.
Therefore, correct restraint systems are nec-
essary, other than adult seat belts.
The results of research on the best pro-
tection for a child are summarised in Euro-
pean Standard ECE- R44, which in addition
to making them compulsory, subdivides re-
straint systems into five groups:
Group 0 0 - 10 kg in weight
Group 0+ 0 - 13 kg in weight
Group 1 9 - 18 kg in weight
Group 2 15 - 25 kg in weight
Group 3 22 - 36 kg in weightAs it may be noted, the groups overlap
partly and in fact, in commerce it is possible
to find devices that cover more than one
weight group. All restraint devices must bear
the certification data, together with the con-
trol brand, on a solidly fixed label which
must absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are con-
sidered as adults and wear the seat belts
normally. Lineaccessori Alfa Romeo offers
seats for each weight group, which are the
recommended choice, as they have been de-
signed and experimented specifically for Al-
fa Romeo cars.
Never place cradle child’s
seats facing backwards on
the front passenger seat of
cars fitted with passenger’s air bag
since the air bag activation could
cause serious injuries, even mortal.
You are advised to carry children
always on the rear seat, as this is
the most protected position in the
case of a crash.
SERIOUS DANGER
Children may placed
on the front seat of
cars fitted with passenger’s air bag
deactivation. In this case, it is ab-
solutely necessary to check the
warning light Fon the instru-
ment panel to make sure that de-
activation has actually took place
(see paragraph “Front passenger
air bag”). The front passenger’s
seat shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard.

GETTING TO KNOW YOUR CAR
33
GROUP 0 AND 0+ (fig. 43)
Babies up to 13 kg must be carried fac-
ing behind on a cradle seat which, support-
ing the head, does not induce strain on the
neck in the event of a sharp deceleration.
The cradle is restrained by the car safety
belts, as illustrated, and it should in turn
restrain the child with the belts incorporat-
ed on it.
GROUP 1 (fig. 44)
Starting from 9 to 18 kg in weight, chil-
dren may be carried facing forwards with
seats fitted with front cushion, through
which the car seat belt restrains both child
and seat.The illustration is indica-
tive only for assembly. As-
semble the seat according
to the compulsory instructions pro-
vided with it.
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear
connection to the car belts and its
own belts to restrain the child. Be-
cause of their mass, they can be
dangerous if installed incorrectly
fastened to the car belts with a
cushion. Strictly adhere to the as-
sembly instructions provided.
fig. 43
A0A0659b
fig. 44
A0A0660b

GETTING TO KNOW YOUR CAR
34
GROUP 2 (fig. 45)
Starting from 15 to 25 kg in weight, chil-
dren may be restrained directly by the car
seat belts.
Child seats only have the function of po-
sitioning the child correctly in relation to the
belts, so that the diagonal part adheres to
the chest and never to the neck and that the
horizontal part adheres to the child’s pelvis
and not to the abdomen.
GROUP 3 (fig. 46)
For children from 22 up to 36 kg the
child’s chest is thick enough not to need the
spacer back rest anymore.
The figure shows proper child seat posi-
tioning on the rear seat.
Over 1.50 m in height, children may wear
seat belts like adults.The illustration is indica-
tive only for assembly. As-
semble the seat according
to the compulsory instructions pro-
vided with it.
fig. 45
A0A0661b
fig. 46
A0A0662b

GETTING TO KNOW YOUR CAR
35
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON CHILD’S SEAT USE
Your car complies with the new European Directive 2000/3/EC regulating child’s seat assembling on the different car seats according to
the following table:
Key:
U= suitable for child restraint systems of the “Universal” category, according to European Standard EEC-R44 for the specified “Groups”.
Range of weight
up to 13 kg
9-18 kg
15-25 kg
22-36 kgFront
passenger
U
U
U
URear
passengers
U
U
U
UCentral
passenger
U
U
U
UGroup
Group 0, 0+
Group 1
Group 2
Group 3

GETTING TO KNOW YOUR CAR
36
Below is a summary of the rules
of safety to be followed for car-
rying children:
– The recommended position for installing
a child’s seat is on the rear seat, as it is the
most protected in the event of a crash.
– If the passenger’s air bag is deactivated
alwayscheck warning light
Fon the
cluster to make sure that it has actually been
deactivated.
– Carefully follow the instructions provid-
ed with the child’s seat, which the supplier
is obliged to attach. Keep them in the car
together with the documents and this book-
let. Do not use used seats without the in-
structions for use.
– Always pull the tape to check that belts
are buckled.
Never place cradle child’s
seats facing backwards on
the front passenger seat of
cars fitted with passenger’s air bag
since the air bag activation could
cause serious injuries, even mortal.
You are advised to carry children
always on the rear seat, as this is
the most protected position in the
case of a crash.– All restraint systems are strictly for one
child only: never use for two children at the
same time.
– Always make sure that the belts do not
rest on the child’s neck.
– During the journey, do not allow the
child to stay in abnormal positions or release
the belts.
– Do not carry children in your arms, not
even small babies. No-one, however strong,
can keep hold od them in a crash.
– In the case of accidents, replace the
child’s seat with a new one.
PRESETTING FOR
MOUNTING
“ISOFIX TYPE” CHILD
RESTRAINT SYSTEM
The rear seat of your car is preset for
mounting the Isofix type child restraint sys-
tem, a new European standardised system
for carrying children safely. Isofix type child
restraint system is an additional option that
does not prevent from using traditional child
restraint systems. Isofix type child restraint
system covers three weight groups: 0, 0+
and 1.
Due to its different anchoring system, the
Isofix child’ seat shall be anchored just us-
ing the metal brackets (A-fig. 47) set be-
tween rear seat back and cushion.
fig. 47
A0A0671b

GETTING TO KNOW YOUR CAR
37
Mount the child restraint
system only with the car
stationary. The Isofix child
restraint system is properly an-
chored to the mounting brackets
when clicks are heard. In any case,
keep to the installation instructions
that must be provided by the child
restraint system Manufacturer.– push the child restraint system until hear-
ing the locking clicks;
– check proper locking by moving the
child’s seat with force: the built-in safety
mechanism actually inhibits proper coupling
with only one coupling locked.
It is actually possible to mount both the
traditional restraint system and the Isofix
one, e.g. the traditional one on the left and
the Isofix type seat on the right.
Since sizes are different, on the rear seats
it is possible to install just two traditional
child’s seats, or two Isofix type seats. On
the front passenger seat it is only possible
to mount traditional child’s seats.
Only Isofix type child restraint systems de-
signed and tested for this car must be used.
fig. 48
A0A0663b
MOUNTING THE ISOFIX TYPE
CHILD’S SEAT
Groups 0 and 0+
For children of the 0 and 0+ group (ba-
bies up to 13 Kg), the child’s seat is facing
backwards and the child is restrained by the
child’s seat belts(D-fig. 48).
As the child grows, passing to weight group
1, the child’s seat shall be fitted facing for-
wards.
For proper mounting proceed as follows:
– check whether the release lever (B) is
at rest position (inward);
– find the presetting brackets (A), then
position the child restraint system with the
fastening devices (C) aligned with the brack-
ets;

GETTING TO KNOW YOUR CAR
38
Group 1
For proper mounting proceed as follows:
– check whether the release lever (B-
fig. 49) is at rest position (inward);
– find the presetting brackets (A), then
position the child restraint system with fas-
tening devices (C) aligned with the brack-
ets;
– push the child restraint system until hear-
ing the locking clicks;
– check proper locking by moving the
child’s seat with force: the built-in safety
mechanism actually inhibits improper cou-
pling with only one coupling locked.AIR BAG
The car is fitted with front air bags for the
driver and for the passenger (side bags - win-
dow bags).
FRONT AIR BAGS
The front air bag (driver’s and passenger’s)
has been designed to protect the occupants
in the event of head-on crashes of medium-
high severity by placing the cushion between
the occupant and the steering wheel or dash-
board.
Front air bags are designed to protect the
car occupants in front crashes and therefore
non-activation in other types of collisions
(side collisions, rear-end shunts, roll-overs,
etc...) is not a system malfunction.
In the case of a crash, an electronic con-
trol unit, when necessary, triggers inflation
of the cushion.
The cushion inflates instantaneously, set-
ting itself between the body of the front oc-
cupants and the structures that could cause
injury. The cushion then deflates immedi-
ately afterwards. With this configuration, the child is secured
also by the car seat belts and by the upper
belts. To apply car seat belts to child’s seat
refer to the child’s seat handbook.
fig. 49
A0A0664b
