GETTING TO KNOW YOUR CAR21
1
Dusk sensor failure (where provided)
On some versions the display will show a message +
symbol if there is a fault in the dusk sensor.1
Fuel reser ve – Limited range (amber)
This warning light comes on when about 5 to 7 litres
of fuel are left in the tank. When the remaining range
is approx. 50 km (or equivalent value in miles), on some
versions, the display will show a warning message.
Parking sensor failure
(where provided)
On some versions the display will show a message +
symbol if there is a fault in the parking sensors.
Rain sensor failure (where provided)
On some versions the display will show a message +
symbol if there is a fault in the rain sensor.u
ç
t
If the warning light flashes with the vehicle in mo-
tion, contact an Alfa Romeo Authorised Service.
Cruise Control (where provided)
(green)
This warning light comes on when the key is turned to
MAR, but should go out after a few seconds if the Cruise
Control function is deactivated. The warning light comes on when
the Cruise Control wheel is turned to the ON position (see the
“Cruise Control” paragraph in this chapter). The display will show
the dedicated message.Ü
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 21

26GETTING TO KNOW YOUR CAR
DISPLAY
The car may be equipped with the multifunctional display/multi-
functional reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (covered km or miles).
C. Driving mode selected via “ALFA dna” (dynamic vehicle con-
trol system) (where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Clock (always displayed, even with ignition key removed and
the doors closed)
E. Outdoor temperature
F. Headlight alignment position (with dipped beam headlights on
only).
G. Scheduled servicing deadline
With the ignition key removed, when a door is opened/closed, the
display is activated and shows the time and total mileage (in km
or miles) for a few seconds.
fig. 6A0J1222g
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 26

28GETTING TO KNOW YOUR CAR
WELCOME MOVEMENT
On some versions, when the key is turned to MAR, the following
occurs:
❍quick movement (up and down) of the speedometer and rpm
gauge;
❍illumination of graphic symbols/display;
❍an animated graphic representation of the vehicle profile ap-
pears on the display.
Gauge movement
❍If the key is removed from the ignition switch whilst the gauges
are moving, they immediately return to their initial position.
❍Once they have reached the end-of-scale values the gauges rest
on the value indicated by the vehicle.
❍The movement of the gauges stops when the engine is started.
Illumination of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic sym-
bols and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display illumination is then dimmed gradually until it goes
out completely.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 28

GETTING TO KNOW YOUR CAR29
1
CONTROL BUTTONS Fig. 9
“+” To scroll the displayed menu and the related options upwards
or to increase the displayed value
“MENU ESC”: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold
down to go back to the standard screen.
“–” to scroll the displayed menu and the related options down-
wards or to decrease the value displayed.IMPORTANT the “+” and “–” buttons activate different functions
according to the following situations:❍to scroll the menu options upwards and downwards;
❍to increase or decrease values during settings.
With the ignition key removed, when a door is opened, the display
is activated and shows the total mileage (in km or miles) for a few
seconds.
fig. 9A0J0024m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 29

36GETTING TO KNOW YOUR CAR
First page (Display of information on the
initial screen) (where provided)
This function allows you to choose the information you would like
to see on the main screen. You can view the date or the trip
mileage.
Proceed as follows:
– briefly press MENU ESC: “Initial page” will appear on the dis-
play;
– briefly press MENU ESC once again to show the display op-
tions: “Date” and “Engine info”;
– press + or – to select the information you wish to see on the
main page of the display;
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen with-
out storing the new settings.
When the key is turned to MAR and the initial check stage is over,
the display will show the information selected via the “initial page”
menu function.
See radio (Repeat audio information)
With this function the display repeats information relevant to the
sound system.
– Radio: tuned radio station frequency or RDS message, automatic
tuning activation or AutoSTore;
– audio CD, MP3 CD: track number;
– CD Changer: CD number and track number.
To display (On) or remove (Off) radio system info proceed as
follows:
– press MENU ESC briefly: (On) or (Off) will flash on the display
(according to previous setting);
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen with-
out storing the new settings.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 36

40GETTING TO KNOW YOUR CAR
Ser vice (Scheduled ser vicing)
This function allows you to view information on car servicing de-
pending on kilometres travelled or daily intervals.
With the Service function it is also possible to view the interval
(in kilometres or miles) before the next engine oil change is due.
This information can be consulted as follows:
– briefly press MENU ESC: the display shows service requirements
in km or mi according to the previous setting (see paragraph “Dis-
tance unit of measurement”);
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen.IMPORTANT The “Planned Maintenance Programme” requires the
vehicle to be serviced every 30,000 km (for petrol versions), or
every 35,000 km (for diesel versions). This message is displayed
automatically when the key is turned to MAR, from 2,000 km
(or equivalent value in miles) from the mileage when the next ser-
vice is due and is re-displayed every 200 km (or equivalent value
in miles). The indications will appear more frequently when there
are less than 200 km left. The indication will appear in kilome-
tres or miles according to the unit of measurement settings. When
the next scheduled service operation is approaching, the message
“Service” will appear on the display followed by the number of
kilometres or miles left, when the key is turned to MAR. Go to an
Alfa Romeo Authorised Service where the “Scheduled Service” op-
erations will be performed and the message will be reset.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 40

42GETTING TO KNOW YOUR CAR

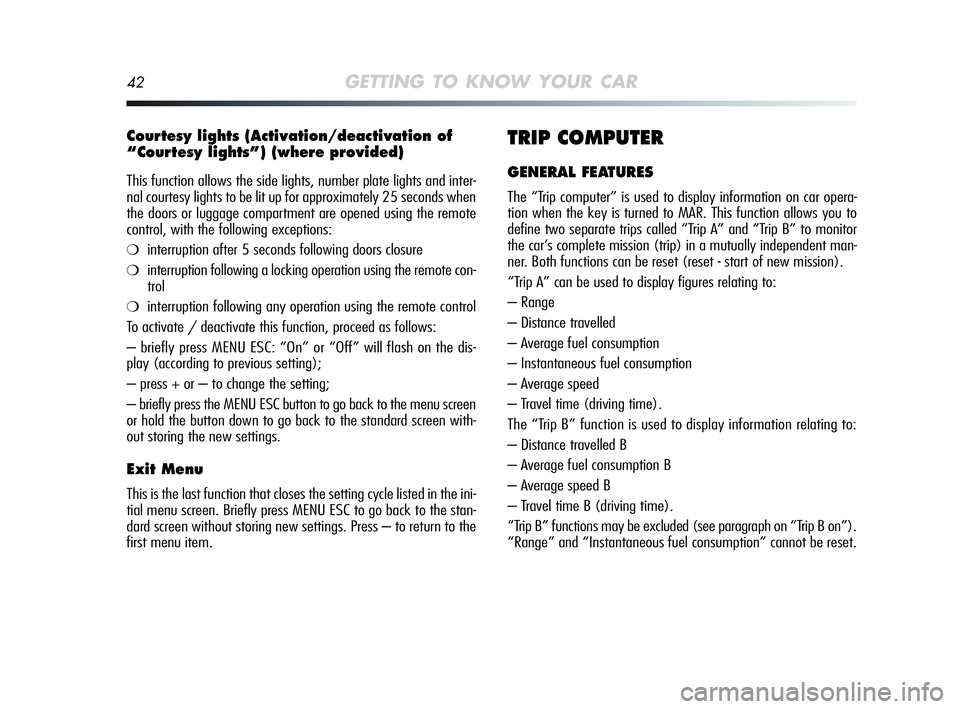

Courtesy lights (Activation/deactivation of
“Courtesy lights”) (where provided)
This function allows the side lights, number plate lights and inter-
nal courtesy lights to be lit up for approximately 25 seconds when
the doors or luggage compartment are opened using the remote
control, with the following exceptions:
❍interruption after 5 seconds following doors closure
❍interruption following a locking operation using the remote con-
trol
❍interruption following any operation using the remote control
To activate / deactivate this function, proceed as follows:
– briefly press MENU ESC: “On” or “Off” will flash on the dis-
play (according to previous setting);
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen with-
out storing the new settings.
Exit Menu
This is the last function that closes the setting cycle listed in the ini-
tial menu screen. Briefly press MENU ESC to go back to the stan-
dard screen without storing new settings. Press – to return to the
first menu item.
TRIP COMPUTER
GENERAL FEATURES
The “Trip computer” is used to display information on car opera-
tion when the key is turned to MAR. This function allows you to
define two separate trips called “Trip A” and “Trip B” to monitor
the car’s complete mission (trip) in a mutually independent man-
ner. Both functions can be reset (reset - start of new mission).
“Trip A” can be used to display figures relating to:
– Range
– Distance travelled
– Average fuel consumption
– Instantaneous fuel consumption
– Average speed
– Travel time (driving time).
The “Trip B” function is used to display information relating to:
– Distance travelled B
– Average fuel consumption B
– Average speed B
– Travel time B (driving time).
“Trip B” functions may be excluded (see paragraph on “Trip B on”).
“Range” and “Instantaneous fuel consumption” cannot be reset.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 42

GETTING TO KNOW YOUR CAR45
1

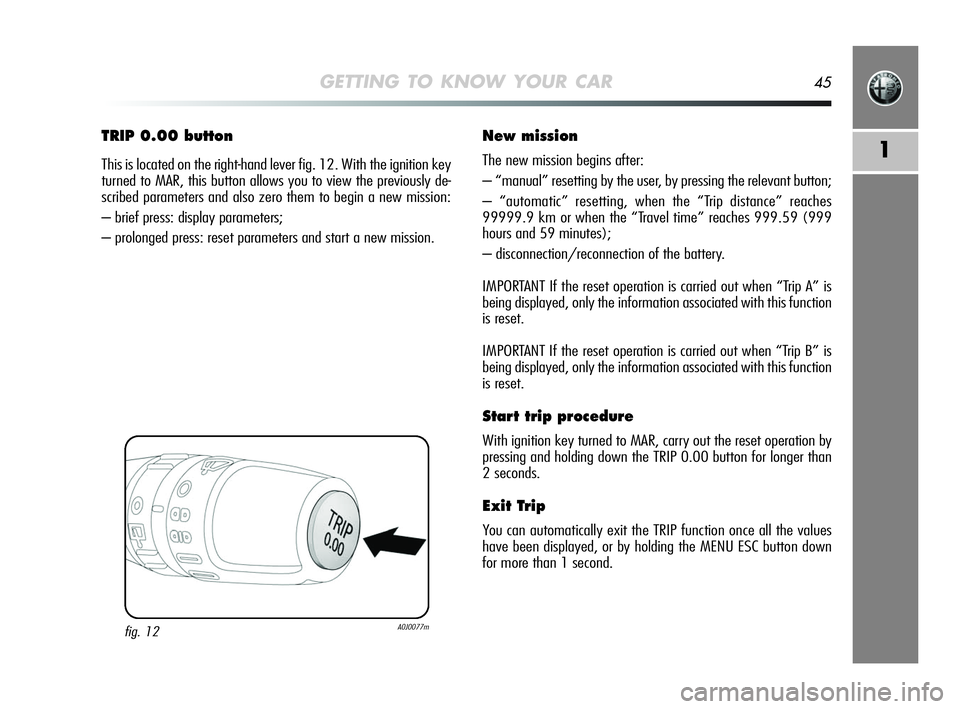

TRIP 0.00 button
This is located on the right-hand lever fig. 12. With the ignition key
turned to MAR, this button allows you to view the previously de-
scribed parameters and also zero them to begin a new mission:
– brief press: display parameters;
– prolonged press: reset parameters and start a new mission.
New mission
The new mission begins after:
– “manual” resetting by the user, by pressing the relevant button;
– “automatic” resetting, when the “Trip distance” reaches
99999.9 km or when the “Travel time” reaches 999.59 (999
hours and 59 minutes);
– disconnection/reconnection of the battery.
IMPORTANT If the reset operation is carried out when “Trip A” is
being displayed, only the information associated with this function
is reset.
IMPORTANT If the reset operation is carried out when “Trip B” is
being displayed, only the information associated with this function
is reset.
Start trip procedure
With ignition key turned to MAR, carry out the reset operation by
pressing and holding down the TRIP 0.00 button for longer than
2 seconds.
Exit Trip
You can automatically exit the TRIP function once all the values
have been displayed, or by holding the MENU ESC button down
for more than 1 second.
fig. 12A0J0077m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 45

46GETTING TO KNOW YOUR CAR
SYMBOLS
Some vehicle components have coloured labels whose symbols in-
dicate precautions to be observed when using this component.
There is also a label under the bonnet that summarises all the sym-
bols.
ALFA ROMEO CODE SYSTEM
This is an electrical engine locking system which increases protec-
tion against an attempted theft of the car. It is automatically acti-
vated when the ignition key is extracted.
Each key contains an electronic device which modulates the sig-
nal emitted during ignition by an antenna built into the ignition de-
vice. This signal is the ‘password’ which changes at each ignition
and which the control unit uses to recognise the key and enable
ignition.
OPERATION
Each time the car is started by turning the ignition key to MAR, the
Alfa Romeo CODE system control unit sends an acknowledgement
code to the engine management control unit to deactivate the in-
hibitor.
The code is sent only if the Alfa Romeo CODE system control unit
has recognised the code transmitted from the key.
Each time the ignition key is turned to STOP, the Alfa Romeo
CODE system deactivates the functions of the engine management
control unit. If the code is not recognised correctly during ignition,
the
Ywarning light comes on in the instrument panel. In this
case turn the key to STOP and then to MAR; if the lock persists
try again with the spare set of keys. If you are still unable to
start the engine contact an Alfa Romeo Authorised Service.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 46

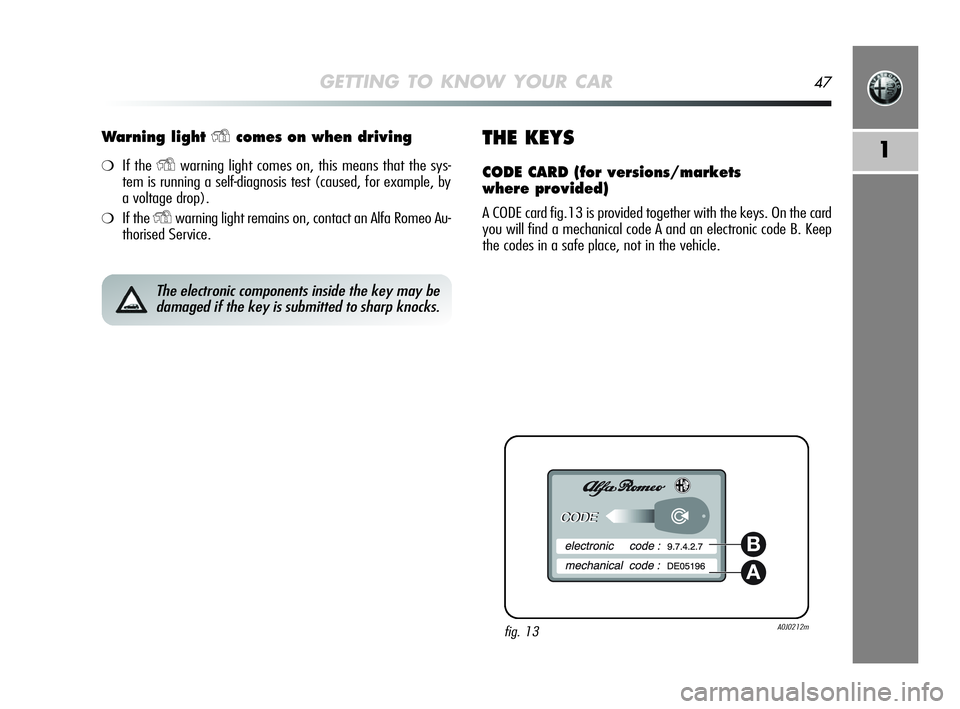

GETTING TO KNOW YOUR CAR47
1
Warning light Ycomes on when driving
❍If the Ywarning light comes on, this means that the sys-
tem is running a self-diagnosis test (caused, for example, by
a voltage drop).
❍If the Ywarning light remains on, contact an Alfa Romeo Au-
thorised Service.
THE KEYS
CODE CARD (for versions/markets
where provided)
A CODE card fig.13 is provided together with the keys. On the card
you will find a mechanical code A and an electronic code B. Keep
the codes in a safe place, not in the vehicle.
The electronic components inside the key may be
damaged if the key is submitted to sharp knocks.
fig. 13A0J0212m
A
B
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 47
