76GETTING TO KNOW YOUR CAR
SIDE LIGHTS/DIPPED BEAM HEADLIGHTS
With the ignition key turned to MAR, turn selector wheel A to 2. The
daylight lights are switched off and the side lights and dipped beam
headlights are switched on. The
3warning light on the instru-
ment panel will come on at the same time.
AUTOMATIC LIGHTING CONTROL (AUTOLIGHT)
(Dusk sensor) (where provided)
THIS is an infra-red LED sensor that works in conjunction with the
rain sensor and is fitted on the windscreen. It is able to detect
variations in outside lighting based on the sensitivity settings se-
lected in the Set-up Menu: the higher the sensitivity, the lower
the amount of external light needed to switch the lights on. The
system consists of two sensors: one multi-directional sensor able
to detect light from above, and one directional sensor able to de-
tect the light in the vehicle’s path: this allows the system to recog-
nise tunnels, roads and galleries. The dusk sensor is activated by
turning selector wheel A-fig. 33 to
2A. In this way the side lights
and dipped beam headlights are both switched on automatically
according to the outside light level.
EXTERNAL LIGHTS
LEFT-HAND LEVER fig. 33
The left-hand lever operates most of the external lights. The ex-
ternal lights can only be switched on when the ignition key is at
MAR. The instrument panel and the various controls on the dash-
board will come on when the external lights are switched on.
DAYLIGHT LIGHTS (D.R.L.) (where provided)
With the ignition key turned to MAR and selector wheel A turned
to position
Othe daylight lights are activated; the other lights
and internal illumination remain off. With regards to switching on
the Daylight lights, see the “Menu Items” paragraph in this chap-
ter. If the function is disabled, no lights are switched on when se-
lector wheel A is turned to position
O.
fig. 33A0J0063m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 76

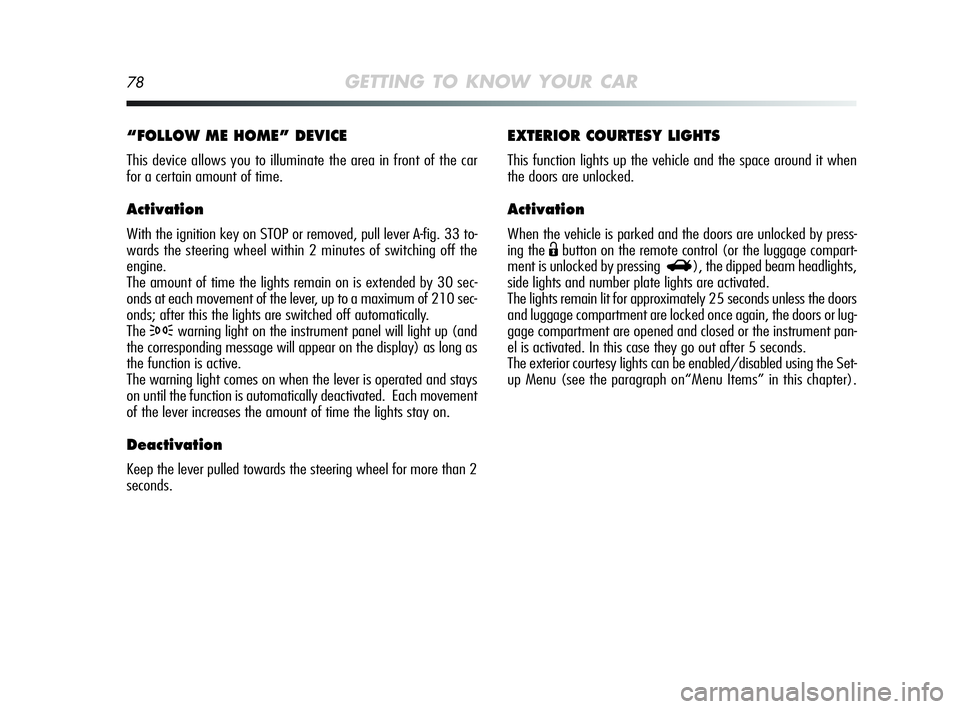

78GETTING TO KNOW YOUR CAR
EXTERIOR COURTESY LIGHTS
This function lights up the vehicle and the space around it when
the doors are unlocked.
Activation
When the vehicle is parked and the doors are unlocked by press-
ing the
Ëbutton on the remote control (or the luggage compart-
ment is unlocked by pressing
R), the dipped beam headlights,
side lights and number plate lights are activated.
The lights remain lit for approximately 25 seconds unless the doors
and luggage compartment are locked once again, the doors or lug-
gage compartment are opened and closed or the instrument pan-
el is activated. In this case they go out after 5 seconds.
The exterior courtesy lights can be enabled/disabled using the Set-
up Menu (see the paragraph on“Menu Items” in this chapter).
“FOLLOW ME HOME” DEVICE
This device allows you to illuminate the area in front of the car
for a certain amount of time.
Activation
With the ignition key on STOP or removed, pull lever A-fig. 33 to-
wards the steering wheel within 2 minutes of switching off the
engine.
The amount of time the lights remain on is extended by 30 sec-
onds at each movement of the lever, up to a maximum of 210 sec-
onds; after this the lights are switched off automatically.
The
3warning light on the instrument panel will light up (and
the corresponding message will appear on the display) as long as
the function is active.
The warning light comes on when the lever is operated and stays
on until the function is automatically deactivated. Each movement
of the lever increases the amount of time the lights stay on.
Deactivation
Keep the lever pulled towards the steering wheel for more than 2
seconds.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 78

GETTING TO KNOW YOUR CAR79
1
Moving the lever upwards (unstable position) limits operation to
the time the lever is held in this position. The lever will return to
position and the wiper will be automatically stopped when released.WINDOW WASHING
The right lever controls windscreen wiper/washer and heated rear
window wiper/washer operation.
WINDSCREEN WIPER/WASHER fig. 34
This only operates with the ignition turned to MAR. Selector wheel
A can take five different positions:
,intermittent (low speed);
Owindscreen wiper off;
AUTO rain sensor activation (where provided) (the windscreen
wipers adapt the operating speed automatically to suit the
intensity of the rain)
≤intermittent;
≥continuous slow;
¥continuous fast operation.
fig. 34A0J0064m
Do not use the windscreen wiper to remove lay-
ers of snow or ice from the windscreen. In such con-
ditions, the windscreen wiper may be subjected to
excessive stress and the motor protection which prevents
operation for a few seconds may trip. If operation is not
restored, even after turning the key and restarting the en-
gine, contact an Alfa Romeo Authorised Service.
“Smart washing” function
Pull the lever towards the steering wheel (unstable position) to op-
erate the windscreen washer jet. By keeping the lever pulled for
more than half a second, it is possible to operate the washer jet
and the wiper at the same time with just one movement.
The wiper stops working three strokes after releasing the lever. A
further stroke after approx. 6 seconds completes the wiping cycle.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 79

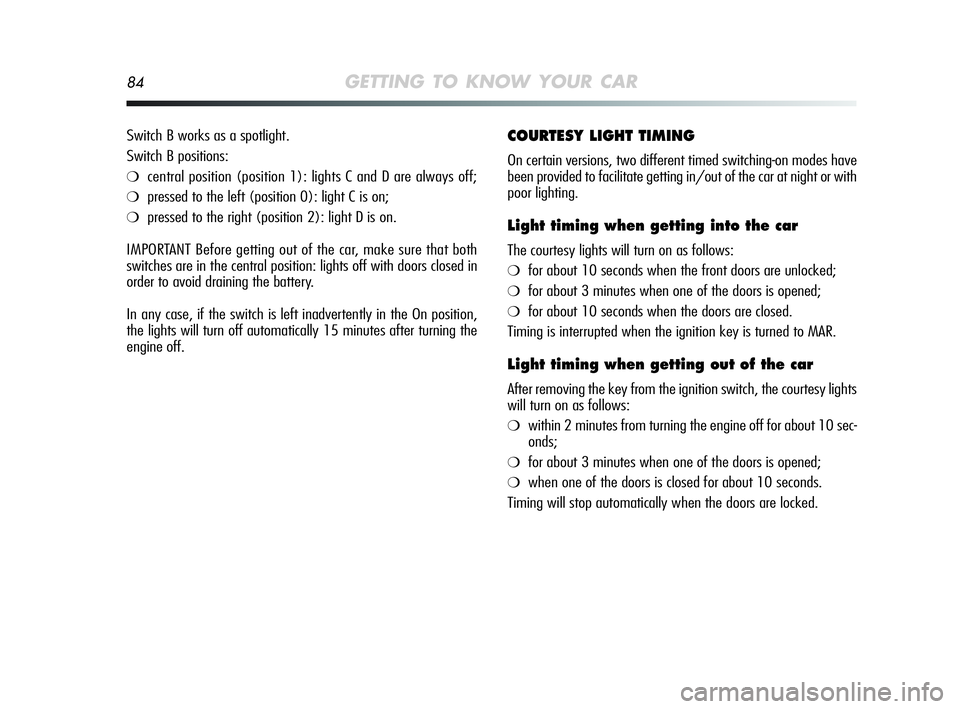

84GETTING TO KNOW YOUR CAR
COURTESY LIGHT TIMING
On certain versions, two different timed switching-on modes have
been provided to facilitate getting in/out of the car at night or with
poor lighting.
Light timing when getting into the car
The courtesy lights will turn on as follows:
❍for about 10 seconds when the front doors are unlocked;
❍for about 3 minutes when one of the doors is opened;
❍for about 10 seconds when the doors are closed.
Timing is interrupted when the ignition key is turned to MAR.
Light timing when getting out of the car
After removing the key from the ignition switch, the courtesy lights
will turn on as follows:
❍within 2 minutes from turning the engine off for about 10 sec-
onds;
❍for about 3 minutes when one of the doors is opened;
❍when one of the doors is closed for about 10 seconds.
Timing will stop automatically when the doors are locked. Switch B works as a spotlight.
Switch B positions:
❍central position (position 1): lights C and D are always off;
❍pressed to the left (position 0): light C is on;
❍pressed to the right (position 2): light D is on.
IMPORTANT Before getting out of the car, make sure that both
switches are in the central position: lights off with doors closed in
order to avoid draining the battery.
In any case, if the switch is left inadvertently in the On position,
the lights will turn off automatically 15 minutes after turning the
engine off.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 84

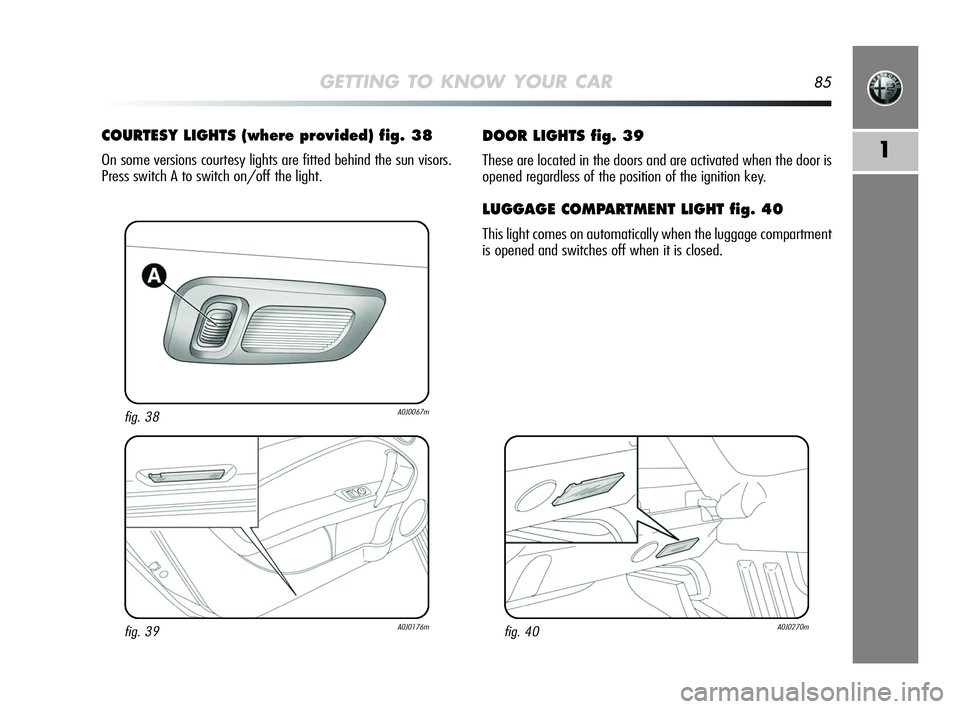

GETTING TO KNOW YOUR CAR85
1
DOOR LIGHTS fig. 39
These are located in the doors and are activated when the door is
opened regardless of the position of the ignition key.
LUGGAGE COMPARTMENT LIGHT fig. 40
This light comes on automatically when the luggage compartment
is opened and switches off when it is closed.
fig. 39A0J0176m
fig. 38A0J0067m
fig. 40A0J0270m
COURTESY LIGHTS (where provided) fig. 38
On some versions courtesy lights are fitted behind the sun visors.
Press switch A to switch on/off the light.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 85

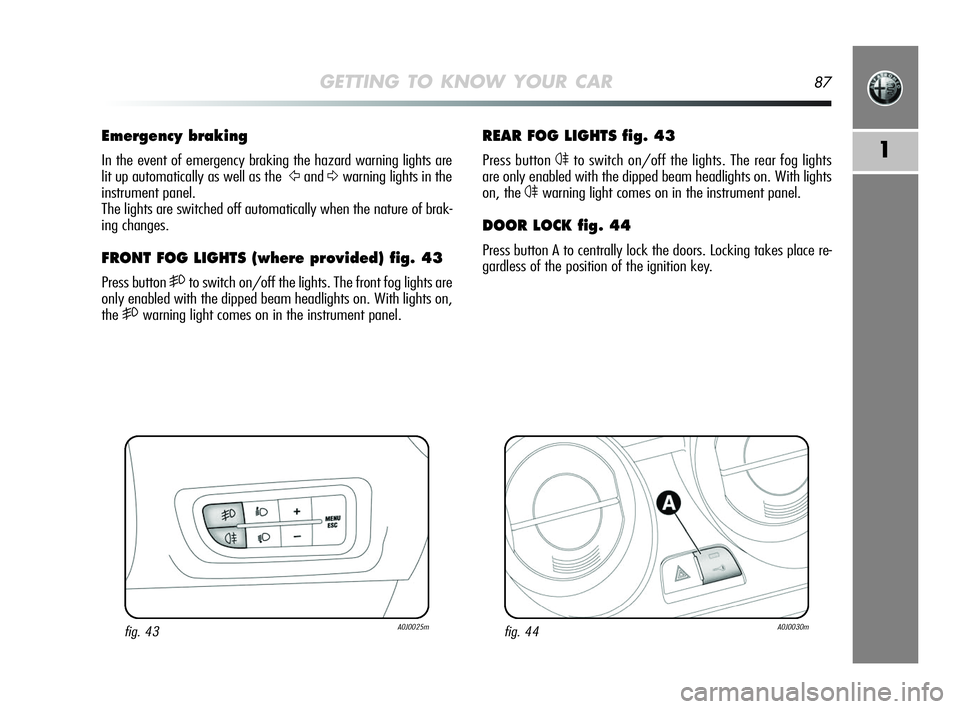

GETTING TO KNOW YOUR CAR87
1
REAR FOG LIGHTS fig. 43
Press button 4to switch on/off the lights. The rear fog lights
are only enabled with the dipped beam headlights on. With lights
on, the
4warning light comes on in the instrument panel.
DOOR LOCK fig. 44
Press button A to centrally lock the doors. Locking takes place re-
gardless of the position of the ignition key.
Emergency braking
In the event of emergency braking the hazard warning lights are
lit up automatically as well as the
ŸandΔwarning lights in the
instrument panel.
The lights are switched off automatically when the nature of brak-
ing changes.
FRONT FOG LIGHTS (where provided) fig. 43
Press button 5to switch on/off the lights. The front fog lights are
only enabled with the dipped beam headlights on. With lights on,
the
5warning light comes on in the instrument panel.
fig. 43A0J0025mfig. 44A0J0030m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 87

88GETTING TO KNOW YOUR CAR
FUEL CUT-OFF SYSTEM
This system intervenes in the event of a collision, activating:
❍switch off of fuel supply with resultant engine switch off;
❍automatic door lock release;
❍switch on of all lights inside the car.
The intervention of the system is indicated by a message shown
on the display.
Carefully check the car for fuel leaks, for instance in the engine
compartment, below the car or near the tank area.
After a collision, turn the ignition key to STOP to avoid draining the
battery.
If, after a collision, you smell fuel or notice leaks
from the fuel system, do not reset the system to
avoid fire risk.
To reset car operation, follow this procedure:
❍turn the ignition key to MAR;
❍activate the right-hand direction indicator;
❍deactivate the right-hand direction indicator;
❍activate the left-hand direction indicator;
❍deactivate the left-hand direction indicator;
❍activate the right-hand direction indicator;
❍deactivate the right-hand direction indicator;
❍activate the left-hand direction indicator;
❍deactivate the left-hand direction indicator;
❍turn the ignition key to STOP.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 88

90GETTING TO KNOW YOUR CAR
POWER SOCKETS (where provided)
These are located on the central tunnel A-fig. 48 and on the left-
hand side of the luggage compartment B-fig. 48. They are only en-
abled with the ignition key turned to MAR.If you require the smokers kit , the socket on the central tunnel is
replaced with a cigar lighter (see following paragraph).
CIGAR LIGHTER (where provided) fig. 49
This is located on the central tunnel. Press button A to activate
the cigar lighter. After a few seconds the button goes back to its
initial position, and the cigar lighter is ready for use.
IMPORTANT Always check that the cigar lighter has turned off.
fig. 48A0J0068m
The cigar lighter becomes very hot. Handle with
care. The device must not be used by children: risk
of fire and/or burns.
fig. 49A0J0069m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 90

92GETTING TO KNOW YOUR CAR
ELECTRIC SUNROOF
(where provided)
The extensively glazed sun roof comprises a moving glass panel
and a sun blind. The glazed panel, when closed, allows light from
the outside to enter and makes it possible to see the outside from
the passenger compartment.
When it opens the front glass panel slides towards the outside of
the roof.
OPERATION
The sun roof is operated by pressing buttons A and B-fig. 53 located
on the trim next to the middle courtesy light.
The sun roof can only be operated with the ignition key in the MAR
position.
Roof opening
Pressing button A-fig. 53 allows two opening modes for the front glass
panel.
Automatic
If button A-fig. 53 is pressed for a while, the front glass panel is raised
from completely closed to the spoiler position. If the button is pressed
again, the panel starts to slide backwards until it is completely open.
After the initial opening command the glass panel can be stopped in
intermediate positions by pressing the button again.
Manual
If button A-fig. 53 is pressed briefly, the front glass panel moves from
the completely closed position and stops in the position where the but-
ton is released. In this case the panel opens by pressing the actual
button.
This function makes it possible to place the front panel in intermedi-
ate positions in relation to those produced through automatic open-
ing.
fig. 53A0J0329m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 92

GETTING TO KNOW YOUR CAR93
1The sun roof must stay closed if a transverse roof
rack is fitted.Sun blind
The brightness in the passenger compartment can be adjusted by
using a sun blind.
To open/close the blind, grasp the handle C-fig. 53. The blind can
be closed irrespective of the opening position of the glass panel.
Roof closing
Pressing button B-fig. 53 allows two closing modes for the front
glass panel.
Automatic
With the roof completely open, press button B-fig. 53 for a while:
the front glass panel will assume the spoiler position.
If the button is then pressed, the panel will start to slide forward
until it is completely closed.
After the initial opening command, the glass panel can be stopped
in intermediate positions by pressing the button again.
Manual
If button B-fig. 53 is pressed briefly, the front glass panel moves
from the completely open position and stops in the position where
the button is released. In this case the panel closes by pressing
the actual button.
This function makes it possible to place the front glass panel in in-
termediate positions in relation to those produced through auto-
matic closing.
When leaving the car, always remove the key from
the ignition device to avoid the risk of injury due
to accidental operation of the sun roof; it presents
a risk to those left on board: improper use of the roof can
be dangerous. Before operation, always check that no-
one is at risk of being injured by the moving sun roof or
by objects getting caught and dragged by it.
Do not open the sun roof in the presence of snow
or ice: it may be damaged.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 93
