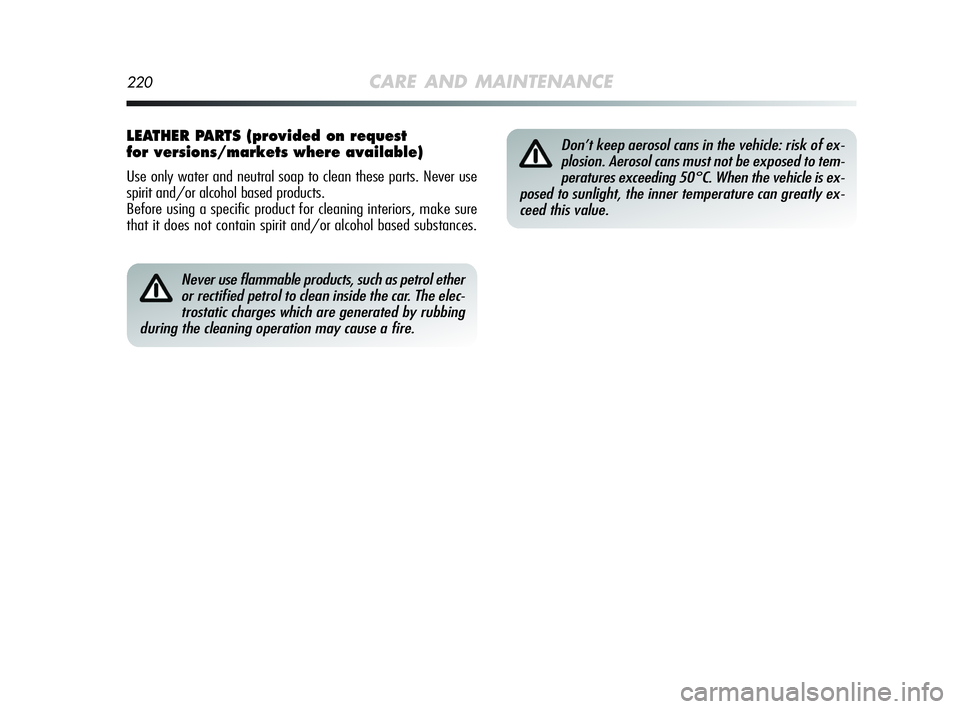

220CARE AND MAINTENANCE
Never use flammable products, such as petrol ether
or rectified petrol to clean inside the car. The elec-
trostatic charges which are generated by rubbing
during the cleaning operation may cause a fire.
Don’t keep aerosol cans in the vehicle: risk of ex-
plosion. Aerosol cans must not be exposed to tem-
peratures exceeding 50°C. When the vehicle is ex-
posed to sunlight, the inner temperature can greatly ex-
ceed this value.LEATHER PARTS (provided on request
for versions/markets where available)
Use only water and neutral soap to clean these parts. Never use
spirit and/or alcohol based products.
Before using a specific product for cleaning interiors, make sure
that it does not contain spirit and/or alcohol based substances.
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 220

TECHNICAL DATA221
6
Identification data .................................................................... 222
Engine codes - bodywork versions............................................... 224
Engine................................................................................... 225
Fuel system ............................................................................ 227
Transmission ........................................................................... 227
Brakes.................................................................................... 228
Suspension............................................................................. 228
Steering................................................................................. 228
Wheels.................................................................................. 229
Dimensions............................................................................. 233
Performance ........................................................................... 234
Weights ................................................................................. 235
Consumables.......................................................................... 236
Fluids and lubricants ................................................................. 237
Fuel consumption .................................................................... 239
CO
2emissions......................................................................... 240
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 221

222TECHNICAL DATA
IDENTIFICATION DATA
The vehicle identification details are:
❍Identification plate (located in the engine compartment, next
to the upper attachment for the right-hand shock absorber);
❍Bodywork marking (located on the passenger compartment
floor panel, next to the front passenger seat);
❍Body paintwork identification label (located on the inside of
the tailgate);
❍Engine marking (located in the rear left-hand part, gearbox-
side).
IDENTIFICATION PLATE fig. 1
This plate is applied to the engine compartment front beam and
shows the following identification data:
A. Space reserved for national type approval
B. Space for stamped chassis number
C. Free space for maximum permitted weight data required by
various national laws
D. Space for version information and any additional information
E. Space for fume coefficient (only for diesel versions)
F. Space for punching manufacturer’s name.
fig. 1A0J0000m
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 222

TECHNICAL DATA223
6
CHASSIS MARKING fig. 3
This is printed on the passenger compartment floor panel near
the front right seat. Move flap A forwards to access it.
The chassis marking includes:
❍vehicle type (ZAR 955000);
❍chassis number.
BODYWORK PAINT IDENTIFICATION PLATE
fig. 3
This plate is applied inside the bonnet and shows the following data:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Respray and touch up code.
ENGINE MARKING
The engine marking is stamped on the cylinder block and includes
the model and the chassis number.
fig. 2A0J0140mfig. 3A0J0138m
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 223

224TECHNICAL DATA
(*) Only for versions/markets where applicable
(**) Euro 5 versions
(
) 4 seater version
(
) 5 seater version
ENGINE CODES - BODYWORK VERSIONS
955A1000
198A4000
198A1000
199A8000
199A3000
955A4000
955A3000955AXB1B 01 ()
955AXB1B 01B ()
955AXB1B 01C () (**)
955AXB1B 01D () (**)
955AXG1A 06 (
)
955AXG1A 06B ()
955AXD1B 03C (
) (**)
955AXD1B 03D (
) (**)
955AXA1B 00 (
)
955AXA1B 00B ()
955AXA1B 00C () (**)
955AXA1B 00D () (**)
955AXH1B 07 (
)
955AXH1B 07B ()
955AXE1B 04C (
) (**)
955AXHE1B 04D () (**)
955AXC1B 02 (
)
955AXC1B 02B ()
955AXC1B 02C () (**)
955AXC1B 02D () (**)
Engine code Bodywork version
1.4 Petrol 78HP (*)
1.4 Turbo Petrol 120HP
1.4 Turbo Petrol 150HP (*)
1.4 Turbo Petrol 155HP
1.3 JTDM
1.6 JTDM115HP (*)
1.6 JTDM120HP
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 224

TECHNICAL DATA225
6
ENGINE
(*) Only for versions/markets where applicable
(
Õ) The maximum power with 150HP is gotten using unloaded petrol 98 RON
(
❏) The maximum power with 155HP is gotten using unloaded petrol 98 RON
198A1000
Otto
4 in line
72.0 x 84.0
1368
9.8
110
150 (
Õ)
5500
NORMAL DYNAMIC
206 230
21 23.5
2250 3000
NGK IKR9F8
Unleaded petrol
95 RON or 98 RON
(Specification EN228
199A8000
Otto
4 in line
72.0 x 84.0
1368
9.8
114
155 (
❏)
5500
NORMAL DYNAMIC
201 230
20.5 23.5
5000 3000
NGK IKR9F8
Unleaded petrol
95 RON or 98 RON
(Specification EN228
955A1000
Otto
4 in line
72.0 x 84.0
1368
10.8
58
78
5750
120
12.2
4000
NGK ZKR7A-10
Unleaded petrol
95 RON
(Specification EN228)198A4000
Otto
4 in line
72.0 x 84.0
1368
9.8
88
120
5000
206
21
1750
NGK IKR9F8
Unleaded petrol
95 RON
(Specification EN228)
GENERAL1.4 Petrol (*) 1.4 Turbo 1.4 Turbo 1.4 Turbo
Petrol 120HP Petrol 150HP (*) Petrol 155HP
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 225

226TECHNICAL DATA
955A3000
Diesel
4 in line
79.5 x 80.5
1598
16.5
88
120
3750
NORMAL DYNAMIC
280 320
28.5 32.6
1500 1750
–
Diesel fuel for
motor vehicles
(Specification EN590))
(*) Only for versions/markets where applicable
199A3000
Diesel
4 in line
69.6 x 82
1248
17.6
66
90
4000
200
20.4
1750
–
Diesel fuel for
motor vehicles
(Specification EN590)955A4000
Diesel
4 in line
79.5 x 80.5
1598
16.5
85
115
4000
NORMAL DYNAMIC
260 300
26.5 30.6
1500 1500
–
Diesel fuel for
motor vehicles
(Specification EN590)
GENERAL1.3 JTDM1.6 JTDM115HP (*) 1.6 JTDM
120HP
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 226

TECHNICAL DATA227
6
FUEL SYSTEM
TRANSMISSION
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
1.4 Petrol 1.4 Turbo Petrol 1.6 JTDM- 1.6 JTDM
Fuel systemElectronically-controlled
Multipoint phased
sequential electronic injection
with turbo and intercoolerMultijet “Common Rail” direct
electronic injection with turbo
and intercoolerPhased sequential electronic
Multipoint injection
with detonation control
Five forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
FrontSix forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
Front
1.4 Turbo Petrol 120HP 1.4 Petrol - 1.4 Turbo Petrol 155HP
1.3 JTDM- 1.6 JTDM
Gearbox
Clutch
Drive
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 227

Rack and pinion with electric steering
11.0
228TECHNICAL DATA
STEERING
1.4 Petrol - 1.4 Turbo Petrol - 1.3 JTDM- 1.6 JTDM
Type
Turning circle
(between pavements) m
Mc Pherson independent wheels with anti-roll bar
Interconnected wheels with torsion beam
Self ventilating discs
Disc
Controlled by hand lever, acting on rear brakes
BRAKES
IMPORTANT Water, ice and salt sprinkled on the roads may deposit themselves on the brake discs, reducing braking efficiency the first
time the brakes are applied.
SUSPENSION
1.4 Petrol - 1.4 Turbo Petrol - 1.3 JTDM- 1.6 JTDM
Front
Rear
1.4 Petrol - 1.4 Turbo Petrol - 1.3 JTDM- 1.6 JTDM
Service brakes:
– front
– rear
Parking brake
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 228

TECHNICAL DATA229
6
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres. All ap-
proved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the information
provided in this Owner’s handbook and the Log book, consider
the specifications shown in the log book only.
Respect the prescribed size to ensure safety of the car when mov-
ing. Fit tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
SMALL SPARE WHEEL
Pressed steel rim Tubeless tyre.
READING TYRE MARKINGS fig. 4
Example: 195/55 R 16 91 V
195 = Nominal width (S, distance in mm between sidewalls).
55 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.
fig. 4A0J0139m
