Alfa Romeo MiTo 2009 Owner handbook (in English)

180IN AN EMERGENCY
REPLACING AN INTERIOR BULB
FRONT COURTESY LIGHT
To change the bulb, proceed as follows:
❍remove courtesy light A-fig. 31 by applying leverage at the
points shown by the arrows;
❍open flap B-fig. 32 replace bulb C, releasing it from the side
contacts. Make sure that the new bulbs are correctly secured
between the contacts;
❍close flap B-fig. 32 and secure courtesy light A-fig. 31 in its
housing.
LUGGAGE COMPARTMENT COURTESY LIGHT
To change the bulb, proceed as follows:
❍open the luggage compartment and remove courtesy light A-fig.
33, by applying leverage at the points shown by the arrows;
fig. 31A0J0120m
fig. 32A0J0121m
fig. 33A0J0119m
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 180

IN AN EMERGENCY181
4
❍open cover B-fig. 34 and replace the bulb;
❍re-close the protective cover B on the lens;
❍refit courtesy light A-fig. 33, inserting it into the correct posi-
tion firstly on one side and then on the other until it clicks in-
to place.
GLOVE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the glove compartment, and remove light A-fig. 35;
❍replace bulb B, releasing it from the side contacts and making
sure the new bulb is correctly fastened between the contacts.
fig. 34A0J0118mfig. 35A0J0122m
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 181

182IN AN EMERGENCY

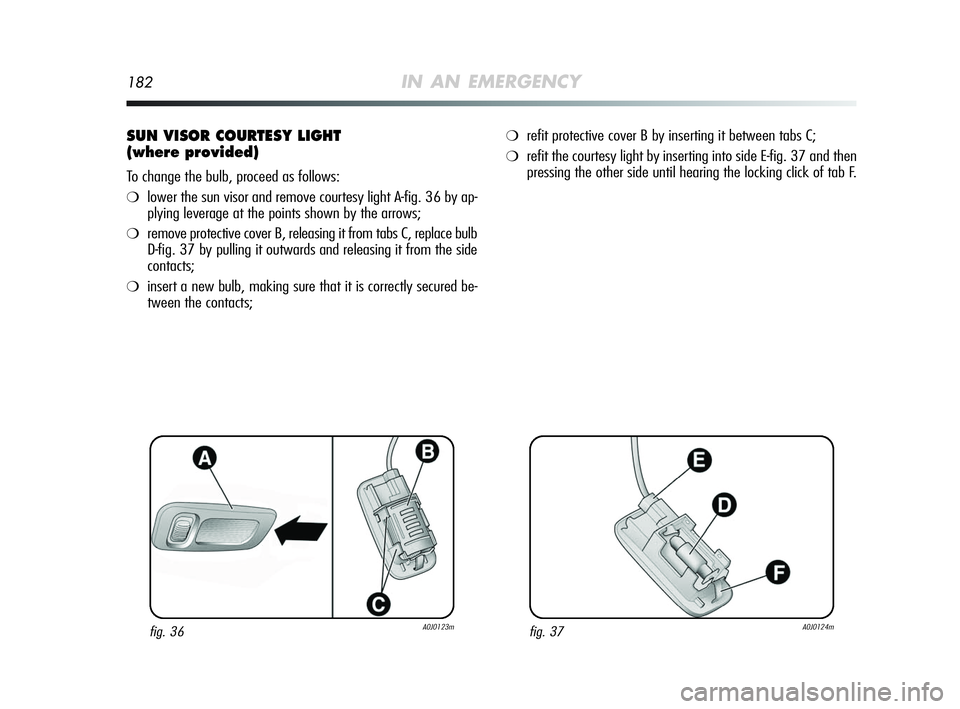

SUN VISOR COURTESY LIGHT
(where provided)
To change the bulb, proceed as follows:
❍lower the sun visor and remove courtesy light A-fig. 36 by ap-
plying leverage at the points shown by the arrows;
❍remove protective cover B, releasing it from tabs C, replace bulb
D-fig. 37 by pulling it outwards and releasing it from the side
contacts;
❍insert a new bulb, making sure that it is correctly secured be-
tween the contacts;
❍refit protective cover B by inserting it between tabs C;
❍refit the courtesy light by inserting into side E-fig. 37 and then
pressing the other side until hearing the locking click of tab F.
fig. 36A0J0123mfig. 37A0J0124m
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 182

IN AN EMERGENCY183
4

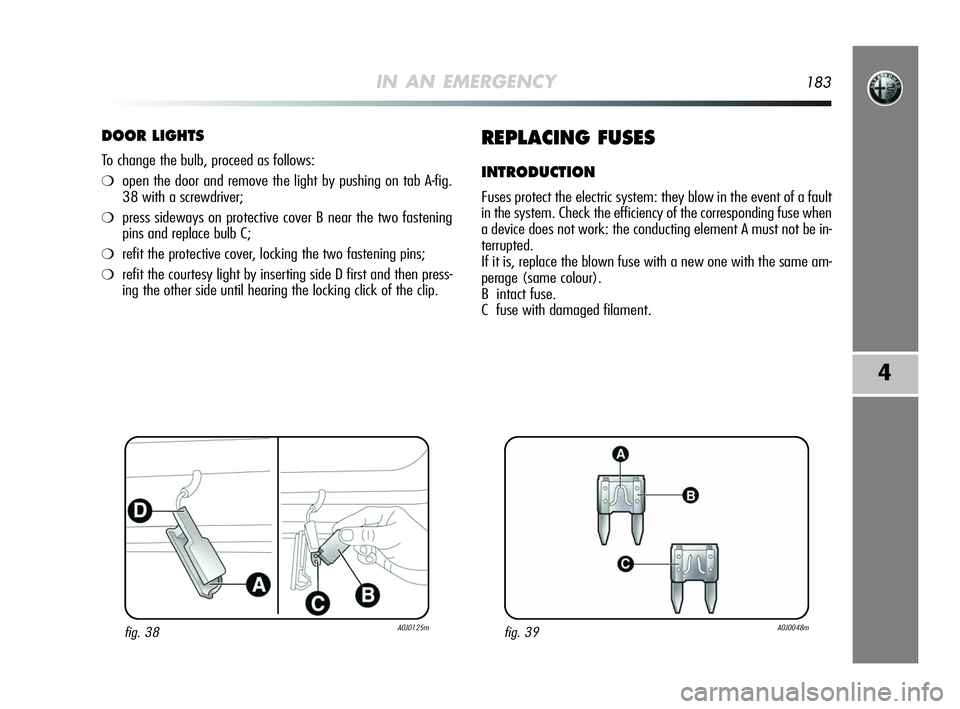

DOOR LIGHTS
To change the bulb, proceed as follows:
❍open the door and remove the light by pushing on tab A-fig.
38 with a screwdriver;
❍press sideways on protective cover B near the two fastening
pins and replace bulb C;
❍refit the protective cover, locking the two fastening pins;
❍refit the courtesy light by inserting side D first and then press-
ing the other side until hearing the locking click of the clip.
REPLACING FUSES
INTRODUCTION
Fuses protect the electric system: they blow in the event of a fault
in the system. Check the efficiency of the corresponding fuse when
a device does not work: the conducting element A must not be in-
terrupted.
If it is, replace the blown fuse with a new one with the same am-
perage (same colour).
B intact fuse.
C fuse with damaged filament.
fig. 39A0J0048mfig. 38A0J0125m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 183

184IN AN EMERGENCY

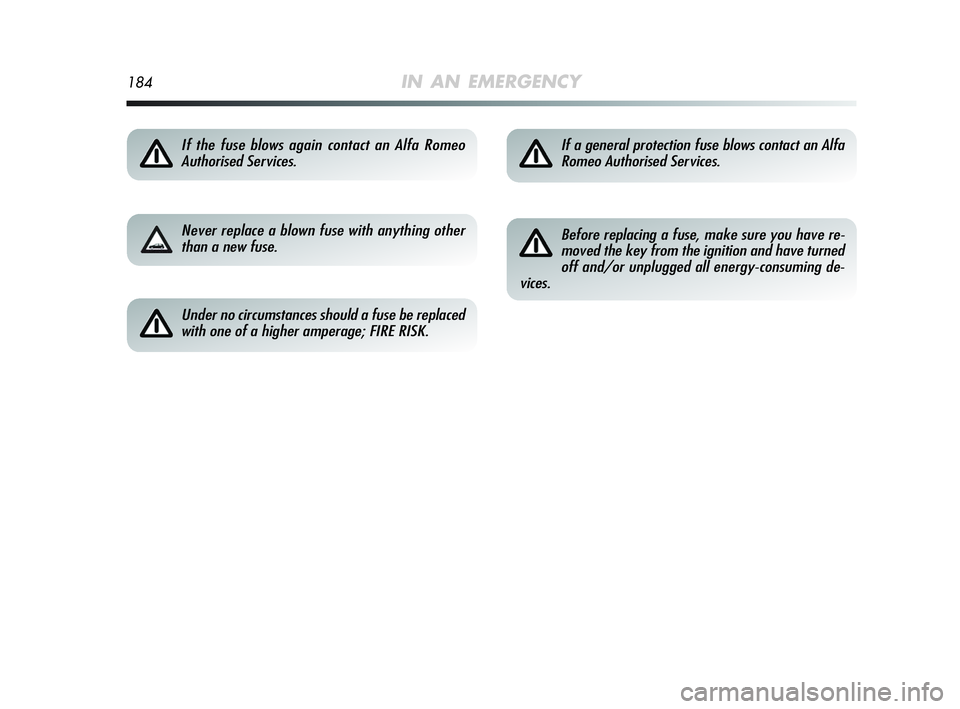

If the fuse blows again contact an Alfa Romeo
Authorised Services.
Never replace a blown fuse with anything other
than a new fuse.
Under no circumstances should a fuse be replaced
with one of a higher amperage; FIRE RISK.
If a general protection fuse blows contact an Alfa
Romeo Authorised Services.
Before replacing a fuse, make sure you have re-
moved the key from the ignition and have turned
off and/or unplugged all energy-consuming de-
vices.
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 184

IN AN EMERGENCY185
4
fig. 41A0J0127m
When washing the engine compartment, take care
not to spray water jets directly at the fuse box.FUSE LOCATION
Fuses are grouped together in three junction units located in the
engine compartment, dashboard and luggage compartment
Fuse box in engine compartment
This is located next to the battery: to access the fuses undo bolts
A-fig. 40 and remove cover B.
The ID number of the electrical component corresponding to each
fuse can be found on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse
box.
fig. 40A0J0126m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 185

186IN AN EMERGENCY
Fuse box on dashboard
To access the fuses, lower the flap A-fig. 42 and undo the bolts inside the actual flap. The fuses are located in the fuse box shown in fig. 43.
fig. 43A0J0129mfig. 42A0J0128m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 186

IN AN EMERGENCY187
4
Luggage compartment fuse box
To gain access to the fuse box located on the left side of the luggage compartment open the relevant inspection lid (as shown in
fig. 44).
fig. 45A0J0175mfig. 44A0J0264m


159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 187

15
7.5
7.5
15
15
15
5
5
5
188IN AN EMERGENCY
F14
F12
F13
F12
F13
F30
F37
F51
F3241
43
43
43
43
41
43
43
43

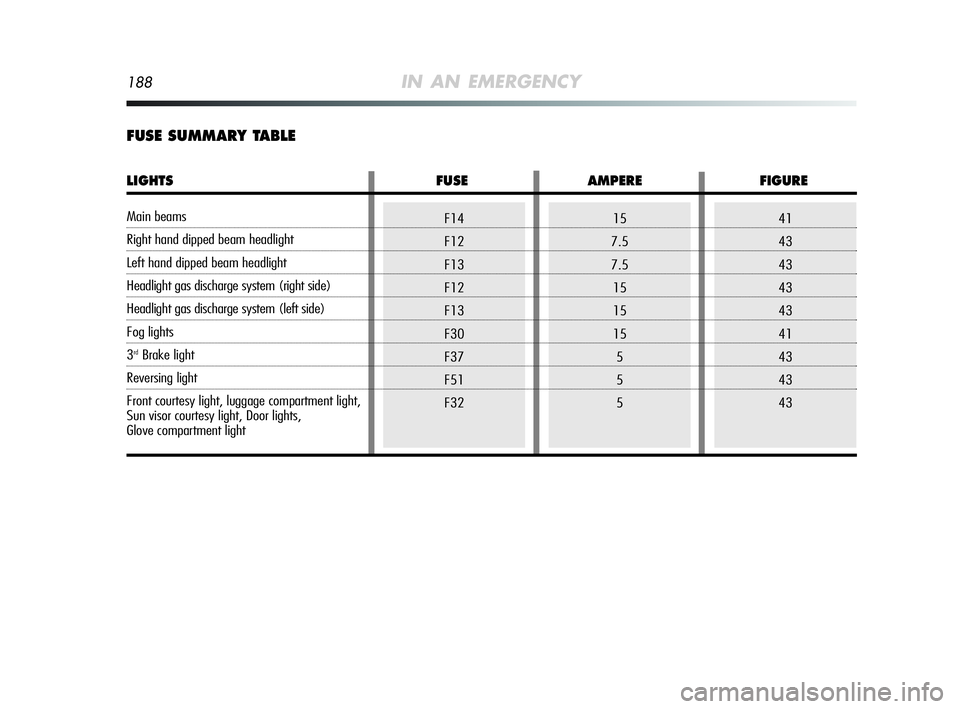

FUSE SUMMARY TABLE
LIGHTS FUSE AMPERE FIGURE
Main beams
Right hand dipped beam headlight
Left hand dipped beam headlight
Headlight gas discharge system (right side)
Headlight gas discharge system (left side)
Fog lights
3rdBrake light
Reversing light
Front courtesy light, luggage compartment light,
Sun visor courtesy light, Door lights,
Glove compartment light
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 188

41
41
41
41
43
41
41
41
41
41
41
41
41
4115
20
15
10
7.5
30
5
10
5
7.5
30
15
15
20F08
F09
F10
F11
F13
F15
F16
F17
F18
F19
F20
F21
F22
F22
IN AN EMERGENCY189
4
CONSUMERS FUSE AMPERE FIGURE
Heated windscreen
Headlight washer pump
Two-tone horn
Waste gate solenoid, Shut off solenoid, Canister solenoid,
Lambda Sensor Heater, VGT solenoid,
EGR cooling bypass solenoid, Swirl solenoid,
Throttle solenoid, Glow plug preheating control unit
Headlight alignment adjustment system
Additional heater (PTC 1)
Engine management control unit
Engine management control unit (power supply)
Control system relay coil,
Engine management control unit (1.4 versions),
Engine cooling system remote control switch coil
(300W+300W)
Air conditioning compressor
Heated rear windscreen, demisting system
Fuel pump on tank
Engine management system main loads (1.4 versions)
Engine management system main loads
(1.6 JTDMversions)
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 189
