Alfa Romeo Stelvio 2019 Owner's Manual

BODYWORK
PRESERVING THE BODYWORK
Paintwork
77)7)
Touch up abrasions and scratches
immediately to prevent the formation of
rust.
Some parts of the car may be covered
with a matt paint which, in order to be
maintained intact, requires special care:
see the instructions in the warning at the
end of this paragraph.
78)
To correctly wash the vehicle, follow
these instructions:
if high pressure jets or cleaners are
used to wash the vehicle, hold at least
16 in [40 cm] away from the bodywork to
avoid damage or alteration. Build up of
water could cause damage to the car in
the long term;
to make it easier to remove any dirt
deposits in the area where the blades are
normally located it is recommended to
position the windscreen wipers vertically
(service position), for more information
consult the “Maintenance procedures”
paragraph in this chapter.If you want to wash a car with automatic
transmission in a car wash that moves it,
you must do the following:
make sure that the car is on a flat
surface and that automatic engagement
of the parking brake when the engine is
switched off is disabled (for how to
disable it, refer to the “Electric parking
brake” section in the “Starting and
driving” chapter);
with the car stationary, the gear in N
(Neutral) and the brake pedal up: press
the start button. The car will remain in N
(Neutral) for 15 minutes, after which P
(Park) mode will be activated.
IMPORTANT
77)In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the vehicle.78)Avoid washing with rollers and/or
brushes in washing stations. Wash the car
only by hand using neutral pH detergents; dry
it with a wet chamois leather. Abrasive
products and/or polishes should not be used
for cleaning the car. Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly
aggressive. Avoid (if at all possible) parking
the vehicle under trees; remove vegetable
resins immediately as, when dried, it may
only be possible to remove them with
abrasive products and/or polishes, which is
highly inadvisable as they could alter the
typical opaqueness of the paint. Do not use
pure windscreen washer fluid for cleaning
the front windscreen and rear window; dilute
it min. 50% with water. Only use pure screen
washer fluid when strictly necessary due to
outside temperature conditions.IMPORTANT
7)Detergents pollute the environment. Only
wash your vehicle in areas equipped to
collect and treat wastewater from this type
of activity.
189

This page is intentionally left blank

Everything you may find useful for understanding how your vehicle
is made and works is contained in this chapter and illustrated with
data, tables and graphics.
For the enthusiasts and the technician, but also just for those who
want to know every detail of their vehicle.

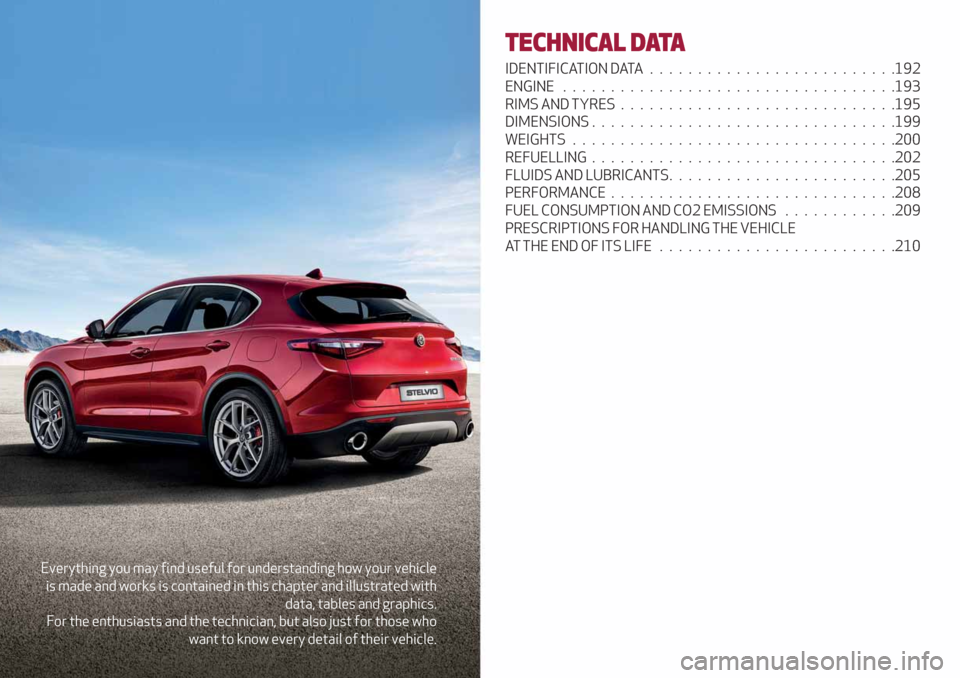

TECHNICAL DATA
IDENTIFICATION DATA..........................192
ENGINE...................................193
RIMS AND TYRES.............................195
DIMENSIONS . . ..............................199
WEIGHTS..................................200
REFUELLING................................202
FLUIDS AND LUBRICANTS........................205
PERFORMANCE..............................208
FUEL CONSUMPTION AND CO2 EMISSIONS . . ..........209
PRESCRIPTIONS FOR HANDLING THE VEHICLE
AT THE END OF ITS LIFE.........................210

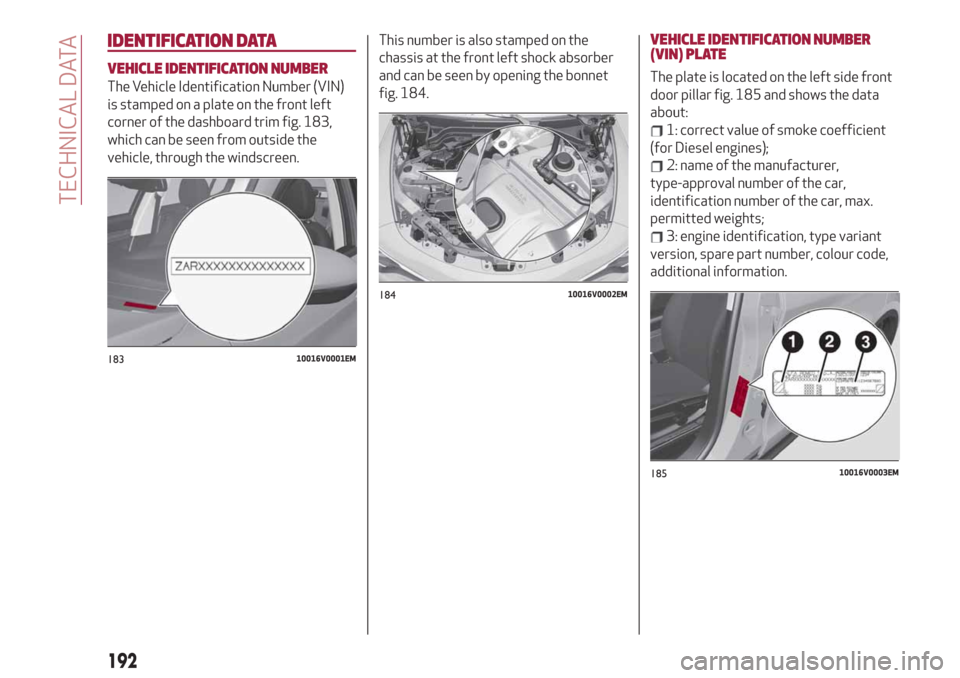

IDENTIFICATION DATA
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN)
is stamped on a plate on the front left
corner of the dashboard trim fig. 183,
which can be seen from outside the
vehicle, through the windscreen.This number is also stamped on the
chassis at the front left shock absorber
and can be seen by opening the bonnet
fig. 184.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The plate is located on the left side front
door pillar fig. 185 and shows the data
about:
1: correct value of smoke coefficient
(for Diesel engines);
2: name of the manufacturer,
type-approval number of the car,
identification number of the car, max.
permitted weights;
3: engine identification, type variant
version, spare part number, colour code,
additional information.
18310016V0001EM
18410016V0002EM
18510016V0003EM
192
TECHNICAL DATA

ENGINE

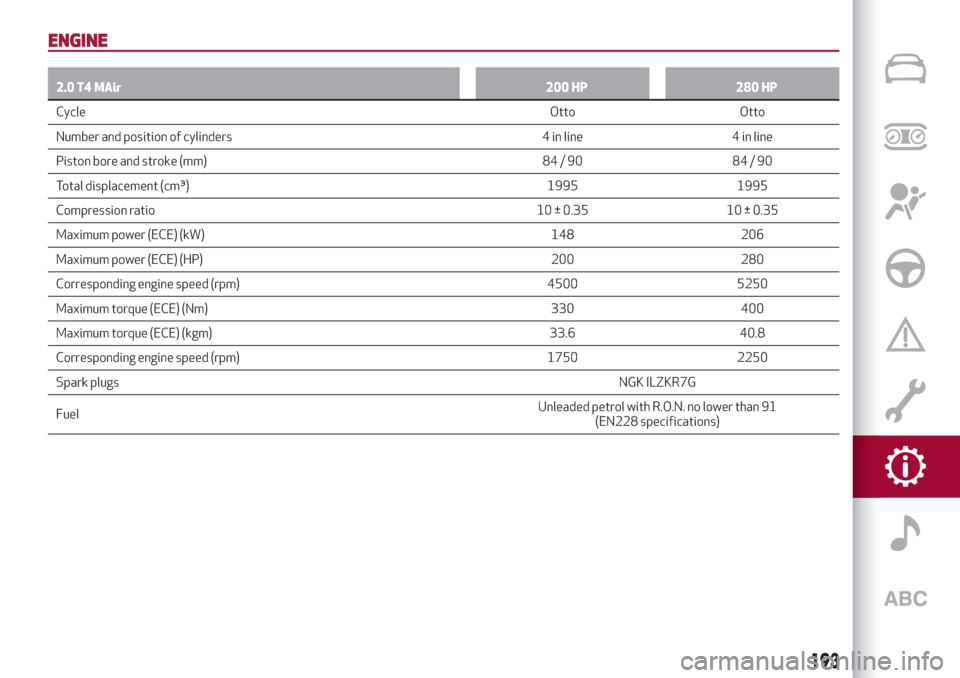

2.0 T4 MAir200 HP 280 HP
CycleOtto
Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 84 / 90 84 / 90
Total displacement (cm³) 1995 1995
Compression ratio 10 ± 0.35 10 ± 0.35
Maximum power (ECE) (kW) 148 206
Maximum power (ECE) (HP) 200 280
Corresponding engine speed (rpm) 4500 5250
Maximum torque (ECE) (Nm) 330 400
Maximum torque (ECE) (kgm) 33.6 40.8
Corresponding engine speed (rpm) 1750 2250
Spark plugsNGK ILZKR7G
FuelUnleaded petrol with R.O.N. no lower than 91
(EN228 specifications)
193

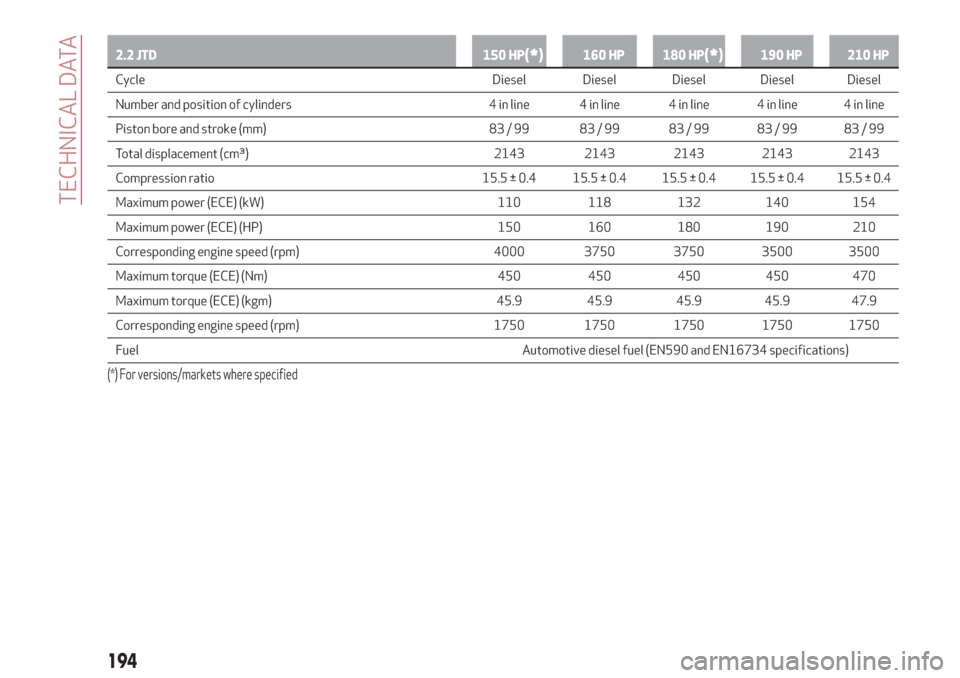

2.2 JTD 150 HP(*)160 HP 180 HP(*)190 HP 210 HP
Cycle Diesel Diesel Diesel Diesel Diesel
Number
and position of cylinders 4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 83 / 99 83 / 99 83 / 99 83 / 99 83 / 99
Total displacement (cm³) 2143 2143 2143 2143 2143
Compression ratio 15.5 ± 0.4 15.5 ± 0.4 15.5 ± 0.4 15.5 ± 0.4 15.5 ± 0.4
Maximum power (ECE) (kW) 110 118 132 140 154
Maximum power (ECE) (HP) 150 160 180 190 210
Corresponding engine speed (rpm) 4000 3750 3750 3500 3500
Maximum torque (ECE) (Nm) 450 450 450 450 470
Maximum torque (ECE) (kgm) 45.9 45.9 45.9 45.9 47.9
Corresponding engine speed (rpm) 1750 1750 1750 1750 1750
Fuel Automotive diesel fuel (EN590 and EN16734 specifications)
(*) For versions/markets where specified
194
TECHNICAL DATA

RIMS AND TYRES
Alloy rims. Tubeless radial carcass tyres.
All approved tyres are listed in the
registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the Registration
Document, take the information from the
latter. For safe driving, the car must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.IMPORTANT Using tyres of a different
size, type, brand or design at the front
and rear may adversely affect car
driveability. We recommend using tyres
approved by the manufacturer. The
manufacturer cannot determine if
unapproved tyres are suitable for use
and therefore cannot guarantee vehicle
safety in those conditions.
195

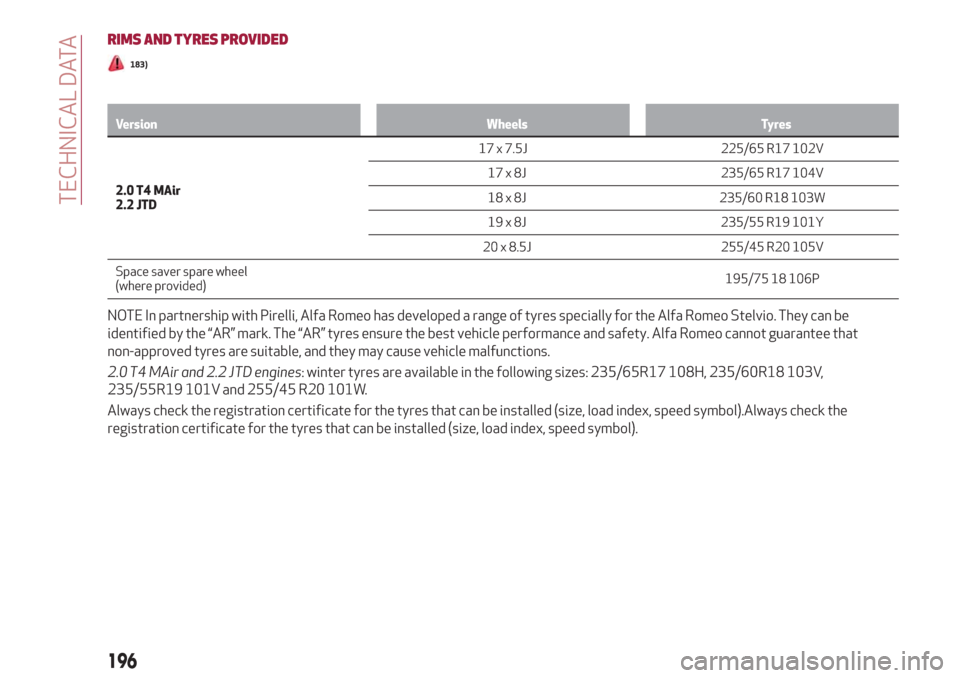

RIMS AND TYRES PROVIDED
183)
Version Wheels Tyres
2.0 T4 MAir
2.2 JTD17 x 7.5J 225/65 R17 102V
17 x 8J 235/65 R17 104V
18 x 8J 235/60 R18 103W
19 x 8J 235/55 R19 101Y
20 x 8.5J 255/45 R20 105V
Space saver spare wheel
(where provided)195/75 18 106P
NOTE In partnership with Pirelli, Alfa Romeo has developed a range of tyres specially for the Alfa Romeo Stelvio. They can be
identified by the “AR” mark. The “AR” tyres ensure the best vehicle performance and safety. Alfa Romeo cannot guarantee that
non-approved tyres are suitable, and they may cause vehicle malfunctions.
2.0 T4 MAir and 2.2 JTD engines: winter tyres are available in the following sizes: 235/65R17 108H, 235/60R18 103V,
235/55R19 101V and 255/45 R20 101W.
Always check the registration certificate for the tyres that can be installed (size, load index, speed symbol).Always check the
registration certificate for the tyres that can be installed (size, load index, speed symbol).
196
TECHNICAL DATA

COLD TYRE INFLATION PRESSURE
When the tyres are warm, the inflation pressure should be +4.35 psi (+0.3 bar) in relation to the recommended figure. However,
recheck that the value is correct with the tyre cold. If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in
the "In an emergency" chapter.
The pressures given below apply to all tyre types: summer, winter and all season (where provided).
2.0 T4 MAir and 2.2 JTD engines
TyresUnladen/medium load [psi / bar] Full load [psi / bar]
Front Rear Front Rear
225/65 R1730.5 / 2.1 (*) 33.3 / 2.3 (*)
34.8 / 2.4 37.7 / 2.6
32 / 2.2 (**) 34.8 / 2.4 (**)
235/65 R17 30.5 / 2.1 33.3 / 2.3 33.3 / 2.3 37.7 / 2.6
235/60 R18 30.5 / 2.1 33.3 / 2.3 33.3 / 2.3 37.7 / 2.6
235/55 R19 30.5 / 2.1 33.3 / 2.3 33.3 / 2.3 37.7 / 2.6
255/45 R20 33.3 / 2.3 36.3 / 2.5 34.8 / 2.4 39.2 / 2.7
195/75 18
(Space-saver wheel)43.5 / 3.0
For 225/65 R17 tyres, in medium load conditions, there are two possible pressure settings depending on the mode required:
comfort (*) and ECO (**). Restore the inflation pressures accordingly. ECO configuration consumption is not guaranteed with comfort
configuration pressures.
If winter tyres are fitted, always use the same inflation pressures as for the tyres originally installed (table above). For
225/65 R17 tyres in medium load conditions, use the comfort configuration pressures.
197

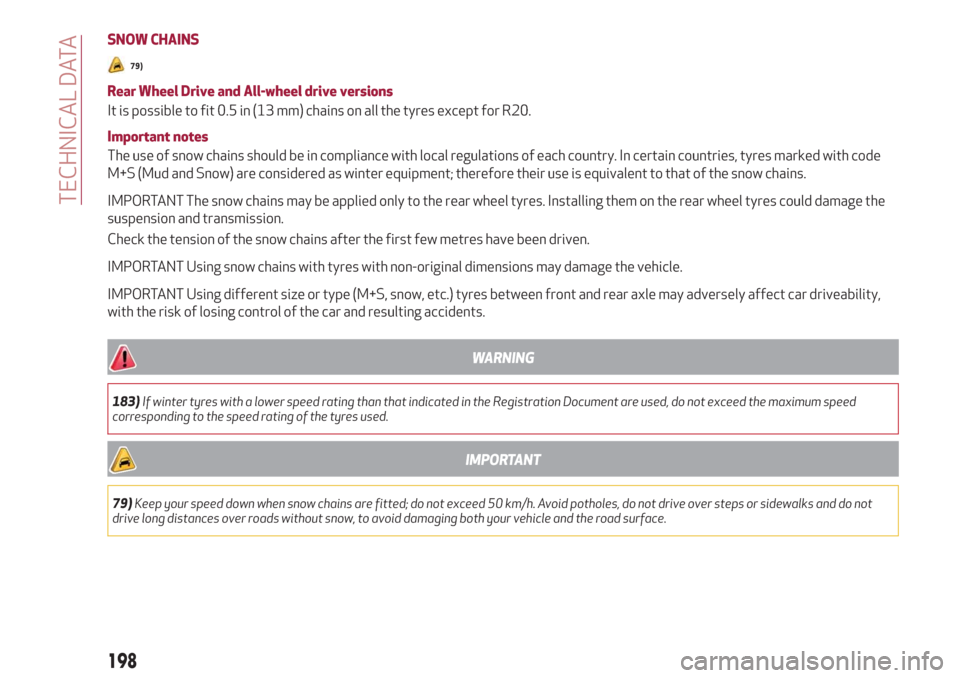

SNOW CHAINS
79)
Rear Wheel Drive and All-wheel drive versions
It is possible to fit 0.5 in (13 mm) chains on all the tyres except for R20.
Important notes
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with code
M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
IMPORTANT The snow chains may be applied only to the rear wheel tyres. Installing them on the rear wheel tyres could damage the
suspension and transmission.
Check the tension of the snow chains after the first few metres have been driven.
IMPORTANT Using snow chains with tyres with non-original dimensions may damage the vehicle.
IMPORTANT Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect car driveability,
with the risk of losing control of the car and resulting accidents.
WARNING
183)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
IMPORTANT
79)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, do not drive over steps or sidewalks and do not
drive long distances over roads without snow, to avoid damaging both your vehicle and the road surface.
198
