Alfa Romeo Stelvio 2019 Owner's Manual

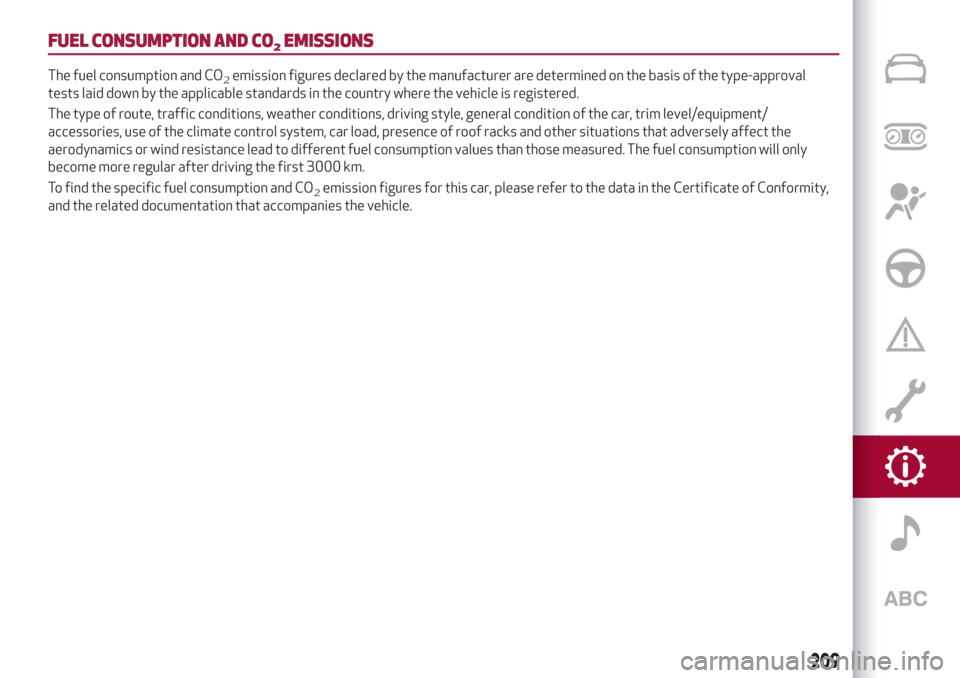

FUEL CONSUMPTION AND CO2EMISSIONS
The fuel consumption and CO2emission figures declared by the manufacturer are determined on the basis of the type-approval
tests laid down by the applicable standards in the country where the vehicle is registered.
The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/
accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely affect the
aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel consumption will only
become more regular after driving the first 3000 km.
To find the specific fuel consumption and CO
2emission figures for this car, please refer to the data in the Certificate of Conformity,
and the related documentation that accompanies the vehicle.
209

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
(where provided)
For years, Alfa Romeo S.p.A. has pursued a global commitment to protect and respect the environment by continually improving its
production processes and developing increasingly "eco-compatible" products. To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, Alfa
Romeo S.p.A. is offering its customers the chance to hand over their car at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a
result of it having a zero or negative market value.
To hand your car over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another car or an
Alfa Romeo S.p.A.-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service
for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo S.p.A. dealership or by calling
the number in the Warranty Booklet or by consulting the Alfa Romeo S.p.A. website.
210

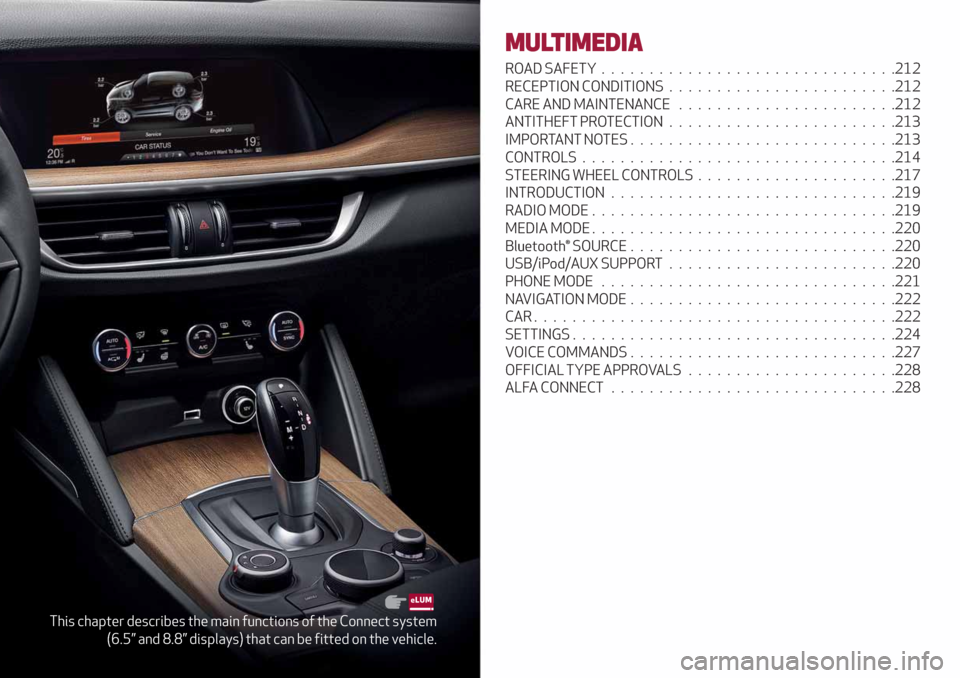

TECHNICAL DATA

This chapter describes the main functions of the Connect system
(6.5” and 8.8” displays) that can be fitted on the vehicle.
MULTIMEDIA
ROAD SAFETY...............................212
RECEPTION CONDITIONS........................212
CARE AND MAINTENANCE.......................212
ANTITHEFT PROTECTION........................213
IMPORTANT NOTES............................213
CONTROLS.................................214
STEERING WHEEL CONTROLS.....................217
INTRODUCTION..............................219
RADIO MODE................................219
MEDIA MODE................................220
Bluetooth® SOURCE ............................220
USB/iPod/AUX SUPPORT........................220
PHONE MODE . ..............................221
NAVIGATION MODE............................222
CAR......................................222
SETTINGS..................................224
VOICE COMMANDS . . ..........................227
OFFICIAL TYPE APPROVALS......................228
ALFA CONNECT..............................228

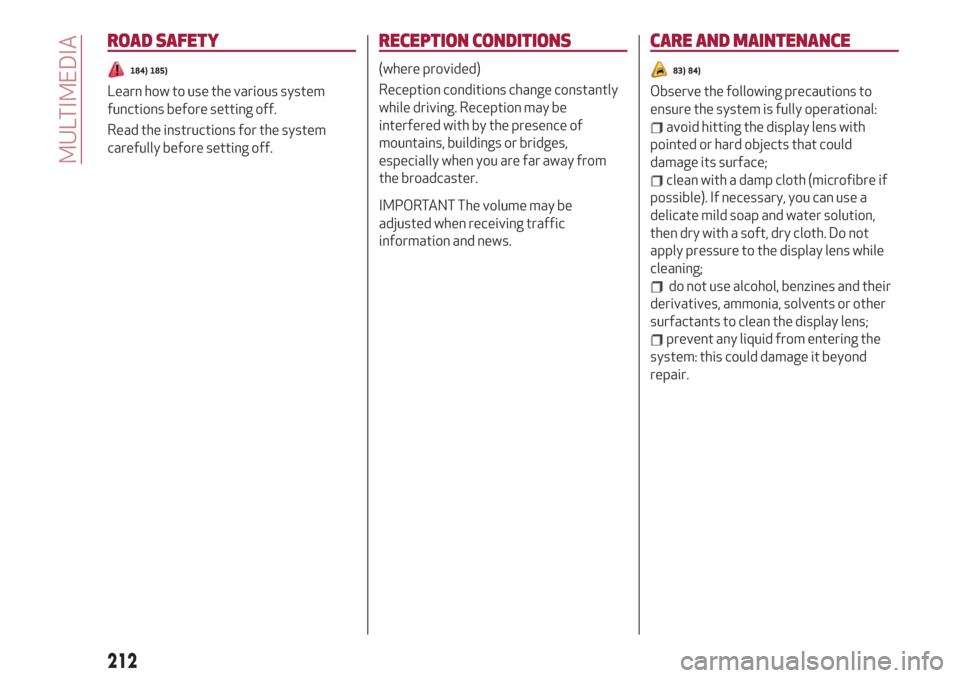

ROAD SAFETY
184) 185)
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
RECEPTION CONDITIONS
(where provided)
Reception conditions change constantly
while driving. Reception may be
interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
adjusted when receiving traffic
information and news.
CARE AND MAINTENANCE
83) 84)
Observe the following precautions to
ensure the system is fully operational:
avoid hitting the display lens with
pointed or hard objects that could
damage its surface;
clean with a damp cloth (microfibre if
possible). If necessary, you can use a
delicate mild soap and water solution,
then dry with a soft, dry cloth. Do not
apply pressure to the display lens while
cleaning;
do not use alcohol, benzines and their
derivatives, ammonia, solvents or other
surfactants to clean the display lens;
prevent any liquid from entering the
system: this could damage it beyond
repair.
212
MULTIMEDIA

ANTITHEFT PROTECTION
The system is equipped with an anti-theft
protection system based on the
exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum security and
prevents the system from being used on
other cars in the event of theft. If
necessary contact an Alfa Romeo
Dealership.
IMPORTANT NOTES
Look at the screen only and when it is
necessary and safe. If you need to look at
the screen for a long time, pull over to a
safe place so as not to be distracted
while driving.
Immediately stop using the system in the
event of a fault. Otherwise the system
might be damaged. Contact an Alfa
Romeo Dealership as soon as possible to
have the system repaired.WARNING
184)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be damaged.
185)If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g. horns,
ambulances, police vehicles, etc.).
IMPORTANT
83)Only clean the front panel and the
display with a soft, clean, dry, anti-static
cloth. Cleaning and polishing products may
damage the surface. Do not use alcohol or
similar products to clean the panel or the
display.
84)Do not use the display as a base for
supports with suction pads or adhesives for
external navigators or smartphones or
similar devices.
213

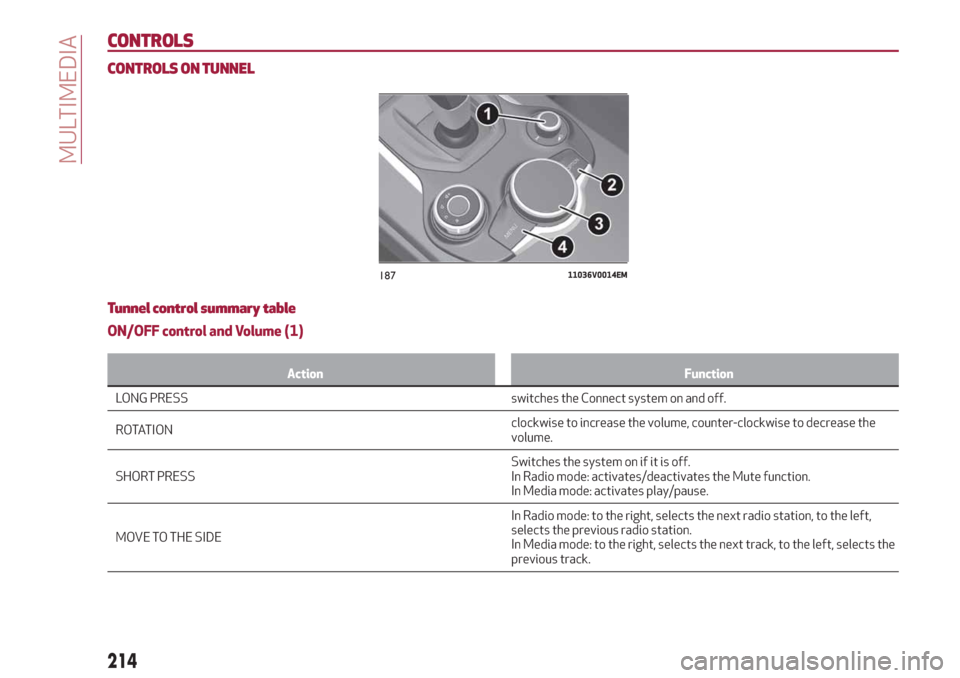

CONTROLS
CONTROLS ON TUNNEL
Tunnel control summary table
ON/OFF control and Volume (1)
Action Function
LONG PRESS switches the Connect system on and off.
RO
TATIONclockwise to increase the volume, counter-clockwise to decrease the
volume.
SHORT PRESSSwitches the system on if it is off.
In Radio mode: activates/deactivates the Mute function.
In Media mode: activates play/pause.
MOVE TO THE SIDEIn Radio mode: to the right, selects the next radio station, to the left,
selects the previous radio station.
In Media mode: to the right, selects the next track, to the left, selects the
previous track.
18711036V0014EM
214
MULTIMEDIA

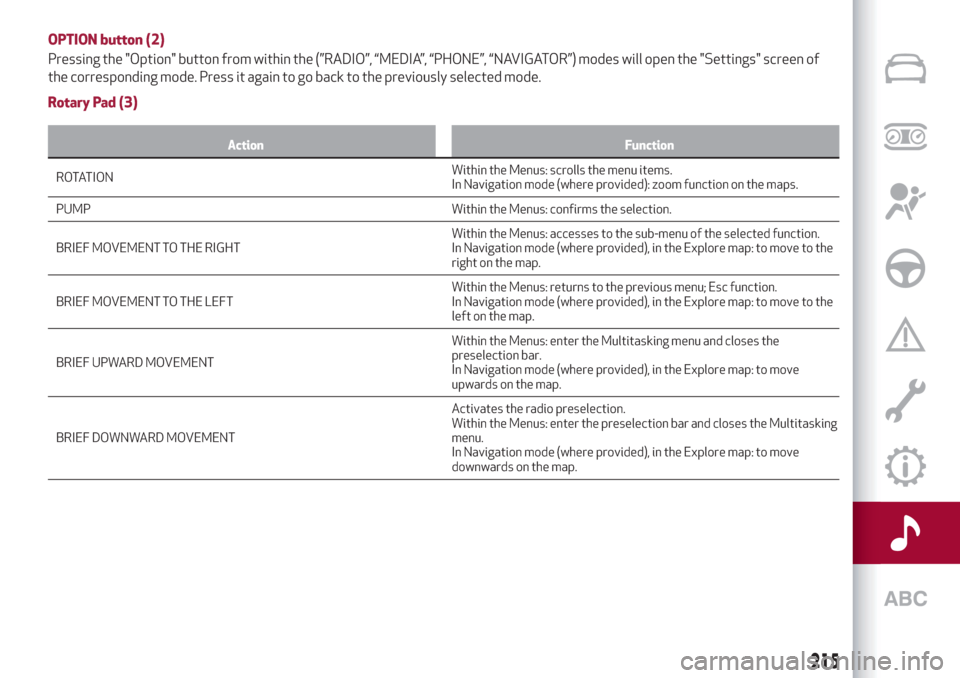

OPTION button (2)
Pressing the "Option" button from within the (”RADIO”, “MEDIA”, “PHONE”, “NAVIGATOR”) modes will open the "Settings" screen of
the corresponding mode. Press it again to go back to the previously selected mode.
Rotary Pad (3)
Action Function
ROTATIONWithinthe Menus: scrolls the menu items.
In Navigation mode (where provided): zoom function on the maps.
PUMP Within the Menus: confirms the selection.
BRIEF MOVEMENT TO THE RIGHTWithin the Menus: accesses to the sub-menu of the selected function.
In Navigation mode (where provided), in the Explore map: to move to the
right on the map.
BRIEF MOVEMENT TO THE LEFTWithin the Menus: returns to the previous menu; Esc function.
In Navigation mode (where provided), in the Explore map: to move to the
left on the map.
BRIEF UPWARD MOVEMENTWithin the Menus: enter the Multitasking menu and closes the
preselection bar.
In Navigation mode (where provided), in the Explore map: to move
upwards on the map.
BRIEF DOWNWARD MOVEMENTActivates the radio preselection.
Within the Menus: enter the preselection bar and closes the Multitasking
menu.
In Navigation mode (where provided), in the Explore map: to move
downwards on the map.
215

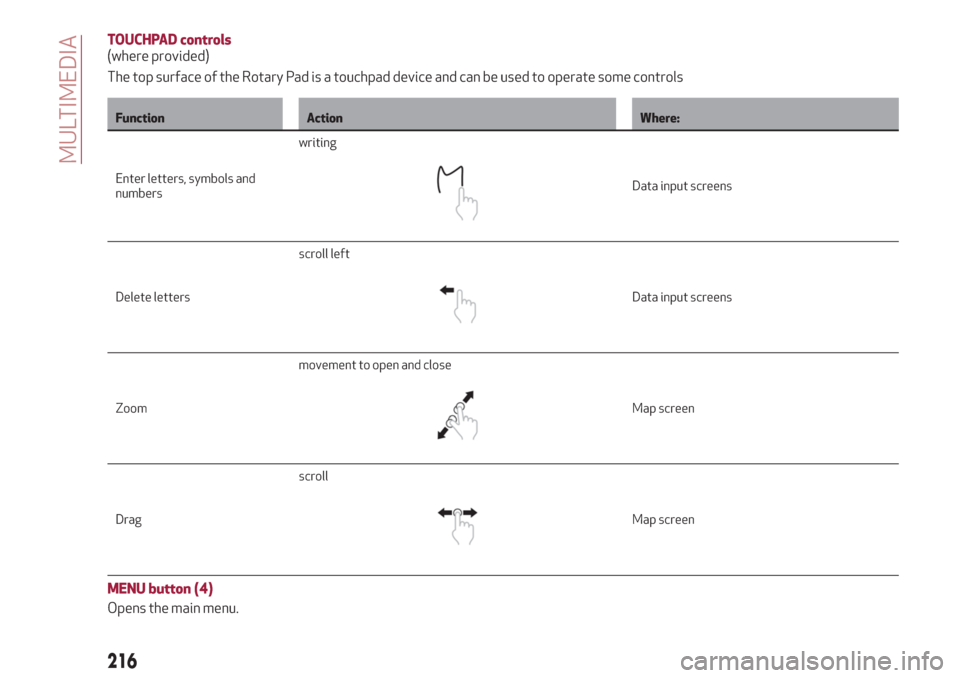

TOUCHPAD controls
(where provided)
The top surface of the Rotary Pad is a touchpad device and can be used to operate some controls
Function Action Where:
Enter letters, symbols and
numberswriting
Data input screens
Delete lettersscroll left
Data input screens
Zoommovement to open and close
Map screen
Dragscroll
Map screen
MENU button (4)
Opens the main menu.
216
MULTIMEDIA

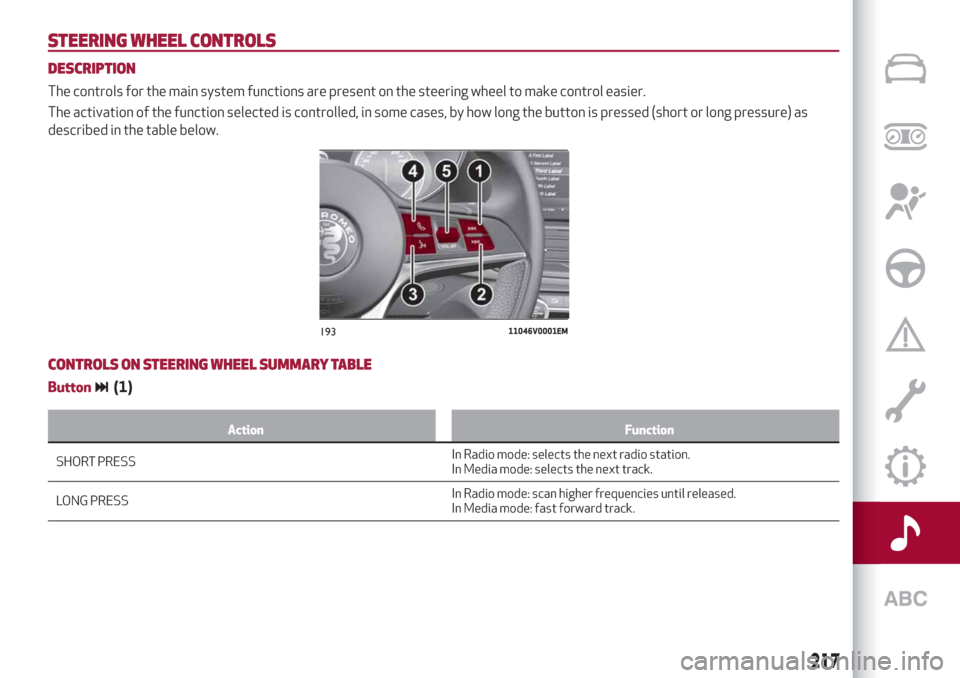

STEERING WHEEL CONTROLS
DESCRIPTION
The controls for the main system functions are present on the steering wheel to make control easier.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long pressure) as
described in the table below.
CONTROLS ON STEERING WHEEL SUMMARY TABLE
Button(1)
Action Function
SHORT PRESSInRadio mode: selects the next radio station.
In Media mode: selects the next track.
LONG PRESSIn Radio mode: scan higher frequencies until released.
In Media mode: fast forward track.
19311046V0001EM
217

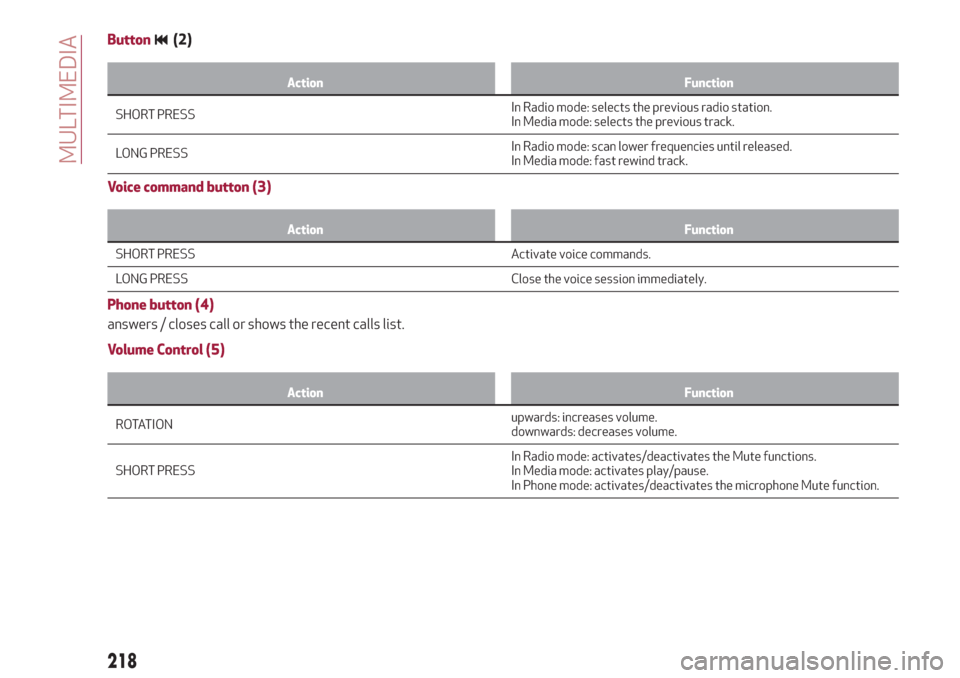

Button(2)
Action Function
SHORT PRESSInRadio mode: selects the previous radio station.
In Media mode: selects the previous track.
LONG PRESSIn Radio mode: scan lower frequencies until released.
In Media mode: fast rewind track.
Voice command button (3)
Action Function
SHORT PRESS Activate voice commands.
L
ONG PRESS Close the voice session immediately.
Phone button (4)
answers / closes call or shows the recent calls list.
Volume Control (5)
Action Function
ROTATIONupwards:increases volume.
downwards: decreases volume.
SHORT PRESSIn Radio mode: activates/deactivates the Mute functions.
In Media mode: activates play/pause.
In Phone mode: activates/deactivates the microphone Mute function.
218
