Road Wheels and Tyres (04.04)
Suspension (04.00)4-4-6 Workshop Manual May 2007
Ty r e D a m a g e
Vehicle vibrations Tyres and wheels mismatched Install correct tyre and wheel combination.
Inflation pressure too high or too lo w Correct pressure to specification
Uneven tyre wear Refer to Diagnosis and Testing .
Out-of-balance wheel, tyre, wheel hub
or disc assembly Determine the out-of-balance component and
balance or install a new part.
Damaged or distorted wheel from road
impact hazard or incorrect handling Install a new wheel.
Excessive radial runout Install a new wheel or tyre. Check for incorrect wheel and tyre specifications.
Excessive lateral runout Install a new wheel or tyre.
Incorrectly seated tyre Remount the tyre.
Loose wheel mountings - damaged
wheel studs, wheel nuts, worn or
broken wheel hub face or foreign
material on mounting faces Tighten or install new parts. Clean mounting
surfaces.
Defective wheel bearings Install a new bearing set.
Brake disc imbalance
Water in tyres Remove water.
Loose engine or transmission mounts Install new mount nuts / install new mounts.
Incorrect front end alignment Align front end.
Loose or worn driveline or suspension
parts Repair or install new parts.
Excessive driveshaft runout or
imbalance Install a new driveshaft.
Worn or damaged flexible drive joint Install a new driveshaft.
Damaged wheel hub stud
threads Sliding wheel across the wheel studs
during installation. Loose wheel nuts
Install new wheel studs.
Broken wheel studs Loose or over tightened wheel nuts Install new wheel studs.
Corrosion and contamination
streaks from the wheel hub
wheel stud holes Loose wheel nuts Check complete assembly. Install new parts.
Damaged wheel nuts Loose wheel assembly Install new wheel nuts.
Over-tightened wheel nuts Install new wheel nuts.
Frozen wheel nuts Corrosion or galling If corrosion is light, wire brush away corrosion.
If corrosion is excessive install new wheel studs
and wheel nuts.
SymptomPossible Source(s):Action(s)
SymptomDescription
Age Deterioration Cracking and crazing of the tread and side wall rubber, sometimes accompanied by carcass
deformation. An indication that the tyres have been in service for a very long time.
Neglected Cut Damage through accidental cuts or penetrations will extend in use due to continued flexing and /
or ingress of moisture and road matter.
Impact Fracture Resultant damage from impact fractures is not always visible externally and, therefore, as a safety
precaution the tyre should be removed and examined.
Casing fracture caused by severe localized impact through driving over kerbs, hitting potholes
and / or objects in the road.
A double fracture caused by crushing the side wall of the tyre between an object and the rim
flange.
In both instances, such damage can lead to sudd en and dangerous tyre deflation some time after
the impact occurred.

Road Wheels and Tyres (04.04)
Suspension (04.00)4-4-12 Workshop Manual May 2007
1. Press ‘Set’ for 2 seconds to enter level 1 programming .
2. Press ‘Mode’ until pressure / temperature units are displayed.
3. Press ‘Tyre’ to enter ‘Units Selection’ mode.
4. Use ‘Tyre’ or ‘Mode’ to scroll through four combinations of pressure / temperature units.
5. Press ‘Set’ to save the selected combination of units.
6. Press the ‘Set’ button again to revert to normal mode.
Level 2 Programming
Slope
Sets rate of pressure change for tyres in use. This parameter
is set at manufacture and is specific only to the
recommended tyres for DB9.
1. Press ‘Set’ for 5 seconds to enter level 2 programming .
2. Press ‘Tyre’ until the desired vehicle axle is displayed.
3. Press ‘Mode’ to display the current SLOPE entry (DB9 is set at?)
4. If required, use ‘Tyre’ to increase or ‘Mode’ to decrease current value.
5. Press ‘Set’ to save the final value.
6. Press ‘Set’ again to return to normal mode.
Transmitter Learn Mode
This mode is used to add or delete transmitters from the
system memory. It is vital that transmitter signals are
correctly recognised to avoid system reaction to other
transmitters (e.g. from passing vehicles with similar sensors).
1. Remove a Redundant Transmitter 1.1 Press ‘Set’ for 5 seconds to enter level 2 programming .
1.2 Press ‘Mode’ to select ‘Transmitter Learn’ mode.
1.3 Press ‘Tyre’ to display possible tyre positions (filled rectangles represent currently programmed
transmitters).
1.4 Press ‘Tyre’ to scroll to the desired position.
1.5 To delete a transmitter, press the ‘Mode’ once.
1.6 If required, scroll to other positions using ‘Tyre’ and, if required, delete any other transmitters using
‘Mode’ button. 2. Add new Transmitters.
2.1 Press ‘Set’ for 5 seconds to enter level 2 programming .
2.2 Press ‘Mode’ to select ‘Transmitter Learn’ mode.
2.3 Press ‘Tyre’ to display possible tyre positions (filled rectangles represent currently programmed
transmitters).
2.4 Press ‘Tyre’ to scroll to the desired position. The chosen road wheel icon will flash.
2.5 Program a new transmitter by either:
2.6 Vigorously shaking the transmitter (bounce the road wheel on the ground) to promote a transmission.
2.7 Inflate or deflate the tyre by more than 3 psi (0.2 bar).
2.8 Press ‘Tyre’ to scroll to the next position. Repeat steps 4 and 5 as required to programme additional
transmitters.
2.9 Press ‘Set’ to save the new transmitter data and to exit ‘learn’ mode. If no error is found, the system will
return to ‘normal’ mode.
Level 3 Programming
Low Pressure Alert
1. Press ‘Set’ for 10 seconds to enter level 3 programming .
2. Press ‘Tyre’ button to scroll to the desired axle.
3. Press ‘Mode’ to view the current low pressure alert value.
4. Press ‘Tyre’ to increase the current value or press ‘Mode’ to the decrease current value.
5. Press ‘Set’ to save when the desired value is reached.
6. Repeat steps 2 to 5 until the Low Pressure Alert Level has been set for all road wheels.
7. Press ‘Set’ button to exit this mode.
8. Press the ‘Set’ button again to return to normal mode.
36-5-052
The unit will ‘beep’ when ne w transmitter is recognised.
36-5-051

Driveshaft (05.01)
Driveline (05.00)5-1-2 Workshop Manual May 2007
Driveline (05.00)
Driveshaft (05.01)
Description
The driveshaft consists of a torque tube
assembly, incorporating a carbon fibre
propshaft, transferring engine power to
the gearbox.
The torque tube acts as a structural
support between the engine and
transmission through the powertrain
maintaining NVH (Noise, Vibration &
Harshness) and crash worthiness.
Specifications
Maintenance
Propeller Shaft-Renew
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove transaxle (see Workshop Manual procedure 07.03.AA Manual or 07.03.BA Sportshift - Transaxle
Assembly - Remove for Access and Refit).
4. Lower lifter supporting torque tube.
5. Remove large circlip and with assistance, remove propshaft from torque tube
Installation
1. Clean propeller shaft assembly, circlip and mating faces.
2. With assistance, install propshaft into torque tube, install circlip. 3. Raise lifter supporting torque tube to enable installation
of transaxle.
4. Install transaxle (see Workshop Manual procedure 07.03.AA Manual or 07.03.BA Sportshift - Transaxle
Assembly - Remove for Access and Refit).
5. Lower vehicle on ramp.
6. Connect vehicle battery.
Propshaft Cam Sensor-Sportshift-Renew-
Sportshift Only
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove exhaust system (see Workshop Manual procedure 09.00.NB Exhaust System - Excluding
Manifold/DownPipes - Renew).
4. Disconnect multiplug between propshaft speed sensor and transmission harness.
Torque Figures
DescriptionNm.lb. / ft.
Torque Tube (front) M10 43-57 (Nominal 50.5 ±15%)32-42.5
Torque Tube (rear) 43-57 (Nominal 50.5 ±15%)32-42.5
Exhaust Manifold 18-22 13.5-16.5
Starter Motor 50 37
Repair Operation Time (ROT)
Repair Operation Time (ROT)
ItemCode
Propshaft Cam Sensor-Sportshift-
Renew 05.01.AC
Warning
Always disconnect the battery earth (- ve) terminal first.
Warning
When raising the vehicle on a ‘two post’ ramp, ensure
that the rear end of the vehi cle is securely strapped to
the ramp. Failure to strap th e rear of the vehicle down
may lead to the vehicl e falling off the ramp.
Caution
When using a ‘two post’ vehicle ramp, remove the
screws that secure the rear section of the wheel arch
liner to body. Hold back the rear section of the wheel
arch liner to correctly position the foot of the vehicle lift.

Driveshaft (05.01)
Driveline (05.00)
May 2007 Workshop Manual 5-1-3
5. Remove bolt securing propshaft speed sensor to torque tube and remove sensor.
Installation
1. Install propshaft speed sensor to torque tube and secure with bolt.
2. Connect multiplug between propshaft speed sensor and transmission harness.
3. Install exhaust system (see Workshop Manual procedure 09.00.NB Exhaust System - Excluding Manifold/
DownPipes - Renew)
4. Lower vehicle on ramp.
5. Connect vehicle battery.
To r q u e Tu b e - R e n e w
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove torque tube assemb ly (see Workshop Manual
procedure 05.01.CA Torque Tube - Remove for Access
and Refit).
4. Sportshift only - Remove grommet sealing clutch bleed
pipe to torque tube.
5. Release clips and remove bleed and supply pipes from slave cylinder. Install clips in union.
6. Sportshift only - Remove grommet sealing clutch pipe
to torque tube.
7. Manual only - Loosen and remove pipe adaptors (x2)
from slave cylinder.
8. Sportshift only - Release clip, disconnect clutch pipe
from slave cylinder adaptor.
9. Sportshift only - Release clip securing transmission
harness to clutch pipe mounting bracket.
10. Sportshift only - Release clips (x4) securing clutch pipe
to transmission harness.
11. Sportshift only - Remove clutch pipe from torque tube.
12. Sportshift only - Disconnect multiplug between clutch
position sensor and transmission harness. 13.
Sportshift only - Release clip securing clutch position
sensor harness to top of torque tube.
14. Sportshift only - Release clips (x2) securing clutch
position sensor harness to side of torque tube.
15. Sportshift only - Remove bolts (x2) securing clutch
position sensor to slave cylinder and remove sensor.
16. Remove bolts (x2), securing slave cylinder to torque tube.
17. Remove bolts (x2), securing slave cylinder to torque tube.
18. Remove slave cylinder, collect spacer.
19. Sportshift only - Disconnect multiplug between
propshaft speed sensor and transmission harness.
20. Sportshift only - Remove bolt securing propshaft speed
sensor to torque tube and remove sensor.
21. Sportshift only - Release clips (x5) securing transmission
harness to torque tube.
22. Remove exhaust mountings (bolts x4) (see Fig. 1).
Installation
1. Install exhaust mounting s (bolts x4) (torque).
2. Clean slave cylinder, spacer and pipe adaptors.
3. Sportshift only - Secure transmission harness to torque
tube using clips.
4. Sportshift only - Secure propshaft speed sensor to
torque tube using bolt.
5. Sportshift only - Connect multiplug between propshaft
speed sensor and transmission harness.
6. Install spacer and slave cylinder, install and torque tighten bolts (x2).
7. Sportshift only - Secure clutch position sensor to slave
cylinder using bolts.
8. Sportshift only - Secure clutch position sensor harness
to side of torque tube using clips.
9. Sportshift only - Secure clutch position sensor harness
to top of torque tube using clip.
10. Sportshift only - Connect multiplug between clutch
position sensor and transmission harness.
Warning
Always connect the battery ea rth (+ ve) terminal first.
Repair Operation Time (ROT)
Warning
The torque tube is heavy. To avoid personal injury or damage to the torque tube, torque tube removal / installation is a two person operation.
Caution
Plug pipe connection to prevent ingress of moisture or dirt.
Fig. 1
$

Driveshaft (05.01)
Driveline (05.00)5-1-4 Workshop Manual May 2007
11. Sportshift only - Install clutch pipe to torque tube.
12. Sportshift only - Secure clutch pipe to transmission
harness using clips.
13. Sportshift only - Secure transmission harness to clutch
pipe mounting bracket using clip.
14. Install pipe adaptors (x2) in slave cylinder.
15. Sportshift only - Install grommet sealing clutch pipe to
torque tube.
16. Sportshift only - Install clip and refit bleed pipe to slave
cylinder adaptor.
17. Sportshift only - Install grommet sealing clutch bleed
pipe to torque tube.
18. Manual only - Install bleed and supply pipes onto slave
cylinder adaptors (x2), secure with clips.
19. Install torque tube assembly (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access
and Refit).
20. Bleed clutch (see Workshop Manual procedure 08.00.AF - Manual, 08.00.AE - Sportshift - Clutch
Hydraulic System - Bleed).
21. Lower vehicle on ramp.
22. Connect vehicle battery.
Torque Tube & Prop Shaft Assembly-
Renew
-Manual Vehicles Only
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove torque tube assembly (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access
& Refit).
4. Release clips and remove bleed and supply pipes from slave cylinder.
5. Install clips in union.
6. Loosen and remove pipe adaptors (x2) from slave cylinder.
7. Remove bolts (x2), securing slave cylinder to torque
tube.
8. Remove slave cylinder and collect spacer.
9. Remove exhaust mountings (bolts x4).
Installation
1. Install exhaust mountings (bolts x4) (torque).
2. Clean slave cylinder, spacer and pipe adaptors.
3. Install spacer and slave cylinder, install and torque tighten bolts (x2).
4. Install pipe adaptors (x2) in slave cylinder.
5. Install bleed and supply pipes onto slave cylinder adaptors (x2), secure with clips.
6. Install torque tube assembly (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access
& Refit).
7. Bleed clutch (see Workshop Manual procedure 08.00.AF Clutch Hydraulic System - Bleed).
8. Lower vehicle on ramp.
9. Connect vehicle battery.
Torque Tube & Prop Shaft Assembly-
Renew
-Sportshift Vehicles Only
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove torque tube assembly (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access
& Refit).
4. Remove grommet sealing clutch bleed pipe to torque tube.
5. Release clip, disconnect bleed pipe from slave cylinder adaptor and remove pipe.
6. Remove grommet sealing clutch pipe to torque tube.
7. Release clip, disconnect clutch pipe from slave cylinder adaptor.
8. Release clip securing transmission harness to clutch pipe mounting bracket.
9. Release clips (x4) securing clutch pipe to transmission harness.
10. Remove clutch pipe from torque tube.
11. Disconnect multiplug betwee n clutch position sensor
and transmission harness.
12. Release clip securing clutch position sensor harness to
top of torque tube.
13. Release clips (x2) securing clutch position sensor harness to side of torque tube.
14. Remove bolts (x2) securing clutch position sensor to slave cylinder and remove sensor.
15. Remove bolts (x2), securing slave cylinder to torque tube.
16. Remove slave cylinder and collect spacer.
17. Disconnect multiplug between propshaft speed sensor and transmission harness.
Warning
The torque tube is heavy. To avoid personal injury or damage to the torque tube, torque tube removal / installation is a two person operation.
Caution
Clutch fluid must not be allowed to contact vehicle paint work. Remove spilt clutch fluid from paint work by
rinsing away with running water.
Repair Operation Time (ROT)
Repair Operation Time (ROT)
ItemCode
Torque Tube & Prop Shaft Assembly-
Renew-Sportshift Vehicles Only 05.01.BC

Driveshaft (05.01)
Driveline (05.00)
May 2007 Workshop Manual 5-1-5
18. Remove bolt securing propshaft speed sensor to torque tube and remove sensor.
19. Release clips (x5) securing transmission harness to torque tube.
20. Remove bolts (x4) securing exhaust mountings to torque tube.
Installation
1. Secure exhaust mountings to torque tube using bolts.
2. Secure transmission harness to torque tube using clips.
3. Secure propshaft speed sensor to torque tube using bolt.
4. Connect multiplug between propshaft speed sensor and transmission harness.
5. Install slave cylinder and spacer to torque tube.
6. Secure slave cylinder to torque tube using bolts.
7. Secure clutch position sensor to slave cylinder using bolts.
8. Secure clutch position sensor harness to side of torque
tube using clips.
9. Secure clutch position sensor harness to top of torque tube using clip.
10. Connect multiplug between clutch position sensor and transmission harness.
11. Install clutch pipe to torque tube.
12. Secure clutch pipe to transmission harness using clips.
13. Secure transmission harness to clutch pipe mounting bracket using clip.
14. Install clip and install clutch pipe to slave cylinder adaptor.
15. Install grommet sealing clutch pipe to torque tube.
16. Install clip and refit bleed pi pe to slave cylinder adaptor.
17. Install grommet sealing clutch bleed pipe to torque tube.
18. Install torque tube assembly (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access
& Refit).
19. Connect vehicle battery.
20. Bleed clutch hy draulics (see Workshop Manual
procedure 08.00.AE Clutch Hydraulic System -
Sportshift - Bleed).
21. Lower vehicle on ramp.
Torque Tube-Remove for Access/Refit
Remove
1. Disconnect vehicle battery.
2. Raise vehicle on ramp. 3. Remove transaxle (see Workshop Manual procedure
07.03.AA Transaxle Assembly - Manual - Remove for
Access and Refit).
4. Remove LH exhaust manifo ld (see Workshop Manual
procedure 09.00.CB Manifold - Exhaust - LH - Renew).
5. Allow torque tube to lower until engine is balanced.
6. Remove large circlip using special tool (see Fig. 1).
7. With assistance, remove propshaft from torque tube (see Fig. 2).
Repair Operation Time (ROT)
Warning
The torque tube is heavy. To avoid personal injury or
damage to the torque tube, torque tube removal / installation is a two person operation.
Fig. 1
Fig. 2

Anti-lock Braking System (ABS) (06.09)
Brake system (06.00)
6-9-2 Workshop Manual Issue 4, November 2008
difference between the ideal and actual response within a
tolerance band. This directly influences the forces on the
tires to generate a corrective yaw moment to reduce the side
forces of the tires where appropriate
System Overview
The DSC system embraces capabilities far beyond that of
ABS, or ABS and traction control combined, while relying on
the components of these systems. It also incorporates these
additional sensors for measur ing the vehicle’s motion and
brake system pressure:
Ya w r a t e s e n s o r - located centrally on the transmission
tunnel.
Lateral acceleration sensor - integrated with the yaw rate
sensor.
Steering angle sensor - located on the upper steering
column.
Pressure transducer - located on master cylinder.
The ABS / DSC module supports data exchange with other
vehicle electronic systems via the CAN network; the module
also enables diagnostic interrogation using WDS.
The following components register driver demand and the
ABS / DSC module processes their signals as a basis for
defining an ideal response:
PCM - position of accelerator pedal.
Brake master cylinder pressure transducer - driver’s
braking effort.
Steering angle sensor - position of steering wheel.
There are many supplementary parameters also included in
the processing calculations these include the coefficient of
friction and vehicle speed. The ABS / DSC module monitors
these factors based on signals transmitted by the sensors for:
• Wheel speed
• Lateral acceleration
• Brake pressure
• Yaw rate
Using these parameters, the function of the ABS / DSC
module is to determine the current vehicle status based on
the yaw-rate signal and the slip as estimated by the ABS /
DSC module. It then maintains the vehicle response within
a tolerance of the ‘normal’ behaviour, which is easily
controlled by the driver.
In order to generate the desired yaw behaviour the ABS /
DSC module controls the selected wheels using the ABS
hydraulic system and engine control system. In the event of
engine intervention, the ABS / DSC module calculates the
torque which should be supplied by the engine to the
wheels, and relays this request signal to the PCM which
implements the torque request.
The PCM receives signals from the DSC system via the CAN
bus and reduces engine torque as follows:
• The throttle is positioned to provide the requested engine target torque. • During the transient phase of torque reduction caused by
mechanical and combustion delays, other alternative
torque reduction methods are used to provide a quicker
response.
• The ignition is retarded and / or the fuel is cut-off at the injectors at selected cylinders.
• Ignition and fuelling are reinstated when the engine torque reaches the requested value
Operation Summary
• DSC is switched ‘ON’ when the engine is started
• When the system is operating , the DSC light in the instrument cluster will flash, at the rate of twice a second
• DSC can be switched ‘OFF / ON’ by pressing the DSC switch
• The DSC light in the instru ment cluster will illuminate
continuously when the system is switched ‘Off’.
• ‘DSC OFF’ will be displayed in the message centre right to indicate the system has been switched ‘OFF’
• A malfunction in the traction control system will be indicated to the driver by the following:
• The DSC light in the instru ment cluster will illuminate
continuously
• The message ‘DSC NOT AVAILABLE’ will be displayed in the message centre right
• If vehicle speed control is engaged it will automatically disengage when traction control is operating .
Traction Control
Traction control is a function of DSC, and is operated in
association with DSC. Traction control prevents excessive
wheel-spin at standing starts, or during acceleration. Wheel-
spin is usually caused by ex cessive use of the accelerator
pedal, or slippery, loose or bumpy road surfaces. To prevent
excessive wheel-spin and mainta in vehicle stability such
situations are overcome by the intervention of the traction
control system by:
• Braking the driven-wheel when it starts to slip
• And / or adapting the engine torque to a level corresponding to the traction available on the road
surface.
Functional Description
Traction control uses the ABS electronic and mechanical /
hydraulic hardware with additional valves to control the
braking pressure at the calipe rs. An engine interface also
enables the engine to respond to torque reduction requests
from the traction control. As with ABS, the signals from the
wheel-speed sensors are supplied to the ABS module, where
they are used to calculate the wheel-slip of the individual
wheels. Traction control intervention is initiated if the slip at
one of the wheels is excessive.

Anti-lock Braking System (ABS) (06.09)
Brake system (06.00)
Issue 4, November 2008 Workshop Manual 6-9-3
Engine Intervention
In the event of wheel-slip the ABS / DSC module calculates
the torque, which should be applied by the engine to reduce
the wheel-slip (this torque does not exceed driver demand).
Engine torque reduction is then requested from the PCM via
the CAN bus. The PCM, in response to these signals, reduces
engine torque by controlling the ignition and fuelling. A
traction control gearshift pattern is automatically selected
within the automatic transmission software whenever
traction control is active.
Brake Intervention
This function operates by increasing the pressure in the
brake caliper of the slipping wheel, by closing the separation
valve and the inlet valve of the non-slipping wheel and
running the modulator pump. This takes fluid from the fluid
reservoir via the non-actuated master cylinder and
pressurizes the brake caliper. The pressure is modulated at
the caliper via the inlet and outlet valves to achieve the
desired wheel-slip target to maximize traction.
ABS / DSC Circuit
Specifications
SR,05UR,05YR,0.5NR,0.5
WR,05NR,05
YG,05WG,05
YU,05WU,05
W,05N,05
W,0.5U,0.5R,0.5
P,0.5Y,0.5
B,0.5WG,0.5GB,0.5
B,0.5BG,0.5
GW,0.5
P,0.5
U,0.5
U,3.0
BK,1.0BK,1.0
P,0.35P,0.35P,0.35 U,3.0
WG,05YG,05
WU,05
SR,05UR,05YR,0.5NR,0.5
WG,05YG,05
WU,05
WG,05YG,05
WU,05YU,05YU,05YU,05Module-ABS
OBD2-Body (B)
Earth-Module ABSEarth-Module ABS
C1184-18C2410-6
Sensor-Brake Pressure
Sensor-Brake Pedal Travel
Sensor-Rear ABS-LH
C0746-7C0746-6
C0746-5
Switch-Brake Boost
Sensor-Yawrate / Acceleration
C2411-6C2411-5C2411-4
C2411-3
C0144-7C0144-3
C0144-2
Sensor-Front ABS-LH
Sensor-Front ABS-RH
C2410-10C2410-9
C2410-8
Sensor-Rear ABS-RH
C0746-4C0144-1C2410-7
C0877-7
K-LINESPL50-KL/FA
C0362-1C0434-1
C2444-2
SIGC2444-1
GND
C2444-3
SENSP
C2446-2
GNDC2446-1
SENSPT
C2446-3
SIG
C0501-47
GNDC0501-16
GND
C0501-2K-LINE
C0501-24
GND
C0501-31
PWM
C0501-30
NC
C0501-25
CAN HS-
C0501-28
SIGC0501-27
NO
C0501-29
CAN HS+C0501-6
CLUST_SP
C0501-17
PWR
C0501-5
GND
C0501-32BATT FEED
C0501-7
SENSPT
C0501-3 SIG
C0501-20 SIGC0501-19
GND
C0501-18 SENSP
C0501-4IGN FEED
C0501-46
F/L/GNDC0501-45
F/L/SIG
C0501-42
R/R/GNDC0501-43
R/R/SIG
C0501-36
R/L/SIG
C0501-34
F/R/SIGC0501-33
F/R/GND
C0501-1
BATT FEEDC0501-37
R/L/GND
C2448-5
C2448-3
C2448-2C2448-1
C2448-4
C1656-3 CLUS_SPC1656-2
CAN HS+C1656-1 CAN HS-
C1656-5
GND
C0516-2-C0516-1+
C0517-2
-C0517-1+
C0502-1
+
C0503-2 -C0503-1+
C0502-2 -
Sensor
Steering Angle
Sheet 61
F4
30.0 AmpsRelay 1
Underbonnet Fusebox
DIODE 1
F28
10.0 Amps
F20
30.0 Amps
F19
30.0 Amps
Earth
Steering Angle
Sensor
C0576-1
C0577-4C2608-1 VBATT
C0573-2
C0571-3
C0573-3
C0578-8SPL5-VIGN/FOR
C1672-5
VPWRC1672-8
GND
011-6-003
Oils/Greases
Brake FluidCastrol Response Super Dot 4
Torque Figures
DescriptionNm.lb. / ft.
Modulator to Bracket 5 4
Modulator / Bracket to body 9 7
Brake hose unions 17 1413
10.5
17 Nm. 17 Nm.
17 Nm.
14 Nm.
14 Nm. 14 Nm.

May 2007 Workshop Manual 7-2-1
Transmission (07.00)
Contents
Transmission Cooling (07.02) ............................... 7-2-2Specifications.......................................................... 2-2
Maintenance ........................................................... 2-2Oil Cooler Matrix-Renew ....................................... 2-2
Manual Transmission Oil Ou tlet Hose-Renew ........ 2-3
Manual Transmission Oil Inlet Hose-Renew ........... 2-3
Manual Transmission (07.03) ................................ 7-3-1 Description ............................................................. 3-1Cooling .................................................................. 3-1
Specifications.......................................................... 3-2
Maintenance ........................................................... 3-2 Transaxle Assembly-Remove for Access/Refit .......... 3-2
Complete Sportshift Hydraulic Kit-Renew .............. 3-6
Complete Shifter Assembly-Renew-Roadster Only.. 3-9
Reservoir Tank Assembly-Renew-Roadster Only ... 3-10
Pump Inlet/Valve Body Bleed/Reservoir
Tank Hoses-Renew-Roadster Only ....................... 3-11
Hydraulic Pump Assembly-Renew
-Sportshift Only.................................................... 3-12
HP Hose Kit-Renew-Roadster Only ...................... 3-13
Dry Break Connector-Renew-Roadster Only ........ 3-15
Clutch Position Sensor-Renew
-Roadster/Sportshift Only ..................................... 3-17
Transmission Sensor Assembly
-Renew-Sportshift Only ........................................ 3-18
Transmission Valve Block-Renew ......................... 3-20
Shifter Assembly Gasket-Renew ........................... 3-23
Transaxle Assembly-Remove for Access & Refit
-Sportshift Only.................................................... 3-23
Transmission Axle Assembly-D rain/Refill............... 3-26
Transaxle Assembly-Renew .................................. 3-26
Automatic Control System (07.05) ........................ 7-5-1 Maintenance ........................................................... 5-1Paddle Shift Switch Assembly - Renew
- (Sportshift Only)................................................... 5-1
Sportshift Drive Switch-Ren ew-Sportshift Only ....... 5-1
Sportshift Neutral Switch-Renew-Sportshift Only .... 5-2
Sportshift Reverse Switch-Renew-Sportshift Only ... 5-2
Sportshift Comfort Switch-Renew-Sportshift Only ... 5-3
Sportshift Interface Box-Re new-Sportshift Only ...... 5-3
Manual Control System (07.06) ............................. 7-6-1 Maintenance ........................................................... 6-1Gearshift Assembly Mechan ism-Renew .................. 6-1
Transmission Gearshift Cable Assembly-Renew ...... 6-1
Automatic Shifting Subsystem (07.11)................. 7-11-1 Maintenance ......................................................... 11-1Transmission Control Module
-Renew-Sportshift Only ........................................ 11-1

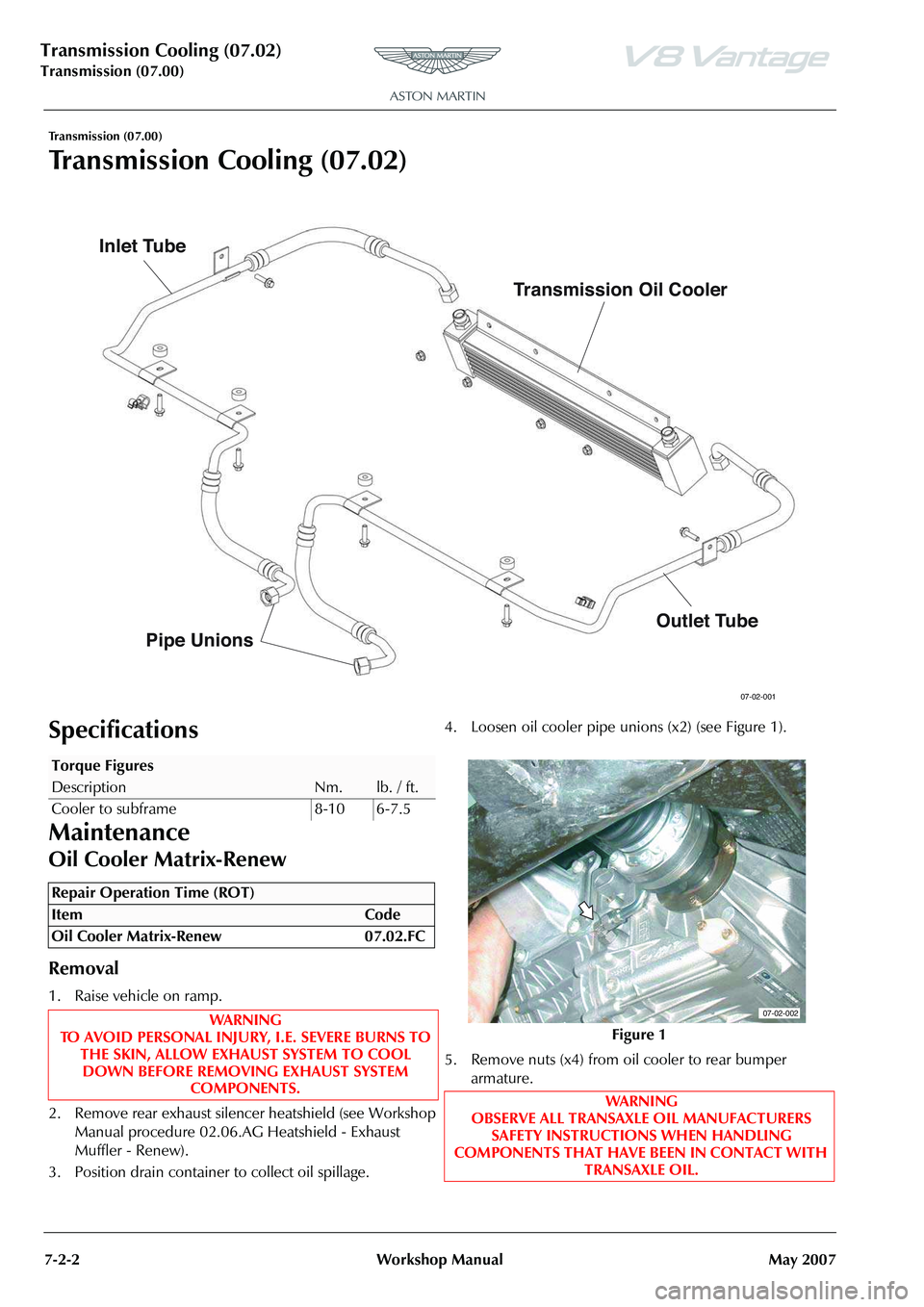

Transmission Cooling (07.02)
Transmission (07.00)7-2-2 Workshop Manual May 2007
Transmission (07.00)
Transmission Cooling (07.02)
Specifications
Maintenance
Oil Cooler Matrix-Renew
Removal
1. Raise vehicle on ramp.
2. Remove rear exhaust silencer heatshield (see Workshop
Manual procedure 02.06.AG Heatshield - Exhaust
Muffler - Renew).
3. Position drain container to collect oil spillage. 4. Loosen oil cooler pipe unions (x2) (see Figure 1).
5. Remove nuts (x4) from oil cooler to rear bumper
armature.
07-02-001
Transmission Oil Cooler
Inlet Tube
Outlet Tube
Pipe Unions
Torque Figures
DescriptionNm.lb. / ft.
Cooler to subframe 8-10 6-7.5
Repair Operation Time (ROT)
Figure 1
WAR NI NG
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH
TRANSAXLE OIL.
07-02-002
