oil level ASTON MARTIN V8 VANTAGE 2010 Workshop Manual

Convertible Roof (01.17)
Body System (01.00)1-12-16 Workshop Manual May 2007
12. Loosen (x6) screws retain ing plate (see Figure 10).
13. Slide retaining plate, disconnect pipes and remove pump (pipes and locations are numbered).
Installation
1. Check pump hydraulic oil le vel and top-up if required
(see Figure 1).
2. Clean pipes and install pipes to pump.
3. Slide retaining plate into place and tighten screws (pipes and locations are numbered).
4. Connect motor lucar connectors (x2).
5. Install end cover (locating tabs x2).
6. Connect pump multiplug.
7. Connect pump multiplug.
8. Install motor under tonneau body side ensuring the roof can be operated without pipes or wires fouling and
insulate with cloth if required. 9. Install cylinder pivot bracket and connect cylinder to
bracket.
10. Operate roof from fully shut to fully open then to halfway position with tonneau open and support roof
when hydraulic pressure drop s with suitable straps and
support tonneau cover with suitable prop.
11. Disconnect cylinder and remove cylinder pivot bracket.
12. Check pump and pipes for leaks.
13. Remove pump from tonneau bodyside and check oil level. If top up necessary remove reservoir end plug with
pump in upright position, add small quantity of oil
replace plug and re-check level.
14. Install pump casing and secure velcro.
15. Install pump and casing under tonneau onto location posts.
16. Install cylinder pivot bracket and connect cylinder to bracket.
17. Move tonneau well liner arou nd lower cylinder fixing
and motor casing and secure velcro.
18. Install trim clip and positi on tonneau lining stiffening
rod.
19. Restore roof and tonneau to original positionHydraulic Lock Valve - Renew
Removal
1. Operate roof to halfway position with tonneau open and support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
Figure 10
Figure 1
Repair Operation Time (ROT)
ItemCode
Hydraulic Lock Valve-Renew 01.17.AV
WAR NI NG
APPROXIMATELY 20 SECONDS AFTER THE OPEN/
CLOSE OPERATION HAS BEEN INTERRUPTED THE ROOF MAY SUDDENLY DROP DUE TO LOSS OF
HYDRAULIC PRESSURE. IF THIS HAPPENS ENSURE NO
BODY PARTS ARE CLOSE TO THE ROOF MECHANISM. IF THE ROOF REQUIRES MAINTENANCE, SUPPORT
PROPERLY USING SUITABLE PROPS AND STRAPS.

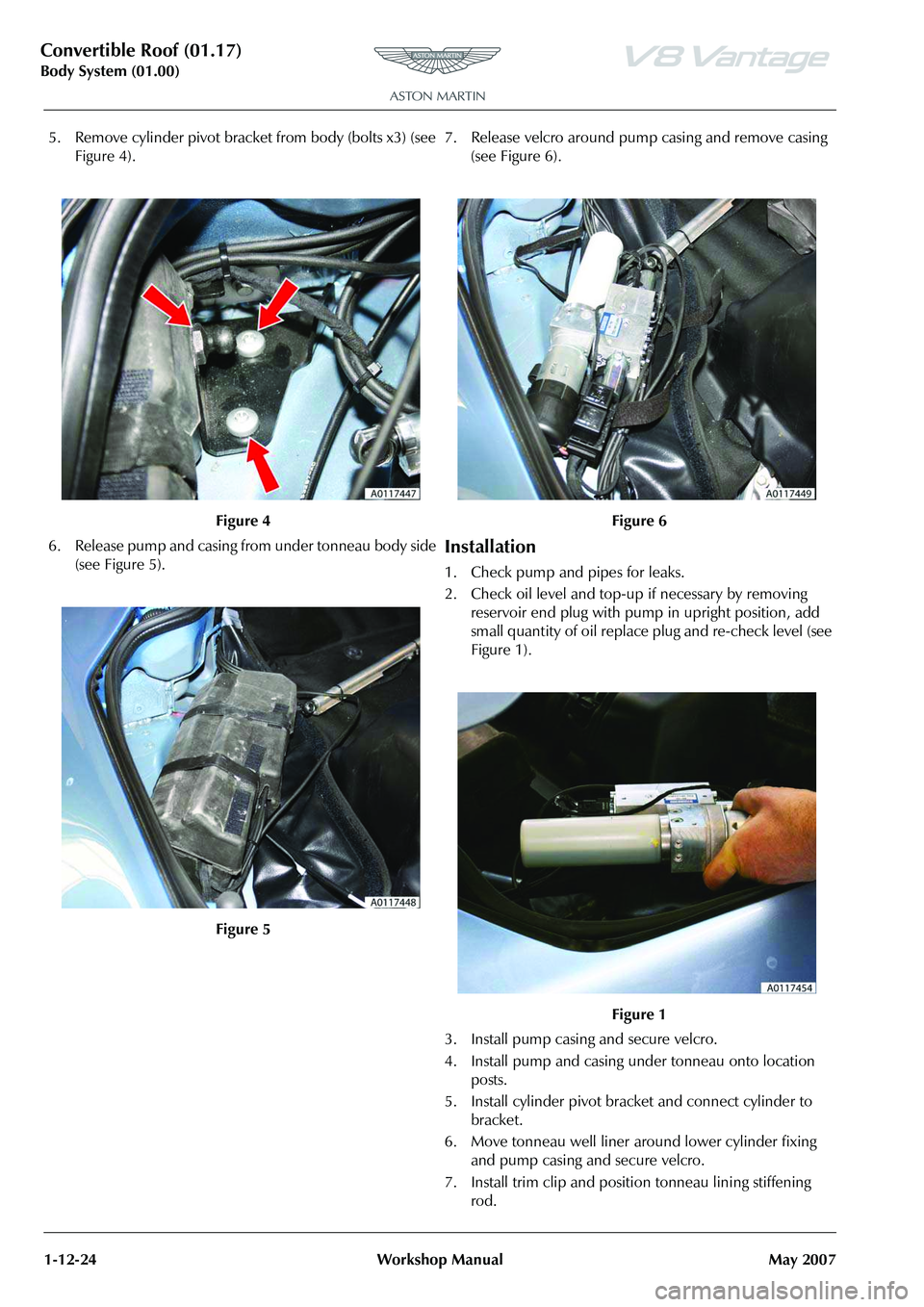

Convertible Roof (01.17)
Body System (01.00)1-12-24 Workshop Manual May 2007
5. Remove cylinder pivot bracket from body (bolts x3) (see Figure 4).
6. Release pump and casing from under tonneau body side (see Figure 5). 7. Release velcro around pump casing and remove casing
(see Figure 6).
Installation
1. Check pump and pipes for leaks.
2. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
small quantity of oil replace plug and re-check level (see
Figure 1).
3. Install pump casing and secure velcro.
4. Install pump and casing under tonneau onto location posts.
5. Install cylinder pivot bracket and connect cylinder to bracket.
6. Move tonneau well liner around lower cylinder fixing and pump casing and secure velcro.
7. Install trim clip and position tonneau lining stiffening rod.
Figure 4
Figure 5
Figure 6
Figure 1

Convertible Roof (01.17)
Body System (01.00)1-12-32 Workshop Manual May 2007
16. Release pump and casing from under tonneau body side (see Figure 9).
17. Release velcro around pu mp casing and remove casing
(see Figure 10). 18. Loosen (x6) screws on pump
retaining plate (see Figure
11).
19. Slide retaining plate, disconnect pipe from pump (pipes and locations are numbered).
20. Remove cable ties and remove pipe from vehicle (see Figure 12).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
Figure 9
Figure 10
Figure 11
Figure 12

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-33
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install cable ties.
3. Clean pipe and install pipe to pump then slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
7. Move tonneau well liner ar ound lower cylinder fixing
and pump casing and secure velcro.
8. Install trim clip and position tonneau lining stiffening rod.
9. Install harness/pipe retaining clips (x9) behind ROPS units.
10. Install harness/pipe re taining clips LH (x2).
11. Install harness/pipe re taining clips RH (x3).
12. Attach pipes to guide stri ng, feed pipes through roof
frame and remove string.
13. Position pipes to cylinder and secure with clips.
14. Secure pipes and wires to cylinder with cable tie.
15. Install new clips securi ng pipes to roof frame.
16. Connect battery.
17. Install Panel quarter trim lower (see Workshop Manual procedure 01.05.CR Panel Assembly - Quarter Trim
Lower - RH - Renew).
18. Restore roof and tonneau to original position.LH Rear Main Hydraulic Cylinder Pipe -
Renew
Removal
1. Operate roof to halfway position with tonneau open and support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
2. Remove panel quarter trim lower (see Workshop Manual procedure 01.05.CR Panel Assembly - Quarter
Trim Lower - RH - Renew).
3. Disconnect battery.
Figure 1
Repair Operation Time (ROT)

Convertible Roof (01.17)
Body System (01.00)1-12-36 Workshop Manual May 2007
17. Release velcro around pu mp casing and remove casing
(see Figure 9).
18. Loosen (x6) screws on pump retaining plate (see Figure
10).
19. Slide retaining plate, discon nect pipe from pump (pipes
and locations are numbered). 20. Remove cable ties and remove pipe from vehicle (see
Figure 11).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install
cable ties.
3. Clean pipe and install pipe to pump then slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
Figure 9
Figure 10
Figure 11
Figure 1

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-39
14. Release velcro around pump casing and remove casing (see Figure 7).
15. Loosen (x6) screws on pump retaining plate (see Figure
8).
16. Slide retaining plate, disco nnect pipe from pump (pipes
and locations are numbered). 17. Remove cable ties and remove pipe from vehicle (see
Figure 9).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install cable ties.
3. Clean pipe and install pipe to pump then slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
Figure 7
Figure 8
Figure 9
Figure 1

Convertible Roof (01.17)
Body System (01.00)1-12-42 Workshop Manual May 2007
13. Release pump and casing from under tonneau body side (see Figure 6).
14. Release velcro around pu mp casing and remove casing
(see Figure 7). 15. Loosen (x6) screws on pump
retaining plate (see Figure
8).
16. Slide retaining plate, disconnect pipe from pump (pipes and locations are numbered).
17. Remove cable ties and remove pipe from vehicle (see Figure 9).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
Figure 6
Figure 7
Figure 8
Figure 9

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-43
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install cable ties.
3. Clean pipe and install pipe to pump. Slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
7. Move tonneau well liner ar ound lower cylinder fixing
and pump casing and secure velcro.
8. Install trim clip and position tonneau lining stiffening rod.
9. Attach pipes to guide stri ng, feed pipes through roof
frame and remove string.
10. Position pipes to cylinder and secure with clips.
11. Secure pipes and wires to cylinder with cable tie.
12. Install new clips securi ng pipes to roof frame.
13. Connect battery.
14. Install Panel quarter trim lower (see Workshop Manual procedure 01.05.CR Panel Assembly - Quarter Trim
Lower - RH - Renew).
15. Restore roof and tonneau to original position.
LH Front Hydraulic Cylinder Pipe -
Renew
Removal
1. Operate roof to halfway position with tonneau open then support roof when hydr aulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
2. Remove wind deflector (see Workshop Manual
procedure 01.17.DA Wind Deflector - Renew).
3. Disconnect battery.
4. Remove lower cover (screw x1) (see Figure 2).
Figure 1
Repair Operation Time (ROT)
WA R N I N G
APPROXIMATELY 20 SECO NDS AFTER THE OPEN/
CLOSE OPERATION HAS BEEN INTERRUPTED THE ROOF MAY SUDDENLY DROP DUE TO LOSS OF
HYDRAULIC PRESSURE. IF THIS HAPPENS ENSURE NO
BODY PARTS ARE CLOSE TO THE ROOF MECHANISM. IF THE ROOF REQUIRES MAINTENANCE, SUPPORT PROPERLY USING SUITABLE PROPS AND STRAPS.
Figure 1
Figure 2

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-49
19. Release pump and casing from under tonneau body side (see Figure 11).
20. Release velcro around pump casing and remove casing (see Figure 12). 21. Loosen (x6) screws on pump
retaining plate (see Figure
13).
22. Slide retaining plate, disconnect pipe from pump (pipes and locations are numbered).
23. Remove cable ties and remove pipe from vehicle (see Figure 14).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
Figure 11
Figure 12
Figure 13
Figure 14

Convertible Roof (01.17)
Body System (01.00)1-12-50 Workshop Manual May 2007
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install cable ties.
3. Clean pipe and install pipe to pump then slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
7. Move tonneau well liner arou nd lower cylinder fixing
and pump casing and secure velcro.
8. Install trim clip and positi on tonneau lining stiffening
rod.
9. Install harness/pipe retaining clips (x9) behind ROPS units.
10. Install harness/pipe retaining clips LH (x2).
11. Install harness/pipe retaining clips RH (x3).
12. Attach pipes to guide stri ng, feed pipes through roof
frame and remove string.
13. Position pipes to cylinder and secure with clips.
14. Secure pipes and wires to cylinder with cable ties
15. Install pipe under keeper plate, install and tighten
screws.
16. Install new clips securing pipes to roof frame.
17. Install lower cover.
18. Connect battery.
19. Install Wind deflector (see Workshop Manual procedure 01.17.DA Wind Deflector - Renew).
20. Restore roof and tonneau to original positionRH Front Hydraulic Cylinder Pipe -
Renew
Removal
1. Operate roof to halfway position with tonneau open then support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
2. Remove wind deflector (see Workshop Manual procedure 01.17.DA Wind Deflector - Renew).
3. Disconnect battery.
Figure 1
Repair Operation Time (ROT)
ItemCode
Front Hydraulic Cylinder Pipe-Renew RH01.17.CQ
WAR NI NG
APPROXIMATELY 20 SECONDS AFTER THE OPEN/
CLOSE OPERATION HAS BEEN INTERRUPTED THE
ROOF MAY SUDDENLY DROP DUE TO LOSS OF
HYDRAULIC PRESSURE. IF THIS HAPPENS ENSURE NO
BODY PARTS ARE CLOSE TO THE ROOF MECHANISM.
IF THE ROOF REQUIRES MAINTENANCE, SUPPORT
PROPERLY USING SUITABLE PROPS AND STRAPS.
Figure 1
