AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-28

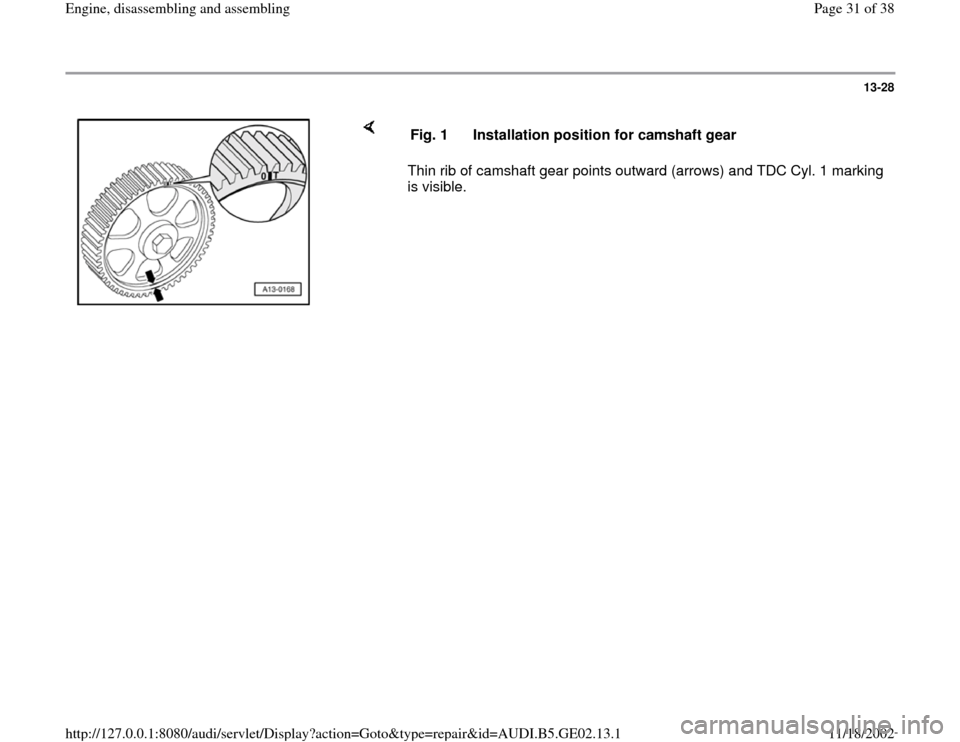

Thin rib of camshaft gear points outward (arrows) and TDC Cyl. 1 marking
is visible.  Fig. 1  Installation position for camshaft gear
Pa
ge 31 of 38 En
gine, disassemblin
g and assemblin

Page 32 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-29

Toothed belt, removing and installing


Removing

Engine installed
     Lock carrier in service position   Page 13
-1

Special tools and equipment
      V159 pin wre

Page 33 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-30


-  Remove vibration damper.

-  Remove lower toothed belt cover (arrows).
Pa
ge 33 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
pl

Page 34 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-31


-
Using Torx  wrench T45, loosen toothed belt tensioner (lower arrow).-  Push toothed belt tensioner downward.
-  Remove toothed belt.
Pa
ge 34 of 38 En
gine, disassemblin
g and assembl

Page 35 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-32

Installing (adjust valve timing)

Note:

Use the following procedure to adjust toothed
belt, even for repairs that only require removal
of toothed belt from camshaft gear.

Page 36 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-33


-  Tighten toothed belt by turning tensioner -A- to right using 2 pin
spanner (i.e. Matra V159 pin wrench) until cylinder -1- is fully extended
and tensioner -2- is raised by approx. 1

Page 37 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-34


-  Counterhold toothed belt tensioner using 2 pin spanner -B- and tighten
mounting screw -3-.

Note:
When installing the ribbed belt, make sure it is seated correctly on the
pull

Page 38 of 38

AUDI A3 1995 8L / 1.G AEB ATW Engines Engine Assembly Owners Guide 13-35

Tightening torques

Component

Tightening
torque
Toothed belt tensioner to
tensioner assembly
25 Nm (18 ft
lb)
Lower toothed belt cover
to
cylinder block  M6   10
