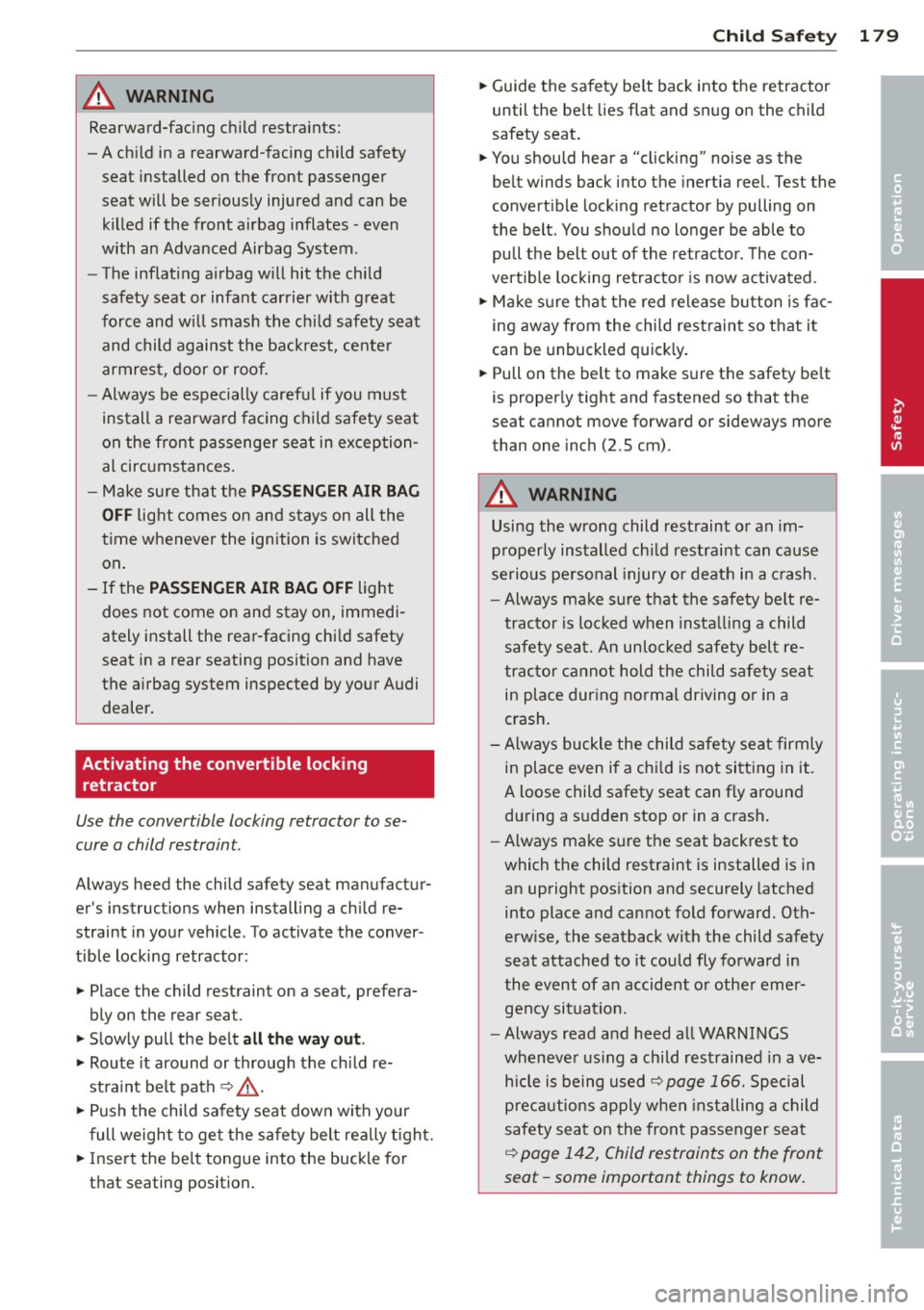

A WARNING ,~
Rearward-facing ch ild restraints:
-A chi ld in a rearward-facing child safety
seat installed on the front passenger
seat will be ser iously injured and can be
killed if the front airbag inflates -even
with an Advanced Airbag System .
- The inflating a irbag w ill hit the child
safety seat or infant carrier w ith great
force and w ill smash the ch ild safety seat
and child against the backrest, cente r
armrest, door or roo f.
- Always be especially caref ul if you must
install a rearwa rd fa cing child safety seat
on the front passenge r sea t in exception­
al circumstances .
- Make su re that the
PASSENGER AIR BAG
OFF
light comes on and s tays on all the
time whenever the ignition is switched
on .
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rea r-facing chi ld safety
seat in a rear seating position and have
the a irbag system inspected by you r Audi
dealer.
Activating the convertible locking retractor
Use the convertible locking retractor to se­
cure a child restraint.
Always heed the child safety seat manufactur­
er's instructions when install ing a chi ld re­
straint in your vehicle . To activate t he conver ­
tible locking retracto r:
.,. Place the child restraint on a seat, prefera­
bly on the rear sea t.
.,. Slow ly pull the be lt
all the way out .
.. Route it around or through the ch ild re­
st ra int be lt path ¢&, .
.,. Push the child safety seat dow n with your
f ull weight to ge t the safety belt really t ight.
.,. Insert the be lt tongue into the buckle for
that seating position .
Child Safet y 1 79
.,. Guide the sa fe ty be lt back into the retractor
until the be lt lies flat and sn ug on the child
safety seat .
.,. You shou ld hear a "clicking" noise as the
be lt winds back into the iner tia ree l. Test the
convert ible lock ing retractor by pulling on
the belt. You sho uld no lo nger be able to
pull the be lt out of the retracto r. T he con­
ver tible locking re trac to r i s now ac tiva ted .
.,. Mak e s ure t hat t he red release b utton is fac ­
ing away from the child rest rain t so t hat i t
can be unbuckled q uic kly .
.. Pull on the belt to make sure the safety be lt
is properly tight and fastened so that the
seat cannot move forward or sideways more
than one inch (2 .5 cm).
A WARNING
Using the wrong child restraint o r an im­
p roperly installed chi ld restraint can cause
serious pe rsonal injury or death in a crash.
- Always ma ke sure that the safe ty belt re-
tracto r is loc ked when insta lling a child
safety seat. An unlocked safety belt re­
tracto r can not hold the child safety seat
in place dur ing no rma l driving o r in a
cras h.
- Always buckle the child sa fe ty seat firmly
in place even i f a ch ild is not sitt ing in it.
A loose child safety seat can fly aroun d
during a sudden stop or in a crash .
- Always ma ke s ure the seat backrest to
which the child restraint is installed is in
an upright pos ition and securely latched
into place and can not fold forward . Oth­
erw ise, the seatback with the child safety
seat attached to it could fly forward in
the ev ent of an accident o r othe r emer­
gency situatio n.
- Always read a nd heed al l WAR NINGS
wheneve r us ing a child restrained in ave­
hicle is being used ¢
page 166. Special
pre cau tions apply whe n inst alling a child
safety sea t on the fron t passenger seat
¢ page 142, Child restraints on the front
seat -some important things to know.
-
•
•
•

180 Child Saf ety

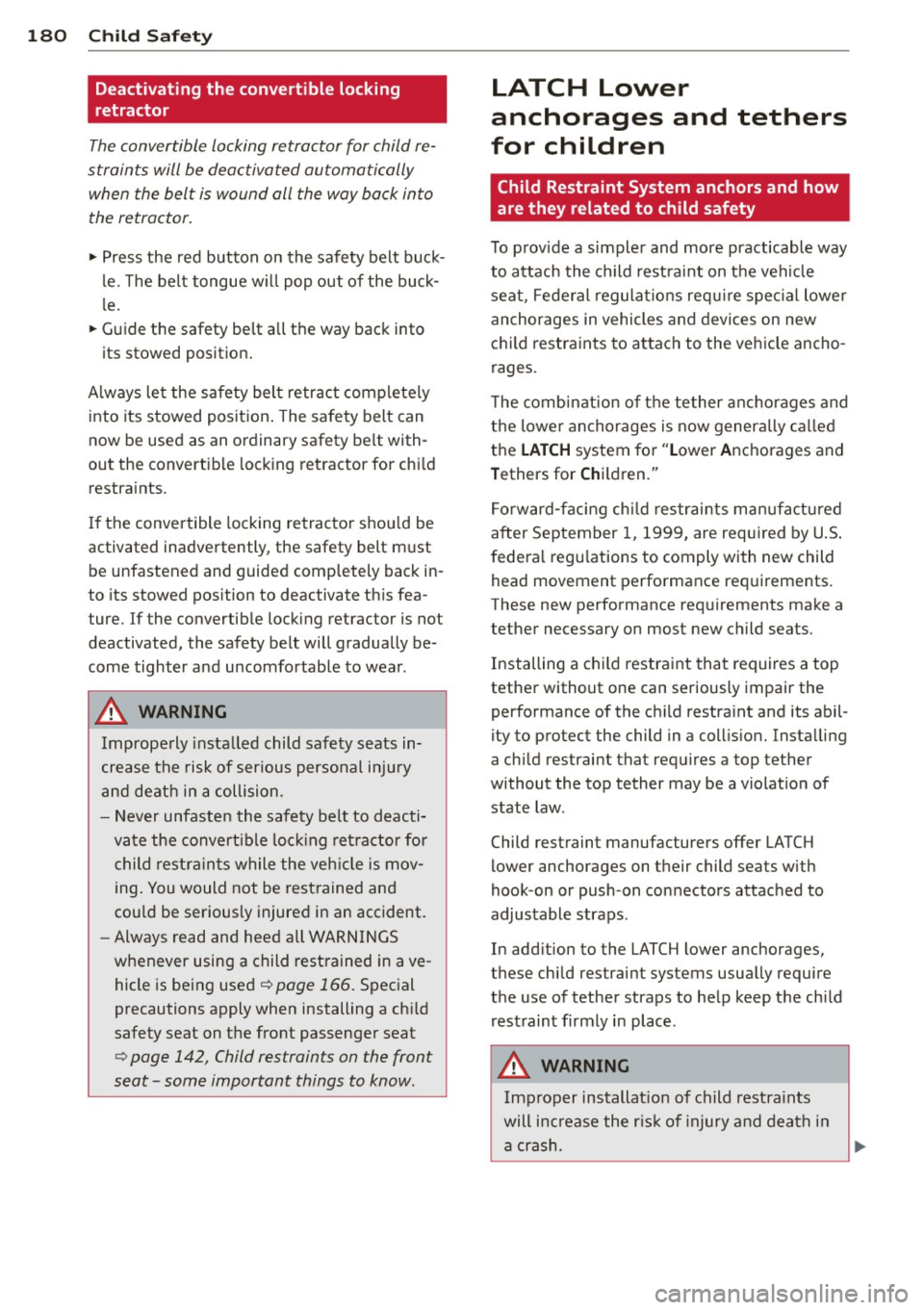

Deactivating the convertible locking
retractor
The convertible locking retractor for child re­
straints will be deactivated automatically when the belt is wound all the way back into the retractor .
.,. Press the red button on the safe ty belt buck­
le. The be lt tongue w ill pop out of the buck­
le .
.. Guide the safety be lt all the way back into
its stowed position .
A lways le t the safety bel t retract comp lete ly
into its stowed posit ion . The sa fety belt can
now be used as an ordinary safety belt with ­
out the convert ib le locking ret ractor for chi ld
restra ints.
If the convertible locking retracto r shou ld be
activated inadvertently, the safety belt m ust
be unfastened and guided comp letely back in­
to its stowed pos ition to deactivate th is fea­
ture. If the convertib le locki ng retractor is not
deactivated, the safety be lt will gradually be­
come tighter a nd u ncomfo rtable to wea r.
A WARNING
Imprope rly insta lled child saf ety seats in­
crease t he risk of ser ious personal inju ry
a n d death in a collision .
- Never unfaste n the safety belt to deacti­
vate the convert ible lo cking re tr actor fo r
ch ild rest rain ts while the veh icle is mov­
ing. You would not be res trained and
cou ld be seriously injured in an accident.
- Always re ad and heed all WARN INGS
whenever using a child rest rained in ave ­
hicle is being used¢
page 166. S pecial
precautions apply when installing a ch ild
safety seat on the front passenge r seat
¢ page 142, Child restraints on the front
seat -some important things to know.
LATCH Lower
anchorages and tethers
for children
Child Restraint System anchors and how
are they related to child safety
T o p rov ide a simple r and more practicable way
to a ttach the child restra int on t he vehi cle
sea t, Federal regulat ions re quire spe cial lowe r
anchorages in vehicles and devices on new
c h ild restraints to attach to the vehicle ancho­
rages.
T he comb inat io n of th e tether anc horages and
the lowe r anchorages is now genera lly c alled
t h e
LATCH system fo r "Lower Anchorages and
T ethers for Child ren."
F o rward-f ac ing ch ild res trai nts ma nufacture d
after September 1, 1999, are req uired by U .S .
f ede ra l regu lations to comply with new child
head movement performance req uirements.
These new performance req uirements make a
tether necessary on most new child seats.
Installing a child restraint that requires a top
tethe r without one can seriously impair the
performance of the c hild restra int and its abil­
ity to protect the child in a coll is ion. Insta lling
a chi ld restrai nt that requires a top tether
without the top tether may be a violat ion of
state law.
Child rest raint manufacturers offer LATCH
lower anchorages on their child seats w ith
hook-on or push-on connectors attached to
adjustable straps .
In add ition to the LATCH lower anchorages,
t h ese chi ld restraint systems usually require
t h e use of tethe r straps to he lp keep the ch ild
rest raint fi rmly in place.
A WARNING
-Imp roper installat ion of ch ild restra ints
will i ncrease the r is k of injury a nd dea th i n
a cr ash.
-

-Always follow the instructions provid ed
by the manufacturer of the ch i Ld re ­
straint you intend to install i n your veh i­
cle .
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's inst ruc ­
t ions requ ire the top tether strap to be
used .
- Improper use of ch ild restra int LATCH
lower anchorage points can lead to injury
in a collis ion. The LA TCH lower anchorage
points a re des igned to w ithstand only
those loads imposed by correct ly fit ted
child restraints.
- Never mou nt two chi ld restraint systems
on one LA TCH lower anchorage point .
- Never secure o r attach any luggage or
other i tem to the LATC H lower anchorag­
es .
{i) Tips
-In Canada , the terms "top tether " with
"lowe r universa l anchorages " (or "lowe r
universa l anchorage bars") are used to
desc ribe the system .
- In ot her countries, the term "ISO FIX " is
u sed to describe the lower anchorages .
Location

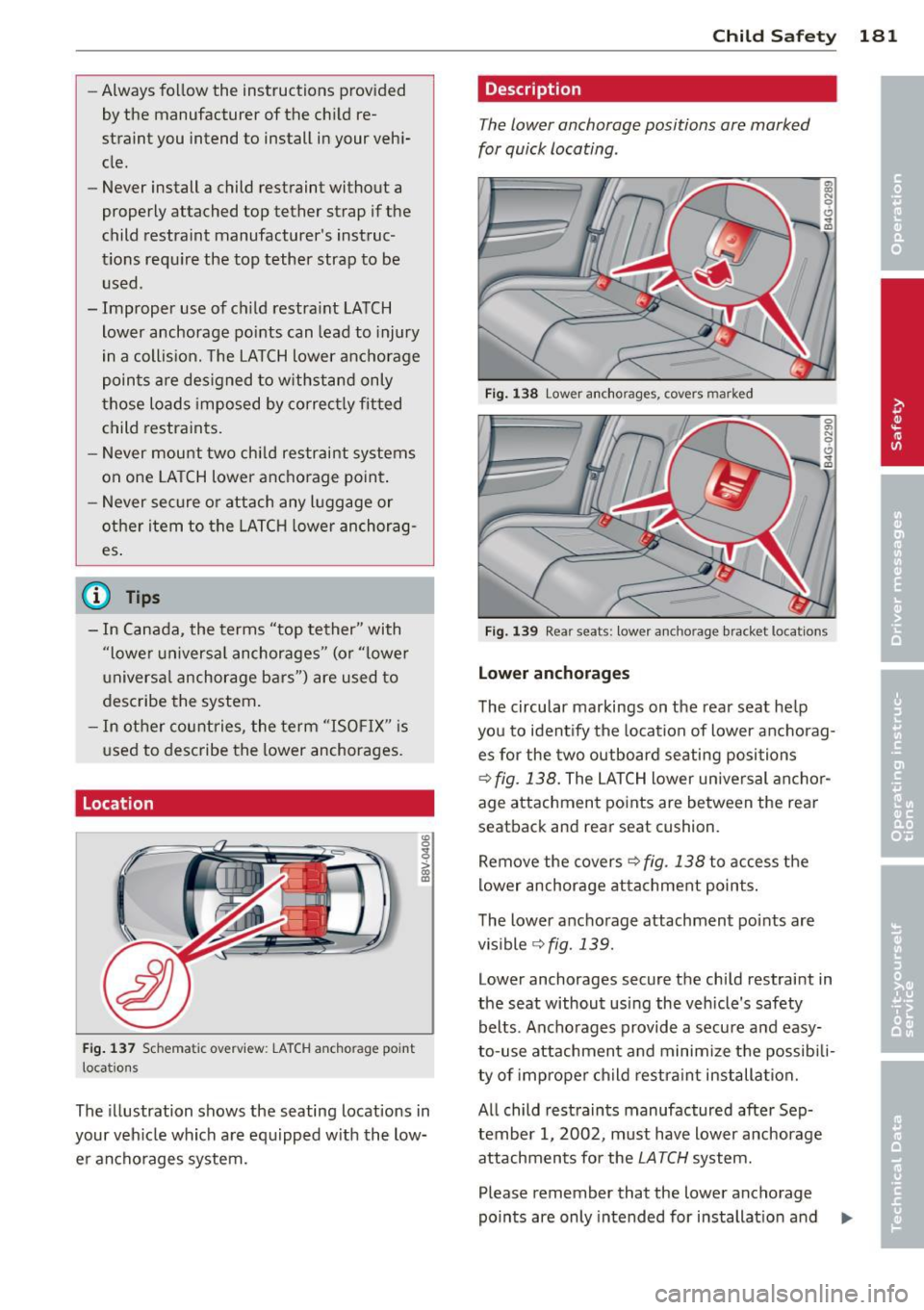

Fig . 137 Sch ematic overv iew : LA TCH an cho rage point
l o ca tion s
> 0)
"'
The illustration shows the seating locations in
your veh icle which are equ ipped w ith the low­
e r anchorages system.
Child S afety 181
Description
The lower anchorage positions are marked
for quick locating .
Fig . 1 38 Lower an chor ag es, cove rs mar ked
Fig. 139 Re ar s eats: low er an cho rage bra cket lo ca tion s
Low er anchorag es
The circular markings on the rear seat he lp
you to ident ify the location of lower ancho rag­
es for the two outboard seating posi tions
¢ fig . 138. The LATCH lower universal anchor­
age attachm ent points are b etween the rear
seatback and rear seat cush ion .
R emove the covers ¢
fig. 138 to access the
lower anchor age attachment points .
T he lower anc ho rage attachment po ints are
vis ible ~
fig. 139.
Lower anchorage s secure the chi ld rest rai nt in
the seat without using the vehicle's safety
belts . Anchorages provide a secure and easy­
to-use attachment and minimize the possibili­
ty of improper child restra int installa tion.
All child restraints manufactured after Sep­
tember 1, 2002 , m ust have lower anchorage
attachments for the
LATCH system.
Please remembe r that the lower anchorage
poin ts are only intended for installat ion and
Iii>

182 Child Saf ety
attachment of child restraints specifically cer­
tified for use with
LATCH low er anchorages.
Ch ild restra ints that are not equipped with the
lower anchorage attachments can still be in­
stalled in comp liance with the child restrain t
manufacturer's instruct ions on using vehicle
safety belts .
A WARNING
Improper use of LATCH lower anchorages
can ca u se serio us pe rsonal inju ry i n an ac­
c ident .
- Always ca refully fo llow the c hild re­
st raints manuf acturer's inst ru cti ons for
proper ins tallat ion of the child rest rain t
and proper use of the lowe r anchorages
or safety be lts in your vehicle .
- Never secure or attach any l uggage or
other items to the
LATCH lower ancho ­
rages.
- Always read and heed the impor tant in ­
format ion about child restraints in this
chapter and WARNINGS
<=> page 166 ,
Child Safety.
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always
follow the child restrain t manufacturer's in­
structions .

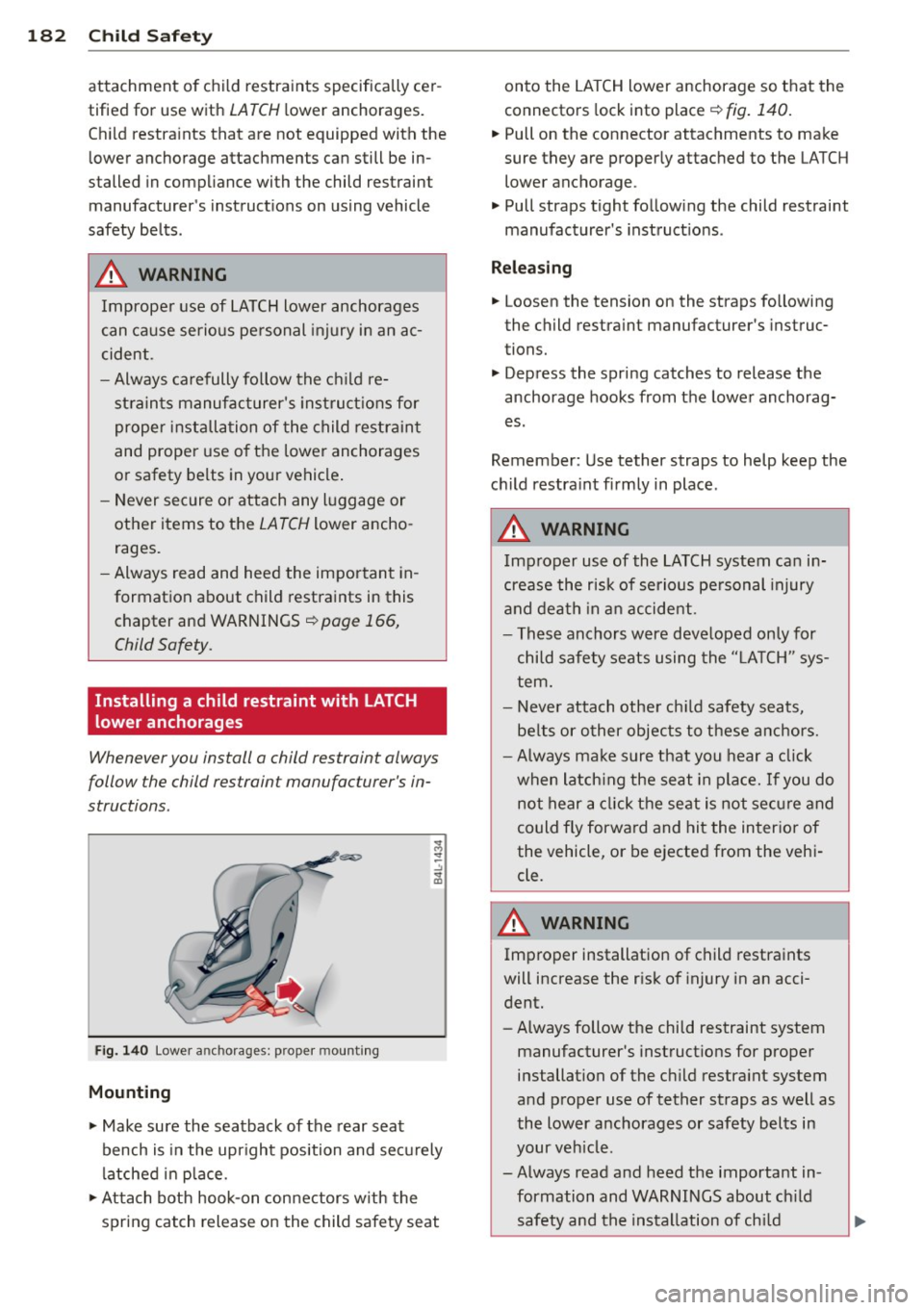

Fig. 14 0 Lower a nch orage s: p roper mou ntin g
Mounting
.. Make sure the seatback of the rear seat
bench is in the upr ight position and se curely
l atched in place.
.. At tach both hook -on con nectors w ith the
spring catch release on the child safety seat onto the LATCH lower anchorage so that the
connectors
lock into place¢
fig. 140 .
.. Pull on the connector attachments to ma ke
sure they are properly attached to the LATCH lower anchorage .
.. Pull straps tight fo llow ing the child restraint
manufacturer's instruct ions .
Releasing
.. Loosen the tension on the straps following
the child restra int manufacturer's instruc­
tions.
.. Depress the spri ng catches to release the
anchorage hooks from the lowe r anchorag­
es .
Remember: Use tether straps to help keep the
c h ild restra int firm ly in place .
A WARNING
--Improper use of the LATCH system ca n in -
crease the risk of serious pe rsonal injury
a nd dea th in a n accident.
- T hese anchors were deve loped only for
chi ld safety seats using the "LATCH" sys­
tem.
- Neve r attach othe r chil d safety seats,
be lts or o ther object s to these ancho rs.
- Always make sur e that you hear a c lick
when latch ing the seat in p la ce. If you do
no t hear a click t he se at i s not se cure and
could fly forwa rd and hit the in ter ior of
the vehicle, or be ejected from the veh i­
cle.
A WARNING ~
Improper installat ion of child restra ints
will increase the risk of in jury in an acci­
dent.
- Always follow the chi ld restraint system
manufacturer's instruct ions for proper
installation of the c hild restra int system
a nd p roper use of tether straps as well as
the lower a nchorages or safety belts in
your veh icle.
- Always read a nd heed t he importa nt in­
formation and WARNINGS about ch ild
safety and the insta llation of ch ild
-

restraint systems c> page 166, Child
Safety.
Tether anchors and tether straps
Fig. 14 1 Tether anchors: recess flaps behind th e rear
seatbacks
The tether anchors for the rear seating posi­
tions are located in recesses in the rear win­
dow shelf
c> fig. 141
A tether is a straight or V-shaped strap that
attaches the top part of a child restraint to
special anchorage points in the vehicle.
The purpose of the tether is to reduce the for­
ward movement of the child restraint in a
crash, in order to help reduce the risk of head
injury that could be caused by striking the ve­
h icle inter ior .
Forward facing child restraints manufactured
after September 1, 1999, are required by U.S.
federal regulations to comply with new ch ild
head movement performance requirements .
These new performance requirements make a
tether necessary on most new chi ld safety
seats.
A WARNING
Improper insta llation of chi ld res traints
w ill increase the risk of inju ry and death in
a c rash.
- Always follow the instructions p rov ided
by the manufacturer of the chi ld re ­
straint you intend to install in your Audi.
- Improper use o f ch ild restraint anchors
(incl uding tether anchors) can lead to in­
jury in a co llision. The anchors are de-
-
Child S afety 183
signed to withstand only those loads im­
posed by correctly fitted child restraints.
- Never mount two child restraint systems
on one LATCH lower anchor point.
- Never attach two child restraint systems
to one tether strap or tether anchorage.
- Never attach a tether strap to a tie -down
hook i n the Luggage compartment .
- Never use child rest raint tether ancho­
rages to secure safety belts or other
kinds of occupant restraints .
- Never secure or attach any luggage or
other items to the LATCH lower ancho­
rages or to the tether anchors.
- If you must insta ll a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll the rear-fac ing ch ild
safety seat i n a rear seating position and
have the airbag syste m in spected by your
Audi dea le r.
Installing the upper tether strap on the
anchorage
Fi g. 14 2 Tether strap: proper rout ing a nd mount ing
Installing the tether strap
.,.. Release or deploy the tether strap on the
child res traint accord ing to the child re­
straint manufacture r's instructions.
.,.. Guide the upper tether s trap
under the rear
head restr aint
c> fig. 142 (ra ise the head re­
s tr aint if necessa ry).
... Ti lt the recess flap up to expose the anchor
bracket .

184 Child Saf ety
• Attach the te ther strap anchorage hook into
the ope ning of the tether anchorage .
• Pull on the tether strap hook so that the
spring catch of the hook engages.
• Tighten the tether strap firmly following the
child restra int manufacturer's instruct ions .
Rele asing the tethe r strap
• Loosen the tension following the child re­
straint manufacturer's instructions.
• Depress the spring catch on the hook and re­
lease it from the anchorage.
({D Note
If you leave the child restraint with the
tether strap firmly installed for several
days, this cou ld leave a mark on the up­
holstery on the seat c ushion and backrest
in the area whe re the te ther strap was in­
s talled. The upholstery wo uld a lso be per­
manently stretched around the tether
s t rap. This applies especially to leather
seats .
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint sys­
tems come with a tether . P lease read and
h eed the child rest raint system manufactur­
e r's instructions carefully to determ ine how to
p rope rly insta ll the tethe r.
_& WARNING
A child in a re ar ward-f acing child sa fety
seat insta lled on the front passenger seat
w ill be seriously injured and can be ki lled if
the front ai rbag inflates -even wit h an A d­
vanced Airbag System.
- The inflating a irbag wi ll hit the child
sa fety seat or infant carrier wit h great
force and w ill smash the ch ild safety seat
and child against the backrest, center
armrest, or door.
- If you must install a rearward facing
child safety seat on the front passenger
sea t because of exceptional circ umstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-fac ing ch ild
safety seat in a rear seating position and have the airbag system inspected by your
Aud i deale r.
Additional Information
Sources of information about child
restraints and their use
There are a number of sources of add itiona l
information about child restra int selection, in­
stallation and use:
NHTSA advises that the best chi ld safety seat
is the one that fits your ch ild and f its in your
vehicle, and that yo u will use correct ly and
consistently .
Try before yo u buy!
U.S National Highwa y Traffi c Safety Admin ­
istration
Tel.: 1 -888-327-4236 (TIY: 1-800-424-9153)
www. n htsa .gov
National SAFE KIDS Campa ign
T el.: (20 2) 66 2-0600
www.safekids.o rg
Safet y BeltSafe U.S .A
T el.: (80 0) 745 -SAFE (English)
T el.: (800) 74 7-SANO (Span is h )
www.carseat.org
Tran sport Canada Information Centre
Tel.: 1-800-333-0371 or ca ll
1 -6 13 -99 8-86 16 if yo u are in the Ottawa a rea
http ://www.tc.gc.ca/eng/roadsafety/
men u.htm
Audi Customer Relation s
Tel.: (800) 82 2-2834

Smart Technology Notice about data
recorded by vehicle
control modules
Your veh icle is not equipped with an Event Da­
ta Recorde r (EO R), installed by some manu­
facture rs fo r the express purpose o f capturing
data for retr ieval after an accident or cras h
event . EDR's a re sometimes called "crash re ­
corders".
Some state laws res trict the retr ieval or down ­
l oadi ng of data stored by E DR's that were in ­
stalled in a veh icle for the exp ress purpose of
retrieving data after an accide nt or crash
event w ithout the owner's consent.
A lthough yo ur vehicle is no t equ ipped w it h an
EDR, it is equipped with a number of elect ron­
ic control modules fo r various vehicle systems
such as, for examp le, eng ine f unction, em is­
sion control, as well as for the airbags and
safety belt s.
These electronic contro l modules also record
veh icle -re lated data dur ing no rma l veh icle op­
erat ion for d iagnostic and repa ir purposes .
T he recording capacity of the electronic con­
trol modules is limited to data (no sound is re ­
corded) and only a small amount of data is ac­
tually recorded ove r a ve ry limited pe riod of
time and stored when a sys tem faul t or o ther
condition is se nse d by a cont rol u nit. Some o f
the data then stored may re la te to vehicle
speed, dir ect io n, bra king as we ll as restra int
system use and perfo rmance in the event of a
crash or other condit ion. Stored data can only
be read and downloaded w ith special equip­
ment.
Electronic stabilization
control (ESC)
Description
The ESC reinforces driver safety. It reduces
the r isk of slipp ing and improves driving sta ­
b ili ty . E SC detects cr itical s it u ations such as
the veh icle ove rsteer ing and understee ring or
Smart Technolog y 185
th e wheels a re sp inning . The vehicle is stabi ­
li zed by applying the brakes or red ucing en­
gine torq ue. Once the ESC is act ive ly reg ulat­
ing, the
G) i ndicato r light b links in the instru­
ment cluster.
The anti-lock braking system (ABS), brake as­ s ist system, ant i-slip regu lation (ASR), e lec­
tron ic different ia l loc k (EDU, electron ic differ ­
ential lock* (front wheel drive) and se lective
whee l to rque control* (a ll whee l drive) are in­
teg rated in the ESC. The ESC suppo rts the sta­
bilization of the vehicle th rough a change in
t h e s teer ing torq ue.
Anti-lock braking system (ABS)
ABS prevents the whee ls from locking when
braking . The vehicle ca n still be steered even
dur ing ha rd braking. App ly steady pressure to
the b rake peda l. Do not pump the p edal. A
puls ing in the bra ke peda l indicates t hat the
system is acting to st abil ize the ve hicle.
Brake assist system
The brake ass ist system can decrease braking
dis tance. It increases bra king power when the
drive r presses the bra ke peda l quickly in emer­
gency s ituations. Yo u m ust pres s and hol d the
brake pedal unt il the dangerous s it u at ion is
ove r. In vehicles with adap tive c ruise control *,
the b rake assist system is more sensitive if the
distance detected to the vehicle ahead is too
small.
Anti-slip regulation (ASR )
ASR reduces eng ine power when the drive
whee ls beg in spi nning and adapts the fo rce to
the road conditions . This makes it easier to
start, accelerate and dr ive up inclines.
Electronic differential lock (EDL)
The EDL bra kes whee ls tha t a re sp inning and
trans fers the dr ive power to the othe r drive
whee l or w heels if the vehicle is equ ip ped with
a ll w heel d rive*) . This function is availab le up
to approximately 62 mph (100 km/h).
I n extreme cases, EDL au toma tically sw itches
off to keep t he b rake on the bra ked wheel
from overheat ing. The ve hicle is still working .,..
•
•
•

186 Smart T echnol ogy
correctly. ED L will switch on again automati ­
cally when conditions have returned to nor­
mal.
Electroni c inte raxle diff ere ntial lo ck */
s e le ct ive w heel t orqu e cont rol *
The electronic interaxle differential lock (front
wheel drive) or the selective wheel torque
contro l (all wheel drive) operates when driving
through curves. The front whee l on the inside
of the curve or both wheels o n the inside of
the curve are braked selectively as needed .
This minimizes s liding in the front wheels and
a llows for more precise driving through
curves. The app licab le system may not acti­
vate when driving in wet or snowy conditions .
Post-collision bra ke ass ist
"Post-collision brake assist" can ass ist the
driver during a collision by reducing the dan­
ge r of slipp ing and further co llision and by au­
tomatic braking.
"Post-collision brake assist" functions during
front, side and rear collis ions when the a irbag
control module a detects a trigger level and
the co llision takes place at a dr iv ing speed
faster than 6 mph (10 km/h). The braking of
the vehicle happen automatically via the ESC
as long as the ESC, the hydraulic brake sys­
tem, and the vehicle electrical system are not
damaged from the coll ision.
The fo llowing activ ities override the automat­
ic braking during a collision:
- If the dr iver presses the accelerator peda l.
T here is no a utomatic braking.
- When the force on the press brake pedal is
stronger than the b raking force initiated by
the system . The vehicle is manually braked .
- When the ESC is damaged and the "post­
collision brake assist" is not availab le.
A WARNING
- The ESC, ABS, ASR, EDL, electron ic inter­
axle d ifferential lock or select ive wheel
torque control cannot overcome the laws
of physics. This is espec ially important
on sl ippery o r wet roads.
If the systems
begin acting to stabili ze your veh icle, you
should immediately alter your speed to
match the road and traffic conditions . Do
not let the increased safety prov ided
tempt you into tak ing risks. This could
increase your risk of a collision.
- Please note the risk of a collision increas­
es when driving fast, especially through
curves and on slippery or wet roads, and
when dr iv ing too close to objects ahead .
ESC, ABS, the brake assist system, EDL,
electronic interaxle differentia l lock or
selective whee l to rque control cannot
p revent coll is ions.
- Press the acce lerator pedal carefully
when acce le rat ing o n even, slippe ry sur­
f a ces such as ice and snow. The drive
wheels can spin even when these control
systems are installed and this can affect
driving stability and increase the risk of a
col lision.
(D Tips
- ABS and ASR only function correc tly
when all four wheels are eq uipped w ith
identical tires. Different t ire sizes can
lead to a reduction in engine power.
- Yo u may hear noises when the systems
described are working .
- If the
DJ or m] (USA models) !II] (Cana ­
da mode ls) indicator light appears, there
may be a malfunction
¢ page 22.

Smart Technology 187
Switching ESC on and off
ESC turns on automatically when you start the engine .
Fig. 143 Upper center console: ESC button
bilization function of the ESC is limited or
switched off. The amount of stabilization con­
tro l will differ depending on the level.
In the following unusual situations it may
make sense to switch the ESC sport mode on
to allow the wheels to spin:
- Rocking the vehicle to free it when it is stuck
- Dr iving in deep snow or on loose gro und
The ESC is designed to function in levels. De­
pending on the leve l that is selected, the sta-
Sport mode on ESC
/ASR off
Sport mode off or
ESC /ASRon
Behavior
The actions taken by the
The actions taken by the Th
e fu ll stabilization fu nc-
ESC system to stabilize the ESC system to stab ilize the tion of the ESC and ASR is
vehicle are limited, the an- vehicle are very limited, available again.
ti-slip reg ulation (ASR) is the anti-slip regulation
sw itched off
q .&.. (ASR) is switched off q .&. .
Operation Press the If) OFF I button P ress and hold the If) OFFI Press the I.$ OFF I button
briefly. button longer than 3 sec- again.
onds.
Indicator II turns on. II and II * turn on . II turns off or II and
lights II* turn off.
Driver mes-
Stabilization control Stabilization control
Stabilization control
sages (ESC):
sport. Warning! (ESC): off. Warning! Re- (ESC): on
Restricted stability stricted stability
A WARNING
You should only sw itch the ESC off if your
driving ability and the traffic s ituation al­
low. This could increase the risk of slip­
ping.
- The stabilizing function is limited in ESC
sport mode. The driving wheels could
spin and the vehicle could swerve, espe­
cially on slick o r slipp ery road surfaces .
- T here is no vehicle stabilizat ion when
ESC/ASR are switched off.
@ Tips
-If Audi magnet ic ride is malfunctioning,
the ESC sport mode cannot be switched on or off. If ESC sport mode is activated
or ESC is switched off, it w
ill be switched
back on automatically.
- ESC sport mode cannot be switched on
or the ESC/ASR cannot be switched off
when the cru ise contro l system* or the
adaptive cru ise contro l* are actively reg­
ulat ing.
Brakes
New brake pads
New brake pads do not achieve their full brak­
ing effect during the first 400 km. They must
be "broken in" first. However, you can com­
pensate fo r the slightly reduced braking force ""

188 Smart Technology
by pressing firmly on the brake pedal. Avoid
heavy braking during the break-in period.
Wear Brake pad
wear is largely dependent on the
way the vehicle is driven and on operating
conditions. This is especially true if you are
driving frequently in the city and on curves or
with a sporty driving style.
Operating noise
Noises may occur when braking depending on
the speed, braking force and outside condi­
tions such as temperature and humidity.
Effect of water and road salt
In certain situations, for example after driving
through water, in heavy rain, after overnight
condensation or after washing your car, the
braking effect can be reduced by moisture or
ice on the brake rotors and brake pads. The
brakes must be "dried" first with a few careful
brake applications.
At higher speeds and with the windshield wip­
ers turned on, the brake pads press against
the brake rotors for a short amount of time.
This action which is not felt by the driver hap­
pens at regular intervals and facilitates a bet­
ter reaction time for the brakes in wet weath­
er.
The braking effect can also be reduced if you
are driving on salted roads and you do not ap­ ply the brakes for long periods of time. The
layer of salt on the brake rotors and pads
must be worn off first when the brakes are ap­
plied.
Corrosion
Leaving the vehicle parked for long periods of
time, low mileage and avoiding heavy braking
can contribute to corrosion on the brake ro ­
tors and dirty brake pads.
If you usually avoid heavy braking or if there is
corrosion present, occasional heavy braking at
high speeds is recommended to clean the
brake rotors and pads
Q &. .
Brake system malfunction
if you notice that the brake pedal travel has
suddenly gotten larger, then a brake circuit
may have failed. Drive to your authorized Audi
dealer or qualified repair facility immediately
to have the problem corrected. On the way
there, drive with reduced speed and keep in
mind that a long braking distance and in­
creased pressure on the brake pedal will be
necessary.
Low brake fluid level
When the brake fluid level is low, malfunc­
tions in the brake system may occur. The brake fluid level is electronically monitored .
Brake booster
The brake booster amplifies the pressure you
apply to the brake pedal. It only works when
the engine is running.
A WARNING
-- You should perform braking maneuvers
for the purpose of cleaning the brake
system only if road conditions permit.
Other road users must not be put at risk -
you may cause an accident!
- Before descending a steep grade, reduce
speed and shift transmission into a lower
gear or lower driving range. Do not ride
the brakes or hold the pedal down too
long or too often. This could cause the
brakes to get hot and diminish braking
efficiency.
- Do not "ride the brakes" by resting your foot on the pedal when you do not intend
to brake. This may cause the brakes to
overheat, premature wear and increased
stopping distance.
- Under certain climatic and operating conditions such as passing through wa­
ter, driving in heavy rain or after washing
the vehicle, the effectiveness of the brakes can be reduced. In winter, ice can
accumulate on the brake pads, linings,
discs and drums. Carefully apply brakes
