Switching on and off
App lies to: ve hicles with Audi active lane assist
Fig . 98 Turn signal lever: button for act ive lane assist
Fig. 99 Windshield: camera wind ow for active lane assist
... Press the c:> fig. 98 button to switch the system
on and off. The . or
Pl1 indicator light in the
instrument cluster turns on or off.
Indicator lights
• Ready: the indicator light turns on when the
system is ready for use. The system can now be
operated .
Pl1 Not ready: the indicator light turns on if the
system is switched on but is inoperable. This may
be due to the following reasons:
- There is no lane boundary line.
- Th e relevant lane marker lines are not detected
(for example, markings in a construction zone
or because they are obstructed by snow, dirt,
water or lighting).
- The vehicle speed is below the activation speed
of approximately 40 mph (65 km/h) (the speed
may vary depending on your country).
- The lane is narrower than approximately 8
ft
(2.5 m) or wider than approximately 18 ft
(5.5 m).
- The curve is too narrow.
Assist
-The driver's hands are not on the steering
wheel.
(D Tips
- Make sure the camera's field of view
¢ fig. 99 is not obstructed by stickers or
anything els e. For information on cleaning,
refer to
c:> page 224.
-Market-specific: in certain countries: if the
system is sw itched on, it will remain opera­
ble each time the ignition is switched on.
Lane assist display in the instrument
cluster
Applies to : vehicles wit h Audi act ive la ne ass ist
Fig. 100 Instrument cluster: monoc hrome disp lay
Fig. 101 Instrument cl uster : mult icolor displ ay
The lane assist disp lay can be called up using the
buttons in the
multifunction steering wheel
c:>poge 24.
Monochrome display
Refer to c:> fig. 100
101

Assist
CD Solid lines: active lane assist is sw itched
on and ready to provide warnings on the
side that is ind icated.
CD Blinking lines (left or right): using vibra-
tions in the steer ing wheel, active lane as -
sist is warning you that you are leaving
the lane .
@ Unfilled line(s): active lane assist is
sw itched on but is not ready to prov ide
warn ings.
No lines: active lane assist is sw itched off.
Multi-Color Display
Refer to c;, fig. 101
CD Solid white lines: active lane assist is
switched on and ready to provide warn- ings on the side that is indicated.
CD Red lines (left or right): using vib rations in
the steering wheel, active lane assist is
warning you that you are leaving the lane.
@ Solid gray lines: active lane assist is
sw itched on but is not ready to prov ide
war nings.
No lines: active lane assist is sw itched off.
Messages in the instrument cluster display
If the active lane assist has a malfunction, the
Pl1 indicator light in the instrument cluster dis ­
p lay turns off and one of the following messages
appears:
Audi active lane assist : currently not available.
No camera view
This message appears if the camera is unable to
detect the lines. This could happen if :
- The came ra field of view ¢
page 101, fig. 99 is
dirty or covered in ice. C lea n this area on the
winds hield.
- T he camera field of view is fogged over. Wait
until the fog has cleared before switching the
active lane assist on again.
- T he system has been unable to detect the lanes
for an extended period of time due to road con-
l) Thi s fun ctio n is not avai lab le in all count ries.
102
ditions. Switch the active lane assist back on
when the lines are more visible.
Audi active lane assist: currently unavailable
There is a temporary active lane assist malfunc­
tion. Try switc hing the active lane ass ist on again
l ate r.
Audi active lane assist: system fault!
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the malfunction corrected .
Pl1 Audi active lane assist: Please take over
steering
This message appears if you are not steering by
you rself. If this is the case, active lane assist does
not switch off, but it is "not ready" to provide a
warning. The system can help you keep the vehi­
cle in the lane. However, you are responsible for
driv ing the veh icle and must steer it yourself.
Adjusting the steering time and vibration
warning
Applies to: vehicles with Audi active lane assist
You can adjust individual active lane assist set­
tings in the MMI.
.,. Select: the I MENU I button> Car> Systems*
control button > Driver assistance > Audi ac­
tive lane assist .
Steering time
1 )
Early: in this setting, the corrective steering hap­
pens continuously to help keep the veh icle in the
center of the lane.
Late : in this setting, the system provides correc­
tive steering just before a vehicle wheel touches a
detected lane marker line.
Vibration warning
You can switch the additional vibrating warning
in the s teering whee l on or off . ..,.

<( co ..... N
" N ..... 0 r--. > 00
_& WARNING
With the vibration warning switched off, no
visible warning will appear in the instrument
cluster display when crossing a lane marker.
(D Tips
Market-spec ific: your settings are stored au­
tomatically and assigned to the remote con­
trol key in use .
Audi side assist
Description
Applies to: veh icles with Audi side assist
Fig. 102 Sensor detection range
Fig. 103 Disp lay on the exte rior mirro r
fR 0
0
> CX) Side assist he lps you monitor your blind spot and
traffic behind your vehicle. Wi thin the limits of
the system, it warns you about vehicles that are
coming closer or that are traveling with you with­ in sensor range@
¢fig. 102: if a lane change is
classified as critical, the display @ in the exter ior
mirror
¢ fig. 103 turns on .
The display in the left exterior mirror provides as­
sistance when making a lane change to the left,
while the display in the right exterior mirror pro-
Assist
vides assistance when making a lane change to
t h e right.
Information stage
As long as you do not act ivate the turn signal,
s ide ass ist
informs you about vehicles that are
detected and classified as critical. The display in
the mirror turns on, but is dim.
T he display remains dim in the information stage
so that your view toward the front is not distur­
bed.
Warning stage
If you activate the turn signal, side assist warns
you about vehicles that are detected and classi­
fied as critical. The display in the respective mir­
ror blinks brightly. If this happens, check traffic
by glancing in the rearv iew mirror and over your
shoulder¢ .&.
in General information on
page 104.
@ Tips
You can adjust the brightness on of t he dis­
play on the rearview mirror¢
page 105.
103

Assist
General information
Applies to: ve hicles w ith Audi side assis t
®
@
©
Fig. 104 Driving s itu atio ns
I! AU DI
Fig. 105 Rear of the vehicle: pos it ion of the senso rs (exa m·
pie)
Side assist functions at speeds above approxi·
mately 19 mph (30 km/h).
@ Vehicles that are approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still some·
what far away . The faster a veh icle approaches,
the sooner the display in the exterior mirror wi ll
turn on .
@ Vehicles traveling with you
Vehicles traveling with you are indicated in the
exterior mirror if they are classified as critical for
a lane change. All vehicles detected by side assist
104
are indicated by the time they enter your "blind
spot", at the latest .
© Vehicles left behind
If you slow ly pass a vehicle that side assist has
de tected (the diffe rence in speed between the
vehicle and your vehicle is less than 9 mph or 15
km/h), the display in the exterior mirror turns on
as soon as the vehicle enters your blind spot.
The display will not turn on if you quickly pass a
vehicle that side ass ist has detected (the differ­
ence in speed between the vehicle and your vehi­
cle is greater than 9 mph or 15 km/h).
Functional limitations
The radar sensors are designed to detect the left
and right adjacent lanes when the road lanes are
the normal width . In some situations, the display
in the exterior mirror may turn on even though
there is no vehicle located in the area that is criti·
cal for a lane c hange. For example:
- If the lanes are narrow or if your are driving on
the edge of your lane . If this is the case, the
system may have detected the vehicle in anoth·
er lane that is
not adjacent to your current lane.
- If you are driving through a curve . Side assist
may react to a vehicle that is one lane over
from the adjacent lane.
- If side assist reacts to other objects (such as
high or disp laced guard rai ls) .
- In poor weather conditions. The side assist
functions are limited.
Do not cover the radar sensors ¢
fig. 105 with
stickers, deposits, bicycle wheels or other ob­
jects, because this will affect the function. Do not
u se side assist when towing a trailer . For infor·
mation on cleaning, refer to ¢
page 224.
A WARNING
-Always pay attention to traffic and to the
area around your veh icle . S ide assist cannot
replace a driver's attention. The driver alone
is always responsible for lane changes and
similar driving maneuvers .
ll>-

<( co .... N r--­N .... 0 ,.__
> co
-In some situations, the system may not
function or its function may be limited. For
example:
- If vehicles are approach ing or being left
behind very quickly. The display may not
turn on in time.
- In poor weather conditions such as heavy
rain, snow or heavy mist.
- On very wide lanes, in tight curves, or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
- Audi side assist cannot detect all vehicles
under all conditions, which can increase the
risk of accidents.
- Please note that side assist only displays ap­
proaching vehicles or vehicles in your blind
spot if your vehicle is traveling at least
19 mph (30 km/h).
- In certain situations, the system may not
work or its function may be limited. For ex­ ample:
- The display may not turn on at the right
time if veh icles are approaching or passing
very quickly.
- In poor weather conditions, such as heavy
rain, snow or fog.
- In very wide lanes, in tight curves or when
there are slopes in the roadway, vehicles
in the neighboring lanes may not be de­
tected because they are outside of the
sensor range.
(D Note
The sensors can be displaced by impacts or damage to the bumper, wheel housing and
underbody. This can affect the system. Have
an authorized Audi dealer or authorized Audi
Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted, the
display in the exterior mirror may be misin­
terpreted.
Assist
- For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, refer to
¢ page 256.
Switching on and off
Applies to : vehicles with Aud i s ide ass ist
The system and be switched on and off in the
MMI*.
.. Select: the I MENU I button> Car> Systems*
control button > Driver assistance> Audi side
assist .
With Off, the system is switched off.
An activated system will signal every time the ig­
nition is switched on by turning the displays in
the exterior mirrors on briefly .
Adjusting the display brightness
Applies to: vehicles with Aud i s ide assist
The display brightness can be adjusted in the
MM!*.
.. Select: the I MENU I button >C ar> Systems*
control button > Driver assistance > Aud i side
assist .
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or max imum level by
the automatic adjustment . In such cases, you
may not ice no change when adjust ing the bright­
ness , or the change may only be noticeable once
the surround ings change .
Adjust the br ightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior m irror will briefly show the
brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment.
(D Tips
- Side assist is not active while you are mak­
ing the adjustment.
105

Ass is t
- Your settings are automatically stored and
assigned to the remote control key being
used .
Driver messages
Applies to: ve hicles w ith Audi side assist
If the side assist switches off automatically, a
message appears in the instrument cluster dis­
play.
(ij Audi side a ssi st : cur rentl y un ava ilable No
s en so r v isi on
The radar sensors' vision is affected. Do not cover
the area in front of the sensors with bike wheels,
stickers, dirt or other objects . Clean the area in
front of the sensors, if necessary~
page 104,
fig. 105.
@j Audi side assist : cur rently un available
Side assist cannot be switched on temporar ily be­
cause there is a malfunction (for example, the
battery charge level may be too low).
@j Audi side a ssi st : S ystem fau lt!
The system cannot guarantee that it will detect
veh icles correctly and it is switched off. The sen­
sors have been d isplaced or are faulty . Have the
system checked by an authorized Audi dealer or
author ized Audi Service Facility soon .
Audi drive select (drive
settings)
Introduction
App lies to: vehicles with Aud i drive select
Audi drive select makes it possible to experience
d ifferent types of vehicle settings in o ne veh icle .
The drive r can select from three
Comfort , Auto
and D ynam ic modes us ing the te'i:.1 button in the
center console or the MMI to switch between a
sporty and a comfortable driving mode, for ex ­
ample. In the
Ind ividu al* mode, the settings can
be adjusted to your personal preferences. This
makes it poss ible to combine settings such as a
sporty eng ine setting w ith smooth steering.
106
A WARNING ,_
Using Aud i drive select incorrectly can lead to
coll is ions, other accidents and serious inju­
ries.
Description
App lies to: vehicles with Aud i drive se lect
The vehicle setup in each mode depends on the
vehicle's features. However, the engine a nd
steering are a lways affected.
Engine and automatic tr ansmiss ion
Depending on the mode, the engine and auto­
matic transmission* respond more qu ickly or in a
more ba lanced manner to accelerator pedal
movements.
Adapt ive damper s (Audi magneti c ride )*
The adaptive dampers use sensors to record in­
format ion regarding steering movements, brak­
i ng and acceleration operations by the driver,
road surface, driving speed, and load . W ith Aud i
drive select you can adjust the adaptive dampers
spo rty (dynamic), comfortable (comfort) o r bal­
anced (auto).
Ste ering
The steering adapts in terms of steering ass is­
tance. There are d ifferent modes
~page 107.
Ind irect steering that moves easi ly as in comfort
mode is espec ially suited to long d rives on a h igh­
way. The dynamic mode provides sporty, direct
steering.
Fo r vehicles with p rogress ive steering* the steer­
i ng perfo rmance is more agile.
Corn ering light*
The cornering light adjusts when driv ing on
curves at speeds between 6 mph (10 km/h) and 68 mp h (1 10 km/h) . The pivoting act ion and the
li ght ing are also adapted to the mode.
Adapt ive cruise cont rol*
The behavior whe n accelerating can be adjusted
from comfortable to sporty, depending on the
Audi drive select mode . Adaptive cruise control ..,.

<( co ..... N
" N ..... 0 r--. > 00
also responds to the driving behavior of the vehi­
cl e ahead in a more cons ervative or sporty man­
ner.
@ Tips
I n some models, the maximum vehicle speed
can only be reached in the auto and dynamic
modes .

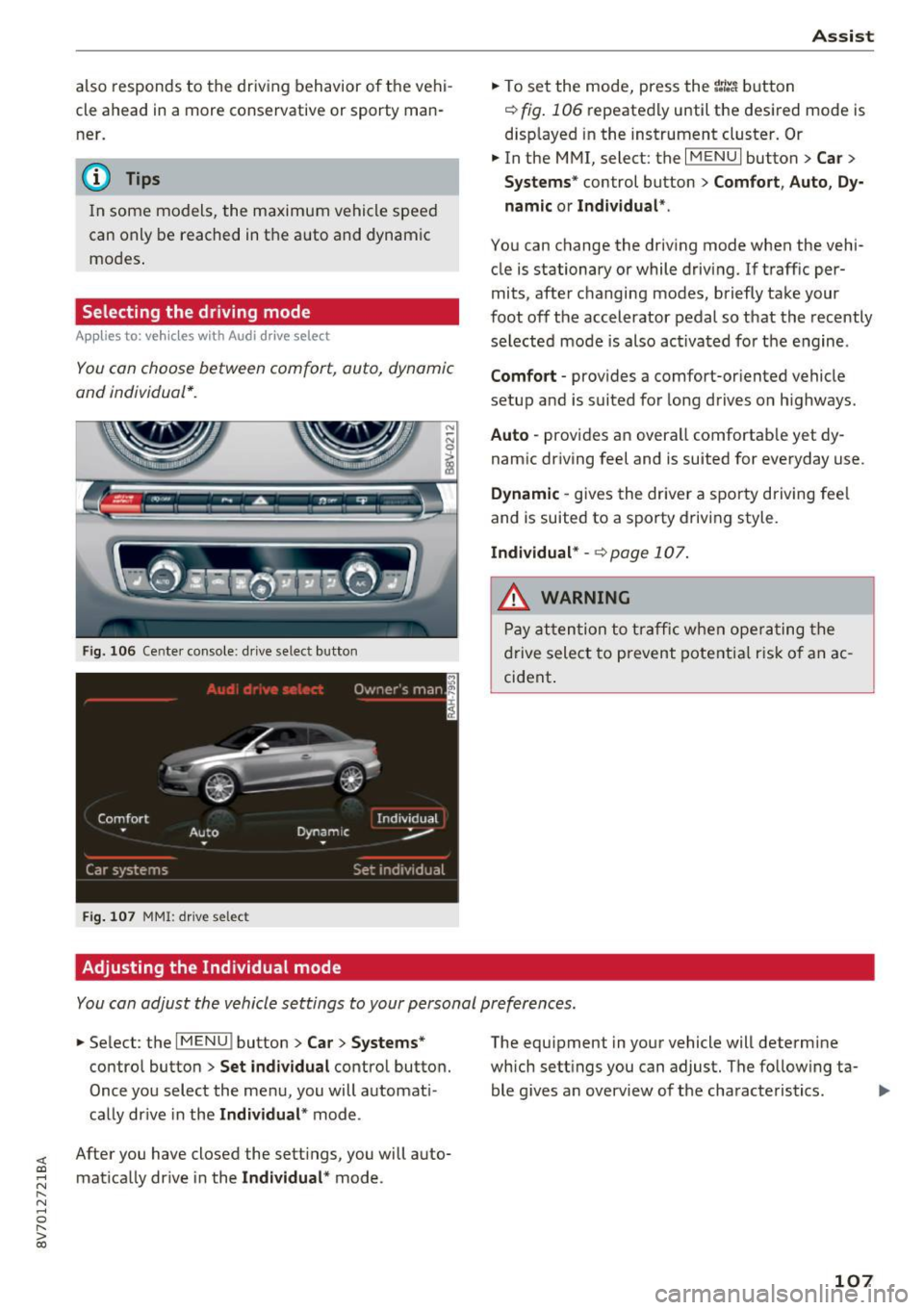

Selecting the driving mode
Applies to: ve hicles with Audi drive select
You can choose between comfort, auto, dynamic
and individual*.
Fi g. 10 6 Ce nte r co nsole : d rive se lec t button
Fig. 107 MM I: driv e selec t
Adjusting the Individual mode
Ass ist
.,. To set the mode, press the r:/tc'i button
~ fig . 106 repeatedly until the desired mode is
disp layed i n the instrument cluster. Or
.,. In the MMI, select : the
I MENU I button > Car >
Systems "
control button > Comfort , A uto , Dy­
namic or Individual *.
You can change the driving mode when the vehi­
cle is stationary or while driv ing. If traff ic per­
mits, after changing modes, briefly take your
foot off the accelerator pedal so that the recently
selected mode is also ac tivated for t he engine .
Comfort -provides a comfort-or iented vehicle
setup and is suited for long drives o n highways.
Auto -provides an overa ll comfortab le yet dy­
namic dr iving feel and is suited for everyday use .
Dynamic -gives the drive r a spo rty driving fee l
and is suited to a sporty driving style.
Individual* -~ page 107.
A WARNING
Pay atten tion to traffic w he n ope rating the
d rive select to p revent pote ntia l risk o f an ac ­
cident .
You can adjust the vehicle settings to your personal preferences .
.,. Se lect : the I MENU ! button> Car> Systems *
control button > Set individual contro l button.
Once you select the men u, you will automat i­
ca lly dr ive in the
Individual * mode.
After you have closed the sett ings, you will auto­
mat ica lly dr ive in the
Individual * mode . The equipment in you
r vehicle will determine
which sett ings you can adjus t. The follow ing ta­
ble g ives an overview of t he characteristics .
107

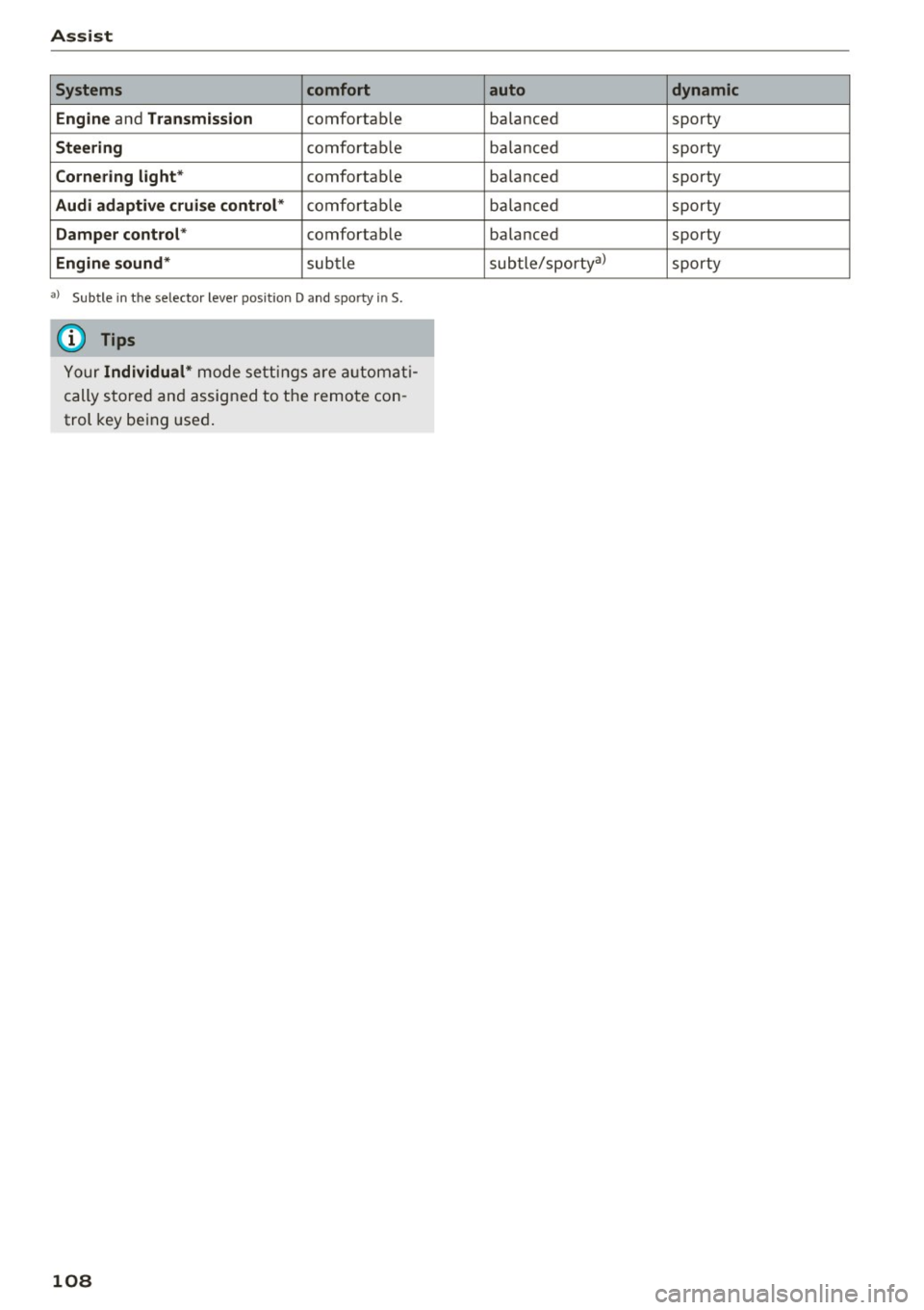

Assist Systems comfort
Engine
and Transmission comfortab le
Steering comfortable
Cornering light* comfortab le
Audi adaptive cruise control* comfortable
Damper control* comfortable
Engine sound* subtle
a) Subt le in th e se lector le ver pos it ion D and sporty in S.
(D Tips
Your Individual* mode settings are automati­
cally stored and assigned to the remote con­
trol key being used.
108
auto dynamic
balanced sporty
balanced sporty
balanced sporty
ba lanc ed sporty
balanced sporty
subtle/sporty a)
sporty

<( co .... N r--­N .... 0 r--­> co
Parking systems
General information
Applies to: ve hicles with a rea r parking sys te m /pa rking sys­
tem plus/rearv iew camera
Depending on your vehicle's equipment, various
parking aids will help you when parking and ma­
neuvering.
The
rear parking system is an audible parking aid
that warns you of obstacles
behind the vehicle
¢page 110.
The parking system plus assists you when park ­
ing by audibly and visually indicating objects de­
tected
in front of and behind the vehicle
¢page 110.
The rearview camera shows the area behind the
vehicle in the MMI display. This display assists
you when you are cross or parallel parking. The parking system plus functions are also available
¢page 111.
A WARNING ,--
- Always look for traffic and check the area
around your vehicle by looking at it directly
as well. The parking system cannot replace
the driver's attention. The driver is always
responsible when entering or leaving a park­
ing space and during similar maneuvers.
- Please note that some surfaces, such as
clothing, are not detected by the system.
- Sensors and cameras have blind spots in
which people and objects cannot be detect­
ed . Be especially cautious of small children
and animals.
- Always pay attention to the area around the
vehicle -using the rearview mirror, too.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody . The park­
ing system may become impaired as a re­
sult. Have an authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
- Make sure the sensors are not obstructed by
stickers, deposits or other materials. If they
are the sensor function could be impaired.
I
Parking systems
For additional information on cleaning, re­
fer to¢
page 224.
@ Note
-Some objects are not detected or displayed
by the system under certain circumstances:
- Objects such as barrier chains, trailer draw
bars, vertical poles or fences
- Objects above the sensors such as wall ex­
tensions
- Objects with specific surfaces or struc­
tures such as chain link fences or powder
snow
- If you continue driving closer to a low-lying
object, it may disappear from the sensor
range . Note that you will no longer be
warned about this obstacle.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody. The
parking system may become impaired as a
result . Have an authorized Audi dealer or
authorized Audi Service Facility check their
function.
(D Tips
- The system may provide a warning even
though there are no obstacles in the cover­
age area in some situations, such as:
- certain road surfaces or for long grass .
- external ultrasonic sources e.g. from
cleaning vehicles.
- heavy rain, snow, or thick vehicle exhaust.
- We recommend that you practice parking in
a traffic-free location or parking lot to be­
come familiar with the system. When doing
this, there should be good light and weath­
er conditions .
- You can change the volume and pitch of the
signals as well as the display¢
page 115.
-What appears in the MMI display is some­
what time-delayed.
- The sensors must be kept clean and free of
snow and ice for the park assist to operate.
109

Parking system s
Rear parking system
Description
Applies to: ve hicles w ith rear park ing system
The rear parking system is an audible parking
aid.
Descri ption
There is a sensor in the rear bumper cover . If
these detect an obstacle, audible signals warn
you .
Make sure the sensors are not covered by stick­
ers, deposits or any other obstructions as it may
impair the sensor function. For information on
cleaning , refer to¢
page 224.
The range at which the sensors begin to measure
is approximately:
Side rear 3 ft (0.90 m)
Side center 5.2
ft (1.60 m)
The closer
you get to the obstacle, the shorter
the interval between the audible signals . A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0.30 meters) away.
Do not continue backing up¢.&.
in General infor­
mation on page 109,
¢0 in General information
on page 109!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually drops after about four seconds (this is not apply
in the continuous tone range).
Activ ating
The parking system activates automatically when
the reverse gear is selected. You will hear a brief
confirmation tone.
110
Parking system plus
Description
App lies to: vehicles with parking system plus
The parking system plus provides audio and visu­
al signals when parking .
Fig. 108 D isp lay fie ld
Sensors are located in the front and rear bump ­
ers. If these detect an obstacle, audible and visu­
al signals warn you .
Make sure the sensors are not covered by stick­
ers, deposits or any other obstruct ions as it may
impair the sensor function. For information on
cleaning, refer to¢
page 224.
The display field begins approx imately at:
® 4 ft (1.20 m)
® 3 ft (0 .90 m)
© 5.2 ft (1.60 m)
® 3 ft (0 .90 m)
The closer you get to the obstacle , the shorter
the interval between the audible signals. A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0.30 meters) away.
Do not continue driving forward or in reverse
¢.&. in General information on page 109, ¢@) in
General information on page 109!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops after about four seconds (this is not apply
in the continuous tone range).
