A WARNING ,~
Improperly worn safety belts increase the risk
of serious personal injury and death whenever
a vehicle is be ing used.
- Always make sure that all vehicle occupants
are correctly restra ined and stay in a correct
seating pos it ion whenever the veh icle is be­
ing used .
- Always read and heed all WARNINGS and
other important information
~ page 13 7 .
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular s everity and in a rollov er, saf ety belts
are tensioned automatically.
Re ve rsib le safe ty belt ten sione rs
The safety belts on the front seats are equipped
with power reversib le tensioners. The fo llowing
f u nctions are avai lab le when the driver 's/front
passenger's safety be lts are fastened:
- Automatic tensioners: at the start of a drive,
the safety belts automatically adjust to the
passenge r after a ce rtain t ime per iod or vehicle
speed.
- In certain driving situat io ns, the safety belts
may t ighten with a reversible tens ioning func­
tion
~ page 97.
- The safety belts may a lso tighten with this re-
versib le tensioning function in minor collisions.
P y rotechnic safet y be lt pretensioners
The safety belts are equipped with safety belt
p retensioners. The system is act ivated by sensors
i n front, side and rear-end coll is ions of great se­
veri ty and in a rollover. This tightens the belt and
takes up belt slack
q & in Service and disposal of
saf ety belt pr etensioner on page 141 .
Taking up
the slack helps to reduce forward occupant movement dur ing a coll is ion.
A WARNING
- It is possible for the pretensioners to deploy
incorrectly .
Safet y be lts
- The pyrotechnic system can only provide
protection for one collision. If the pyrotech­
nic pretens ioners deploy, the pretensioning
system must be replaced .
(D Tips
The pyrotechnic safety belt pretensioners can
only dep loy once.
- The safety belt pretensioners do not deploy
in minor frontal, side and rear-end coll i­
sions.
- A fine dust is re leased when the pyrotechnic
safety belt pretensioners dep loy. This is nor­
ma l and is not caused by a f ire in the veh i­
cle.
- The relevant safety requirements must be
observed when the vehicle or components
of the system are scrapped . A qualified
dealership is familiar with these regulat ions
and w ill be pleased to pass on the informa­
tion to you.
- Be sure to observe all safety, environmenta l
and other regulat ions if the vehicle or indi­
vidua l parts of the system, particular ly the
safety belt or airbag, are to be disposed. We
recommend you have yo ur authorized Aud i
dealer perform this service fo r you.
Service and disposal of safety belt preten­
sioner
The safety belt pretensioners are parts of the
safety belts on your Aud i. Installing , removing ,
se rvicing or repair ing of be lt pretens ione rs can
damage the safety belt system and prevent it
from wo rking co rrectly in a co llision.
There are some important things you have to know to make sure that the effectiveness of the
system will no t be impa ired and that d iscarded
componen ts do not cause inju ry or pollute the
environment .
A WARNING ~ -
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
141

Safety belts
and death by preventing a safety be lt preten­
sioner from activating when needed or
act ivating it unexpectedly:
- The belt pretensioner system can be activat­
ed only once . If belt pretensioners have
been activated, the system must be re­
placed .
- Never repair, adjust, or change any parts of
the safety belt system .
- Safety belt systems includ ing safety belt
pretens ioners cannot be repaired. Special
procedures are requ ired for removal, instal ­
lat ion and disposal of this system .
- For any work on the safety belt system, we
strongly recommend that you see your au ­
tho rized Aud i dealer or qualified technician
who has an Audi approved repair manual,
t ra ining and spec ial equ ipment necessary.
@) For the sake of the environment
Undeployed airbag modules and pretension ­
ers might be classified as Perch lorate Materi­
al -specia l handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including airbag modules safe ­
ty belts with pretensioners are scrapped, all
applicable laws and regulat ions must be ob­
served. Your authorized Audi dealer is familiar
w ith these requ irements and we recommend
that you have your dealer perform this service
for you .
142

<( co .... N ,.__
N .... 0 ,.__
> co

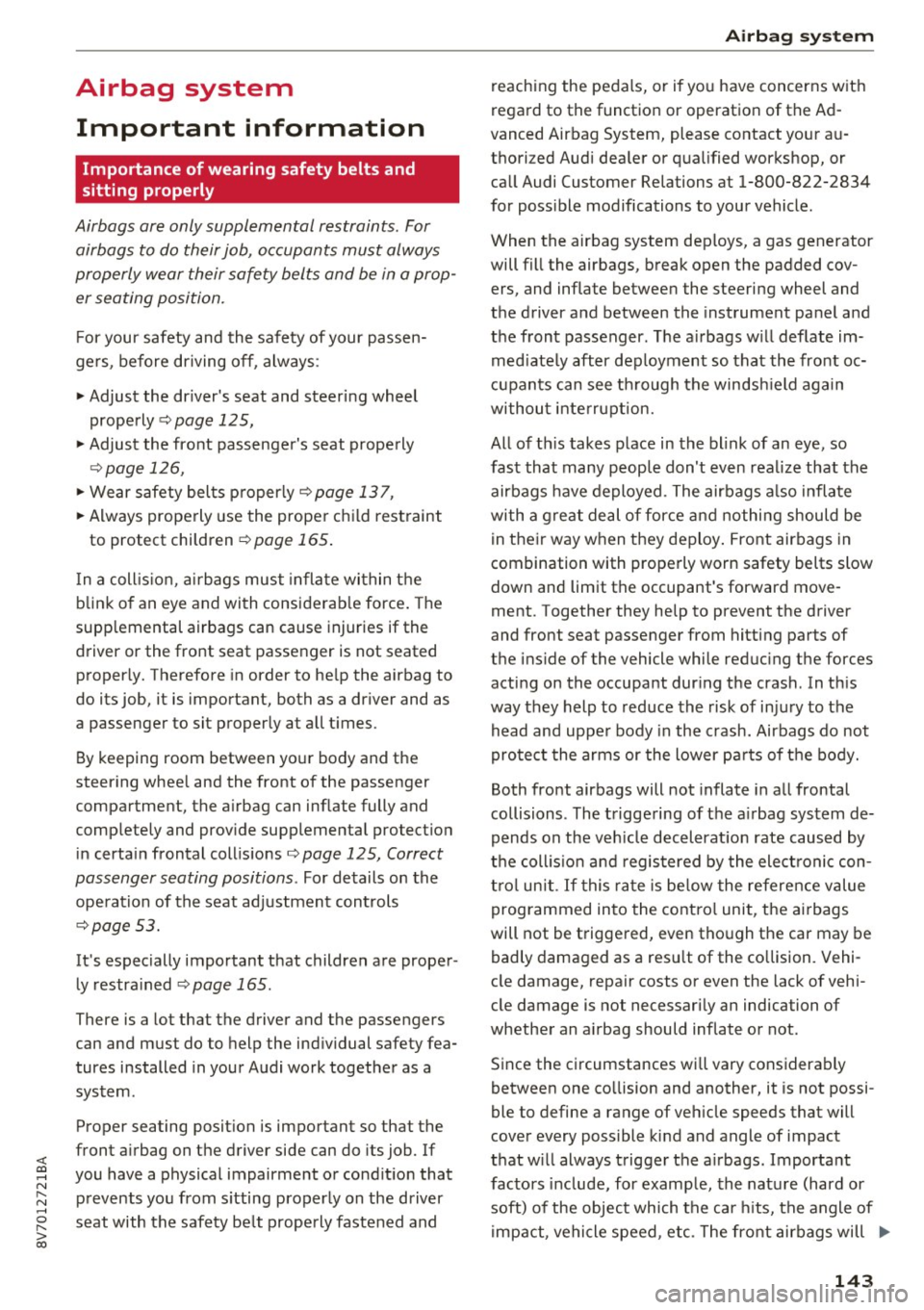

Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­
er seating position.
For your safety and the safety of your passen­
gers, before driving off, always :
.,. Adjust the driver's seat and steering wheel
properly
9 page 125,
.,. Adjust the front passenger's seat properly
¢page 126,
.,. Wear safety belts properly ¢ page 137,
.,. Always properly use the proper child restraint
to protect children
¢ page 165.
In a collision, airbags must inflate within the
blink of an eye and with considerable force. The
supplemental airbags can cause injuries if the
driver or the front seat passenger is not seated
properly. Therefore in order to help the airbag to
do its job, it is important, both as a driver and as
a passenger to sit properly at all times.
By keeping room between your body and the
steering wheel and the front of the passenger
compartment, the airbag can inflate fully and
completely and provide supplemental protection in certain frontal collisions¢
page 125, Correct
passenger seating positions .
For details on the
operation of the seat adjustment controls
¢page 53.
It's especially important that children are proper­
ly restrained
¢page 165.
There is a lot that the driver and the passengers
can and must do to help the individual safety fea­
tures installed in your Audi work together as a
system.
Proper seating position is important so that the
front airbag on the driver side can do its job. If
you have a physical impairment or condition that prevents you from sitting properly on the driver
seat with the safety belt properly fastened and
Airbag system
reaching the pedals, or if you have concerns with
regard to the function or operation of the Ad­
vanced Airbag System, please contact your au­
thori zed Audi dealer or qualified workshop, or
call Audi Customer Relations at 1-800-822-2834
for possible modifications to your vehicle.
When the airbag system deploys, a gas generator
will fill the airbags, break open the padded cov­ ers, and inflate between the steering wheel and
the driver and between the instrument panel and
the front passenger. The airbags will deflate im­
mediately after deployment so that the front oc­
cupants can see through the windshield again
without interruption.
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the airbags have deployed. The airbags also inflate
with a great deal of force and nothing should be
in their way when they deploy. Front airbags in
combination with properly worn safety belts slow
down and limit the occupant's forward move­
ment . Together they help to prevent the driver
and front seat passenger from hitting parts of
the inside of the vehicle while reducing the forces
acting on the occupant during the crash . In this
way they help to reduce the risk of injury to the
head and upper body in the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not inflate in all frontal
collisions . The triggering of the airbag system de­
pends on the vehicle deceleration rate caused by
the collision and registered by the electronic con­
trol unit . If this rate is below the reference value
programmed into the control unit, the airbags
will not be triggered, even though the car may be badly damaged as a result of the collision. Vehi­
cle damage, repair costs or even the lack of vehi­
cle damage is not necessarily an indication of
whether an airbag should inflate or not.
Since the circumstances will vary considerably
between one collision and another, it is not possi­
ble to define a range of vehicle speeds that will
cover every possible kind and angle of impact
that will always trigger the airbags . Important
factors include, for example, the nature (hard or
soft) of the object which the car hits, the angle of
impact, vehicle speed , etc. The front airbags will
II>
143

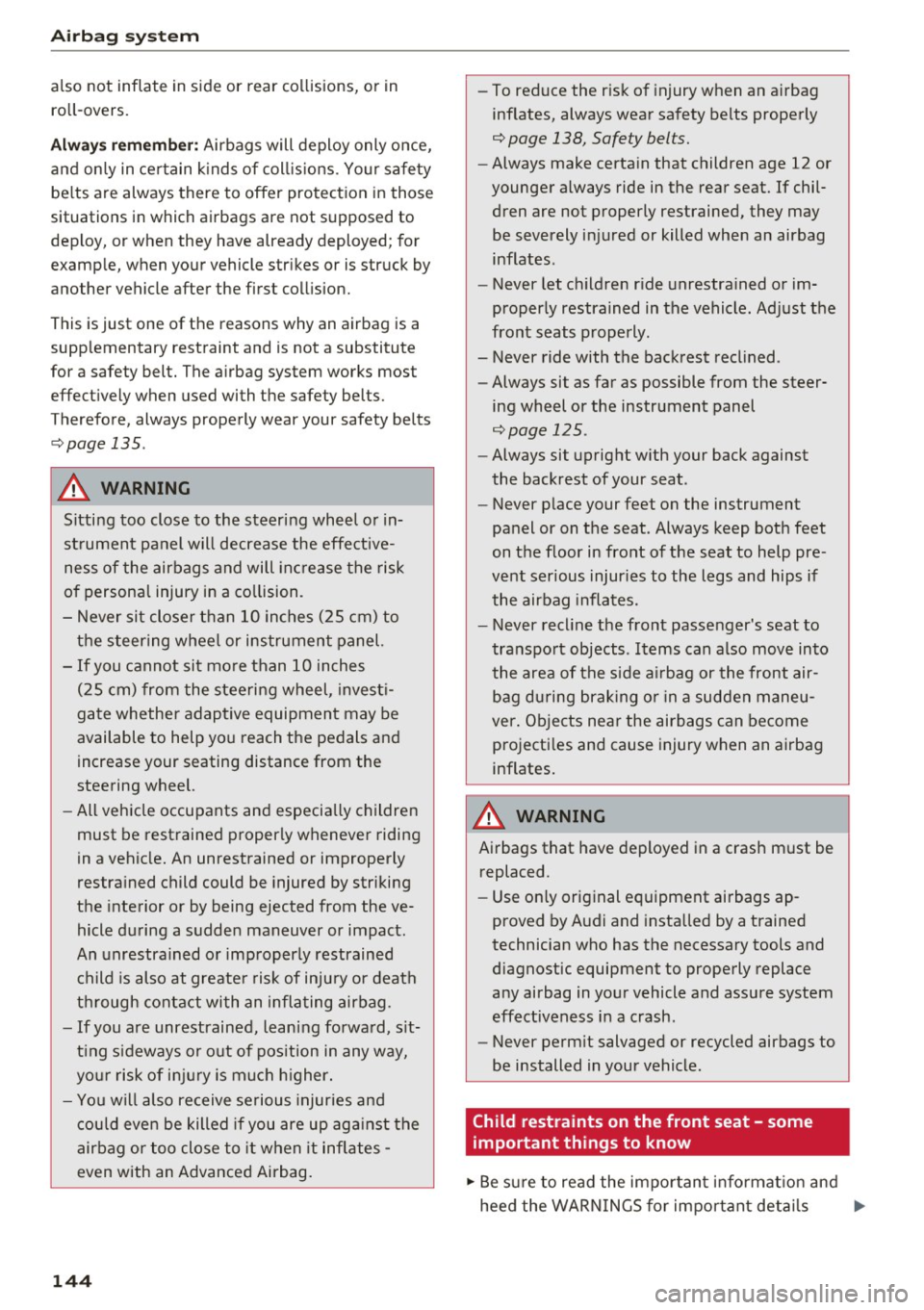

Airbag syste m
also not inflate in s ide or rear collisions, or in
ro ll-overs.
Alwa ys rememb er: Airbags will deploy only once,
and on ly in ce rtain k inds of coll is ions. Yo ur safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
dep loy, or when they have already deployed; for
examp le, when your vehicle str ikes or is struck by
another vehicle after the first coll is ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The a irbag system works most
effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
c::>page 135.
A WARNING
Sitting too close to the steering wheel o r in­
st rument panel will decrease the effective­
ness of the airbags and will inc rease the risk
of personal injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot si t mo re than 10 inches
(25 cm) from the steering wheel, invest i­
gate whether adaptive equipment may be
available to help yo u reach the pedals and
increase your seating distance from the
steering wheel.
- All veh icle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restra ined child could be injured by striking
the interior or by being ejected from the ve­
hicle during a sudden maneuver or impact.
An unrestrained or imp roperly restrained
child is also at greate r risk of inju ry or death
through contact with an inflating airbag.
- If you are unrestrained, leaning fo rwa rd, s it­
t ing s ideways or o ut o f pos ition in any way,
yo ur risk of in ju ry is much h igher.
- Yo u will also receive serious injuries and
c ould even be killed if you are up aga inst the
air bag or too close to it when it inflates -
even with an Advanced Airbag.
144
-
- To reduce the ris k of i njury when an a irbag
inflates, always wea r safety belts properly
c::> page 138, Safety belts.
- Always make certa in that children age 12 or
younger always ride in the rear seat. If chil­
dren are not properly restrained, they may be severely injured or killed when an airbag
inflates.
- Never let ch ildren ride unrestra ined or im­
properly restrained in the vehicle. Ad just the
front seats properly.
- Never ride with the back rest recl ined .
- Always sit as far as possible from the steer-
ing wheel or the instrument panel
c::>page 125.
-Always sit upright w ith your back against
the backrest of your seat .
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent serious injur ies to the legs and hips if
the airbag inflates.
- Never recl ine the front passenger's seat to
transpo rt objects . Items can also move in to
the area of the s ide a irbag or the front air­
bag du ring brak ing o r in a sudden maneu­
ver. Obje cts nea r the airbags can become
projecti les and cause injury when an airbag
inflates.
A WARNING
A irbags that have deployed in a crash must be
replaced.
- Use on ly original equipment airbags ap­
proved by Audi and installed by a trained
technician who has the necessary tools and
diagnostic equipment to properly replace
any airbag in your vehicle and assure system
effectiveness in a crash.
- Never perm it salvaged or recycled airbags to
be installed in your vehicle.
Child restraints on the front seat - some
important things to know
.,. Be s ure to read the impo rtant info rmat ion and
heed the WARN INGS for important deta ils .,.

<( co .... N ,.__
N .... 0 ,.__
> co

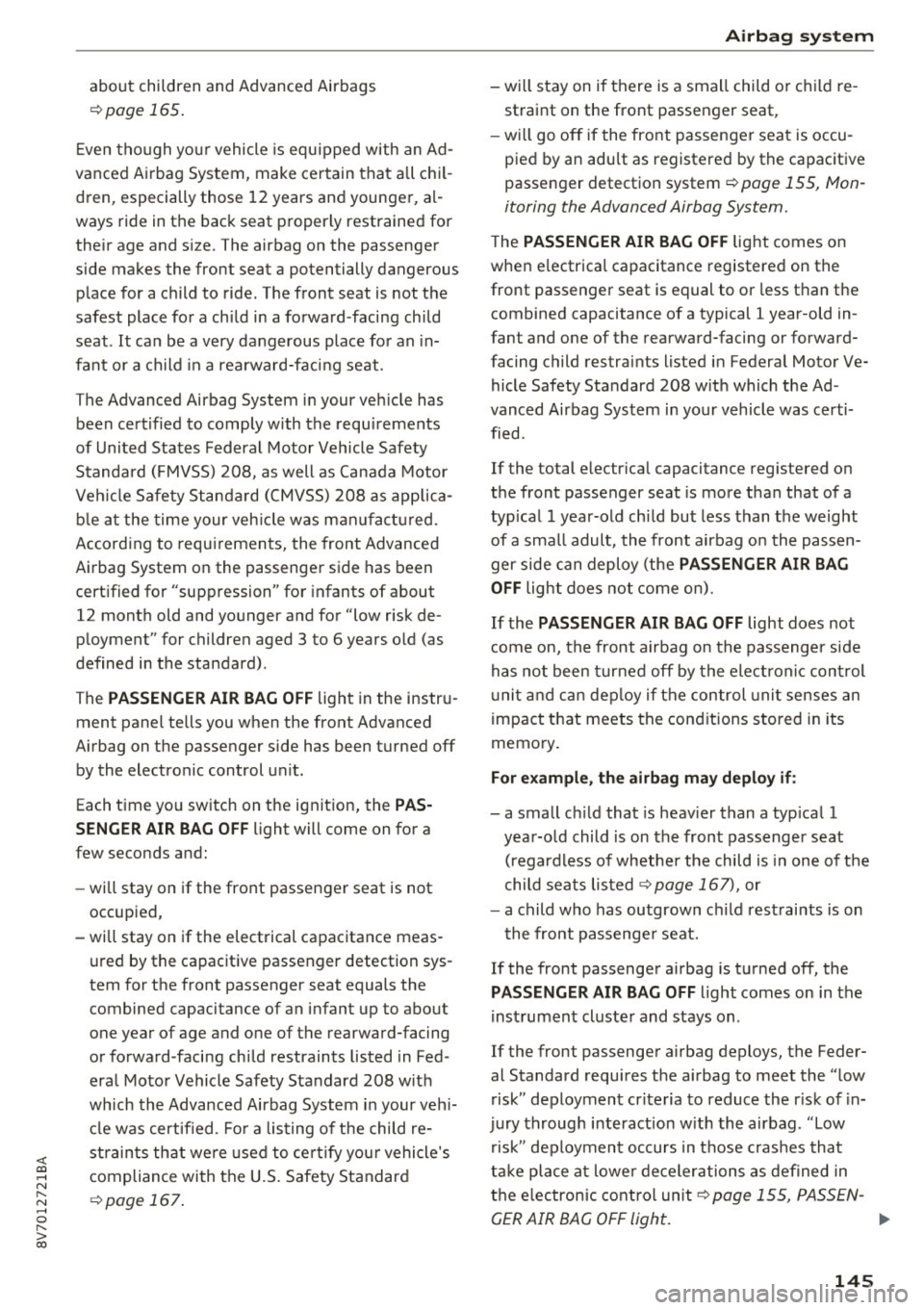

about children and Advanced Airbags
¢page 165.
Even though yo ur vehicle is equipped with an Ad­
vanced Airbag System, make certain that all chil­
dren, especially those 12 years and younger, al­
ways ride in the back seat properly restrained for
their age and size. The airbag on the passenger
side makes the front seat a potentially dangerous place for a child to ride. The front seat is not the
safest place for a child in a forward-facing child
seat .
It can be a very dangerous place for an in­
fant or a child in a rea rward-fac ing seat.
T he Advanced Airbag System in your veh icle has
been certified to comply with the requirements
of United States Federal Motor Vehicle Safety
Standa rd (FMVSS)
208, as well as Canada Motor
Veh icle Safety Standa rd (CMVSS)
208 as applica­
b le a t the time your veh icle was m an ufact ured.
Accord ing to requirements, the front Advanced
Airbag System on the passenger side has been
certifi ed for "suppression" for infants of about
12 month old and younger and for "low risk de­
ployment" for children aged 3 to 6 years old (as
defined in the standard) .
T he
PASSENGER AIR BAG O FF light in the instru­
ment panel tells you when the front Advanced
Airbag on the passenger side has been turned
off
by the electronic control unit.
Each time yo u switch on the ignition, the
PAS ·
S ENGER AIR BAG OFF
light will come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if the electrical capacitance meas ­
ured by the capac itive passenger detection sys­
tem for the front passenger seat equals the combined capacitance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed ­
era l Moto r Vehicle Safety Standard
208 w it h
which the Advanced Airbag System in your veh i­
cl e was certified . Fo r a listing of the child re­
strain ts th at were used to ce rtify you r vehicle's
compliance with the U.S. Safety Standard
¢ page 167 .
Airbag sys tem
-wi ll stay on if there is a small child or c hild re­
straint on the front passenger seat,
- will go
off if the front passenge r seat is occu ­
pied by an adult as registered by the capac itive
passenger detection system ¢
page 155, Mon­
itoring the Advanced Airbag System.
T he PASSENGER AIR BAG OFF lig ht comes on
when e lectrica l capacitance registered on the
front passenger seat is equal to or less t han the
combined capacitance of a typical
1 year-old in­
fant and one of the rearward-facing or forward­
facing child restraints listed in Federal Motor Ve­
hicle Safety Standard
208 w ith which the Ad­
vanced Airbag System in your vehicle was certi­
fied.
If the total e lec trica l capacitance reg istered on
t h e front passenger seat is more than that of a
typ ical 1 year-old ch ild but less than the weight
of a sma ll adult, the front airbag on the passen­
ger side can deploy (the
PASSENGER AIR BAG
OFF
light does not come on).
If the PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger side
has not been turned off by the electron ic con trol
u ni t and can dep loy if the control unit senses an
impact that meets the cond itions s tored in its
memory .
For example , th e airbag may deplo y if:
- a small ch ild that is heav ier than a typ ical 1
year-o ld child is on the front passenger seat
(regardless of whethe r the child is in one of the
child seats lis ted
¢ page 167), or
- a child who has outgrown c hild rest raints is on
the front passenge r seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in the
inst rument cluste r and stays on .
If the front passenger airbag deploys, the Feder­
al Standard requires the airbag to meet the " low
risk" deployment cr iteria to reduce the r isk of in­
jury through interact ion w ith the airbag . "Low
r isk " dep loymen t occurs in those crashes that
t ak e place at lowe r decelerations as defined in
the e lectronic co ntrol unit¢
page 155 , PASSEN -
GER AIR BAG OFF light.
Ill>
145

Airbag syste m

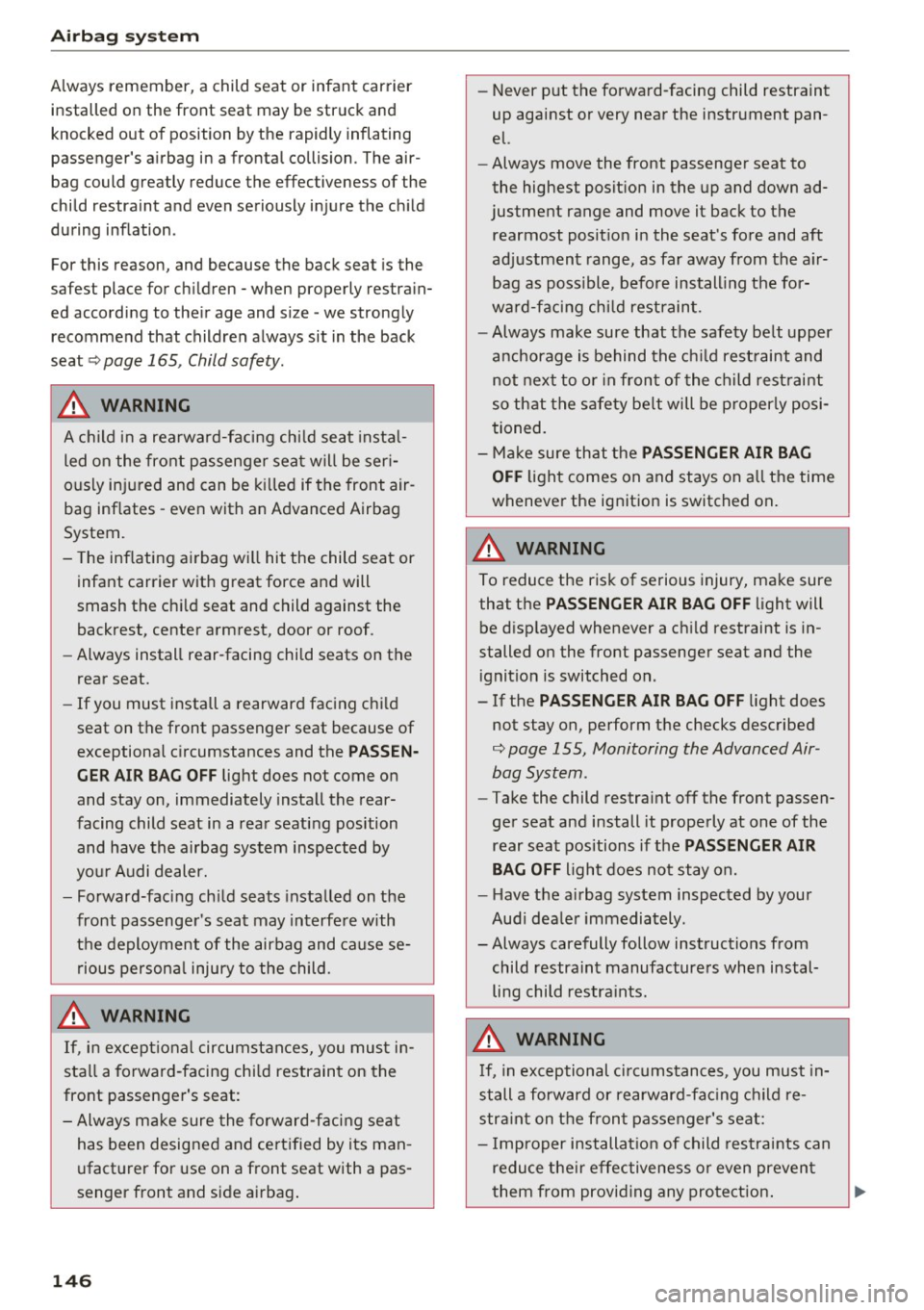

Always remember, a child seat or infant carrier
installed on the front seat may be struck and
knocked out of position by the rapidly inflating
passenger's airbag in a frontal collision. The air­
bag could greatly reduce the effectiveness of the
child restraint and even seriously injure the child
during inflation.
For this reason, and because the back seat is the
safest place for children -when properly restrain­
ed according to their age and size -we strongly
recommend that children always sit in the back
seat
¢ page 165, Child safety.
.8, WARNING
A child in a rearward-facing chi ld seat insta l­
led on the front passenger seat will be ser i­
ously injured and can be killed if the front air­
bag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit the child seat or
infant carrier with great force and will
smash the chi ld seat and child against the
backrest, center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing chi ld
seat on the front passenger seat because of
exceptional c ircumstances and the
PASS EN­
G ER AIR BA G OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position
and have the airbag system inspected by
yo ur Audi dealer.
- Forward-facing ch ild seats insta lled on the
front passenger's seat may interfe re with
the deployment of the airbag and cause se­
rious persona l injury to the child.
.8, WARNING
If, in except ional circumstances, you must in­
stall a forward-facing chi ld restraint on the
front passenger's seat:
- Always make sure the forward-facing se at
has been designed and certified by its man ­
ufacturer for use on a front seat with a pas­
senger front and side airbag .
146
-
-Never put the fo rward-facing child restraint
up against or very near the instrument pan­
el.
- Always move the front passenger seat to
the highest posit ion in the up and down ad­
justment range and move it back to the
rearmost posit ion in the seat's fore and aft
ad justment range, as far away from the a ir­
bag as poss ible, before install ing the for­
ward-facing chi ld restrain t.
- Always make sure that the safety be lt upper
anchorage is behind the ch ild rest raint and
not next to o r in fron t of the child rest raint
so that the safety be lt will be properly posi­
tioned.
- Ma ke sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on a ll the time
wheneve r the ignit ion is switched on .
.8, WARNING
-
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light will
be d isp layed whenever a ch ild restraint is in­
stalled on the front passenge r seat and the
ignit ion is switched on.
- If the
PASSENGER AIR BA G OFF light does
not stay on, perform the checks described
¢ page 155, Monitoring the Advanced Air­
bag System .
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
Aud i dea le r i mmediately.
- Always carefully follow instructions from child restraint manufacture rs when instal­
ling child restra ints .
.8, WARNING
If, i n exceptional ci rcumstances, you must in­
stall a forward or rearward-fac ing child re­
stra int on the front passenger's seat:
- Improper installat ion of child restraints can
reduce the ir effectiveness or even preven t
them from provi ding any pro tect ion .

<( co ..... N
" N ..... 0 r--. > 00

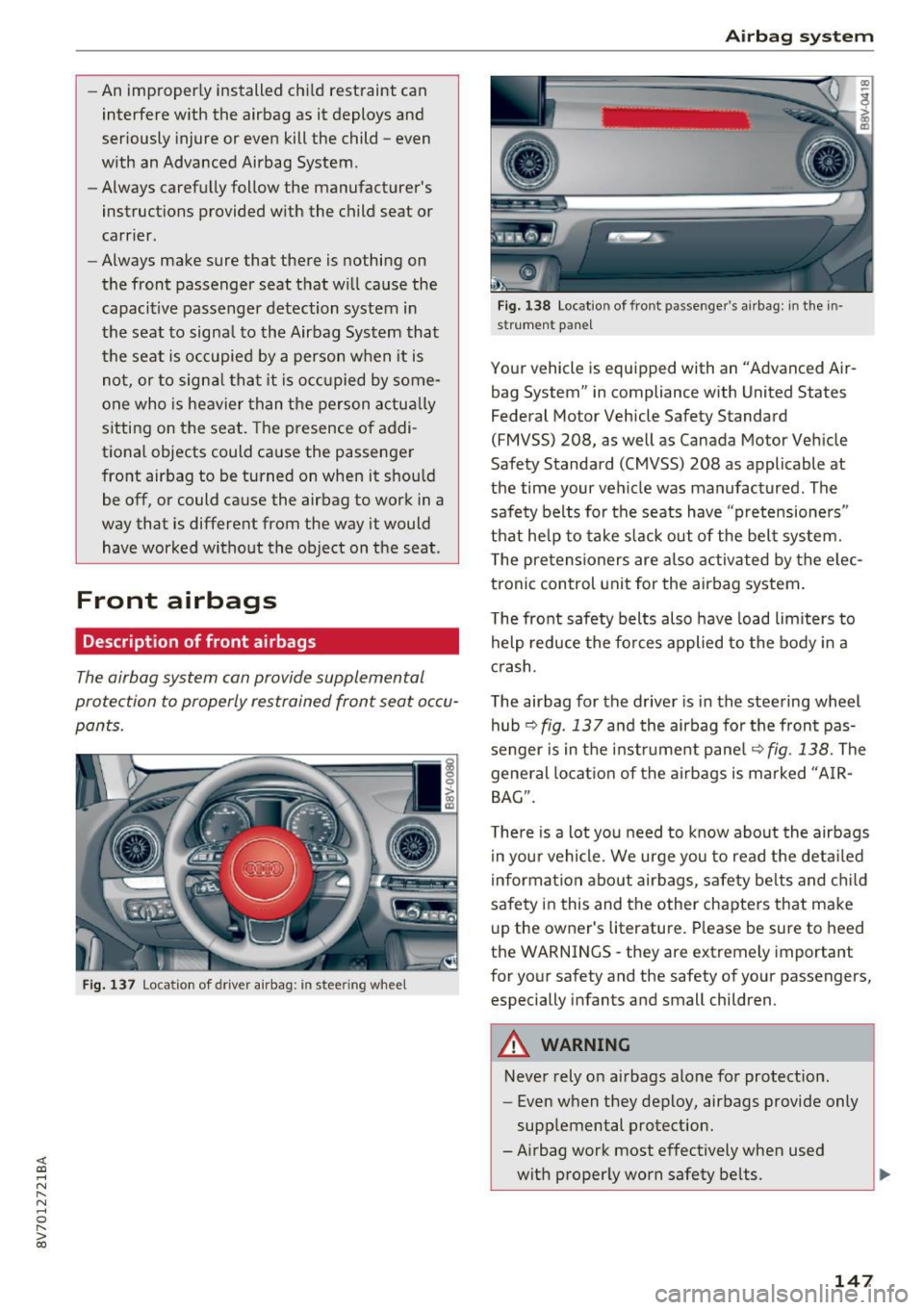

-An improper ly installed ch ild restraint can
interfere with the airbag as it deploys and
seriously injure or even kill the child -even
with an Advanced Airbag System.
- Always carefu lly follow the manufacturer 's
instructions provided w ith the child seat or
carrier .
- Always make sure that there is nothing on
the front passenger seat that w ill cause the
capacit ive passenger detection system in
the seat to signa l to the Airbag System that
the seat is occupied by a person when it is
not, or to signa l tha t it is occ upied by some ­
one who is heavier than the person actua lly
sitting on the seat . The presence of addi ­
tional objects could cause the passenger
front airbag to be turned on when it shou ld
be off, or could cause the airbag to work in a
way that is different from the way it would have worked without the object on the seat .
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig. 137 Location of driver ai rbag: in steer ing wheel
Airb ag sys tem
Fig. 138 Location of front passenger's airbag: in the in­
st rument pane l
Your vehicle is equipped with an "Advanced Air­
bag System" in compliance with United States
Federal Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Veh icle
Safety Standard (CMVSS) 208 as applicable at
the time your veh icle was manufactured. The
safe ty belts fo r the seats have "pretensioners"
that help to take slack out of the bel t system.
T he pretensioners are also activated by the e lec ­
tronic control unit for the airbag system .
The front safety belts also have load limiters to
help reduce the fo rces applied to the body in a
c rash .
The airbag for the driver is in the steering wheel
hub
r:::> fig. 137 a nd the airbag for the front pas­
senger is in the instrument pane l
~fig. 138. The
general lo cation of the airbags is marked "A IR­
BAG".
There is a lot you need to know about the airbags i n your vehicle. We urge you to read the deta iled
information about airbags, safety be lts and c hild
safety in this and the other chapters that make
u p the owner's literatu re . Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers, especially infants and small children.
A WARNING
Never rely on airbags alone for protect ion.
- Even when they deploy, airbags provide only
supplemental protection.
-Airbag work most effectively when used
with properly worn safety be lts .
147

Airbag system
-Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o 'clock and 3 :00 o'clock po­
sitions to help reduce the risk of personal in ­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your lap when the vehicle is in use .
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,.AIRBAG" on
the steering wheel, instrument panel or the
seat backrests; never place them between
these areas and you or any other person in
the vehicle.
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
148
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver . Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
A WARNING
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates .
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the .,low risk" option for 3-
and 6-year-old children under the U.S . Fed­
eral Standard if a child with electrical capac­
itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard ..,.

<( co .... N ,.__
N .... 0 ,.__
> co

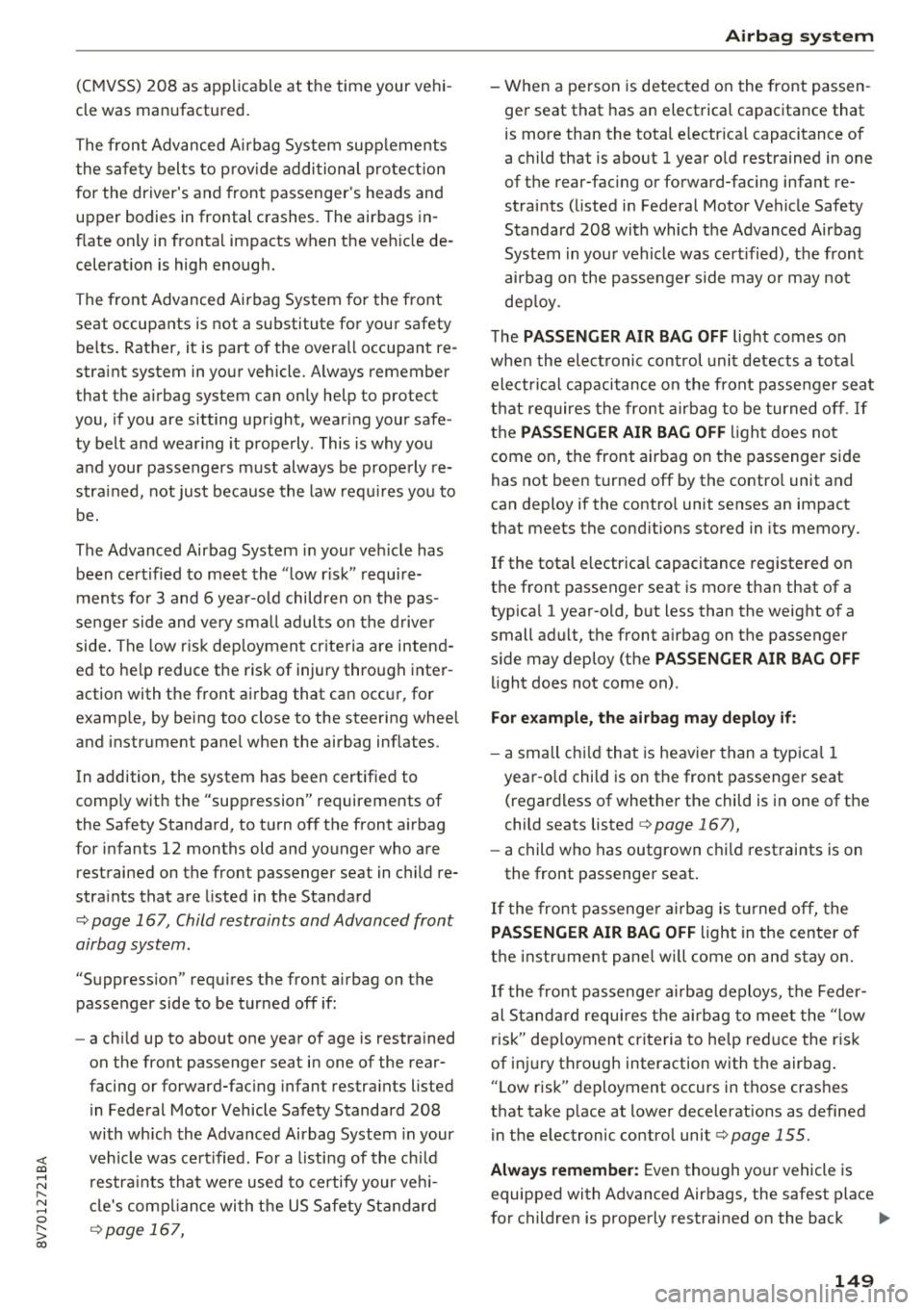

(CMVSS) 208 as applicable at the time your vehi­
cle was manufactured.
The front Advanced Airbag System supp lements
the safety belts to prov ide additional pro te ction
for the driver's and front passenger 's heads and
upper bodies in frontal crashes . The airbags in­
flate only in fronta l impacts when the veh icle de­
celerat ion is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety be lts. Rather, it is part of the overa ll occupant re ­
stra int system in your vehicle. A lways remember
that the airbag system can only help to protect
you, if you are sitting upr ight, wear ing your safe­
ty belt and wear ing it properly. This is why you
and your passengers must always be properly re­
stra ined, not jus t because the law requ ires yo u to
be.
The Advanced Airbag System in your ve hicle has
been ce rtified to meet the "low risk" requi re­
men ts for 3 and 6 yea r-o ld children o n the pas­
senger side and very sma ll adul ts on the drive r
side . The low r isk dep loymen t cr iteria are inten d­
ed to help reduce the risk of injury through inter­
action with the front airbag that can occur, for
examp le, by being too close to the steering wheel
and instrument pane l when the airbag inflates .
I n addition, the system has been certified to
comp ly with the "supp ression" requirements of
the Safety Standard, to turn off the front a irbag
for infants 12 months old and younger who are
restrained on the front passenger seat in child re­
stra ints that are listed in the Standard
c::> page 167, Child restraints and Advanced front
airbag system.
"Suppress ion" requ ires the front a irbag on the
passenger side to be turned off if:
- a ch ild up to about one year of age is restrained
on the front passenger seat in one of the rear­
facing or forward-fac ing infant restra ints listed
in Federal Motor Vehicle Safety Standard 208
with wh ic h the Advanced Ai rbag System in your
vehicle was ce rt ified. For a listi ng of the ch ild
restra ints tha t were used to certify your veh i­
cl e's compl iance wi th the US Safe ty St andard
c::> page 167,
Airb ag sys tem
-When a pe rson is detected on the front passen ­
ger seat that has an elect rical capacitance that
is more than the total e lectr ica l capacitance of
a child that is about
1 year o ld restrained in one
of the rear-fac ing or forward-facing infant re­
straints (listed in Federa l Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in you r vehicle was cert ified), t he front
ai rbag on the passenger side may or may no t
dep loy.
T he
PASSENGER AIR BAG OFF lig ht comes o n
whe n the elect ronic control unit detects a tota l
elect rical capacitance on the front passe nger sea t
t h at re quires the front airbag to be turned off. If
t h e
PASSENGER AIR BAG OFF ligh t does not
come on, the front airbag on the passenger side
has not been turned off by the contro l unit and
can deploy if the contro l unit senses an impact
that meets the cond itions stored in its memory.
If the total e lectr ica l capacitance registered on
the front passenger seat is more than that of a
typ ica l 1 year -old, b ut less than the weight of a
small adult, the front a irbag on the passenger
s ide may deploy (the
PASSENGER AIR BAG OF F
light does not come on) .
For e xample , the airbag may deploy if :
-a small ch ild that is heav ier than a typ ica l 1
yea r-old child is on the front passenger seat
(regard less of whether the child is in one of the
child seats listed
c::> page 167),
-a child who has outgrown c hild restraints is on
the front passenger seat .
If the front passenge r a irbag is t urned off, the
PASSENGER AIR BAG OFF light in the center of
the instr ument pane l will come on and stay on .
If the front passenge r a ir bag deploys, the Feder ­
al S tanda rd requi res t he ai rbag to meet the " low
risk" deployment criteria to he lp red uce the r isk
of i njury through interaction with the airbag .
" Low risk" deployment occurs in those crashes
that take p lace at lower decelerations as defined
in the electronic contro l unit ¢
page 155.
Alway s remember : Even though yo ur vehicle is
equipped with Advanced Airbags, the safest place
for children is properly restrained on the back ..,.
149

Airbag syste m
seat. Please be sure to read the important infor­
mation in the sections that follow and be sure to
heed all of the WARNINGS.
.&_ WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­ ting s ideways or out of position in any way,
your risk of injury is much h igher.
- You will also receive serious injuries and could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag
r:::;, page 143 .
.&_ WARNING
A child in a rearward-facing chi ld seat instal­
led on the front passenger seat will be ser i­
ously inju red and can be killed if the front air­
bag inflates -even with an Advanced Airbag
System.
- Although the Advanced A irbag System in
yo ur vehicle is designed to tu rn off the front
airbag when a rearwa rd -facing child re ­
straint has been insta lled on the front pas­
senger seat, nobody can absolutely g uaran­
tee that deployment is impossible in all con­
ceivable s ituations that may happen during
the useful life of your vehicle .
- The inflating a irbag w ill hit the child seat or
infant carrier w ith great force and will
smash the ch ild seat and child against the
backrest, center a rmrest, door, or roof .
- Always install rearward-facing ch ild re­
straints on the rear seat .
- If you must install a rearward fac ing ch ild
seat on the front passenger seat because of exceptional c ircumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear­
facing child seat in a rea r seating position
and have the airbag system inspected by
your Audi dealer .
150
.&_ WARNING ,_
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been des igned and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the forwa rd-facing child restraint
up against or very nea r the instrument pan­
el.
- Always move the front passenge r seat to
the highest posit ion in the up and down ad­
justmen t range and move it back to the
rearmost posit io n in the seat's fo re and aft
adjustment range, as far away from the a ir ­
bag as poss ible, before install ing the for­
ward-facing chi ld restraint.
- Always make sure that the safety be lt upper
anchorage is behind the chi ld rest raint and
not next to o r in front of the c hild restraint
so that the safety be lt will be p roper ly posi­
tioned.
- Always make sure that there is noth ing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occup ied by a person when it is
not , or to signal that it is occupied by some­
one who is heavier than the person ac tually
si tting o n the sea t. T he presence of addi­
tional objects could cause the passenger
front airbag to be turne d on when it should
be
off, or could cause the airbag to work in a
way that is d ifferent from the way it wou ld
have worked without the object on the seat.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ign it ion is switched on.
Advanced Airbag System components
T he front passenger seat in your veh icle has a lot
of ve ry important parts of the Advanced A irbag
System i n it. These parts incl ude the capacitive
passenger detection system, wir ing , b rackets,
and more. The control uni t moni tors the system
on the front passenge r seat when t he ignit ion is ..,.
