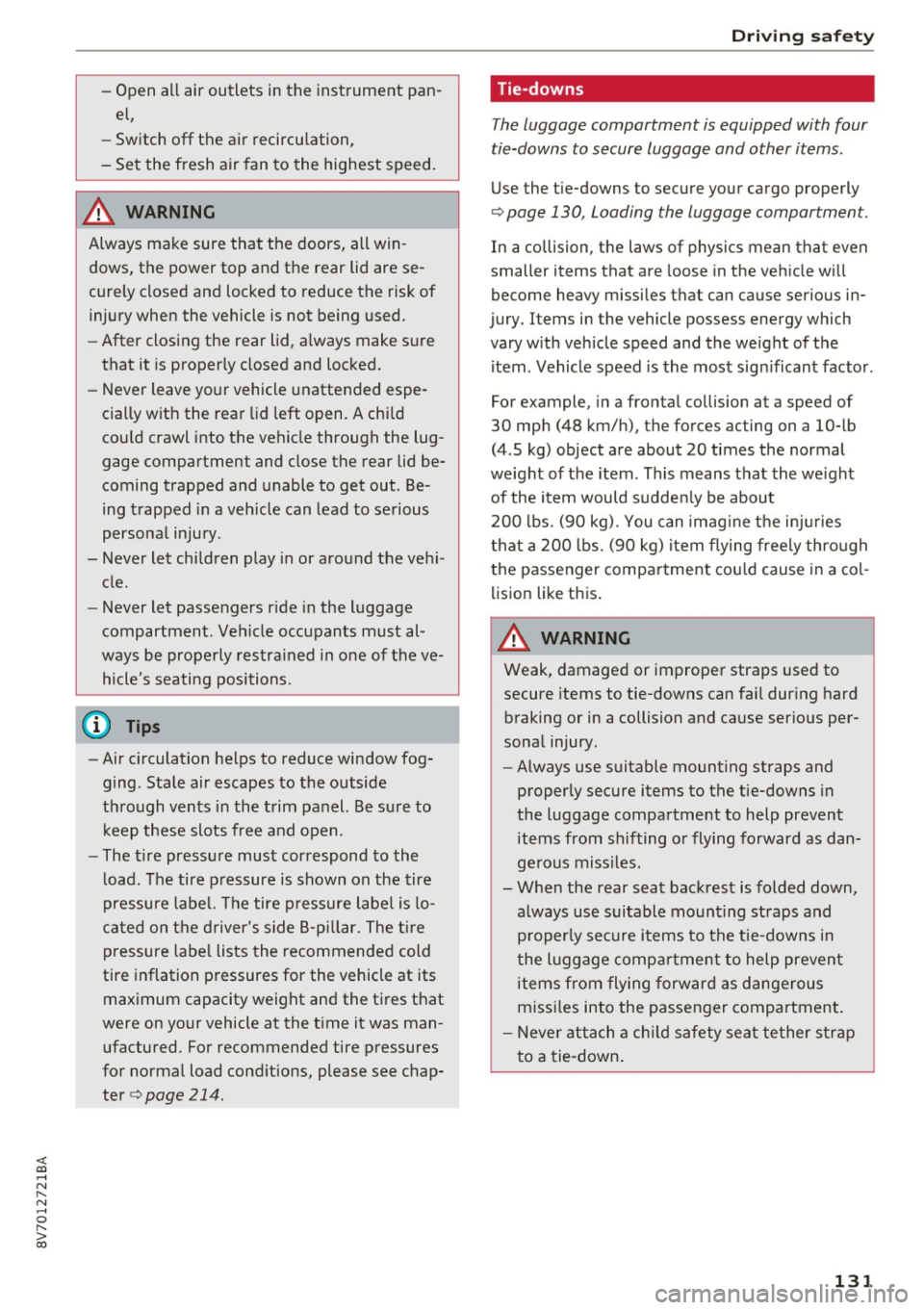

-Open all air outlets in the instrument pan­
el,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed.
& WARNING -
Always make sure that the doors, all win­
dows, the power top and the rear lid are se­
curely closed and locked to reduce the risk of
injury when the vehicle is not being used.
- After closing the rear lid, always make sure
that it is properly closed and locked.
- Never leave your vehicle unattended espe­
cially with the rear lid left open. A child
could crawl into the vehicle through the lug­
gage compartment and close the rear lid be­
coming trapped and unable to get out. Be­
ing trapped in a veh icle can lead to serious
personal injury.
- Never let children play in or around the vehi­
cle.
- Never let passengers r ide in the luggage
compartment. Vehicle occupants must al­
ways be properly restrained in one of the ve­
hicle's seating positions.
(!) Tips
- Air c irculation helps to reduce window fog­
ging . Stale air escapes to the outside
through vents in the trim panel. Be sure to
keep these slots free and open.
- The t ire pressure must correspond to the
l oad. The tire pressure is shown on the tire
pressure label. The tire pressure label is lo­
cated on the driver's side B-pillar. The tire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at its
maximum capacity weight and the tires that
were on your vehicle at the t ime it was man­
ufactured. For recommended tire pressures
for normal load conditions, please see chap­
ter
c> page 214.
Driving safety
Tie-downs
The luggage compartment is equipped with four
tie-downs to secure luggage and other items .
Use the tie-downs to secure your cargo properly
c> page 130, Loading the luggage compartment.
In a collision, the laws of physics mean that even
smaller items that are loose in the veh icle will
become heavy missiles th at can cause serious in­
jury. Items in the vehicle possess energy which
vary w ith vehicle speed and the we ight of the
item . Vehicle speed is the most significant factor.
For example, in a frontal collision at a speed of
30 mph (48 km/h), the forces acting on a 10-lb
(4 .5 kg) object are about 20 times the normal
we ight of the item. This means that the we ight
of the item would sudden ly be about
200 lbs. (90 kg). You can imagine the injuries
that a 200 lbs. (90 kg) item flying freely through
the passenger compartment cou ld cause in a col­
lision like this .
& WARNING
----
Weak, damaged or improper straps used to
secure items to tie-downs can fail during hard
braking or in a collision and cause serious per­
sonal injury.
- Always use suitable mounting straps and
properly secure items to the tie-downs in
the luggage compartment to help prevent
items from shifting or flying forward as dan­
gerous missiles.
- When the rear seat backrest is folded down,
always use suitable mounting straps and properly secure items to the tie-downs in
the luggage compartment to help prevent
items from flying forward as dangerous
missi les into the passenger compartment.
- Never attach a child safety seat tether strap
to a tie-down.
131

Driving safety

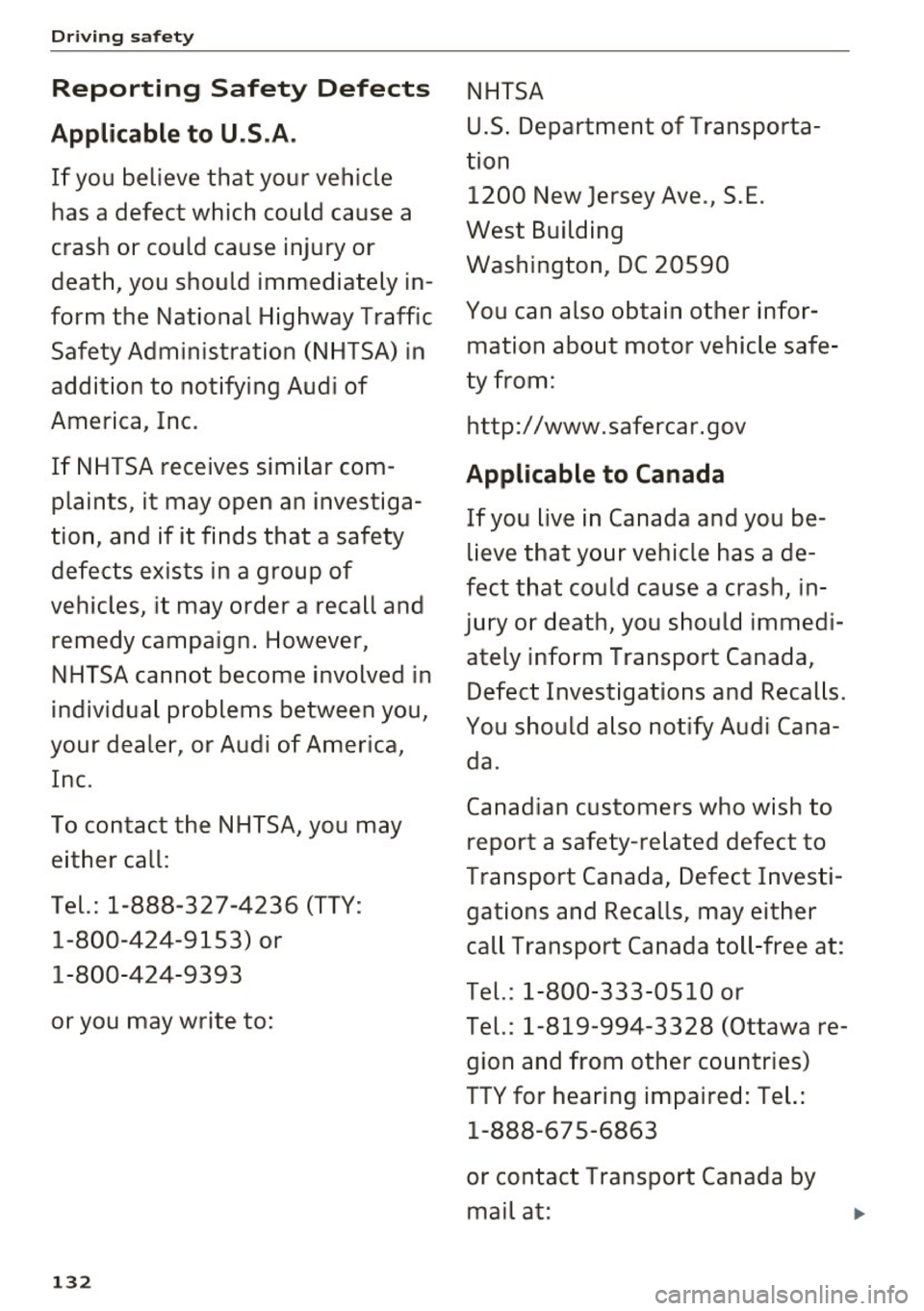

Reporting Safet y Defects
Appl icable to U .S .A .
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in­
form the National Highway Traffic Safety Administration (NHTSA) in
addition to notifying Audi of
America, Inc.
If NHTSA receives similar com ­
plaints, it may open an investiga­
tion, and if it finds that a safety
defects exists in a group of
vehicles, it may order a recall and
remedy campaign . However,
NHTSA cannot become involved in
individual problems between you,
your dea ler , or Audi of America,
Inc.
To contact the NHTSA, you may either call:
Tel.: 1-888-327-4236 ( TTY:
1-800-424-9 153) or
1-800 -424 -9393
or you may write to :
132
NHTSA
U.S . Department of Transporta­
tion
1200 New Jersey Ave ., S.E .
West Building Washington, DC 20590
You can also obtain other infor­ mation about motor vehicle safe ­
ty from:
http:/ /www .safercar.gov
Applicable to Canada
If you live in Canada and you be­
lieve that your vehicle has a de­
fect that could cause a crash, in­
jury o r death, you should immedi­
ately inform Transport Canada, Defec t Investigations and Recalls.
You should also notify Audi Cana­ da .
Canadian customers who wish to report a safety-related defect to
Transport Canada, Defect Invest i­
gations and Recalls , may either
call Transport Canada to ll-free at:
Tel. : 1- 800 -333-0510 or
Tel.: 1-819-994-3328 (Ottawa re­
gion and from other countr ies)
T TY for hea ring impaired: Te l.:
1-888-67 5-6863
or contact Transport Canada by mail at :

Transport Canada M otor Vehicle Safety Investig a­
tions Laboratory
80 Noel Street
Gatin eau, QC
J8Z OAl
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
road safety/menu. htm
Active rollover
protection system
Function
The rollover protection system protects vehicle
occupants in the event of a rollover.
----Fig. 123 Rear seats: rollbar dep loy men t range
~ The active rollover protection system consists of: ..... 0
S: -two rollbars 00
Driving safety
-the safety belts with belt tensioners
- the windshield frame
- the rollover sensors
The active rollover protection system provides
additional safety in the event of a rollover. With ­
in milliseco nds, sensors dep loy two rollbars lo­
cated beh ind the head restraints in the rear seats
Qfig . 124.
The rollbars, reinforced windshield frame and
belt tensioners help protect front and rear pas­
sengers in the event of a rollover.
The rollover protection system functions when
the power top is both open and closed .
A WARNING
Do not use the area behi nd the rear seat head
r estraints
Q fig. 123 as a storage area. T h is is
the area where the rollbars deploy. If the roll­
over protection system is triggered, objects
place there can be propelled through the ve ­
hicle and make it more difficult for the roll­
bars to deploy. This increases the risk for seri­
ous or life-threatening in juries.
When is rollover protection deployed?
Rollover protection deploys in a collision or roll­
over.
Depending on the collision, sensors throughout
the vehicle and the control modu le trigger the
rollover system to deploy.
For safety reasons, rollover protection also de­
ploys during front, side and rear collisions above
a certain level of severity.
133

Driving safety

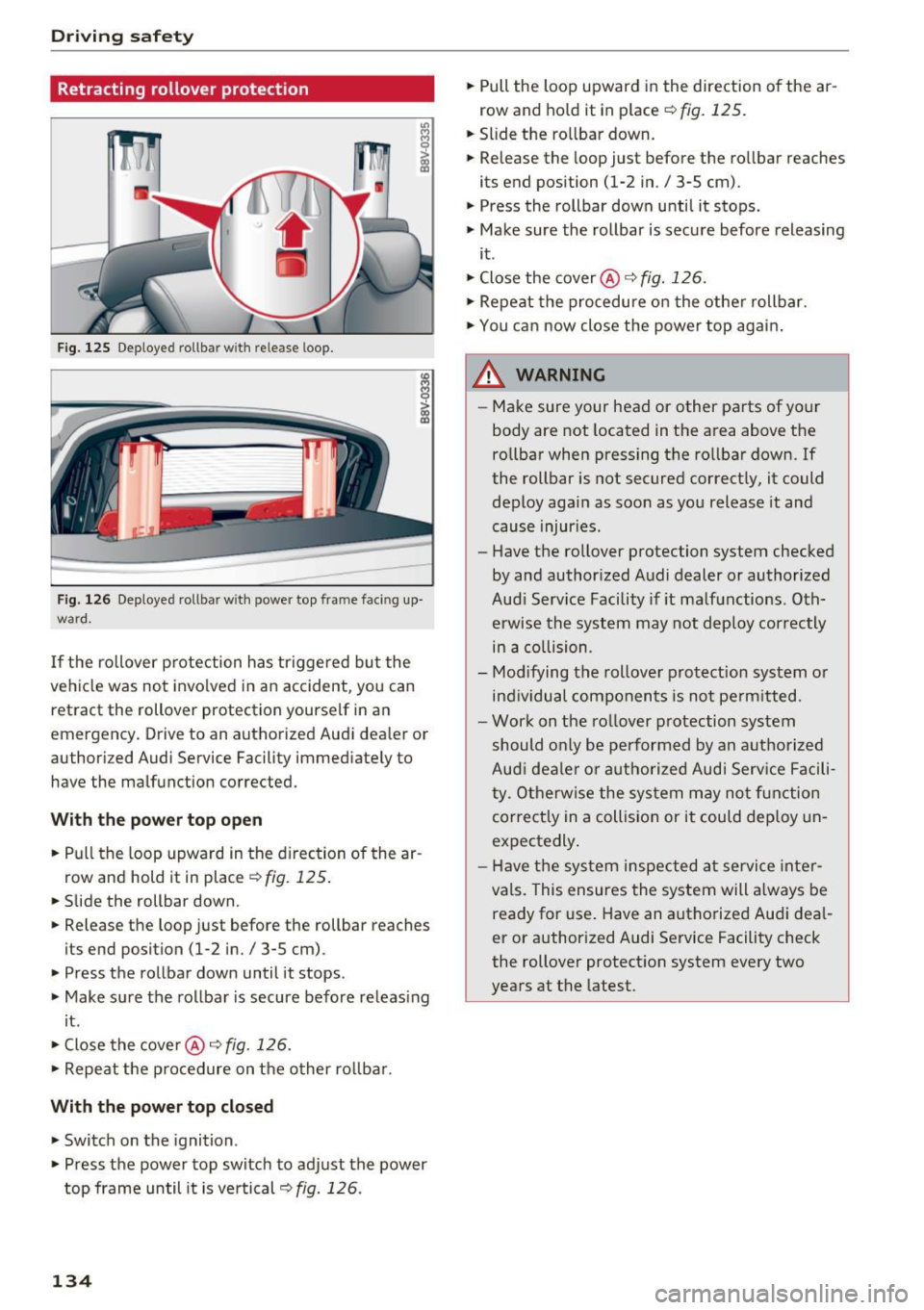

Retracting rollover protection
Fig. 12 5 Deployed rollbar w ith re lease loop.
--------
F ig. 126 Deployed rollbar w ith power top frame facing up­
ward.
If the ro llover p rotection h as triggered bu t the
ve hicle was no t invo lved in an accident, you can
retract the rollover protection yourself in an
emergency . Drive to an authorized Aud i dea ler or
author ized Audi Service Facility immediately to
have the malfunction corrected.
With the power top open
• Pull the loop upward in the d irection of the ar­
row and hold it in place~
fig. 125 .
• Slide the rollbar down.
• Release the loop just before the rollbar reaches
its end position (1-2 in./ 3-5 cm).
• Press the ro llbar down until it stops .
• Make su re the rollbar is secure before re leas ing
it.
• Close the cover@ 9
fig. 126.
• Repe at the p rocedure on t he other ro llba r.
With the power top closed
• Switch on the ignition .
• Press the power top switch to adjust the power
top frame until it is ve rtical 9
fig. 126 .
134
• Pull the loop upward in the direction o f the ar­
row and ho ld it in p lace
9fig. 125.
• Slide the ro llbar down.
• Release the loop just before the ro llbar reaches
its end position (1-2 in./ 3-5 cm).
• Press the rollbar down until it stops.
• Make sure the rollbar is secure before releasing
it .
• Close the cover @'*
fig. 126.
• Repeat the procedu re on the othe r rollbar.
• You can now close the powe r top agai n.
A WARNING
-
-Make sure your head or other parts of yo ur
body are not located in the a rea above the
rollbar when pressing the ro llbar down. If
the rollbar is not secured correct ly, it could
deploy again as soon as you release it and
cause injur ies.
- Have the rollover protection system checked
by and author ized Audi dealer or authorized
Aud i Serv ice Facility if it malfunctions. O th­
erwis e the syst em may not deploy correctly
in a collision.
- Mod ifying the rollover pro tection system or
in dividual componen ts is not pe rm itted.
- Work on the ro llover p rotection system
should only be performed by an a uthorized
Aud i dea le r o r auth o riz e d Audi Serv ice Facili­
ty. Otherwise the system m ay no t fu n ction
correctly in a collision or it could deploy un­
expectedly .
- H ave t he sys tem inspected a t service inte r­
vals. This ensures the system will always be ready for use . Have an autho rized Aud i dea l­
er or author ized Audi Service Facility check
the rollover protect ion system every two
years at the latest.

<( co .... N r--­N .... 0 ,.__
> co

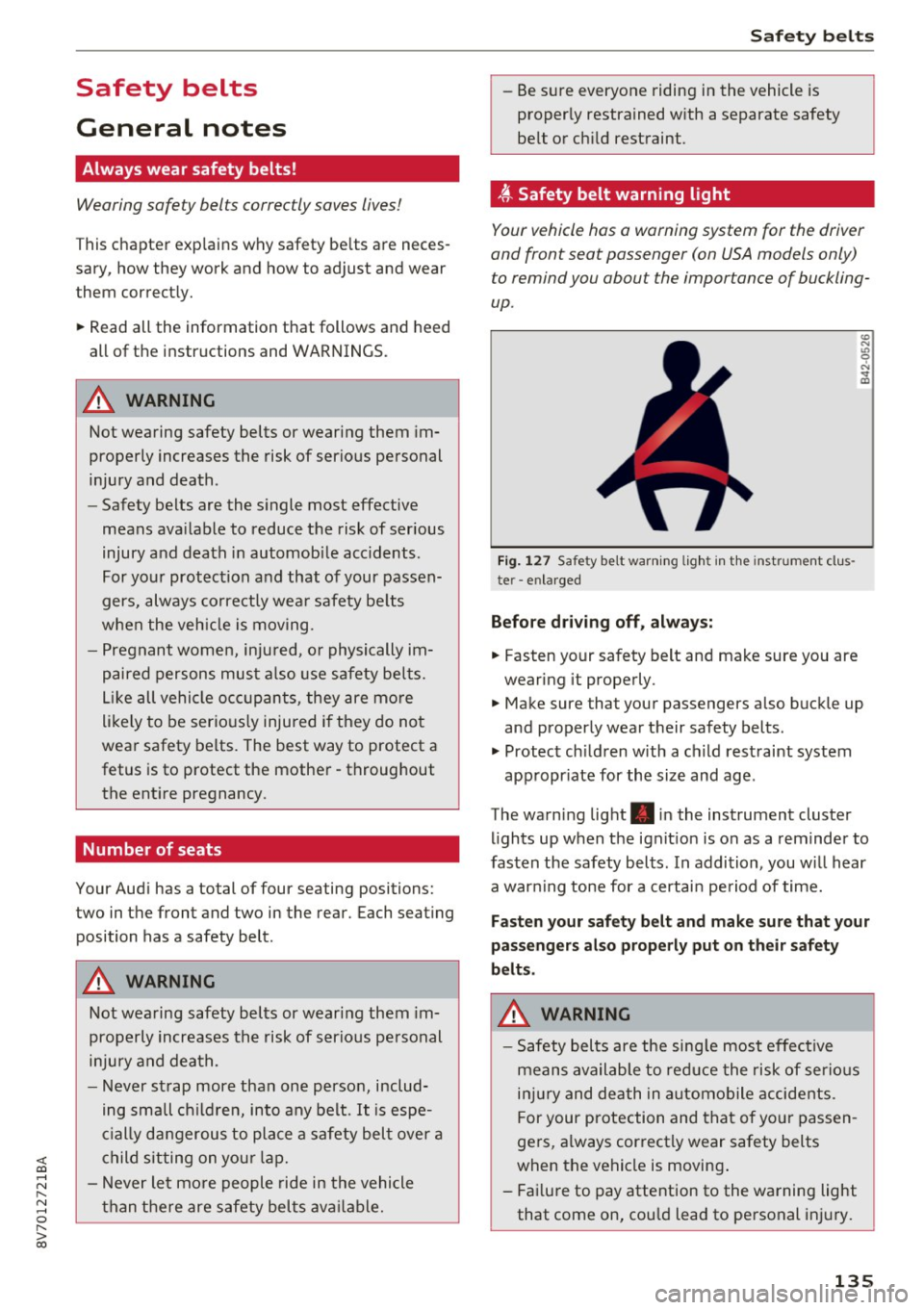

Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are neces­
sary, how they work and how to adjust and wear
them correctly.
~ Read all the information that follows and heed
all of the instructions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death .
- Safety belts are the single most effective
means available to reduce the risk of serious
injury and death in automobile accidents.
For your protection and that of your passen­
gers, always correctly wear safety belts
when the vehicle is moving.
- Pregnant women, injured, or physically im­
paired persons must also use safety belts.
Like all vehicle occupants, they are more
likely to be seriously injured if they do not
wear safety belts. The best way to protect a
fetus is to protect the mother -throughout
the entire pregnancy.
Number of seats
Your Audi has a total of four seating positions:
two in the front and two in the rear. Each seating position has a safety belt .
A WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death.
- Never strap more than one person, includ­
ing small children, into any belt.
It is espe­
cially dangerous to place a safety belt over a
child sitting on your lap.
- Never let more people ride in the vehicle
than there are safety belts available.
Safety belts
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
belt or child restraint.
~ Safety belt warning light
Your vehicle hos o warning system for the driver
and front seat passenger (on USA models only)
to remind you about the importance of buckling­
up .
Fig. 127 Safety belt warn ing light in the instrument clus ­
te r -enlarged
Before driving off, always:
.. Fasten your safety belt and make sure you are
wearing it properly.
.,, N
"' 0 ..:, ., m
~ Make sure that your passengers also buckle up
and properly wear their safety belts .
~ Protect children w ith a ch ild restraint system
appropr iate for the size and age .
The warning light . in the instrument cluster
lights up when the ignit ion is on as a reminder to
fasten the safety belts. In addition, you wil l hear
a warning tone for a certain period of time.
Fasten your safety belt and make sure that your
passengers also properly put on their safety
belts.
A WARNING
-
- Safety belts are the sing le most effective
means available to reduce the risk of serious
injury and death in automobile accidents.
F or your protection and that of your passen­
gers, a lways correctly wear safety belts
when the vehicle is moving .
- Failure to pay attention to the warning light
that come on, could lead to personal injury.
135

Safety belts
Why use safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for peo­
ple riding in vehicles .

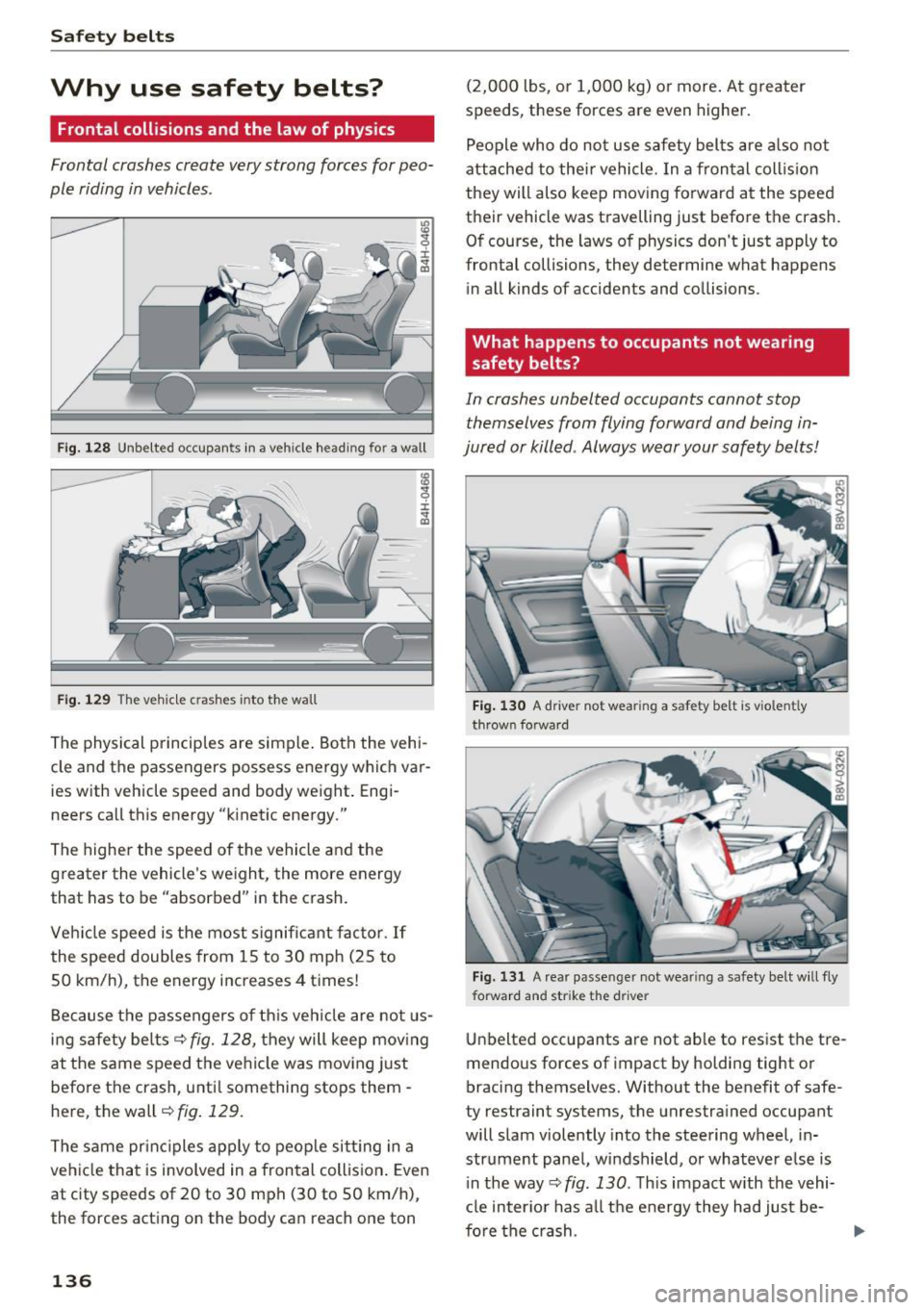

Fig. 128 Unbelted occupants in a veh icle headi ng fo r a wall
Fig. 129 The vehicle c rashes into the wall
The physical principles are simple. Both the vehi­
cle and the passengers possess energy which var­ ies w ith vehicle speed and body weight . Engi­
neers call this energy "k inetic energy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Vehicle speed is the most significant factor .
If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 times!
Because the passengers of this vehicle are not us­
ing safety belts~
fig. 128, they will keep moving
at the same speed the vehicle was moving just
before the crash, unti l something stops them -
here, the wall~
fig. 129.
The same principles apply to people sitting in a
vehicle that is involved in a frontal collision . Even
at c ity speeds of 20 to 30 mph (30 to 50 km/h),
the forces acting on the body can reach one ton
136 (2,000 lbs,
or 1,000 kg) or more. At greater
speeds, these forces are even higher.
People who do not use safety belts are also not
attached to their vehicle. In a frontal collision
they will also keep moving forward at the speed
their vehicle was travelling just before the crash.
Of course, the laws of physics don't just apply to
frontal collisions, they determine what happens in all kinds of accidents and collisions .
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed . Always wear your safety belts!
Fig. 130 A drive r not wea ring a safety belt is vio len tly
th row n forward
Fig. 131 A rea r passe nge r not wea ring a safety belt will fly
forward and st rike t he drive r
Unbelted occupants are not ab le to resist the tre­
mendous forces of impact by holding tight or
bracing themselves. Without the benefit of safe­
ty restraint systems, the unrestrained occupant
will slam violently into the steering wheel, in­
strument panel, windshield, or whatever else is i n the way~
fig. 130 . This impact w ith the vehi­
cle inter ior has all the energy they had just be-
fo re the crash .
Ill>

<( co ..... N
" N ..... 0 r--. > 00
Never rely on airbags alone for protection. Even
when they deploy, airbags provide on ly additional
protection. Airbags are not supposed to dep loy in
all kinds of accidents. A lthough your Audi is
equipped with airbags, all vehicle occupants, in­
cluding the dr iver, must wear safety belts cor ­
rectly in order to minimize the risk of severe in­
jury or death in a crash .
Remember too, that airbags will deploy only
once and that your safety belts are always there
to offer protect ion in those accidents in w hich
a ir bags are not supposed to deploy or when they
have already deployed. Unbelted occupants can
also be thrown o ut of the vehicle where even
more severe or fatal injur ies can occur.
It is also important for the rear passengers to
wear safety belts correctly . Unbelted passengers
in the rear seats endanger not only themse lves
but also the driver and other passengers
¢fig . 131. In a frontal collision they will be
thrown forward violently, where they can hit and
injure the driver and/or front seat passenger .
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision. It 's simply
not true!

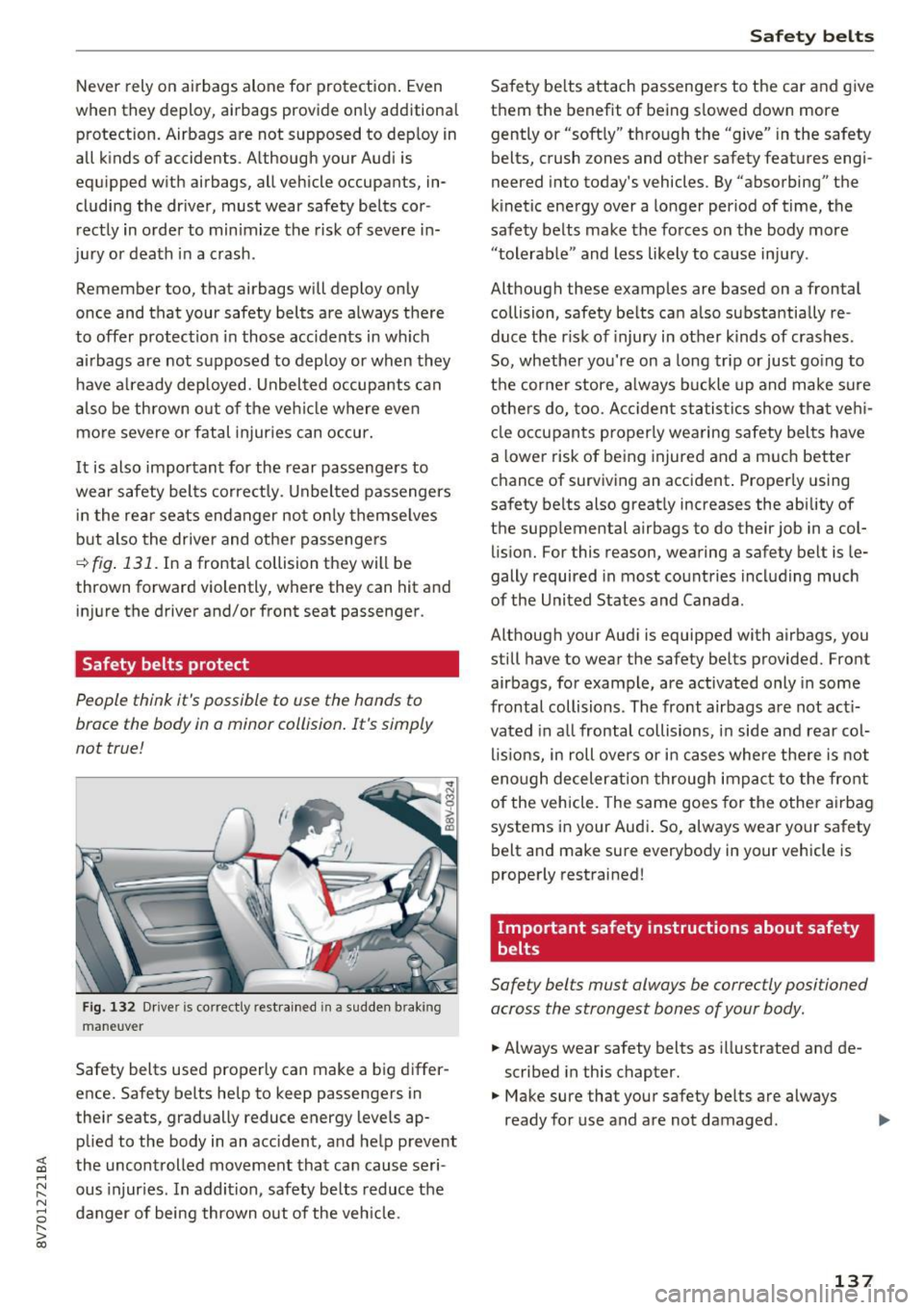

Fig. 132 Dr iver is correctly restra ined in a sudden b raking
maneuver
Safety belts used properly can make a big differ­
ence. Safety belts help to keep passengers in
their seats, gradually reduce energy levels ap­
plied to the body in an accident, and help prevent
the uncontrolled movement that can cause se ri­
ous injur ies. In addition, safety belts reduce the
danger of being thrown out of the vehicle .
Safety belts
Safety belts attach passengers to the car and give
them the benefit of being slowed down more
gently or "softly" through the "give" in the safety
belts, crush zones and other safety features engi­
neered into today's vehicles. By "absorbing" the
kinetic ene rgy over a longer period of time, the
safety belts make the forces on the body more
"tolerab le" and less likely to ca use injury .
Although these examples are based on a frontal collision, safety be lts can also substantially re ­
duce the r isk of injury in other k inds of crashes.
So, whether you're on a long trip or just going to
the corner store, always buckle up and make sure
others do, too. Acciden t statist ics show that vehi­
cle occupants properly wearing safety belts have
a lower risk of being injured and a much better
chance of surviving an accident . Properly using
safety belts also greatly increases the ability of
the supp lemental airbags to do their job in a col­
lision. For this reason, wearing a safety belt is le­
gally required in most count ries including much
of the United States and Canada .
Although your Aud i is equipped with airbags, you
still have to wear the safety belts provided. Front
airbags, for example, are activated only in some
frontal collisions. The front airbags are not act i­
vated in all frontal collisions, in side and rear col­
lisions , in roll overs or in cases where there is not
enough deceleration through impact to the front
of the vehicle. The same goes for the other air bag
systems in your Audi . So, always wear your safety
belt and make sure everybody in your vehicle is
properly restrained!
Important safety instructions about safety
belts
Safety belts must always be correctly positioned
across the strongest bones of your body.
.,. Always wear safety belts as illustrated and de­
scribed in this chapter.
.,. Make sure that your safety belts are always
ready for use and are not damaged.
137

Safety belts
_& WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death . Safety belts can work only
when used correctly.
-Always fasten your safety belts correctly be­ fore driving off and make sure all passen­
gers are correctly restrained.
- For maximum protection, safety belts must
always be positioned properly on the body.
- Never strap more than one person, includ­
ing small children, into any belt.
- Never place a safety belt over a child sitting
on your lap.
- Always keep feet in the footwell in front of
the seat while the vehicle is being driven.
- Never let any person ride with their feet on
the instrument panel or sticking out the
window or on the seat.
- Never
remove a safety belt while the vehicle
is moving . Doing so will increase your risk of
being injured or killed .
- Never wear belts twisted.
- Never wear belts
over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position.
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­
duce the overall effectiveness of the system.
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely .
- Never use comfort clips or devices that cre­
ate slack in the shoulder belt. However, spe­
cial clips may be required for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an acci­
dent . Inspect belts regularly.
If webbing,
bindings, buckles, or retractors are dam-
138
aged, have belts replaced by an authorized
Audi dealer or qualified workshop.
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thorized Audi dealer. Replacement may be
necessary
even if damage cannot be clearly
seen . Anchorages that were loaded must al­
so be inspected.
- Never
remove, modify , disassemble, or try
to repair the safety belts yourself .
-Always keep the belts clean. Dirty belts may not work properly and can impair the func­
tion of the inertia reel¢
table Internal
cleaning on page 226.
Safety belts
Fastening safety belts
Safety first -everybody buckle up!

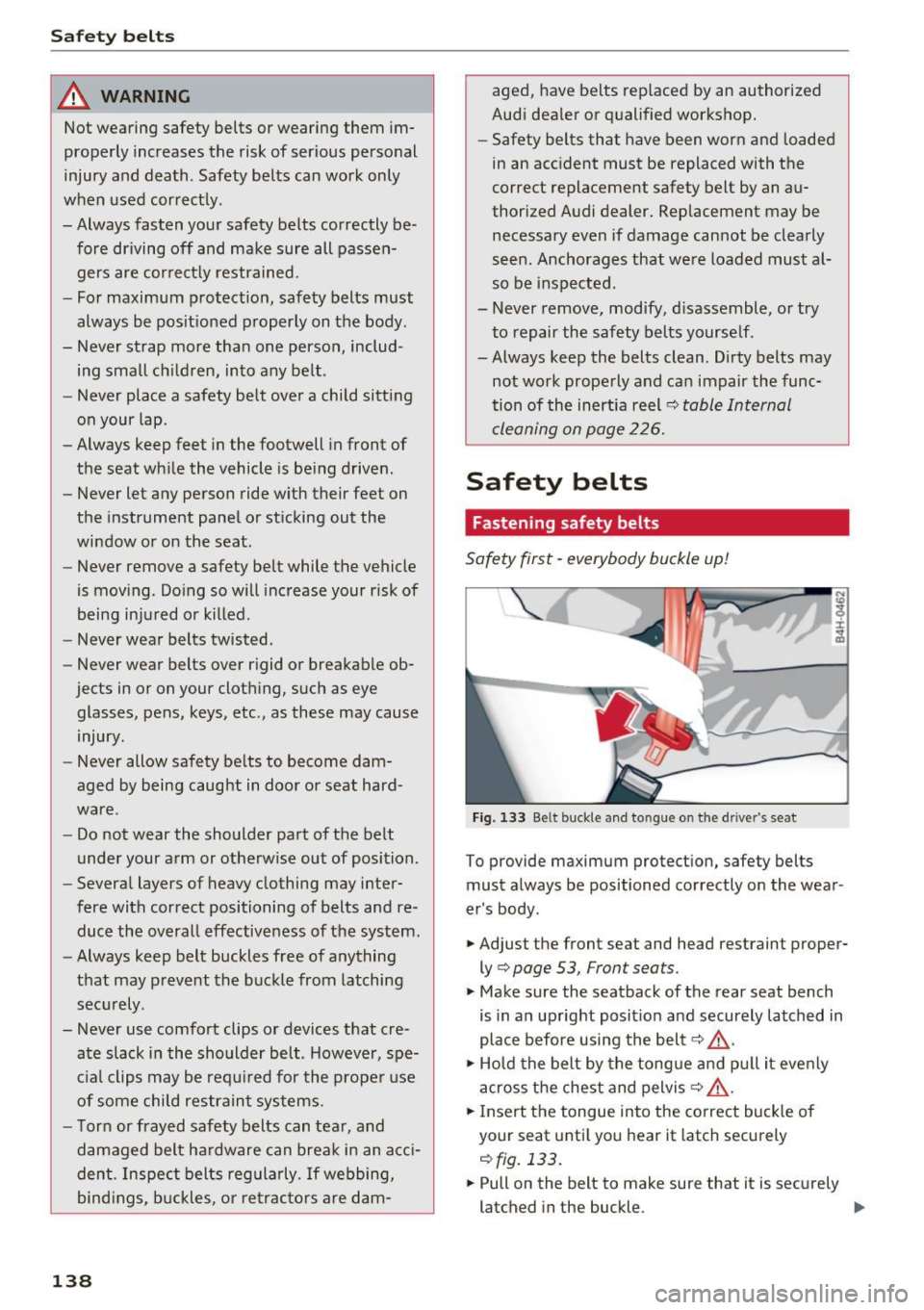

Fig. 133 Be lt buckle and tongue on the driver's seat
To provide maximum protection, safety belts
must always be positioned correctly on the wear­
er's body .
.. Adjust the front seat and head restraint proper­
ly¢
page 53, Front seats.
.. Make sure the seatback of the rear seat bench
is in an upright position and securely latched in
place before using the belt
q ,&. .
.. Hold the belt by the tongue and pull it evenly
across the chest and pelvis¢,&..
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
¢fig. 133.
.. Pull on the belt to make sure that it is securely
latched in the buckle. .,,._

<( co ..... N
" N ..... 0 r--. > 00

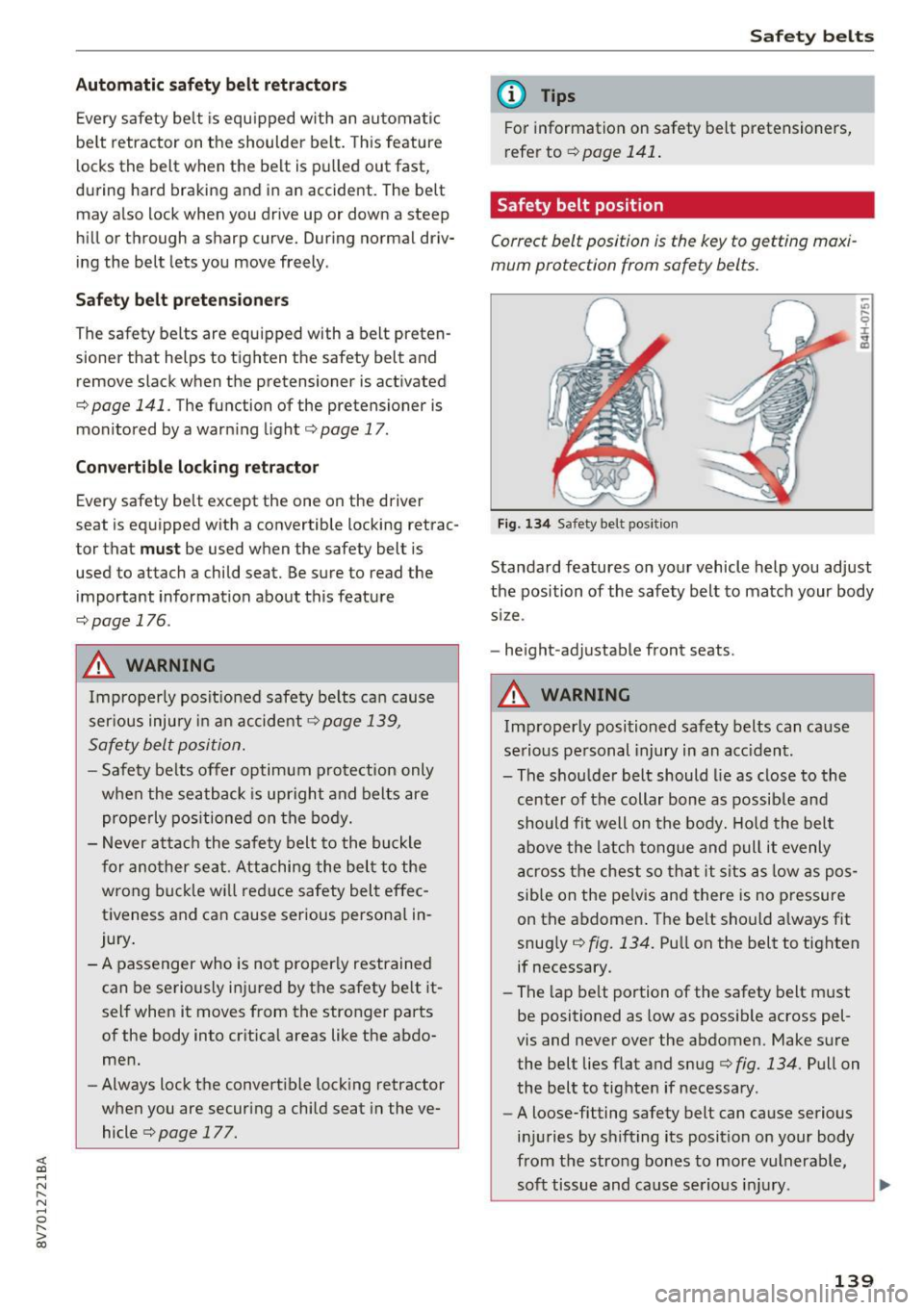

Automatic safety belt r etractors
Every safety be lt is equ ipped wi th an automatic
be lt retractor on the shoulder belt. Th is feature
l ocks the belt when the belt is p ulled out fast,
during hard braking and in an accident. The belt
may also lock when you drive up or down a steep
h ill or through a sharp curve. During normal driv­
ing the belt lets you move freely .
Safety be lt pret en sioner s
The safety belts are equipped with a belt preten­
sioner that helps to tighten the safety belt and
remove slack when the pretensioner is activated
c:> page 141. The function of the pretensioner is
monitored by a warning light
c:> page 17.
Con vertible loc king retractor
Every safety belt exc ept the one on the driver
seat is equipped with a convertible locking retrac­
tor that
mu st be used when the safety belt is
used to attach a child seat. Be sure to read the
important information about this featu re
c:> page 176.
A WARNING
Improperly posit ioned safety be lts ca n cause
ser ious injury in an accident ¢
page 139,
Safety belt position.
-Safety belts offer optimum protection only
when the seatback is upr ight and belts are
prope rly pos itioned on the body.
- Never a ttac h the safety belt to the buckle
for ano ther sea t. Att aching the bel t to the
wrong buck le w ill reduce safety belt effec­
tiveness and can cause serious persona l in ­
jury .
- A passenger who is no t properly restrained
can be se riously in jured by the safety be lt it­
self when it moves from the stronger parts of the body into cr itical areas like the abdo­
men .
- Always lock the convert ible lock ing retractor
when you are secur ing a child seat in the ve­
hicle
c:> page 177.
Safet y bel ts
(D Tips
For information on safety belt pretensioners,
refer to
r=:; page 141 .
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts.
F ig. 134 Safety be lt pos it ion
Standard features on your vehicle help you adjust
the position of the safety belt to match your body s iz e.
- he ight -adjustable front seats .
A WARNING
'"' -Improperly posi tioned safety belts can cause
se rious pe rsonal injury in an acc ident.
- The s hou lder belt should lie as close to the
center of the collar bone as possib le and
should fit well on the body . Ho ld the belt
above the latch tongue and pull it evenly
a cross the chest so tha t it sits as low as pos­
sible on the pe lvis and there is no p ressure
on the abdomen . The belt should a lways fit
snug ly
r=:; fig. 134. Pu ll on the belt to tighten
if necessary.
- The lap be lt portion of the safety belt must
be positioned as low as possible across pel­
vis and never over the abdomen . Make s ure
the belt lies flat and snug
c:> fig. 134. Pull on
the bel t to tighten if necessary .
- A loose-fitting safety belt can cause serious
in ju ries by s hifting its position on your body
from the stro ng bones to more vulnerable,
soft tissue and cause se rious i nju ry .
~
139

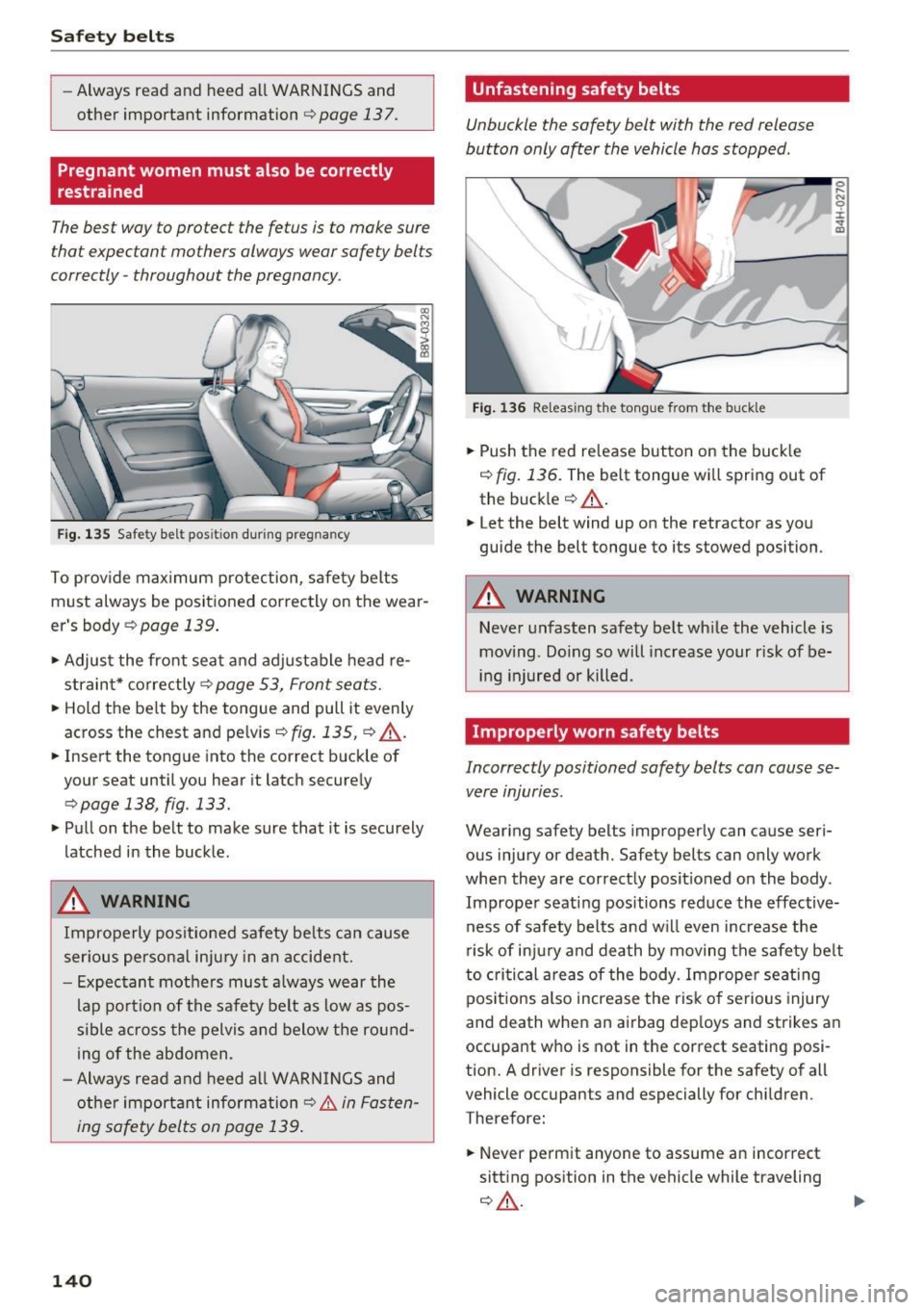

Safe ty belts
-Always read and heed all WARNINGS and
other important information
r::;, page 13 7.
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make sure
t hat expec tan t mothers always wear safety bel ts
correctly -throughout the pregnancy .
Fig . 135 Safety belt pos ition dur ing preg nan cy
To prov ide max imum protection, safety belts
must always be positioned correctly on the wear­
er 's body
,:::;, page 139.
• Adjust the front sea t and adjustable head re ­
straint * correctly
r::;, page 53, Front seats.
• Hold the belt by the tongue and pull it even ly
across the chest and pe lvis
r::;, fig. 135, r::;, A .
• Insert the tongue into the correct b uckle of
your seat until you hear it latch securely
r::;, page 138, fig . 133.
• Pull on the belt to make sure that it is securely
latched in the buckle.
A WARNING
Improperly pos itioned safety be lts can cause
ser ious persona l inju ry in an accident.
- Expectan t mothe rs must a lways wear the
lap po rtion of the safe ty belt as low as pos­
sible across the pelvis and below the ro und­
ing of the abdomen.
- Always rea d and heed a ll WARN INGS and
othe r important information
r::;, .&. in Fasten­
ing safety belts on page 139 .
140
Unfastening safety belts
Unbuckle the safety belt with the red release
button only ofter the vehicle hos stopped .
.,,
Fig. 136 Releasing the tongue from the buckle
• Push the red re lease button on the buck le
r::;, fig. 136. The belt tongue wi ll spring out of
the buck le
r::;, A .
• Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position .
A WARNING
Never unfasten safety belt while the vehicle is
moving . Do ing so will increase your r isk of be­
ing inj ured or killed .
Improperly worn safety belts
0 ,-. N 0 :i: .. m
Incorrectly positioned safety belts con cause se­
vere injuries.
Wear ing safety belts improperly can cause seri­
ous injury or deat h. Safety belts can only work
whe n they are correct ly posit ioned on the body .
Imprope r seating positions red uce the effective­
ness of safety belts and w ill even increase the
risk of inj ury and death by moving the safety belt
to c rit ic al areas of the body . Imprope r seating
pos itions also increase the ris k of serious injury
and death when an airbag dep loys and strikes a n
occupant who is not in the correct seating posi­
tion. A driver is responsible for the safety of all
vehicle occupants and especially for chi ldren .
Therefore:
• Never permit anyone to assume an incorrect
sitt ing position in the vehicle while traveling
¢ A -
