Sea ts and stor age
Cargo net/cargo bag
Applies to: vehicles with luggage compartment cargo net/bag
The cargo net prevents light objects from sliding,
and it can also be used as a cargo bag* .
Fig. 67 Luggage compartment: cargo net spread out
Fig . 68 Luggage compartment: cargo net hung up
Observe the safety precautions c::> page 130,
Storing cargo correctly .
Cargo net
• To secure the cargo net, first hang the front
hoo ks in the tie-downs then hang the rea r
hooks -arrows -
c::> fig. 67.
Cargo bag
• To secure the cargo bag, hang both plastic re­
ta iners in the tie-downs @ and the eyelets @
in the hooks @.
_8. WARNING
The cargo bag ca n hold a max imum o f 10 lbs
(5 kg). Heav ier objects wi ll not be secured
properly, which increases the risk of injury.
60
Storage hooks
Applies to: vehicles with bag hooks
Fi g. 69 Luggage compartment: bag hooks (rig ht s ide)
You can also use the hooks to hang light p urses,
bags, etc.
_8. WARNING
The hooks can ho ld a maximum weight o f 6 lb
(3 kg) . Heavier objects are not adequately se­
cured. There is ris k of personal injury .
Reversible mat
Applies to: vehicles with reversible mat
The reversible mat protects the luggage com­
partment and bumper from dirt and scratches.
Fig. 70 Luggage co mpa rtment: reversible mat with back­
r est folde d forward (example)
You can use the reversib le mat w ith the dirt-re­
s istant side or the decorative side . After loading
or unloading, fold up the reversible mat and
close the luggage compartment lid. Only store
the revers ible mat if it is dry.

<( co .... N ,.__
N .... 0 ,.__
> co
Warm and cold Climate control system
Description
The climate control system* cools and removes
humidity from the air in the vehicle interior. It is
the most effect ive when the windows and power
top are closed. If there is a build-up of heat in­
side the vehicle, ventilation can help to speed up
the cooling process. Because of this, the windows
can be opened from outside.
¢ page 34, Conven­
ience opening/closing
Pollutant filter
The pollutant filter removes pollutants such as
dust and pollen from the air.
Key recognition
Different climate control system* settings are
stored and assigned to the remote control key
that is be ing used .
A WARNING
Poor visibility can lead to accidents.
- For safer driving, keep all windows free of
ice, snow and fog.
- Become familiar as quickly as possible with
the correct use and function of the climate
control system, especially with the defrost­
ing and defogging function.
- When the temperature is below freezing,
only use the windshield washer system after
the windshield has been warmed by the cli­
mate control system. The washer fluid could
Warm and cold
freeze on the windshield and impair visibili­
ty.
@ Note
- If you suspect that the climate contro l sys­
tem is damaged, switch the system off to
prevent further damage and have it checked
by an authorized Audi dealer or authorized
Audi Service Facility.
- Repairs to the Audi climate control system
require special technical knowledge and
special tools. See an authorized Audi dealer
or authorized Audi Service Fac ility.
@) For the sake of the environment
Reducing the amount of fuel used also re­
duces the amount of pollutants that enter the
air.
(D Tips
- To prevent interference with the heating
and cooling output and to prevent the win­
dows from fogging over, the air intake in
front of the windshield must be free of ice, snow or leaves.
- Condensation from the cooling system* can dr ip and form a pudd le of water under the
vehicle. This is normal and does not mean
there is a leak.
- The energy management system may switch
the seat heating* or rear window defroster
off temporarily . These systems are available
again as soon as the energy supply has been
restored.
- The flows through the vents under the rear
window. Make sure the openings are not
covered when placing clothing on the lug­
gage compartment cover.
61

Warm and cold

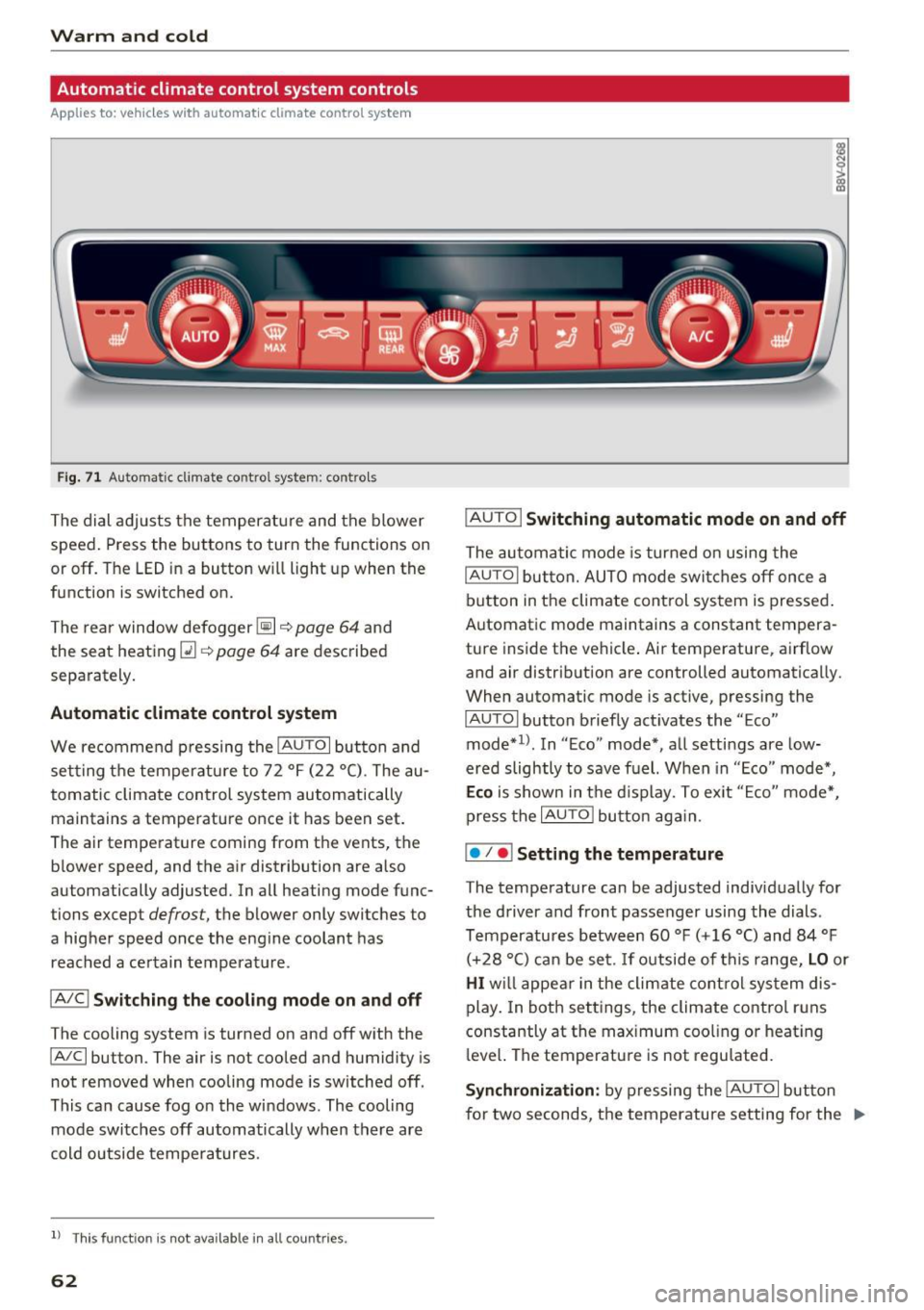

Automatic climate control system controls
Applies to: vehicles w ith a utomat ic cl ima te contro l system
F ig. 71 Au to m atic climate co ntrol system : co ntro ls
The dial adj usts the temperature and the blower
speed . Press the buttons to turn the func tions on
or off. The LED in a button w ill light up when the
function is switched on.
The re ar window defogger ~~
page 64 and
the sea t heat ing
Q] ~ page 64 are described
separately.
Automatic climate control system
We recomme nd p res sing the IA UTOI but ton and
sett ing t he temper atu re to 72 °f (2 2 °C) . The au­
tomatic climate con trol sys tem autom atically
maintains a temperature once it has been set.
The air tempe rature coming from t he vents , the
b lower speed, and the a ir distribution are also
automatically adjusted. In all heating mode func­
tions except
defrost, the blower only switc hes to
a hig her speed once the eng ine coolant has
reached a ce rtain temperat ure .
IAI C! Switching the cool ing mode on and off
The cooling system is turned on and off w ith the
IA/C l button . The air is not cooled and humidi ty is
not removed when cooling mode is switched off .
This ca n cause fog o n the windows . The cooling
mo de switches off automatically when there are
col d ou tside tempe ra tures.
l) Thi s func tion is not a vailable in all c oun tries.
62
IAU TO I Switching automatic mode on and off
The au tom atic mode is tur ned o n usi ng the
IAU TOI bu tton. AUTO mo de swi tches off once a
b utton in t he climate cont rol sys tem is pressed .
Automat ic mode maintains a constant tempera ­
ture inside t he vehicle . Air temperature, a irflow
and air distrib ution are controlled automatically.
When automatic mode is active, pressing the
IAU TOI button briefly act ivates the "Eco"
mode*
1>. In "E co " mode* , all settings are low­
ered slightly to save f uel. W hen in "Eco " mod e*,
Eco is s hown in t he d is p lay. T o exit "E co " mo de*,
pres s the
IAU TO ! bu tto n ag ain .
I• I • I Setting the temperature
T he tempe rature can be adjusted indiv id ually for
the d river and front passenger using the dials .
Temperatur es betw een 60 °f (+ 16 °C) and 84 °f
( + 28 ° C) ca n be se t. If outside of this range,
LO or
HI will appear i n the climate cont ro l sys tem dis­
play . In both sett ings , the climate co ntro l ru ns
constantly at the max imum coo ling or heat ing
l eve l. Th e temperature is not regu lated.
Synchronization : by pressing the IAU TO I but ton
f or two seconds, t he temperatu re setting for the ..,_

<( co ..... N
" N ..... 0 r--. > 00
driver's side is transferred to the front passeng­
er's side. This applies a temperature change to
the front passenger's side.
~ Adjusting the blower
To prevent the windows from fogging over, the
blower should always run at a low speed. You can
adjust the volume of air generated by the blower
to your preference. To have the blower regulated
automatically, press the
IAUTO ! button.
Adjusting the air distribution
The air distribution is adjusted wi th the ~' [M]
and ~ buttons . To have the air distribution regu­
lated automatically, press the
!AUTOI button.
The round air vents in the cockpit are adjustable
c::>page 63.
To keep the front sid e windows from fogging up
in damp weather, we recommend opening the
side air vents and tilting them to the side
c::> page 63 , Adjusting the air vents.
Foot vents are located under the front seats and
adjustable vents on the end of the center console
to heat the rear of the vehicle.
Iii Switching the defroster on and off
The windshield and s ide windows are defrosted
or cleared of condensation as quickly as possible.
The maximum amount of air flows ma inly from
the vents below the windshie ld. Recirculation
mode switches off. The temperature is controlled
automatically. In the
00 setting, the I A/Cl cooling
mode switches on automatically, depending on
the outside air temperature.
The
IAUTOI button switches the defroster off.
16') 1 Switching recirculation mode on and off
The recirculation mode can be turned on manual­
ly or automat ica lly* .
- Switching manual rec irculat ion mode on and
off: press
1 - 1 The LED light up when switched
on .
- Automatic* recirculation mode: auto rec ircula­
t ion needs to be activated in the MMI. Select:
the
IM ENU I button > Car > Systems* control
button
> AC > Auto recirculation . The air quali-
Warm and cold
ty sensor that is designed for diesel and gaso­
line exhaust automatically switches the recircu­
lation mode on or off depending on the level of
pollutants in the outside air.
In recirculation mode, the air inside the vehicle is
circulated and filtered. This prevents the unfi l­
tered air outside the vehicle from entering the
vehicle interior. We recommend sw itching recir­
culation mode on when driving through a tunnel
or when sitt ing in traffic
c::> .&, .
The
l c recirculation mode off.
T he system switches to recircu lation mode w hen
driving in reverse when the engine is cold.
A WARNING
-
You should not use the recirculation mode for
an extended period since no fresh a ir is drawn
in. With the air-conditioning switched off, the
windows can fog up, which increases the risk
of an acc ident .
Adjusting the air vents
Fig. 72 Cockpit: adjust ing the a ir vents
®
®
Fig. 73 Applies only to Canada : vent : adjusting the airflow
setting. A) D iffused B) Direct
The following sett ings are possible c::> fig. 72:
63

Warm and cold
-@ Air flow amount
- @ Air flow d irection
- @
(Applies only to Canada) airf low setting (dif-
fused or direct)
To adjust the
air fl ow amount , turn the ridged
outer adjusting r ing
(D ¢ fig . 72. To stop the a ir
f low, tur n the adjusting ring all the way to the
right.
To adjust the
air fl ow dir ect ion , turn the air vent
grill insert @.
(Applies only to Canada) To adjust the air f low
se tting s,
pull or press the center adjustment
ring @¢
fig. 72:
-Diff used air flow (indirect @): press in the cen­
ter adjusting ring gently
¢ fig. 73.
-Di re ct air flow (strong @): pull the center ad­
justment ring out lightly¢
fig. 73.
ear window defogger
The LED in the~ button turns on when the func­
tion is sw itched on¢
page 62, fig. 71 .
If the rear window defogger is activated when
the ignition is switched on, the battery manage­
ment determ ines based on the battery charge if
it is possible to turn on . Otherwise, the rear win ­
dow defogger functions with the engine running
and switches off automatically after approxi­ mately 10 -20 minutes, depending on the out­
side temperature.
To prevent the rear w indow defogger from
sw itching off automatically, p ress and hold the
00 butto n for mo re than th ree seconds. This re­
mains stored up to approx imately 15 minutes af­
ter turn ing off the ignition.
Seat heating
A ppl ies to: ve hicles w ith heated seats
The seat heating has three leve ls. The LED in the
button indicates the selected heat level
¢ page 62, fig. 71 .
.. To switc h the seat heating on, press the~ but­
ton once .
.. To switch to a lower leve l, press the~ button
again.
64
.. To switch the seat heating off, press the~ but-
ton repeated ly until the LED turns off.
The seat heat ing swi tches a utomatically from
setting 3 to setting 2 after 10 minutes.
When seat heating should not be switched
on
Do n ot turn the seat heat ing on unde r the follow­
i ng circumstances:
- The seat is unoccupied.
- The seat is covered with a seat cover.
- The seat is covered with a child seat.
- The seat is damp or wet.
A WARNING
Indiv iduals w ith reduced sensitivity to pain or
temperature could develop burns when us ing
the seat heat ing funct ion. To reduce the r isk
of injury, these ind ividuals should not use
seat heating.
(D Note
To avoid damage to the heating elements in
the seats, do not kneel on the seats or place heavy loads on a small area of the seat .
(D Tips
-The setting for the seat heating on the driv­
er's s ide is assigned to the key that is in use.
- If the front passenger's seat heating is
turned on, it w ill not turn on again automat­
ically if more than 10 minutes have passed
between switch ing the ignit ion off and
switching it on aga in.

<( co .... N ,.__
N .... 0 ,.__
> co
Driving
General information
The first 1,000 miles (1,500 km) and afterwards
The new engine needs to be run-in during the
first 1,000 miles (1,500 km) .
For the first 600 miles (1,000 kilom eter s):
.,. Do not use full throttle.
.,. Do not drive at engine speeds that are more
than 2/3 of the max imum permitted RPM .
.,. Avo id high engine speeds .
From 600 to 1,000 mile s (1 ,000 to
1 ,500 kilomete rs ):
.,. Speeds can gradually be increased to the maxi­
mum perm issible road or engine speed .
During and aft er bre ak-in pe riod
.,. Do not rev the engine up to high speeds when it
is cold. This applies whether the transmission is
in
N (Neutral) or in gear .
After th e br eak-in p eriod
.,. Do not exceed maximum engine speed under
any circumstances .
.,. Upshift into the next higher gear
before reach­
ing the red area at the end of the tachometer
scale
opage 10.
During the first few hours of driving, the engine's
internal friction is higher than later when all the
mov ing parts have been broken in. How well this
break-in process is done depends to a considera­
b le extent on the way the veh icle is driven during
the first 1,000 miles (1,500 kilometers).
CD Note
Extremely high eng ine speeds are automati­
cally reduced. However, these rpm lim its are
programmed for an engine well run-in, not a
new engine.
@) For the sake of the environment
Do not dr ive with unnecessarily high eng ine
speeds - upshifting early saves fuel, reduces
noise and protects the environment.
D riv ing
Driving through water on roads
Note the following to avo id vehicle damage when
driv ing th rough water, for examp le on flooded
roads:
- The water must not be any higher than the bot­
tom of the vehicle body .
- Do not dr ive faster than walk ing speed .
.&, WARNING ..__
After driv ing through water or mud, the brak­
i ng effect can be reduced d ue to moistu re on
the brake d iscs and bra ke pads. A few careful
brake applications should dry off the brakes.
CD Note
Vehicle components such as the engine,
transmission, suspension o r electrical system
can be severely damaged by d riving throug h
water.
(D Tips
- Determine the depth before dr iving through
water.
- Do not stop the vehicle, d rive in reverse or
switch t he engine off when d riving through
water .
- Keep in mind that oncom ing vehicles may
create waves that raise the water level and
ma ke it too deep for yo ur vehicle to drive
through safe ly.
- Avoid dr iv ing th rough salt wate r (cor rosion) .
Economical and environ­
mentally-friendly driving
General
Your personal style of driving will determine the
economy of your vehicle, as well as exhaust and
noise levels.
Fuel economy, env ironmental impact, and wear
on your engine, brakes and t ires largely depend
on three factors:
- your personal driving style
- operat ing cond itions
- technical limitations
65

Driving
If you anticipate what you need to do next and
drive economically, you can easily cut your fuel
consumption by 10-15 percent. This section will
give you some tips on how you can help the envi­ ronment and your pocketbook.
(D Tips
The consumption estimates as published by ENVIRONMENTAL PROTECTION AGENCY
(EPA) and Transport Canada may not corre­
spond to your actual consumption on the
road, which will vary depending upon vehicle
load and speed, road and weather conditions,
trip length, etc.
Drive smoothly and keep a lookout ahead
Vehicles use the most fuel when they are acceler­
ating.
.. Avoid unnecessary accelerating and braking .
Vehicles use the most fuel when they are acceler­
ating. If you anticipate what is going to happen next, you will need to brake less and, thus, accel­
erate less. Let the vehicle coast whenever possi ­
ble -for example when you see that the next traf­
fic light is red.
Avoid full throttle
Driving at moderate speeds saves fuel and im­
proves your mileage.
.. Try and keep well below your car's maximum
speed .
Accelerating gently reduces fuel consumption,
engine wear, and does not disturb the environ­ ment.
Fuel consumption, exhaust emissions and engine
noise increase disproportionately at high speeds.
If you drive at approximately three quarters of
top speed, fuel consumption will be reduced by
one half . Never drive faster than the posted
speed limit and weather conditions permit.
66
· Reducing unnecessary idling
Even when your car is just idling it burns up fuel .
.. Shut the engine off when you are not driving
the vehicle .
.,. Do not warm up the vehicle by letting the en-
gine run at idle .
It is efficient to switch off the engine when stop­
ped at railroad crossings and long red lights.
Turning the engine off for just 30 -40 seconds
saves more fuel than is burned by starting the
engine again .
It takes a long time for the engine to warm up
fully when it is running at idle . However, wear
and noxious emissions are especially high when
the engine is warming up . So you should drive
away as soon as you start the engine and avoid running at high rpms while the engine is still
warming up .
@ Note
Do not leave engine idling unattended after
starting. If warning lights should come on to
indicate improper operation, they would go
unheeded. Extended idling also produces
heat, which could result in overheating or
other damage to the vehicle or other proper­
ty.
Regular maintenance
A badly tuned engine unnecessarily wastes a lot
of fuel.
.. Have your vehicle serviced at regular intervals.
By having your vehicle regularly serviced by an
Audi dealer helps to ensure that it runs properly
and economically. The condition of your vehicle
not only affects its safety and ability to hold its
value, it also affects
fuel consumption.
Check your oil each time you fill your tank.
The amount of oil used is related to engine load
and speed.
It is normal for the oil consumption of a new en­
gine to reach its lowest value after a certain mile -
age has been driven . ..,.

<( co ..... N
" N ..... 0
" > 00

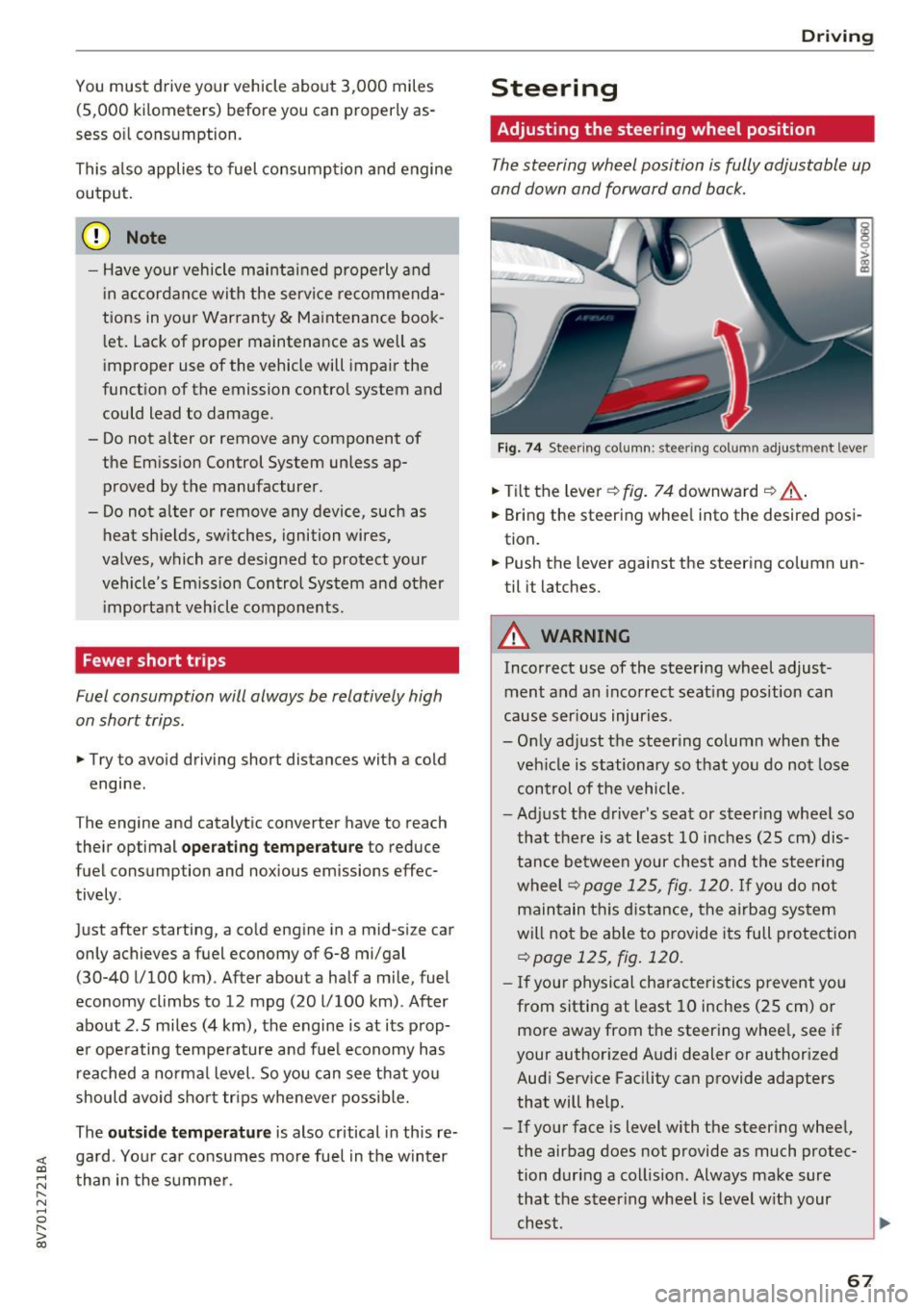

You must drive your vehicle about 3,000 miles
(5 ,000 kilomet ers) before you can prop erly as­
sess oil consumption .
This also applies to fuel consumption and engine output.
(D Note
- Have your vehicle maintained properly and
in accordance with the service recommenda­
tions in your Warranty
& Maintenance book­
let. Lack of proper maintenance as well as
improper use of the vehicle will impair the
function of the emission control system and
could lead to damage .
- Do not alter or remove any component of
the Emission Control System unless ap­ proved by the manufacturer.
- Do not alter or remove any device, such as
heat shields, switches, ignition wires,
valves, which are designed to protect your
vehicle's Emission Control System and other i mportant vehicle components.
Fewer short trips
Fuel consumption will always be relatively high
on short trips.
• Try to avoid driving short dist ances with a cold
engine .
T he eng ine and catalytic converter have to reach
their optimal
operating temperature to reduce
fuel consump tion and noxious emissions effec­
tively .
Just after starting, a cold engine in a mid-si ze car
only achieves a fuel economy of 6-8 mi/gal (30-40 l/100 km) . After about a half a mile , fuel
economy climbs to 12 mpg (20 l/100 km) . After
about
2.5 miles (4 km), the engine is at its prop­
er operating temperature and fuel economy has reached a normal level. So you can see that you
should avoid sho rt trips whenever possible.
The
outside temperature is also critical in this re­
gard . Your car consumes more fuel in the winter
than in the summer .
Driving
Steering
Adjusting the steering wheel position
The steering wheel position is fully adjustable up
and down and forward and back.
Fig. 74 St ee ring co lumn: steering col umn adjus tmen t leve r
• Tilt the lever¢ fig. 74 downward ¢&_ .
• Bring the steering wheel into the desired posi­
tion.
• Push the lever against the steering column un­
til it latches.
A WARNING
-
Incorrect use of the steering wheel adjust­ ment and an incorrect seating position can
cause serious injuries .
- Only adjust the steering column when the
vehicle is stationary so that you do not lose control of the vehicle.
-
- Adjust the driver's seat or steer ing wheel so
that there is at least 10 inches (25 cm) dis­
tance between your chest and the steering
wheel
r:!> page 125, fig. 120. If you do not
maintain this distance, the airbag system
will not be able to provide its full protection
r:!> page 125, fig. 120.
-If your physical characteristics prevent you
from sitting at least 10 inches (25 cm) or
more away from the steering wheel, see if
your authorized Audi dealer or authorized
Audi Service Facility can provide adapters
that will help.
- If your face is level with the steering wheel,
the airbag does not provide as much protec­
tion during a collision . Always make sure
that the steering wheel is level with your
chest.
~
67

Driving
-Always hold the steering wheel with your
hands in the 9 o'clock and 3 o'clock posi ­
t ions to reduce the risk of injury if the airbag
deploys.
- Never hold the steer ing whee l in the 12
o'clock posit ion or w ith both hands on the
rim or the center of the steer ing whee l.
Holding the steering wheel inco rrectly s ig­
nificantly incr eas es the risk of inju ry to the
hands, arms and head if t he ai rbag dep loys .
Starting and stopping
the engine (vehicles with
an ignition Lock)
Starting the engine with the key
A pp lies to: ve hicles w ith ig ni tio n lock
The ignition is switched on and the engine start­
ed with the key in the ignition .
Fig . 75 Ig nit io n key pos it ions
Stee ring lock
If the steering whee l w ill not turn, the steering
lock is engaged .
• To release the steering wheel lo ck, inse rt the
k ey in the ignition lock and tu rn t he key in the
-d irection of the arrow- while tu rning the steer­
ing wheel.
Sw itching the ignition on/off
• To switc h the ignition on, turn the ign ition key
to posit io n @ . The need le in the tachometer
moves into the
READY position.
• To switc h the ign ition off , turn the ignit ion key
to position @. T he need le in the tachometer
moves into the
OFF position.
68
Starting the engine
Yo ur vehicle is equipped wi th la unch control. As
soon a s you have turned the ign ition key to pos i­
tion @, the engine will start automatically .
• Press the bra ke pedal and move the sele ctor
lever to the P o r N posi tion.
• Turn the key br iefly to posit ion @. The ignition
key a utomat ica lly returns to position @. Do not
press the accelerator peda l when do ing this .
Major elec trical equipmen t sw itches off tempora ­
rily when s tarting the engine .
If the engine does not start immediately, stop
t h e starti ng p ro cedure by t urnin g the ig nition key
to pos it ion @ and repeat after 30 seconds.
Automatic start malfunction
If the ~ in dicator light (gasoline engine) tur ns
on and the message
Engine start sy stem mal ­
fun ction . Please contact Servic e
appears, t he re
i s an a utom atic start ma lf u n ct io n.
To start the engine, hold t he ignit io n key in pos i­
t ion @ unt il the engine r uns.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction correc ted.
A WARNING
- Never a llow th e engine to run in confined
sp aces, because this increases the r is k of as­
phyxia tion.
- Never remove the ignition key from the igni­
tion lock while t he ve hicl e is moving . Other­
w ise the s teering lo ck will engage and yo u
will no t be ab le to s teer the vehicle.
- P lease no te th at the b rake booster and p ow­
e r steering only wo rk when the engine is
r u nning . When the engine off, you must use
more force to steer or bra ke the vehicle . Be­
cause the usua l steering and braking capa­
bility is not available, the risk of acc idents or
in juries increases.
- Always take the veh icle key with yo u when
leaving the vehicle, even for a sho rt pe riod
of t ime. This applies part icularly when chil­
dren remain in the vehicle. Otherwise the

<( co .... N r--­N .... 0 ,.__
> co
children could start the engine or operate
electrical equipment such as power win­
dows.
0 Note
-Avoid high engine speed, fu ll throttle, and
heavy engine load as long as the engine has
not reached operating temperature yet . You
could damage the engine.
- The engine cannot be started by pushing or
towing .
@ For the sake of the environment
Do not let the engine run while parked to
warm up. Begin driving immediately. This re­
duces unnecessary emissions.
- If it is difficu lt to turn the key to position
(D, turn the steering wheel back and forth
slightly to release the steering wheel lock .
- Some noise after starting the engine is nor­
mal and is no cause for concern.
- If the battery is disconnected and recon­
nected, you have to hold the ign ition key in
position
(D for five seconds for the engine
to start.
-After switching the ignition off, you can on ly
remove the key when the selector lever is in
the "P" (Park) position. After that, the selec­
tor lever is locked .
Stopping the engine with the key
Appl ies to: ve hicles w ith igni tion loc k
Stopping the engine
~ Bring the vehicle to a full stop.
~ Turn the key to posit ion @. The need le in the
tachometer moves into the
OFF position .
Releasing the steering lock
Requirement: the selector lever must be in P.
~ Remove the ignition key in position@
¢page 70, fig. 76 ¢ _A.
~ Turn the steering wheel until you hear the
steering wheel lock.
Driving
T he locked steering helps prevent vehicle theft .
A WARNING
-
-Never turn off the engine before the vehicle
has come to a complete stop . The full func­
tion of the brake booster and the power
steer ing is not guaranteed. You must use
more force to turn or brake. Because you
cannot stee r and brake as you usually
wou ld, this could lead to acc idents and seri­
ous injuries.
- Never remove the ignition key from the igni­
tion lock while the vehicle is moving. Other­
wise, the steering lock could suddenly en­
gage and you wou ld not be able to steer the
vehicle.
- Please note that the brake booster and pow­
er steering only work when the engine is
running . When the engine off, you must use
more force to steer or brake the vehicle. Be­
cause the usua l steering and braking capa­
b ili ty is not available, the risk of acc idents or
injuries increases.
- Always take the vehicle key with you when
leaving the vehicle, even for a short period
of t ime . This applies part icularly when chil ­
dren remain in the vehicle . Otherwise the
children could start the engine or operate
electrical equipment such as power win­
dows.
- For safety reasons, always park the vehicle
w ith the selector lever in the P position.
Othe rw ise, there is the risk that the vehicle
could rol l.
- After the engine has been switched off, the
radiator fan can continue to run for up to 10
minutes -even with the ignition switched
off . It can also switch on again after some
time if the coolant temperature rises as the
result of heat bu ildup or if the engine com­
partment is heated by the sun's rays and the
engine is hot.
(D Note
If the engine has been under heavy load for
an extended period of time, heat builds up in
the engine compartment after the engine is
switched off -there is a risk of damaging the
69
